OpenDDS::DCPS::RtpsUdpDataLink Class Reference

#include <RtpsUdpDataLink.h>

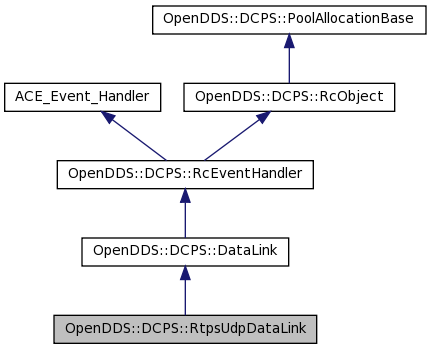

Inheritance diagram for OpenDDS::DCPS::RtpsUdpDataLink:

[legend]

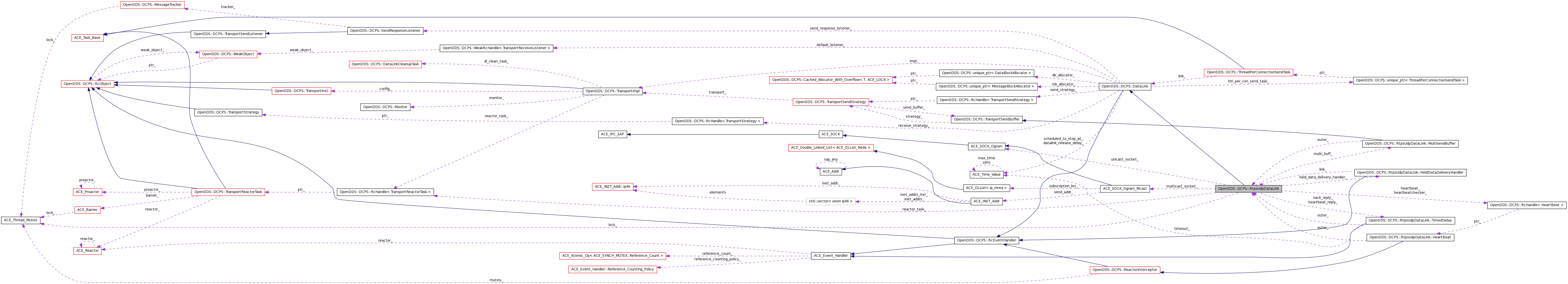

Collaboration diagram for OpenDDS::DCPS::RtpsUdpDataLink:

[legend]

List of all members.

Classes
struct	HeartBeat
class	HeldDataDeliveryHandler
struct	InterestingAckNack
struct	InterestingRemote
	Data structure representing an "interesting" remote entity for static discovery. More...
struct	MultiSendBuffer
struct	ReaderInfo
struct	RemoteInfo
struct	RtpsReader
struct	RtpsWriter
struct	TimedDelay
struct	WriterInfo
Public Member Functions
	RtpsUdpDataLink (RtpsUdpTransport &transport, const GuidPrefix_t &local_prefix, const RtpsUdpInst &config, const TransportReactorTask_rch &reactor_task)
bool	add_delayed_notification (TransportQueueElement *element)
void	do_remove_sample (const RepoId &pub_id, const TransportQueueElement::MatchCriteria &criteria, ACE_Guard< ACE_Thread_Mutex > &guard)
RtpsUdpInst &	config () const
ACE_Reactor *	get_reactor ()
bool	reactor_is_shut_down ()
ACE_SOCK_Dgram &	unicast_socket ()
ACE_SOCK_Dgram_Mcast &	multicast_socket ()
bool	open (const ACE_SOCK_Dgram &unicast_socket)
void	received (const RTPS::DataSubmessage &data, const GuidPrefix_t &src_prefix)
void	received (const RTPS::GapSubmessage &gap, const GuidPrefix_t &src_prefix)
void	received (const RTPS::HeartBeatSubmessage &heartbeat, const GuidPrefix_t &src_prefix)
void	received (const RTPS::HeartBeatFragSubmessage &hb_frag, const GuidPrefix_t &src_prefix)
void	received (const RTPS::AckNackSubmessage &acknack, const GuidPrefix_t &src_prefix)
void	received (const RTPS::NackFragSubmessage &nackfrag, const GuidPrefix_t &src_prefix)
const GuidPrefix_t &	local_prefix () const
void	add_locator (const RepoId &remote_id, const ACE_INET_Addr &address, bool requires_inline_qos)
void	get_locators (const RepoId &local_id, OPENDDS_SET(ACE_INET_Addr)&addrs) const
ACE_INET_Addr	get_locator (const RepoId &remote_id) const
void	associated (const RepoId &local, const RepoId &remote, bool local_reliable, bool remote_reliable, bool local_durable, bool remote_durable)
bool	check_handshake_complete (const RepoId &local, const RepoId &remote)
void	register_for_reader (const RepoId &writerid, const RepoId &readerid, const ACE_INET_Addr &address, OpenDDS::DCPS::DiscoveryListener *listener)
void	unregister_for_reader (const RepoId &writerid, const RepoId &readerid)
void	register_for_writer (const RepoId &readerid, const RepoId &writerid, const ACE_INET_Addr &address, OpenDDS::DCPS::DiscoveryListener *listener)
void	unregister_for_writer (const RepoId &readerid, const RepoId &writerid)
virtual void	pre_stop_i ()
virtual void	send_final_acks (const RepoId &readerid)
Private Types
typedef void(RtpsUdpDataLink::*	PMF )()
typedef std::pair< RepoId, InterestingRemote >	CallbackType
Private Member Functions
virtual void	stop_i ()
virtual void	send_i (TransportQueueElement *element, bool relink=true)
RemoveResult	remove_sample (const DataSampleElement *sample, void *context)
virtual TransportQueueElement *	customize_queue_element (TransportQueueElement *element)
virtual void	release_remote_i (const RepoId &remote_id)
virtual void	release_reservations_i (const RepoId &remote_id, const RepoId &local_id)
bool	requires_inline_qos (const GUIDSeq_var &peers)
typedef	OPENDDS_MAP_CMP (RepoId, OPENDDS_VECTOR(RepoId), GUID_tKeyLessThan) DestToEntityMap
void	add_gap_submsg (RTPS::SubmessageSeq &msg, const TransportQueueElement &tqe, const DestToEntityMap &dtem)
RtpsUdpSendStrategy *	send_strategy ()
RtpsUdpReceiveStrategy *	receive_strategy ()
	OPENDDS_MAP_CMP (RepoId, RemoteInfo, GUID_tKeyLessThan) locators_
typedef	OPENDDS_MAP_CMP (RepoId, ReaderInfo, GUID_tKeyLessThan) ReaderInfoMap
typedef	OPENDDS_MAP_CMP (RepoId, RtpsWriter, GUID_tKeyLessThan) RtpsWriterMap
void	end_historic_samples (RtpsWriterMap::iterator writer, const DataSampleHeader &header, ACE_Message_Block *body)
typedef	OPENDDS_MAP_CMP (RepoId, WriterInfo, GUID_tKeyLessThan) WriterInfoMap
typedef	OPENDDS_MAP_CMP (RepoId, RtpsReader, GUID_tKeyLessThan) RtpsReaderMap
typedef	OPENDDS_MULTIMAP_CMP (RepoId, RtpsReaderMap::iterator, GUID_tKeyLessThan) RtpsReaderIndex
void	deliver_held_data (const RepoId &readerId, WriterInfo &info, bool durable)
size_t	generate_nack_frags (OPENDDS_VECTOR(RTPS::NackFragSubmessage)&nack_frags, WriterInfo &wi, const RepoId &pub_id)
bool	process_heartbeat_i (const RTPS::HeartBeatSubmessage &heartbeat, const RepoId &src, RtpsReaderMap::value_type &rr)
bool	process_hb_frag_i (const RTPS::HeartBeatFragSubmessage &hb_frag, const RepoId &src, RtpsReaderMap::value_type &rr)
bool	process_gap_i (const RTPS::GapSubmessage &gap, const RepoId &src, RtpsReaderMap::value_type &rr)
bool	process_data_i (const RTPS::DataSubmessage &data, const RepoId &src, RtpsReaderMap::value_type &rr)
void	durability_resend (TransportQueueElement *element)
void	send_durability_gaps (const RepoId &writer, const RepoId &reader, const DisjointSequence &gaps)
ACE_Message_Block *	marshal_gaps (const RepoId &writer, const RepoId &reader, const DisjointSequence &gaps, bool durable=false)
void	send_nackfrag_replies (RtpsWriter &writer, DisjointSequence &gaps, OPENDDS_SET(ACE_INET_Addr)&gap_recipients)
template<typename T , typename FN >
void	datareader_dispatch (const T &submessage, const GuidPrefix_t &src_prefix, const FN &func)
void	send_nack_replies ()
void	send_directed_nack_replies (const RepoId &writerId, RtpsWriter &writer, const RepoId &readerId, ReaderInfo &reader)
void	process_requested_changes (DisjointSequence &requests, const RtpsWriter &writer, const ReaderInfo &reader)
void	process_acked_by_all_i (ACE_Guard< ACE_Thread_Mutex > &g, const RepoId &pub_id)
void	send_heartbeats ()
void	send_directed_heartbeats (OPENDDS_VECTOR(RTPS::HeartBeatSubmessage)&hbs)
void	check_heartbeats ()
void	send_heartbeats_manual (const TransportSendControlElement *tsce)
void	send_heartbeat_replies ()
typedef	OPENDDS_MULTIMAP_CMP (RepoId, InterestingRemote, DCPS::GUID_tKeyLessThan) InterestingRemoteMapType
typedef	OPENDDS_MAP_CMP (RepoId, CORBA::Long, DCPS::GUID_tKeyLessThan) HeartBeatCountMapType
typedef	OPENDDS_SET (InterestingAckNack) InterestingAckNackSetType
void	send_ack_nacks (RtpsReaderMap::iterator rr, bool finalFlag=false)
Static Private Member Functions
static void	extend_bitmap_range (RTPS::FragmentNumberSet &fnSet, CORBA::ULong extent)
Private Attributes
TransportReactorTask_rch	reactor_task_
GuidPrefix_t	local_prefix_
ACE_SOCK_Dgram	unicast_socket_
ACE_SOCK_Dgram_Mcast	multicast_socket_
OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer	multi_buff_
RtpsWriterMap	writers_
RtpsReaderMap	readers_
RtpsReaderIndex	reader_index_
ACE_Thread_Mutex	lock_
CORBA::Long	best_effort_heartbeat_count_
OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay	nack_reply_
OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay	heartbeat_reply_
RcHandle< HeartBeat >	heartbeat_
RcHandle< HeartBeat >	heartbeatchecker_
InterestingRemoteMapType	interesting_readers_
InterestingRemoteMapType	interesting_writers_
HeartBeatCountMapType	heartbeat_counts_
InterestingAckNackSetType	interesting_ack_nacks_
HeldDataDeliveryHandler	held_data_delivery_handler_
Static Private Attributes
static bool	force_inline_qos_ = false
	static member used by testing code to force inline qos
Friends
class	::DDS_TEST

---

Detailed Description

Definition at line 54 of file RtpsUdpDataLink.h.

---

Member Typedef Documentation

typedef std::pair<RepoId, InterestingRemote> OpenDDS::DCPS::RtpsUdpDataLink::CallbackType [private]

Definition at line 481 of file RtpsUdpDataLink.h.

typedef void(RtpsUdpDataLink::* OpenDDS::DCPS::RtpsUdpDataLink::PMF)() [private]

Definition at line 380 of file RtpsUdpDataLink.h.

---

Constructor & Destructor Documentation

OpenDDS::DCPS::RtpsUdpDataLink::RtpsUdpDataLink	(	RtpsUdpTransport &	transport,
		const GuidPrefix_t &	local_prefix,
		const RtpsUdpInst &	config,
		const TransportReactorTask_rch &	reactor_task
	)

Definition at line 80 of file RtpsUdpDataLink.cpp.

References defined(), if(), local_prefix_, OpenDDS::DCPS::DataLink::receive_strategy_, Security, and OpenDDS::DCPS::DataLink::send_strategy_.

  : DataLink(transport, // 3 data link "attributes", below, are unused
             0,         // priority
             false,     // is_loopback
             false),    // is_active
    reactor_task_(reactor_task),
    multi_buff_(this, config.nak_depth_),
    best_effort_heartbeat_count_(0),
    nack_reply_(this, &RtpsUdpDataLink::send_nack_replies,
                config.nak_response_delay_),
    heartbeat_reply_(this, &RtpsUdpDataLink::send_heartbeat_replies,
                     config.heartbeat_response_delay_),
    heartbeat_(make_rch<HeartBeat>(reactor_task->get_reactor(), reactor_task->get_reactor_owner(), this, &RtpsUdpDataLink::send_heartbeats)),
    heartbeatchecker_(make_rch<HeartBeat>(reactor_task->get_reactor(), reactor_task->get_reactor_owner(), this, &RtpsUdpDataLink::check_heartbeats)),
#if defined(OPENDDS_SECURITY)
    held_data_delivery_handler_(this),
    security_config_(Security::SecurityRegistry::instance()->default_config()),
    local_crypto_handle_(DDS::HANDLE_NIL)
#else
    held_data_delivery_handler_(this)
#endif
{
  this->send_strategy_ = make_rch<RtpsUdpSendStrategy>(this, local_prefix);
  this->receive_strategy_ = make_rch<RtpsUdpReceiveStrategy>(this, local_prefix);
  std::memcpy(local_prefix_, local_prefix, sizeof(GuidPrefix_t));
}

Here is the call graph for this function:

---

Member Function Documentation

bool OpenDDS::DCPS::RtpsUdpDataLink::add_delayed_notification

(

TransportQueueElement *

element

)

Definition at line 117 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::TransportQueueElement::publication_id(), and writers_.

Referenced by OpenDDS::DCPS::RtpsUdpSendStrategy::add_delayed_notification().

{
  RtpsWriterMap::iterator iter = writers_.find(element->publication_id());
  if (iter != writers_.end()) {

    iter->second.add_elem_awaiting_ack(element);
    return true;
  }
  return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::add_gap_submsg	(	RTPS::SubmessageSeq &	msg,
		const TransportQueueElement &	tqe,
		const DestToEntityMap &	dtem
	)			[private]

Definition at line 891 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::durable_, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::expected_, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::GAP, OpenDDS::DCPS::gen_find_size(), OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), OpenDDS::DCPS::GUID_UNKNOWN, OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::TransportQueueElement::publication_id(), OpenDDS::DCPS::TransportQueueElement::sequence(), OpenDDS::DCPS::SequenceNumber::SEQUENCENUMBER_UNKNOWN(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::DCPS::TransportQueueElement::subscription_id(), and writers_.

Referenced by customize_queue_element().

{
  // These are the GAP submessages that we'll send directly in-line with the
  // DATA when we notice that the DataWriter has deliberately skipped seq #s.
  // There are other GAP submessages generated in response to reader ACKNACKS,
  // see send_nack_replies().
  using namespace OpenDDS::RTPS;

  const SequenceNumber seq = tqe.sequence();
  const RepoId pub = tqe.publication_id();
  if (seq == SequenceNumber::SEQUENCENUMBER_UNKNOWN() || pub == GUID_UNKNOWN
      || tqe.subscription_id() != GUID_UNKNOWN) {
    return;
  }

  const RtpsWriterMap::iterator wi = writers_.find(pub);
  if (wi == writers_.end()) {
    return; // not a reliable writer, does not send GAPs
  }

  RtpsWriter& rw = wi->second;

  if (seq != rw.expected_) {
    SequenceNumber firstMissing = rw.expected_;

    // RTPS v2.1 8.3.7.4: the Gap sequence numbers are those in the range
    // [gapStart, gapListBase) and those in the SNSet.
    const SequenceNumber_t gapStart = {firstMissing.getHigh(),
                                       firstMissing.getLow()},
                           gapListBase = {seq.getHigh(),
                                          seq.getLow()};

    // We are not going to enable any bits in the "bitmap" of the SNSet,
    // but the "numBits" and the bitmap.length must both be > 0.
    LongSeq8 bitmap;
    bitmap.length(1);
    bitmap[0] = 0;

    GapSubmessage gap = {
      {GAP, FLAG_E, 0 /*length determined below*/},
      ENTITYID_UNKNOWN, // readerId: applies to all matched readers
      pub.entityId,
      gapStart,
      {gapListBase, 1, bitmap}
    };

    size_t size = 0, padding = 0;
    gen_find_size(gap, size, padding);
    gap.smHeader.submessageLength =
      static_cast<CORBA::UShort>(size + padding) - SMHDR_SZ;

    if (!rw.durable_) {
      const CORBA::ULong i = msg.length();
      msg.length(i + 1);
      msg[i].gap_sm(gap);
    } else {
      InfoDestinationSubmessage idst = {
        {INFO_DST, FLAG_E, INFO_DST_SZ},
        {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}
      };
      CORBA::ULong ml = msg.length();

      //Change the non-directed Gap into multiple directed gaps to prevent
      //delivering to currently undiscovered durable readers
      DestToEntityMap::const_iterator iter = dtem.begin();
      while (iter != dtem.end()) {
        std::memcpy(idst.guidPrefix, iter->first.guidPrefix, sizeof(GuidPrefix_t));
        msg.length(ml + 1);
        msg[ml++].info_dst_sm(idst);

        const OPENDDS_VECTOR(RepoId)& readers = iter->second;
        for (size_t i = 0; i < readers.size(); ++i) {
          gap.readerId = readers.at(i).entityId;
          msg.length(ml + 1);
          msg[ml++].gap_sm(gap);
        } //END iter over reader entity ids
        ++iter;
      } //END iter over reader GuidPrefix_t's
    }
  }
}

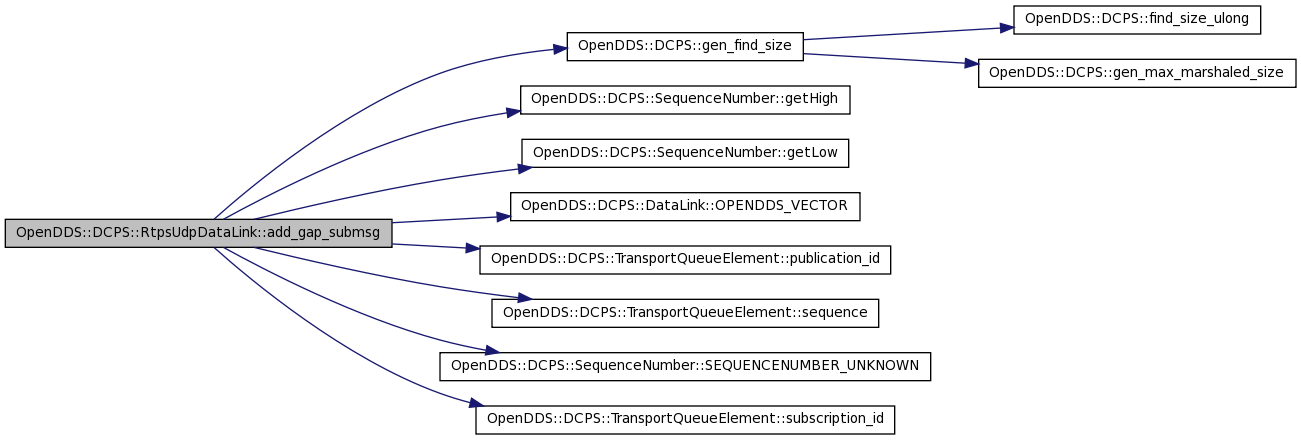

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::add_locator	(	const RepoId &	remote_id,
		const ACE_INET_Addr &	address,
		bool	requires_inline_qos
	)

Definition at line 254 of file RtpsUdpDataLink.cpp.

References lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  locators_[remote_id] = RemoteInfo(address, requires_inline_qos);
}

void OpenDDS::DCPS::RtpsUdpDataLink::associated	(	const RepoId &	local,
		const RepoId &	remote,
		bool	local_reliable,
		bool	remote_reliable,
		bool	local_durable,
		bool	remote_durable
	)

Definition at line 302 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::durable_, heartbeat_, heartbeat_counts_, OpenDDS::DCPS::GuidConverter::isReader(), OpenDDS::DCPS::GuidConverter::isWriter(), lock_, reader_index_, readers_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::remote_readers_, and writers_.

{
  if (!local_reliable) {
    return;
  }

  bool enable_heartbeat = false;

  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  const GuidConverter conv(local_id);
  if (conv.isWriter() && remote_reliable) {
    // Insert count if not already there.
    heartbeat_counts_.insert(HeartBeatCountMapType::value_type(local_id, 0));
    RtpsWriter& w = writers_[local_id];
    w.remote_readers_[remote_id].durable_ = remote_durable;
    w.durable_ = local_durable;
    enable_heartbeat = true;

  } else if (conv.isReader()) {
    RtpsReaderMap::iterator rr = readers_.find(local_id);
    if (rr == readers_.end()) {
      rr = readers_.insert(RtpsReaderMap::value_type(local_id, RtpsReader()))
        .first;
      rr->second.durable_ = local_durable;
    }
    rr->second.remote_writers_[remote_id];
    reader_index_.insert(RtpsReaderIndex::value_type(remote_id, rr));
  }

  g.release();
  if (enable_heartbeat) {
    heartbeat_->schedule_enable();
  }
}

Here is the call graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::check_handshake_complete	(	const RepoId &	local,
		const RepoId &	remote
	)

Definition at line 340 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::GuidConverter::isReader(), OpenDDS::DCPS::GuidConverter::isWriter(), and writers_.

{
  const GuidConverter conv(local_id);
  if (conv.isWriter()) {
    RtpsWriterMap::iterator rw = writers_.find(local_id);
    if (rw == writers_.end()) {
      return true; // not reliable, no handshaking
    }
    ReaderInfoMap::iterator ri = rw->second.remote_readers_.find(remote_id);
    if (ri == rw->second.remote_readers_.end()) {
      return true; // not reliable, no handshaking
    }
    return ri->second.handshake_done_;

  } else if (conv.isReader()) {
    return true; // no handshaking for local reader
  }
  return false;
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::check_heartbeats

(

)

[private]

Definition at line 2531 of file RtpsUdpDataLink.cpp.

References config(), OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::DOES_NOT_EXIST, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::EXISTS, ACE_OS::gettimeofday(), OpenDDS::DCPS::RtpsUdpInst::heartbeat_period_, interesting_writers_, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::listener, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::localid, lock_, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), and OpenDDS::DCPS::DiscoveryListener::writer_does_not_exist().

{
  OPENDDS_VECTOR(CallbackType) writerDoesNotExistCallbacks;

  // Have any interesting writers timed out?
  const ACE_Time_Value tv = ACE_OS::gettimeofday() - 10 * this->config().heartbeat_period_;
  {
      ACE_GUARD(ACE_Thread_Mutex, g, lock_);

      for (InterestingRemoteMapType::iterator pos = interesting_writers_.begin(), limit = interesting_writers_.end();
           pos != limit;
           ++pos) {
        if (pos->second.status == InterestingRemote::EXISTS && pos->second.last_activity < tv) {
          CallbackType callback(pos->first, pos->second);
          writerDoesNotExistCallbacks.push_back(callback);
          pos->second.status = InterestingRemote::DOES_NOT_EXIST;
        }
    }
  }

  OPENDDS_VECTOR(CallbackType)::iterator iter;
  for (iter = writerDoesNotExistCallbacks.begin(); iter != writerDoesNotExistCallbacks.end(); ++iter) {
    const RepoId& rid = iter->first;
    const InterestingRemote& remote = iter->second;
    remote.listener->writer_does_not_exist(rid, remote.localid);
  }
}

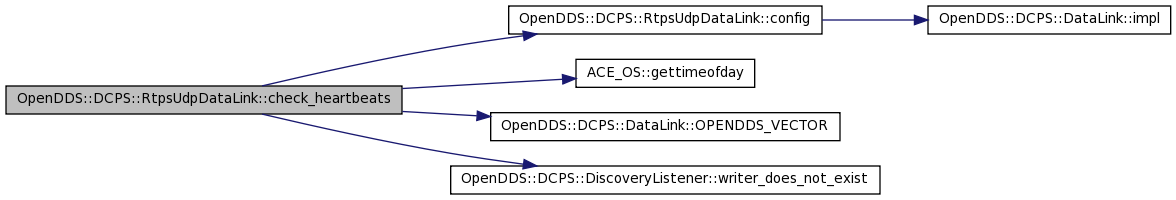

Here is the call graph for this function:

RtpsUdpInst & OpenDDS::DCPS::RtpsUdpDataLink::config

(

)

const

Definition at line 111 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::DataLink::impl().

Referenced by check_heartbeats(), OpenDDS::DCPS::RtpsUdpDataLink::HeartBeat::enable(), open(), send_heartbeats(), send_heartbeats_manual(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::start_i(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::stop_i().

{
  return static_cast<RtpsUdpTransport&>(impl()).config();
}

Here is the call graph for this function:

Here is the caller graph for this function:

TransportQueueElement * OpenDDS::DCPS::RtpsUdpDataLink::customize_queue_element

(

TransportQueueElement *

element

)

[private, virtual]

Allow derived classes to provide an alternate "customized" queue element for this DataLink (not shared with other links in the DataLinkSet).

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 688 of file RtpsUdpDataLink.cpp.

References add_gap_submsg(), ACE_Message_Block::cont(), OpenDDS::DCPS::RtpsSampleHeader::control_message_supported(), OpenDDS::DCPS::TransportQueueElement::data_delivered(), OpenDDS::DCPS::TransportQueueElement::data_dropped(), OpenDDS::DCPS::DATAWRITER_LIVELINESS, ACE_Message_Block::duplicate(), end_historic_samples(), OpenDDS::DCPS::END_HISTORIC_SAMPLES, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::DCPS::DataSampleElement::get_header(), ACE_OS::gettimeofday(), OpenDDS::DCPS::GUID_UNKNOWN, OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::TransportSendControlElement::header(), OpenDDS::DCPS::DataSampleHeader::historic_sample_, LM_DEBUG, LM_ERROR, lock_, OpenDDS::DCPS::DataSampleHeader::message_id_, OpenDDS::DCPS::move(), OpenDDS::DCPS::TransportQueueElement::msg(), OPENDDS_STRING, OpenDDS::DCPS::TransportCustomizedElement::original_send_element(), OpenDDS::DCPS::DataLink::peer_ids(), OpenDDS::DCPS::RtpsSampleHeader::populate_data_control_submessages(), OpenDDS::DCPS::RtpsSampleHeader::populate_data_sample_submessages(), OpenDDS::DCPS::TransportQueueElement::publication_id(), OpenDDS::DCPS::unique_ptr< T, Deleter >::release(), requires_inline_qos(), OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), OpenDDS::DCPS::TransportSendElement::sample(), send_heartbeats_manual(), send_strategy(), OpenDDS::DCPS::RtpsCustomizedElement::sequence(), OpenDDS::DCPS::TransportQueueElement::sequence(), OpenDDS::RTPS::SEQUENCENUMBER_UNKNOWN, OpenDDS::DCPS::TransportQueueElement::subscription_id(), OpenDDS::DCPS::Transport_debug_level, and writers_.

{
  const ACE_Message_Block* msg = element->msg();
  if (!msg) {
    return element;
  }

  const RepoId pub_id = element->publication_id();
  GUIDSeq_var peers = peer_ids(pub_id);
  ACE_GUARD_RETURN(ACE_Thread_Mutex, g, lock_, 0);
  bool requires_inline_qos = this->requires_inline_qos(peers);

  RTPS::SubmessageSeq subm;

  const RtpsWriterMap::iterator rw = writers_.find(pub_id);

  bool gap_ok = true;
  DestToEntityMap gap_receivers;
  if (rw != writers_.end() && !rw->second.remote_readers_.empty()) {
    for (ReaderInfoMap::iterator ri = rw->second.remote_readers_.begin();
         ri != rw->second.remote_readers_.end(); ++ri) {
      RepoId tmp;
      std::memcpy(tmp.guidPrefix, ri->first.guidPrefix, sizeof(GuidPrefix_t));
      tmp.entityId = ENTITYID_UNKNOWN;
      gap_receivers[tmp].push_back(ri->first);

      if (ri->second.expecting_durable_data()) {
        // Can't add an in-line GAP if some Data Reader is expecting durable
        // data, the GAP could cause that Data Reader to ignore the durable
        // data.  The other readers will eventually learn about the GAP by
        // sending an ACKNACK and getting a GAP reply.
        gap_ok = false;
        break;
      }
    }
  }

  if (gap_ok) {
    add_gap_submsg(subm, *element, gap_receivers);
  }

  const SequenceNumber seq = element->sequence();
  if (rw != writers_.end() && seq != SequenceNumber::SEQUENCENUMBER_UNKNOWN()) {
    rw->second.expected_ = seq;
    ++rw->second.expected_;
  }

  TransportSendElement* tse = dynamic_cast<TransportSendElement*>(element);
  TransportCustomizedElement* tce =
    dynamic_cast<TransportCustomizedElement*>(element);
  TransportSendControlElement* tsce =
    dynamic_cast<TransportSendControlElement*>(element);

  Message_Block_Ptr data;
  bool durable = false;

  // Based on the type of 'element', find and duplicate the data payload
  // continuation block.
  if (tsce) {        // Control message
    if (RtpsSampleHeader::control_message_supported(tsce->header().message_id_)) {
      data.reset(msg->cont()->duplicate());
      // Create RTPS Submessage(s) in place of the OpenDDS DataSampleHeader
      RtpsSampleHeader::populate_data_control_submessages(
                subm, *tsce, requires_inline_qos);
    } else if (tsce->header().message_id_ == END_HISTORIC_SAMPLES) {
      end_historic_samples(rw, tsce->header(), msg->cont());
      element->data_delivered();
      return 0;
    } else if (tsce->header().message_id_ == DATAWRITER_LIVELINESS) {
      send_heartbeats_manual(tsce);
      element->data_delivered();
      return 0;
    } else {
      element->data_dropped(true /*dropped_by_transport*/);
      return 0;
    }

  } else if (tse) {  // Basic data message
    // {DataSampleHeader} -> {Data Payload}
    data.reset(msg->cont()->duplicate());
    const DataSampleElement* dsle = tse->sample();
    // Create RTPS Submessage(s) in place of the OpenDDS DataSampleHeader
    RtpsSampleHeader::populate_data_sample_submessages(
              subm, *dsle, requires_inline_qos);
    durable = dsle->get_header().historic_sample_;

  } else if (tce) {  // Customized data message
    // {DataSampleHeader} -> {Content Filtering GUIDs} -> {Data Payload}
    data.reset(msg->cont()->cont()->duplicate());
    const DataSampleElement* dsle = tce->original_send_element()->sample();
    // Create RTPS Submessage(s) in place of the OpenDDS DataSampleHeader
    RtpsSampleHeader::populate_data_sample_submessages(
              subm, *dsle, requires_inline_qos);
    durable = dsle->get_header().historic_sample_;

  } else {
    return element;
  }

#if defined(OPENDDS_SECURITY)
  send_strategy()->encode_payload(pub_id, data, subm);
#endif

  Message_Block_Ptr hdr(submsgs_to_msgblock(subm));
  hdr->cont(data.release());
  RtpsCustomizedElement* rtps =
    new RtpsCustomizedElement(element, move(hdr));

  // Handle durability resends
  if (durable && rw != writers_.end()) {
    const RepoId sub = element->subscription_id();
    if (sub != GUID_UNKNOWN) {
      ReaderInfoMap::iterator ri = rw->second.remote_readers_.find(sub);
      if (ri != rw->second.remote_readers_.end()) {
        ri->second.durable_data_[rtps->sequence()] = rtps;
        ri->second.durable_timestamp_ = ACE_OS::gettimeofday();
        if (Transport_debug_level > 3) {
          const GuidConverter conv(pub_id), sub_conv(sub);
          ACE_DEBUG((LM_DEBUG,
            "(%P|%t) RtpsUdpDataLink::customize_queue_element() - "
            "storing durable data for local %C remote %C\n",
            OPENDDS_STRING(conv).c_str(), OPENDDS_STRING(sub_conv).c_str()));
        }
        return 0;
      }
    }
  } else if (durable && (Transport_debug_level)) {
    const GuidConverter conv(pub_id);
    ACE_ERROR((LM_ERROR,
      "(%P|%t) RtpsUdpDataLink::customize_queue_element() - "
      "WARNING: no RtpsWriter to store durable data for local %C\n",
      OPENDDS_STRING(conv).c_str()));
  }

  return rtps;
}

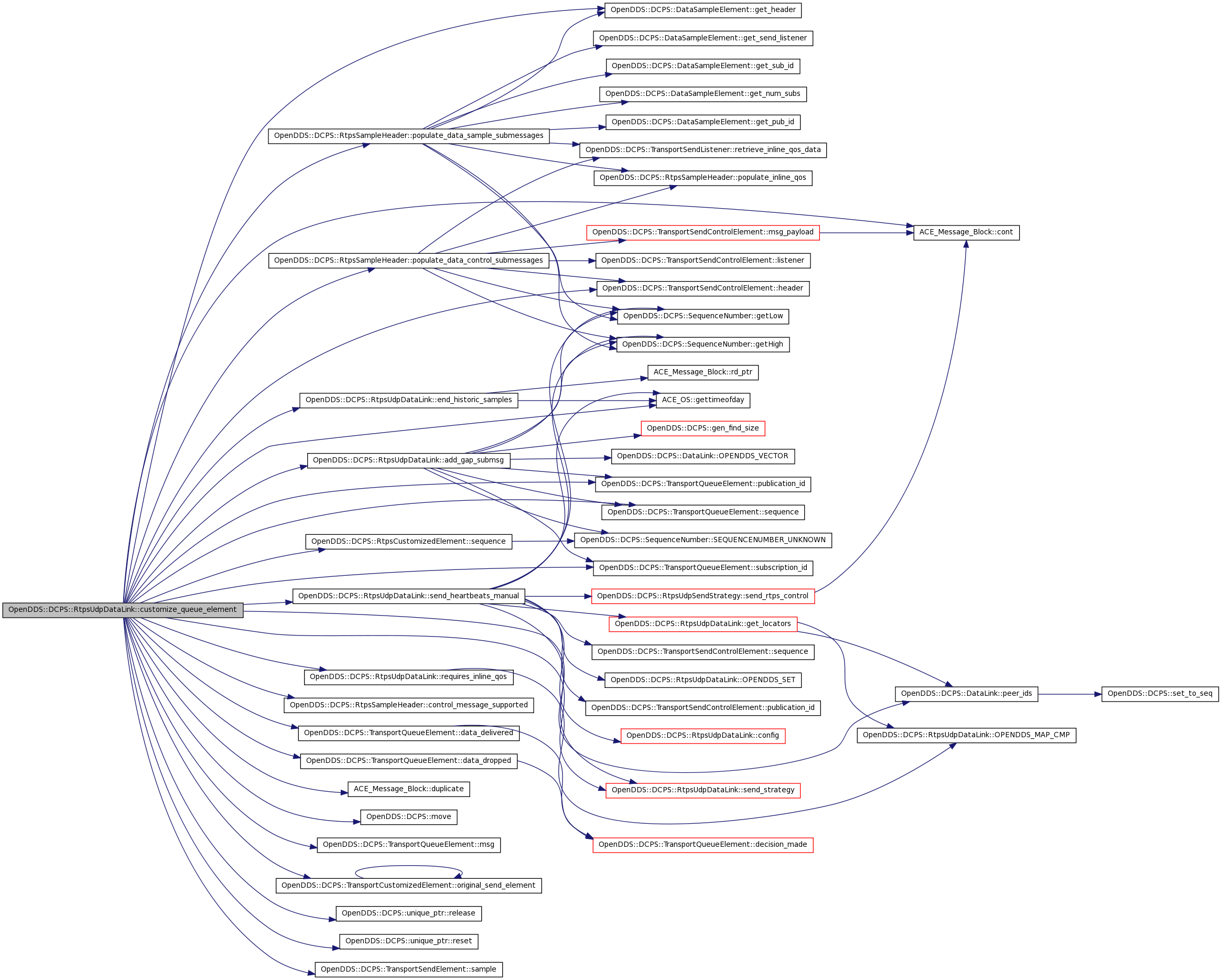

Here is the call graph for this function:

template<typename T , typename FN >

void OpenDDS::DCPS::RtpsUdpDataLink::datareader_dispatch	(	const T &	submessage,
		const GuidPrefix_t &	src_prefix,
		const FN &	func
	)			[inline, private]

Definition at line 331 of file RtpsUdpDataLink.h.

References OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, and OpenDDS::DCPS::GUID_t::guidPrefix.

Referenced by received().

  {
    using std::pair;
    RepoId local;
    std::memcpy(local.guidPrefix, local_prefix_, sizeof(GuidPrefix_t));
    local.entityId = submessage.readerId;

    RepoId src;
    std::memcpy(src.guidPrefix, src_prefix, sizeof(GuidPrefix_t));
    src.entityId = submessage.writerId;

    bool schedule_timer = false;
    ACE_GUARD(ACE_Thread_Mutex, g, lock_);
    if (local.entityId == ENTITYID_UNKNOWN) {
      for (pair<RtpsReaderIndex::iterator, RtpsReaderIndex::iterator> iters =
             reader_index_.equal_range(src);
           iters.first != iters.second; ++iters.first) {
        schedule_timer |= (this->*func)(submessage, src, *iters.first->second);
      }

    } else {
      const RtpsReaderMap::iterator rr = readers_.find(local);
      if (rr == readers_.end()) {
        return;
      }
      schedule_timer = (this->*func)(submessage, src, *rr);
    }
    g.release();
    if (schedule_timer) {
      heartbeat_reply_.schedule();
    }
  }

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::deliver_held_data	(	const RepoId &	readerId,
		WriterInfo &	info,
		bool	durable
	)			[private]

Definition at line 1056 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::DisjointSequence::empty(), held_data_delivery_handler_, OpenDDS::DCPS::DisjointSequence::low(), OpenDDS::DCPS::RtpsUdpDataLink::HeldDataDeliveryHandler::notify_delivery(), and OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::recvd_.

Referenced by process_data_i(), process_gap_i(), and process_heartbeat_i().

{
  if (durable && (info.recvd_.empty() || info.recvd_.low() > 1)) return;
  held_data_delivery_handler_.notify_delivery(readerId, info);
}

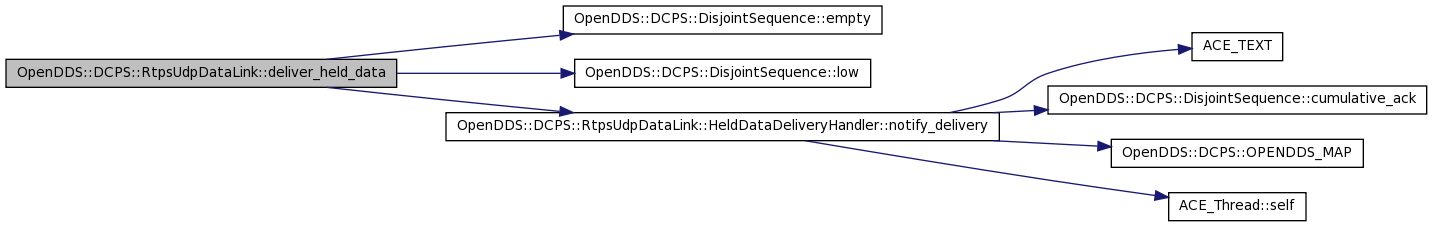

Here is the call graph for this function:

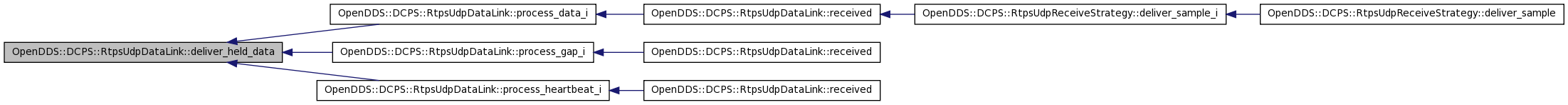

Here is the caller graph for this function:

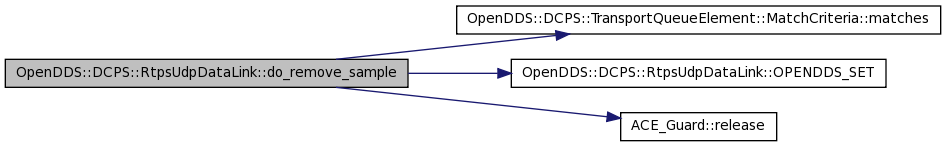

void OpenDDS::DCPS::RtpsUdpDataLink::do_remove_sample	(	const RepoId &	pub_id,
		const TransportQueueElement::MatchCriteria &	criteria,
		ACE_Guard< ACE_Thread_Mutex > &	guard
	)

Definition at line 128 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::TransportQueueElement::MatchCriteria::matches(), OPENDDS_SET(), ACE_Guard< ACE_LOCK >::release(), and writers_.

Referenced by OpenDDS::DCPS::RtpsUdpSendStrategy::do_remove_sample().

{
  RtpsWriter::SnToTqeMap sn_tqe_map;
  RtpsWriter::SnToTqeMap to_deliver;
  typedef RtpsWriter::SnToTqeMap::iterator iter_t;

  RtpsWriterMap::iterator iter = writers_.find(pub_id);
  if (iter != writers_.end() && !iter->second.elems_not_acked_.empty()) {
    to_deliver.insert(iter->second.to_deliver_.begin(), iter->second.to_deliver_.end());
    iter->second.to_deliver_.clear();
    iter_t it = iter->second.elems_not_acked_.begin();
    OPENDDS_SET(SequenceNumber) sns_to_release;
    while (it != iter->second.elems_not_acked_.end()) {
      if (criteria.matches(*it->second)) {
        sn_tqe_map.insert(RtpsWriter::SnToTqeMap::value_type(it->first, it->second));
        sns_to_release.insert(it->first);
        iter_t last = it;
        ++it;
        iter->second.elems_not_acked_.erase(last);
      } else {
        ++it;
      }
    }
    OPENDDS_SET(SequenceNumber)::iterator sns_it = sns_to_release.begin();
    while (sns_it != sns_to_release.end()) {
      iter->second.send_buff_->release_acked(*sns_it);
      ++sns_it;
    }
  }

  // see comment in RtpsUdpDataLink::send_i() for lock order
  // reverse guard can't be used since that involves re-locking
  guard.release();

  iter_t deliver_iter = to_deliver.begin();
  while (deliver_iter != to_deliver.end()) {
    deliver_iter->second->data_delivered();
    ++deliver_iter;
  }
  iter_t drop_iter = sn_tqe_map.begin();
  while (drop_iter != sn_tqe_map.end()) {
    drop_iter->second->data_dropped(true);
    ++drop_iter;
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::durability_resend

(

TransportQueueElement *

element

)

[private]

Definition at line 2287 of file RtpsUdpDataLink.cpp.

References get_locator(), OpenDDS::DCPS::TransportQueueElement::msg(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), and OpenDDS::DCPS::TransportQueueElement::subscription_id().

Referenced by received().

{
  ACE_Message_Block* msg = const_cast<ACE_Message_Block*>(element->msg());
  send_strategy()->send_rtps_control(*msg,
                                    get_locator(element->subscription_id()));
}

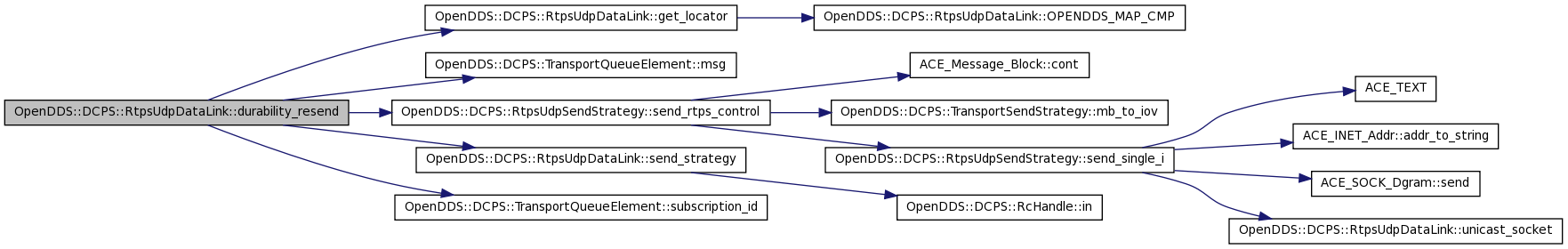

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::end_historic_samples	(	RtpsWriterMap::iterator	writer,
		const DataSampleHeader &	header,
		ACE_Message_Block *	body
	)			[private]

Definition at line 826 of file RtpsUdpDataLink.cpp.

References ACE_OS::gettimeofday(), OpenDDS::DCPS::GUID_UNKNOWN, LM_DEBUG, OpenDDS::DCPS::DataSampleHeader::message_length_, OPENDDS_STRING, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::Transport_debug_level, and writers_.

Referenced by customize_queue_element().

{
  // Set the ReaderInfo::durable_timestamp_ for the case where no
  // durable samples exist in the DataWriter.
  if (writer != writers_.end() && writer->second.durable_) {
    const ACE_Time_Value now = ACE_OS::gettimeofday();
    RepoId sub = GUID_UNKNOWN;
    if (body && header.message_length_ >= sizeof(sub)) {
      std::memcpy(&sub, body->rd_ptr(), header.message_length_);
    }
    typedef ReaderInfoMap::iterator iter_t;
    if (sub == GUID_UNKNOWN) {
      if (Transport_debug_level > 3) {
        const GuidConverter conv(writer->first);
        ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::end_historic_samples "
                   "local %C all readers\n", OPENDDS_STRING(conv).c_str()));
      }
      for (iter_t iter = writer->second.remote_readers_.begin();
           iter != writer->second.remote_readers_.end(); ++iter) {
        if (iter->second.durable_) {
          iter->second.durable_timestamp_ = now;
        }
      }
    } else {
      iter_t iter = writer->second.remote_readers_.find(sub);
      if (iter != writer->second.remote_readers_.end()) {
        if (iter->second.durable_) {
          iter->second.durable_timestamp_ = now;
          if (Transport_debug_level > 3) {
            const GuidConverter conv(writer->first), sub_conv(sub);
            ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::end_historic_samples"
                       " local %C remote %C\n", OPENDDS_STRING(conv).c_str(),
                       OPENDDS_STRING(sub_conv).c_str()));
          }
        }
      }
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::extend_bitmap_range	(	RTPS::FragmentNumberSet &	fnSet,
		CORBA::ULong	extent
	)			[static, private]

Extend the FragmentNumberSet to cover the fragments that are missing from our last known fragment to the extent

Parameters:

	fnSet	FragmentNumberSet for the message sequence number in question
	extent	is the highest fragment sequence number for this FragmentNumberSet

Definition at line 1568 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::FragmentNumberSet::bitmap, OpenDDS::RTPS::FragmentNumberSet::bitmapBase, OpenDDS::DCPS::DisjointSequence::fill_bitmap_range(), and OpenDDS::RTPS::FragmentNumberSet::numBits.

Referenced by generate_nack_frags().

{
  if (extent < fnSet.bitmapBase.value) {
    return; // can't extend to some number under the base
  }
  // calculate the index to the extent to determine the new_num_bits
  const CORBA::ULong new_num_bits = std::min(CORBA::ULong(255),
                                             extent - fnSet.bitmapBase.value + 1),
                     len = (new_num_bits + 31) / 32;
  if (new_num_bits < fnSet.numBits) {
    return; // bitmap already extends past "extent"
  }
  fnSet.bitmap.length(len);
  // We are missing from one past old bitmap end to the new end
  DisjointSequence::fill_bitmap_range(fnSet.numBits + 1, new_num_bits,
                                      fnSet.bitmap.get_buffer(), len,
                                      fnSet.numBits);
}

Here is the call graph for this function:

Here is the caller graph for this function:

size_t OpenDDS::DCPS::RtpsUdpDataLink::generate_nack_frags	(	OPENDDS_VECTOR(RTPS::NackFragSubmessage)&	nack_frags,
		WriterInfo &	wi,
		const RepoId &	pub_id
	)			[private]

Definition at line 1483 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::FragmentNumberSet::bitmap, OpenDDS::RTPS::FragmentNumberSet::bitmapBase, OpenDDS::RTPS::NackFragSubmessage::count, OpenDDS::DCPS::DisjointSequence::cumulative_ack(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::ENTITYID_UNKNOWN, extend_bitmap_range(), OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::NackFragSubmessage::fragmentNumberState, OpenDDS::DCPS::gen_find_size(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::has_fragments(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::hb_range_, OpenDDS::DCPS::DisjointSequence::high(), OpenDDS::DCPS::DisjointSequence::last_ack(), OpenDDS::RTPS::NACK_FRAG, OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::nackfrag_count_, OpenDDS::RTPS::FragmentNumberSet::numBits, OpenDDS::DCPS::OPENDDS_MAP(), OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), receive_strategy(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::recvd_, OpenDDS::RTPS::SMHDR_SZ, OpenDDS::RTPS::NackFragSubmessage::smHeader, and OpenDDS::RTPS::NackFragSubmessage::writerSN.

Referenced by send_ack_nacks().

{
  typedef OPENDDS_MAP(SequenceNumber, RTPS::FragmentNumber_t)::iterator iter_t;
  typedef RtpsUdpReceiveStrategy::FragmentInfo::value_type Frag_t;
  RtpsUdpReceiveStrategy::FragmentInfo frag_info;

  // Populate frag_info with two possible sources of NackFrags:
  // 1. sequence #s in the reception gaps that we have partially received
  OPENDDS_VECTOR(SequenceRange) missing = wi.recvd_.missing_sequence_ranges();
  for (size_t i = 0; i < missing.size(); ++i) {
    receive_strategy()->has_fragments(missing[i], pub_id, &frag_info);
  }
  // 1b. larger than the last received seq# but less than the heartbeat.lastSN
  if (!wi.recvd_.empty()) {
    const SequenceRange range(wi.recvd_.high(), wi.hb_range_.second);
    receive_strategy()->has_fragments(range, pub_id, &frag_info);
  }
  for (size_t i = 0; i < frag_info.size(); ++i) {
    // If we've received a HeartbeatFrag, we know the last (available) frag #
    const iter_t heartbeat_frag = wi.frags_.find(frag_info[i].first);
    if (heartbeat_frag != wi.frags_.end()) {
      extend_bitmap_range(frag_info[i].second, heartbeat_frag->second.value);
    }
  }

  // 2. sequence #s outside the recvd_ gaps for which we have a HeartbeatFrag
  const iter_t low = wi.frags_.lower_bound(wi.recvd_.cumulative_ack()),
              high = wi.frags_.upper_bound(wi.recvd_.last_ack()),
               end = wi.frags_.end();
  for (iter_t iter = wi.frags_.begin(); iter != end; ++iter) {
    if (iter == low) {
      // skip over the range covered by step #1 above
      if (high == end) {
        break;
      }
      iter = high;
    }

    const SequenceRange range(iter->first, iter->first);
    if (receive_strategy()->has_fragments(range, pub_id, &frag_info)) {
      extend_bitmap_range(frag_info.back().second, iter->second.value);
    } else {
      // it was not in the recv strategy, so the entire range is "missing"
      frag_info.push_back(Frag_t(iter->first, RTPS::FragmentNumberSet()));
      RTPS::FragmentNumberSet& fnSet = frag_info.back().second;
      fnSet.bitmapBase.value = 1;
      fnSet.numBits = std::min(CORBA::ULong(256), iter->second.value);
      fnSet.bitmap.length((fnSet.numBits + 31) / 32);
      for (CORBA::ULong i = 0; i < fnSet.bitmap.length(); ++i) {
        fnSet.bitmap[i] = 0xFFFFFFFF;
      }
    }
  }

  if (frag_info.empty()) {
    return 0;
  }

  const RTPS::NackFragSubmessage nackfrag_prototype = {
    {RTPS::NACK_FRAG, RTPS::FLAG_E, 0 /* length set below */},
    ENTITYID_UNKNOWN, // readerId will be filled-in by send_heartbeat_replies()
    ENTITYID_UNKNOWN, // writerId will be filled-in by send_heartbeat_replies()
    {0, 0}, // writerSN set below
    RTPS::FragmentNumberSet(), // fragmentNumberState set below
    {0} // count set below
  };

  size_t size = 0, padding = 0;
  for (size_t i = 0; i < frag_info.size(); ++i) {
    nf.push_back(nackfrag_prototype);
    RTPS::NackFragSubmessage& nackfrag = nf.back();
    nackfrag.writerSN.low = frag_info[i].first.getLow();
    nackfrag.writerSN.high = frag_info[i].first.getHigh();
    nackfrag.fragmentNumberState = frag_info[i].second;
    nackfrag.count.value = ++wi.nackfrag_count_;
    const size_t before_size = size;
    gen_find_size(nackfrag, size, padding);
    nackfrag.smHeader.submessageLength =
      static_cast<CORBA::UShort>(size - before_size) - RTPS::SMHDR_SZ;
  }
  return size;
}

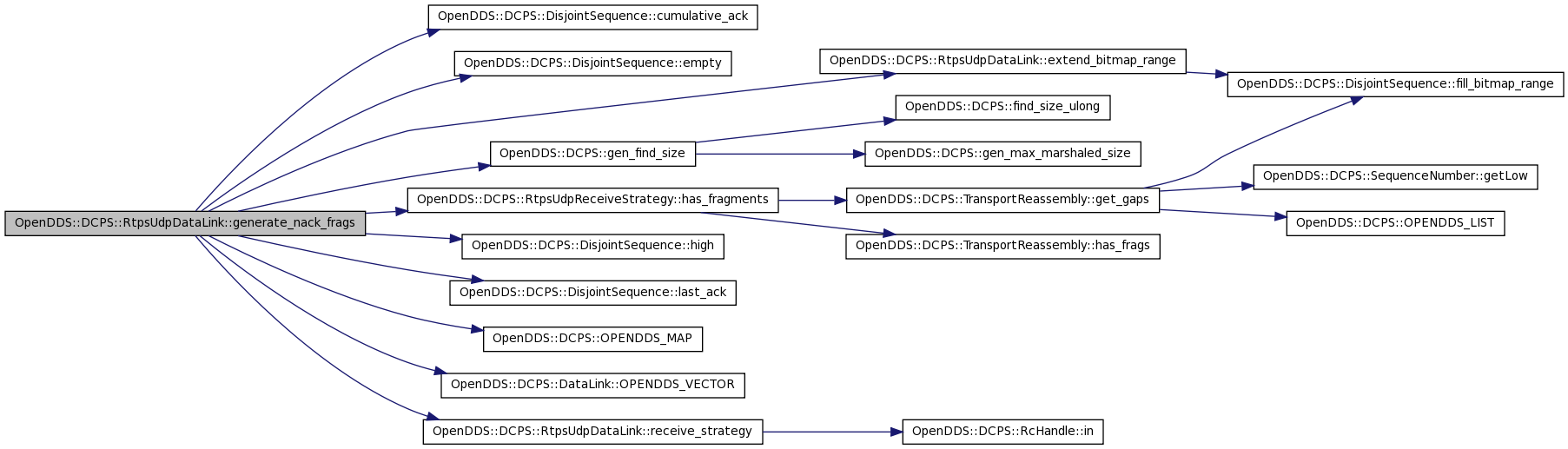

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INET_Addr OpenDDS::DCPS::RtpsUdpDataLink::get_locator

(

const RepoId &

remote_id

)

const

Definition at line 288 of file RtpsUdpDataLink.cpp.

References LM_ERROR, OPENDDS_MAP_CMP(), and OPENDDS_STRING.

Referenced by durability_resend(), get_locators(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_bytes_i_helper(), and send_durability_gaps().

{
  typedef OPENDDS_MAP_CMP(RepoId, RemoteInfo, GUID_tKeyLessThan)::const_iterator iter_t;
  const iter_t iter = locators_.find(remote_id);
  if (iter == locators_.end()) {
    const GuidConverter conv(remote_id);
    ACE_ERROR((LM_ERROR, "(%P|%t) RtpsUdpDataLink::get_locator_i() - "
      "no locator found for peer %C\n", OPENDDS_STRING(conv).c_str()));
    return ACE_INET_Addr();
  }
  return iter->second.addr_;
}

Here is the call graph for this function:

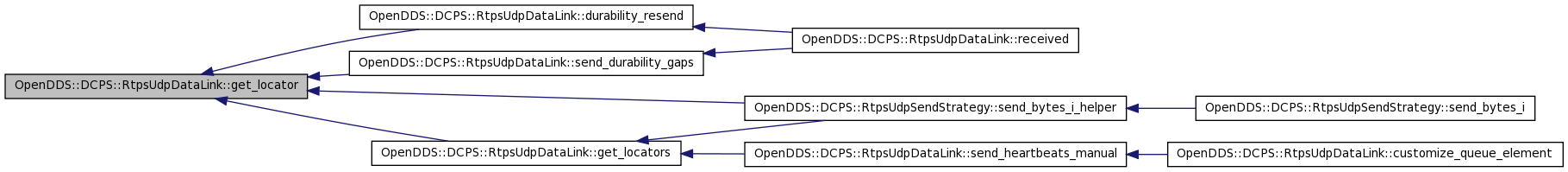

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::get_locators	(	const RepoId &	local_id,
		OPENDDS_SET(ACE_INET_Addr)&	addrs
	)			const

Given a 'local_id' of a publication or subscription, populate the set of 'addrs' with the network addresses of any remote peers (or if 'local_id' is GUID_UNKNOWN, all known addresses).

Definition at line 263 of file RtpsUdpDataLink.cpp.

References get_locator(), OpenDDS::DCPS::GUID_UNKNOWN, OPENDDS_MAP_CMP(), and OpenDDS::DCPS::DataLink::peer_ids().

Referenced by OpenDDS::DCPS::RtpsUdpSendStrategy::send_bytes_i_helper(), and send_heartbeats_manual().

{
  typedef OPENDDS_MAP_CMP(RepoId, RemoteInfo, GUID_tKeyLessThan)::const_iterator iter_t;

  if (local_id == GUID_UNKNOWN) {
    for (iter_t iter = locators_.begin(); iter != locators_.end(); ++iter) {
      addrs.insert(iter->second.addr_);
    }
    return;
  }

  const GUIDSeq_var peers = peer_ids(local_id);
  if (!peers.ptr()) {
    return;
  }
  for (CORBA::ULong i = 0; i < peers->length(); ++i) {
    const ACE_INET_Addr addr = get_locator(peers[i]);
    if (addr != ACE_INET_Addr()) {
      addrs.insert(addr);
    }
  }
}

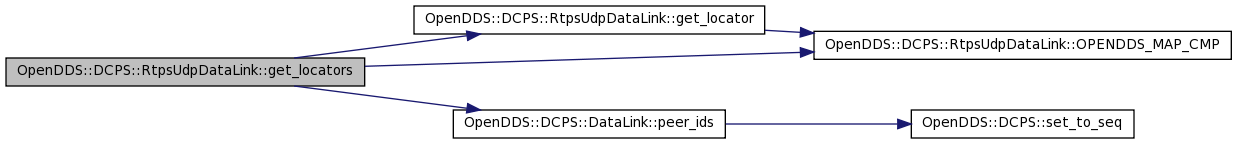

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE ACE_Reactor * OpenDDS::DCPS::RtpsUdpDataLink::get_reactor

(

void

)

Definition at line 16 of file RtpsUdpDataLink.inl.

References reactor_task_.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::cancel(), OpenDDS::DCPS::RtpsUdpDataLink::HeartBeat::disable(), OpenDDS::DCPS::RtpsUdpDataLink::HeartBeat::enable(), OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::schedule(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::start_i(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::stop_i().

{
  if (!reactor_task_) return 0;
  return reactor_task_->get_reactor();
}

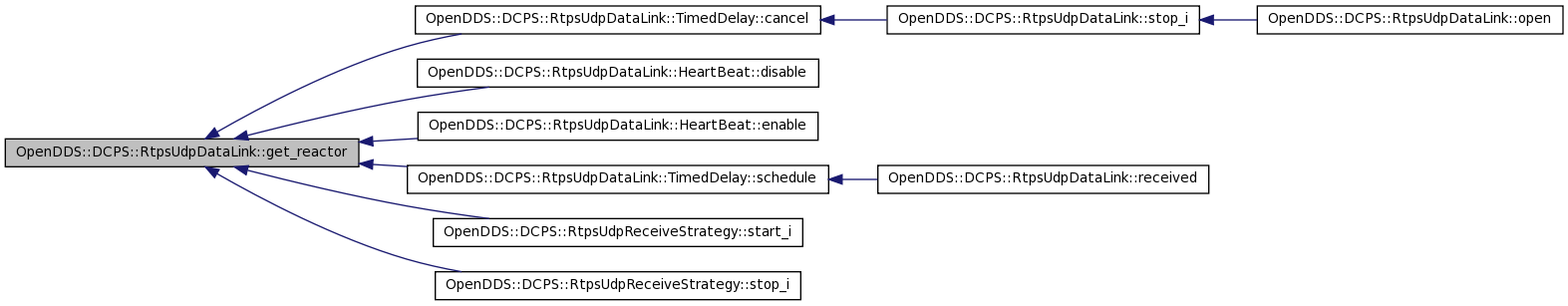

Here is the caller graph for this function:

const GuidPrefix_t& OpenDDS::DCPS::RtpsUdpDataLink::local_prefix

(

)

const [inline]

Definition at line 95 of file RtpsUdpDataLink.h.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::deliver_sample(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::deliver_sample_i().

{ return local_prefix_; }

Here is the caller graph for this function:

ACE_Message_Block * OpenDDS::DCPS::RtpsUdpDataLink::marshal_gaps	(	const RepoId &	writer,
		const RepoId &	reader,
		const DisjointSequence &	gaps,
		bool	durable = false
	)			[private]

Definition at line 2185 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::Serializer::ALIGN_CDR, OpenDDS::DCPS::DisjointSequence::cumulative_ack(), OpenDDS::DCPS::DisjointSequence::disjoint(), OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::GAP, OpenDDS::DCPS::gen_find_size(), OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::DisjointSequence::high(), OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, LM_DEBUG, OpenDDS::DCPS::DisjointSequence::low(), OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::SequenceNumber::previous(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::remote_readers_, OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::DCPS::DisjointSequence::to_bitmap(), OpenDDS::DCPS::Transport_debug_level, and writers_.

Referenced by send_directed_nack_replies(), send_durability_gaps(), and send_nack_replies().

{
  using namespace RTPS;
  // RTPS v2.1 8.3.7.4: the Gap sequence numbers are those in the range
  // [gapStart, gapListBase) and those in the SNSet.
  const SequenceNumber firstMissing = gaps.low(),
                       base = ++SequenceNumber(gaps.cumulative_ack());
  const SequenceNumber_t gapStart = {firstMissing.getHigh(),
                                     firstMissing.getLow()},
                         gapListBase = {base.getHigh(), base.getLow()};
  CORBA::ULong num_bits = 0;
  LongSeq8 bitmap;

  if (gaps.disjoint()) {
    bitmap.length(bitmap_num_longs(base, gaps.high()));
    gaps.to_bitmap(bitmap.get_buffer(), bitmap.length(), num_bits);

  } else {
    bitmap.length(1);
    bitmap[0] = 0;
    num_bits = 1;
  }

  GapSubmessage gap = {
    {GAP, FLAG_E, 0 /*length determined below*/},
    reader.entityId,
    writer.entityId,
    gapStart,
    {gapListBase, num_bits, bitmap}
  };

  if (Transport_debug_level > 5) {
    const GuidConverter conv(writer);
    SequenceRange sr;
    sr.first.setValue(gap.gapStart.high, gap.gapStart.low);
    SequenceNumber srbase;
    srbase.setValue(gap.gapList.bitmapBase.high, gap.gapList.bitmapBase.low);
    sr.second = srbase.previous();
    ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::marshal_gaps "
              "GAP with range [%q, %q] from %C\n",
              sr.first.getValue(), sr.second.getValue(),
              OPENDDS_STRING(conv).c_str()));
  }

  size_t gap_size = 0, padding = 0;
  gen_find_size(gap, gap_size, padding);
  gap.smHeader.submessageLength =
    static_cast<CORBA::UShort>(gap_size + padding) - SMHDR_SZ;

  // For durable writers, change a non-directed Gap into multiple directed gaps.
  OPENDDS_VECTOR(RepoId) readers;
  if (durable && reader.entityId == ENTITYID_UNKNOWN) {
    if (Transport_debug_level > 5) {
      const GuidConverter local_conv(writer);
      ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::marshal_gaps local %C "
                 "durable writer\n", OPENDDS_STRING(local_conv).c_str()));
    }
    const RtpsWriterMap::iterator iter = writers_.find(writer);
    RtpsWriter& rw = iter->second;
    for (ReaderInfoMap::iterator ri = rw.remote_readers_.begin();
         ri != rw.remote_readers_.end(); ++ri) {
      if (!ri->second.expecting_durable_data()) {
        readers.push_back(ri->first);
      } else if (Transport_debug_level > 5) {
        const GuidConverter remote_conv(ri->first);
        ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::marshal_gaps reader "
                   "%C is expecting durable data, no GAP sent\n",
                   OPENDDS_STRING(remote_conv).c_str()));
      }
    }
    if (readers.empty()) return 0;
  }

  const size_t size_per_idst = INFO_DST_SZ + SMHDR_SZ,
    prefix_sz = sizeof(reader.guidPrefix);
  // no additional padding needed for INFO_DST
  const size_t total_sz = readers.empty() ? (gap_size + padding) :
    (readers.size() * (gap_size + padding + size_per_idst));

  ACE_Message_Block* mb_gap = new ACE_Message_Block(total_sz);
  //FUTURE: allocators?
  // byte swapping is handled in the operator<<() implementation
  Serializer ser(mb_gap, false, Serializer::ALIGN_CDR);
  if (readers.empty()) {
    ser << gap;
  } else {
    InfoDestinationSubmessage idst = {
      {INFO_DST, FLAG_E, INFO_DST_SZ},
      {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}
    };
    for (size_t i = 0; i < readers.size(); ++i) {
      std::memcpy(idst.guidPrefix, readers[i].guidPrefix, prefix_sz);
      gap.readerId = readers[i].entityId;
      ser << idst;
      ser << gap;
    }
  }
  return mb_gap;
}

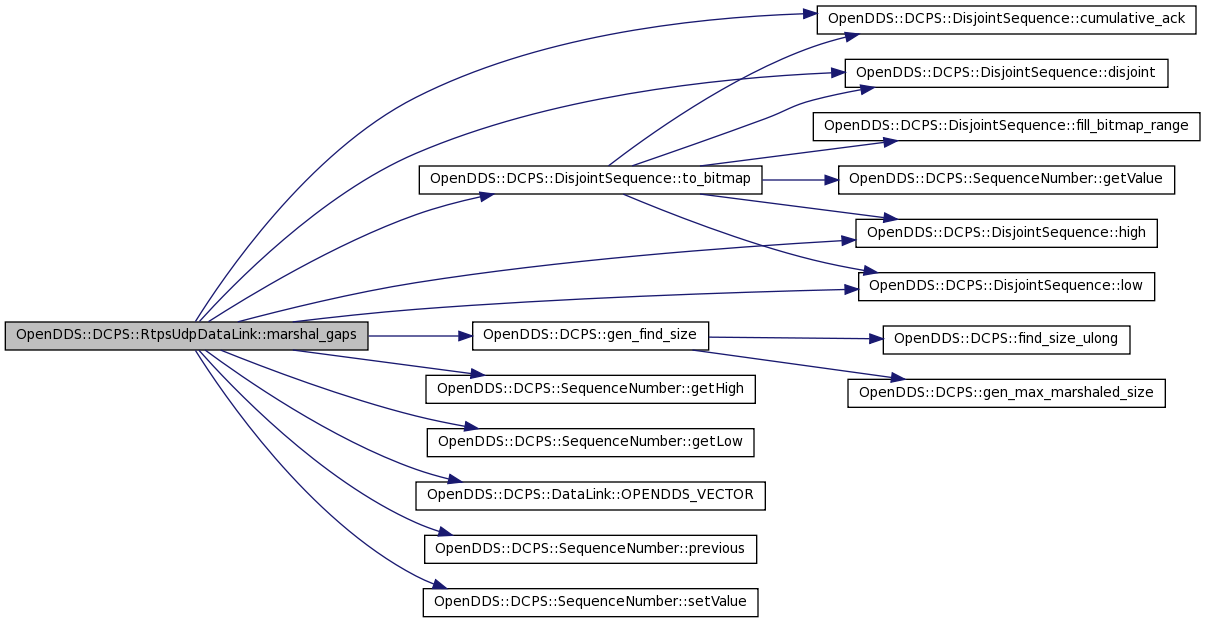

Here is the call graph for this function:

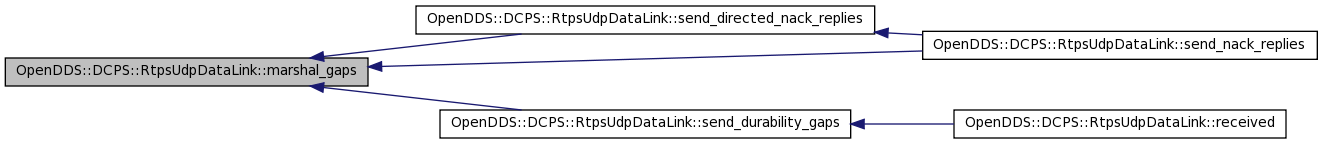

Here is the caller graph for this function:

ACE_INLINE ACE_SOCK_Dgram_Mcast & OpenDDS::DCPS::RtpsUdpDataLink::multicast_socket

(

)

Definition at line 36 of file RtpsUdpDataLink.inl.

References multicast_socket_.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::receive_bytes(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::start_i(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::stop_i().

{
  return multicast_socket_;
}

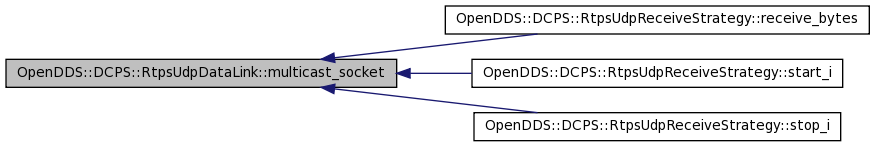

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::open

(

const ACE_SOCK_Dgram &

unicast_socket

)

Definition at line 177 of file RtpsUdpDataLink.cpp.

References ACE_TEXT(), ACE_TEXT_CHAR_TO_TCHAR, config(), ACE_SOCK_Dgram_Mcast::DEFOPT_NULLIFACE, ACE_SOCK_Dgram_Mcast::join(), LM_ERROR, multi_buff_, OpenDDS::DCPS::RtpsUdpInst::multicast_group_address_, OpenDDS::DCPS::RtpsUdpInst::multicast_interface_, multicast_socket_, OPENDDS_STRING, ACE_SOCK_Dgram_Mcast::OPT_BINDADDR_NO, ACE_SOCK_Dgram_Mcast::opts(), OpenDDS::DCPS::RtpsUdpInst::rcv_buffer_size_, OpenDDS::DCPS::DataLink::receive_strategy_, OpenDDS::DCPS::TransportSendStrategy::send_buffer(), OpenDDS::DCPS::RtpsUdpInst::send_buffer_size_, send_strategy(), OpenDDS::DCPS::DataLink::send_strategy_, ACE_SOCK::set_option(), OpenDDS::DCPS::set_socket_multicast_ttl(), OpenDDS::DCPS::DataLink::start(), stop_i(), OpenDDS::DCPS::RtpsUdpInst::ttl_, unicast_socket_, and OpenDDS::DCPS::RtpsUdpInst::use_multicast_.

{
  unicast_socket_ = unicast_socket;

  RtpsUdpInst& config = this->config();

  if (config.use_multicast_) {
    const OPENDDS_STRING& net_if = config.multicast_interface_;
#ifdef ACE_HAS_MAC_OSX
    multicast_socket_.opts(ACE_SOCK_Dgram_Mcast::OPT_BINDADDR_NO |
                           ACE_SOCK_Dgram_Mcast::DEFOPT_NULLIFACE);
#endif
    if (multicast_socket_.join(config.multicast_group_address_, 1,
                               net_if.empty() ? 0 :
                               ACE_TEXT_CHAR_TO_TCHAR(net_if.c_str())) != 0) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: ")
                        ACE_TEXT("RtpsUdpDataLink::open: ")
                        ACE_TEXT("ACE_SOCK_Dgram_Mcast::join failed: %m\n")),
                       false);
    }
  }

  if (!OpenDDS::DCPS::set_socket_multicast_ttl(unicast_socket_, config.ttl_)) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) ERROR: ")
                      ACE_TEXT("RtpsUdpDataLink::open: ")
                      ACE_TEXT("failed to set TTL: %d\n"),
                      config.ttl_),
                     false);
  }

  if (config.send_buffer_size_ > 0) {
    int snd_size = config.send_buffer_size_;
    if (this->unicast_socket_.set_option(SOL_SOCKET,
                                SO_SNDBUF,
                                (void *) &snd_size,
                                sizeof(snd_size)) < 0
        && errno != ENOTSUP) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: ")
                        ACE_TEXT("RtpsUdpDataLink::open: failed to set the send buffer size to %d errno %m\n"),
                        snd_size),
                       false);
    }
  }

  if (config.rcv_buffer_size_ > 0) {
    int rcv_size = config.rcv_buffer_size_;
    if (this->unicast_socket_.set_option(SOL_SOCKET,
                                SO_RCVBUF,
                                (void *) &rcv_size,
                                sizeof(int)) < 0
        && errno != ENOTSUP) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: ")
                        ACE_TEXT("RtpsUdpDataLink::open: failed to set the receive buffer size to %d errno %m \n"),
                        rcv_size),
                       false);
    }
  }

  send_strategy()->send_buffer(&multi_buff_);

  if (start(send_strategy_,
            receive_strategy_) != 0) {
    stop_i();
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) ERROR: ")
                      ACE_TEXT("UdpDataLink::open: start failed!\n")),
                     false);
  }

  return true;
}

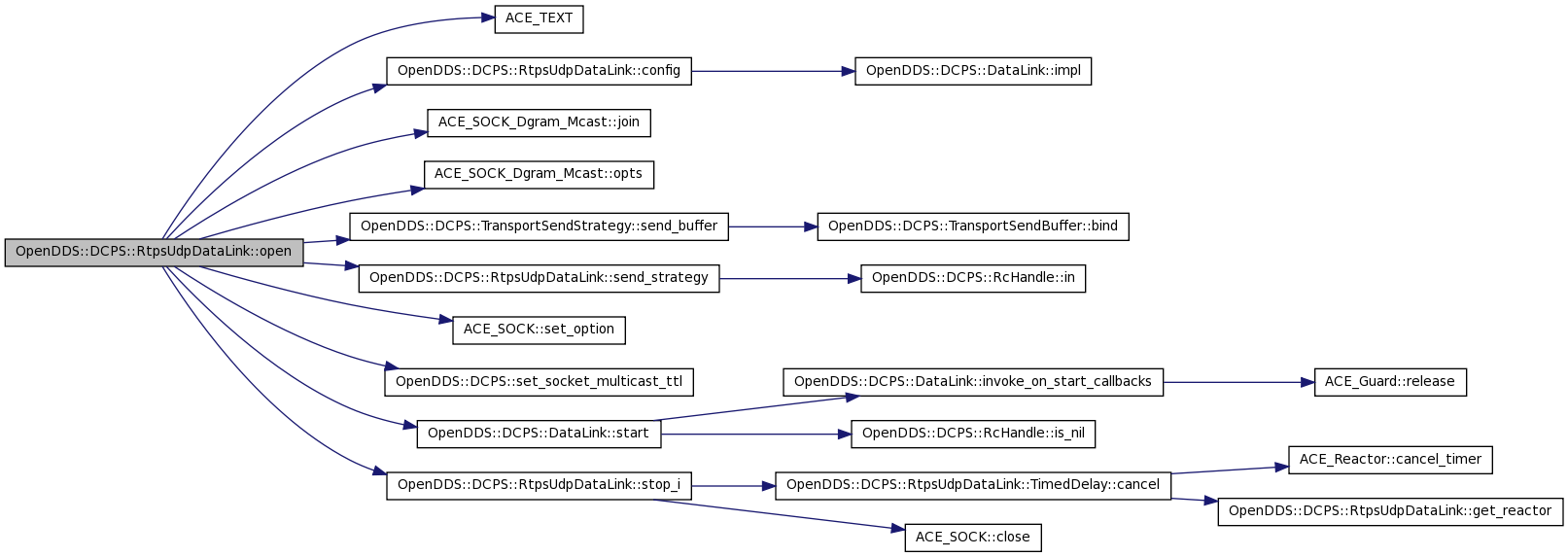

Here is the call graph for this function:

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		CORBA::Long	,
		DCPS::GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		RtpsReader	,
		GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		WriterInfo	,
		GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		RtpsWriter	,
		GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		ReaderInfo	,
		GUID_tKeyLessThan
	)			[private]

OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		RemoteInfo	,
		GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MAP_CMP	(	RepoId	,
		OPENDDS_VECTOR(RepoId)	,
		GUID_tKeyLessThan
	)			[private]

Referenced by get_locator(), get_locators(), and requires_inline_qos().

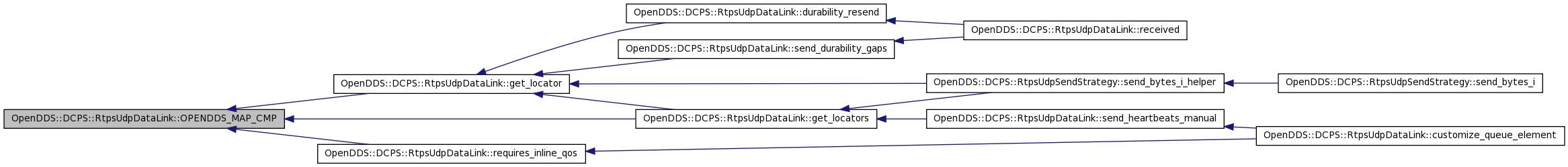

Here is the caller graph for this function:

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MULTIMAP_CMP	(	RepoId	,
		InterestingRemote	,
		DCPS::GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_MULTIMAP_CMP	(	RepoId	,
		RtpsReaderMap::iterator	,
		GUID_tKeyLessThan
	)			[private]

typedef OpenDDS::DCPS::RtpsUdpDataLink::OPENDDS_SET

(

InterestingAckNack

)

[private]

Referenced by do_remove_sample(), pre_stop_i(), process_acked_by_all_i(), release_reservations_i(), send_heartbeats(), send_heartbeats_manual(), and send_nack_replies().

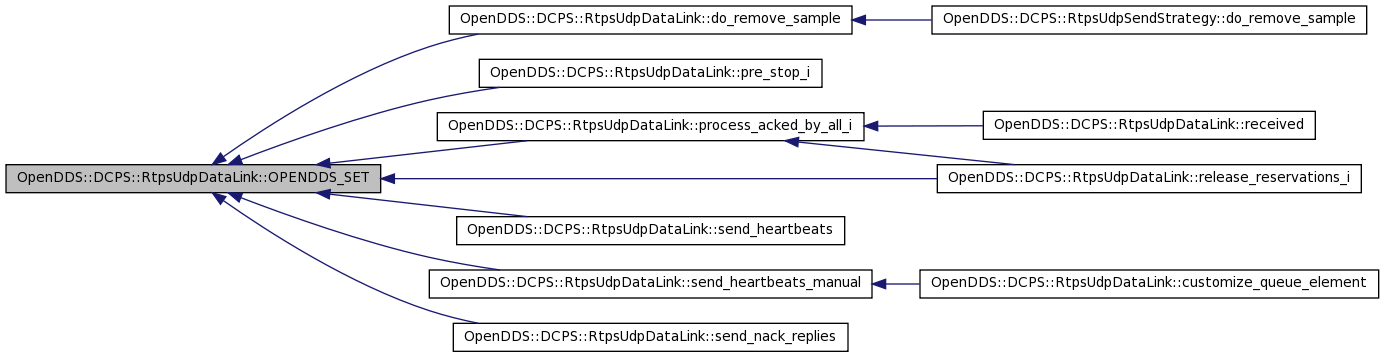

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::pre_stop_i

(

)

[virtual]

Called before release the datalink or before shutdown to let the concrete DataLink to do anything necessary.

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 427 of file RtpsUdpDataLink.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::elems_not_acked_, heartbeat_counts_, lock_, OPENDDS_MULTIMAP, OPENDDS_SET(), OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::to_deliver_, and writers_.

{
  DBG_ENTRY_LVL("RtpsUdpDataLink","pre_stop_i",6);
  DataLink::pre_stop_i();
  OPENDDS_VECTOR(TransportQueueElement*) to_deliver;
  OPENDDS_VECTOR(TransportQueueElement*) to_drop;
  {
    ACE_GUARD(ACE_Thread_Mutex, g, lock_);

    typedef OPENDDS_MULTIMAP(SequenceNumber, TransportQueueElement*)::iterator iter_t;

    RtpsWriterMap::iterator iter = writers_.begin();
    while (iter != writers_.end()) {
      RtpsWriter& writer = iter->second;
      if (!writer.to_deliver_.empty()) {
        iter_t iter = writer.to_deliver_.begin();
        while (iter != writer.to_deliver_.end()) {
          to_deliver.push_back(iter->second);
          writer.to_deliver_.erase(iter);
          iter = writer.to_deliver_.begin();
        }
      }
      if (!writer.elems_not_acked_.empty()) {
        OPENDDS_SET(SequenceNumber) sns_to_release;
        iter_t iter = writer.elems_not_acked_.begin();
        while (iter != writer.elems_not_acked_.end()) {
          to_drop.push_back(iter->second);
          sns_to_release.insert(iter->first);
          writer.elems_not_acked_.erase(iter);
          iter = writer.elems_not_acked_.begin();
        }
        OPENDDS_SET(SequenceNumber)::iterator sns_it = sns_to_release.begin();
        while (sns_it != sns_to_release.end()) {
          writer.send_buff_->release_acked(*sns_it);
          ++sns_it;
        }
      }
      RtpsWriterMap::iterator last = iter;
      ++iter;
      heartbeat_counts_.erase(last->first);
      writers_.erase(last);
    }
  }
  typedef OPENDDS_VECTOR(TransportQueueElement*)::iterator tqe_iter;
  tqe_iter deliver_it = to_deliver.begin();
  while (deliver_it != to_deliver.end()) {
    (*deliver_it)->data_delivered();
    ++deliver_it;
  }
  tqe_iter drop_it = to_drop.begin();
  while (drop_it != to_drop.end()) {
    (*drop_it)->data_dropped(true);
    ++drop_it;
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::process_acked_by_all_i	(	ACE_Guard< ACE_Thread_Mutex > &	g,
		const RepoId &	pub_id
	)			[private]

Definition at line 2114 of file RtpsUdpDataLink.cpp.

References ACE_Guard< ACE_LOCK >::acquire(), OpenDDS::DCPS::TransportQueueElement::data_delivered(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::elems_not_acked_, OpenDDS::DCPS::SequenceNumber::MAX_VALUE, OPENDDS_MULTIMAP, OPENDDS_SET(), OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), ACE_Guard< ACE_LOCK >::release(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::remote_readers_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::to_deliver_, and writers_.

Referenced by received(), and release_reservations_i().

{
  using namespace OpenDDS::RTPS;
  typedef RtpsWriterMap::iterator rw_iter;
  typedef OPENDDS_MULTIMAP(SequenceNumber, TransportQueueElement*)::iterator iter_t;
  OPENDDS_VECTOR(RepoId) to_check;
  rw_iter rw = writers_.find(pub_id);
  if (rw == writers_.end()) {
    return;
  }
  RtpsWriter& writer = rw->second;
  if (!writer.elems_not_acked_.empty()) {

    //start with the max sequence number writer knows about and decrease
    //by what the min over all readers is
    SequenceNumber all_readers_ack = SequenceNumber::MAX_VALUE;

    typedef ReaderInfoMap::iterator ri_iter;
    const ri_iter end = writer.remote_readers_.end();
    for (ri_iter ri = writer.remote_readers_.begin(); ri != end; ++ri) {
      if (ri->second.cur_cumulative_ack_ < all_readers_ack) {
        all_readers_ack = ri->second.cur_cumulative_ack_;
      }
    }
    if (all_readers_ack == SequenceNumber::MAX_VALUE) {
      return;
    }
    OPENDDS_VECTOR(SequenceNumber) sns;
    //if any messages fully acked, call data delivered and remove from map

    iter_t it = writer.elems_not_acked_.begin();
    OPENDDS_SET(SequenceNumber) sns_to_release;
    while (it != writer.elems_not_acked_.end()) {
      if (it->first < all_readers_ack) {
        writer.to_deliver_.insert(RtpsWriter::SnToTqeMap::value_type(it->first, it->second));
        sns_to_release.insert(it->first);
        iter_t last = it;
        ++it;
        writer.elems_not_acked_.erase(last);
      } else {
        break;
      }
    }
    OPENDDS_SET(SequenceNumber)::iterator sns_it = sns_to_release.begin();
    while (sns_it != sns_to_release.end()) {
      writer.send_buff_->release_acked(*sns_it);
      ++sns_it;
    }
    TransportQueueElement* tqe_to_deliver;

    while (true) {
      rw_iter deliver_on_writer = writers_.find(pub_id);
      if (deliver_on_writer == writers_.end()) {
        break;
      }
      RtpsWriter& writer = deliver_on_writer->second;
      iter_t to_deliver_iter = writer.to_deliver_.begin();
      if (to_deliver_iter == writer.to_deliver_.end()) {
        break;
      }
      tqe_to_deliver = to_deliver_iter->second;
      writer.to_deliver_.erase(to_deliver_iter);
      g.release();

      tqe_to_deliver->data_delivered();
      g.acquire();
    }
  }
}

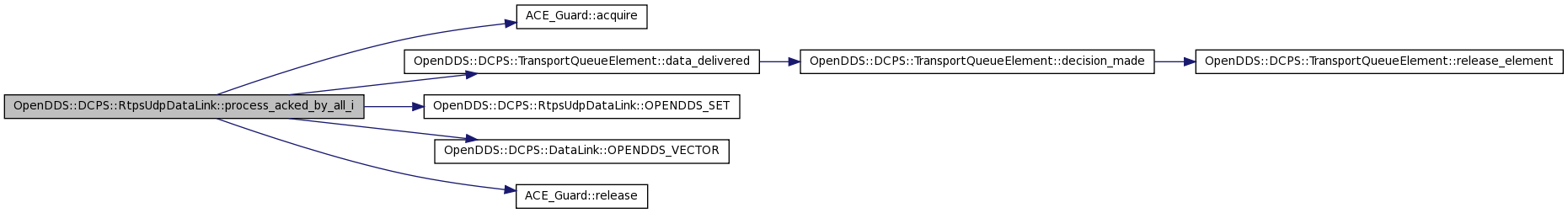

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::process_data_i	(	const RTPS::DataSubmessage &	data,
		const RepoId &	src,
		RtpsReaderMap::value_type &	rr
	)			[private]

Definition at line 986 of file RtpsUdpDataLink.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DisjointSequence::contains(), OpenDDS::DCPS::DisjointSequence::cumulative_ack(), deliver_held_data(), OpenDDS::DCPS::DisjointSequence::disjoint(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::do_not_withhold_data_from(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::DisjointSequence::insert(), LM_DEBUG, OpenDDS::DCPS::DisjointSequence::low(), OPENDDS_STRING, OpenDDS::DCPS::SequenceNumber::previous(), receive_strategy(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::recvd_, OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::DCPS::Transport_debug_level, OpenDDS::DCPS::RtpsUdpReceiveStrategy::withhold_data_from(), and OpenDDS::RTPS::DataSubmessage::writerSN.

Referenced by received().

{
  const WriterInfoMap::iterator wi = rr.second.remote_writers_.find(src);
  if (wi != rr.second.remote_writers_.end()) {
    WriterInfo& info = wi->second;
    SequenceNumber seq;
    seq.setValue(data.writerSN.high, data.writerSN.low);
    info.frags_.erase(seq);
    const RepoId& readerId = rr.first;
    if (info.recvd_.contains(seq)) {
      if (Transport_debug_level > 5) {
        GuidConverter writer(src);
        GuidConverter reader(readerId);
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) RtpsUdpDataLink::process_data_i(DataSubmessage) -")
                             ACE_TEXT(" data seq: %q from %C being WITHHELD from %C because ALREADY received\n"),
                             seq.getValue(),
                             OPENDDS_STRING(writer).c_str(),
                             OPENDDS_STRING(reader).c_str()));
      }
      receive_strategy()->withhold_data_from(readerId);
    } else if (info.recvd_.disjoint() ||
        (!info.recvd_.empty() && info.recvd_.cumulative_ack() != seq.previous())
        || (rr.second.durable_ && !info.recvd_.empty() && info.recvd_.low() > 1)
        || (rr.second.durable_ && info.recvd_.empty() && seq > 1)) {
      if (Transport_debug_level > 5) {
        GuidConverter writer(src);
        GuidConverter reader(readerId);
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) RtpsUdpDataLink::process_data_i(DataSubmessage) -")
                             ACE_TEXT(" data seq: %q from %C being WITHHELD from %C because can't receive yet\n"),
                             seq.getValue(),
                             OPENDDS_STRING(writer).c_str(),
                             OPENDDS_STRING(reader).c_str()));
      }
      const ReceivedDataSample* sample =
        receive_strategy()->withhold_data_from(readerId);
      info.held_.insert(std::make_pair(seq, *sample));
    } else {
      if (Transport_debug_level > 5) {
        GuidConverter writer(src);
        GuidConverter reader(readerId);
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) RtpsUdpDataLink::process_data_i(DataSubmessage) -")
                             ACE_TEXT(" data seq: %q from %C to %C OK to deliver\n"),
                             seq.getValue(),
                             OPENDDS_STRING(writer).c_str(),
                             OPENDDS_STRING(reader).c_str()));
      }
      receive_strategy()->do_not_withhold_data_from(readerId);
    }
    info.recvd_.insert(seq);
    deliver_held_data(readerId, info, rr.second.durable_);
  } else {
    if (Transport_debug_level > 5) {
      GuidConverter writer(src);
      GuidConverter reader(rr.first);
      SequenceNumber seq;
      seq.setValue(data.writerSN.high, data.writerSN.low);
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) RtpsUdpDataLink::process_data_i(DataSubmessage) -")
                           ACE_TEXT(" data seq: %q from %C to %C OK to deliver (Writer not currently in Reader remote writer map)\n"),
                           seq.getValue(),
                           OPENDDS_STRING(writer).c_str(),
                           OPENDDS_STRING(reader).c_str()));
    }
    receive_strategy()->do_not_withhold_data_from(rr.first);
  }
  return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::process_gap_i	(	const RTPS::GapSubmessage &	gap,
		const RepoId &	src,
		RtpsReaderMap::value_type &	rr
	)			[private]

Definition at line 1071 of file RtpsUdpDataLink.cpp.

References deliver_held_data(), OpenDDS::RTPS::GapSubmessage::gapList, OpenDDS::RTPS::GapSubmessage::gapStart, OpenDDS::DCPS::SequenceNumber::getValue(), LM_DEBUG, LM_WARNING, OpenDDS::DCPS::SequenceNumber::MAX_VALUE, OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::SequenceNumber::previous(), OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::DCPS::Transport_debug_level, and VDBG_LVL.

Referenced by received().

{
  const WriterInfoMap::iterator wi = rr.second.remote_writers_.find(src);
  if (wi != rr.second.remote_writers_.end()) {
    SequenceRange sr;
    sr.first.setValue(gap.gapStart.high, gap.gapStart.low);
    SequenceNumber base;
    base.setValue(gap.gapList.bitmapBase.high, gap.gapList.bitmapBase.low);
    SequenceNumber first_received = SequenceNumber::MAX_VALUE;
    if (!wi->second.recvd_.empty()) {
      OPENDDS_VECTOR(SequenceRange) missing = wi->second.recvd_.missing_sequence_ranges();
      if (!missing.empty()) {
        first_received = missing.front().second;
      }
    }
    sr.second = std::min(first_received, base.previous());
    if (sr.first <= sr.second) {
      if (Transport_debug_level > 5) {
        const GuidConverter conv(src);
        const GuidConverter rdr(rr.first);
        ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::process_gap_i "
                  "Reader %C received GAP with range [%q, %q] (inserting range [%q, %q]) from %C\n",
                  OPENDDS_STRING(rdr).c_str(),
                  sr.first.getValue(), base.previous().getValue(),
                  sr.first.getValue(), sr.second.getValue(),
                  OPENDDS_STRING(conv).c_str()));
      }
      wi->second.recvd_.insert(sr);
    } else {
      const GuidConverter conv(src);
      VDBG_LVL((LM_WARNING, "(%P|%t) RtpsUdpDataLink::process_gap_i "
                "received GAP with invalid range [%q, %q] from %C\n",
                sr.first.getValue(), sr.second.getValue(),
                OPENDDS_STRING(conv).c_str()), 2);
    }
    wi->second.recvd_.insert(base, gap.gapList.numBits,
                             gap.gapList.bitmap.get_buffer());
    deliver_held_data(rr.first, wi->second, rr.second.durable_);
    //FUTURE: to support wait_for_acks(), notify DCPS layer of the GAP
  }
  return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::process_hb_frag_i	(	const RTPS::HeartBeatFragSubmessage &	hb_frag,
		const RepoId &	src,
		RtpsReaderMap::value_type &	rr
	)			[private]

Definition at line 1596 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::HeartBeatFragSubmessage::count, OpenDDS::RTPS::HeartBeatFragSubmessage::lastFragmentNum, OpenDDS::DCPS::SequenceNumber::setValue(), and OpenDDS::RTPS::HeartBeatFragSubmessage::writerSN.

Referenced by received().

{
  WriterInfoMap::iterator wi = rr.second.remote_writers_.find(src);
  if (wi == rr.second.remote_writers_.end()) {
    // we may not be associated yet, even if the writer thinks we are
    return false;
  }

  if (hb_frag.count.value <= wi->second.hb_frag_recvd_count_) {
    return false;
  }

  wi->second.hb_frag_recvd_count_ = hb_frag.count.value;

  SequenceNumber seq;
  seq.setValue(hb_frag.writerSN.high, hb_frag.writerSN.low);

  // If seq is outside the heartbeat range or we haven't completely received
  // it yet, send a NackFrag along with the AckNack.  The heartbeat range needs
  // to be checked first because recvd_ contains the numbers below the
  // heartbeat range (so that we don't NACK those).
  if (seq < wi->second.hb_range_.first || seq > wi->second.hb_range_.second
      || !wi->second.recvd_.contains(seq)) {
    wi->second.frags_[seq] = hb_frag.lastFragmentNum;
    wi->second.ack_pending_ = true;
    return true; // timer will invoke send_heartbeat_replies()
  }
  return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpDataLink::process_heartbeat_i	(	const RTPS::HeartBeatSubmessage &	heartbeat,
		const RepoId &	src,
		RtpsReaderMap::value_type &	rr
	)			[private]

Definition at line 1171 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::ack_pending_, OpenDDS::RTPS::HeartBeatSubmessage::count, deliver_held_data(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::RTPS::HeartBeatSubmessage::firstSN, OpenDDS::RTPS::FLAG_F, OpenDDS::RTPS::FLAG_L, OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::has_fragments(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::hb_range_, OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::heartbeat_recvd_count_, OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::initial_hb_, OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::RTPS::HeartBeatSubmessage::lastSN, OpenDDS::DCPS::DisjointSequence::low(), OpenDDS::DCPS::SequenceNumber::previous(), receive_strategy(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::recvd_, OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::DCPS::RtpsUdpDataLink::WriterInfo::should_nack(), OpenDDS::RTPS::HeartBeatSubmessage::smHeader, and OpenDDS::DCPS::SequenceNumber::ZERO().

Referenced by received().

{
  const WriterInfoMap::iterator wi = rr.second.remote_writers_.find(src);
  if (wi == rr.second.remote_writers_.end()) {
    // we may not be associated yet, even if the writer thinks we are
    return false;
  }

  WriterInfo& info = wi->second;

  if (heartbeat.count.value <= info.heartbeat_recvd_count_) {
    return false;
  }
  info.heartbeat_recvd_count_ = heartbeat.count.value;

  SequenceNumber& first = info.hb_range_.first;
  first.setValue(heartbeat.firstSN.high, heartbeat.firstSN.low);
  SequenceNumber& last = info.hb_range_.second;
  last.setValue(heartbeat.lastSN.high, heartbeat.lastSN.low);
  static const SequenceNumber starting, zero = SequenceNumber::ZERO();

  DisjointSequence& recvd = info.recvd_;
  if (!rr.second.durable_ && info.initial_hb_) {
    if (last.getValue() < starting.getValue()) {
      // this is an invalid heartbeat -- last must be positive
      return false;
    }
    // For the non-durable reader, the first received HB or DATA establishes
    // a baseline of the lowest sequence number we'd ever need to NACK.
    if (recvd.empty() || recvd.low() >= last) {
      recvd.insert(SequenceRange(zero, last));
    } else {
      recvd.insert(SequenceRange(zero, recvd.low()));
    }
  } else if (!recvd.empty()) {
    // All sequence numbers below 'first' should not be NACKed.
    // The value of 'first' may not decrease with subsequent HBs.
    recvd.insert(SequenceRange(zero,
                               (first > starting) ? first.previous() : zero));
  }

  deliver_held_data(rr.first, info, rr.second.durable_);

  //FUTURE: to support wait_for_acks(), notify DCPS layer of the sequence
  //        numbers we no longer expect to receive due to HEARTBEAT

  info.initial_hb_ = false;

  const bool final = heartbeat.smHeader.flags & RTPS::FLAG_F,
    liveliness = heartbeat.smHeader.flags & RTPS::FLAG_L;

  if (!final || (!liveliness && (info.should_nack() ||
      rr.second.nack_durable(info) ||
      receive_strategy()->has_fragments(info.hb_range_, wi->first)))) {
    info.ack_pending_ = true;
    return true; // timer will invoke send_heartbeat_replies()
  }

  //FUTURE: support assertion of liveliness for MANUAL_BY_TOPIC
  return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::process_requested_changes	(	DisjointSequence &	requests,
		const RtpsWriter &	writer,
		const ReaderInfo &	reader
	)			[private]

Definition at line 2039 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::SequenceNumberSet::bitmap, OpenDDS::RTPS::SequenceNumberSet::bitmapBase, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::heartbeat_high(), OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::DCPS::RcHandle< T >::is_nil(), OpenDDS::RTPS::SequenceNumberSet::numBits, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, and OpenDDS::DCPS::SequenceNumber::setValue().

Referenced by send_directed_nack_replies(), and send_nack_replies().

{
  for (size_t i = 0; i < reader.requested_changes_.size(); ++i) {
    const RTPS::SequenceNumberSet& sn_state = reader.requested_changes_[i];
    SequenceNumber base;
    base.setValue(sn_state.bitmapBase.high, sn_state.bitmapBase.low);
    if (sn_state.numBits == 1 && !(sn_state.bitmap[0] & 1)
        && base == writer.heartbeat_high(reader)) {
      // Since there is an entry in requested_changes_, the DR must have
      // sent a non-final AckNack.  If the base value is the high end of
      // the heartbeat range, treat it as a request for that seq#.
      if (!writer.send_buff_.is_nil() && writer.send_buff_->contains(base)) {
        requests.insert(base);
      }
    } else {
      requests.insert(base, sn_state.numBits, sn_state.bitmap.get_buffer());
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE bool OpenDDS::DCPS::RtpsUdpDataLink::reactor_is_shut_down

(

)

Definition at line 23 of file RtpsUdpDataLink.inl.

References reactor_task_.

{
  if (!reactor_task_) return true;
  return reactor_task_->is_shut_down();
}

OpenDDS::DCPS::RtpsUdpReceiveStrategy * OpenDDS::DCPS::RtpsUdpDataLink::receive_strategy

(

)

[private]

Definition at line 2865 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RcHandle< T >::in(), and OpenDDS::DCPS::DataLink::receive_strategy_.

Referenced by generate_nack_frags(), process_data_i(), process_heartbeat_i(), and send_ack_nacks().

{
  return static_cast<OpenDDS::DCPS::RtpsUdpReceiveStrategy*>(receive_strategy_.in());
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::NackFragSubmessage &	nackfrag,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 1836 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::NackFragSubmessage::count, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::RTPS::NackFragSubmessage::fragmentNumberState, OpenDDS::DCPS::GUID_t::guidPrefix, LM_DEBUG, LM_WARNING, local_prefix_, lock_, nack_reply_, OPENDDS_STRING, OpenDDS::RTPS::NackFragSubmessage::readerId, OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::schedule(), OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::DCPS::Transport_debug_level, VDBG, OpenDDS::RTPS::NackFragSubmessage::writerId, writers_, and OpenDDS::RTPS::NackFragSubmessage::writerSN.

{
  // local side is DW
  RepoId local;
  std::memcpy(local.guidPrefix, local_prefix_, sizeof(GuidPrefix_t));
  local.entityId = nackfrag.writerId; // can't be ENTITYID_UNKNOWN

  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  const RtpsWriterMap::iterator rw = writers_.find(local);
  if (rw == writers_.end()) {
    if (Transport_debug_level > 5) {
      GuidConverter local_conv(local);
      ACE_DEBUG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(NACK_FRAG) "
        "WARNING local %C no RtpsWriter\n", OPENDDS_STRING(local_conv).c_str()));
    }
    return;
  }

  RepoId remote;
  std::memcpy(remote.guidPrefix, src_prefix, sizeof(GuidPrefix_t));
  remote.entityId = nackfrag.readerId;

  if (Transport_debug_level > 5) {
    GuidConverter local_conv(local), remote_conv(remote);
    ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::received(NACK_FRAG) "
      "local %C remote %C\n", OPENDDS_STRING(local_conv).c_str(),
      OPENDDS_STRING(remote_conv).c_str()));
  }

  const ReaderInfoMap::iterator ri = rw->second.remote_readers_.find(remote);
  if (ri == rw->second.remote_readers_.end()) {
    VDBG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(NACK_FRAG) "
      "WARNING ReaderInfo not found\n"));
    return;
  }

  if (nackfrag.count.value <= ri->second.nackfrag_recvd_count_) {
    VDBG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(NACK_FRAG) "
      "WARNING Count indicates duplicate, dropping\n"));
    return;
  }

  ri->second.nackfrag_recvd_count_ = nackfrag.count.value;

  SequenceNumber seq;
  seq.setValue(nackfrag.writerSN.high, nackfrag.writerSN.low);
  ri->second.requested_frags_[seq] = nackfrag.fragmentNumberState;
  g.release();
  nack_reply_.schedule(); // timer will invoke send_nack_replies()
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::AckNackSubmessage &	acknack,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 1632 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::AckNackSubmessage::count, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::DOES_NOT_EXIST, OpenDDS::DCPS::DisjointSequence::dump(), durability_resend(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::EXISTS, OpenDDS::RTPS::FLAG_F, ACE_OS::gettimeofday(), OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::DisjointSequence::high(), OpenDDS::DCPS::DisjointSequence::insert(), interesting_readers_, OpenDDS::DCPS::DataLink::invoke_on_start_callbacks(), LM_DEBUG, LM_WARNING, local_prefix_, lock_, OpenDDS::DCPS::DisjointSequence::low(), nack_reply_, OpenDDS::DCPS::OPENDDS_MAP(), OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::SequenceNumber::previous(), process_acked_by_all_i(), OpenDDS::RTPS::AckNackSubmessage::readerId, OpenDDS::RTPS::AckNackSubmessage::readerSNState, OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::schedule(), send_durability_gaps(), OpenDDS::DCPS::SequenceNumber::SEQUENCENUMBER_UNKNOWN(), OpenDDS::DCPS::SequenceNumber::setValue(), OpenDDS::RTPS::AckNackSubmessage::smHeader, OpenDDS::DCPS::Transport_debug_level, VDBG, OpenDDS::RTPS::AckNackSubmessage::writerId, writers_, and OpenDDS::DCPS::SequenceNumber::ZERO().

{
  // local side is DW
  RepoId local;
  std::memcpy(local.guidPrefix, local_prefix_, sizeof(GuidPrefix_t));
  local.entityId = acknack.writerId; // can't be ENTITYID_UNKNOWN

  RepoId remote;
  std::memcpy(remote.guidPrefix, src_prefix, sizeof(GuidPrefix_t));
  remote.entityId = acknack.readerId;

  const ACE_Time_Value now = ACE_OS::gettimeofday();
  OPENDDS_VECTOR(DiscoveryListener*) callbacks;

  {
    ACE_GUARD(ACE_Thread_Mutex, g, lock_);
    for (InterestingRemoteMapType::iterator pos = interesting_readers_.lower_bound(remote),
           limit = interesting_readers_.upper_bound(remote);
         pos != limit;
         ++pos) {
      pos->second.last_activity = now;
      // Ensure the acknack was for the writer.
      if (local == pos->second.localid) {
        if (pos->second.status == InterestingRemote::DOES_NOT_EXIST) {
          callbacks.push_back(pos->second.listener);
          pos->second.status = InterestingRemote::EXISTS;
        }
      }
    }
  }

  for (size_t i = 0; i < callbacks.size(); ++i) {
    callbacks[i]->reader_exists(remote, local);
  }

  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  const RtpsWriterMap::iterator rw = writers_.find(local);
  if (rw == writers_.end()) {
    if (Transport_debug_level > 5) {
      GuidConverter local_conv(local);
      ACE_DEBUG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(ACKNACK) "
        "WARNING local %C no RtpsWriter\n", OPENDDS_STRING(local_conv).c_str()));
    }
    return;
  }

  if (Transport_debug_level > 5) {
    GuidConverter local_conv(local), remote_conv(remote);
    ACE_DEBUG((LM_DEBUG, "(%P|%t) RtpsUdpDataLink::received(ACKNACK) "
      "local %C remote %C\n", OPENDDS_STRING(local_conv).c_str(),
      OPENDDS_STRING(remote_conv).c_str()));
  }

  const ReaderInfoMap::iterator ri = rw->second.remote_readers_.find(remote);
  if (ri == rw->second.remote_readers_.end()) {
    VDBG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(ACKNACK) "
      "WARNING ReaderInfo not found\n"));
    return;
  }

  if (acknack.count.value <= ri->second.acknack_recvd_count_) {
    VDBG((LM_WARNING, "(%P|%t) RtpsUdpDataLink::received(ACKNACK) "
      "WARNING Count indicates duplicate, dropping\n"));
    return;
  }

  ri->second.acknack_recvd_count_ = acknack.count.value;

  if (!ri->second.handshake_done_) {
    ri->second.handshake_done_ = true;
    invoke_on_start_callbacks(true);
  }

  OPENDDS_MAP(SequenceNumber, TransportQueueElement*) pendingCallbacks;
  const bool final = acknack.smHeader.flags & RTPS::FLAG_F;

  if (!ri->second.durable_data_.empty()) {
    if (Transport_debug_level > 5) {
      const GuidConverter local_conv(local), remote_conv(remote);
      ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                 "local %C has durable for remote %C\n",
                 OPENDDS_STRING(local_conv).c_str(),
                 OPENDDS_STRING(remote_conv).c_str()));
    }
    SequenceNumber ack;
    ack.setValue(acknack.readerSNState.bitmapBase.high,
                 acknack.readerSNState.bitmapBase.low);
    const SequenceNumber& dd_last = ri->second.durable_data_.rbegin()->first;
    if (ack > dd_last) {
      // Reader acknowledges durable data, we no longer need to store it
      ri->second.durable_data_.swap(pendingCallbacks);
      if (Transport_debug_level > 5) {
        ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                   "durable data acked\n"));
      }
    } else {
      DisjointSequence requests;
      if (!requests.insert(ack, acknack.readerSNState.numBits,
                           acknack.readerSNState.bitmap.get_buffer())
          && !final && ack == rw->second.heartbeat_high(ri->second)) {
        // This is a non-final AckNack with no bits in the bitmap.
        // Attempt to reply to a request for the "base" value which
        // is neither Acked nor Nacked, only when it's the HB high.
        if (ri->second.durable_data_.count(ack)) requests.insert(ack);
      }
      // Attempt to reply to nacks for durable data
      bool sent_some = false;
      typedef OPENDDS_MAP(SequenceNumber, TransportQueueElement*)::iterator iter_t;
      iter_t it = ri->second.durable_data_.begin();
      const OPENDDS_VECTOR(SequenceRange) psr = requests.present_sequence_ranges();
      SequenceNumber lastSent = SequenceNumber::ZERO();
      if (!requests.empty()) {
        lastSent = requests.low().previous();
      }
      DisjointSequence gaps;
      for (size_t i = 0; i < psr.size(); ++i) {
        for (; it != ri->second.durable_data_.end()
             && it->first < psr[i].first; ++it) ; // empty for-loop
        for (; it != ri->second.durable_data_.end()
             && it->first <= psr[i].second; ++it) {
          if (Transport_debug_level > 5) {
            ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                       "durable resend %d\n", int(it->first.getValue())));
          }
          durability_resend(it->second);
          //FUTURE: combine multiple resends into one RTPS Message?
          sent_some = true;
          if (it->first > lastSent + 1) {
            gaps.insert(SequenceRange(lastSent + 1, it->first.previous()));
          }
          lastSent = it->first;
        }
        if (sent_some && lastSent < psr[i].second && psr[i].second < dd_last) {
          gaps.insert(SequenceRange(lastSent + 1, psr[i].second));
        }
      }
      if (!gaps.empty()) {
        if (Transport_debug_level > 5) {
          ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                     "sending durability gaps: "));
          gaps.dump();
        }
        send_durability_gaps(local, remote, gaps);
      }
      if (sent_some) {
        return;
      }
      const SequenceNumber& dd_first = ri->second.durable_data_.begin()->first;
      if (!requests.empty() && requests.high() < dd_first) {
        // All nacks were below the start of the durable data.
          requests.insert(SequenceRange(requests.high(), dd_first.previous()));
        if (Transport_debug_level > 5) {
          ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                     "sending durability gaps for all requests: "));
          requests.dump();
        }
        send_durability_gaps(local, remote, requests);
        return;
      }
      if (!requests.empty() && requests.low() < dd_first) {
        // Lowest nack was below the start of the durable data.
        for (size_t i = 0; i < psr.size(); ++i) {
          if (psr[i].first > dd_first) {
            break;
          }
          gaps.insert(SequenceRange(psr[i].first,
                                    std::min(psr[i].second, dd_first)));
        }
        if (Transport_debug_level > 5) {
          ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::received(ACKNACK) "
                     "sending durability gaps for some requests: "));
          gaps.dump();
        }
        send_durability_gaps(local, remote, gaps);
        return;
      }
    }
  }
  SequenceNumber ack;
  ack.setValue(acknack.readerSNState.bitmapBase.high,
               acknack.readerSNState.bitmapBase.low);
  if (ack != SequenceNumber::SEQUENCENUMBER_UNKNOWN()
      && ack != SequenceNumber::ZERO()) {
    ri->second.cur_cumulative_ack_ = ack;
  }
  // If this ACKNACK was final, the DR doesn't expect a reply, and therefore
  // we don't need to do anything further.
  if (!final || bitmapNonEmpty(acknack.readerSNState)) {
    ri->second.requested_changes_.push_back(acknack.readerSNState);
  }
  process_acked_by_all_i(g, local);
  g.release();
  if (!final) {
    nack_reply_.schedule(); // timer will invoke send_nack_replies()
  }
  typedef OPENDDS_MAP(SequenceNumber, TransportQueueElement*)::iterator iter_t;
  for (iter_t it = pendingCallbacks.begin();
       it != pendingCallbacks.end(); ++it) {
    it->second->data_delivered();
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::HeartBeatFragSubmessage &	hb_frag,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 1589 of file RtpsUdpDataLink.cpp.

References datareader_dispatch(), and process_hb_frag_i().

{
  datareader_dispatch(hb_frag, src_prefix, &RtpsUdpDataLink::process_hb_frag_i);
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::HeartBeatSubmessage &	heartbeat,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 1116 of file RtpsUdpDataLink.cpp.

References datareader_dispatch(), OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::DOES_NOT_EXIST, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::EXISTS, ACE_OS::gettimeofday(), OpenDDS::DCPS::GUID_t::guidPrefix, heartbeat_reply_, interesting_ack_nacks_, interesting_writers_, lock_, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), process_heartbeat_i(), readers_, OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::schedule(), and OpenDDS::RTPS::HeartBeatSubmessage::writerId.

{
  RepoId src;
  std::memcpy(src.guidPrefix, src_prefix, sizeof(GuidPrefix_t));
  src.entityId = heartbeat.writerId;

  bool schedule_acknack = false;
  const ACE_Time_Value now = ACE_OS::gettimeofday();
  OPENDDS_VECTOR(InterestingRemote) callbacks;

  {
    ACE_GUARD(ACE_Thread_Mutex, g, lock_);

    // We received a heartbeat from a writer.
    // We should ACKNACK if the writer is interesting and there is no association.

    for (InterestingRemoteMapType::iterator pos = interesting_writers_.lower_bound(src),
           limit = interesting_writers_.upper_bound(src);
         pos != limit;
         ++pos) {
      const RepoId& writerid = src;
      const RepoId& readerid = pos->second.localid;

      RtpsReaderMap::const_iterator riter = readers_.find(readerid);
      if (riter == readers_.end()) {
        // Reader has no associations.
        interesting_ack_nacks_.insert (InterestingAckNack(writerid, readerid, pos->second.address));
      } else if (riter->second.remote_writers_.find(writerid) == riter->second.remote_writers_.end()) {
        // Reader is not associated with this writer.
        interesting_ack_nacks_.insert (InterestingAckNack(writerid, readerid, pos->second.address));
      }
      pos->second.last_activity = now;
      if (pos->second.status == InterestingRemote::DOES_NOT_EXIST) {
        callbacks.push_back(pos->second);
        pos->second.status = InterestingRemote::EXISTS;
      }
    }

    schedule_acknack = !interesting_ack_nacks_.empty();
  }

  for (size_t i = 0; i < callbacks.size(); ++i) {
    callbacks[i].listener->writer_exists(src, callbacks[i].localid);
  }

  if (schedule_acknack) {
    heartbeat_reply_.schedule();
  }

  datareader_dispatch(heartbeat, src_prefix,
                      &RtpsUdpDataLink::process_heartbeat_i);
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::GapSubmessage &	gap,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 1064 of file RtpsUdpDataLink.cpp.

References datareader_dispatch(), and process_gap_i().

{
  datareader_dispatch(gap, src_prefix, &RtpsUdpDataLink::process_gap_i);
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::received	(	const RTPS::DataSubmessage &	data,
		const GuidPrefix_t &	src_prefix
	)

Definition at line 979 of file RtpsUdpDataLink.cpp.

References datareader_dispatch(), and process_data_i().

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::deliver_sample_i().

{
  datareader_dispatch(data, src_prefix, &RtpsUdpDataLink::process_data_i);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::register_for_reader	(	const RepoId &	writerid,
		const RepoId &	readerid,
		const ACE_INET_Addr &	address,
		OpenDDS::DCPS::DiscoveryListener *	listener
	)

Definition at line 362 of file RtpsUdpDataLink.cpp.

References heartbeat_, heartbeat_counts_, interesting_readers_, and lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  bool enableheartbeat = interesting_readers_.empty();
  interesting_readers_.insert(InterestingRemoteMapType::value_type(readerid, InterestingRemote(writerid, address, listener)));
  heartbeat_counts_[writerid] = 0;
  g.release();
  if (enableheartbeat) {
    heartbeat_->schedule_enable();
  }
}

void OpenDDS::DCPS::RtpsUdpDataLink::register_for_writer	(	const RepoId &	readerid,
		const RepoId &	writerid,
		const ACE_INET_Addr &	address,
		OpenDDS::DCPS::DiscoveryListener *	listener
	)

Definition at line 395 of file RtpsUdpDataLink.cpp.

References heartbeatchecker_, interesting_writers_, and lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  bool enableheartbeatchecker = interesting_writers_.empty();
  interesting_writers_.insert(InterestingRemoteMapType::value_type(writerid, InterestingRemote(readerid, address, listener)));
  g.release();
  if (enableheartbeatchecker) {
    heartbeatchecker_->schedule_enable();
  }
}

ACE_INLINE void OpenDDS::DCPS::RtpsUdpDataLink::release_remote_i

(

const RepoId &

remote_id

)

[private, virtual]

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 42 of file RtpsUdpDataLink.inl.

References lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  locators_.erase(remote_id);
}

void OpenDDS::DCPS::RtpsUdpDataLink::release_reservations_i	(	const RepoId &	remote_id,
		const RepoId &	local_id
	)			[private, virtual]

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 502 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::elems_not_acked_, heartbeat_counts_, OpenDDS::DCPS::GuidConverter::isReader(), OpenDDS::DCPS::GuidConverter::isWriter(), lock_, OPENDDS_MULTIMAP, OPENDDS_SET(), OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), process_acked_by_all_i(), reader_index_, readers_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::to_deliver_, and writers_.

{
  OPENDDS_VECTOR(TransportQueueElement*) to_deliver;
  OPENDDS_VECTOR(TransportQueueElement*) to_drop;
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  using std::pair;
  const GuidConverter conv(local_id);
  if (conv.isWriter()) {
    const RtpsWriterMap::iterator rw = writers_.find(local_id);

    if (rw != writers_.end()) {
      rw->second.remote_readers_.erase(remote_id);

      if (rw->second.remote_readers_.empty()) {
        RtpsWriter& writer = rw->second;
        typedef OPENDDS_MULTIMAP(SequenceNumber, TransportQueueElement*)::iterator iter_t;

        if (!writer.to_deliver_.empty()) {
          iter_t iter = writer.to_deliver_.begin();
          while (iter != writer.to_deliver_.end()) {
            to_deliver.push_back(iter->second);
            writer.to_deliver_.erase(iter);
            iter = writer.to_deliver_.begin();
          }
        }
        if (!writer.elems_not_acked_.empty()) {
          OPENDDS_SET(SequenceNumber) sns_to_release;
          iter_t iter = writer.elems_not_acked_.begin();
          while (iter != writer.elems_not_acked_.end()) {
            to_drop.push_back(iter->second);
            sns_to_release.insert(iter->first);
            writer.elems_not_acked_.erase(iter);
            iter = writer.elems_not_acked_.begin();
          }
          OPENDDS_SET(SequenceNumber)::iterator sns_it = sns_to_release.begin();
          while (sns_it != sns_to_release.end()) {
            writer.send_buff_->release_acked(*sns_it);
            ++sns_it;
          }
        }
        heartbeat_counts_.erase(rw->first);
        writers_.erase(rw);
      } else {
        process_acked_by_all_i(g, local_id);
      }
    }

  } else if (conv.isReader()) {
    const RtpsReaderMap::iterator rr = readers_.find(local_id);

    if (rr != readers_.end()) {
      rr->second.remote_writers_.erase(remote_id);

      for (pair<RtpsReaderIndex::iterator, RtpsReaderIndex::iterator> iters =
             reader_index_.equal_range(remote_id);
           iters.first != iters.second;) {
        if (iters.first->second == rr) {
          reader_index_.erase(iters.first++);
        } else {
          ++iters.first;
        }
      }

      if (rr->second.remote_writers_.empty()) {
        readers_.erase(rr);
      }
    }
  }
  g.release();
  typedef OPENDDS_VECTOR(TransportQueueElement*)::iterator tqe_iter;
  tqe_iter deliver_it = to_deliver.begin();
  while (deliver_it != to_deliver.end()) {
    (*deliver_it)->data_delivered();
    ++deliver_it;
  }
  tqe_iter drop_it = to_drop.begin();
  while (drop_it != to_drop.end()) {
    (*drop_it)->data_dropped(true);
    ++drop_it;
  }
}

Here is the call graph for this function:

RemoveResult OpenDDS::DCPS::RtpsUdpDataLink::remove_sample	(	const DataSampleElement *	sample,
		void *	context
	)			[private, virtual]

This method is essentially an "undo_send()" method. It's goal is to remove all traces of the sample from this DataLink (if the sample is even known to the DataLink).

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 494 of file RtpsUdpDataLink.cpp.

References lock_, and OpenDDS::DCPS::REMOVE_ERROR.

{
  // see comment in RtpsUdpDataLink::send_i() for lock order
  ACE_GUARD_RETURN(ACE_Thread_Mutex, g, lock_, REMOVE_ERROR);
  return DataLink::remove_sample(sample, &g);
}

bool OpenDDS::DCPS::RtpsUdpDataLink::requires_inline_qos

(

const GUIDSeq_var &

peers

)

[private]

Definition at line 868 of file RtpsUdpDataLink.cpp.

References force_inline_qos_, and OPENDDS_MAP_CMP().

Referenced by customize_queue_element().

{
  if (force_inline_qos_) {
    // Force true for testing purposes
    return true;
  } else {
    if (!peers.ptr()) {
      return false;
    }
    typedef OPENDDS_MAP_CMP(RepoId, RemoteInfo, GUID_tKeyLessThan)::iterator iter_t;
    for (CORBA::ULong i = 0; i < peers->length(); ++i) {
      const iter_t iter = locators_.find(peers[i]);
      if (iter != locators_.end() && iter->second.requires_inline_qos_) {
        return true;
      }
    }
    return false;
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_ack_nacks	(	RtpsReaderMap::iterator	rr,
		bool	finalFlag = false
	)			[private]

Definition at line 1255 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::ACKNACK, OpenDDS::DCPS::Serializer::ALIGN_CDR, OpenDDS::DCPS::DisjointSequence::cumulative_ack(), OpenDDS::DCPS::DisjointSequence::disjoint(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::DisjointSequence::fill_bitmap_range(), OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_F, OpenDDS::DCPS::gen_find_size(), generate_nack_frags(), OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::DisjointSequence::high(), OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::DCPS::DisjointSequence::last_ack(), LM_ERROR, OpenDDS::DCPS::DisjointSequence::low(), OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::SequenceNumber::previous(), receive_strategy(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::remove_frags_from_bitmap(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::DCPS::DisjointSequence::to_bitmap(), OpenDDS::DCPS::Transport_debug_level, and OpenDDS::DCPS::SequenceNumber::ZERO().

Referenced by send_final_acks(), and send_heartbeat_replies().

{
  using namespace OpenDDS::RTPS;

  WriterInfoMap& writers = rr->second.remote_writers_;
  for (WriterInfoMap::iterator wi = writers.begin(); wi != writers.end();
       ++wi) {

    // if we have some negative acknowledgments, we'll ask for a reply
    DisjointSequence& recvd = wi->second.recvd_;
    const bool nack = wi->second.should_nack() ||
      rr->second.nack_durable(wi->second);
    bool final = finalFlag || !nack;

    if (wi->second.ack_pending_ || nack || finalFlag) {
      const bool prev_ack_pending = wi->second.ack_pending_;
      wi->second.ack_pending_ = false;

      SequenceNumber ack;
      CORBA::ULong num_bits = 1;
      LongSeq8 bitmap;
      bitmap.length(1);
      bitmap[0] = 0;

      const SequenceNumber& hb_low = wi->second.hb_range_.first;
      const SequenceNumber& hb_high = wi->second.hb_range_.second;
      const SequenceNumber::Value hb_low_val = hb_low.getValue(),
        hb_high_val = hb_high.getValue();

      if (recvd.empty()) {
        // Nack the entire heartbeat range.  Only reached when durable.
        ack = hb_low;
        bitmap.length(bitmap_num_longs(ack, hb_high));
        const CORBA::ULong idx = (hb_high_val > hb_low_val + 255)
          ? 255
          : CORBA::ULong(hb_high_val - hb_low_val);
        DisjointSequence::fill_bitmap_range(0, idx,
                                            bitmap.get_buffer(),
                                            bitmap.length(), num_bits);
      } else if (((prev_ack_pending && !nack) || rr->second.nack_durable(wi->second)) && recvd.low() > hb_low) {
        // Nack the range between the heartbeat low and the recvd low.
        ack = hb_low;
        const SequenceNumber& rec_low = recvd.low();
        const SequenceNumber::Value rec_low_val = rec_low.getValue();
        bitmap.length(bitmap_num_longs(ack, rec_low));
        const CORBA::ULong idx = (rec_low_val > hb_low_val + 255)
          ? 255
          : CORBA::ULong(rec_low_val - hb_low_val);
        DisjointSequence::fill_bitmap_range(0, idx,
                                            bitmap.get_buffer(),
                                            bitmap.length(), num_bits);

      } else {
        ack = ++SequenceNumber(recvd.cumulative_ack());
        if (recvd.low().getValue() > 1) {
          // since the "ack" really is cumulative, we need to make
          // sure that a lower discontinuity is not possible later
          recvd.insert(SequenceRange(SequenceNumber::ZERO(), recvd.low()));
        }

        if (recvd.disjoint()) {
          bitmap.length(bitmap_num_longs(ack, recvd.last_ack().previous()));
          recvd.to_bitmap(bitmap.get_buffer(), bitmap.length(),
                          num_bits, true);
        }
      }

      const SequenceNumber::Value ack_val = ack.getValue();

      if (!recvd.empty() && hb_high > recvd.high()) {
        const SequenceNumber eff_high =
          (hb_high <= ack_val + 255) ? hb_high : (ack_val + 255);
        const SequenceNumber::Value eff_high_val = eff_high.getValue();
        // Nack the range between the received high and the effective high.
        const CORBA::ULong old_len = bitmap.length(),
          new_len = bitmap_num_longs(ack, eff_high);
        if (new_len > old_len) {
          bitmap.length(new_len);
          for (CORBA::ULong i = old_len; i < new_len; ++i) {
            bitmap[i] = 0;
          }
        }
        const CORBA::ULong idx_hb_high = CORBA::ULong(eff_high_val - ack_val),
          idx_recv_high = recvd.disjoint() ?
          CORBA::ULong(recvd.high().getValue() - ack_val) : 0;
        DisjointSequence::fill_bitmap_range(idx_recv_high, idx_hb_high,
                                            bitmap.get_buffer(), new_len,
                                            num_bits);
      }

      // If the receive strategy is holding any fragments, those should
      // not be "nacked" in the ACKNACK reply.  They will be accounted for
      // in the NACK_FRAG(s) instead.
      bool frags_modified =
        receive_strategy()->remove_frags_from_bitmap(bitmap.get_buffer(),
                                                 num_bits, ack, wi->first);
      if (frags_modified && !final) { // change to final if bitmap is empty
        final = true;
        for (CORBA::ULong i = 0; i < bitmap.length(); ++i) {
          if ((i + 1) * 32 <= num_bits) {
            if (bitmap[i]) {
              final = false;
              break;
            }
          } else {
            if ((0xffffffff << (32 - (num_bits % 32))) & bitmap[i]) {
              final = false;
              break;
            }
          }
        }
      }

      AckNackSubmessage acknack = {
        {ACKNACK,
         CORBA::Octet(FLAG_E | (final ? FLAG_F : 0)),
         0 /*length*/},
        rr->first.entityId,
        wi->first.entityId,
        { // SequenceNumberSet: acking bitmapBase - 1
          {ack.getHigh(), ack.getLow()},
          num_bits, bitmap
        },
        {++wi->second.acknack_count_}
      };

      size_t size = 0, padding = 0;
      gen_find_size(acknack, size, padding);
      acknack.smHeader.submessageLength =
        static_cast<CORBA::UShort>(size + padding) - SMHDR_SZ;
      InfoDestinationSubmessage info_dst = {
        {INFO_DST, FLAG_E, INFO_DST_SZ},
        {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}
      };
      gen_find_size(info_dst, size, padding);

      OPENDDS_VECTOR(NackFragSubmessage) nack_frags;
      size += generate_nack_frags(nack_frags, wi->second, wi->first);

      ACE_Message_Block mb_acknack(size + padding); //FUTURE: allocators?
      // byte swapping is handled in the operator<<() implementation
      Serializer ser(&mb_acknack, false, Serializer::ALIGN_CDR);
      std::memcpy(info_dst.guidPrefix, wi->first.guidPrefix,
                  sizeof(GuidPrefix_t));
      ser << info_dst;
      // Interoperability note: we used to insert INFO_REPLY submessage here, but
      // testing indicated that other DDS implementations didn't accept it.
      ser << acknack;
      for (size_t i = 0; i < nack_frags.size(); ++i) {
        nack_frags[i].readerId = rr->first.entityId;
        nack_frags[i].writerId = wi->first.entityId;
        ser << nack_frags[i]; // always 4-byte aligned
      }

      if (!locators_.count(wi->first)) {
        if (Transport_debug_level) {
          const GuidConverter conv(wi->first);
          ACE_ERROR((LM_ERROR,
                     "(%P|%t) RtpsUdpDataLink::send_heartbeat_replies() - "
                     "no locator for remote %C\n", OPENDDS_STRING(conv).c_str()));
        }
      } else {
        send_strategy()->send_rtps_control(mb_acknack,
                                          locators_[wi->first].addr_);
      }
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_directed_heartbeats

(

OPENDDS_VECTOR(RTPS::HeartBeatSubmessage)&

hbs

)

[private]

Definition at line 2480 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::Serializer::ALIGN_CDR, OpenDDS::DCPS::assign(), OpenDDS::DCPS::GUID_t::entityId, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER, OpenDDS::RTPS::FLAG_E, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), OpenDDS::RTPS::InfoDestinationSubmessage::guidPrefix, OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::RTPS::HEARTBEAT_SZ, OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, local_prefix_, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::RTPS::InfoDestinationSubmessage::smHeader, and writers_.

Referenced by send_heartbeats().

{
#if defined(OPENDDS_SECURITY)
  const EntityId_t& volatile_writer =
    RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER;

  RTPS::InfoDestinationSubmessage idst;
  idst.smHeader.submessageId = RTPS::INFO_DST;
  idst.smHeader.flags = RTPS::FLAG_E;
  idst.smHeader.submessageLength = RTPS::INFO_DST_SZ;
  const size_t block_size = RTPS::INFO_DST_SZ + RTPS::HEARTBEAT_SZ
    + 2 * RTPS::SMHDR_SZ;
  Message_Block_Ptr mb;

  typedef OPENDDS_VECTOR(RTPS::HeartBeatSubmessage)::iterator iter_t;
  iter_t it = hbs.begin(), last = hbs.end();
  while (it != last) {
    if (0 == std::memcmp(&it->writerId, &volatile_writer, sizeof(EntityId_t))) {
      RepoId local;
      RTPS::assign(local.guidPrefix, local_prefix_);
      local.entityId = it->writerId;
      RtpsWriterMap::const_iterator rw = writers_.find(local);
      if (rw != writers_.end()) {
        const ReaderInfoMap& rinfo = rw->second.remote_readers_;
        for (ReaderInfoMap::const_iterator ri = rinfo.begin();
             ri != rinfo.end(); ++ri) {
          RTPS::assign(idst.guidPrefix, ri->first.guidPrefix);
          it->readerId = ri->first.entityId;
          if (mb) {
            mb->reset();
          } else {
            mb.reset(new ACE_Message_Block(block_size));
          }
          Serializer ser(mb.get(), false, Serializer::ALIGN_CDR);
          ser << idst;
          ser << *it;
          send_strategy()->send_rtps_control(*mb, locators_[ri->first].addr_);
        }
      }
      std::iter_swap(it, --last);
    } else {
      ++it;
    }
  }
  hbs.erase(last, hbs.end());
#else
  ACE_UNUSED_ARG(hbs);
#endif
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_directed_nack_replies	(	const RepoId &	writerId,
		RtpsWriter &	writer,
		const RepoId &	readerId,
		ReaderInfo &	reader
	)			[private]

Definition at line 2062 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::DisjointSequence::dump(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::durable_, OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::RcHandle< T >::is_nil(), LM_DEBUG, marshal_gaps(), OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::RtpsUdpSendStrategy::override_destinations(), process_requested_changes(), ACE_Message_Block::release(), OpenDDS::DCPS::SingleSendBuffer::resend_i(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::DCPS::TransportSendBuffer::strategy_lock(), and OpenDDS::DCPS::Transport_debug_level.

Referenced by send_nack_replies().

{
  if (!locators_.count(readerId)) {
    return;
  }

  DisjointSequence requests;
  process_requested_changes(requests, writer, reader);
  reader.requested_changes_.clear();

  DisjointSequence gaps;
  ACE_INET_Addr addr = locators_[readerId].addr_;

  if (!requests.empty()) {
    if (writer.send_buff_.is_nil() || writer.send_buff_->empty()) {
      gaps = requests;
    } else {
      OPENDDS_VECTOR(SequenceRange) ranges = requests.present_sequence_ranges();
      SingleSendBuffer& sb = *writer.send_buff_;
      ACE_GUARD(TransportSendBuffer::LockType, guard, sb.strategy_lock());
      const RtpsUdpSendStrategy::OverrideToken ot =
        send_strategy()->override_destinations(addr);
      for (size_t i = 0; i < ranges.size(); ++i) {
        if (Transport_debug_level > 5) {
          ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::send_directed_nack_replies "
                     "resend data %d-%d\n", int(ranges[i].first.getValue()),
                     int(ranges[i].second.getValue())));
        }
        sb.resend_i(ranges[i], &gaps, readerId);
      }
    }
  }

  if (gaps.empty()) {
    return;
  }
  if (Transport_debug_level > 5) {
    ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::send_directed_nack_replies GAPs: "));
    gaps.dump();
  }
  ACE_Message_Block* mb_gap =
    marshal_gaps(writerId, readerId, gaps, writer.durable_);
  if (mb_gap) {
    send_strategy()->send_rtps_control(*mb_gap, addr);
    mb_gap->release();
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_durability_gaps	(	const RepoId &	writer,
		const RepoId &	reader,
		const DisjointSequence &	gaps
	)			[private]

Definition at line 2295 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::Serializer::ALIGN_CDR, ACE_Message_Block::cont(), OpenDDS::RTPS::FLAG_E, get_locator(), OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::RTPS::InfoDestinationSubmessage::guidPrefix, OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, marshal_gaps(), ACE_Message_Block::release(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), and OpenDDS::RTPS::SMHDR_SZ.

Referenced by received().

{
  ACE_Message_Block mb(RTPS::INFO_DST_SZ + RTPS::SMHDR_SZ);
  Serializer ser(&mb, false, Serializer::ALIGN_CDR);
  RTPS::InfoDestinationSubmessage info_dst = {
    {RTPS::INFO_DST, RTPS::FLAG_E, RTPS::INFO_DST_SZ},
    {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}
  };
  std::memcpy(info_dst.guidPrefix, reader.guidPrefix, sizeof(GuidPrefix_t));
  ser << info_dst;
  mb.cont(marshal_gaps(writer, reader, gaps));
  send_strategy()->send_rtps_control(mb, get_locator(reader));
  mb.cont()->release();
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_final_acks

(

const RepoId &

readerid

)

[virtual]

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 2800 of file RtpsUdpDataLink.cpp.

References lock_, readers_, and send_ack_nacks().

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  RtpsReaderMap::iterator rr = readers_.find (readerid);
  if (rr != readers_.end ()) {
    send_ack_nacks (rr, true);
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeat_replies

(

)

[private]

Definition at line 1425 of file RtpsUdpDataLink.cpp.

References OpenDDS::RTPS::ACKNACK, OpenDDS::DCPS::Serializer::ALIGN_CDR, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_F, OpenDDS::DCPS::gen_find_size(), OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, interesting_ack_nacks_, lock_, readers_, send_ack_nacks(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), and OpenDDS::RTPS::SMHDR_SZ.

{
  using namespace OpenDDS::RTPS;
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);

  for (InterestingAckNackSetType::const_iterator pos = interesting_ack_nacks_.begin(),
         limit = interesting_ack_nacks_.end();
       pos != limit;
       ++pos) {

    SequenceNumber ack;
    LongSeq8 bitmap;
    bitmap.length(0);

    AckNackSubmessage acknack = {
      {ACKNACK,
       CORBA::Octet(FLAG_E | FLAG_F),
       0 /*length*/},
      pos->readerid.entityId,
      pos->writerid.entityId,
      { // SequenceNumberSet: acking bitmapBase - 1
        {ack.getHigh(), ack.getLow()},
        0 /* num_bits */, bitmap
      },
      {0 /* acknack count */}
    };

    size_t size = 0, padding = 0;
    gen_find_size(acknack, size, padding);
    acknack.smHeader.submessageLength =
      static_cast<CORBA::UShort>(size + padding) - SMHDR_SZ;
    InfoDestinationSubmessage info_dst = {
      {INFO_DST, FLAG_E, INFO_DST_SZ},
      {0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0}
    };
    gen_find_size(info_dst, size, padding);

    ACE_Message_Block mb_acknack(size + padding); //FUTURE: allocators?
    // byte swapping is handled in the operator<<() implementation
    Serializer ser(&mb_acknack, false, Serializer::ALIGN_CDR);
    std::memcpy(info_dst.guidPrefix, pos->writerid.guidPrefix,
                sizeof(GuidPrefix_t));
    ser << info_dst;
    // Interoperability note: we used to insert INFO_REPLY submessage here, but
    // testing indicated that other DDS implementations didn't accept it.
    ser << acknack;

    send_strategy()->send_rtps_control(mb_acknack, pos->writer_address);
  }
  interesting_ack_nacks_.clear();

  for (RtpsReaderMap::iterator rr = readers_.begin(); rr != readers_.end();
       ++rr) {
    send_ack_nacks (rr);
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeats

(

)

[private]

Definition at line 2313 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::Serializer::ALIGN_CDR, config(), OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::DOES_NOT_EXIST, OpenDDS::DCPS::RtpsUdpInst::durable_data_timeout_, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::EXISTS, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_F, OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), ACE_OS::gettimeofday(), OpenDDS::RTPS::HEARTBEAT, heartbeat_, heartbeat_counts_, OpenDDS::DCPS::RtpsUdpInst::heartbeat_period_, OpenDDS::RTPS::HEARTBEAT_SZ, interesting_readers_, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::listener, LM_ERROR, LM_INFO, OpenDDS::DCPS::RtpsUdpDataLink::InterestingRemote::localid, lock_, OpenDDS::DCPS::OPENDDS_MAP(), OPENDDS_SET(), OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::DiscoveryListener::reader_does_not_exist(), send_directed_heartbeats(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::DCPS::Transport_debug_level, VDBG_LVL, and writers_.

{
  OPENDDS_VECTOR(CallbackType) readerDoesNotExistCallbacks;
  OPENDDS_VECTOR(TransportQueueElement*) pendingCallbacks;

  {
    ACE_GUARD(ACE_Thread_Mutex, g, lock_);

    if (writers_.empty() && interesting_readers_.empty()) {
      heartbeat_->disable();
    }

    using namespace OpenDDS::RTPS;
    OPENDDS_VECTOR(HeartBeatSubmessage) subm;
    OPENDDS_SET(ACE_INET_Addr) recipients;
    const ACE_Time_Value now = ACE_OS::gettimeofday();

    RepoIdSet writers_to_advertise;

    RtpsUdpInst& config = this->config();

    const ACE_Time_Value tv = ACE_OS::gettimeofday() - 10 * config.heartbeat_period_;
    const ACE_Time_Value tv3 = ACE_OS::gettimeofday() - 3 * config.heartbeat_period_;
    for (InterestingRemoteMapType::iterator pos = interesting_readers_.begin(),
           limit = interesting_readers_.end();
         pos != limit;
         ++pos) {
      if (pos->second.status == InterestingRemote::DOES_NOT_EXIST ||
          (pos->second.status == InterestingRemote::EXISTS && pos->second.last_activity < tv3)) {
        recipients.insert(pos->second.address);
        writers_to_advertise.insert(pos->second.localid);
      }
      if (pos->second.status == InterestingRemote::EXISTS && pos->second.last_activity < tv) {
        CallbackType callback(pos->first, pos->second);
        readerDoesNotExistCallbacks.push_back(callback);
        pos->second.status = InterestingRemote::DOES_NOT_EXIST;
      }
    }

    typedef RtpsWriterMap::iterator rw_iter;
    for (rw_iter rw = writers_.begin(); rw != writers_.end(); ++rw) {
      const bool has_data = !rw->second.send_buff_.is_nil()
                            && !rw->second.send_buff_->empty();
      bool final = true, has_durable_data = false;
      SequenceNumber durable_max;

      typedef ReaderInfoMap::iterator ri_iter;
      const ri_iter end = rw->second.remote_readers_.end();
      for (ri_iter ri = rw->second.remote_readers_.begin(); ri != end; ++ri) {
        if ((has_data || !ri->second.handshake_done_)
            && locators_.count(ri->first)) {
          recipients.insert(locators_[ri->first].addr_);
          if (final && !ri->second.handshake_done_) {
            final = false;
          }
        }
        if (!ri->second.durable_data_.empty()) {
          const ACE_Time_Value expiration =
            ri->second.durable_timestamp_ + config.durable_data_timeout_;
          if (now > expiration) {
            typedef OPENDDS_MAP(SequenceNumber, TransportQueueElement*)::iterator
              dd_iter;
            for (dd_iter it = ri->second.durable_data_.begin();
                 it != ri->second.durable_data_.end(); ++it) {
              pendingCallbacks.push_back(it->second);
            }
            ri->second.durable_data_.clear();
            if (Transport_debug_level > 3) {
              const GuidConverter gw(rw->first), gr(ri->first);
              VDBG_LVL((LM_INFO, "(%P|%t) RtpsUdpDataLink::send_heartbeats - "
                "removed expired durable data for %C -> %C\n",
                OPENDDS_STRING(gw).c_str(), OPENDDS_STRING(gr).c_str()), 3);
            }
          } else {
            has_durable_data = true;
            if (ri->second.durable_data_.rbegin()->first > durable_max) {
              durable_max = ri->second.durable_data_.rbegin()->first;
            }
            if (locators_.count(ri->first)) {
              recipients.insert(locators_[ri->first].addr_);
            }
          }
        }
      }

      if (!rw->second.elems_not_acked_.empty()) {
        final = false;
      }

      if (writers_to_advertise.count(rw->first)) {
        final = false;
        writers_to_advertise.erase(rw->first);
      }

      if (final && !has_data && !has_durable_data) {
        continue;
      }

      const SequenceNumber firstSN = (rw->second.durable_ || !has_data)
                                     ? 1 : rw->second.send_buff_->low(),
          lastSN = std::max(durable_max,
                            has_data ? rw->second.send_buff_->high() : 1);

      const HeartBeatSubmessage hb = {
        {HEARTBEAT,
         CORBA::Octet(FLAG_E | (final ? FLAG_F : 0)),
         HEARTBEAT_SZ},
        ENTITYID_UNKNOWN, // any matched reader may be interested in this
        rw->first.entityId,
        {firstSN.getHigh(), firstSN.getLow()},
        {lastSN.getHigh(), lastSN.getLow()},
        {++heartbeat_counts_[rw->first]}
      };
      subm.push_back(hb);
    }

    for (RepoIdSet::const_iterator pos = writers_to_advertise.begin(),
           limit = writers_to_advertise.end();
         pos != limit;
         ++pos) {
      const SequenceNumber SN = 1;
      const HeartBeatSubmessage hb = {
        {HEARTBEAT,
         FLAG_E,
         HEARTBEAT_SZ},
        ENTITYID_UNKNOWN, // any matched reader may be interested in this
        pos->entityId,
        {SN.getHigh(), SN.getLow()},
        {SN.getHigh(), SN.getLow()},
        {++heartbeat_counts_[*pos]}
      };
      subm.push_back(hb);
    }

    send_directed_heartbeats(subm);

    if (!subm.empty()) {
      ACE_Message_Block mb((HEARTBEAT_SZ + SMHDR_SZ) * subm.size()); //FUTURE: allocators?
      // byte swapping is handled in the operator<<() implementation
      Serializer ser(&mb, false, Serializer::ALIGN_CDR);
      bool send_ok = true;
      for (size_t i = 0; i < subm.size(); ++i) {
        if (!(ser << subm[i])) {
          ACE_ERROR((LM_ERROR, "(%P|%t) RtpsUdpDataLink::send_heartbeats() - "
            "failed to serialize HEARTBEAT submessage %B\n", i));
          send_ok = false;
          break;
        }
      }
      if (send_ok) {
        send_strategy()->send_rtps_control(mb, recipients);
      }
    }
  }

  for (OPENDDS_VECTOR(CallbackType)::iterator iter = readerDoesNotExistCallbacks.begin();
      iter != readerDoesNotExistCallbacks.end(); ++iter){
    const InterestingRemote& remote = iter->second;
    remote.listener->reader_does_not_exist(iter->first, remote.localid);
  }

  for (size_t i = 0; i < pendingCallbacks.size(); ++i) {
    pendingCallbacks[i]->data_dropped();
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeats_manual

(

const TransportSendControlElement *

tsce

)

[private]

Definition at line 2560 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::Serializer::ALIGN_CDR, best_effort_heartbeat_count_, config(), OpenDDS::DCPS::RtpsUdpInst::durable_data_timeout_, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_F, OpenDDS::RTPS::FLAG_L, get_locators(), OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), ACE_OS::gettimeofday(), OpenDDS::RTPS::HEARTBEAT, heartbeat_counts_, OpenDDS::RTPS::HEARTBEAT_SZ, LM_ERROR, OPENDDS_SET(), OpenDDS::DCPS::TransportSendControlElement::publication_id(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::DCPS::TransportSendControlElement::sequence(), OpenDDS::RTPS::SMHDR_SZ, and writers_.

Referenced by customize_queue_element().

{
  using namespace OpenDDS::RTPS;

  const RepoId pub_id = tsce->publication_id();

  // Populate the recipients.
  OPENDDS_SET(ACE_INET_Addr) recipients;
  get_locators (pub_id, recipients);
  if (recipients.empty()) {
    return;
  }

  // Populate the sequence numbers and counter.

  SequenceNumber firstSN, lastSN;
  CORBA::Long counter;
  RtpsWriterMap::iterator pos = writers_.find (pub_id);
  if (pos != writers_.end ()) {
    // Reliable.
    const bool has_data = !pos->second.send_buff_.is_nil() && !pos->second.send_buff_->empty();
    SequenceNumber durable_max;
    const ACE_Time_Value now = ACE_OS::gettimeofday();
    for (ReaderInfoMap::const_iterator ri = pos->second.remote_readers_.begin(), end = pos->second.remote_readers_.end();
         ri != end;
         ++ri) {
      if (!ri->second.durable_data_.empty()) {
        const ACE_Time_Value expiration = ri->second.durable_timestamp_ + config().durable_data_timeout_;
        if (now <= expiration &&
            ri->second.durable_data_.rbegin()->first > durable_max) {
          durable_max = ri->second.durable_data_.rbegin()->first;
        }
      }
    }
    firstSN = (pos->second.durable_ || !has_data) ? 1 : pos->second.send_buff_->low();
    lastSN = std::max(durable_max, has_data ? pos->second.send_buff_->high() : 1);
    counter = ++heartbeat_counts_[pos->first];
  } else {
    // Unreliable.
    firstSN = 1;
    lastSN = tsce->sequence();
    counter = ++this->best_effort_heartbeat_count_;
  }

  const HeartBeatSubmessage hb = {
    {HEARTBEAT,
     CORBA::Octet(FLAG_E | FLAG_F | FLAG_L),
     HEARTBEAT_SZ},
    ENTITYID_UNKNOWN, // any matched reader may be interested in this
    pub_id.entityId,
    {firstSN.getHigh(), firstSN.getLow()},
    {lastSN.getHigh(), lastSN.getLow()},
    {counter}
  };

  ACE_Message_Block mb((HEARTBEAT_SZ + SMHDR_SZ) * 1); //FUTURE: allocators?
  // byte swapping is handled in the operator<<() implementation
  Serializer ser(&mb, false, Serializer::ALIGN_CDR);
  if ((ser << hb)) {
    send_strategy()->send_rtps_control(mb, recipients);
  }
  else {
    ACE_ERROR((LM_ERROR, "(%P|%t) RtpsUdpDataLink::send_heartbeats_manual() - "
               "failed to serialize HEARTBEAT submessage\n"));
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_i	(	TransportQueueElement *	element,
		bool	relink = true
	)			[private, virtual]

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 484 of file RtpsUdpDataLink.cpp.

References lock_.

{
  // Lock here to maintain the locking order:
  // RtpsUdpDataLink before RtpsUdpSendStrategy
  // which is required for resending due to nacks
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  DataLink::send_i(element, relink);
}

void OpenDDS::DCPS::RtpsUdpDataLink::send_nack_replies

(

)

[private]

Definition at line 1889 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::DisjointSequence::dump(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::durable_, OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER, OpenDDS::DCPS::GUID_UNKNOWN, OpenDDS::DCPS::RcHandle< T >::is_nil(), LM_DEBUG, lock_, marshal_gaps(), OpenDDS::DCPS::SequenceNumber::MAX_VALUE, OPENDDS_SET(), OPENDDS_STRING, OpenDDS::DCPS::DataLink::OPENDDS_VECTOR(), OpenDDS::DCPS::RtpsUdpSendStrategy::override_destinations(), process_requested_changes(), ACE_Message_Block::release(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::remote_readers_, OpenDDS::DCPS::SingleSendBuffer::resend_i(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, send_directed_nack_replies(), send_nackfrag_replies(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control(), send_strategy(), OpenDDS::DCPS::TransportSendBuffer::strategy_lock(), OpenDDS::DCPS::Transport_debug_level, and writers_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  // Reply from local DW to remote DR: GAP or DATA
  using namespace OpenDDS::RTPS;
  typedef RtpsWriterMap::iterator rw_iter;
  for (rw_iter rw = writers_.begin(); rw != writers_.end(); ++rw) {

    // consolidate requests from N readers
    OPENDDS_SET(ACE_INET_Addr) recipients;
    DisjointSequence requests;
    RtpsWriter& writer = rw->second;

    //track if any messages have been fully acked by all readers
    SequenceNumber all_readers_ack = SequenceNumber::MAX_VALUE;

#if defined(OPENDDS_SECURITY)
    const EntityId_t& pvs_writer =
      RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER;
    const bool is_pvs_writer =
      0 == std::memcmp(&pvs_writer, &rw->first.entityId, sizeof pvs_writer);
#endif

    typedef ReaderInfoMap::iterator ri_iter;
    const ri_iter end = writer.remote_readers_.end();
    for (ri_iter ri = writer.remote_readers_.begin(); ri != end; ++ri) {

      if (ri->second.cur_cumulative_ack_ < all_readers_ack) {
        all_readers_ack = ri->second.cur_cumulative_ack_;
      }

#if defined(OPENDDS_SECURITY)
      if (is_pvs_writer && !ri->second.requested_changes_.empty()) {
        send_directed_nack_replies(rw->first, writer, ri->first, ri->second);
        continue;
      }
#endif

      process_requested_changes(requests, writer, ri->second);

      if (!ri->second.requested_changes_.empty()) {
        if (locators_.count(ri->first)) {
          recipients.insert(locators_[ri->first].addr_);
          if (Transport_debug_level > 5) {
            const GuidConverter local_conv(rw->first), remote_conv(ri->first);
            ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::send_nack_replies "
                       "local %C remote %C requested resend\n",
                       OPENDDS_STRING(local_conv).c_str(),
                       OPENDDS_STRING(remote_conv).c_str()));
          }
        }
        ri->second.requested_changes_.clear();
      }
    }

    DisjointSequence gaps;
    if (!requests.empty()) {
      if (writer.send_buff_.is_nil() || writer.send_buff_->empty()) {
        gaps = requests;
      } else {
        OPENDDS_VECTOR(SequenceRange) ranges = requests.present_sequence_ranges();
        SingleSendBuffer& sb = *writer.send_buff_;
        ACE_GUARD(TransportSendBuffer::LockType, guard, sb.strategy_lock());
        const RtpsUdpSendStrategy::OverrideToken ot =
          send_strategy()->override_destinations(recipients);
        for (size_t i = 0; i < ranges.size(); ++i) {
          if (Transport_debug_level > 5) {
            ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::send_nack_replies "
                       "resend data %d-%d\n", int(ranges[i].first.getValue()),
                       int(ranges[i].second.getValue())));
          }
          sb.resend_i(ranges[i], &gaps);
        }
      }
    }

    send_nackfrag_replies(writer, gaps, recipients);

    if (!gaps.empty()) {
      if (Transport_debug_level > 5) {
        ACE_DEBUG((LM_DEBUG, "RtpsUdpDataLink::send_nack_replies "
                   "GAPs:"));
        gaps.dump();
      }
      ACE_Message_Block* mb_gap =
        marshal_gaps(rw->first, GUID_UNKNOWN, gaps, writer.durable_);
      if (mb_gap) {
        send_strategy()->send_rtps_control(*mb_gap, recipients);
        mb_gap->release();
      }
    }
    if (all_readers_ack == SequenceNumber::MAX_VALUE) {
      continue;
    }
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::send_nackfrag_replies	(	RtpsWriter &	writer,
		DisjointSequence &	gaps,
		OPENDDS_SET(ACE_INET_Addr)&	gap_recipients
	)			[private]

Definition at line 1987 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::DCPS::OPENDDS_MAP(), OpenDDS::DCPS::RtpsUdpSendStrategy::override_destinations(), OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::remote_readers_, OpenDDS::DCPS::RtpsUdpDataLink::RtpsWriter::send_buff_, and send_strategy().

Referenced by send_nack_replies().

{
  typedef OPENDDS_MAP(SequenceNumber, DisjointSequence) FragmentInfo;
  OPENDDS_MAP(ACE_INET_Addr, FragmentInfo) requests;

  typedef ReaderInfoMap::iterator ri_iter;
  const ri_iter end = writer.remote_readers_.end();
  for (ri_iter ri = writer.remote_readers_.begin(); ri != end; ++ri) {

    if (ri->second.requested_frags_.empty() || !locators_.count(ri->first)) {
      continue;
    }

    const ACE_INET_Addr& remote_addr = locators_[ri->first].addr_;

    typedef OPENDDS_MAP(SequenceNumber, RTPS::FragmentNumberSet)::iterator rf_iter;
    const rf_iter rf_end = ri->second.requested_frags_.end();
    for (rf_iter rf = ri->second.requested_frags_.begin(); rf != rf_end; ++rf) {

      const SequenceNumber& seq = rf->first;
      if (writer.send_buff_->contains(seq)) {
        FragmentInfo& fi = requests[remote_addr];
        fi[seq].insert(rf->second.bitmapBase.value, rf->second.numBits,
                       rf->second.bitmap.get_buffer());
      } else {
        gaps.insert(seq);
        gap_recipients.insert(remote_addr);
      }
    }
    ri->second.requested_frags_.clear();
  }

  typedef OPENDDS_MAP(ACE_INET_Addr, FragmentInfo)::iterator req_iter;
  for (req_iter req = requests.begin(); req != requests.end(); ++req) {
    const FragmentInfo& fi = req->second;

    ACE_GUARD(TransportSendBuffer::LockType, guard,
      writer.send_buff_->strategy_lock());
    const RtpsUdpSendStrategy::OverrideToken ot =
      send_strategy()->override_destinations(req->first);

    for (FragmentInfo::const_iterator sn_iter = fi.begin();
         sn_iter != fi.end(); ++sn_iter) {
      const SequenceNumber& seq = sn_iter->first;
      writer.send_buff_->resend_fragments_i(seq, sn_iter->second);
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

OpenDDS::DCPS::RtpsUdpSendStrategy * OpenDDS::DCPS::RtpsUdpDataLink::send_strategy

(

)

[private]

Definition at line 2859 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RcHandle< T >::in(), and OpenDDS::DCPS::DataLink::send_strategy_.

Referenced by customize_queue_element(), durability_resend(), OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer::insert(), open(), send_ack_nacks(), send_directed_heartbeats(), send_directed_nack_replies(), send_durability_gaps(), send_heartbeat_replies(), send_heartbeats(), send_heartbeats_manual(), send_nack_replies(), and send_nackfrag_replies().

{
  return static_cast<OpenDDS::DCPS::RtpsUdpSendStrategy*>(send_strategy_.in());
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::stop_i

(

)

[private, virtual]

This announces the "stop" event to our subclass. The "stop" event will occur when this DataLink is handling a release_reservations() call and determines that it has just released all of the remaining reservations on this DataLink. The "stop" event will also occur when the TransportImpl is being shutdown() - we call stop_i() from our transport_shutdown() method to handle this case.

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 586 of file RtpsUdpDataLink.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay::cancel(), ACE_SOCK::close(), heartbeat_, heartbeat_reply_, multicast_socket_, nack_reply_, and unicast_socket_.

Referenced by open().

{
  nack_reply_.cancel();
  heartbeat_reply_.cancel();
  heartbeat_->disable();
  unicast_socket_.close();
  multicast_socket_.close();
}

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE ACE_SOCK_Dgram & OpenDDS::DCPS::RtpsUdpDataLink::unicast_socket

(

)

Definition at line 30 of file RtpsUdpDataLink.inl.

References unicast_socket_.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::receive_bytes(), OpenDDS::DCPS::RtpsUdpSendStrategy::send_single_i(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::start_i(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::stop_i().

{
  return unicast_socket_;
}

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpDataLink::unregister_for_reader	(	const RepoId &	writerid,
		const RepoId &	readerid
	)

Definition at line 378 of file RtpsUdpDataLink.cpp.

References interesting_readers_, and lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  for (InterestingRemoteMapType::iterator pos = interesting_readers_.lower_bound(readerid),
         limit = interesting_readers_.upper_bound(readerid);
       pos != limit;
       ) {
    if (pos->second.localid == writerid) {
      interesting_readers_.erase(pos++);
    } else {
      ++pos;
    }
  }
}

void OpenDDS::DCPS::RtpsUdpDataLink::unregister_for_writer	(	const RepoId &	readerid,
		const RepoId &	writerid
	)

Definition at line 410 of file RtpsUdpDataLink.cpp.

References interesting_writers_, and lock_.

{
  ACE_GUARD(ACE_Thread_Mutex, g, lock_);
  for (InterestingRemoteMapType::iterator pos = interesting_writers_.lower_bound(writerid),
         limit = interesting_writers_.upper_bound(writerid);
       pos != limit;
       ) {
    if (pos->second.localid == readerid) {
      interesting_writers_.erase(pos++);
    } else {
      ++pos;
    }
  }
}

---

Friends And Related Function Documentation

friend class ::DDS_TEST [friend]

Definition at line 162 of file RtpsUdpDataLink.h.

---

Member Data Documentation

CORBA::Long OpenDDS::DCPS::RtpsUdpDataLink::best_effort_heartbeat_count_ [private]

Definition at line 378 of file RtpsUdpDataLink.h.

Referenced by send_heartbeats_manual().

bool OpenDDS::DCPS::RtpsUdpDataLink::force_inline_qos_ = false [static, private]

static member used by testing code to force inline qos

Definition at line 164 of file RtpsUdpDataLink.h.

Referenced by requires_inline_qos().

RcHandle<HeartBeat> OpenDDS::DCPS::RtpsUdpDataLink::heartbeat_ [private]

Definition at line 453 of file RtpsUdpDataLink.h.

Referenced by associated(), register_for_reader(), send_heartbeats(), and stop_i().

HeartBeatCountMapType OpenDDS::DCPS::RtpsUdpDataLink::heartbeat_counts_ [private]

Definition at line 485 of file RtpsUdpDataLink.h.

Referenced by associated(), pre_stop_i(), register_for_reader(), release_reservations_i(), send_heartbeats(), and send_heartbeats_manual().

OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay OpenDDS::DCPS::RtpsUdpDataLink::heartbeat_reply_ [private]

Referenced by received(), and stop_i().

RcHandle<HeartBeat> OpenDDS::DCPS::RtpsUdpDataLink::heartbeatchecker_ [private]

Definition at line 453 of file RtpsUdpDataLink.h.

Referenced by register_for_writer().

HeldDataDeliveryHandler OpenDDS::DCPS::RtpsUdpDataLink::held_data_delivery_handler_ [private]

Definition at line 531 of file RtpsUdpDataLink.h.

Referenced by deliver_held_data().

InterestingAckNackSetType OpenDDS::DCPS::RtpsUdpDataLink::interesting_ack_nacks_ [private]

Definition at line 508 of file RtpsUdpDataLink.h.

Referenced by received(), and send_heartbeat_replies().

InterestingRemoteMapType OpenDDS::DCPS::RtpsUdpDataLink::interesting_readers_ [private]

Definition at line 478 of file RtpsUdpDataLink.h.

Referenced by received(), register_for_reader(), send_heartbeats(), and unregister_for_reader().

InterestingRemoteMapType OpenDDS::DCPS::RtpsUdpDataLink::interesting_writers_ [private]

Definition at line 479 of file RtpsUdpDataLink.h.

Referenced by check_heartbeats(), received(), register_for_writer(), and unregister_for_writer().

GuidPrefix_t OpenDDS::DCPS::RtpsUdpDataLink::local_prefix_ [private]

Definition at line 177 of file RtpsUdpDataLink.h.

Referenced by received(), RtpsUdpDataLink(), and send_directed_heartbeats().

ACE_Thread_Mutex OpenDDS::DCPS::RtpsUdpDataLink::lock_ [mutable, private]

lock_ protects data structures accessed by both the transport's thread (TransportReactorTask) and an external thread which is responsible for adding/removing associations from the DataLink.

Definition at line 294 of file RtpsUdpDataLink.h.

Referenced by add_locator(), associated(), check_heartbeats(), customize_queue_element(), pre_stop_i(), received(), register_for_reader(), register_for_writer(), release_remote_i(), release_reservations_i(), remove_sample(), OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer::retain_all(), send_final_acks(), send_heartbeat_replies(), send_heartbeats(), send_i(), send_nack_replies(), unregister_for_reader(), and unregister_for_writer().

OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer OpenDDS::DCPS::RtpsUdpDataLink::multi_buff_ [private]

Referenced by open().

ACE_SOCK_Dgram_Mcast OpenDDS::DCPS::RtpsUdpDataLink::multicast_socket_ [private]

Definition at line 189 of file RtpsUdpDataLink.h.

Referenced by multicast_socket(), open(), and stop_i().

OpenDDS::DCPS::RtpsUdpDataLink::TimedDelay OpenDDS::DCPS::RtpsUdpDataLink::nack_reply_ [private]

Referenced by received(), and stop_i().

TransportReactorTask_rch OpenDDS::DCPS::RtpsUdpDataLink::reactor_task_ [private]

Definition at line 172 of file RtpsUdpDataLink.h.

Referenced by get_reactor(), OpenDDS::DCPS::RtpsUdpDataLink::HeldDataDeliveryHandler::handle_exception(), OpenDDS::DCPS::RtpsUdpDataLink::HeldDataDeliveryHandler::notify_delivery(), and reactor_is_shut_down().

RtpsReaderIndex OpenDDS::DCPS::RtpsUdpDataLink::reader_index_ [private]

Definition at line 287 of file RtpsUdpDataLink.h.

Referenced by associated(), and release_reservations_i().

RtpsReaderMap OpenDDS::DCPS::RtpsUdpDataLink::readers_ [private]

Definition at line 283 of file RtpsUdpDataLink.h.

Referenced by associated(), received(), release_reservations_i(), send_final_acks(), and send_heartbeat_replies().

ACE_SOCK_Dgram OpenDDS::DCPS::RtpsUdpDataLink::unicast_socket_ [private]

Definition at line 188 of file RtpsUdpDataLink.h.

Referenced by open(), stop_i(), and unicast_socket().

RtpsWriterMap OpenDDS::DCPS::RtpsUdpDataLink::writers_ [private]

Definition at line 249 of file RtpsUdpDataLink.h.

Referenced by add_delayed_notification(), add_gap_submsg(), associated(), check_handshake_complete(), customize_queue_element(), do_remove_sample(), end_historic_samples(), OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer::insert(), marshal_gaps(), pre_stop_i(), process_acked_by_all_i(), received(), release_reservations_i(), OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer::retain_all(), send_directed_heartbeats(), send_heartbeats(), send_heartbeats_manual(), and send_nack_replies().

---

The documentation for this class was generated from the following files:

• RtpsUdpDataLink.h
• RtpsUdpDataLink.cpp
• RtpsUdpDataLink.inl
