OpenDDS::DCPS::RtpsSampleHeader Class Reference

Adapt the TransportReceiveStrategy for RTPS's "sample" (submessage) Header. More...

#include <RtpsSampleHeader.h>

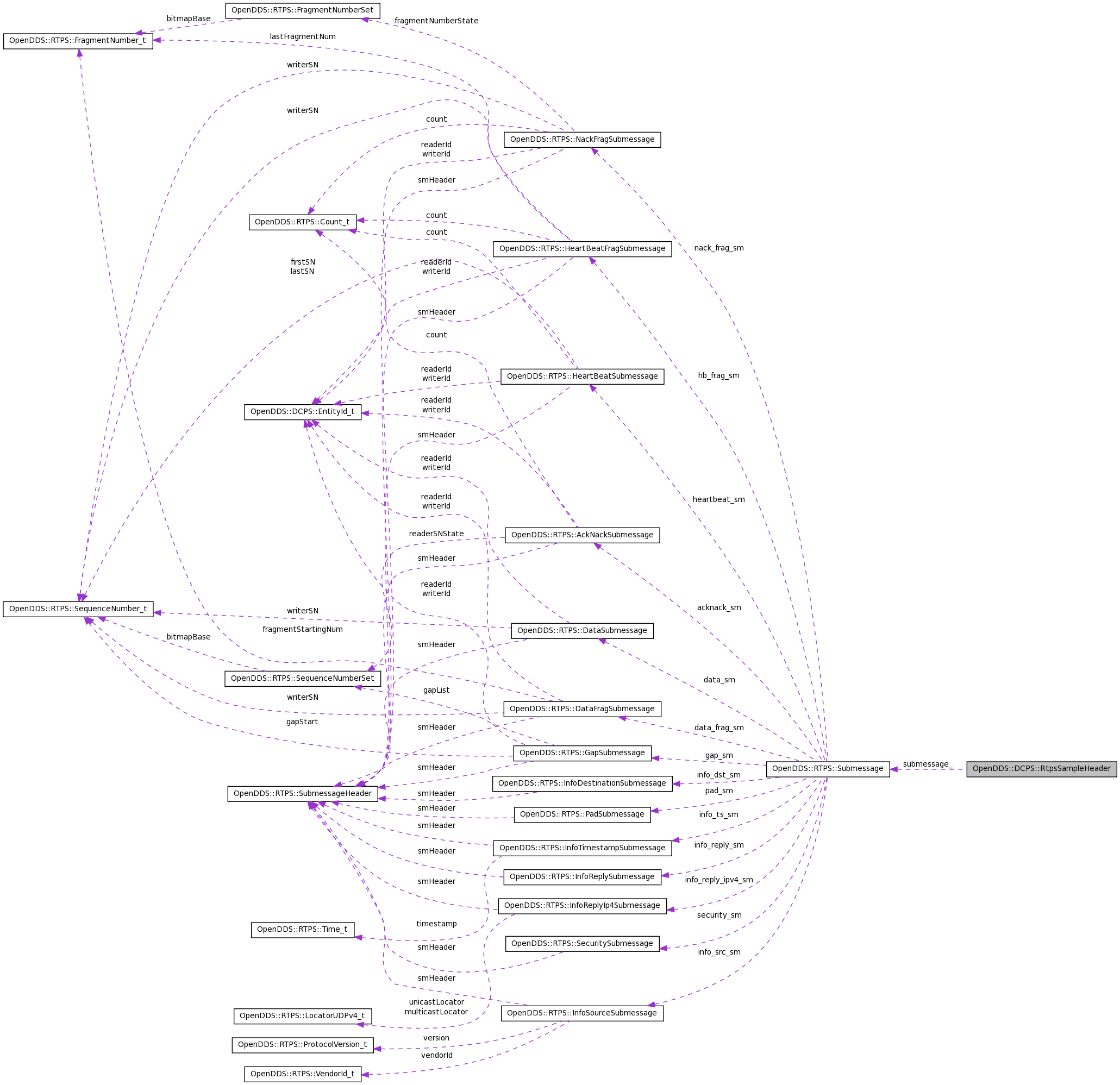

Collaboration diagram for OpenDDS::DCPS::RtpsSampleHeader:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RtpsSampleHeader ()
 RtpsSampleHeader (ACE_Message_Block &mb)
RtpsSampleHeader & operator= (ACE_Message_Block &mn)
void pdu_remaining (size_t size)
size_t marshaled_size ()
ACE_UINT32 message_length ()
bool valid () const
bool into_received_data_sample (ReceivedDataSample &rds)
bool more_fragments () const

Static Public Member Functions

static size_t max_marshaled_size ()
static bool partial (const ACE_Message_Block &)
static SequenceRange split (const ACE_Message_Block &orig, size_t size, Message_Block_Ptr &head, Message_Block_Ptr &tail)
static bool payload_byte_order (const ReceivedDataSample &rds)
static void populate_data_sample_submessages (RTPS::SubmessageSeq &subm, const DataSampleElement &dsle, bool requires_inline_qos)
static void populate_data_control_submessages (RTPS::SubmessageSeq &subm, const TransportSendControlElement &tsce, bool requires_inline_qos)
static void populate_inline_qos (const TransportSendListener::InlineQosData &qos_data, RTPS::ParameterList &plist)
static bool control_message_supported (char message_id)

Public Attributes

RTPS::Submessage submessage_

Static Public Attributes

static const ACE_CDR::UShort FRAG_SIZE = 1024

Private Member Functions

void init (ACE_Message_Block &mb)

Static Private Member Functions

static void process_iqos (DataSampleHeader &opendds, const OpenDDS::RTPS::ParameterList &iqos)

Private Attributes

bool valid_
bool frag_
size_t marshaled_size_
size_t message_length_

Detailed Description

Adapt the TransportReceiveStrategy for RTPS's "sample" (submessage) Header.

Definition at line 32 of file RtpsSampleHeader.h.

Constructor & Destructor Documentation

ACE_INLINE OpenDDS::DCPS::RtpsSampleHeader::RtpsSampleHeader (  )

Definition at line 14 of file RtpsSampleHeader.inl.

00015   : valid_(false)
00016   , frag_(false)
00017   , marshaled_size_(0)
00018   , message_length_(0)
00019 {
00020 }

ACE_INLINE OpenDDS::DCPS::RtpsSampleHeader::RtpsSampleHeader ( ACE_Message_Block &  mb  )  [explicit]

Definition at line 23 of file RtpsSampleHeader.inl.

References init().

00024   : valid_(false)
00025   , frag_(false)
00026   , marshaled_size_(0)
00027   , message_length_(0)
00028 {
00029   init(mb);
00030 }

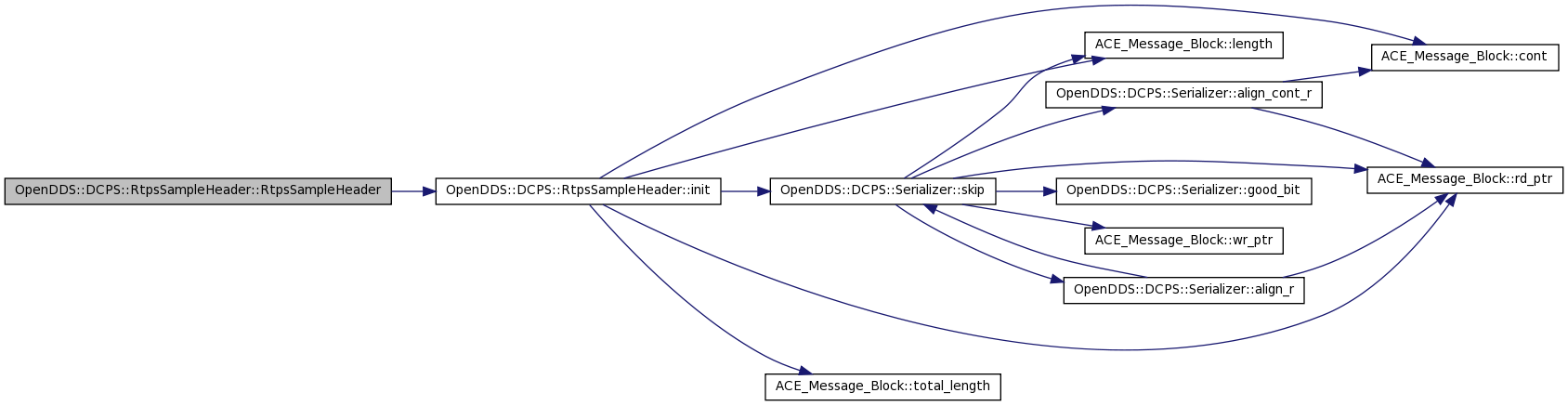

Here is the call graph for this function:

Member Function Documentation

ACE_INLINE bool OpenDDS::DCPS::RtpsSampleHeader::control_message_supported ( char  message_id  )  [static]

Definition at line 74 of file RtpsSampleHeader.inl.

References OpenDDS::DCPS::DISPOSE_INSTANCE, OpenDDS::DCPS::DISPOSE_UNREGISTER_INSTANCE, OpenDDS::DCPS::INSTANCE_REGISTRATION, and OpenDDS::DCPS::UNREGISTER_INSTANCE.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::customize_queue_element().

00075 {
00076   switch (message_id) {
00077   case INSTANCE_REGISTRATION:
00078   case UNREGISTER_INSTANCE:
00079   case DISPOSE_INSTANCE:
00080   case DISPOSE_UNREGISTER_INSTANCE:
00081     return true;
00082   default:
00083     return false;
00084   }
00085 }

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsSampleHeader::init ( ACE_Message_Block &  mb  )  [private]

Definition at line 59 of file RtpsSampleHeader.cpp.

References OpenDDS::RTPS::ACKNACK, OpenDDS::DCPS::Serializer::ALIGN_CDR, CASE_SMKIND, ACE_Message_Block::cont(), OpenDDS::RTPS::DATA, OpenDDS::RTPS::DATA_FRAG, OpenDDS::RTPS::FLAG_D, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_K_IN_DATA, frag_, OpenDDS::RTPS::GAP, OpenDDS::RTPS::HEARTBEAT, OpenDDS::RTPS::HEARTBEAT_FRAG, OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_REPLY, OpenDDS::RTPS::INFO_REPLY_IP4, OpenDDS::RTPS::INFO_SRC, OpenDDS::RTPS::INFO_TS, ACE_Message_Block::length(), marshaled_size_, message_length_, OpenDDS::RTPS::NACK_FRAG, OpenDDS::RTPS::PAD, ACE_Message_Block::rd_ptr(), OpenDDS::RTPS::SEC_BODY, OpenDDS::RTPS::SEC_POSTFIX, OpenDDS::RTPS::SEC_PREFIX, OpenDDS::RTPS::Submessage::security_sm, OpenDDS::DCPS::Serializer::skip(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::RTPS::SRTPS_POSTFIX, OpenDDS::RTPS::SRTPS_PREFIX, submessage_, ACE_Message_Block::total_length(), and valid_.

Referenced by operator=(), and RtpsSampleHeader().

00060 {
00061   using namespace OpenDDS::RTPS;
00062
00063   // valid_ is false here, it will only be set to true if there is a Submessage
00064
00065   // Manually grab the first two bytes for the SubmessageKind and the byte order
00066   if (mb.length() == 0) {
00067     return;
00068   }
00069
00070   const SubmessageKind kind = static_cast<SubmessageKind>(*mb.rd_ptr());
00071
00072   ACE_CDR::Octet flags = 0;
00073
00074   if (mb.length() > 1) {
00075     flags = mb.rd_ptr()[1];
00076   } else if (mb.cont() && mb.cont()->length() > 0) {
00077     flags = mb.cont()->rd_ptr()[0];
00078   } else {
00079     return;
00080   }
00081
00082   const bool little_endian = flags & FLAG_E;
00083   const size_t starting_length = mb.total_length();
00084   Serializer ser(&mb, ACE_CDR_BYTE_ORDER != little_endian,
00085                  Serializer::ALIGN_CDR);
00086
00087   ACE_CDR::UShort octetsToNextHeader = 0;
00088
00089 #define CASE_SMKIND(kind, class, name) case kind: {               \
00090     class submessage;                                             \
00091     if (ser >> submessage) {                                      \
00092       octetsToNextHeader = submessage.smHeader.submessageLength;  \
00093       submessage_.name##_sm(submessage);                          \
00094       valid_ = true;                                              \
00095     }                                                             \
00096     break;                                                        \
00097   }
00098
00099   switch (kind) {
00100   CASE_SMKIND(PAD, PadSubmessage, pad)
00101   CASE_SMKIND(ACKNACK, AckNackSubmessage, acknack)
00102   CASE_SMKIND(HEARTBEAT, HeartBeatSubmessage, heartbeat)
00103   CASE_SMKIND(GAP, GapSubmessage, gap)
00104   CASE_SMKIND(INFO_TS, InfoTimestampSubmessage, info_ts)
00105   CASE_SMKIND(INFO_SRC, InfoSourceSubmessage, info_src)
00106   CASE_SMKIND(INFO_REPLY_IP4, InfoReplyIp4Submessage, info_reply_ipv4)
00107   CASE_SMKIND(INFO_DST, InfoDestinationSubmessage, info_dst)
00108   CASE_SMKIND(INFO_REPLY, InfoReplySubmessage, info_reply)
00109   CASE_SMKIND(NACK_FRAG, NackFragSubmessage, nack_frag)
00110   CASE_SMKIND(HEARTBEAT_FRAG, HeartBeatFragSubmessage, hb_frag)
00111   CASE_SMKIND(DATA, DataSubmessage, data)
00112   CASE_SMKIND(DATA_FRAG, DataFragSubmessage, data_frag)
00113
00114 #if defined(OPENDDS_SECURITY)
00115     // Each submessage type introduced by the Security spec is treated
00116     // as an opaque octet sequence at this layer.
00117     case SEC_BODY:
00118     case SEC_PREFIX:
00119     case SEC_POSTFIX:
00120     case SRTPS_PREFIX:
00121     case SRTPS_POSTFIX: {
00122     SecuritySubmessage submessage;
00123     if (ser >> submessage) {
00124       octetsToNextHeader = submessage.smHeader.submessageLength;
00125       submessage_.security_sm(submessage);
00126       submessage_._d(kind);
00127       valid_ = true;
00128     }
00129     break;
00130     }
00131 #endif
00132
00133   default:
00134     {
00135       SubmessageHeader submessage;
00136       if (ser >> submessage) {
00137         octetsToNextHeader = submessage.submessageLength;
00138         submessage_.unknown_sm(submessage);
00139         valid_ = true;
00140       }
00141       break;
00142     }
00143   }
00144 #undef CASE_SMKIND
00145
00146   if (valid_) {
00147
00148     frag_ = (kind == DATA_FRAG);
00149
00150     // marshaled_size_ is # of bytes of submessage we have read from "mb"
00151     marshaled_size_ = starting_length - mb.total_length();
00152
00153     if (octetsToNextHeader == 0 && kind != PAD && kind != INFO_TS) {
00154       // see RTPS v2.1 section 9.4.5.1.3
00155       // In this case the current Submessage extends to the end of Message,
00156       // so we will use the message_length_ that was set in pdu_remaining().
00157       octetsToNextHeader =
00158         static_cast<ACE_CDR::UShort>(message_length_ - SMHDR_SZ);
00159     }
00160
00161     if ((kind == DATA && (flags & (FLAG_D | FLAG_K_IN_DATA)))
00162         || kind == DATA_FRAG) {
00163       // These Submessages have a payload which we haven't deserialized yet.
00164       // The TransportReceiveStrategy will know this via message_length().
00165       // octetsToNextHeader does not count the SubmessageHeader (4 bytes)
00166       message_length_ = octetsToNextHeader + SMHDR_SZ - marshaled_size_;
00167     } else {
00168       // These Submessages _could_ have extra data that we don't know about
00169       // (from a newer minor version of the RTPS spec).  Either way, indicate
00170       // to the TransportReceiveStrategy that there is no data payload here.
00171       message_length_ = 0;
00172       ACE_CDR::UShort marshaled = static_cast<ACE_CDR::UShort>(marshaled_size_);
00173       if (octetsToNextHeader + SMHDR_SZ > marshaled) {
00174         valid_ = ser.skip(octetsToNextHeader + SMHDR_SZ - marshaled);
00175         marshaled_size_ = octetsToNextHeader + SMHDR_SZ;
00176       }
00177     }
00178   }
00179 }

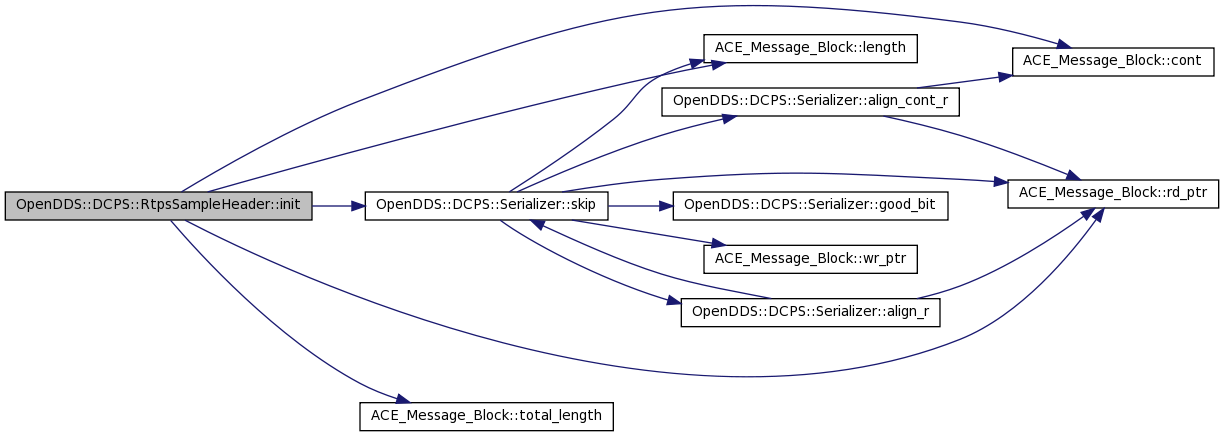

Here is the call graph for this function:

Here is the caller graph for this function:

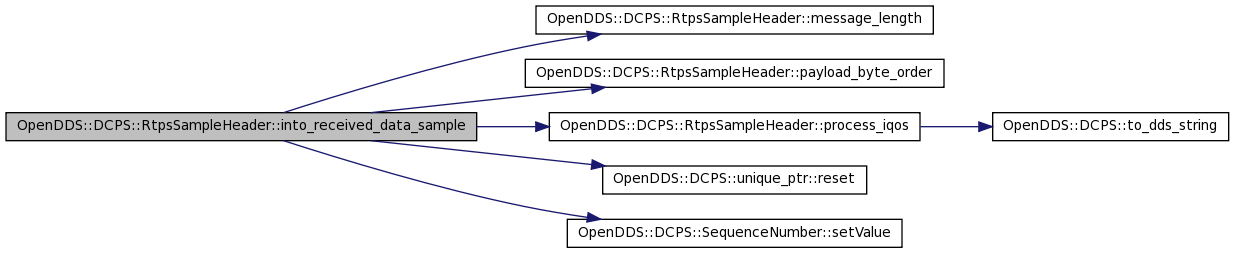

bool OpenDDS::DCPS::RtpsSampleHeader::into_received_data_sample ( ReceivedDataSample &  rds  )

Definition at line 232 of file RtpsSampleHeader.cpp.

References OpenDDS::DCPS::DataSampleHeader::byte_order_, OpenDDS::DCPS::DataSampleHeader::cdr_encapsulation_, OpenDDS::RTPS::DATA, OpenDDS::RTPS::DATA_FRAG, OpenDDS::RTPS::Submessage::data_frag_sm, OpenDDS::RTPS::Submessage::data_sm, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::RTPS::FLAG_D, OpenDDS::RTPS::FLAG_K_IN_DATA, OpenDDS::RTPS::FLAG_K_IN_FRAG, OpenDDS::RTPS::FLAG_Q, OpenDDS::DCPS::ReceivedDataSample::header_, OpenDDS::DCPS::DataSampleHeader::key_fields_only_, LM_DEBUG, LM_WARNING, OpenDDS::DCPS::DataSampleHeader::message_id_, message_length(), OpenDDS::DCPS::DataSampleHeader::message_length_, OpenDDS::DCPS::DataSampleHeader::more_fragments_, payload_byte_order(), OpenDDS::RTPS::PID_KEY_HASH, process_iqos(), OpenDDS::DCPS::DataSampleHeader::publication_id_, OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), OpenDDS::DCPS::ReceivedDataSample::sample_, OpenDDS::DCPS::SAMPLE_DATA, OpenDDS::DCPS::DataSampleHeader::sequence_, OpenDDS::DCPS::SequenceNumber::setValue(), submessage_, and OpenDDS::DCPS::Transport_debug_level.

00233 {
00234   using namespace OpenDDS::RTPS;
00235   DataSampleHeader& opendds = rds.header_;
00236
00237   switch (submessage_._d()) {
00238   case DATA: {
00239     const DataSubmessage& rtps = submessage_.data_sm();
00240     opendds.cdr_encapsulation_ = true;
00241     opendds.message_length_ = message_length();
00242     opendds.sequence_.setValue(rtps.writerSN.high, rtps.writerSN.low);
00243     opendds.publication_id_.entityId = rtps.writerId;
00244     opendds.message_id_ = SAMPLE_DATA;
00245
00246     process_iqos(opendds, rtps.inlineQos);
00247
00248     if (rtps.smHeader.flags & FLAG_K_IN_DATA) {
00249       opendds.key_fields_only_ = true;
00250     } else if (!(rtps.smHeader.flags & (FLAG_D | FLAG_K_IN_DATA))) {
00251       // Interoperability note: the Key may be hiding in the "key hash" param
00252       // in the InlineQos.  In order to make use of this Key, it mst be 16
00253       // bytes or less.  We have observed other DDS implementations only send
00254       // the MD5 hash of a >16 byte key, so we must limit this to Built-in
00255       // endpoints which are assumed to use GUIDs as keys.
00256       if ((rtps.writerId.entityKind & 0xC0) == 0xC0 // Only Built-in endpoints
00257           && (rtps.smHeader.flags & FLAG_Q) && !rds.sample_) {
00258         for (CORBA::ULong i = 0; i < rtps.inlineQos.length(); ++i) {
00259           if (rtps.inlineQos[i]._d() == PID_KEY_HASH) {
00260             rds.sample_.reset(new ACE_Message_Block(20));
00261             // CDR_BE encapsuation scheme (endianness is not used for key hash)
00262             rds.sample_->copy("\x00\x00\x00\x00", 4);
00263             const CORBA::Octet* data = rtps.inlineQos[i].key_hash().value;
00264             rds.sample_->copy(reinterpret_cast<const char*>(data), 16);
00265             opendds.message_length_ =
00266               static_cast<ACE_UINT32>(rds.sample_->length());
00267             opendds.key_fields_only_ = true;
00268             if (Transport_debug_level) {
00269               ACE_DEBUG((LM_DEBUG,
00270                          "(%P|%t) RtpsSampleHeader::into_received_data_sample()"
00271                          " - used KeyHash data as the key-only payload\n"));
00272             }
00273             break;
00274           }
00275         }
00276       } else {
00277       // FUTURE: Handle the case of D = 0 and K = 0
00278       // used for Coherent Sets in PRESENTATION QoS (see 8.7.5)
00279         if (Transport_debug_level) {
00280           ACE_DEBUG((LM_WARNING,
00281                      "(%P|%t) RtpsSampleHeader::into_received_data_sample() - "
00282                      "Received a DATA Submessage with D = 0 and K = 0, "
00283                      "dropping\n"));
00284         }
00285         return false;
00286       }
00287     }
00288
00289     if (rtps.smHeader.flags & (FLAG_D | FLAG_K_IN_DATA)) {
00290       // Peek at the byte order from the encapsulation containing the payload.
00291       opendds.byte_order_ = payload_byte_order(rds);
00292     }
00293
00294     break;
00295   }
00296   case DATA_FRAG: {
00297     const DataFragSubmessage& rtps = submessage_.data_frag_sm();
00298     opendds.cdr_encapsulation_ = true;
00299     opendds.message_length_ = message_length();
00300     opendds.sequence_.setValue(rtps.writerSN.high, rtps.writerSN.low);
00301     opendds.publication_id_.entityId = rtps.writerId;
00302     opendds.message_id_ = SAMPLE_DATA;
00303     opendds.key_fields_only_ = (rtps.smHeader.flags & FLAG_K_IN_FRAG);
00304     // opendds.byte_order_ set in RtpsUdpReceiveStrategy::reassemble().
00305
00306     process_iqos(opendds, rtps.inlineQos);
00307
00308     const CORBA::ULong lastFragInSubmsg =
00309       rtps.fragmentStartingNum.value - 1 + rtps.fragmentsInSubmessage;
00310     if (lastFragInSubmsg * rtps.fragmentSize < rtps.sampleSize) {
00311       opendds.more_fragments_ = true;
00312     }
00313     break;
00314   }
00315   default:
00316     break;
00317   }
00318
00319   return true;
00320 }

Here is the call graph for this function:

ACE_INLINE size_t OpenDDS::DCPS::RtpsSampleHeader::marshaled_size (  )

Definition at line 56 of file RtpsSampleHeader.inl.

References marshaled_size_.

00057 {
00058   return marshaled_size_;
00059 }

static size_t OpenDDS::DCPS::RtpsSampleHeader::max_marshaled_size (  )  [inline, static]

Definition at line 39 of file RtpsSampleHeader.h.

00039 { return 4; }

ACE_INLINE ACE_UINT32 OpenDDS::DCPS::RtpsSampleHeader::message_length ( void   )

Definition at line 62 of file RtpsSampleHeader.inl.

References message_length_.

Referenced by into_received_data_sample().

00063 {
00064   return static_cast<ACE_UINT32>(message_length_);
00065 }

Here is the caller graph for this function:

ACE_INLINE bool OpenDDS::DCPS::RtpsSampleHeader::more_fragments ( void   )  const

Definition at line 68 of file RtpsSampleHeader.inl.

References frag_.

00069 {
00070   return frag_;
00071 }

ACE_INLINE RtpsSampleHeader & OpenDDS::DCPS::RtpsSampleHeader::operator= ( ACE_Message_Block &  mn  )

Definition at line 33 of file RtpsSampleHeader.inl.

References frag_, init(), and valid_.

00034 {
00035   frag_ = false;
00036   valid_ = false;
00037   // message_length_ should not be reset here
00038   // marshaled_size_ doesn't need to be reset, init() will set it (if valid_)
00039   init(mb);
00040   return *this;
00041 }

Here is the call graph for this function:

static bool OpenDDS::DCPS::RtpsSampleHeader::partial ( const ACE_Message_Block &   )  [inline, static]

Definition at line 44 of file RtpsSampleHeader.h.

00044 { return false; }

bool OpenDDS::DCPS::RtpsSampleHeader::payload_byte_order ( const ReceivedDataSample &  rds  )  [static]

Definition at line 322 of file RtpsSampleHeader.cpp.

References OpenDDS::RTPS::FLAG_E, and OpenDDS::DCPS::ReceivedDataSample::sample_.

Referenced by into_received_data_sample().

00323 {
00324   return rds.sample_->rd_ptr()[1] & RTPS::FLAG_E;
00325 }

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::RtpsSampleHeader::pdu_remaining ( size_t  size  )

Definition at line 50 of file RtpsSampleHeader.inl.

References message_length_.

00051 {
00052   message_length_ = size;
00053 }

void OpenDDS::DCPS::RtpsSampleHeader::populate_data_control_submessages ( RTPS::SubmessageSeq &  subm,
const TransportSendControlElement &  tsce,
bool  requires_inline_qos
) [static]

Definition at line 439 of file RtpsSampleHeader.cpp.

References OpenDDS::DCPS::DataSampleHeader::byte_order_, OpenDDS::RTPS::DATA, OpenDDS::RTPS::DATA_OCTETS_TO_IQOS, OpenDDS::DCPS::DISPOSE_INSTANCE, OpenDDS::DCPS::DISPOSE_UNREGISTER_INSTANCE, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::DCPS::EntityId_t::entityKind, OpenDDS::RTPS::FLAG_K_IN_DATA, OpenDDS::RTPS::FLAG_Q, OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), OpenDDS::DCPS::TransportSendControlElement::header(), OpenDDS::DCPS::INSTANCE_REGISTRATION, OpenDDS::DCPS::TransportSendControlElement::listener(), LM_INFO, OpenDDS::DCPS::DataSampleHeader::message_id_, OpenDDS::DCPS::TransportSendControlElement::msg_payload(), populate_inline_qos(), OpenDDS::DCPS::DataSampleHeader::publication_id_, OpenDDS::DCPS::TransportSendListener::retrieve_inline_qos_data(), OpenDDS::DCPS::DataSampleHeader::sequence_, and OpenDDS::DCPS::UNREGISTER_INSTANCE.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::customize_queue_element().

00443 {
00444   using namespace OpenDDS::RTPS;
00445
00446   const DataSampleHeader& header = tsce.header();
00447   const ACE_CDR::Octet flags = header.byte_order_;
00448   add_timestamp(subm, flags, header);
00449   CORBA::ULong i = subm.length();
00450
00451   static const CORBA::Octet BUILT_IN_WRITER = 0xC2;
00452
00453   DataSubmessage data = {
00454     {DATA, flags, 0},
00455     0,
00456     DATA_OCTETS_TO_IQOS,
00457     ENTITYID_UNKNOWN,
00458     header.publication_id_.entityId,
00459     {header.sequence_.getHigh(), header.sequence_.getLow()},
00460     ParameterList()
00461   };
00462   switch (header.message_id_) {
00463   case INSTANCE_REGISTRATION: {
00464     // NOTE: The RTPS spec is not entirely clear about instance registration.
00465     // We have decided to send a DATA Submessage containing the key and an
00466     // inlineQoS StatusInfo of zero.
00467     data.smHeader.flags |= FLAG_K_IN_DATA;
00468     const int qos_len = data.inlineQos.length();
00469     data.inlineQos.length(qos_len + 1);
00470     data.inlineQos[qos_len].status_info(STATUS_INFO_REGISTER);
00471     break;
00472   }
00473   case UNREGISTER_INSTANCE: {
00474     data.smHeader.flags |= FLAG_K_IN_DATA;
00475     const int qos_len = data.inlineQos.length();
00476     data.inlineQos.length(qos_len+1);
00477     data.inlineQos[qos_len].status_info(STATUS_INFO_UNREGISTER);
00478     if (header.publication_id_.entityId.entityKind == BUILT_IN_WRITER) {
00479       add_key_hash(data.inlineQos, tsce.msg_payload());
00480     }
00481     break;
00482   }
00483   case DISPOSE_INSTANCE: {
00484     data.smHeader.flags |= FLAG_K_IN_DATA;
00485     const int qos_len = data.inlineQos.length();
00486     data.inlineQos.length(qos_len + 1);
00487     data.inlineQos[qos_len].status_info(STATUS_INFO_DISPOSE);
00488     if (header.publication_id_.entityId.entityKind == BUILT_IN_WRITER) {
00489       add_key_hash(data.inlineQos, tsce.msg_payload());
00490     }
00491     break;
00492   }
00493   case DISPOSE_UNREGISTER_INSTANCE: {
00494     data.smHeader.flags |= FLAG_K_IN_DATA;
00495     const int qos_len = data.inlineQos.length();
00496     data.inlineQos.length(qos_len + 1);
00497     data.inlineQos[qos_len].status_info(STATUS_INFO_DISPOSE_UNREGISTER);
00498     if (header.publication_id_.entityId.entityKind == BUILT_IN_WRITER) {
00499       add_key_hash(data.inlineQos, tsce.msg_payload());
00500     }
00501     break;
00502   }
00503   // update control_message_supported() when adding new cases here
00504   default:
00505     ACE_DEBUG((LM_INFO,
00506                "RtpsSampleHeader::populate_data_control_submessages(): "
00507                "Non-sample messages seen, message_id = %d\n",
00508                header.message_id_));
00509     break;
00510   }
00511
00512   if (requires_inline_qos) {
00513     TransportSendListener::InlineQosData qos_data;
00514     tsce.listener()->retrieve_inline_qos_data(qos_data);
00515
00516     populate_inline_qos(qos_data, data.inlineQos);
00517   }
00518
00519   if (data.inlineQos.length() > 0) {
00520     data.smHeader.flags |= FLAG_Q;
00521   }
00522
00523   subm.length(i + 1);
00524   subm[i].data_sm(data);
00525 }

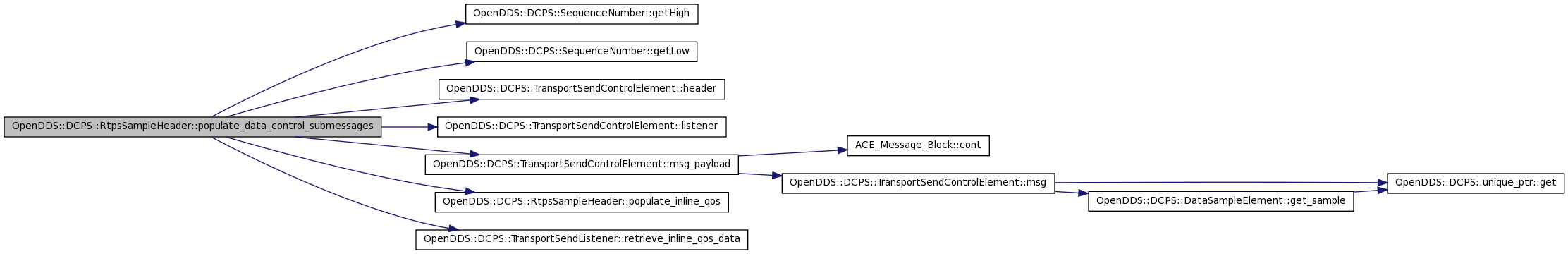

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsSampleHeader::populate_data_sample_submessages ( RTPS::SubmessageSeq &  subm,
const DataSampleElement &  dsle,
bool  requires_inline_qos
) [static]

Definition at line 345 of file RtpsSampleHeader.cpp.

References OpenDDS::DCPS::DataSampleHeader::byte_order_, OpenDDS::RTPS::DATA, OpenDDS::RTPS::DATA_OCTETS_TO_IQOS, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_UNKNOWN, OpenDDS::RTPS::FLAG_D, OpenDDS::RTPS::FLAG_Q, OpenDDS::DCPS::DataSampleElement::get_header(), OpenDDS::DCPS::DataSampleElement::get_num_subs(), OpenDDS::DCPS::DataSampleElement::get_pub_id(), OpenDDS::DCPS::DataSampleElement::get_send_listener(), OpenDDS::DCPS::DataSampleElement::get_sub_id(), OpenDDS::DCPS::SequenceNumber::getHigh(), OpenDDS::DCPS::SequenceNumber::getLow(), OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::GUIDPREFIX_UNKNOWN, OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::INFO_DST_SZ, LM_INFO, OpenDDS::DCPS::DataSampleHeader::message_id_, populate_inline_qos(), OpenDDS::DCPS::TransportSendListener::retrieve_inline_qos_data(), OpenDDS::DCPS::SAMPLE_DATA, and OpenDDS::DCPS::DataSampleHeader::sequence_.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::customize_queue_element().

00349 {
00350   using namespace OpenDDS::RTPS;
00351
00352   const ACE_CDR::Octet flags = dsle.get_header().byte_order_;
00353   add_timestamp(subm, flags, dsle.get_header());
00354   CORBA::ULong i = subm.length();
00355
00356   EntityId_t readerId = ENTITYID_UNKNOWN;
00357   if (dsle.get_num_subs() == 1) {
00358     readerId = dsle.get_sub_id(0).entityId;
00359     InfoDestinationSubmessage idest;
00360     idest.smHeader.submessageId = INFO_DST;
00361     idest.smHeader.flags = flags;
00362     idest.smHeader.submessageLength = INFO_DST_SZ;
00363     std::memcpy(idest.guidPrefix, dsle.get_sub_id(0).guidPrefix,
00364                 sizeof(GuidPrefix_t));
00365     subm.length(i + 1);
00366     subm[i++].info_dst_sm(idest);
00367   } else {
00368     //Not durability resend, but could have inline gaps
00369     for (CORBA::ULong x = 0; x < i; ++x) {
00370       if (subm[x]._d() == INFO_DST) {
00371         //Need to add INFO_DST
00372         InfoDestinationSubmessage idest;
00373         idest.smHeader.submessageId = INFO_DST;
00374         idest.smHeader.flags = flags;
00375         idest.smHeader.submessageLength = INFO_DST_SZ;
00376         std::memcpy(idest.guidPrefix, GUIDPREFIX_UNKNOWN,
00377                     sizeof(GuidPrefix_t));
00378         subm.length(i + 1);
00379         subm[i++].info_dst_sm(idest);
00380         break;
00381       }
00382     }
00383   }
00384
00385   DataSubmessage data = {
00386     {DATA, flags, 0},
00387     0,
00388     DATA_OCTETS_TO_IQOS,
00389     readerId,
00390     dsle.get_pub_id().entityId,
00391     {dsle.get_header().sequence_.getHigh(), dsle.get_header().sequence_.getLow()},
00392     ParameterList()
00393   };
00394   const char message_id = dsle.get_header().message_id_;
00395   switch (message_id) {
00396   case SAMPLE_DATA:
00397     // Must be a data message
00398     data.smHeader.flags |= FLAG_D;
00399     break;
00400   default:
00401     ACE_DEBUG((LM_INFO, "(%P|%t) RtpsSampleHeader::populate_submessages(): "
00402                "Non-sample messages seen, message_id = %d\n", int(message_id)));
00403     break;
00404   }
00405
00406   if (requires_inline_qos) {
00407     TransportSendListener::InlineQosData qos_data;
00408     dsle.get_send_listener()->retrieve_inline_qos_data(qos_data);
00409
00410     populate_inline_qos(qos_data, data.inlineQos);
00411   }
00412
00413   if (data.inlineQos.length() > 0) {
00414     data.smHeader.flags |= FLAG_Q;
00415   }
00416
00417   subm.length(i + 1);
00418   subm[i].data_sm(data);
00419 }

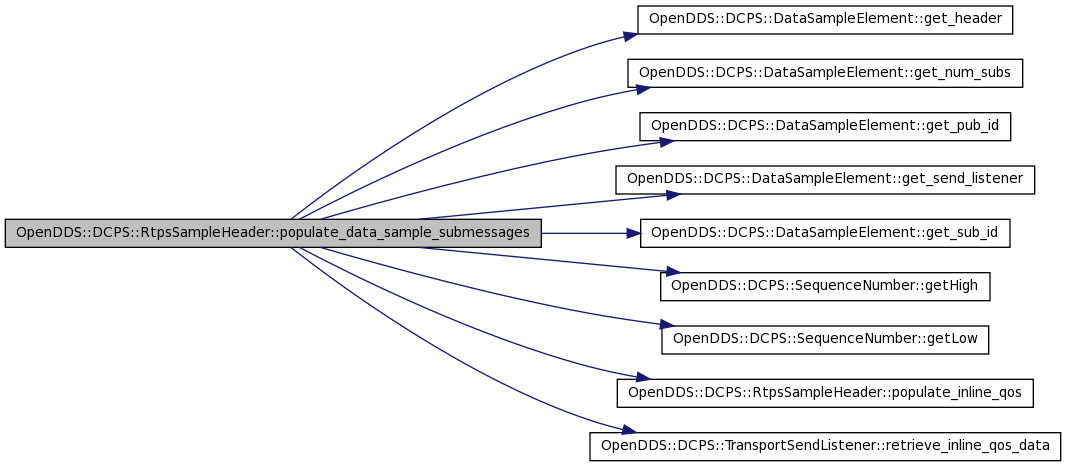

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsSampleHeader::populate_inline_qos ( const TransportSendListener::InlineQosData &  qos_data,
RTPS::ParameterList &  plist
) [static]

Definition at line 535 of file RtpsSampleHeader.cpp.

References OpenDDS::DCPS::TransportSendListener::InlineQosData::dw_qos, OpenDDS::RTPS::PID_TOPIC_NAME, PROCESS_INLINE_QOS, OpenDDS::DCPS::TransportSendListener::InlineQosData::pub_qos, TheServiceParticipant, and OpenDDS::DCPS::TransportSendListener::InlineQosData::topic_name.

Referenced by populate_data_control_submessages(), and populate_data_sample_submessages().

00538 {
00539   using namespace OpenDDS::RTPS;
00540
00541   // Always include topic name (per the spec)
00542   {
00543     const int qos_len = plist.length();
00544     plist.length(qos_len + 1);
00545     plist[qos_len].string_data(qos_data.topic_name.c_str());
00546     plist[qos_len]._d(PID_TOPIC_NAME);
00547   }
00548
00549   // Conditionally include other QoS inline when the differ from the
00550   // default value.
00551   DDS::PublisherQos default_pub_qos =
00552     TheServiceParticipant->initial_PublisherQos();
00553   PROCESS_INLINE_QOS(presentation, default_pub_qos, qos_data.pub_qos);
00554   PROCESS_INLINE_QOS(partition, default_pub_qos, qos_data.pub_qos);
00555
00556   DDS::DataWriterQos default_dw_qos =
00557     TheServiceParticipant->initial_DataWriterQos();
00558   PROCESS_INLINE_QOS(durability, default_dw_qos, qos_data.dw_qos);
00559   PROCESS_INLINE_QOS(deadline, default_dw_qos, qos_data.dw_qos);
00560   PROCESS_INLINE_QOS(latency_budget, default_dw_qos, qos_data.dw_qos);
00561   PROCESS_INLINE_QOS(ownership, default_dw_qos, qos_data.dw_qos);
00562 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00563   PROCESS_INLINE_QOS(ownership_strength, default_dw_qos, qos_data.dw_qos);
00564 #endif
00565   PROCESS_INLINE_QOS(liveliness, default_dw_qos, qos_data.dw_qos);
00566   PROCESS_INLINE_QOS(reliability, default_dw_qos, qos_data.dw_qos);
00567   PROCESS_INLINE_QOS(transport_priority, default_dw_qos, qos_data.dw_qos);
00568   PROCESS_INLINE_QOS(lifespan, default_dw_qos, qos_data.dw_qos);
00569   PROCESS_INLINE_QOS(destination_order, default_dw_qos, qos_data.dw_qos);
00570 }

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsSampleHeader::process_iqos ( DataSampleHeader &  opendds,
const OpenDDS::RTPS::ParameterList &  iqos
) [static, private]

Definition at line 182 of file RtpsSampleHeader.cpp.

References DDS::PresentationQosPolicy::access_scope, DDS::PresentationQosPolicy::coherent_access, OpenDDS::DCPS::DISPOSE_INSTANCE, OpenDDS::DCPS::DISPOSE_UNREGISTER_INSTANCE, OpenDDS::DCPS::DataSampleHeader::historic_sample_, OpenDDS::DCPS::INSTANCE_REGISTRATION, LM_DEBUG, OpenDDS::DCPS::DataSampleHeader::message_id_, DDS::PartitionQosPolicy::name, OPENDDS_STRING, DDS::PresentationQosPolicy::ordered_access, OpenDDS::RTPS::PID_ORIGINAL_WRITER_INFO, OpenDDS::RTPS::PID_PARTITION, OpenDDS::RTPS::PID_PRESENTATION, OpenDDS::RTPS::PID_STATUS_INFO, OpenDDS::RTPS::PID_TOPIC_NAME, OpenDDS::DCPS::to_dds_string(), and OpenDDS::DCPS::UNREGISTER_INSTANCE.

Referenced by into_received_data_sample().

00184 {
00185   using namespace OpenDDS::RTPS;
00186 #if defined(OPENDDS_TEST_INLINE_QOS)
00187   OPENDDS_STRING output("into_received_data_sample(): ");
00188   output += to_dds_string(iqos.length());
00189   output += " inline QoS parameters\n";
00190   for (CORBA::ULong index = 0; index < iqos.length(); ++index) {
00191     output += "  parameter type = ";
00192     output += to_dds_string(iqos[index]._d());
00193     output += "\n";
00194   }
00195   ACE_DEBUG((LM_DEBUG, "%C", output.c_str()));
00196 #endif
00197   for (CORBA::ULong i = 0; i < iqos.length(); ++i) {
00198     if (iqos[i]._d() == PID_STATUS_INFO) {
00199       if (iqos[i].status_info() == STATUS_INFO_DISPOSE) {
00200         opendds.message_id_ = DISPOSE_INSTANCE;
00201       } else if (iqos[i].status_info() == STATUS_INFO_UNREGISTER) {
00202         opendds.message_id_ = UNREGISTER_INSTANCE;
00203       } else if (iqos[i].status_info() == STATUS_INFO_DISPOSE_UNREGISTER) {
00204         opendds.message_id_ = DISPOSE_UNREGISTER_INSTANCE;
00205       } else if (iqos[i].status_info() == STATUS_INFO_REGISTER) {
00206         opendds.message_id_ = INSTANCE_REGISTRATION;
00207       }
00208     } else if (iqos[i]._d() == PID_ORIGINAL_WRITER_INFO) {
00209       opendds.historic_sample_ = true;
00210 #if defined(OPENDDS_TEST_INLINE_QOS)
00211     } else if (iqos[i]._d() == PID_TOPIC_NAME) {
00212       ACE_DEBUG((LM_DEBUG, "topic_name = %C\n", iqos[i].string_data()));
00213     } else if (iqos[i]._d() == PID_PRESENTATION) {
00214       DDS::PresentationQosPolicy pres_qos = iqos[i].presentation();
00215       ACE_DEBUG((LM_DEBUG, "presentation qos, access_scope = %d, "
00216                  "coherent_access = %d, ordered_access = %d\n",
00217                  pres_qos.access_scope, pres_qos.coherent_access,
00218                  pres_qos.ordered_access));
00219     } else if (iqos[i]._d() == PID_PARTITION) {
00220       DDS::PartitionQosPolicy part_qos = iqos[i].partition();
00221       ACE_DEBUG((LM_DEBUG, "partition qos(%d): ", part_qos.name.length()));
00222       for (CORBA::ULong j = 0; j < part_qos.name.length(); j++) {
00223         ACE_DEBUG((LM_DEBUG, "'%C'  ", part_qos.name[j].in()));
00224       }
00225       ACE_DEBUG((LM_DEBUG, "\n"));
00226 #endif
00227     }
00228   }
00229 }

Here is the call graph for this function:

Here is the caller graph for this function:

SequenceRange OpenDDS::DCPS::RtpsSampleHeader::split ( const ACE_Message_Block &  orig,
size_t  size,
Message_Block_Ptr &  head,
Message_Block_Ptr &  tail
) [static]

Create two new serialized headers (owned by caller), the "head" having at most "size" bytes (header + data) and the "tail" having the rest. Returns a pair containing the largest fragment number in each new header.

Definition at line 621 of file RtpsSampleHeader.cpp.

References OpenDDS::DCPS::DataSampleHeader::alloc_msgblock(), ACE_Message_Block::cont(), OpenDDS::RTPS::DATA, OpenDDS::RTPS::DATA_FRAG, OpenDDS::RTPS::DATA_FRAG_OCTETS_TO_IQOS, OpenDDS::RTPS::FLAG_D, OpenDDS::RTPS::FLAG_E, OpenDDS::RTPS::FLAG_K_IN_DATA, OpenDDS::RTPS::FLAG_K_IN_FRAG, OpenDDS::RTPS::FLAG_Q, FRAG_SIZE, ACE_Message_Block::length(), LM_ERROR, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::unique_ptr< T, Deleter >::release(), OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), OpenDDS::DCPS::SequenceNumber::SEQUENCENUMBER_UNKNOWN(), OpenDDS::RTPS::SMHDR_SZ, OpenDDS::DCPS::DataSampleHeader::split_payload(), ACE_Message_Block::total_length(), OpenDDS::DCPS::Transport_debug_level, and write().

Referenced by OpenDDS::DCPS::RtpsCustomizedElement::fragment().

00623 {
00624   using namespace RTPS;
00625   static const SequenceRange unknown_range(SequenceNumber::SEQUENCENUMBER_UNKNOWN(),
00626                                            SequenceNumber::SEQUENCENUMBER_UNKNOWN());
00627   size_t data_offset = 0;
00628   const char* rd = orig.rd_ptr();
00629   ACE_CDR::ULong starting_frag, sample_size;
00630   ACE_CDR::Octet flags;
00631   bool swap_bytes;
00632
00633   // Find the start of the DATA | DATA_FRAG submessage in the orig msg block.
00634   // The submessages from the start of the msg block to this point (data_offset)
00635   // will be copied to both the head and tail fragments.
00636   while (true) {
00637     flags = rd[data_offset + 1];
00638     swap_bytes = ACE_CDR_BYTE_ORDER != bool(flags & FLAG_E);
00639     bool found_data = false;
00640
00641     switch (rd[data_offset]) {
00642     case DATA:
00643       if ((flags & (FLAG_D | FLAG_K_IN_DATA)) == 0) {
00644         if (Transport_debug_level) {
00645           ACE_ERROR((LM_ERROR, "(%P|%t) RtpsSampleHeader::split() ERROR - "
00646             "attempting to fragment a Data submessage with no payload.\n"));
00647         }
00648         return unknown_range;
00649       }
00650       found_data = true;
00651       starting_frag = 1;
00652       sample_size = static_cast<ACE_CDR::ULong>(orig.cont()->total_length());
00653       break;
00654     case DATA_FRAG:
00655       found_data = true;
00656       peek(starting_frag, rd + data_offset + FRAG_START_OFFSET, swap_bytes);
00657       peek(sample_size, rd + data_offset + FRAG_SAMPLE_SIZE_OFFSET, swap_bytes);
00658       break;
00659     }
00660
00661     if (found_data) {
00662       break;
00663     }
00664
00665     // Scan for next submessage in orig
00666     ACE_CDR::UShort octetsToNextHeader;
00667     peek(octetsToNextHeader, rd + data_offset + 2, swap_bytes);
00668
00669     data_offset += octetsToNextHeader + SMHDR_SZ;
00670     if (data_offset >= orig.length()) {
00671       if (Transport_debug_level) {
00672         ACE_ERROR((LM_ERROR, "(%P|%t) RtpsSampleHeader::split() ERROR - "
00673           "invalid octetsToNextHeader encountered while fragmenting.\n"));
00674       }
00675       return unknown_range;
00676     }
00677   }
00678
00679   // Create the "head" message block (of size "sz") containing DATA_FRAG
00680   size_t sz = orig.length();
00681   ACE_CDR::Octet new_flags = flags;
00682   size_t iqos_offset = data_offset + 8 + DATA_FRAG_OCTETS_TO_IQOS;
00683   if (rd[data_offset] == DATA) {
00684     sz += 12; // DATA_FRAG is 12 bytes larger than DATA
00685     iqos_offset -= 12;
00686     new_flags &= ~(FLAG_K_IN_DATA | FLAG_K_IN_FRAG);
00687     if (flags & FLAG_K_IN_DATA) {
00688       new_flags |= FLAG_K_IN_FRAG;
00689     }
00690   }
00691   head.reset(DataSampleHeader::alloc_msgblock(orig, sz, false));
00692
00693   head->copy(rd, data_offset);
00694
00695   head->wr_ptr()[0] = DATA_FRAG;
00696   head->wr_ptr()[1] = new_flags;
00697   head->wr_ptr(2);
00698
00699   std::memset(head->wr_ptr(), 0, 4); // octetsToNextHeader, extraFlags
00700   head->wr_ptr(4);
00701
00702   write(head, DATA_FRAG_OCTETS_TO_IQOS, swap_bytes);
00703
00704   head->copy(rd + data_offset + 8, 16); // readerId, writerId, sequenceNum
00705
00706   write(head, starting_frag, swap_bytes);
00707   const size_t max_data = size - sz, orig_payload = orig.cont()->total_length();
00708   const ACE_CDR::UShort frags =
00709     static_cast<ACE_CDR::UShort>(std::min(max_data, orig_payload) / FRAG_SIZE);
00710   write(head, frags, swap_bytes);
00711   write(head, FRAG_SIZE, swap_bytes);
00712   write(head, sample_size, swap_bytes);
00713
00714   if (flags & FLAG_Q) {
00715     head->copy(rd + iqos_offset, orig.length() - iqos_offset);
00716   }
00717
00718   // Create the "tail" message block containing DATA_FRAG with Q=0
00719   tail.reset(DataSampleHeader::alloc_msgblock(orig, data_offset + 36, false));
00720
00721   tail->copy(rd, data_offset);
00722
00723   tail->wr_ptr()[0] = DATA_FRAG;
00724   tail->wr_ptr()[1] = new_flags & ~FLAG_Q;
00725   tail->wr_ptr(2);
00726
00727   std::memset(tail->wr_ptr(), 0, 4); // octetsToNextHeader, extraFlags
00728   tail->wr_ptr(4);
00729
00730   write(tail, DATA_FRAG_OCTETS_TO_IQOS, swap_bytes);
00731   tail->copy(rd + data_offset + 8, 16); // readerId, writerId, sequenceNum
00732
00733   write(tail, starting_frag + frags, swap_bytes);
00734   const size_t tail_data = orig_payload - frags * FRAG_SIZE;
00735   const ACE_CDR::UShort tail_frags =
00736     static_cast<ACE_CDR::UShort>((tail_data + FRAG_SIZE - 1) / FRAG_SIZE);
00737   write(tail, tail_frags, swap_bytes);
00738   write(tail, FRAG_SIZE, swap_bytes);
00739   write(tail, sample_size, swap_bytes);
00740
00741   Message_Block_Ptr payload_head;
00742   Message_Block_Ptr payload_tail;
00743   DataSampleHeader::split_payload(*orig.cont(), frags * FRAG_SIZE,
00744                                   payload_head, payload_tail);
00745   head->cont(payload_head.release());
00746   tail->cont(payload_tail.release());
00747
00748   return SequenceRange(starting_frag + frags - 1,
00749                        starting_frag + frags + tail_frags - 1);
00750 }

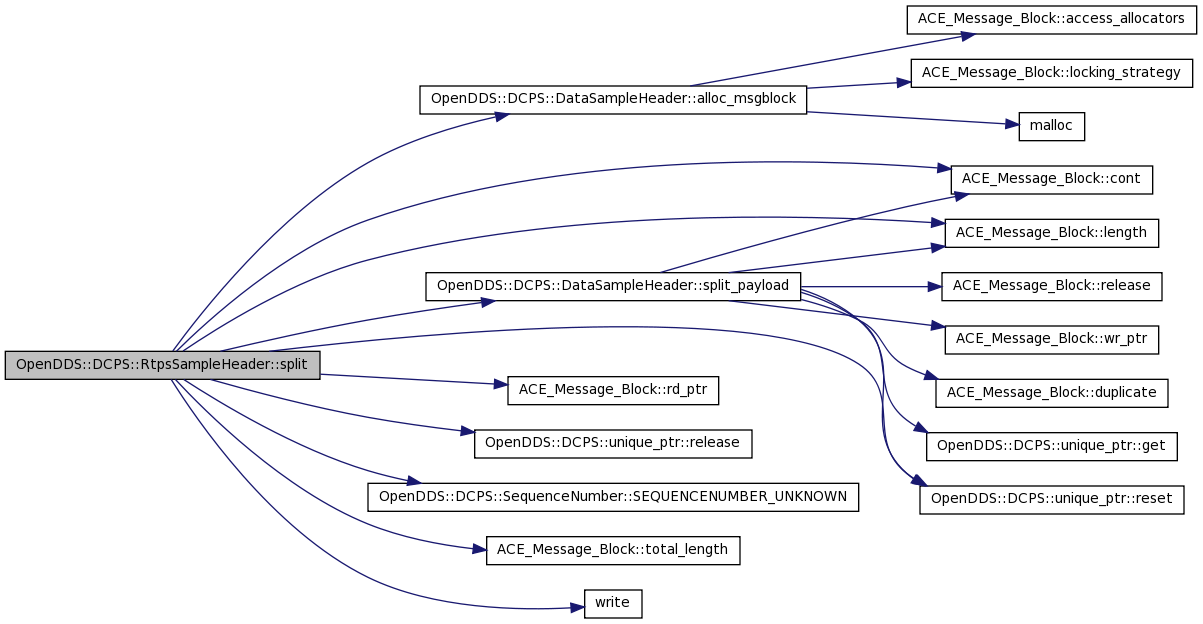

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE bool OpenDDS::DCPS::RtpsSampleHeader::valid ( void   )  const

Definition at line 44 of file RtpsSampleHeader.inl.

References valid_.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::check_header().

00045 {
00046   return valid_;
00047 }

Here is the caller graph for this function:

Member Data Documentation

bool OpenDDS::DCPS::RtpsSampleHeader::frag_ [private]

Definition at line 74 of file RtpsSampleHeader.h.

Referenced by init(), more_fragments(), and operator=().

const ACE_CDR::UShort OpenDDS::DCPS::RtpsSampleHeader::FRAG_SIZE = 1024 [static]

Definition at line 98 of file RtpsSampleHeader.h.

Referenced by split().

size_t OpenDDS::DCPS::RtpsSampleHeader::marshaled_size_ [private]

Definition at line 75 of file RtpsSampleHeader.h.

Referenced by init(), and marshaled_size().

size_t OpenDDS::DCPS::RtpsSampleHeader::message_length_ [private]

Definition at line 75 of file RtpsSampleHeader.h.

Referenced by init(), message_length(), and pdu_remaining().

RTPS::Submessage OpenDDS::DCPS::RtpsSampleHeader::submessage_

Definition at line 69 of file RtpsSampleHeader.h.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::check_header(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::deliver_sample(), init(), into_received_data_sample(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::reassemble().

bool OpenDDS::DCPS::RtpsSampleHeader::valid_ [private]

Definition at line 74 of file RtpsSampleHeader.h.

Referenced by init(), operator=(), and valid().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
