OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH > Class Template Reference

#include <TransportReceiveStrategy_T.h>

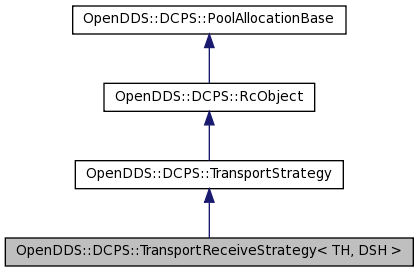

Inheritance diagram for OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >:

[legend]

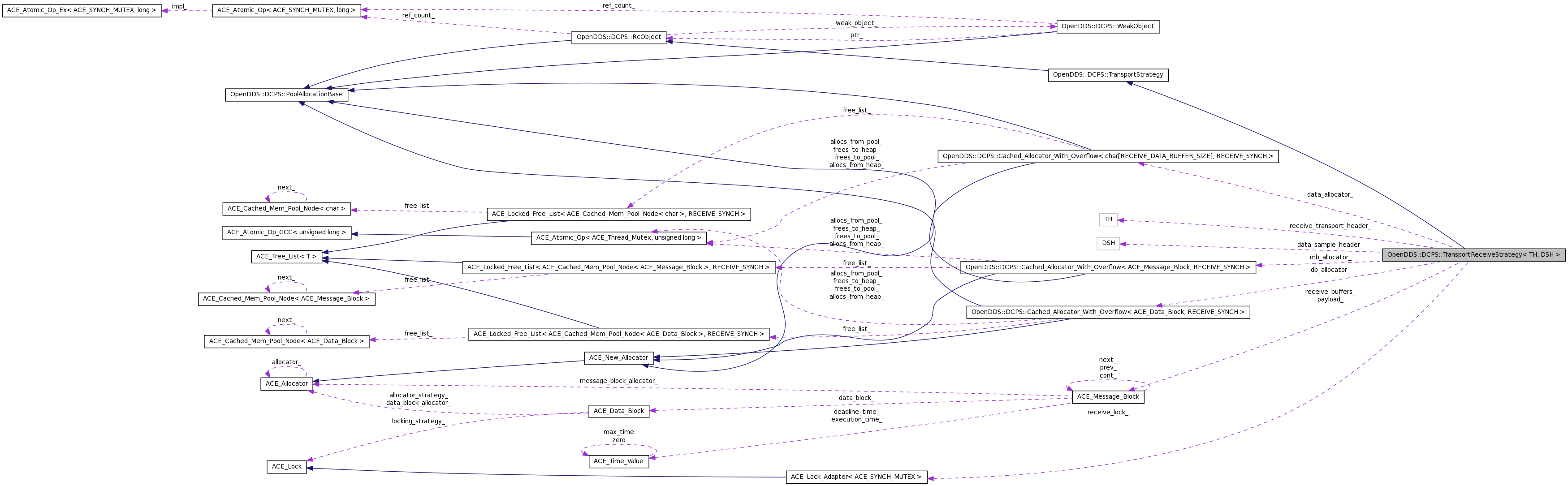

Collaboration diagram for OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >:

[legend]

List of all members.

Public Member Functions
virtual	~TransportReceiveStrategy ()
int	start ()
void	stop ()
int	handle_dds_input (ACE_HANDLE fd)
virtual void	relink (bool do_suspend=true)
const TH &	received_header () const
TH &	received_header ()
const DSH &	received_sample_header () const
DSH &	received_sample_header ()
Protected Member Functions
	TransportReceiveStrategy ()
virtual ssize_t	receive_bytes (iovec iov[], int n, ACE_INET_Addr &remote_address, ACE_HANDLE fd)=0
	Only our subclass knows how to do this.
virtual bool	check_header (const TH &header)
	Check the transport header for suitability.
virtual bool	check_header (const DSH &header)
	Check the data sample header for suitability.
virtual void	deliver_sample (ReceivedDataSample &sample, const ACE_INET_Addr &remote_address)=0
	Called when there is a ReceivedDataSample to be delivered.
virtual int	start_i ()=0
	Let the subclass start.
virtual void	stop_i ()=0
	Let the subclass stop.
int	skip_bad_pdus ()
	Ignore bad PDUs by skipping over them.
void	reset ()
size_t	pdu_remaining () const
Protected Attributes
bool	gracefully_disconnected_
	Flag indicates if the GRACEFUL_DISCONNECT message is received.
Private Types
enum	{ RECEIVE_BUFFERS = 16 }
enum	{ BUFFER_LOW_WATER = 4096 }
enum	{ MESSAGE_BLOCKS = 1000 }
enum	{ DATA_BLOCKS = 100 }
Private Member Functions
size_t	successor_index (size_t index) const
	Manage an index into the receive buffer array.
void	update_buffer_index (bool &done)
virtual bool	reassemble (ReceivedDataSample &data)
Private Attributes
size_t	receive_sample_remaining_
	Bytes remaining in the current DataSample.
TH	receive_transport_header_
	Current receive TransportHeader.
TransportMessageBlockAllocator	mb_allocator_
TransportDataBlockAllocator	db_allocator_
TransportDataAllocator	data_allocator_
ACE_Lock_Adapter< ACE_SYNCH_MUTEX >	receive_lock_
	Locking strategy for the allocators.
ACE_Message_Block *	receive_buffers_ [RECEIVE_BUFFERS]
	Set of receive buffers in use.
size_t	buffer_index_
	Current receive buffer index in use.
DSH	data_sample_header_
	Current data sample header.
ACE_Message_Block *	payload_
bool	good_pdu_
size_t	pdu_remaining_
	Amount of the current PDU that has not been processed yet.

---

Detailed Description

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>
class OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >

This class provides buffer for data received by transports, de-assemble the data to individual samples and deliver them.

Definition at line 31 of file TransportReceiveStrategy_T.h.

---

Member Enumeration Documentation

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

anonymous enum [private]

Enumerator:

RECEIVE_BUFFERS

Definition at line 114 of file TransportReceiveStrategy_T.h.

{ RECEIVE_BUFFERS  =   16 };

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

anonymous enum [private]

Enumerator:

BUFFER_LOW_WATER

Definition at line 115 of file TransportReceiveStrategy_T.h.

{ BUFFER_LOW_WATER = 4096 };

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

anonymous enum [private]

Enumerator:

MESSAGE_BLOCKS

Definition at line 121 of file TransportReceiveStrategy_T.h.

{ MESSAGE_BLOCKS   = 1000 };

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

anonymous enum [private]

Enumerator:

DATA_BLOCKS

Definition at line 122 of file TransportReceiveStrategy_T.h.

{ DATA_BLOCKS      =  100 };

---

Constructor & Destructor Documentation

template<typename TH , typename DSH >

OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::~TransportReceiveStrategy

(

)

[inline, virtual]

Definition at line 51 of file TransportReceiveStrategy_T.cpp.

References ACE_TEXT(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::buffer_index_, DBG_ENTRY_LVL, LM_WARNING, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, size, and ACE_Message_Block::total_length().

{
  DBG_ENTRY_LVL("TransportReceiveStrategy","~TransportReceiveStrategy",6);

  if (this->receive_buffers_[this->buffer_index_] != 0) {
    size_t size = this->receive_buffers_[this->buffer_index_]->total_length();

    if (size > 0) {
      ACE_DEBUG((LM_WARNING,
                 ACE_TEXT("(%P|%t) WARNING: TransportReceiveStrategy::~TransportReceiveStrategy() - ")
                 ACE_TEXT("terminating with %d unprocessed bytes.\n"),
                 size));
    }
  }
}

Here is the call graph for this function:

template<typename TH , typename DSH >

OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::TransportReceiveStrategy

(

)

[inline, protected]

Definition at line 22 of file TransportReceiveStrategy_T.cpp.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_allocator_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::DATA_BLOCKS, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::db_allocator_, DBG_ENTRY_LVL, LM_DEBUG, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::mb_allocator_, ACE_OS::memset(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::MESSAGE_BLOCKS, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, and OpenDDS::DCPS::Transport_debug_level.

  : gracefully_disconnected_(false),
    receive_sample_remaining_(0),
    mb_allocator_(MESSAGE_BLOCKS),
    db_allocator_(DATA_BLOCKS),
    data_allocator_(DATA_BLOCKS),
    buffer_index_(0),
    payload_(0),
    good_pdu_(true),
    pdu_remaining_(0)
{
  DBG_ENTRY_LVL("TransportReceiveStrategy", "TransportReceiveStrategy" ,6);

  if (Transport_debug_level >= 2) {
    ACE_DEBUG((LM_DEBUG,"(%P|%t) TransportReceiveStrategy-mb"
               " Cached_Allocator_With_Overflow %x with %d chunks\n",
               &mb_allocator_, MESSAGE_BLOCKS));
    ACE_DEBUG((LM_DEBUG,"(%P|%t) TransportReceiveStrategy-db"
               " Cached_Allocator_With_Overflow %x with %d chunks\n",
               &db_allocator_, DATA_BLOCKS));
    ACE_DEBUG((LM_DEBUG,"(%P|%t) TransportReceiveStrategy-data"
               " Cached_Allocator_With_Overflow %x with %d chunks\n",
               &data_allocator_, DATA_BLOCKS));
  }

  ACE_OS::memset(this->receive_buffers_, 0, sizeof(this->receive_buffers_));
}

Here is the call graph for this function:

---

Member Function Documentation

template<typename TH, typename DSH>

bool OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::check_header

(

const DSH &

header

)

[inline, protected, virtual]

Check the data sample header for suitability.

Reimplemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Definition at line 76 of file TransportReceiveStrategy_T.cpp.

{
  return true;
}

template<typename TH, typename DSH >

bool OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::check_header

(

const TH &

header

)

[inline, protected, virtual]

Check the transport header for suitability.

Reimplemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Definition at line 69 of file TransportReceiveStrategy_T.cpp.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

{
  return true;
}

Here is the caller graph for this function:

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

virtual void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::deliver_sample	(	ReceivedDataSample &	sample,
		const ACE_INET_Addr &	remote_address
	)			[protected, pure virtual]

Called when there is a ReceivedDataSample to be delivered.

Implemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, OpenDDS::DCPS::ShmemReceiveStrategy, OpenDDS::DCPS::TcpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

Here is the caller graph for this function:

template<typename TH , typename DSH >

int OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input

(

ACE_HANDLE

fd

)

[inline]

Note that this is just an initial implementation. We may take some shortcuts (we will) that will need to be dealt with later once a more robust implementation can be put in place.

Our handle_dds_input() method is called by the reactor when there is data to be pulled from our peer() ACE_SOCK_Stream.

Definition at line 89 of file TransportReceiveStrategy_T.cpp.

References ACE_TEXT(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::buffer_index_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::BUFFER_LOW_WATER, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::check_header(), ACE_Message_Block::cont(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_allocator_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_sample_header_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::db_allocator_, DBG_ENTRY_LVL, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::deliver_sample(), ACE::format_hexdump(), OpenDDS::DCPS::Cached_Allocator_With_Overflow< T, ACE_LOCK >::free(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::good_pdu_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::gracefully_disconnected_, iovec::iov_base, iovec::iov_len, ACE_Message_Block::length(), LM_DEBUG, LM_ERROR, LM_INFO, LM_WARNING, OpenDDS::DCPS::Cached_Allocator_With_Overflow< T, ACE_LOCK >::malloc(), ACE_Time_Value::max_time, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::mb_allocator_, ACE_Message_Block::MB_DATA, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::payload_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::pdu_remaining_, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reassemble(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::RECEIVE_BUFFERS, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_bytes(), OpenDDS::DCPS::RECEIVE_DATA_BUFFER_SIZE, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_lock_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_sample_remaining_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_transport_header_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::relink(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus(), ACE_Message_Block::space(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::successor_index(), OpenDDS::DCPS::Transport_debug_level, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index(), VDBG, VDBG_LVL, ACE_Message_Block::wr_ptr(), and ACE_Time_Value::zero.

{
  DBG_ENTRY_LVL("TransportReceiveStrategy", "handle_dds_input", 6);

  //
  // What we will be doing here:
  //
  //   1) Read as much data as possible from the handle.
  //   2) Process each Transport layer packet
  //      A) Parse the Transport header
  //      B) Process each DataSample in the packet
  //         a) Parse the DataSampleHeader
  //         b) Parse the remainder of the sample
  //         c) call data_received for complete samples
  //         d) store any partial sample or header data
  //   3) return
  //
  // The state that we might need to maintain includes:
  //     I) Current Transport layer header
  //    II) Current DataSample header
  //   III) Current DataSample data
  //
  // For each of these elements, they can be:
  //     i) empty
  //    ii) partial (not able to parse yet).
  //   iii) complete (parsed values available).
  //
  // The read buffers will be a series of data buffers of a fixed size
  // that are each managed by an ACE_Data_Block, each of which is
  // managed by an ACE_Message_Block containing the read and write
  // pointers into the data.
  //
  // As messages are parsed, new ACE_Message_Blocks will be formed with
  // read and write pointers adjusted to reference the individual
  // DataSample buffer contents.
  //
  // The Underlying buffers, ACE_Data_Blocks, and ACE_Message_Blocks
  // will be acquired from a Cached_Allocater_with_overflow.  The size
  // of the individual data buffers will be set initially to the
  // ethernet MTU to allow for full TCP messages to be received into
  // individual blocks.
  //
  // Reading will be performed with a two member struct iov, to allow
  // for the remainder of the current buffer to be used along with at
  // least one completely empty buffer.  There will be a low water
  // parameter used to stop the use of the current block when the
  // available space in it is reduced.
  //

  //
  // Establish the current receive buffer.
  //
  //   This involves checking for any remainder from the previous trip
  //   through the code.  If there is no current buffer, or the buffer
  //   has less than the low water mark space() left, then promote the
  //   next receive buffer to the current.  If none is present, create a
  //   new one and use it.
  //
  //
  // Establish the next receive buffer.
  //
  //   This involves checking for any previous complete buffers that
  //   were not promoted in the previous step.  If none are present,
  //   create a new one and use that.
  //

  //
  // Remove any buffers that have been completely read and have less
  // than the low water amount of space left.
  //
  size_t index;

  for (index = 0; index < RECEIVE_BUFFERS; ++index) {
    if ((this->receive_buffers_[index] != 0)
        && (this->receive_buffers_[index]->length() == 0)
        && (this->receive_buffers_[index]->space() < BUFFER_LOW_WATER)) {
      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "Remove a receive_buffer_[%d] from use.\n",
            index));

      // unlink any Message_Block that continues to this one
      // being removed.
      // This avoids a possible infinite ->cont() loop.
      for (size_t ii =0; ii < RECEIVE_BUFFERS; ii++) {
        if ((0 != this->receive_buffers_[ii]) &&
            (this->receive_buffers_[ii]->cont() ==
             this->receive_buffers_[index])) {
          this->receive_buffers_[ii]->cont(0);
        }
      }

      //
      // Remove the receive buffer from use.
      //
      ACE_DES_FREE(
        this->receive_buffers_[index],
        this->mb_allocator_.free,
        ACE_Message_Block);
      this->receive_buffers_[index] = 0;
    }
  }

  //
  // Allocate buffers for any empty slots.  We may have emptied one just
  // here, but others may have been emptied by a large read during the
  // last trip through the code as well.
  //
  size_t previous = this->buffer_index_;

  for (index = this->buffer_index_;
       this->successor_index(previous) != this->buffer_index_;
       index = this->successor_index(index)) {
    if (this->receive_buffers_[index] == 0) {
      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "Allocate a Message_Block for new receive_buffer_[%d].\n",
            index));

      ACE_NEW_MALLOC_RETURN(
        this->receive_buffers_[index],
        (ACE_Message_Block*) this->mb_allocator_.malloc(
          sizeof(ACE_Message_Block)),
        ACE_Message_Block(
          RECEIVE_DATA_BUFFER_SIZE,     // Buffer size
          ACE_Message_Block::MB_DATA,   // Default
          0,                            // Start with no continuation
          0,                            // Let the constructor allocate
          &this->data_allocator_,       // Our buffer cache
          &this->receive_lock_,         // Our locking strategy
          ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY, // Default
          ACE_Time_Value::zero,         // Default
          ACE_Time_Value::max_time,     // Default
          &this->db_allocator_,         // Our data block cache
          &this->mb_allocator_          // Our message block cache
        ),
        -1);
    }

    //
    // Chain the buffers.  This allows us to have portions of parsed
    // data cross buffer boundaries without a problem.
    //
    if (previous != index) {
      this->receive_buffers_[previous]->cont(
        this->receive_buffers_[index]);
    }

    previous = index;
  }

  //
  // Read from handle.
  //
  //   This involves a non-blocking recvv_n().  Any remaining space in
  //   the buffers should be saved for the next pass through the code.
  //   If more than one receive buffer has data, chain them.  Promote
  //   all receive buffers so that the next pass through, the first
  //   buffer with space remaining will appear as the current receive
  //   buffer.
  //
  //   This is probably what should remain in the specific
  //   implementation, with the rest of this factored back up into the
  //   framework.
  //

  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "Form the iovec from the message block\n"));

  //
  // Form the iovec from the message block chain of receive buffers.
  //
  iovec iov[RECEIVE_BUFFERS];
  size_t vec_index = 0;
  size_t current = this->buffer_index_;

  for (index = 0;
       index < RECEIVE_BUFFERS;
       ++index, current = this->successor_index(current)) {
    // Invariant.  ASSERT?
    if (this->receive_buffers_[current] == 0) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: Unrecoverably corrupted ")
                        ACE_TEXT("receive buffer management detected.\n")),
                       -1);
    }

#ifdef _MSC_VER
#pragma warning(push)
// iov_len is 32-bit on 64-bit VC++, but we don't want a cast here
// since on other platforms iov_len is 64-bit
#pragma warning(disable : 4267)
#endif
    // This check covers the case where we have unread data in
    // the first buffer, but no space to write any more data.
    if (this->receive_buffers_[current]->space() > 0) {
      iov[vec_index].iov_len  = this->receive_buffers_[current]->space();
      iov[vec_index].iov_base = this->receive_buffers_[current]->wr_ptr();

      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "index==%d, len==%d, base==%x\n",
            vec_index, iov[vec_index].iov_len, iov[vec_index].iov_base));

      vec_index++;
    }
  }

#ifdef _MSC_VER
#pragma warning(pop)
#endif

  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "Perform the recvv() call\n"));

  //
  // Read into the buffers.
  //
  ACE_INET_Addr remote_address;
  ssize_t bytes_remaining = this->receive_bytes(iov,
                                                static_cast<int>(vec_index),
                                                remote_address,
                                                fd);

  if (bytes_remaining < 0) {
    ACE_ERROR((LM_WARNING, ACE_TEXT("(%P|%t) WARNING: Problem ")
              ACE_TEXT("with data link detected: %p.\n"),
              ACE_TEXT("receive_bytes")));

    // The relink() will handle the connection to the ReconnectTask to do
    // the reconnect so this reactor thread will not be block.
    this->relink();

    // Close connection anyway.
    return -1;
    // Returning -1 takes the handle out of the reactor read mask.
  }

  VDBG_LVL((LM_DEBUG,"(%P|%t) DBG:   "
            "recvv() return %d - we call this the bytes_remaining.\n",
            bytes_remaining), 5);

  if (bytes_remaining == 0) {
    if (this->gracefully_disconnected_) {
      VDBG_LVL((LM_INFO,
                ACE_TEXT("(%P|%t) Peer has gracefully disconnected.\n"))
               ,1);
      return -1;

    } else {
      VDBG_LVL((LM_DEBUG, ACE_TEXT("(%P|%t) DBG: Unrecoverable problem ")
                ACE_TEXT("with data link detected\n")), 1);

      // The relink() will handle the connection to the ReconnectTask to do
      // the reconnect so this reactor thread will not be block.
      this->relink();

      // Close connection anyway.
      return -1;
      // Returning -1 takes the handle out of the reactor read mask.
    }
  }

  VDBG_LVL((LM_DEBUG,"(%P|%t) DBG:   "
            "START Adjust the message block chain pointers to account for the "
            "new data.\n"), 5);

  //
  // Adjust the message block chain pointers to account for the new
  // data.
  //
  size_t bytes = bytes_remaining;

  if (!this->pdu_remaining_) {
    this->receive_transport_header_.length_ = static_cast<ACE_UINT32>(bytes);
  }

  for (index = this->buffer_index_;
       bytes > 0;
       index = this->successor_index(index)) {
    VDBG((LM_DEBUG,"(%P|%t) DBG:    -> "
          "At top of for..loop block.\n"));
    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "index == %d.\n", index));
    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "bytes == %d.\n", bytes));

    size_t amount
    = ace_min<size_t>(bytes, this->receive_buffers_[index]->space());

    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "amount == %d.\n", amount));

    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "this->receive_buffers_[index]->rd_ptr() ==  %u.\n",
          this->receive_buffers_[index]->rd_ptr()));
    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "this->receive_buffers_[index]->wr_ptr() ==  %u.\n",
          this->receive_buffers_[index]->wr_ptr()));

    this->receive_buffers_[index]->wr_ptr(amount);

    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "Now, this->receive_buffers_[index]->wr_ptr() ==  %u.\n",
          this->receive_buffers_[index]->wr_ptr()));

    bytes -= amount;

    VDBG((LM_DEBUG,"(%P|%t) DBG:       "
          "Now, bytes == %d .\n", bytes));

    // This is yukky to do here, but there is a fine line between
    // where things are moved and where they are checked.
    if (bytes > 0 && this->successor_index(index) == this->buffer_index_) {
      // Here we have read more data than we passed in buffer.  Bad.
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: Unrecoverably corrupted ")
                        ACE_TEXT("receive buffer management detected: ")
                        ACE_TEXT("read more bytes than available.\n")),
                       -1);
    }
  }

  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "DONE Adjust the message block chain pointers to account "
        "for the new data.\n"));

  //
  // While the receive buffer is not empty:
  //
  //   This is the receive buffer(s) that was just read.  The receive
  //   buffer message block is used to manage our parsing through this
  //   data.  When we have parsed out all the data, then it will be
  //   considered empty.  This message block read pointer indicates
  //   where we are in the parsing process.  Other message blocks refer
  //   to the parsed data and retain the data block references to
  //   prevent the data from being released until we have completed all
  //   uses for the data in the receive buffer.  This will normally be
  //   after the sample data is demarshaled in the DataReader
  //   components.
  //
  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "Start processing the data we just received.\n"));

  //
  // Operate while we have more data to process.
  //
  while (true) {

    //
    // Manage the current transport header.
    //
    //   This involves checking to see if we have remaining data in the
    //   current packet.  If not, or if we have not read a complete
    //   header, then we read a transport header and check it for
    //   validity.  As we have a valid transport header with data
    //   remaining to read in the packet that it represents, we move on.
    //
    //   As new transport headers are to be read, they are read into a
    //   message buffer member variable and demarshaled directly.  The
    //   values are retained for the lifetime of the processing of the
    //   instant transport packet.  The member message buffer allows us
    //   to retain partially read transport headers until we can read
    //   more data.
    //

    //
    // Check the remaining transport packet length to see if we are
    // expecting a new one.
    //
    if (this->pdu_remaining_ == 0) {
      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "We are expecting a transport packet header.\n"));

      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "this->buffer_index_ == %d.\n",this->buffer_index_));

      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "this->receive_buffers_[this->buffer_index_]->rd_ptr() "
            "== %u.\n",
            this->receive_buffers_[this->buffer_index_]->rd_ptr()));

      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "this->receive_buffers_[this->buffer_index_]->wr_ptr() "
            "== %u.\n",
            this->receive_buffers_[this->buffer_index_]->wr_ptr()));

      if (this->receive_buffers_[this->buffer_index_]->total_length()
          < this->receive_transport_header_.max_marshaled_size()) {
        //
        // Not enough room in the buffer for the entire Transport
        // header that we need to read, so relinquish control until
        // we get more data.
        //
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Not enough bytes read to account for a transport "
              "packet header.  We are done here - we need to "
              "receive more bytes.\n"));

        this->receive_transport_header_.incomplete(
          *this->receive_buffers_[this->buffer_index_]);

        return 0;

      } else {
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "We have enough bytes to demarshall the transport "
              "packet header.\n"));

        // only do the hexdump if it will be printed - to not impact performance.
        if (Transport_debug_level > 5) {
          ACE_TCHAR xbuffer[4096];
          const ACE_Message_Block& mb =
            *this->receive_buffers_[this->buffer_index_];
          size_t xbytes = mb.length();

          xbytes = (std::min)(xbytes, TH::max_marshaled_size());

          ACE::format_hexdump(mb.rd_ptr(), xbytes, xbuffer, sizeof(xbuffer));

          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "Hex Dump of transport header block "
                "(%d bytes):\n%s\n", xbytes, xbuffer));
        }

        //
        // Demarshal the transport header.
        //
        this->receive_transport_header_ =
          *this->receive_buffers_[this->buffer_index_];

        //
        // Check the TransportHeader.
        //
        if (!this->receive_transport_header_.valid()) {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT
                            ("(%P|%t) ERROR: TransportHeader invalid.\n")),
                           -1);
        }

        this->good_pdu_ = check_header(this->receive_transport_header_);
        this->pdu_remaining_ = this->receive_transport_header_.length_;

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Amount of transport packet bytes (remaining): %d.\n",
              this->pdu_remaining_));
      }
    }

    //
    // Ignore bad PDUs by skipping over them.  We do this out here
    // in case we did not skip over the entire bad PDU last time.
    //
    {
      int rtn_code = skip_bad_pdus();
      if (rtn_code <= 0) return rtn_code;
    }

    //
    // Keep processing samples while we have data to read.
    //
    while (this->pdu_remaining_ > 0) {
      VDBG((LM_DEBUG,"(%P|%t) DBG:   "
            "We have a transport packet now.  There are more sample "
            "bytes to parse in order to complete the packet.\n"));

      //
      // Manage the current sample header.
      //
      //  This involves checking to see if we have remaining data in the
      //  current sample.  If not, or if we have not read a complete
      //  header, then we read a sample header and check it for validity,
      //  which currently involves checking the message type only.  As we
      //  have a valid sample header with data remaining to read in the
      //  sample that it represents, we move on.
      //
      //  As new sample headers are read, the are read into a message
      //  buffer member variable and demarshaled directly.  The values are
      //  retained for the lifetime of the sample and are passed as part
      //  of the recieve data sample itself.  The member message buffer
      //  allows us to retain partially read sample headers until we can
      //  read more data.
      //
      if (this->receive_sample_remaining_ == 0) {
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "We are not working on some remaining sample data.  "
              "We are expecting to parse a sample header now.\n"));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->buffer_index_ == %d.\n",this->buffer_index_));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->rd_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->rd_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->wr_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->wr_ptr()));

        if (DSH::partial(*this->receive_buffers_[this->buffer_index_])) {
          //
          // Not enough room in the buffer for the entire Sample
          // header that we need to read, so relinquish control until
          // we get more data.
          //
          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "Not enough bytes have been received to account "
                "for a complete sample header.  We are done for "
                "now - we need to receive more data before we "
                "can go on.\n"));
          if (Transport_debug_level > 2) {
            ACE_TCHAR ebuffer[350];
            ACE_Message_Block& mb = *this->receive_buffers_[this->buffer_index_];
            const size_t sz = (std::min)(DSH::max_marshaled_size(), mb.length());
            ACE::format_hexdump(mb.rd_ptr(), sz, ebuffer, sizeof(ebuffer));
            ACE_DEBUG((LM_DEBUG, "(%P|%t) DBG:   "
              "Partial DataSampleHeader:\n%s\n", ebuffer));
          }

          return 0;

        } else {
          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "We have received enough bytes for the sample "
                "header.  Demarshall the sample header now.\n"));

          // only do the hexdump if it will be printed - to not impact performance.
          if (Transport_debug_level > 5) {
            ACE_TCHAR ebuffer[4096];
            ACE::format_hexdump
            (this->receive_buffers_[this->buffer_index_]->rd_ptr(),
             this->data_sample_header_.max_marshaled_size(),
             ebuffer, sizeof(ebuffer));

            VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                  "Hex Dump:\n%s\n", ebuffer));
          }

          this->data_sample_header_.pdu_remaining(this->pdu_remaining_);

          //
          // Demarshal the sample header.
          //
          this->data_sample_header_ =
            *this->receive_buffers_[this->buffer_index_];

          //
          // Check the DataSampleHeader.
          //

          this->good_pdu_ = check_header(data_sample_header_);

          //
          // Set the amount to parse into the message buffer.  We
          // can't just use the header value to keep track of
          // where we are since downstream processing will expect
          // the value to be correct (unadjusted by us).
          //
          this->receive_sample_remaining_ =
            this->data_sample_header_.message_length();

          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "The demarshalled sample header says that we "
                "have %d bytes to read for the data portion of "
                "the sample.\n",
                this->receive_sample_remaining_));

          //
          // Decrement packet size.
          //
          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "this->data_sample_header_.marshaled_size() "
                "== %d.\n",
                this->data_sample_header_.marshaled_size()));

          this->pdu_remaining_
          -= this->data_sample_header_.marshaled_size();

          VDBG((LM_DEBUG,"(%P|%t) DBG:   "
                "Amount of transport packet remaining: %d.\n",
                this->pdu_remaining_));

          int rtn_code = skip_bad_pdus();
          if (rtn_code <= 0) return rtn_code;
        }
      }

      bool last_buffer = false;
      update_buffer_index(last_buffer);

      if (this->receive_sample_remaining_ > 0) {
        //
        // Manage the current sample data.
        //
        //   This involves reading data to complete the current sample.  As
        //   samples are completed, they are dispatched via the
        //   data_received() mechanism.  This data is read into message
        //   blocks that are obtained from the pool of message blocks since
        //   the lifetime of this data will last until the DataReader
        //   components demarshal the sample data.  A reference to the
        //   current sample being built is retained as a member to allow us
        //   to hold partialy read samples until they are completed.
        //
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Determine amount of data for the next block in the chain\n"));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->buffer_index_ == %d.\n",this->buffer_index_));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->rd_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->rd_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->wr_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->wr_ptr()));
        //
        // Determine the amount of data for the next block in the chain.
        //
        const size_t amount = ace_min<size_t>(
          this->receive_sample_remaining_,
          this->receive_buffers_[this->buffer_index_]->length());

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "amount of data for the next block in the chain is %d\n",
              amount));
        //
        // Now create a message block for the data in the current buffer
        // and chain it if we are starting a new sample.
        //
        ACE_Message_Block* current_sample_block = 0;
        ACE_NEW_MALLOC_RETURN(
          current_sample_block,
          (ACE_Message_Block*) this->mb_allocator_.malloc(
            sizeof(ACE_Message_Block)),
          ACE_Message_Block(
            this->receive_buffers_[this->buffer_index_]
            ->data_block()->duplicate(),
            0,
            &this->mb_allocator_),
          -1);

        //
        // Chain it to the end of the current sample.
        //
        if (this->payload_ == 0) {
          this->payload_ = current_sample_block;

        } else {
          ACE_Message_Block* block = this->payload_;

          while (block->cont() != 0) {
            block = block->cont();
          }

          block->cont(current_sample_block);
        }

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Before adjustment of the pointers and byte counters\n"));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->payload_->rd_ptr() "
              "== %u.\n",
              this->payload_->rd_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->payload_->wr_ptr() "
              "== %u.\n",
              this->payload_->wr_ptr()));

        //
        // Adjust the pointers and byte counters.
        //
        current_sample_block->rd_ptr(
          this->receive_buffers_[this->buffer_index_]->rd_ptr());
        current_sample_block->wr_ptr(current_sample_block->rd_ptr() + amount);
        this->receive_buffers_[this->buffer_index_]->rd_ptr(amount);
        this->receive_sample_remaining_ -= amount;
        this->pdu_remaining_            -= amount;

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "After adjustment of the pointers and byte counters\n"));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->payload_->rd_ptr() "
              "== %u.\n",
              this->payload_->rd_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->payload_->wr_ptr() "
              "== %u.\n",
              this->payload_->wr_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->rd_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->rd_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "this->receive_buffers_[this->buffer_index_]->wr_ptr() "
              "== %u.\n",
              this->receive_buffers_[this->buffer_index_]->wr_ptr()));

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "After adjustment, remaining sample bytes == %d\n",
              this->receive_sample_remaining_));
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "After adjustment, remaining transport packet bytes == %d\n",
              this->pdu_remaining_));
      }

      //
      // Dispatch the received message if we have received it all.
      //
      // NB: Since we are doing this synchronously and without passing
      //     ownership of the sample, we can use NULL mutex lock for
      //     the allocators.  Since only one thread can be in this
      //     routine at a time, that is.
      //
      if (this->receive_sample_remaining_ == 0) {
        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Now dispatch the sample to the DataLink\n"));

        ReceivedDataSample rds(this->payload_);
        this->payload_ = 0;  // rds takes ownership of payload_
        if (this->data_sample_header_.into_received_data_sample(rds)) {

          if (this->data_sample_header_.more_fragments()
              || this->receive_transport_header_.last_fragment()) {
            VDBG((LM_DEBUG,"(%P|%t) DBG:   Attempt reassembly of fragments\n"));

            if (this->reassemble(rds)) {
              VDBG((LM_DEBUG,"(%P|%t) DBG:   Reassembled complete message\n"));
              this->deliver_sample(rds, remote_address);
            }
            // If reassemble() returned false, it takes ownership of the data
            // just like deliver_sample() does.

          } else {
            this->deliver_sample(rds, remote_address);
          }
        }

        // For the reassembly algorithm, the 'last_fragment_' header bit only
        // applies to the first DataSampleHeader in the TransportHeader
        this->receive_transport_header_.last_fragment(false);

        VDBG((LM_DEBUG,"(%P|%t) DBG:   "
              "Release the sample that we just sent.\n"));
        // ~ReceivedDataSample() releases the payload_ message block
      }

      update_buffer_index(last_buffer);

      if (last_buffer) {
        // Relinquish control if there is no more data to process.
        VDBG((LM_DEBUG,"(%P|%t) DBG:   We are done - no more data.\n"));
        return 0;
      }

    } // End of while (this->pdu_remaining_ > 0)

    VDBG((LM_DEBUG,"(%P|%t) DBG:   "
          "Let's try to do some more.\n"));
  } // End of while (true)

  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "It looks like we are done - the done loop has finished.\n"));
  //
  // Relinquish control.
  //
  //   This involves ensuring that when we reenter this method, we will
  //   pick up from where we left off correctly.
  //
  return 0;
}

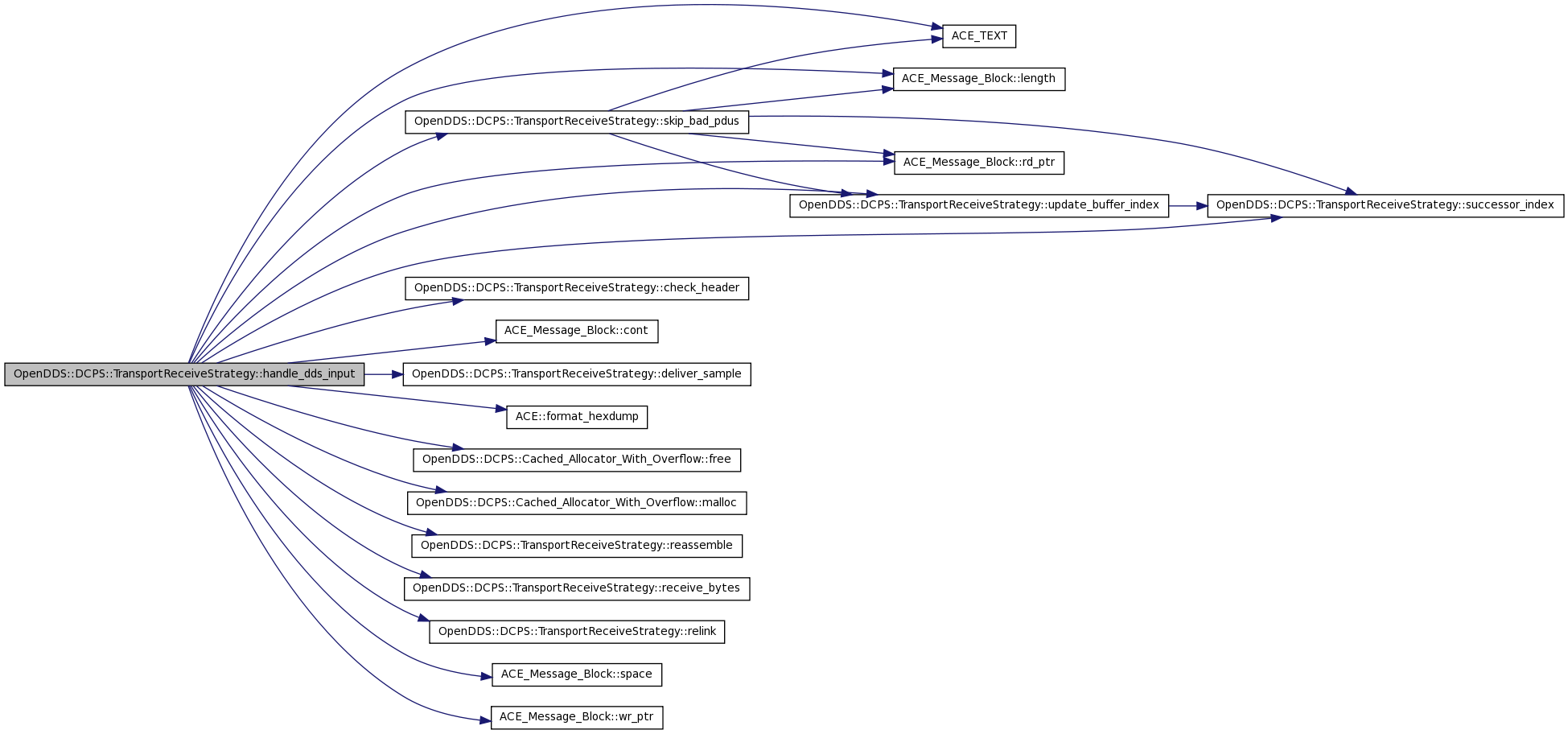

Here is the call graph for this function:

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

size_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::pdu_remaining

(

)

const [inline, protected]

Definition at line 89 of file TransportReceiveStrategy_T.h.

{ return this->pdu_remaining_; }

template<typename TH , typename DSH >

bool OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reassemble

(

ReceivedDataSample &

data

)

[inline, private, virtual]

Reimplemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Definition at line 871 of file TransportReceiveStrategy_T.cpp.

References LM_WARNING.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

{
  ACE_DEBUG((LM_WARNING, "(%P|%t) TransportReceiveStrategy::reassemble() "
    "WARNING: derived class must override if specific transport type uses "
    "fragmentation and reassembly\n"));
  return false;
}

Here is the caller graph for this function:

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

virtual ssize_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_bytes	(	iovec	iov[],
		int	n,
		ACE_INET_Addr &	remote_address,
		ACE_HANDLE	fd
	)			[protected, pure virtual]

Only our subclass knows how to do this.

Implemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, OpenDDS::DCPS::ShmemReceiveStrategy, OpenDDS::DCPS::TcpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

Here is the caller graph for this function:

template<typename TH , typename DSH >

ACE_INLINE TH & OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header

(

)

[inline]

Definition at line 36 of file TransportReceiveStrategy_T.inl.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_transport_header_.

{
  return this->receive_transport_header_;
}

template<typename TH , typename DSH >

ACE_INLINE const TH & OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header

(

)

const [inline]

Provides access to the received transport header for subclasses.

Definition at line 29 of file TransportReceiveStrategy_T.inl.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_transport_header_.

Referenced by OpenDDS::DCPS::ReliableSession::nak_received(), OpenDDS::DCPS::ReliableSession::nakack_received(), OpenDDS::DCPS::MulticastDataLink::ready_to_deliver(), OpenDDS::DCPS::MulticastDataLink::sample_received(), OpenDDS::DCPS::MulticastSession::syn_received(), and OpenDDS::DCPS::MulticastSession::synack_received().

{
  return this->receive_transport_header_;
}

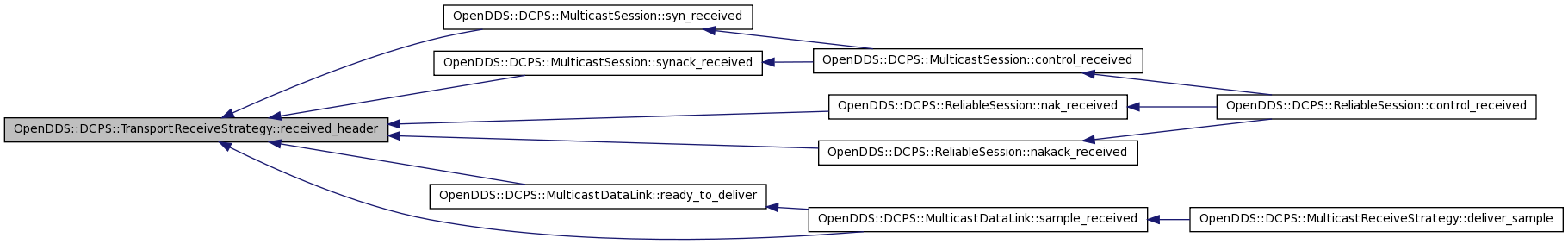

Here is the caller graph for this function:

template<typename TH , typename DSH >

ACE_INLINE DSH & OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_sample_header

(

)

[inline]

Definition at line 50 of file TransportReceiveStrategy_T.inl.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_sample_header_.

{
  return this->data_sample_header_;
}

template<typename TH , typename DSH >

ACE_INLINE const DSH & OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_sample_header

(

)

const [inline]

Provides access to the received sample header for subclasses.

Definition at line 43 of file TransportReceiveStrategy_T.inl.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_sample_header_.

{
  return this->data_sample_header_;
}

template<typename TH , typename DSH >

ACE_INLINE void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::relink

(

bool

do_suspend = true

)

[inline, virtual]

The subclass needs to provide the implementation for re-establishing the datalink. This is called when recv returns an error.

Reimplemented in OpenDDS::DCPS::TcpReceiveStrategy.

Definition at line 64 of file TransportReceiveStrategy_T.inl.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

{
  // The subclass needs implement this function for re-establishing
  // the link upon recv failure.
}

Here is the caller graph for this function:

template<typename TH , typename DSH >

void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset

(

void

)

[inline, protected]

For datagram-based derived classes, reset() can be called to clear any state that may be remaining from parsing the previous datagram.

Definition at line 881 of file TransportReceiveStrategy_T.cpp.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::good_pdu_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::payload_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::pdu_remaining_, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::RECEIVE_BUFFERS, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_sample_remaining_, ACE_Message_Block::release(), and ACE_Message_Block::wr_ptr().

{
  this->receive_sample_remaining_ = 0;
  ACE_Message_Block::release(this->payload_);
  this->payload_ = 0;
  this->good_pdu_ = true;
  this->pdu_remaining_ = 0;
  for (int i = 0; i < RECEIVE_BUFFERS; ++i) {
    ACE_Message_Block& rb = *this->receive_buffers_[i];
    rb.rd_ptr(rb.wr_ptr());
  }
}

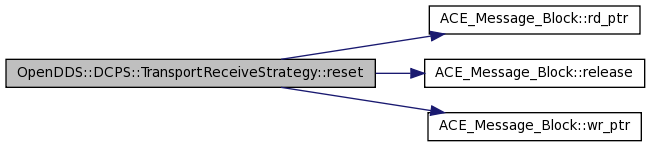

Here is the call graph for this function:

template<typename TH , typename DSH >

int OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus

(

)

[inline, protected]

Ignore bad PDUs by skipping over them.

Definition at line 918 of file TransportReceiveStrategy_T.cpp.

References ACE_TEXT(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::buffer_index_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::good_pdu_, ACE_Message_Block::length(), LM_ERROR, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::pdu_remaining_, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_sample_remaining_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::successor_index(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index().

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

{
  if (this->good_pdu_) return 1;

  //
  // Adjust the message block chain pointers to account for the
  // skipped data.
  //
  for (size_t index = this->buffer_index_;
       this->pdu_remaining_ > 0;
       index = this->successor_index(index)) {
    size_t amount =
      ace_min<size_t>(this->pdu_remaining_, this->receive_buffers_[index]->length());

    this->receive_buffers_[index]->rd_ptr(amount);
    this->pdu_remaining_ -= amount;

    if (this->pdu_remaining_ > 0 && this->successor_index(index) == this->buffer_index_) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: ")
                        ACE_TEXT("TransportReceiveStrategy::skip_bad_pdus()")
                        ACE_TEXT(" - Unrecoverably corrupted ")
                        ACE_TEXT("receive buffer management detected: ")
                        ACE_TEXT("read more bytes than available.\n")),
                       -1);
    }
  }

  this->receive_sample_remaining_ = 0;

  this->receive_sample_remaining_ = 0;

  bool done = false;
  update_buffer_index(done);
  return done ? 0 : 1;
}

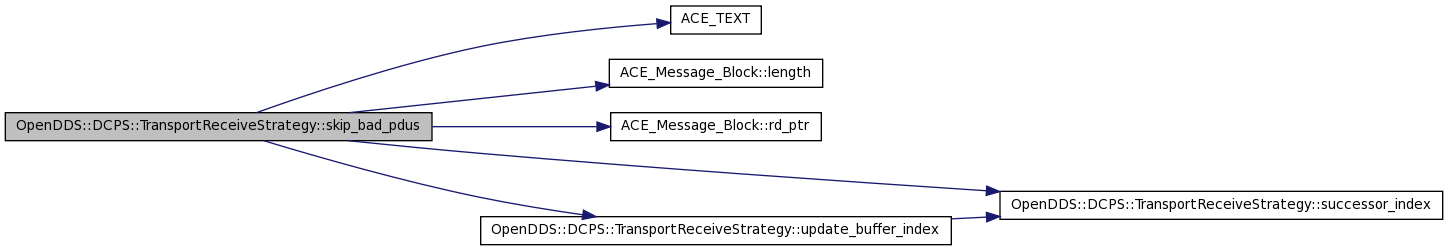

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename TH , typename DSH >

ACE_INLINE int OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::start

(

void

)

[inline, virtual]

Implements OpenDDS::DCPS::TransportStrategy.

Definition at line 13 of file TransportReceiveStrategy_T.inl.

References DBG_ENTRY_LVL, and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::start_i().

{
  DBG_ENTRY_LVL("TransportReceiveStrategy","start",6);
  return this->start_i();
}

Here is the call graph for this function:

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

virtual int OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::start_i

(

)

[protected, pure virtual]

Let the subclass start.

Implemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, OpenDDS::DCPS::ShmemReceiveStrategy, OpenDDS::DCPS::TcpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::start().

Here is the caller graph for this function:

template<typename TH , typename DSH >

ACE_INLINE void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::stop

(

void

)

[inline, virtual]

Implements OpenDDS::DCPS::TransportStrategy.

Definition at line 21 of file TransportReceiveStrategy_T.inl.

References DBG_ENTRY_LVL, and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::stop_i().

{
  DBG_ENTRY_LVL("TransportReceiveStrategy","stop",6);
  this->stop_i();
}

Here is the call graph for this function:

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

virtual void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::stop_i

(

)

[protected, pure virtual]

Let the subclass stop.

Implemented in OpenDDS::DCPS::MulticastReceiveStrategy, OpenDDS::DCPS::RtpsUdpReceiveStrategy, OpenDDS::DCPS::ShmemReceiveStrategy, OpenDDS::DCPS::TcpReceiveStrategy, and OpenDDS::DCPS::UdpReceiveStrategy.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::stop().

Here is the caller graph for this function:

template<typename TH , typename DSH >

ACE_INLINE size_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::successor_index

(

size_t

index

)

const [inline, private]

Manage an index into the receive buffer array.

Definition at line 57 of file TransportReceiveStrategy_T.inl.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::RECEIVE_BUFFERS.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index().

{
  return ++index % RECEIVE_BUFFERS;
}

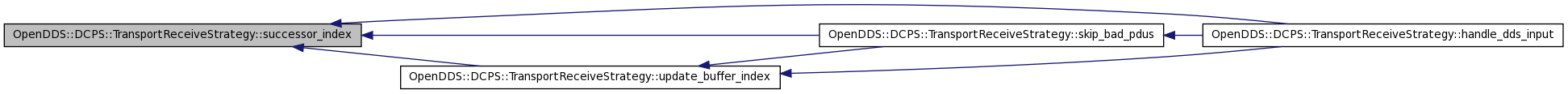

Here is the caller graph for this function:

template<typename TH , typename DSH >

void OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index

(

bool &

done

)

[inline, private]

Definition at line 896 of file TransportReceiveStrategy_T.cpp.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::buffer_index_, LM_DEBUG, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_, OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::successor_index(), and VDBG.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus().

{
  VDBG((LM_DEBUG,"(%P|%t) DBG:   "
        "Adjust the buffer chain in case we crossed into the next "
        "buffer after the last read(s).\n"));
  const size_t initial = this->buffer_index_;
  while (this->receive_buffers_[this->buffer_index_]->length() == 0) {
    this->buffer_index_ = this->successor_index(this->buffer_index_);

    VDBG((LM_DEBUG,"(%P|%t) DBG:   "
          "Set this->buffer_index_ = %d.\n",
          this->buffer_index_));

    if (initial == this->buffer_index_) {
      done = true; // no other buffers in receive_buffers_ have data
      return;
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

Member Data Documentation

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

size_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::buffer_index_ [private]

Current receive buffer index in use.

Definition at line 137 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::~TransportReceiveStrategy().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

TransportDataAllocator OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_allocator_ [private]

Definition at line 128 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::TransportReceiveStrategy().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

DSH OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::data_sample_header_ [private]

Current data sample header.

Definition at line 140 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_sample_header().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

TransportDataBlockAllocator OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::db_allocator_ [private]

Definition at line 127 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::TransportReceiveStrategy().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

bool OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::good_pdu_ [private]

Flag indicating that the currently resident PDU is a good one (i.e. has not been received and processed previously). This is included in case we receive PDUs that were resent for reliability reasons and we receive one even if we have already processed it. This is a use case from multicast transports.

Definition at line 150 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

bool OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::gracefully_disconnected_ [protected]

Flag indicates if the GRACEFUL_DISCONNECT message is received.

Definition at line 92 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

TransportMessageBlockAllocator OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::mb_allocator_ [private]

Definition at line 126 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::TransportReceiveStrategy().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

ACE_Message_Block* OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::payload_ [private]

Definition at line 142 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

size_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::pdu_remaining_ [private]

Amount of the current PDU that has not been processed yet.

Definition at line 153 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy<>::pdu_remaining(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

ACE_Message_Block* OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_buffers_[RECEIVE_BUFFERS] [private]

Set of receive buffers in use.

Definition at line 134 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::TransportReceiveStrategy(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::update_buffer_index(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::~TransportReceiveStrategy().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

ACE_Lock_Adapter<ACE_SYNCH_MUTEX> OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_lock_ [private]

Locking strategy for the allocators.

Definition at line 131 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

size_t OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_sample_remaining_ [private]

Bytes remaining in the current DataSample.

Definition at line 104 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::reset(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::skip_bad_pdus().

template<typename TH = TransportHeader, typename DSH = DataSampleHeader>

TH OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::receive_transport_header_ [private]

Current receive TransportHeader.

Definition at line 107 of file TransportReceiveStrategy_T.h.

Referenced by OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::handle_dds_input(), and OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header().

---

The documentation for this class was generated from the following files:

• TransportReceiveStrategy_T.h
• TransportReceiveStrategy_T.cpp
• TransportReceiveStrategy_T.inl
