OpenDDS::DCPS::TcpReceiveStrategy Class Reference

#include <TcpReceiveStrategy.h>

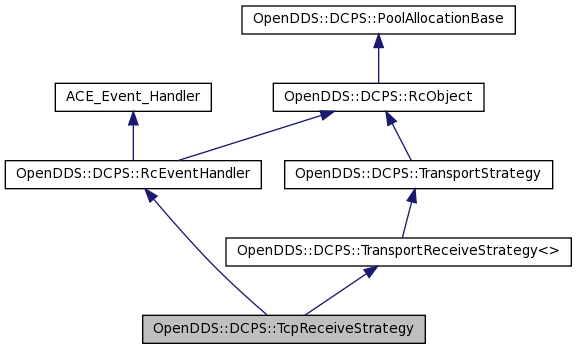

Inheritance diagram for OpenDDS::DCPS::TcpReceiveStrategy:
Inheritance graph
[legend]

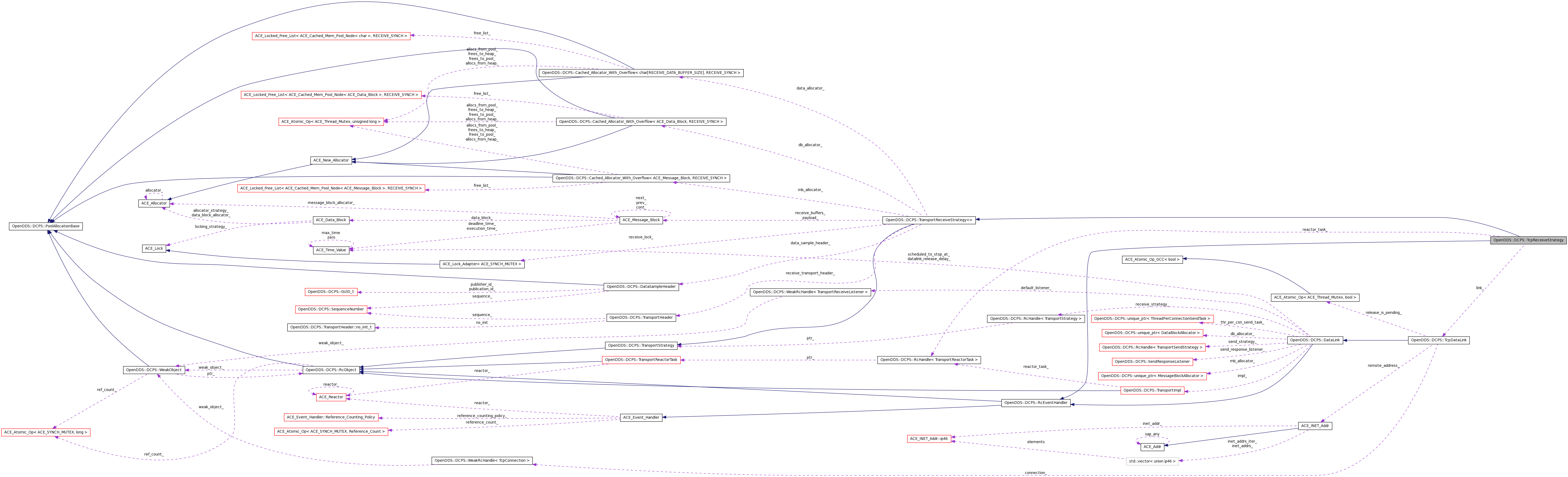

Collaboration diagram for OpenDDS::DCPS::TcpReceiveStrategy:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TcpReceiveStrategy (TcpDataLink &link, const TransportReactorTask_rch &task)
virtual ~TcpReceiveStrategy ()
int reset (TcpConnection *old_connection, TcpConnection *new_connection)
ACE_Reactor * get_reactor ()
bool gracefully_disconnected ()

Protected Member Functions

virtual ssize_t receive_bytes (iovec iov[], int n, ACE_INET_Addr &remote_address, ACE_HANDLE fd)
 Only our subclass knows how to do this.
virtual void deliver_sample (ReceivedDataSample &sample, const ACE_INET_Addr &remote_address)
 Called when there is a ReceivedDataSample to be delivered.
virtual int start_i ()
 Let the subclass start.
virtual void stop_i ()
 Let the subclass stop.
virtual void relink (bool do_suspend=true)

Private Attributes

TcpDataLink & link_
TransportReactorTask_rch reactor_task_

Detailed Description

Definition at line 24 of file TcpReceiveStrategy.h.

Constructor & Destructor Documentation

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::TcpReceiveStrategy::TcpReceiveStrategy ( TcpDataLink &  link,
const TransportReactorTask_rch &  task
)

Definition at line 23 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL.

00026   : link_(link)
00027   , reactor_task_(task)
00028 {
00029   DBG_ENTRY_LVL("TcpReceiveStrategy","TcpReceiveStrategy",6);
00030 }

OpenDDS::DCPS::TcpReceiveStrategy::~TcpReceiveStrategy (  )  [virtual]

Definition at line 32 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL.

00033 {
00034   DBG_ENTRY_LVL("TcpReceiveStrategy","~TcpReceiveStrategy",6);
00035 }

Member Function Documentation

void OpenDDS::DCPS::TcpReceiveStrategy::deliver_sample ( ReceivedDataSample &  sample,
const ACE_INET_Addr &  remote_address
) [protected, virtual]

Called when there is a ReceivedDataSample to be delivered.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 57 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::GRACEFUL_DISCONNECT, OpenDDS::DCPS::ReceivedDataSample::header_, LM_DEBUG, OpenDDS::DCPS::DataSampleHeader::message_id_, OpenDDS::DCPS::REQUEST_ACK, OpenDDS::DCPS::SAMPLE_ACK, and VDBG.

00058 {
00059   DBG_ENTRY_LVL("TcpReceiveStrategy","deliver_sample",6);
00060
00061   if (sample.header_.message_id_ == GRACEFUL_DISCONNECT) {
00062     VDBG((LM_DEBUG, "(%P|%t) DBG:  received GRACEFUL_DISCONNECT \n"));
00063     this->gracefully_disconnected_ = true;
00064   }
00065   else if (sample.header_.message_id_ == REQUEST_ACK) {
00066     VDBG((LM_DEBUG, "(%P|%t) DBG:  received REQUEST_ACK \n"));
00067     link_.request_ack_received(sample);
00068   }
00069   else if (sample.header_.message_id_ == SAMPLE_ACK) {
00070     VDBG((LM_DEBUG, "(%P|%t) DBG:  received SAMPLE_ACK \n"));
00071     link_.ack_received(sample);
00072   }
00073   else {
00074     link_.data_received(sample);
00075   }
00076 }

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Reactor * OpenDDS::DCPS::TcpReceiveStrategy::get_reactor ( void   )

Definition at line 14 of file TcpReceiveStrategy.inl.

References DBG_ENTRY_LVL, and reactor_task_.

00015 {
00016   DBG_ENTRY_LVL("TcpReceiveStrategy","get_reactor",6);
00017   return this->reactor_task_->get_reactor();
00018 }

ACE_INLINE bool OpenDDS::DCPS::TcpReceiveStrategy::gracefully_disconnected (  )

Definition at line 21 of file TcpReceiveStrategy.inl.

References OpenDDS::DCPS::TransportReceiveStrategy<>::gracefully_disconnected_.

00022 {
00023   return this->gracefully_disconnected_;
00024 }

ssize_t OpenDDS::DCPS::TcpReceiveStrategy::receive_bytes ( iovec  iov[],
int  n,
ACE_INET_Addr &  remote_address,
ACE_HANDLE  fd
) [protected, virtual]

Only our subclass knows how to do this.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 38 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::get_connection(), and link_.

00043 {
00044   DBG_ENTRY_LVL("TcpReceiveStrategy", "receive_bytes", 6);
00045
00046   // We don't do anything to the remote_address for the Tcp case.
00047   TcpConnection_rch connection = link_.get_connection();
00048   if (!connection) {
00049     return 0;
00050   }
00051
00052   return connection->peer().recvv(iov, n);
00053 }

Here is the call graph for this function:

void OpenDDS::DCPS::TcpReceiveStrategy::relink ( bool  do_suspend = true  )  [protected, virtual]

The subclass needs to provide the implementation for re-establishing the datalink. This is called when recv returns an error.

Reimplemented from OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 151 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::get_connection(), and link_.

00152 {
00153   DBG_ENTRY_LVL("TcpReceiveStrategy","relink",6);
00154   TcpConnection_rch connection = link_.get_connection();
00155   if (connection)
00156     connection->relink_from_recv(do_suspend);
00157 }

Here is the call graph for this function:

int OpenDDS::DCPS::TcpReceiveStrategy::reset ( TcpConnection *  old_connection,
TcpConnection *  new_connection
)

Definition at line 114 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, ACE_Event_Handler::DONT_CALL, OpenDDS::DCPS::TcpDataLink::drop_pending_request_acks(), link_, LM_ERROR, reactor_task_, and ACE_Event_Handler::READ_MASK.

Referenced by OpenDDS::DCPS::TcpDataLink::reconnect(), and OpenDDS::DCPS::TcpDataLink::reuse_existing_connection().

00115 {
00116   DBG_ENTRY_LVL("TcpReceiveStrategy","reset",6);
00117   // Unregister the old handle
00118   if (old_connection) {
00119     this->reactor_task_->get_reactor()->remove_handler
00120     (old_connection,
00121      ACE_Event_Handler::READ_MASK |
00122      ACE_Event_Handler::DONT_CALL);
00123    }
00124
00125    link_.drop_pending_request_acks();
00126
00127   // Give the reactor its own "copy" of the reference to the connection object.
00128
00129   if (this->reactor_task_->get_reactor()->register_handler
00130       (new_connection,
00131        ACE_Event_Handler::READ_MASK) == -1) {
00132     // Take back the "copy" we made.
00133     ACE_ERROR_RETURN((LM_ERROR,
00134                       "(%P|%t) ERROR: TcpReceiveStrategy::reset TcpConnection can't register with "
00135                       "reactor\n"),
00136                      -1);
00137   }
00138
00139   return 0;
00140 }

Here is the call graph for this function:

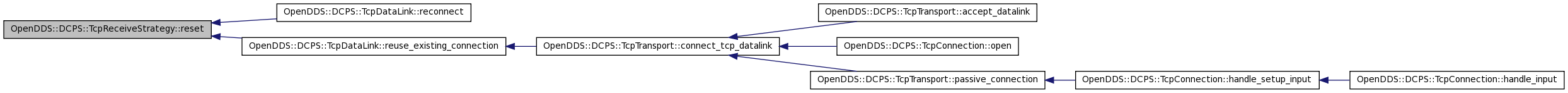

Here is the caller graph for this function:

int OpenDDS::DCPS::TcpReceiveStrategy::start_i (  )  [protected, virtual]

Let the subclass start.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 79 of file TcpReceiveStrategy.cpp.

References ACE_TEXT(), DBG_ENTRY_LVL, OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::TcpDataLink::get_connection(), OpenDDS::DCPS::RcHandle< T >::in(), link_, LM_DEBUG, LM_ERROR, reactor_task_, and ACE_Event_Handler::READ_MASK.

00080 {
00081   DBG_ENTRY_LVL("TcpReceiveStrategy","start_i",6);
00082
00083   TcpConnection_rch connection = link_.get_connection();
00084
00085   if (DCPS_debug_level > 9) {
00086     std::stringstream buffer;
00087     buffer << link_;
00088     ACE_DEBUG((LM_DEBUG,
00089                ACE_TEXT("(%P|%t) TcpReceiveStrategy::start_i() - ")
00090                ACE_TEXT("link:\n%C connected to %C:%d ")
00091                ACE_TEXT("registering with reactor to receive.\n"),
00092                buffer.str().c_str(),
00093                connection->get_remote_address().get_host_name(),
00094                connection->get_remote_address().get_port_number()));
00095   }
00096
00097   if (this->reactor_task_->get_reactor()->register_handler
00098       (connection.in(),
00099        ACE_Event_Handler::READ_MASK) == -1) {
00100     // Take back the "copy" we made.
00101     ACE_ERROR_RETURN((LM_ERROR,
00102                       "(%P|%t) ERROR: TcpReceiveStrategy::start_i TcpConnection can't register with "
00103                       "reactor %@ %p\n", connection.in(), ACE_TEXT("register_handler")),
00104                      -1);
00105   }
00106
00107   return 0;
00108 }

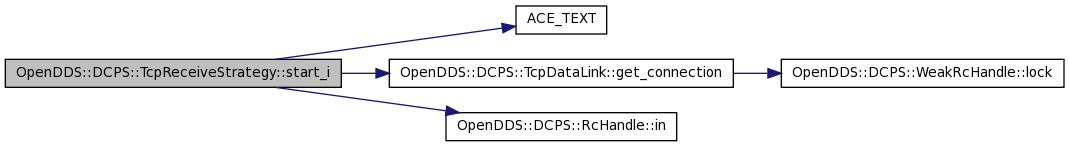

Here is the call graph for this function:

void OpenDDS::DCPS::TcpReceiveStrategy::stop_i (  )  [protected, virtual]

Let the subclass stop.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 143 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::drop_pending_request_acks(), and link_.

00144 {
00145   DBG_ENTRY_LVL("TcpReceiveStrategy","stop_i",6);
00146
00147   link_.drop_pending_request_acks();
00148 }

Here is the call graph for this function:

Member Data Documentation

TcpDataLink& OpenDDS::DCPS::TcpReceiveStrategy::link_ [private]

Definition at line 60 of file TcpReceiveStrategy.h.

Referenced by receive_bytes(), relink(), reset(), start_i(), and stop_i().

TransportReactorTask_rch OpenDDS::DCPS::TcpReceiveStrategy::reactor_task_ [private]

Definition at line 61 of file TcpReceiveStrategy.h.

Referenced by get_reactor(), reset(), and start_i().

The documentation for this class was generated from the following files:
