OpenDDS::DCPS::RtpsUdpTransport Class Reference

#include <RtpsUdpTransport.h>

Inheritance diagram for OpenDDS::DCPS::RtpsUdpTransport:

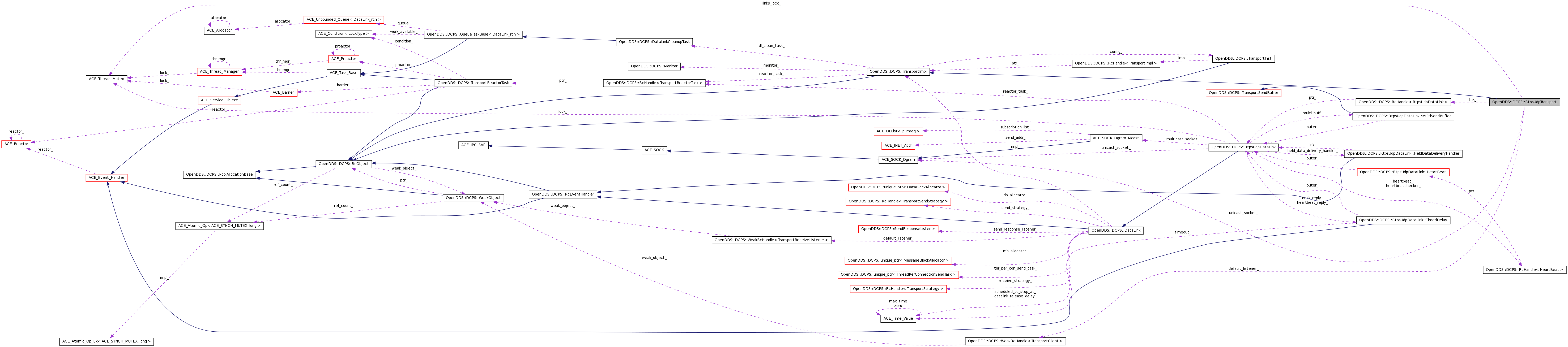

Collaboration diagram for OpenDDS::DCPS::RtpsUdpTransport:

Public Member Functions
	RtpsUdpTransport (RtpsUdpInst &inst)
RtpsUdpInst &	config () const
Private Types
typedef ACE_Thread_Mutex	ThreadLockType
typedef ACE_Guard< ThreadLockType >	GuardThreadType
typedef ACE_SYNCH_MUTEX	LockType
typedef ACE_Guard< LockType >	GuardType
Private Member Functions
virtual AcceptConnectResult	connect_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)
virtual AcceptConnectResult	accept_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)
virtual void	stop_accepting_or_connecting (const TransportClient_wrch &client, const RepoId &remote_id)
bool	configure_i (RtpsUdpInst &config)
virtual void	shutdown_i ()
virtual void	register_for_reader (const RepoId &participant, const RepoId &writerid, const RepoId &readerid, const TransportLocatorSeq &locators, OpenDDS::DCPS::DiscoveryListener *listener)
virtual void	unregister_for_reader (const RepoId &participant, const RepoId &writerid, const RepoId &readerid)
virtual void	register_for_writer (const RepoId &, const RepoId &, const RepoId &, const TransportLocatorSeq &, DiscoveryListener *)
virtual void	unregister_for_writer (const RepoId &, const RepoId &, const RepoId &)
virtual bool	connection_info_i (TransportLocator &info) const
ACE_INET_Addr	get_connection_addr (const TransportBLOB &data, bool requires_inline_qos=0, unsigned int blob_bytes_read=0) const
virtual void	release_datalink (DataLink *link)
virtual OPENDDS_STRING	transport_type () const
RtpsUdpDataLink_rch	make_datalink (const GuidPrefix_t &local_prefix)
void	use_datalink (const RepoId &local_id, const RepoId &remote_id, const TransportBLOB &remote_data, bool local_reliable, bool remote_reliable, bool local_durable, bool remote_durable)
bool	map_ipv4_to_ipv6 () const
Private Attributes
ThreadLockType	links_lock_
LockType	connections_lock_
RtpsUdpDataLink_rch	link_
ACE_SOCK_Dgram	unicast_socket_
TransportClient_wrch	default_listener_

Detailed Description

Definition at line 30 of file RtpsUdpTransport.h.

Member Typedef Documentation

typedef ACE_Guard<ThreadLockType> OpenDDS::DCPS::RtpsUdpTransport::GuardThreadType [private]

Definition at line 99 of file RtpsUdpTransport.h.

typedef ACE_Guard<LockType> OpenDDS::DCPS::RtpsUdpTransport::GuardType [private]

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 105 of file RtpsUdpTransport.h.

typedef ACE_SYNCH_MUTEX OpenDDS::DCPS::RtpsUdpTransport::LockType [private]

This protects the connections_ and the pending_connections_ data members.

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 104 of file RtpsUdpTransport.h.

typedef ACE_Thread_Mutex OpenDDS::DCPS::RtpsUdpTransport::ThreadLockType [private]

Definition at line 98 of file RtpsUdpTransport.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::RtpsUdpTransport::RtpsUdpTransport ( RtpsUdpInst & inst )

Definition at line 31 of file RtpsUdpTransport.cpp.

References configure_i(), defined(), if(), and OpenDDS::DCPS::TransportImpl::open().

00032   : TransportImpl(inst)
00033 #if defined(OPENDDS_SECURITY)
00034   , local_crypto_handle_(DDS::HANDLE_NIL)
00035 #endif
00036 {
00037   if (! (configure_i(inst) && open())) {
00038     throw Transport::UnableToCreate();
00039   }
00040 }

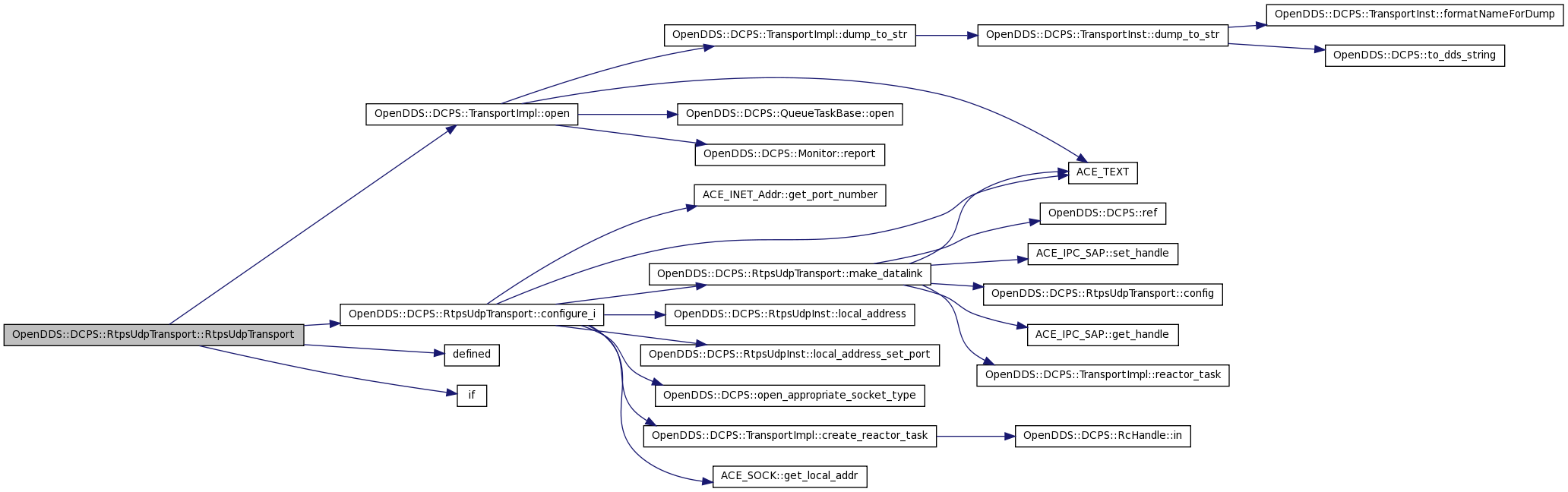

Here is the call graph for this function:

Member Function Documentation

TransportImpl::AcceptConnectResult OpenDDS::DCPS::RtpsUdpTransport::accept_datalink	(	const RemoteTransport &	remote,
		const ConnectionAttribs &	attribs,
		const TransportClient_rch &	client
	)			`[private, virtual]`

accept_datalink() is called from TransportClient to initiate an association as the passive peer. A DataLink may be returned if one is already connected and ready to use, otherwise passively wait for a physical connection from the active side (either in the form of a connection event or handshaking message). Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 116 of file RtpsUdpTransport.cpp.

References OpenDDS::DCPS::TransportImpl::RemoteTransport::blob_, OpenDDS::DCPS::TransportImpl::RemoteTransport::durable_, OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::RcHandle< T >::is_nil(), link_, links_lock_, OpenDDS::DCPS::TransportImpl::ConnectionAttribs::local_durable_, OpenDDS::DCPS::TransportImpl::ConnectionAttribs::local_id_, OpenDDS::DCPS::TransportImpl::ConnectionAttribs::local_reliable_, make_datalink(), OpenDDS::DCPS::TransportImpl::RemoteTransport::reliable_, OpenDDS::DCPS::TransportImpl::RemoteTransport::repo_id_, and use_datalink().

00119 {
00120   GuardThreadType guard_links(this->links_lock_);
00121   if (link_.is_nil()) {
00122     link_=  make_datalink(attribs.local_id_.guidPrefix);
00123     if (link_.is_nil()) {
00124       return AcceptConnectResult();
00125     }
00126   }
00127   RtpsUdpDataLink_rch link = link_;
00128
00129   use_datalink(attribs.local_id_, remote.repo_id_, remote.blob_,
00130                attribs.local_reliable_, remote.reliable_,
00131                attribs.local_durable_, remote.durable_);
00132   return AcceptConnectResult(link);
00133 }

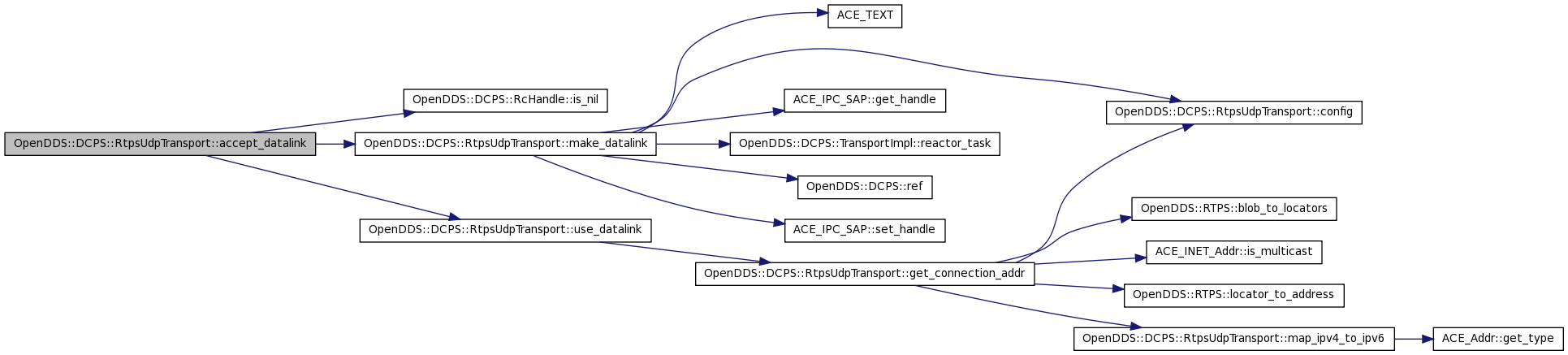

Here is the call graph for this function:

RtpsUdpInst & OpenDDS::DCPS::RtpsUdpTransport::config ( ) const

Expose the configuration information so others can see what we can do.

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 43 of file RtpsUdpTransport.cpp.

Referenced by connection_info_i(), get_connection_addr(), make_datalink(), register_for_reader(), and register_for_writer().

00044 {
00045   return static_cast<RtpsUdpInst&>(TransportImpl::config());
00046 }

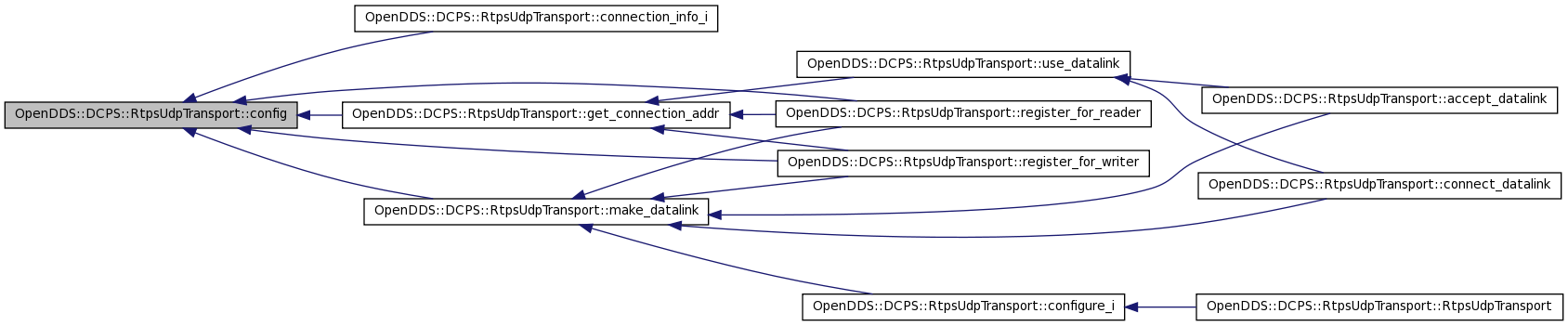

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpTransport::configure_i ( RtpsUdpInst & config ) [private]

Definition at line 271 of file RtpsUdpTransport.cpp.

References ACE_TEXT(), OpenDDS::DCPS::TransportImpl::create_reactor_task(), ACE_SOCK::get_local_addr(), ACE_INET_Addr::get_port_number(), OpenDDS::DCPS::GUID_t::guidPrefix, link_, LM_ERROR, OpenDDS::DCPS::RtpsUdpInst::local_address(), OpenDDS::DCPS::RtpsUdpInst::local_address_set_port(), make_datalink(), OpenDDS::DCPS::open_appropriate_socket_type(), OpenDDS::DCPS::RtpsUdpInst::opendds_discovery_default_listener_, OpenDDS::DCPS::RtpsUdpInst::opendds_discovery_guid_, TheServiceParticipant, and unicast_socket_.

Referenced by RtpsUdpTransport().

00272 {
00273   // Override with DCPSDefaultAddress.
00274   if (config.local_address() == ACE_INET_Addr () &&
00275       !TheServiceParticipant->default_address ().empty ()) {
00276     config.local_address(0, TheServiceParticipant->default_address ().c_str ());
00277   }
00278
00279   // Open the socket here so that any addresses/ports left
00280   // unspecified in the RtpsUdpInst are known by the time we get to
00281   // connection_info_i().  Opening the sockets here also allows us to
00282   // detect and report errors during DataReader/Writer setup instead
00283   // of during association.
00284
00285   if (!open_appropriate_socket_type(unicast_socket_, config.local_address())) {
00286     ACE_ERROR_RETURN((LM_ERROR,
00287                       ACE_TEXT("(%P|%t) ERROR: ")
00288                       ACE_TEXT("RtpsUdpTransport::configure_i: open_appropriate_socket_type:")
00289                       ACE_TEXT("%m\n")),
00290                       false);
00291   }
00292
00293   if (config.local_address().get_port_number() == 0) {
00294
00295     ACE_INET_Addr address;
00296     if (unicast_socket_.get_local_addr(address) != 0) {
00297       ACE_ERROR_RETURN((LM_ERROR,
00298         ACE_TEXT("(%P|%t) ERROR: RtpsUdpDataLink::configure_i - %p\n"),
00299         ACE_TEXT("cannot get local addr")), false);
00300     }
00301     config.local_address_set_port(address.get_port_number());
00302   }
00303
00304   create_reactor_task();
00305
00306   if (config.opendds_discovery_default_listener_) {
00307     link_= make_datalink(config.opendds_discovery_guid_.guidPrefix);
00308     link_->default_listener(*config.opendds_discovery_default_listener_);
00309   }
00310
00311   return true;
00312 }

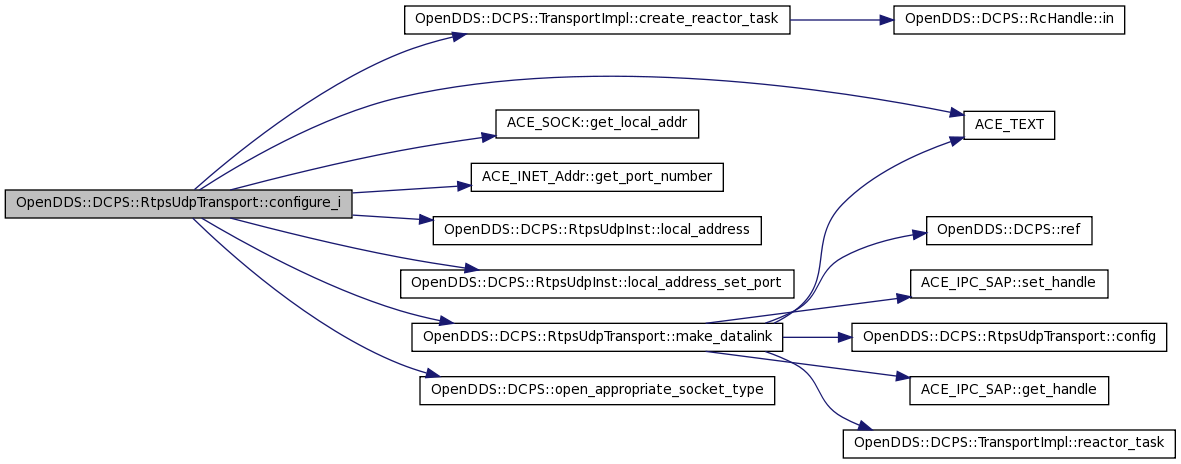

Here is the call graph for this function:

Here is the caller graph for this function:

TransportImpl::AcceptConnectResult OpenDDS::DCPS::RtpsUdpTransport::connect_datalink	(	const RemoteTransport &	remote,
		const ConnectionAttribs &	attribs,
		const TransportClient_rch &	client
	)			`[private, virtual]`

connect_datalink() is called from TransportClient to initiate an association as the active peer. A DataLink may be returned if one is already connected and ready to use, otherwise initiate a connection to the passive side and return from this method. Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 74 of file RtpsUdpTransport.cpp.

00077 {
00078   GuardThreadType guard_links(this->links_lock_);
00079
00080   if (link_.is_nil()) {
00081     link_ =  make_datalink(attribs.local_id_.guidPrefix);
00082     if (link_.is_nil()) {
00083       return AcceptConnectResult();
00084     }
00085   }
00086
00087   RtpsUdpDataLink_rch link = link_;
00088
00089
00090   use_datalink(attribs.local_id_, remote.repo_id_, remote.blob_,
00091                attribs.local_reliable_, remote.reliable_,
00092                attribs.local_durable_, remote.durable_);
00093
00094   if (0 == std::memcmp(attribs.local_id_.guidPrefix, remote.repo_id_.guidPrefix,
00095                        sizeof(GuidPrefix_t))) {
00096     return AcceptConnectResult(link); // "loopback" connection return link right away
00097   }
00098
00099   if (link->check_handshake_complete(attribs.local_id_, remote.repo_id_)){
00100     return AcceptConnectResult(link);
00101   }
00102
00103   if (!link->add_on_start_callback(client, remote.repo_id_)) {
00104      // link was started by the reactor thread before we could add a callback
00105      VDBG_LVL((LM_DEBUG, "(%P|%t) RtpsUdpTransport::connect_datalink got link.\n"), 2);
00106      return AcceptConnectResult(link);
00107   }
00108
00109   GuardType guard(connections_lock_);
00110   add_pending_connection(client, link);
00111   VDBG_LVL((LM_DEBUG, "(%P|%t) RtpsUdpTransport::connect_datalink pending.\n"), 2);
00112   return AcceptConnectResult(AcceptConnectResult::ACR_SUCCESS);
00113 }

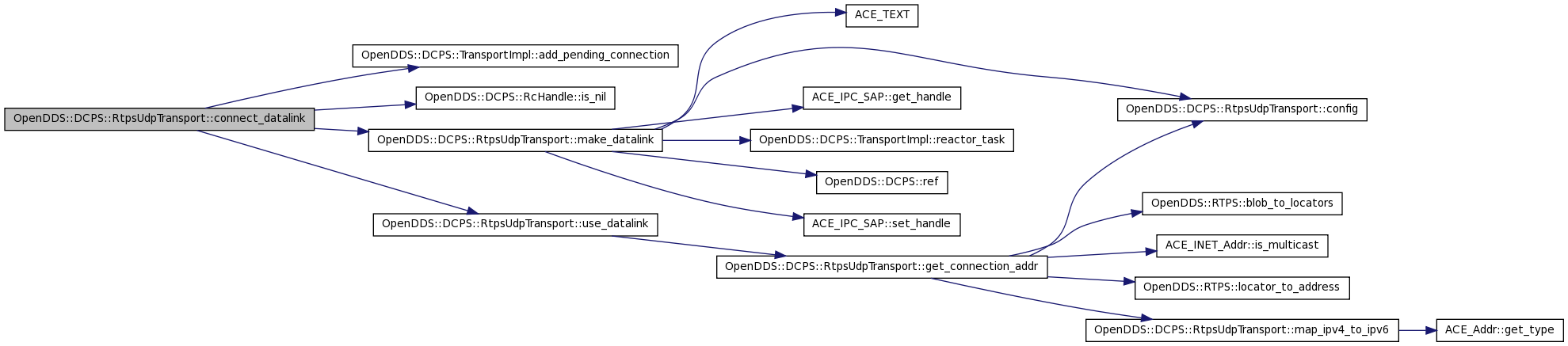

Here is the call graph for this function:

bool OpenDDS::DCPS::RtpsUdpTransport::connection_info_i ( TransportLocator & local_info ) const [private, virtual]

Called by our connection_info() method to allow the concrete TransportImpl subclass to do the dirty work since it really is the one that knows how to populate the supplied TransportLocator object.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 204 of file RtpsUdpTransport.cpp.

References config(), and OpenDDS::DCPS::RtpsUdpInst::populate_locator().

00205 {
00206   this->config().populate_locator(info);
00207   return true;
00208 }

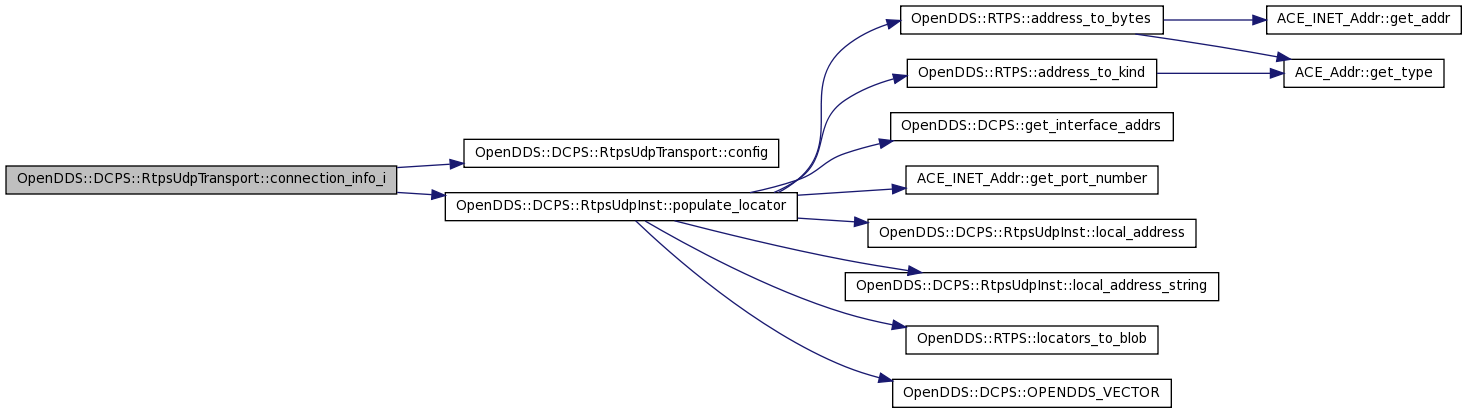

Here is the call graph for this function:

ACE_INET_Addr OpenDDS::DCPS::RtpsUdpTransport::get_connection_addr	(	const TransportBLOB &	data,
		bool *	requires_inline_qos = `0`,
		unsigned int *	blob_bytes_read = `0`
	)			const `[private]`

Definition at line 176 of file RtpsUdpTransport.cpp.

References OpenDDS::RTPS::blob_to_locators(), config(), ACE_INET_Addr::is_multicast(), OpenDDS::RTPS::locator_to_address(), map_ipv4_to_ipv6(), DDS::RETCODE_OK, and OpenDDS::DCPS::RtpsUdpInst::use_multicast_.

Referenced by register_for_reader(), register_for_writer(), and use_datalink().

00179 {
00180   using namespace OpenDDS::RTPS;
00181   LocatorSeq locators;
00182   DDS::ReturnCode_t result =
00183     blob_to_locators(remote, locators, requires_inline_qos, blob_bytes_read);
00184   if (result != DDS::RETCODE_OK) {
00185     return ACE_INET_Addr();
00186   }
00187
00188   for (CORBA::ULong i = 0; i < locators.length(); ++i) {
00189     ACE_INET_Addr addr;
00190     // If conversion was successful
00191     if (locator_to_address(addr, locators[i], map_ipv4_to_ipv6()) == 0) {
00192       // if this is a unicast address, or if we are allowing multicast
00193       if (!addr.is_multicast() || config().use_multicast_) {
00194         return addr;
00195       }
00196     }
00197   }
00198
00199   // Return default address
00200   return ACE_INET_Addr();
00201 }

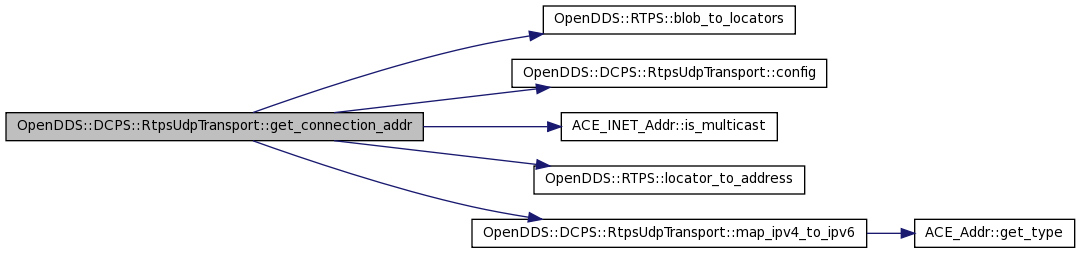

Here is the call graph for this function:

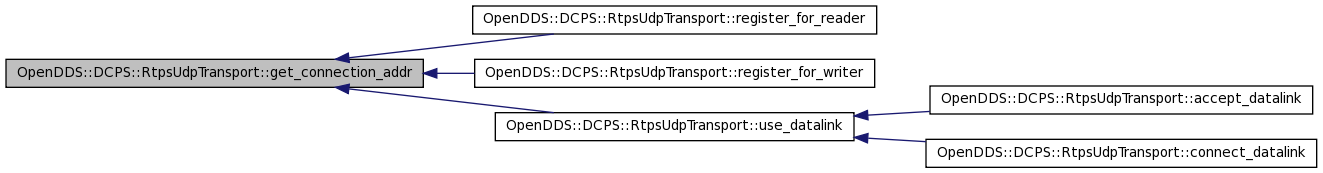

Here is the caller graph for this function:

RtpsUdpDataLink_rch OpenDDS::DCPS::RtpsUdpTransport::make_datalink ( const GuidPrefix_t & local_prefix ) [private]

Definition at line 49 of file RtpsUdpTransport.cpp.

References ACE_TEXT(), config(), ACE_IPC_SAP::get_handle(), LM_ERROR, OpenDDS::DCPS::TransportImpl::reactor_task(), OpenDDS::DCPS::ref(), ACE_IPC_SAP::set_handle(), and unicast_socket_.

Referenced by accept_datalink(), configure_i(), connect_datalink(), register_for_reader(), and register_for_writer().

00050 {
00051
00052   RtpsUdpDataLink_rch link = make_rch<RtpsUdpDataLink>(ref(*this), local_prefix, config(), reactor_task());
00053
00054 #if defined(OPENDDS_SECURITY)
00055   link->local_crypto_handle(local_crypto_handle_);
00056 #endif
00057
00058   if (!link->open(unicast_socket_)) {
00059     ACE_ERROR((LM_ERROR,
00060                       ACE_TEXT("(%P|%t) ERROR: ")
00061                       ACE_TEXT("RtpsUdpTransport::make_datalink: ")
00062                       ACE_TEXT("failed to open DataLink for socket %d\n"),
00063                       unicast_socket_.get_handle()));
00064     return RtpsUdpDataLink_rch();
00065   }
00066
00067   // RtpsUdpDataLink now owns the socket
00068   unicast_socket_.set_handle(ACE_INVALID_HANDLE);
00069
00070   return link;
00071 }

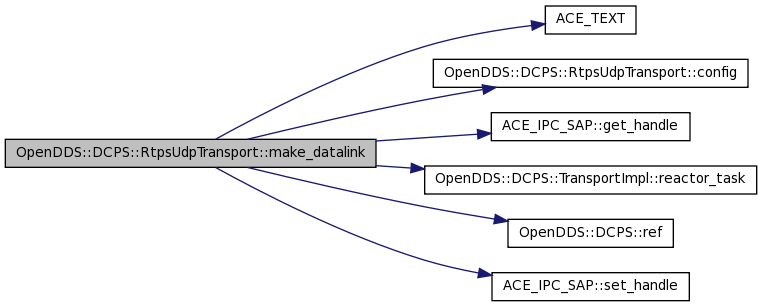

Here is the call graph for this function:

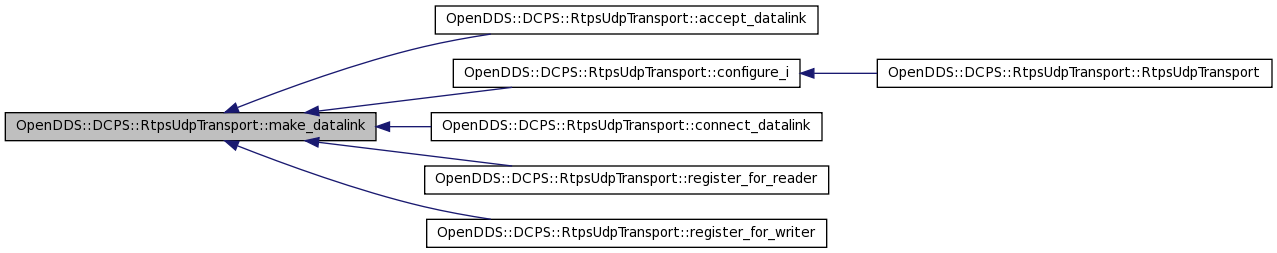

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpTransport::map_ipv4_to_ipv6 ( ) const [private]

Definition at line 332 of file RtpsUdpTransport.cpp.

References ACE_Addr::get_type(), and link_.

Referenced by get_connection_addr().

00333 {
00334   bool map = false;
00335   ACE_INET_Addr tmp;
00336   link_->unicast_socket().get_local_addr(tmp);
00337   if (tmp.get_type() != AF_INET) {
00338     map = true;
00339   }
00340   return map;
00341 }

Here is the call graph for this function:

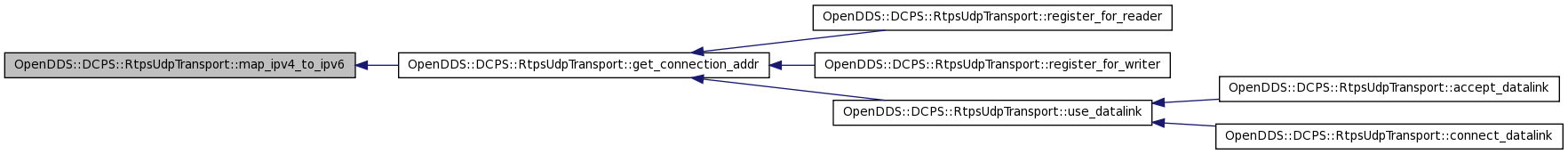

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpTransport::register_for_reader	(	const RepoId &	participant,
		const RepoId &	writerid,
		const RepoId &	readerid,
		const TransportLocatorSeq &	locators,
		OpenDDS::DCPS::DiscoveryListener *	listener
	)			`[private, virtual]`

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 211 of file RtpsUdpTransport.cpp.

References config(), OpenDDS::DCPS::RtpsUdpInst::get_blob(), get_connection_addr(), OpenDDS::DCPS::GUID_t::guidPrefix, link_, and make_datalink().

00216 {
00217   const TransportBLOB* blob = this->config().get_blob(locators);
00218   if (!blob) {
00219     return;
00220   }
00221
00222   if (!link_) {
00223     link_ = make_datalink(participant.guidPrefix);
00224   }
00225
00226   link_->register_for_reader(writerid, readerid, get_connection_addr(*blob),
00227                              listener);
00228 }

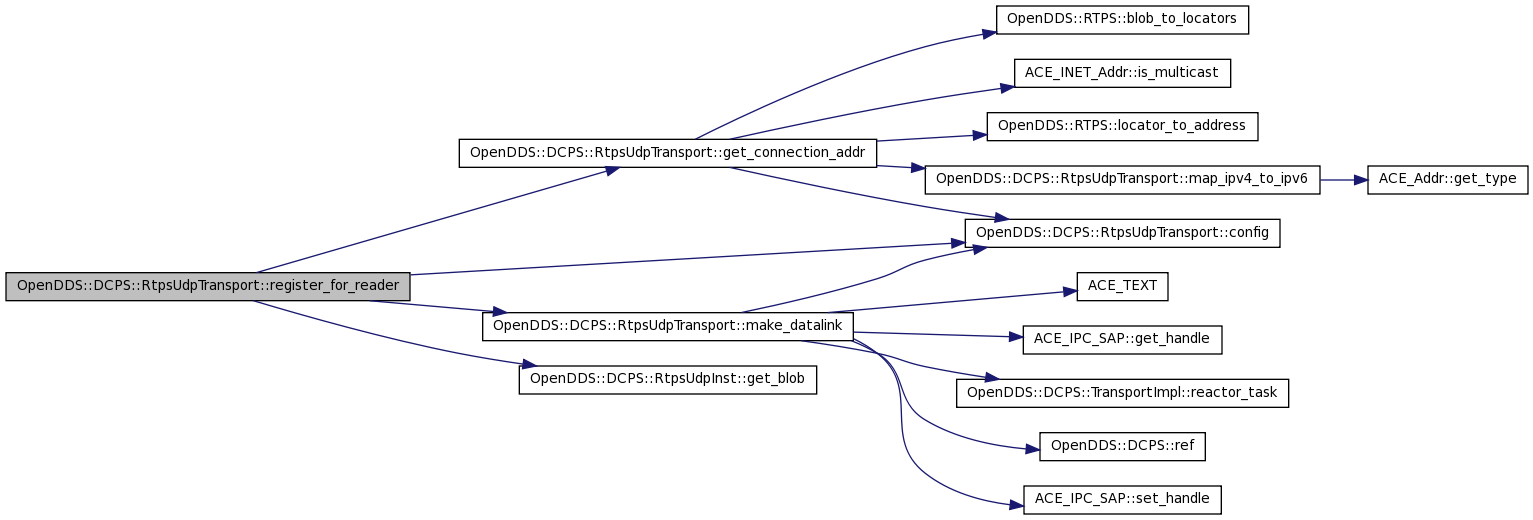

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpTransport::register_for_writer	(	const RepoId &	participant,
		const RepoId &	readerid,
		const RepoId &	writerid,
		const TransportLocatorSeq &	locators,
		DiscoveryListener *	listener
	)			`[private, virtual]`

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 241 of file RtpsUdpTransport.cpp.

References config(), OpenDDS::DCPS::RtpsUdpInst::get_blob(), get_connection_addr(), OpenDDS::DCPS::GUID_t::guidPrefix, link_, and make_datalink().

00246 {
00247   const TransportBLOB* blob = this->config().get_blob(locators);
00248   if (!blob) {
00249     return;
00250   }
00251
00252   if (!link_) {
00253     link_ = make_datalink(participant.guidPrefix);
00254   }
00255
00256   link_->register_for_writer(readerid, writerid, get_connection_addr(*blob),
00257                              listener);
00258 }

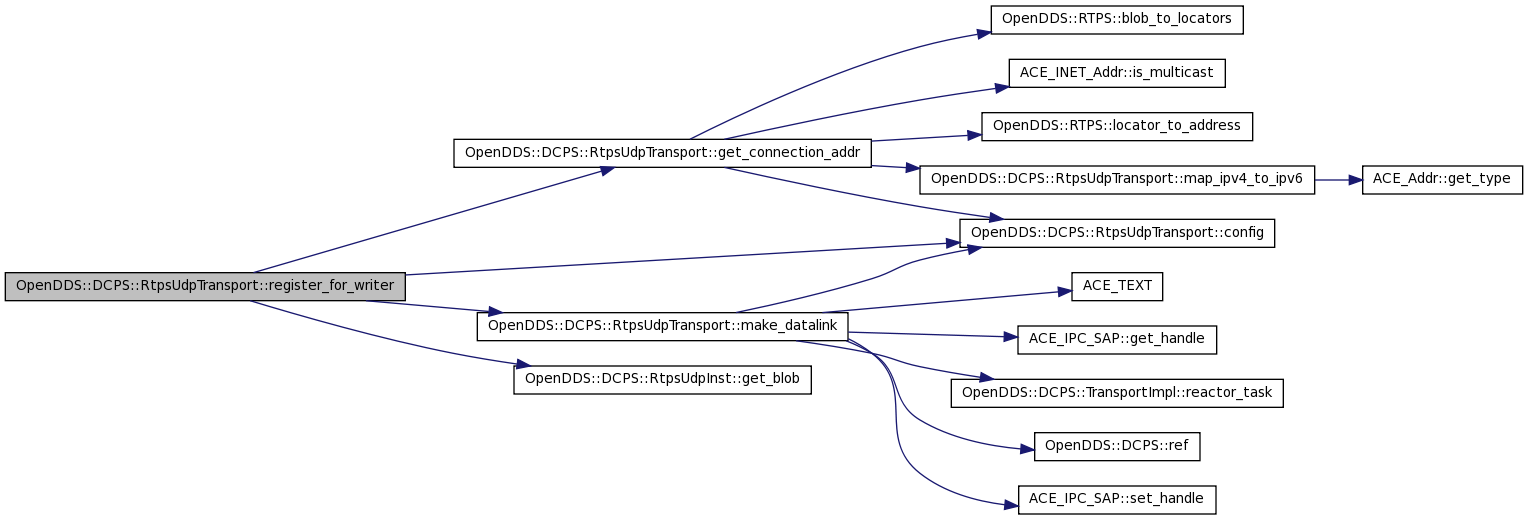

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpTransport::release_datalink ( DataLink * link ) [private, virtual]

Called by the TransportRegistry when this TransportImpl object is released while the TransportRegistry is handling a release() "event". The DataLink itself calls this method when it thinks it is no longer used for any associations. This occurs during a "remove associations" operation being performed by some TransportClient that uses this TransportImpl. The TransportClient is known to have acquired our reservation_lock_, so there won't be any reserve_datalink() calls being made from any other threads while we perform this release.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 324 of file RtpsUdpTransport.cpp.

00325 {
00326   // No-op for rtps_udp: keep the link_ around until the transport is shut down.
00327 }

void OpenDDS::DCPS::RtpsUdpTransport::shutdown_i ( ) [private, virtual]

Called during the shutdown() method in order to give the concrete TransportImpl subclass a chance to do something when the shutdown "event" occurs.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 315 of file RtpsUdpTransport.cpp.

References OpenDDS::DCPS::RcHandle< T >::is_nil(), link_, and OpenDDS::DCPS::RcHandle< T >::reset().

00316 {
00317   if (!link_.is_nil()) {
00318     link_->transport_shutdown();
00319   }
00320   link_.reset();
00321 }

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpTransport::stop_accepting_or_connecting	(	const TransportClient_wrch &	client,
		const RepoId &	remote_id
	)			`[private, virtual]`

stop_accepting_or_connecting() is called from TransportClient to terminate the accepting process begun by accept_datalink() or connect_datalink(). This allows the TransportImpl to clean up any resources associated with this pending connection. The TransportClient* passed in to accept or connect is not valid after this method is called.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 137 of file RtpsUdpTransport.cpp.

References connections_lock_, and OpenDDS::DCPS::TransportImpl::pending_connections_.

00139 {
00140   GuardType guard(connections_lock_);
00141   typedef PendConnMap::iterator iter_t;
00142   const std::pair<iter_t, iter_t> range =
00143         pending_connections_.equal_range(client);
00144   for (iter_t iter = range.first; iter != range.second; ++iter) {
00145      iter->second->remove_on_start_callback(client, remote_id);
00146   }
00147   pending_connections_.erase(range.first, range.second);
00148 }

virtual OPENDDS_STRING OpenDDS::DCPS::RtpsUdpTransport::transport_type ( ) const [inline, private, virtual]

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 77 of file RtpsUdpTransport.h.

00077 { return "rtps_udp"; }

void OpenDDS::DCPS::RtpsUdpTransport::unregister_for_reader	(	const RepoId &	participant,
		const RepoId &	writerid,
		const RepoId &	readerid
	)			`[private, virtual]`

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 231 of file RtpsUdpTransport.cpp.

References link_.

00234 {
00235   if (link_) {
00236     link_->unregister_for_reader(writerid, readerid);
00237   }
00238 }

void OpenDDS::DCPS::RtpsUdpTransport::unregister_for_writer	(	const RepoId &	,
		const RepoId &	readerid,
		const RepoId &	writerid
	)			`[private, virtual]`

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 261 of file RtpsUdpTransport.cpp.

References link_.

00264 {
00265   if (link_) {
00266     link_->unregister_for_writer(readerid, writerid);
00267   }
00268 }

void OpenDDS::DCPS::RtpsUdpTransport::use_datalink	(	const RepoId &	local_id,
		const RepoId &	remote_id,
		const TransportBLOB &	remote_data,
		bool	local_reliable,
		bool	remote_reliable,
		bool	local_durable,
		bool	remote_durable
	)			`[private]`

Definition at line 151 of file RtpsUdpTransport.cpp.

References get_connection_addr(), and link_.

Referenced by accept_datalink(), and connect_datalink().

00156 {
00157   bool requires_inline_qos;
00158   unsigned int blob_bytes_read;
00159   ACE_INET_Addr addr = get_connection_addr(remote_data, &requires_inline_qos,
00160                                            &blob_bytes_read);
00161   link_->add_locator(remote_id, addr, requires_inline_qos);
00162
00163 #if defined(OPENDDS_SECURITY)
00164   if (remote_data.length() > blob_bytes_read) {
00165     link_->populate_security_handles(local_id, remote_id,
00166                                      remote_data.get_buffer() + blob_bytes_read,
00167                                      remote_data.length() - blob_bytes_read);
00168   }
00169 #endif
00170
00171   link_->associated(local_id, remote_id, local_reliable, remote_reliable,
00172                     local_durable, remote_durable);
00173 }

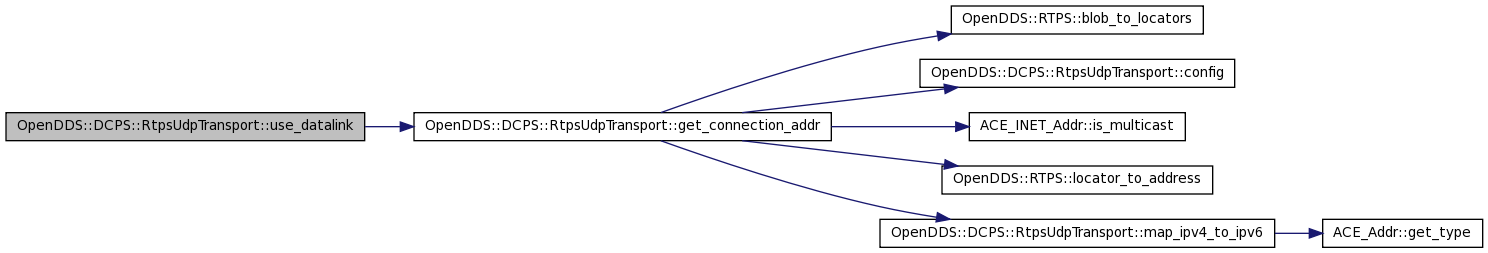

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

LockType OpenDDS::DCPS::RtpsUdpTransport::connections_lock_ [private]

Definition at line 106 of file RtpsUdpTransport.h.

Referenced by connect_datalink(), and stop_accepting_or_connecting().

TransportClient_wrch OpenDDS::DCPS::RtpsUdpTransport::default_listener_ [private]

Definition at line 118 of file RtpsUdpTransport.h.

RtpsUdpDataLink_rch OpenDDS::DCPS::RtpsUdpTransport::link_ [private]

RTPS uses only one link per transport. This link can be safely reused by any clients that belong to the same domain participant (same GUID prefix). Use by a second participant is not possible because the network location returned by connection_info_i() can't be shared among participants.

Definition at line 113 of file RtpsUdpTransport.h.

Referenced by accept_datalink(), configure_i(), connect_datalink(), map_ipv4_to_ipv6(), register_for_reader(), register_for_writer(), shutdown_i(), unregister_for_reader(), unregister_for_writer(), and use_datalink().
