OpenDDS::DCPS::TransportRegistry Class Reference

#include <TransportRegistry.h>

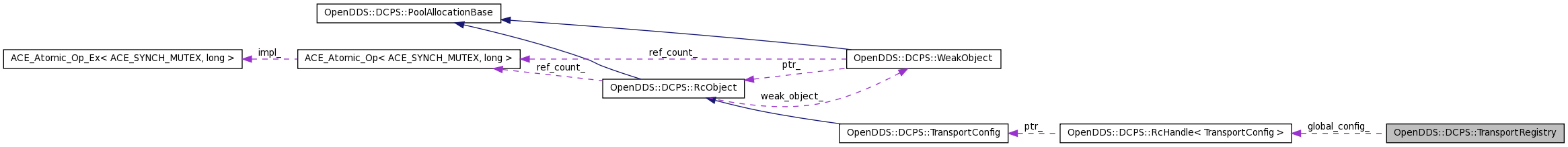

Collaboration diagram for OpenDDS::DCPS::TransportRegistry:
Collaboration graph
[legend]

List of all members.

Public Member Functions

void release ()
TransportInst_rch create_inst (const OPENDDS_STRING &name, const OPENDDS_STRING &transport_type)
TransportInst_rch get_inst (const OPENDDS_STRING &name) const
void remove_inst (const TransportInst_rch &inst)
TransportConfig_rch create_config (const OPENDDS_STRING &name)
TransportConfig_rch get_config (const OPENDDS_STRING &name) const
void remove_config (const TransportConfig_rch &cfg)
TransportConfig_rch global_config () const
void global_config (const TransportConfig_rch &cfg)
void domain_default_config (DDS::DomainId_t domain, const TransportConfig_rch &cfg)
TransportConfig_rch domain_default_config (DDS::DomainId_t domain) const
void bind_config (const OPENDDS_STRING &name, DDS::Entity_ptr entity)
void bind_config (const TransportConfig_rch &cfg, DDS::Entity_ptr entity)
void register_type (const TransportType_rch &type)
int load_transport_configuration (const OPENDDS_STRING &file_name, ACE_Configuration_Heap &cf)
TransportConfig_rch fix_empty_default ()
void load_transport_lib (const OPENDDS_STRING &transport_type)
bool released () const

Static Public Member Functions

static TransportRegistry * instance ()
 Return a singleton instance of this class.
static void close ()
 Close the singleton instance of this class.

Static Public Attributes

static const char DEFAULT_CONFIG_NAME [] = "_OPENDDS_DEFAULT_CONFIG"
static const char DEFAULT_INST_PREFIX [] = "_OPENDDS_"

Private Types

typedef ACE_SYNCH_MUTEX LockType
typedef ACE_Guard< LockType > GuardType

Private Member Functions

 TransportRegistry ()
 ~TransportRegistry ()
typedef OPENDDS_MAP (OPENDDS_STRING, TransportType_rch) TypeMap
typedef OPENDDS_MAP (OPENDDS_STRING, TransportConfig_rch) ConfigMap
typedef OPENDDS_MAP (OPENDDS_STRING, TransportInst_rch) InstMap
typedef OPENDDS_MAP (OPENDDS_STRING, OPENDDS_STRING) LibDirectiveMap
typedef OPENDDS_MAP (DDS::DomainId_t, TransportConfig_rch) DomainConfigMap

Private Attributes

TypeMap type_map_
ConfigMap config_map_
InstMap inst_map_
LibDirectiveMap lib_directive_map_
DomainConfigMap domain_default_config_map_
TransportConfig_rch global_config_
bool released_
LockType lock_

Friends

class ACE_Singleton< TransportRegistry, ACE_Recursive_Thread_Mutex >

Detailed Description

The TransportRegistry is a singleton object which provides a mechanism to the application code to configure OpenDDS's use of the transport layer.

Definition at line 43 of file TransportRegistry.h.

Member Typedef Documentation

typedef ACE_Guard<LockType> OpenDDS::DCPS::TransportRegistry::GuardType [private]

Definition at line 119 of file TransportRegistry.h.

typedef ACE_SYNCH_MUTEX OpenDDS::DCPS::TransportRegistry::LockType [private]

Definition at line 118 of file TransportRegistry.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::TransportRegistry::TransportRegistry (  )  [private]

Definition at line 67 of file TransportRegistry.cpp.

References config_map_, DBG_ENTRY_LVL, DEFAULT_CONFIG_NAME, global_config_, and lib_directive_map_.

00068   : global_config_(make_rch<TransportConfig>(DEFAULT_CONFIG_NAME))
00069   , released_(false)
00070 {
00071   DBG_ENTRY_LVL("TransportRegistry", "TransportRegistry", 6);
00072   config_map_[DEFAULT_CONFIG_NAME] = global_config_;
00073
00074   lib_directive_map_["tcp"]       = "dynamic OpenDDS_Tcp Service_Object * OpenDDS_Tcp:_make_TcpLoader()";
00075   lib_directive_map_["udp"]       = "dynamic OpenDDS_Udp Service_Object * OpenDDS_Udp:_make_UdpLoader()";
00076   lib_directive_map_["multicast"] = "dynamic OpenDDS_Multicast Service_Object * OpenDDS_Multicast:_make_MulticastLoader()";
00077   lib_directive_map_["rtps_udp"]  = "dynamic OpenDDS_Rtps_Udp Service_Object * OpenDDS_Rtps_Udp:_make_RtpsUdpLoader()";
00078   lib_directive_map_["shmem"]     = "dynamic OpenDDS_Shmem Service_Object * OpenDDS_Shmem:_make_ShmemLoader()";
00079
00080   // load_transport_lib() is used for discovery as well:
00081   lib_directive_map_["rtps_discovery"] = lib_directive_map_["rtps_udp"];
00082   lib_directive_map_["repository"] = "dynamic OpenDDS_InfoRepoDiscovery Service_Object * OpenDDS_InfoRepoDiscovery:_make_IRDiscoveryLoader()";
00083 }

ACE_INLINE OpenDDS::DCPS::TransportRegistry::~TransportRegistry (  )  [private]

Definition at line 18 of file TransportRegistry.inl.

References DBG_ENTRY_LVL.

00019 {
00020   DBG_ENTRY_LVL("TransportRegistry", "~TransportRegistry", 6);
00021 }

Member Function Documentation

void OpenDDS::DCPS::TransportRegistry::bind_config ( const TransportConfig_rch &  cfg,
DDS::Entity_ptr  entity
)

Definition at line 424 of file TransportRegistry.cpp.

References OpenDDS::DCPS::RcHandle< T >::is_nil(), and OpenDDS::DCPS::EntityImpl::transport_config().

00426 {
00427   if (cfg.is_nil()) {
00428     throw Transport::NotFound();
00429   }
00430   EntityImpl* ei = dynamic_cast<EntityImpl*>(entity);
00431   if (!ei) {
00432     throw Transport::MiscProblem();
00433   }
00434   ei->transport_config(cfg);
00435 }

Here is the call graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportRegistry::bind_config ( const OPENDDS_STRING &  name,
DDS::Entity_ptr  entity
)

Definition at line 79 of file TransportRegistry.inl.

References get_config().

Referenced by OpenDDS::DCPS::InfoRepoDiscovery::init_bit(), and OpenDDS::DCPS::MonitorFactoryImpl::initialize().

00081 {
00082   this->bind_config(this->get_config(name), entity);
00083 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportRegistry::close ( void   )  [static]

Close the singleton instance of this class.

Definition at line 59 of file TransportRegistry.cpp.

Referenced by OpenDDS::DCPS::Service_Participant::shutdown().

00060 {
00061   ACE_Unmanaged_Singleton<TransportRegistry, ACE_Recursive_Thread_Mutex>::close();
00062 }

Here is the caller graph for this function:

TransportConfig_rch OpenDDS::DCPS::TransportRegistry::create_config ( const OPENDDS_STRING &  name  )

Definition at line 393 of file TransportRegistry.cpp.

References ACE_TEXT(), config_map_, LM_ERROR, and lock_.

Referenced by OpenDDS::DCPS::InfoRepoDiscovery::bit_config(), OpenDDS::DCPS::MonitorFactoryImpl::initialize(), and load_transport_configuration().

00394 {
00395   GuardType guard(lock_);
00396
00397   if (config_map_.count(name)) {
00398     ACE_ERROR((LM_ERROR,
00399                ACE_TEXT("(%P|%t) TransportRegistry::create_config: ")
00400                ACE_TEXT("name=%C is already in use.\n"),
00401                name.c_str()));
00402     return TransportConfig_rch();
00403   }
00404
00405   TransportConfig_rch inst  (make_rch<TransportConfig>(name));
00406   config_map_[name] = inst;
00407   return inst;
00408 }

Here is the call graph for this function:

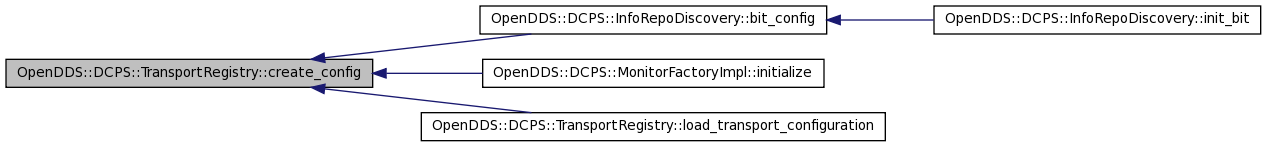

Here is the caller graph for this function:

TransportInst_rch OpenDDS::DCPS::TransportRegistry::create_inst ( const OPENDDS_STRING &  name,
const OPENDDS_STRING &  transport_type
)

Definition at line 341 of file TransportRegistry.cpp.

References ACE_TEXT(), ACE_Guard< ACE_LOCK >::acquire(), OpenDDS::DCPS::find(), inst_map_, LM_ERROR, load_transport_lib(), lock_, ACE_Guard< ACE_LOCK >::release(), and type_map_.

Referenced by OpenDDS::DCPS::InfoRepoDiscovery::bit_config(), OpenDDS::DCPS::UdpLoader::init(), OpenDDS::DCPS::TcpLoader::init(), OpenDDS::DCPS::RtpsUdpLoader::init(), OpenDDS::DCPS::MulticastLoader::init(), OpenDDS::DCPS::MonitorFactoryImpl::initialize(), and load_transport_configuration().

00343 {
00344   GuardType guard(lock_);
00345   TransportType_rch type;
00346
00347   if (find(type_map_, transport_type, type) != 0) {
00348 #if !defined(ACE_AS_STATIC_LIBS)
00349     guard.release();
00350     // Not present, try to load library
00351     load_transport_lib(transport_type);
00352     guard.acquire();
00353
00354     // Try to find it again
00355     if (find(type_map_, transport_type, type) != 0) {
00356 #endif
00357       ACE_ERROR((LM_ERROR,
00358                  ACE_TEXT("(%P|%t) TransportRegistry::create_inst: ")
00359                  ACE_TEXT("transport_type=%C is not registered.\n"),
00360                  transport_type.c_str()));
00361       return TransportInst_rch();
00362 #if !defined(ACE_AS_STATIC_LIBS)
00363     }
00364 #endif
00365   }
00366
00367   if (inst_map_.count(name)) {
00368     ACE_ERROR((LM_ERROR,
00369                ACE_TEXT("(%P|%t) TransportRegistry::create_inst: ")
00370                ACE_TEXT("name=%C is already in use.\n"),
00371                name.c_str()));
00372     return TransportInst_rch();
00373   }
00374   TransportInst_rch inst (type->new_inst(name));
00375   inst_map_[name] = inst;
00376   return inst;
00377 }

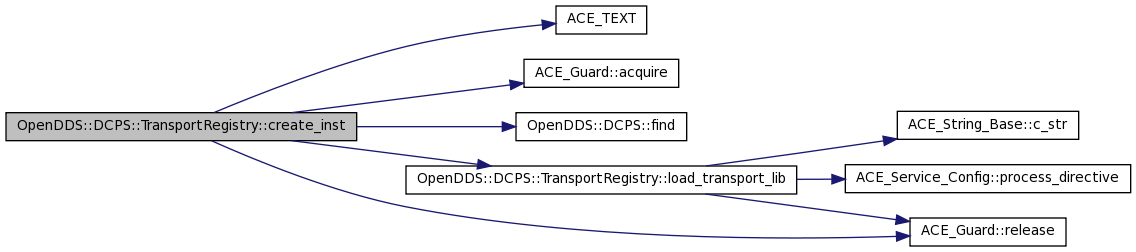

Here is the call graph for this function:

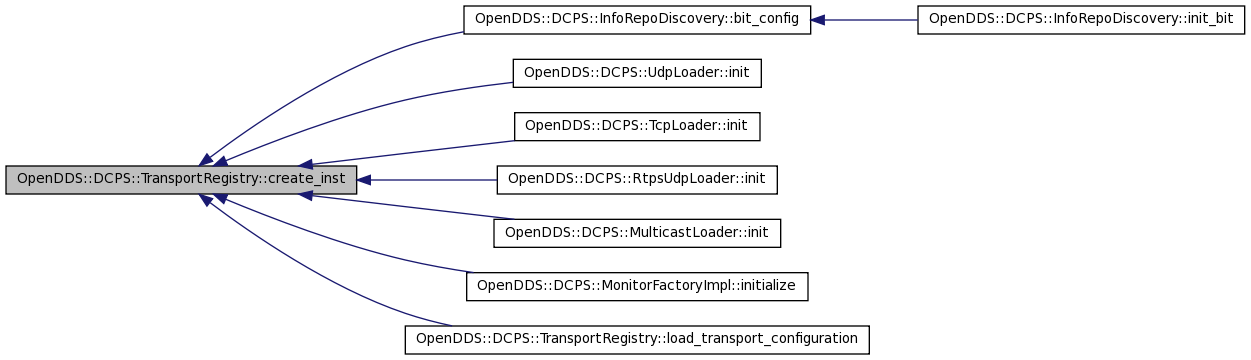

Here is the caller graph for this function:

ACE_INLINE TransportConfig_rch OpenDDS::DCPS::TransportRegistry::domain_default_config ( DDS::DomainId_t  domain  )  const

Definition at line 52 of file TransportRegistry.inl.

References domain_default_config_map_, and lock_.

00053 {
00054   GuardType guard(this->lock_);
00055   const DomainConfigMap::const_iterator iter =
00056     domain_default_config_map_.find(domain);
00057   return (iter == domain_default_config_map_.end())
00058     ? TransportConfig_rch() : iter->second;
00059 }

ACE_INLINE void OpenDDS::DCPS::TransportRegistry::domain_default_config ( DDS::DomainId_t  domain,
const TransportConfig_rch &  cfg
)

Definition at line 43 of file TransportRegistry.inl.

References domain_default_config_map_, and lock_.

Referenced by OpenDDS::DCPS::TransportClient::enable_transport(), and OpenDDS::DCPS::Service_Participant::load_domain_configuration().

00045 {
00046   GuardType guard(this->lock_);
00047   domain_default_config_map_[domain] = cfg;
00048 }

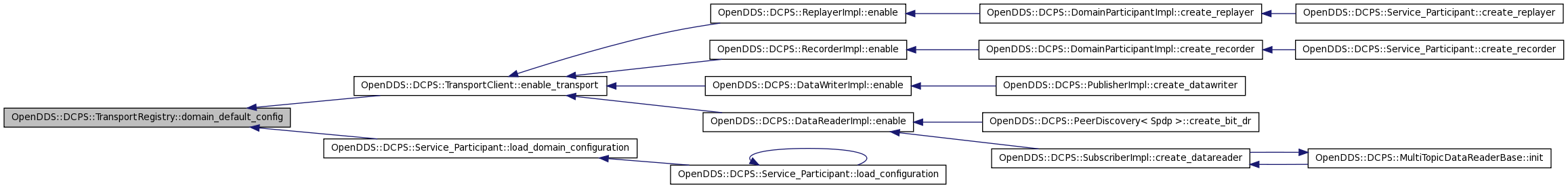

Here is the caller graph for this function:

TransportConfig_rch OpenDDS::DCPS::TransportRegistry::fix_empty_default (  )

For internal use by OpenDDS DCPS layer: If the default config is empty when it's about to be used, allow the TransportRegistry to attempt to load a fallback option.

Definition at line 439 of file TransportRegistry.cpp.

References DBG_ENTRY_LVL, DEFAULT_CONFIG_NAME, global_config(), global_config_, OpenDDS::DCPS::RcHandle< T >::is_nil(), load_transport_lib(), lock_, and ACE_Guard< ACE_LOCK >::release().

Referenced by OpenDDS::DCPS::TransportClient::enable_transport().

00440 {
00441   DBG_ENTRY_LVL("TransportRegistry", "fix_empty_default", 6);
00442   GuardType guard(lock_);
00443   if (global_config_.is_nil()
00444       || !global_config_->instances_.empty()
00445       || global_config_->name() != DEFAULT_CONFIG_NAME) {
00446     return global_config_;
00447   }
00448   TransportConfig_rch global_config = global_config_;
00449 #if !defined(ACE_AS_STATIC_LIBS)
00450   guard.release();
00451   load_transport_lib(FALLBACK_TYPE);
00452 #endif
00453   return global_config;
00454 }

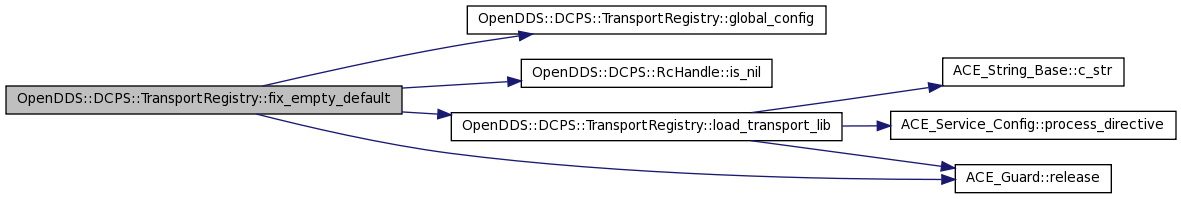

Here is the call graph for this function:

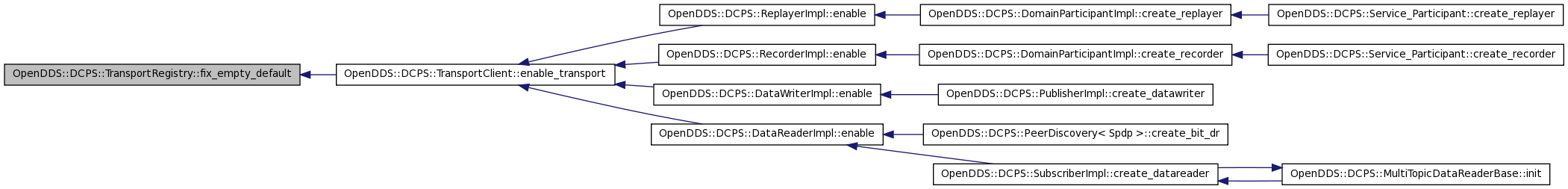

Here is the caller graph for this function:

TransportConfig_rch OpenDDS::DCPS::TransportRegistry::get_config ( const OPENDDS_STRING &  name  )  const

Definition at line 412 of file TransportRegistry.cpp.

References config_map_, and lock_.

Referenced by bind_config(), OpenDDS::DCPS::UdpLoader::init(), OpenDDS::DCPS::TcpLoader::init(), OpenDDS::DCPS::RtpsUdpLoader::init(), OpenDDS::DCPS::MulticastLoader::init(), and OpenDDS::DCPS::Service_Participant::load_domain_configuration().

00413 {
00414   GuardType guard(lock_);
00415   ConfigMap::const_iterator found = config_map_.find(name);
00416   if (found != config_map_.end()) {
00417     return found->second;
00418   }
00419   return TransportConfig_rch();
00420 }

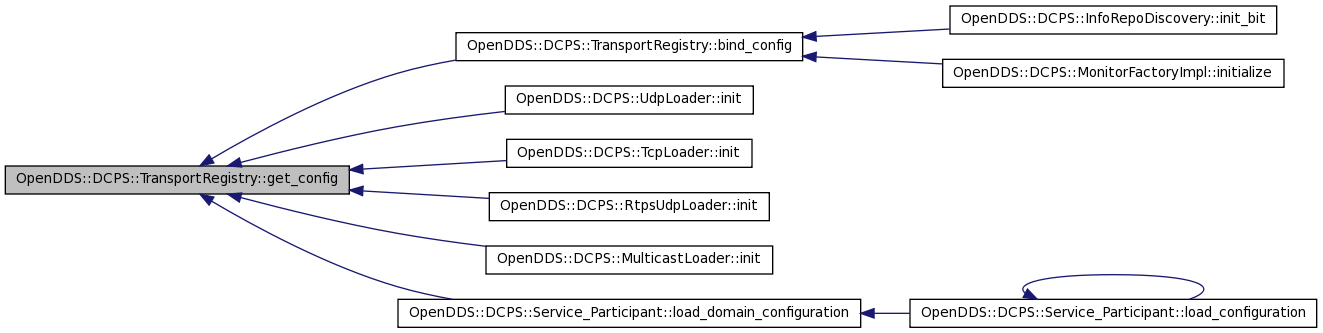

Here is the caller graph for this function:

TransportInst_rch OpenDDS::DCPS::TransportRegistry::get_inst ( const OPENDDS_STRING &  name  )  const

Definition at line 381 of file TransportRegistry.cpp.

References inst_map_, and lock_.

Referenced by load_transport_configuration().

00382 {
00383   GuardType guard(lock_);
00384   InstMap::const_iterator found = inst_map_.find(name);
00385   if (found != inst_map_.end()) {
00386     return found->second;
00387   }
00388   return TransportInst_rch();
00389 }

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportRegistry::global_config ( const TransportConfig_rch &  cfg  )

Definition at line 34 of file TransportRegistry.inl.

References DBG_ENTRY_LVL, global_config_, and lock_.

00035 {
00036   DBG_ENTRY_LVL("TransportRegistry", "global_config(cfg)", 6);
00037   GuardType guard(this->lock_);
00038   this->global_config_ = cfg;
00039 }

ACE_INLINE TransportConfig_rch OpenDDS::DCPS::TransportRegistry::global_config (  )  const

Definition at line 25 of file TransportRegistry.inl.

References DBG_ENTRY_LVL, global_config_, and lock_.

Referenced by OpenDDS::DCPS::TransportClient::enable_transport(), and fix_empty_default().

00026 {
00027   DBG_ENTRY_LVL("TransportRegistry", "global_config()", 6);
00028   GuardType guard(this->lock_);
00029   return this->global_config_;
00030 }

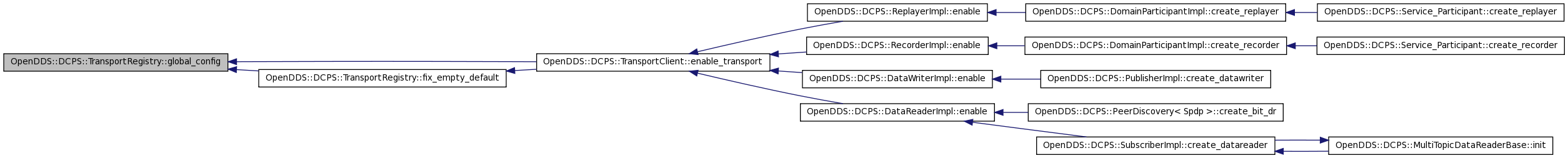

Here is the caller graph for this function:

TransportRegistry * OpenDDS::DCPS::TransportRegistry::instance ( void   )  [static]

Return a singleton instance of this class.

Definition at line 53 of file TransportRegistry.cpp.

Referenced by OpenDDS::DCPS::InfoRepoDiscovery::bit_config(), OpenDDS::DCPS::TransportClient::enable_transport(), OpenDDS::DCPS::InfoRepoDiscovery::init_bit(), DCPS_IR_Domain::init_built_in_topics_transport(), TAO_DDS_DCPSInfo_i::init_transport(), OpenDDS::DCPS::MonitorFactoryImpl::initialize(), OpenDDS::Federator::ManagerImpl::initialize(), OpenDDS::DCPS::DataWriterImpl::wait_control_pending(), OpenDDS::DCPS::DataWriterImpl::wait_pending(), and OpenDDS::DCPS::WriteDataContainer::~WriteDataContainer().

00054 {
00055   return ACE_Unmanaged_Singleton<TransportRegistry, ACE_Recursive_Thread_Mutex>::instance();
00056 }

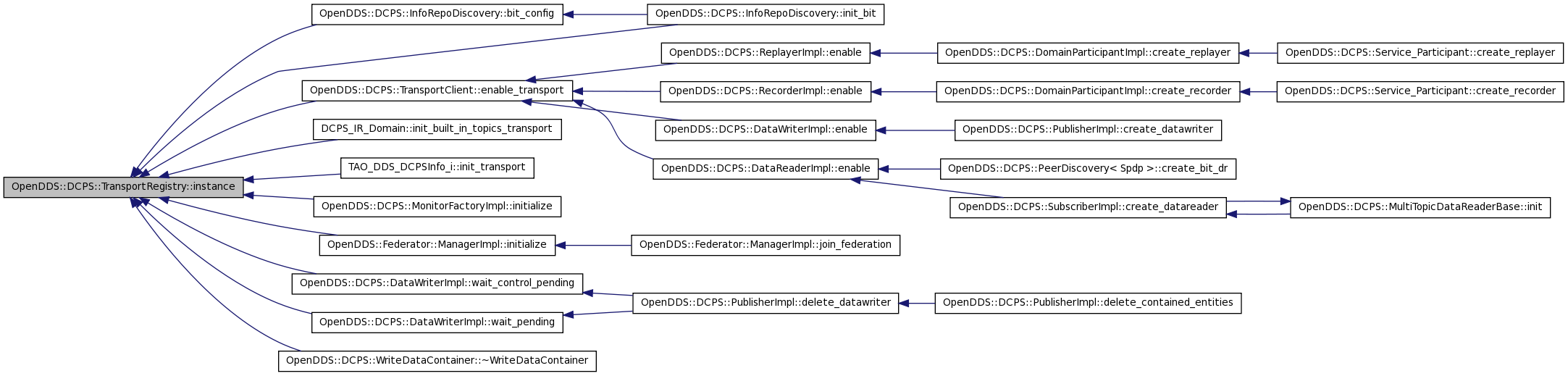

Here is the caller graph for this function:

int OpenDDS::DCPS::TransportRegistry::load_transport_configuration ( const OPENDDS_STRING &  file_name,
ACE_Configuration_Heap &  cf
)

For internal use by OpenDDS DCPS layer: Transfer the configuration in ACE_Configuration_Heap object to the TransportRegistry. This is called by the Service_Participant at initialization time. This function iterates each section in the configuration file, and creates TransportInst and TransportConfig objects and adds them to the registry.

Definition at line 86 of file TransportRegistry.cpp.

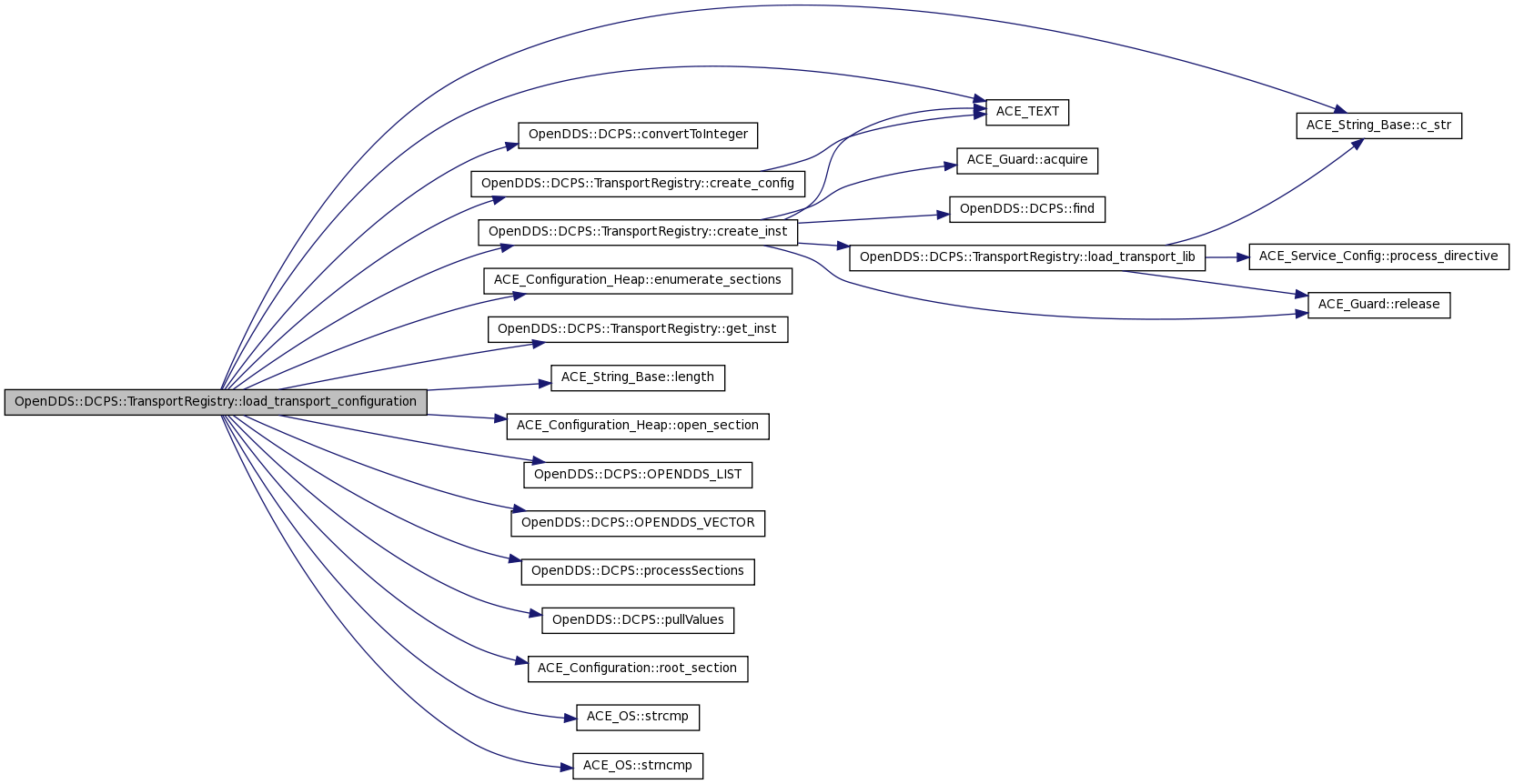

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), OpenDDS::DCPS::CONFIG_SECTION_NAME, OpenDDS::DCPS::convertToInteger(), create_config(), create_inst(), ACE_Configuration_Heap::enumerate_sections(), get_inst(), ACE_String_Base< ACE_CHAR_T >::length(), LM_ERROR, ACE_Configuration_Heap::open_section(), OpenDDS::DCPS::OPENDDS_LIST(), OPENDDS_STRING, OpenDDS::DCPS::OPENDDS_VECTOR(), OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), ACE_Configuration::root_section(), ACE_OS::strcmp(), ACE_OS::strncmp(), and OpenDDS::DCPS::TRANSPORT_SECTION_NAME.

00088 {
00089   const ACE_Configuration_Section_Key& root = cf.root_section();
00090
00091   // Create a vector to hold configuration information so we can populate
00092   // them after the transports instances are created.
00093   typedef std::pair<TransportConfig_rch, OPENDDS_VECTOR(OPENDDS_STRING) > ConfigInfo;
00094   OPENDDS_VECTOR(ConfigInfo) configInfoVec;
00095
00096   // Record the transport instances created, so we can place them
00097   // in the implicit transport configuration for this file.
00098   OPENDDS_LIST(TransportInst_rch) instances;
00099
00100   ACE_TString sect_name;
00101
00102   for (int index = 0;
00103        cf.enumerate_sections(root, index, sect_name) == 0;
00104        ++index) {
00105     if (ACE_OS::strcmp(sect_name.c_str(), TRANSPORT_SECTION_NAME) == 0) {
00106       // found the [transport/*] section, now iterate through subsections...
00107       ACE_Configuration_Section_Key sect;
00108       if (cf.open_section(root, sect_name.c_str(), 0, sect) != 0) {
00109         ACE_ERROR_RETURN((LM_ERROR,
00110                           ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00111                           ACE_TEXT("failed to open section %s\n"),
00112                           sect_name.c_str()),
00113                          -1);
00114       } else {
00115         // Ensure there are no properties in this section
00116         ValueMap vm;
00117         if (pullValues(cf, sect, vm) > 0) {
00118           // There are values inside [transport]
00119           ACE_ERROR_RETURN((LM_ERROR,
00120                             ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00121                             ACE_TEXT("transport sections must have a section name\n"),
00122                             sect_name.c_str()),
00123                            -1);
00124         }
00125         // Process the subsections of this section (the individual transport
00126         // impls).
00127         KeyList keys;
00128         if (processSections(cf, sect, keys) != 0) {
00129           ACE_ERROR_RETURN((LM_ERROR,
00130                             ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00131                             ACE_TEXT("too many nesting layers in [%s] section.\n"),
00132                             sect_name.c_str()),
00133                            -1);
00134         }
00135         for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
00136           OPENDDS_STRING transport_id = it->first;
00137           ACE_Configuration_Section_Key inst_sect = it->second;
00138
00139           ValueMap values;
00140           if (pullValues(cf, it->second, values) != 0) {
00141             // Get the factory_id for the transport.
00142             OPENDDS_STRING transport_type;
00143             ValueMap::const_iterator vm_it = values.find("transport_type");
00144             if (vm_it != values.end()) {
00145               transport_type = vm_it->second;
00146             } else {
00147               ACE_ERROR_RETURN((LM_ERROR,
00148                                 ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00149                                 ACE_TEXT("missing transport_type in [transport/%C] section.\n"),
00150                                 transport_id.c_str()),
00151                                -1);
00152             }
00153             // Create the TransportInst object and load the transport
00154             // configuration in ACE_Configuration_Heap to the TransportInst
00155             // object.
00156             TransportInst_rch inst = create_inst(transport_id, transport_type);
00157             if (!inst) {
00158               ACE_ERROR_RETURN((LM_ERROR,
00159                                 ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00160                                 ACE_TEXT("Unable to create transport instance in [transport/%C] section.\n"),
00161                                 transport_id.c_str()),
00162                                -1);
00163             }
00164             instances.push_back(inst);
00165             inst->load(cf, inst_sect);
00166           } else {
00167             ACE_ERROR_RETURN((LM_ERROR,
00168                               ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00169                               ACE_TEXT("missing transport_type in [transport/%C] section.\n"),
00170                               transport_id.c_str()),
00171                              -1);
00172           }
00173         }
00174       }
00175     } else if (ACE_OS::strcmp(sect_name.c_str(), CONFIG_SECTION_NAME) == 0) {
00176       // found the [config/*] section, now iterate through subsections...
00177       ACE_Configuration_Section_Key sect;
00178       if (cf.open_section(root, sect_name.c_str(), 0, sect) != 0) {
00179         ACE_ERROR_RETURN((LM_ERROR,
00180                           ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00181                           ACE_TEXT("failed to open section [%s]\n"),
00182                           sect_name.c_str()),
00183                          -1);
00184       } else {
00185         // Ensure there are no properties in this section
00186         ValueMap vm;
00187         if (pullValues(cf, sect, vm) > 0) {
00188           // There are values inside [config]
00189           ACE_ERROR_RETURN((LM_ERROR,
00190                             ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00191                             ACE_TEXT("config sections must have a section name\n"),
00192                             sect_name.c_str()),
00193                            -1);
00194         }
00195         // Process the subsections of this section (the individual config
00196         // impls).
00197         KeyList keys;
00198         if (processSections(cf, sect, keys) != 0) {
00199           // Don't allow multiple layers of nesting ([config/x/y]).
00200           ACE_ERROR_RETURN((LM_ERROR,
00201                             ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00202                             ACE_TEXT("too many nesting layers in [%s] section.\n"),
00203                             sect_name.c_str()),
00204                            -1);
00205         }
00206         for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
00207           OPENDDS_STRING config_id = it->first;
00208
00209           // Create a TransportConfig object.
00210           TransportConfig_rch config = create_config(config_id);
00211           if (!config) {
00212             ACE_ERROR_RETURN((LM_ERROR,
00213                               ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00214                               ACE_TEXT("Unable to create transport config in [config/%C] section.\n"),
00215                               config_id.c_str()),
00216                              -1);
00217           }
00218
00219           ValueMap values;
00220           pullValues(cf, it->second, values);
00221
00222           ConfigInfo configInfo;
00223           configInfo.first = config;
00224           for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
00225             OPENDDS_STRING name = it->first;
00226             OPENDDS_STRING value = it->second;
00227             if (name == "transports") {
00228               char delim = ',';
00229               size_t pos = 0;
00230               OPENDDS_STRING token;
00231               while ((pos = value.find(delim)) != OPENDDS_STRING::npos) {
00232                 token = value.substr(0, pos);
00233                 configInfo.second.push_back(token);
00234                 value.erase(0, pos + 1);
00235               }
00236               configInfo.second.push_back(value);
00237
00238               configInfoVec.push_back(configInfo);
00239             } else if (name == "swap_bytes") {
00240               if ((value == "1") || (value == "true")) {
00241                 config->swap_bytes_ = true;
00242               } else if ((value != "0") && (value != "false")) {
00243                 ACE_ERROR_RETURN((LM_ERROR,
00244                                   ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00245                                   ACE_TEXT("Illegal value for swap_bytes (%C) in [config/%C] section.\n"),
00246                                   value.c_str(), config_id.c_str()),
00247                                  -1);
00248               }
00249             } else if (name == "passive_connect_duration") {
00250               if (!convertToInteger(value,
00251                                     config->passive_connect_duration_)) {
00252                 ACE_ERROR_RETURN((LM_ERROR,
00253                                   ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00254                                   ACE_TEXT("Illegal integer value for passive_connect_duration (%s) in [config/%C] section.\n"),
00255                                   value.c_str(), config_id.c_str()),
00256                                  -1);
00257               }
00258             } else {
00259               ACE_ERROR_RETURN((LM_ERROR,
00260                                 ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00261                                 ACE_TEXT("Unexpected entry (%C) in [config/%C] section.\n"),
00262                                 name.c_str(), config_id.c_str()),
00263                                -1);
00264             }
00265           }
00266           if (configInfo.second.empty()) {
00267             ACE_ERROR_RETURN((LM_ERROR,
00268                               ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00269                               ACE_TEXT("No transport instances listed in [config/%C] section.\n"),
00270                               config_id.c_str()),
00271                              -1);
00272           }
00273         }
00274       }
00275     } else if (ACE_OS::strncmp(sect_name.c_str(), OLD_TRANSPORT_PREFIX.c_str(),
00276                                OLD_TRANSPORT_PREFIX.length()) == 0) {
00277       ACE_ERROR_RETURN((LM_ERROR,
00278                         ACE_TEXT("(%P|%t) ERROR: ")
00279                         ACE_TEXT("Obsolete transport configuration found (%s).\n"),
00280                         sect_name.c_str()),
00281                        -1);
00282     }
00283   }
00284
00285   // Populate the configurations with instances
00286   for (unsigned int i = 0; i < configInfoVec.size(); ++i) {
00287     TransportConfig_rch config = configInfoVec[i].first;
00288     OPENDDS_VECTOR(OPENDDS_STRING)& insts = configInfoVec[i].second;
00289     for (unsigned int j = 0; j < insts.size(); ++j) {
00290       TransportInst_rch inst = get_inst(insts[j]);
00291       if (!inst) {
00292         ACE_ERROR_RETURN((LM_ERROR,
00293                           ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00294                           ACE_TEXT("The inst (%C) in [config/%C] section is undefined.\n"),
00295                           insts[j].c_str(), config->name().c_str()),
00296                          -1);
00297       }
00298       config->instances_.push_back(inst);
00299     }
00300   }
00301
00302   // Create and populate the default configuration for this
00303   // file with all the instances from this file.
00304   if (!instances.empty()) {
00305     TransportConfig_rch config = create_config(file_name);
00306     if (!config) {
00307       ACE_ERROR_RETURN((LM_ERROR,
00308                         ACE_TEXT("(%P|%t) TransportRegistry::load_transport_configuration: ")
00309                         ACE_TEXT("Unable to create default transport config.\n"),
00310                         file_name.c_str()),
00311                        -1);
00312     }
00313     instances.sort(predicate);
00314     for (OPENDDS_LIST(TransportInst_rch)::const_iterator it = instances.begin();
00315          it != instances.end(); ++it) {
00316       config->instances_.push_back(*it);
00317     }
00318   }
00319
00320   return 0;
00321 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportRegistry::load_transport_lib ( const OPENDDS_STRING &  transport_type  )

For internal use by OpenDDS DCPS layer: Dynamically load the library for the supplied transport type.

Definition at line 324 of file TransportRegistry.cpp.

References ACE_TEXT_CHAR_TO_TCHAR, ACE_String_Base< ACE_CHAR_T >::c_str(), lib_directive_map_, lock_, ACE_Service_Config::process_directive(), and ACE_Guard< ACE_LOCK >::release().

Referenced by create_inst(), and fix_empty_default().

00325 {
00326   ACE_UNUSED_ARG(transport_type);
00327 #if !defined(ACE_AS_STATIC_LIBS)
00328   GuardType guard(lock_);
00329   LibDirectiveMap::iterator lib_iter = lib_directive_map_.find(transport_type);
00330   if (lib_iter != lib_directive_map_.end()) {
00331     ACE_TString directive = ACE_TEXT_CHAR_TO_TCHAR(lib_iter->second.c_str());
00332     // Release the lock, because loading a transport library will
00333     // recursively call this function to add its default inst.
00334     guard.release();
00335     ACE_Service_Config::process_directive(directive.c_str());
00336   }
00337 #endif
00338 }

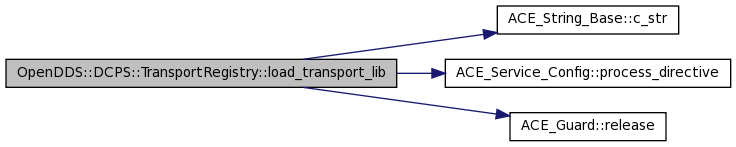

Here is the call graph for this function:

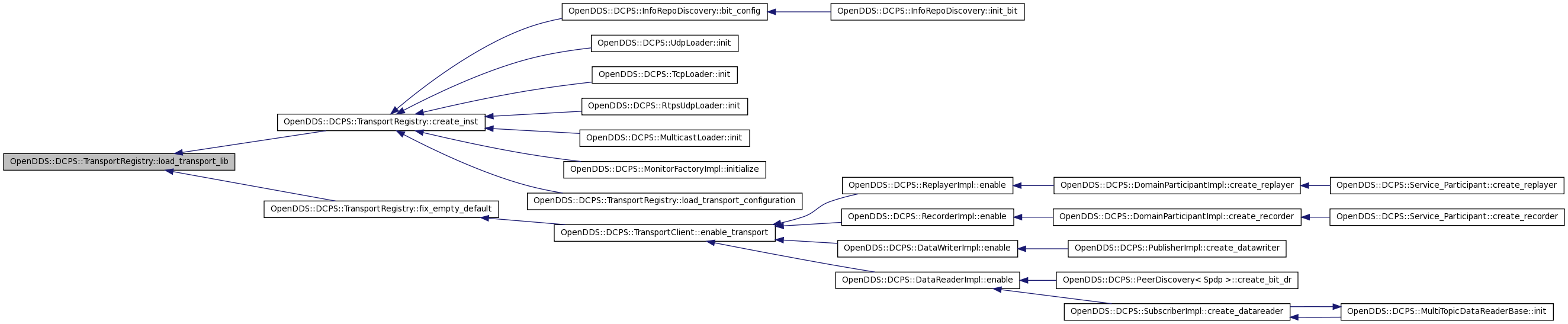

Here is the caller graph for this function:

typedef OpenDDS::DCPS::TransportRegistry::OPENDDS_MAP ( DDS::DomainId_t  ,
TransportConfig_rch
) [private]
typedef OpenDDS::DCPS::TransportRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
OPENDDS_STRING
) [private]
typedef OpenDDS::DCPS::TransportRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
TransportInst_rch
) [private]
typedef OpenDDS::DCPS::TransportRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
TransportConfig_rch
) [private]
typedef OpenDDS::DCPS::TransportRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
TransportType_rch
) [private]
void OpenDDS::DCPS::TransportRegistry::register_type ( const TransportType_rch &  type  )

SPI (Service Provider Interface) for specific transport types: This function is called as the concrete transport library is loaded. The concrete transport library creates a concrete transport type object and registers it with TransportRegistry singleton.

Definition at line 458 of file TransportRegistry.cpp.

References ACE_TEXT(), OpenDDS::DCPS::bind(), DBG_ENTRY_LVL, LM_ERROR, lock_, OPENDDS_STRING, and type_map_.

Referenced by OpenDDS::DCPS::UdpLoader::init(), OpenDDS::DCPS::TcpLoader::init(), OpenDDS::DCPS::ShmemLoader::init(), OpenDDS::DCPS::RtpsUdpLoader::init(), and OpenDDS::DCPS::MulticastLoader::init().

00459 {
00460   DBG_ENTRY_LVL("TransportRegistry", "register_type", 6);
00461   int result;
00462   const OPENDDS_STRING name = type->name();
00463
00464   {
00465     GuardType guard(this->lock_);
00466     result = OpenDDS::DCPS::bind(type_map_, name, type);
00467   }
00468
00469   // Check to see if it worked.
00470   //
00471   // 0 means it worked, 1 means it is a duplicate (and didn't work), and
00472   // -1 means something bad happened.
00473   if (result == 1) {
00474     ACE_ERROR((LM_ERROR,
00475                ACE_TEXT("(%P|%t) ERROR: transport type=%C already registered ")
00476                ACE_TEXT("with TransportRegistry.\n"), name.c_str()));
00477     throw Transport::Duplicate();
00478
00479   } else if (result == -1) {
00480     ACE_ERROR((LM_ERROR,
00481                ACE_TEXT("(%P|%t) ERROR: Failed to bind transport type=%C to ")
00482                ACE_TEXT("type_map_.\n"),
00483                name.c_str()));
00484     throw Transport::MiscProblem();
00485   }
00486 }

Here is the call graph for this function:

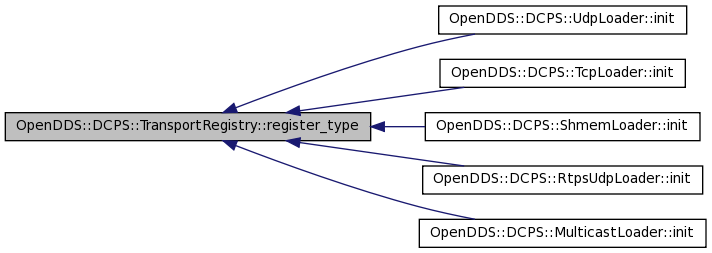

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportRegistry::release ( void   )

This will shutdown all TransportImpl objects.

Client Application calls this method to tear down the transport framework.

Definition at line 490 of file TransportRegistry.cpp.

References config_map_, DBG_ENTRY_LVL, domain_default_config_map_, global_config_, inst_map_, lock_, released_, OpenDDS::DCPS::RcHandle< T >::reset(), and type_map_.

00491 {
00492   DBG_ENTRY_LVL("TransportRegistry", "release", 6);
00493   GuardType guard(lock_);
00494   released_ = true;
00495
00496   for (InstMap::iterator iter = inst_map_.begin(); iter != inst_map_.end(); ++iter) {
00497     iter->second->shutdown();
00498   }
00499
00500   type_map_.clear();
00501   inst_map_.clear();
00502   config_map_.clear();
00503   domain_default_config_map_.clear();
00504   global_config_.reset();
00505 }

Here is the call graph for this function:

bool OpenDDS::DCPS::TransportRegistry::released (  )  const

Definition at line 508 of file TransportRegistry.cpp.

References lock_, and released_.

Referenced by OpenDDS::DCPS::WriteDataContainer::~WriteDataContainer().

00509 {
00510   GuardType guard(lock_);
00511   return released_;
00512 }

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportRegistry::remove_config ( const TransportConfig_rch &  cfg  )

Definition at line 71 of file TransportRegistry.inl.

References config_map_, and lock_.

00072 {
00073   GuardType guard(this->lock_);
00074   this->config_map_.erase(cfg->name());
00075 }

ACE_INLINE void OpenDDS::DCPS::TransportRegistry::remove_inst ( const TransportInst_rch &  inst  )

Definition at line 63 of file TransportRegistry.inl.

References inst_map_, and lock_.

00064 {
00065   GuardType guard(this->lock_);
00066   this->inst_map_.erase(inst->name());
00067 }

Friends And Related Function Documentation

friend class ACE_Singleton< TransportRegistry, ACE_Recursive_Thread_Mutex > [friend]

Definition at line 107 of file TransportRegistry.h.

Member Data Documentation

ConfigMap OpenDDS::DCPS::TransportRegistry::config_map_ [private]

Definition at line 122 of file TransportRegistry.h.

Referenced by create_config(), get_config(), release(), remove_config(), and TransportRegistry().

const char OpenDDS::DCPS::TransportRegistry::DEFAULT_CONFIG_NAME = "_OPENDDS_DEFAULT_CONFIG" [static]

Definition at line 63 of file TransportRegistry.h.

Referenced by OpenDDS::DCPS::TransportClient::enable_transport(), fix_empty_default(), OpenDDS::DCPS::UdpLoader::init(), OpenDDS::DCPS::TcpLoader::init(), OpenDDS::DCPS::RtpsUdpLoader::init(), OpenDDS::DCPS::MulticastLoader::init(), and TransportRegistry().

const char OpenDDS::DCPS::TransportRegistry::DEFAULT_INST_PREFIX = "_OPENDDS_" [static]

Definition at line 64 of file TransportRegistry.h.

Referenced by OpenDDS::DCPS::InfoRepoDiscovery::bit_config(), OpenDDS::DCPS::UdpLoader::init(), OpenDDS::DCPS::TcpLoader::init(), OpenDDS::DCPS::RtpsUdpLoader::init(), OpenDDS::DCPS::MulticastLoader::init(), DCPS_IR_Domain::init_built_in_topics_transport(), TAO_DDS_DCPSInfo_i::init_transport(), OpenDDS::DCPS::MonitorFactoryImpl::initialize(), and OpenDDS::Federator::ManagerImpl::initialize().

DomainConfigMap OpenDDS::DCPS::TransportRegistry::domain_default_config_map_ [private]

Definition at line 125 of file TransportRegistry.h.

Referenced by domain_default_config(), and release().

TransportConfig_rch OpenDDS::DCPS::TransportRegistry::global_config_ [private]

Definition at line 127 of file TransportRegistry.h.

Referenced by fix_empty_default(), global_config(), release(), and TransportRegistry().

InstMap OpenDDS::DCPS::TransportRegistry::inst_map_ [private]

Definition at line 123 of file TransportRegistry.h.

Referenced by create_inst(), get_inst(), release(), and remove_inst().

LibDirectiveMap OpenDDS::DCPS::TransportRegistry::lib_directive_map_ [private]

Definition at line 124 of file TransportRegistry.h.

Referenced by load_transport_lib(), and TransportRegistry().

LockType OpenDDS::DCPS::TransportRegistry::lock_ [mutable, private]

Definition at line 130 of file TransportRegistry.h.

Referenced by create_config(), create_inst(), domain_default_config(), fix_empty_default(), get_config(), get_inst(), global_config(), load_transport_lib(), register_type(), release(), released(), remove_config(), and remove_inst().

bool OpenDDS::DCPS::TransportRegistry::released_ [private]

Definition at line 128 of file TransportRegistry.h.

Referenced by release(), and released().

TypeMap OpenDDS::DCPS::TransportRegistry::type_map_ [private]

Definition at line 121 of file TransportRegistry.h.

Referenced by create_inst(), register_type(), and release().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
