OpenDDS::DCPS::TransportInst Class Reference

Base class to hold configuration settings for TransportImpls. More...

#include <TransportInst.h>

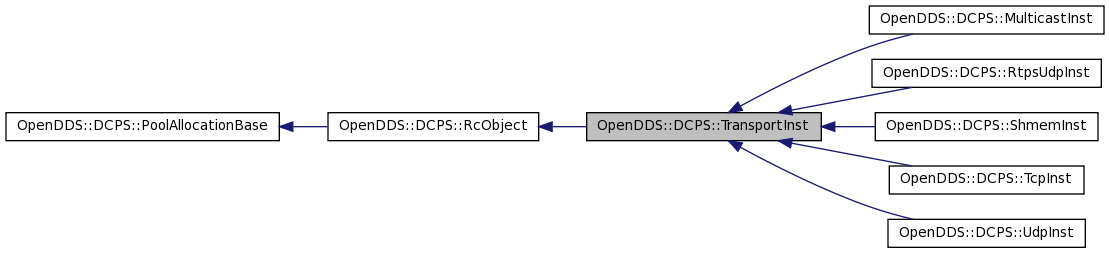

Inheritance diagram for OpenDDS::DCPS::TransportInst:

[legend]

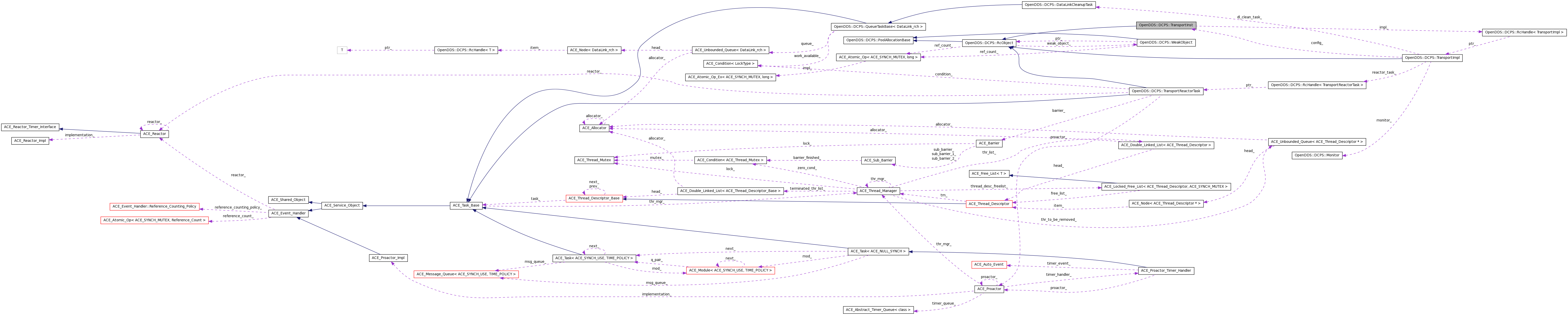

Collaboration diagram for OpenDDS::DCPS::TransportInst:

[legend]

List of all members.

Public Member Functions
const OPENDDS_STRING &	name () const
virtual int	load (ACE_Configuration_Heap &cf, ACE_Configuration_Section_Key &sect)
void	dump () const
	Diagnostic aid.
virtual OPENDDS_STRING	dump_to_str () const
virtual bool	is_reliable () const =0
	Does the transport as configured support RELIABLE_RELIABILITY_QOS?
virtual bool	requires_cdr () const
	Does the transport require a CDR-encapsulated data payload?
virtual size_t	populate_locator (OpenDDS::DCPS::TransportLocator &trans_info) const =0
	Populate a transport locator sequence. Return the number of "locators.".
Static Public Member Functions
static OPENDDS_STRING	formatNameForDump (const char *name)
Public Attributes
const OPENDDS_STRING	transport_type_
size_t	queue_messages_per_pool_
size_t	queue_initial_pools_
ACE_UINT32	max_packet_size_
	Max size (in bytes) of a packet (packet header + sample(s)).
size_t	max_samples_per_packet_
	Max number of samples that should ever be in a single packet.
ACE_UINT32	optimum_packet_size_
	Optimum size (in bytes) of a packet (packet header + sample(s)).
bool	thread_per_connection_
long	datalink_release_delay_
size_t	datalink_control_chunks_
Protected Member Functions
	TransportInst (const char *type, const OPENDDS_STRING &name)
virtual	~TransportInst ()
void	set_port_in_addr_string (OPENDDS_STRING &addr_str, u_short port_number)
Private Member Functions
void	adjust_config_value ()
void	shutdown ()
TransportImpl *	impl ()
virtual TransportImpl_rch	new_impl ()=0
Private Attributes
const OPENDDS_STRING	name_
TransportImpl_rch	impl_
ACE_SYNCH_MUTEX	lock_
Friends
class	TransportRegistry
class	TransportClient

Detailed Description

Base class to hold configuration settings for TransportImpls.

Each transport implementation will need to define a concrete subclass of the TransportInst class. The base class (TransportInst) contains configuration settings that are common to all (or most) concrete transport implementations. The concrete transport implementation defines any configuration settings that it requires within its concrete subclass of this TransportInst base class.

The TransportInst object is supplied to the TransportImpl::configure() method.

Definition at line 50 of file TransportInst.h.

Constructor & Destructor Documentation

ACE_INLINE OpenDDS::DCPS::TransportInst::TransportInst	(	const char *	type,
		const OPENDDS_STRING &	name
	)			`[protected]`

Definition at line 13 of file TransportInst.inl.

References adjust_config_value(), and DBG_ENTRY_LVL.

00015   : transport_type_(type),
00016     queue_messages_per_pool_(DEFAULT_CONFIG_QUEUE_MESSAGES_PER_POOL),
00017     queue_initial_pools_(DEFAULT_CONFIG_QUEUE_INITIAL_POOLS),
00018     max_packet_size_(DEFAULT_CONFIG_MAX_PACKET_SIZE),
00019     max_samples_per_packet_(DEFAULT_CONFIG_MAX_SAMPLES_PER_PACKET),
00020     optimum_packet_size_(DEFAULT_CONFIG_OPTIMUM_PACKET_SIZE),
00021     thread_per_connection_(0),
00022     datalink_release_delay_(10000),
00023     datalink_control_chunks_(32),
00024     name_(name)
00025 {
00026   DBG_ENTRY_LVL("TransportInst", "TransportInst", 6);
00027   this->adjust_config_value();
00028 }

Here is the call graph for this function:

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::TransportInst::~TransportInst ( ) [protected, virtual]

Definition at line 26 of file TransportInst.cpp.

References DBG_ENTRY_LVL.

00027 {
00028   DBG_ENTRY_LVL("TransportInst","~TransportInst",6);
00029 }

Member Function Documentation

ACE_INLINE void OpenDDS::DCPS::TransportInst::adjust_config_value ( ) [private]

Adjust the configuration values which gives warning on adjusted value.

Definition at line 32 of file TransportInst.inl.

References ACE_TEXT(), LM_NOTICE, max_samples_per_packet_, and OpenDDS::DCPS::MAX_SEND_BLOCKS.

Referenced by load(), and TransportInst().

00033 {
00034   // Ensure that the number of samples put into the packet does
00035   // not exceed the allowed number of io vectors to be sent by the OS.
00036   size_t old_value = max_samples_per_packet_;
00037
00038   if ((2 * max_samples_per_packet_ + 1) > MAX_SEND_BLOCKS) {
00039     max_samples_per_packet_ = (MAX_SEND_BLOCKS + 1) / 2 - 1;
00040     ACE_DEBUG((LM_NOTICE,
00041                ACE_TEXT("(%P|%t) NOTICE: \"max_samples_per_packet\" is adjusted from %u to %u\n"),
00042                old_value, max_samples_per_packet_));
00043   }
00044 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportInst::dump ( void ) const

Diagnostic aid.

Definition at line 61 of file TransportInst.cpp.

References ACE_TEXT(), dump_to_str(), and LM_DEBUG.

Referenced by OpenDDS::DCPS::TransportSendStrategy::direct_send().

00062 {
00063   ACE_DEBUG((LM_DEBUG,
00064              ACE_TEXT("\n(%P|%t) TransportInst::dump() -\n%C"),
00065              dump_to_str().c_str()));
00066 }

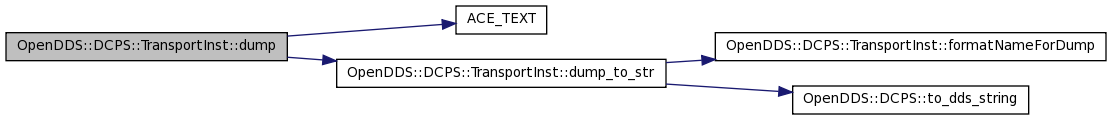

Here is the call graph for this function:

Here is the caller graph for this function:

OPENDDS_STRING OpenDDS::DCPS::TransportInst::dump_to_str ( ) const [virtual]

Reimplemented in OpenDDS::DCPS::MulticastInst, OpenDDS::DCPS::RtpsUdpInst, OpenDDS::DCPS::ShmemInst, OpenDDS::DCPS::TcpInst, and OpenDDS::DCPS::UdpInst.

Definition at line 88 of file TransportInst.cpp.

References datalink_control_chunks_, datalink_release_delay_, formatNameForDump(), max_packet_size_, max_samples_per_packet_, name_, OPENDDS_STRING, optimum_packet_size_, queue_initial_pools_, queue_messages_per_pool_, thread_per_connection_, OpenDDS::DCPS::to_dds_string(), and transport_type_.

Referenced by dump(), and OpenDDS::DCPS::TransportImpl::dump_to_str().

00089 {
00090   OPENDDS_STRING ret;
00091   ret += formatNameForDump("transport_type")          + this->transport_type_ + '\n';
00092   ret += formatNameForDump("name")                    + this->name_ + '\n';
00093   ret += formatNameForDump("queue_messages_per_pool") + to_dds_string(unsigned(this->queue_messages_per_pool_)) + '\n';
00094   ret += formatNameForDump("queue_initial_pools")     + to_dds_string(unsigned(this->queue_initial_pools_)) + '\n';
00095   ret += formatNameForDump("max_packet_size")         + to_dds_string(unsigned(this->max_packet_size_)) + '\n';
00096   ret += formatNameForDump("max_samples_per_packet")  + to_dds_string(unsigned(this->max_samples_per_packet_)) + '\n';
00097   ret += formatNameForDump("optimum_packet_size")     + to_dds_string(unsigned(this->optimum_packet_size_)) + '\n';
00098   ret += formatNameForDump("thread_per_connection")   + (this->thread_per_connection_ ? "true" : "false") + '\n';
00099   ret += formatNameForDump("datalink_release_delay")  + to_dds_string(this->datalink_release_delay_) + '\n';
00100   ret += formatNameForDump("datalink_control_chunks") + to_dds_string(unsigned(this->datalink_control_chunks_)) + '\n';
00101   return ret;
00102 }

Here is the call graph for this function:

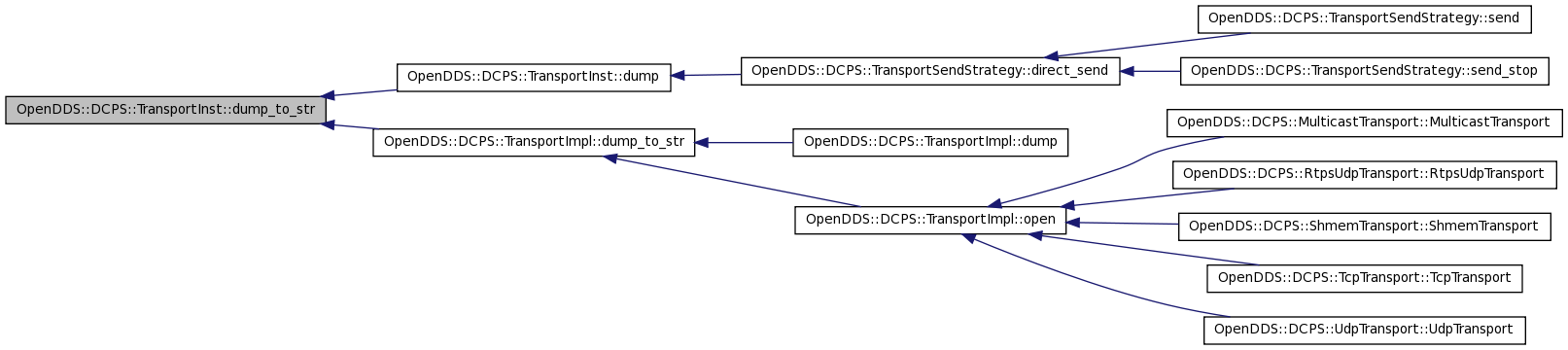

Here is the caller graph for this function:

OPENDDS_STRING OpenDDS::DCPS::TransportInst::formatNameForDump ( const char * name ) [static]

Format name of transport configuration parameter for use in conjunction with dump(std::ostream& os).

Definition at line 74 of file TransportInst.cpp.

References OPENDDS_STRING.

Referenced by OpenDDS::DCPS::UdpInst::dump_to_str(), dump_to_str(), OpenDDS::DCPS::TcpInst::dump_to_str(), OpenDDS::DCPS::ShmemInst::dump_to_str(), OpenDDS::DCPS::RtpsUdpInst::dump_to_str(), and OpenDDS::DCPS::MulticastInst::dump_to_str().

00075 {
00076   OPENDDS_STRING formatted_name;
00077   formatted_name.reserve(NAME_INDENT + NAME_WIDTH);
00078   formatted_name += OPENDDS_STRING(NAME_INDENT, ' ');
00079   formatted_name += name;
00080   formatted_name += ":";
00081   if ((NAME_WIDTH + NAME_INDENT) > formatted_name.length()) {
00082     formatted_name += OPENDDS_STRING((NAME_WIDTH + NAME_INDENT- formatted_name.length()), ' ');
00083   }
00084   return formatted_name;
00085 }

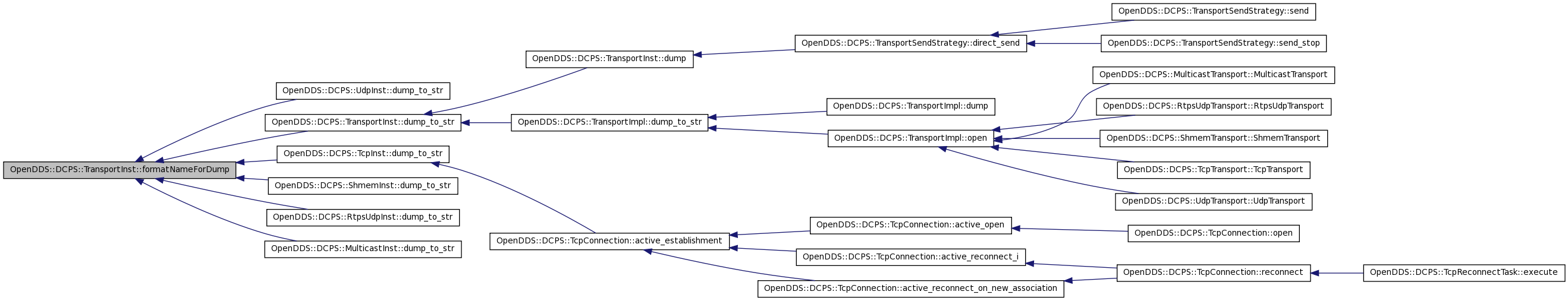

Here is the caller graph for this function:

OpenDDS::DCPS::TransportImpl * OpenDDS::DCPS::TransportInst::impl ( void ) [private]

Definition at line 114 of file TransportInst.cpp.

References impl_, OpenDDS::DCPS::RcHandle< T >::in(), lock_, and new_impl().

00115 {
00116   ACE_GUARD_RETURN(ACE_SYNCH_MUTEX, g, this->lock_, 0);
00117   if (!this->impl_) {
00118     try {
00119       this->impl_ = this->new_impl();
00120     } catch (const OpenDDS::DCPS::Transport::UnableToCreate& ) {
00121       return 0;
00122     }
00123   }
00124   return this->impl_.in();
00125 }

Here is the call graph for this function:

virtual bool OpenDDS::DCPS::TransportInst::is_reliable ( ) const [pure virtual]

Does the transport as configured support RELIABLE_RELIABILITY_QOS?

Implemented in OpenDDS::DCPS::MulticastInst, OpenDDS::DCPS::RtpsUdpInst, OpenDDS::DCPS::ShmemInst, OpenDDS::DCPS::TcpInst, and OpenDDS::DCPS::UdpInst.

Referenced by OpenDDS::DCPS::RecorderImpl::check_transport_qos(), and OpenDDS::DCPS::DataReaderImpl::check_transport_qos().

Here is the caller graph for this function:

int OpenDDS::DCPS::TransportInst::load	(	ACE_Configuration_Heap &	cf,
		ACE_Configuration_Section_Key &	sect
	)			`[virtual]`

Overwrite the default configurations with the configuration from the given section in the ACE_Configuration_Heap object.

Reimplemented in OpenDDS::DCPS::MulticastInst, OpenDDS::DCPS::RtpsUdpInst, OpenDDS::DCPS::ShmemInst, OpenDDS::DCPS::TcpInst, and OpenDDS::DCPS::UdpInst.

Definition at line 32 of file TransportInst.cpp.

References ACE_TEXT(), adjust_config_value(), datalink_control_chunks_, datalink_release_delay_, GET_CONFIG_VALUE, ACE_Configuration_Heap::get_string_value(), LM_WARNING, max_packet_size_, max_samples_per_packet_, optimum_packet_size_, queue_initial_pools_, queue_messages_per_pool_, and thread_per_connection_.

00034 {
00035   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("queue_messages_per_pool"), this->queue_messages_per_pool_, size_t)
00036   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("queue_initial_pools"), this->queue_initial_pools_, size_t)
00037   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("max_packet_size"), this->max_packet_size_, ACE_UINT32)
00038   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("max_samples_per_packet"), this->max_samples_per_packet_, size_t)
00039   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("optimum_packet_size"), this->optimum_packet_size_, ACE_UINT32)
00040   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("thread_per_connection"), this->thread_per_connection_, bool)
00041   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("datalink_release_delay"), this->datalink_release_delay_, int)
00042
00043   // Undocumented - this option is not in the Developer's Guide
00044   // Controls the number of chunks in the allocators used by the datalink
00045   // for control messages.
00046   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("datalink_control_chunks"), this->datalink_control_chunks_, size_t)
00047
00048   ACE_TString stringvalue;
00049   if (cf.get_string_value (sect, ACE_TEXT("passive_connect_duration"), stringvalue) == 0) {
00050     ACE_DEBUG ((LM_WARNING,
00051                 ACE_TEXT ("(%P|%t) WARNING: passive_connect_duration option ")
00052                 ACE_TEXT ("is deprecated in the transport inst, must be ")
00053                 ACE_TEXT ("defined in transport config.\n")));
00054   }
00055
00056   adjust_config_value();
00057   return 0;
00058 }

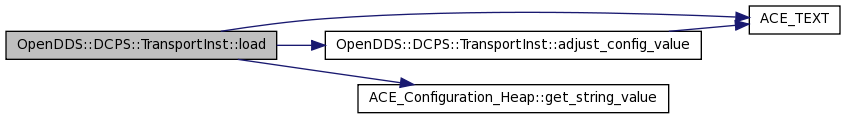

Here is the call graph for this function:

const OPENDDS_STRING& OpenDDS::DCPS::TransportInst::name ( void ) const [inline]

Definition at line 53 of file TransportInst.h.

Referenced by OpenDDS::DCPS::SynWatchdog::on_timeout(), and OpenDDS::DCPS::ShmemInst::ShmemInst().

00053 { return name_; }

Here is the caller graph for this function:

virtual TransportImpl_rch OpenDDS::DCPS::TransportInst::new_impl ( ) [private, pure virtual]

Implemented in OpenDDS::DCPS::MulticastInst, OpenDDS::DCPS::RtpsUdpInst, OpenDDS::DCPS::ShmemInst, OpenDDS::DCPS::TcpInst, and OpenDDS::DCPS::UdpInst.

Referenced by impl().

Here is the caller graph for this function:

virtual size_t OpenDDS::DCPS::TransportInst::populate_locator ( OpenDDS::DCPS::TransportLocator & trans_info ) const [pure virtual]

Populate a transport locator sequence. Return the number of "locators.".

Implemented in OpenDDS::DCPS::MulticastInst, OpenDDS::DCPS::RtpsUdpInst, OpenDDS::DCPS::ShmemInst, OpenDDS::DCPS::TcpInst, and OpenDDS::DCPS::UdpInst.

virtual bool OpenDDS::DCPS::TransportInst::requires_cdr ( ) const [inline, virtual]

Does the transport require a CDR-encapsulated data payload?

Reimplemented in OpenDDS::DCPS::RtpsUdpInst.

Definition at line 103 of file TransportInst.h.

00103 { return false; }

void OpenDDS::DCPS::TransportInst::set_port_in_addr_string	(	OPENDDS_STRING &	addr_str,
		u_short	port_number
	)			`[protected]`

Definition at line 128 of file TransportInst.cpp.

References OPENDDS_END_VERSIONED_NAMESPACE_DECL, and ACE_OS::snprintf().

00129 {
00130 #ifdef BUFSIZE
00131 #undef BUFSIZE
00132 #endif
00133   const int BUFSIZE=1024;
00134   char result[BUFSIZE];
00135
00136 #ifdef __SUNPRO_CC
00137   int count = 0;
00138   std::count(addr_str.begin(), addr_str.end(), ':', count);
00139   if (count < 2) {
00140 #else
00141   if (std::count(addr_str.begin(), addr_str.end(), ':') < 2) {
00142 #endif
00143     OPENDDS_STRING::size_type pos = addr_str.find_last_of(":");
00144     ACE_OS::snprintf(result, BUFSIZE, "%.*s:%hu", static_cast<int>(pos), addr_str.c_str(), port_number);
00145   }
00146   else {
00147     // this is the numeric form of ipv6 address because it has more than one ':'
00148     if (addr_str[0] != '[') {
00149       ACE_OS::snprintf(result, BUFSIZE, "[%s]:%hu", addr_str.c_str(), port_number);
00150     }
00151     else {
00152       OPENDDS_STRING::size_type pos = addr_str.find_last_of("]");
00153       ACE_OS::snprintf(result, BUFSIZE, "%.*s:%hu", static_cast<int>(pos+1), addr_str.c_str(), port_number);
00154     }
00155   }
00156   addr_str = result;
00157 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportInst::shutdown ( void ) [private]

Definition at line 105 of file TransportInst.cpp.

References impl_, OpenDDS::DCPS::RcHandle< T >::is_nil(), and lock_.

00106 {
00107   ACE_GUARD(ACE_SYNCH_MUTEX, g, this->lock_);
00108   if (!this->impl_.is_nil()) {
00109     this->impl_->shutdown();
00110   }
00111 }

Here is the call graph for this function:

Friends And Related Function Documentation

friend class TransportClient [friend]

Definition at line 126 of file TransportInst.h.

friend class TransportRegistry [friend]

Definition at line 123 of file TransportInst.h.

Member Data Documentation

size_t OpenDDS::DCPS::TransportInst::datalink_control_chunks_

The number of chunks used to size allocators for transport control samples. The default value is 32.

Definition at line 97 of file TransportInst.h.

Referenced by OpenDDS::DCPS::DataLink::DataLink(), dump_to_str(), and load().

long OpenDDS::DCPS::TransportInst::datalink_release_delay_

Delay in milliseconds that the datalink should be released after all associations are removed. The default value is 10 seconds.

Definition at line 93 of file TransportInst.h.

Referenced by OpenDDS::DCPS::DataLink::DataLink(), dump_to_str(), and load().

TransportImpl_rch OpenDDS::DCPS::TransportInst::impl_ [private]

Definition at line 132 of file TransportInst.h.

Referenced by impl(), and shutdown().

ACE_SYNCH_MUTEX OpenDDS::DCPS::TransportInst::lock_ [private]

Definition at line 133 of file TransportInst.h.

Referenced by impl(), and shutdown().

ACE_UINT32 OpenDDS::DCPS::TransportInst::max_packet_size_

Max size (in bytes) of a packet (packet header + sample(s)).

Definition at line 79 of file TransportInst.h.

Referenced by dump_to_str(), and load().

size_t OpenDDS::DCPS::TransportInst::max_samples_per_packet_

Max number of samples that should ever be in a single packet.

Definition at line 82 of file TransportInst.h.

Referenced by adjust_config_value(), dump_to_str(), load(), and OpenDDS::DCPS::MulticastDataLink::MulticastDataLink().

const OPENDDS_STRING OpenDDS::DCPS::TransportInst::name_ [private]

Definition at line 130 of file TransportInst.h.

Referenced by dump_to_str().

ACE_UINT32 OpenDDS::DCPS::TransportInst::optimum_packet_size_

Optimum size (in bytes) of a packet (packet header + sample(s)).

Definition at line 85 of file TransportInst.h.

Referenced by dump_to_str(), and load().

size_t OpenDDS::DCPS::TransportInst::queue_initial_pools_

Initial number of pre-allocated pools of link (list) objects for the "send queue" of each DataLink.

Definition at line 76 of file TransportInst.h.

Referenced by dump_to_str(), and load().

size_t OpenDDS::DCPS::TransportInst::queue_messages_per_pool_

Number of pre-created link (list) objects per pool for the "send queue" of each DataLink.

Definition at line 72 of file TransportInst.h.

Referenced by dump_to_str(), and load().

bool OpenDDS::DCPS::TransportInst::thread_per_connection_

Flag for whether a new thread is needed for connection to send without backpressure.

Definition at line 89 of file TransportInst.h.

Referenced by OpenDDS::DCPS::DataLink::DataLink(), dump_to_str(), and load().

const OPENDDS_STRING OpenDDS::DCPS::TransportInst::transport_type_

Definition at line 68 of file TransportInst.h.

Referenced by dump_to_str().

The documentation for this class was generated from the following files:

OpenDDS::DCPS::TransportInst Class Reference

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
