OpenDDS::DCPS::MulticastInst Class Reference

#include <MulticastInst.h>

Inheritance diagram for OpenDDS::DCPS::MulticastInst:
Inheritance graph
[legend]

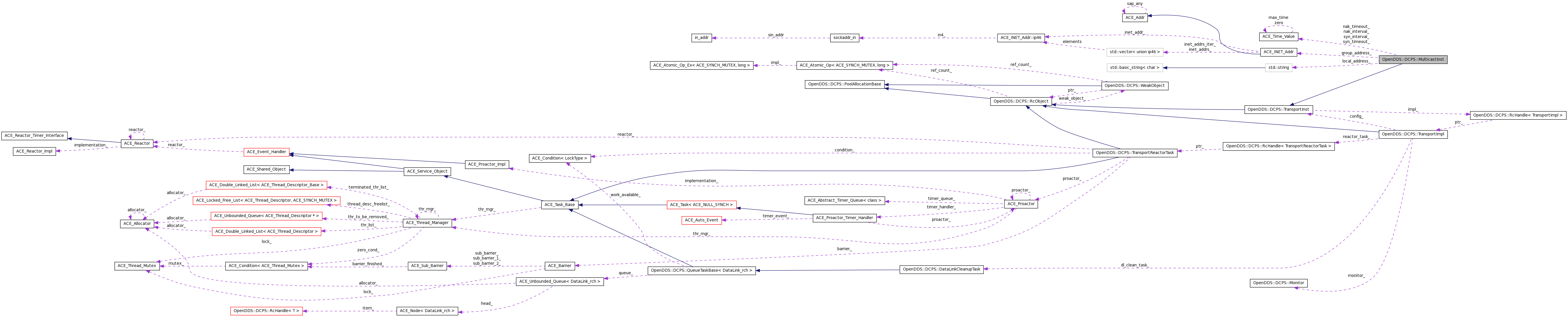

Collaboration diagram for OpenDDS::DCPS::MulticastInst:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual int load (ACE_Configuration_Heap &cf, ACE_Configuration_Section_Key &sect)
virtual OPENDDS_STRING dump_to_str () const
 Diagnostic aid.
bool is_reliable () const
 Does the transport as configured support RELIABLE_RELIABILITY_QOS?
bool async_send () const
virtual size_t populate_locator (OpenDDS::DCPS::TransportLocator &trans_info) const
 Populate a transport locator sequence. Return the number of "locators.".

Public Attributes

bool default_to_ipv6_
u_short port_offset_
ACE_INET_Addr group_address_
std::string local_address_
bool reliable_
double syn_backoff_
ACE_Time_Value syn_interval_
ACE_Time_Value syn_timeout_
size_t nak_depth_
ACE_Time_Value nak_interval_
size_t nak_delay_intervals_
size_t nak_max_
ACE_Time_Value nak_timeout_
unsigned char ttl_
size_t rcv_buffer_size_
bool async_send_

Private Member Functions

 MulticastInst (const std::string &name)
void default_group_address (ACE_INET_Addr &group_address)
TransportImpl_rch new_impl ()

Friends

class MulticastType
template<typename T , typename U >
RcHandle< T > OpenDDS::DCPS::make_rch (U const &)

Detailed Description

Definition at line 26 of file MulticastInst.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::MulticastInst::MulticastInst ( const std::string &  name  )  [explicit, private]

Definition at line 51 of file MulticastInst.cpp.

References default_group_address(), defined(), group_address_, if(), ACE_Time_Value::msec(), nak_interval_, nak_timeout_, syn_interval_, and syn_timeout_.

00052   : TransportInst("multicast", name),
00053     default_to_ipv6_(DEFAULT_TO_IPV6),
00054     port_offset_(DEFAULT_PORT_OFFSET),
00055     reliable_(DEFAULT_RELIABLE),
00056     syn_backoff_(DEFAULT_SYN_BACKOFF),
00057     nak_depth_(DEFAULT_NAK_DEPTH),
00058     nak_delay_intervals_(DEFAULT_NAK_DELAY_INTERVALS),
00059     nak_max_(DEFAULT_NAK_MAX),
00060     ttl_(DEFAULT_TTL),
00061 #if defined (ACE_DEFAULT_MAX_SOCKET_BUFSIZ)
00062     rcv_buffer_size_(ACE_DEFAULT_MAX_SOCKET_BUFSIZ),
00063 #else
00064     // Use system default values.
00065     rcv_buffer_size_(0),
00066 #endif
00067     async_send_(DEFAULT_ASYNC_SEND)
00068 {
00069   default_group_address(this->group_address_);
00070
00071   this->syn_interval_.msec(DEFAULT_SYN_INTERVAL);
00072   this->syn_timeout_.msec(DEFAULT_SYN_TIMEOUT);
00073
00074   this->nak_interval_.msec(DEFAULT_NAK_INTERVAL);
00075   this->nak_timeout_.msec(DEFAULT_NAK_TIMEOUT);
00076 }

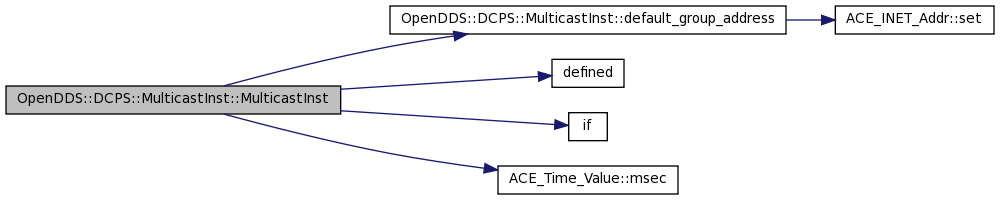

Here is the call graph for this function:

Member Function Documentation

bool OpenDDS::DCPS::MulticastInst::async_send (  )  const [inline]

Definition at line 116 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::MulticastSendStrategy::send_bytes_i().

00116 { return this->async_send_; }

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastInst::default_group_address ( ACE_INET_Addr &  group_address  )  [private]

Definition at line 137 of file MulticastInst.cpp.

References default_to_ipv6_, port_offset_, and ACE_INET_Addr::set().

Referenced by load(), and MulticastInst().

00138 {
00139   if (this->default_to_ipv6_) {
00140     group_address.set(this->port_offset_, DEFAULT_IPV6_GROUP_ADDRESS);
00141   } else {
00142     group_address.set(this->port_offset_, DEFAULT_IPV4_GROUP_ADDRESS);
00143   }
00144 }

Here is the call graph for this function:

Here is the caller graph for this function:

OPENDDS_STRING OpenDDS::DCPS::MulticastInst::dump_to_str (  )  const [virtual]

Diagnostic aid.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 153 of file MulticastInst.cpp.

References async_send_, default_to_ipv6_, OpenDDS::DCPS::TransportInst::formatNameForDump(), ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_port_number(), group_address_, local_address_, ACE_Time_Value::msec(), nak_delay_intervals_, nak_depth_, nak_interval_, nak_max_, nak_timeout_, OPENDDS_STRING, port_offset_, rcv_buffer_size_, reliable_, syn_backoff_, syn_interval_, syn_timeout_, and ttl_.

00154 {
00155   std::ostringstream os;
00156   os << TransportInst::dump_to_str() << std::endl;
00157
00158   os << formatNameForDump("group_address")       << this->group_address_.get_host_addr()
00159                                                            << ":" << this->group_address_.get_port_number() << std::endl;
00160   os << formatNameForDump("local_address")       << this->local_address_ << std::endl;
00161   os << formatNameForDump("default_to_ipv6")     << (this->default_to_ipv6_ ? "true" : "false") << std::endl;
00162   os << formatNameForDump("port_offset")         << this->port_offset_ << std::endl;
00163   os << formatNameForDump("reliable")            << (this->reliable_ ? "true" : "false") << std::endl;
00164   os << formatNameForDump("syn_backoff")         << this->syn_backoff_ << std::endl;
00165   os << formatNameForDump("syn_interval")        << this->syn_interval_.msec() << std::endl;
00166   os << formatNameForDump("syn_timeout")         << this->syn_timeout_.msec() << std::endl;
00167   os << formatNameForDump("nak_depth")           << this->nak_depth_ << std::endl;
00168   os << formatNameForDump("nak_interval")        << this->nak_interval_.msec() << std::endl;
00169   os << formatNameForDump("nak_delay_intervals") << this->nak_delay_intervals_ << std::endl;
00170   os << formatNameForDump("nak_max")             << this->nak_max_ << std::endl;
00171   os << formatNameForDump("nak_timeout")         << this->nak_timeout_.msec() << std::endl;
00172   os << formatNameForDump("ttl")                 << int(this->ttl_) << std::endl;
00173   os << formatNameForDump("rcv_buffer_size");
00174
00175   if (this->rcv_buffer_size_ == 0) {
00176     os << "System Default Value" << std::endl;
00177   } else {
00178     os << this->rcv_buffer_size_ << std::endl;
00179   }
00180
00181   os << formatNameForDump("async_send");
00182
00183 #if defined (ACE_WIN32) && defined (ACE_HAS_WIN32_OVERLAPPED_IO)
00184   os << (this->async_send_ ? "true" : "false") << std::endl;
00185 #else
00186   os << "Not Supported on this Platform" << std::endl;
00187 #endif
00188   return OPENDDS_STRING(os.str());
00189 }

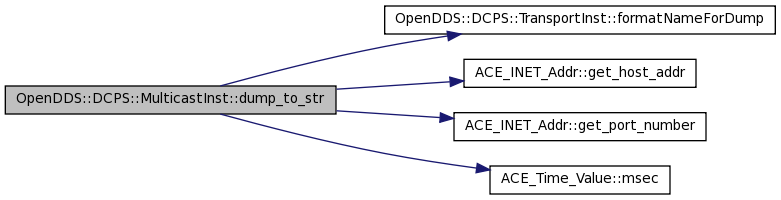

Here is the call graph for this function:

bool OpenDDS::DCPS::MulticastInst::is_reliable (  )  const [inline, virtual]

Does the transport as configured support RELIABLE_RELIABILITY_QOS?

Implements OpenDDS::DCPS::TransportInst.

Definition at line 114 of file MulticastInst.h.

Referenced by populate_locator().

00114 { return this->reliable_; }

Here is the caller graph for this function:

int OpenDDS::DCPS::MulticastInst::load ( ACE_Configuration_Heap &  cf,
ACE_Configuration_Section_Key &  sect
) [virtual]

Overwrite the default configurations with the configuration from the given section in the ACE_Configuration_Heap object.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 79 of file MulticastInst.cpp.

References ACE_TEXT(), async_send_, ACE_String_Base< ACE_CHAR_T >::c_str(), default_group_address(), default_to_ipv6_, GET_CONFIG_STRING_VALUE, GET_CONFIG_TIME_VALUE, GET_CONFIG_TSTRING_VALUE, GET_CONFIG_VALUE, group_address_, ACE_String_Base< ACE_CHAR_T >::is_empty(), local_address_, nak_delay_intervals_, nak_depth_, nak_interval_, nak_max_, nak_timeout_, port_offset_, rcv_buffer_size_, reliable_, ACE_INET_Addr::set(), syn_backoff_, syn_interval_, syn_timeout_, and ttl_.

00081 {
00082   TransportInst::load(cf, sect); // delegate to parent
00083
00084   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("default_to_ipv6"),
00085                    this->default_to_ipv6_, bool)
00086
00087   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("port_offset"),
00088                    this->port_offset_, u_short)
00089
00090   ACE_TString group_address_s;
00091   GET_CONFIG_TSTRING_VALUE(cf, sect, ACE_TEXT("group_address"),
00092                            group_address_s)
00093   if (group_address_s.is_empty()) {
00094     // TODO: Passing 0 instead of transport id.  Does this cause complications?
00095     default_group_address(this->group_address_);
00096   } else {
00097     this->group_address_.set(group_address_s.c_str());
00098   }
00099
00100   GET_CONFIG_STRING_VALUE(cf, sect, ACE_TEXT("local_address"),
00101                           this->local_address_);
00102
00103   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("reliable"), this->reliable_, bool)
00104
00105   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("syn_backoff"),
00106                    this->syn_backoff_, double)
00107
00108   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("syn_interval"), this->syn_interval_)
00109
00110   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("syn_timeout"), this->syn_timeout_)
00111
00112   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_depth"),
00113                    this->nak_depth_, size_t)
00114
00115   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("nak_interval"), this->nak_interval_)
00116
00117   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_delay_intervals"),
00118                         this->nak_delay_intervals_, size_t)
00119
00120   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_max"), this->nak_max_, size_t)
00121
00122   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("nak_timeout"), this->nak_timeout_)
00123
00124   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("ttl"), this->ttl_, unsigned char)
00125
00126   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("rcv_buffer_size"),
00127                    this->rcv_buffer_size_, size_t)
00128
00129 #if defined (ACE_WIN32) && defined (ACE_HAS_WIN32_OVERLAPPED_IO)
00130   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("async_send"), this->async_send_, bool)
00131 #endif
00132
00133   return 0;
00134 }

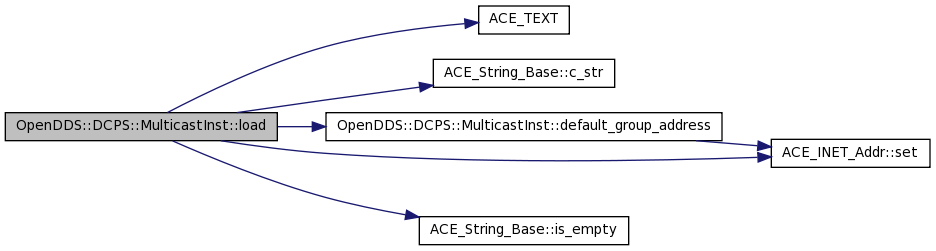

Here is the call graph for this function:

TransportImpl_rch OpenDDS::DCPS::MulticastInst::new_impl (  )  [private, virtual]

Implements OpenDDS::DCPS::TransportInst.

Definition at line 147 of file MulticastInst.cpp.

References OpenDDS::DCPS::ref().

00148 {
00149   return make_rch<MulticastTransport>(ref(*this));
00150 }

Here is the call graph for this function:

size_t OpenDDS::DCPS::MulticastInst::populate_locator ( OpenDDS::DCPS::TransportLocator &  trans_info  )  const [virtual]

Populate a transport locator sequence. Return the number of "locators.".

Implements OpenDDS::DCPS::TransportInst.

Definition at line 192 of file MulticastInst.cpp.

References ACE_OutputCDR::buffer(), OpenDDS::DCPS::TransportLocator::data, group_address_, is_reliable(), len, ACE_OutputCDR::total_length(), and OpenDDS::DCPS::TransportLocator::transport_type.

Referenced by OpenDDS::DCPS::MulticastTransport::connection_info_i().

00193 {
00194   if (this->group_address_ != ACE_INET_Addr()) {
00195     NetworkAddress network_address(this->group_address_);
00196
00197     ACE_OutputCDR cdr;
00198     cdr << network_address;
00199     cdr << ACE_OutputCDR::from_boolean (ACE_CDR::Boolean (this->is_reliable ()));
00200
00201     const CORBA::ULong len = static_cast<CORBA::ULong>(cdr.total_length());
00202     char* buffer = const_cast<char*>(cdr.buffer()); // safe
00203
00204     info.transport_type = "multicast";
00205     info.data = TransportBLOB(len, len, reinterpret_cast<CORBA::Octet*>(buffer));
00206     return 1;
00207   } else {
00208     return 0;
00209   }
00210 }

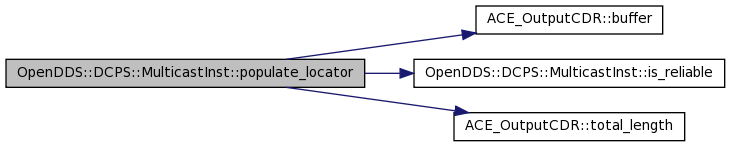

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MulticastType [friend]

Definition at line 121 of file MulticastInst.h.

template<typename T , typename U >
RcHandle<T> OpenDDS::DCPS::make_rch ( U const &   )  [friend]

Member Data Documentation

bool OpenDDS::DCPS::MulticastInst::async_send_

Sending using asynchronous I/O on Windows platforms that support it. The default value is: false. This parameter has no effect on non-Windows platforms and Windows platforms that don't support asynchronous I/O.

Definition at line 106 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::MulticastTransport::configure_i(), dump_to_str(), and load().

bool OpenDDS::DCPS::MulticastInst::default_to_ipv6_

Enables IPv6 default group address selection. The default value is: false.

Definition at line 31 of file MulticastInst.h.

Referenced by default_group_address(), dump_to_str(), and load().

ACE_INET_Addr OpenDDS::DCPS::MulticastInst::group_address_

The multicast group to join to send/receive data. The default value is: 224.0.0.128:<port> [IANA 2009-11-17], or [FF01::80]:<port> [IANA 2009-08-28]

Definition at line 41 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::MulticastSendStrategy::async_send(), OpenDDS::DCPS::MulticastTransport::configure_i(), dump_to_str(), load(), OpenDDS::DCPS::MulticastTransport::make_datalink(), MulticastInst(), and populate_locator().

std::string OpenDDS::DCPS::MulticastInst::local_address_

If non-empty, the address to pass to ACE which indicates the local network interface which should be used for joining the multicast group.

Definition at line 46 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::MulticastTransport::configure_i(), dump_to_str(), OpenDDS::DCPS::MulticastDataLink::join(), and load().

size_t OpenDDS::DCPS::MulticastInst::nak_delay_intervals_

The number of interval's between nak's for a sample (after initial nak). The default value is: 4.

Definition at line 81 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and OpenDDS::DCPS::ReliableSession::send_naks().

size_t OpenDDS::DCPS::MulticastInst::nak_depth_

The number of datagrams to retain in order to service repair requests (reliable only). The default value is: 32.

Definition at line 71 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and OpenDDS::DCPS::MulticastDataLink::MulticastDataLink().

ACE_Time_Value OpenDDS::DCPS::MulticastInst::nak_interval_

The minimum number of milliseconds to wait between repair requests (reliable only). The default value is: 500.

Definition at line 76 of file MulticastInst.h.

Referenced by dump_to_str(), load(), MulticastInst(), and OpenDDS::DCPS::NakWatchdog::next_interval().

size_t OpenDDS::DCPS::MulticastInst::nak_max_

The maximum number of a missing sample will be nak'ed. The default value is: 3.

Definition at line 85 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and OpenDDS::DCPS::ReliableSession::send_naks().

ACE_Time_Value OpenDDS::DCPS::MulticastInst::nak_timeout_

The maximum number of milliseconds to wait before giving up on a repair response (reliable only). The default value is: 30000 (30 seconds).

Definition at line 90 of file MulticastInst.h.

Referenced by dump_to_str(), OpenDDS::DCPS::ReliableSession::expire_naks(), load(), and MulticastInst().

u_short OpenDDS::DCPS::MulticastInst::port_offset_

The default port number (when group_address is not set) The default value is: 49152 [IANA 2009-11-16].

Definition at line 35 of file MulticastInst.h.

Referenced by default_group_address(), dump_to_str(), and load().

size_t OpenDDS::DCPS::MulticastInst::rcv_buffer_size_

The size of the socket receive buffer. The default value is: ACE_DEFAULT_MAX_SOCKET_BUFSIZ if it's defined, otherwise, 0. If the value is 0, the system default value is used.

Definition at line 100 of file MulticastInst.h.

Referenced by dump_to_str(), OpenDDS::DCPS::MulticastDataLink::join(), and load().

bool OpenDDS::DCPS::MulticastInst::reliable_

Enables reliable communication. This option will eventually be deprecated. The default value is: true.

Definition at line 51 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

double OpenDDS::DCPS::MulticastInst::syn_backoff_

The exponential base used during handshake retries; smaller values yield shorter delays between attempts. The default value is: 2.0.

Definition at line 56 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and OpenDDS::DCPS::SynWatchdog::next_interval().

ACE_Time_Value OpenDDS::DCPS::MulticastInst::syn_interval_

The minimum number of milliseconds to wait between handshake attempts during association. The default value is: 250.

Definition at line 61 of file MulticastInst.h.

Referenced by dump_to_str(), load(), MulticastInst(), and OpenDDS::DCPS::SynWatchdog::next_interval().

ACE_Time_Value OpenDDS::DCPS::MulticastInst::syn_timeout_

The maximum number of milliseconds to wait before giving up on a handshake response during association. The default value is: 30000 (30 seconds).

Definition at line 66 of file MulticastInst.h.

Referenced by dump_to_str(), load(), MulticastInst(), and OpenDDS::DCPS::SynWatchdog::next_timeout().

unsigned char OpenDDS::DCPS::MulticastInst::ttl_

time-to-live. The default value is: 1 (in same subnet)

Definition at line 94 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
