TransportDefs.h File Reference

#include "dds/DCPS/Definitions.h"
#include "dds/DCPS/Cached_Allocator_With_Overflow_T.h"
#include "dds/DCPS/debug.h"
#include "ace/Basic_Types.h"
#include "ace/CDR_Base.h"
#include "ace/Synch_Traits.h"
#include "TransportDebug.h"

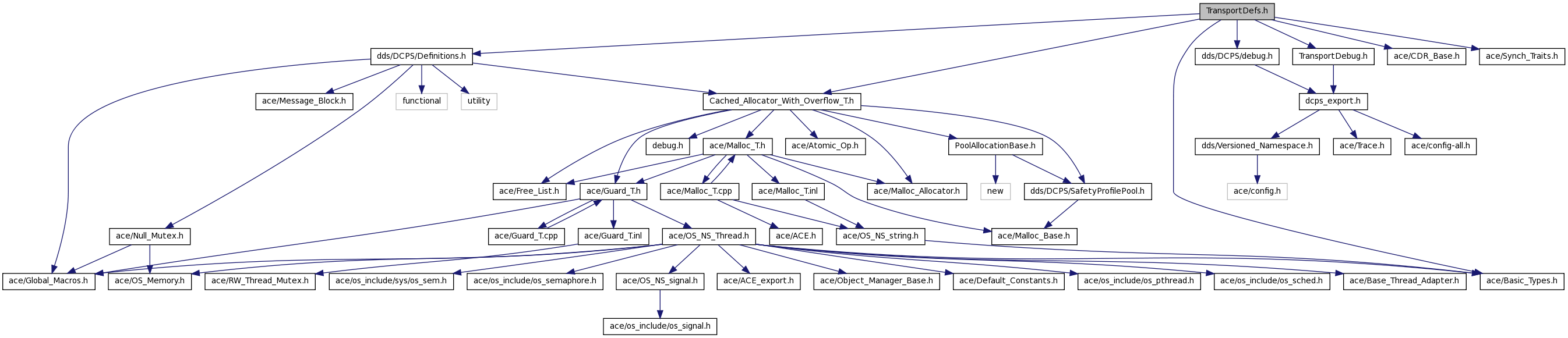

Include dependency graph for TransportDefs.h:

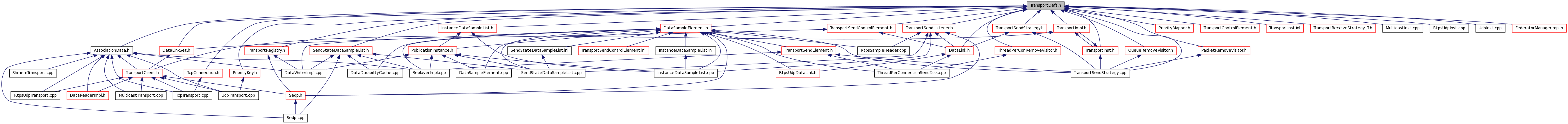

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	OpenDDS
	The Internal API and Implementation of OpenDDS.
namespace	OpenDDS::DCPS
Defines
#define	RECEIVE_SYNCH   ACE_SYNCH_MUTEX
#define	GET_CONFIG_VALUE(CF, SECT, KEY, VALUE, TYPE)
#define	GET_CONFIG_STRING_VALUE(CF, SECT, KEY, VALUE)
#define	GET_CONFIG_TSTRING_VALUE(CF, SECT, KEY, VALUE)
#define	GET_CONFIG_DOUBLE_VALUE(CF, SECT, KEY, VALUE)
#define	GET_CONFIG_TIME_VALUE(CF, SECT, KEY, VALUE)
Typedefs
typedef ACE_UINT64	OpenDDS::DCPS::DataLinkIdType
	Identifier type for DataLink objects.
typedef Cached_Allocator_With_Overflow < ACE_Message_Block, RECEIVE_SYNCH >	OpenDDS::DCPS::TransportMessageBlockAllocator
typedef Cached_Allocator_With_Overflow < ACE_Data_Block, RECEIVE_SYNCH >	OpenDDS::DCPS::TransportDataBlockAllocator
typedef Cached_Allocator_With_Overflow < char[RECEIVE_DATA_BUFFER_SIZE], RECEIVE_SYNCH >	OpenDDS::DCPS::TransportDataAllocator
typedef ACE_CDR::Long	OpenDDS::DCPS::Priority
Enumerations
enum	OpenDDS::DCPS::SendControlStatus { OpenDDS::DCPS::SEND_CONTROL_ERROR, OpenDDS::DCPS::SEND_CONTROL_OK }
	Return code type for send_control() operations. More...
enum	OpenDDS::DCPS::AttachStatus { OpenDDS::DCPS::ATTACH_BAD_TRANSPORT, OpenDDS::DCPS::ATTACH_ERROR, OpenDDS::DCPS::ATTACH_INCOMPATIBLE_QOS, OpenDDS::DCPS::ATTACH_OK }
	Return code type for attach_transport() operations. More...
enum	{ OpenDDS::DCPS::MAX_SEND_BLOCKS = 50 }
	Controls the maximum size of the iovec array used for a send packet. More...
enum	{ OpenDDS::DCPS::RECEIVE_DATA_BUFFER_SIZE = 65536 }
	Allocators used for transport receiving logic. More...
enum	{   OpenDDS::DCPS::DEFAULT_CONFIG_QUEUE_MESSAGES_PER_POOL = 10, OpenDDS::DCPS::DEFAULT_CONFIG_QUEUE_INITIAL_POOLS = 5, OpenDDS::DCPS::DEFAULT_CONFIG_MAX_PACKET_SIZE = 2147481599, OpenDDS::DCPS::DEFAULT_CONFIG_MAX_SAMPLES_PER_PACKET = 10,   OpenDDS::DCPS::DEFAULT_CONFIG_OPTIMUM_PACKET_SIZE = 4096 }
	Default TransportInst settings. More...
enum	OpenDDS::DCPS::RemoveResult { OpenDDS::DCPS::REMOVE_ERROR, OpenDDS::DCPS::REMOVE_NOT_FOUND, OpenDDS::DCPS::REMOVE_FOUND, OpenDDS::DCPS::REMOVE_RELEASED }
	used by DataLink::remove_sample(), TransportSendStrategy, *RemoveVisitor More...
Variables
static const ACE_TCHAR	OpenDDS::DCPS::TRANSPORT_SECTION_NAME [] = ACE_TEXT("transport")
static const ACE_TCHAR	OpenDDS::DCPS::CONFIG_SECTION_NAME [] = ACE_TEXT("config")

---

Define Documentation

#define GET_CONFIG_DOUBLE_VALUE	(	CF,
		SECT,
		KEY,
		VALUE		)

Value:

{                                                                              \
    ACE_TString stringvalue;                                                     \
    if (CF.get_string_value (SECT, KEY, stringvalue) == -1)                      \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                            \
      {                                                                          \
        ACE_DEBUG ((LM_NOTICE,                                                   \
                    ACE_TEXT ("(%P|%t) NOTICE: \"%s\" is not defined in config ") \
                    ACE_TEXT ("file - using code default.\n"),                   \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else  if (stringvalue == ACE_TEXT(""))                                       \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                            \
      {                                                                          \
        ACE_DEBUG ((LM_WARNING,                                                  \
                    ACE_TEXT ("(%P|%t) WARNING: \"%s\" is defined in config ")   \
                    ACE_TEXT ("file, but is missing value - using code default.\n"), \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else                                                                         \
    {                                                                            \
      VALUE = ACE_OS::strtod (stringvalue.c_str (), 0);                          \
    }                                                                            \
  }

Definition at line 126 of file TransportDefs.h.

Referenced by OpenDDS::DCPS::TcpInst::load().

#define GET_CONFIG_STRING_VALUE	(	CF,
		SECT,
		KEY,
		VALUE		)

Value:

{                                                                              \
    ACE_TString stringvalue;                                                     \
    if (CF.get_string_value (SECT, KEY, stringvalue) == -1)                      \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                              \
      {                                                                          \
        ACE_DEBUG ((LM_NOTICE,                                                   \
                    ACE_TEXT ("(%P|%t) NOTICE: \"%s\" is not defined in config ") \
                    ACE_TEXT ("file - using code default.\n"),                   \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else if (stringvalue == ACE_TEXT(""))                                       \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                            \
      {                                                                          \
        ACE_DEBUG ((LM_WARNING,                                                  \
                    ACE_TEXT ("(%P|%t) WARNING: \"%s\" is defined in config ")   \
                    ACE_TEXT ("file, but is missing value - using code default.\n"), \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else                                                                         \
    {                                                                            \
      VALUE = ACE_TEXT_ALWAYS_CHAR(stringvalue.c_str());                         \
    }                                                                            \
  }

Macro to get the individual configuration value from ACE_Configuration_Heap as string type.

Definition at line 68 of file TransportDefs.h.

Referenced by OpenDDS::DCPS::TcpInst::load(), OpenDDS::DCPS::RtpsUdpInst::load(), OpenDDS::DCPS::MulticastInst::load(), and OpenDDS::DCPS::Service_Participant::load_common_configuration().

#define GET_CONFIG_TIME_VALUE	(	CF,
		SECT,
		KEY,
		VALUE		)

Value:

{                                                                              \
    long tv = -1;                                                                \
    GET_CONFIG_VALUE(CF, SECT, KEY, tv, long);                                   \
    if (tv != -1) VALUE.msec(tv);                                                \
  }

Macro to get the individual configuration value from ACE_Configuration_Heap as ACE_Time_Value using milliseconds.

Definition at line 158 of file TransportDefs.h.

Referenced by OpenDDS::DCPS::RtpsUdpInst::load(), and OpenDDS::DCPS::MulticastInst::load().

#define GET_CONFIG_TSTRING_VALUE	(	CF,
		SECT,
		KEY,
		VALUE		)

Value:

{                                                                              \
    ACE_TString stringvalue;                                                     \
    if (CF.get_string_value (SECT, KEY, stringvalue) == -1)                      \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                              \
      {                                                                          \
        ACE_DEBUG ((LM_NOTICE,                                                   \
                    ACE_TEXT ("(%P|%t) NOTICE: \"%s\" is not defined in config ") \
                    ACE_TEXT ("file - using code default.\n"),                   \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else if (stringvalue == ACE_TEXT(""))                                        \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                              \
      {                                                                          \
        ACE_DEBUG ((LM_WARNING,                                                  \
                    ACE_TEXT ("(%P|%t) WARNING: \"%s\" is defined in config ")   \
                    ACE_TEXT ("file, but is missing value - using code default.\n"), \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else                                                                         \
    {                                                                            \
      VALUE = stringvalue;                                                       \
    }                                                                            \
  }

Definition at line 97 of file TransportDefs.h.

Referenced by OpenDDS::DCPS::UdpInst::load(), OpenDDS::DCPS::RtpsUdpInst::load(), OpenDDS::DCPS::MulticastInst::load(), and OpenDDS::DCPS::Service_Participant::load_common_configuration().

#define GET_CONFIG_VALUE	(	CF,
		SECT,
		KEY,
		VALUE,
		TYPE		)

Value:

{                                                                              \
    ACE_TString stringvalue;                                                     \
    if (CF.get_string_value (SECT, KEY, stringvalue) == -1)                      \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                            \
      {                                                                          \
        ACE_DEBUG ((LM_NOTICE,                                                   \
                    ACE_TEXT ("(%P|%t) NOTICE: \"%s\" is not defined in config ")\
                    ACE_TEXT ("file - using code default.\n"),                   \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else  if (stringvalue == ACE_TEXT(""))                                       \
    {                                                                            \
      if (OpenDDS::DCPS::Transport_debug_level > 0)                            \
      {                                                                          \
        ACE_DEBUG ((LM_WARNING,                                                  \
                    ACE_TEXT ("(%P|%t) WARNING: \"%s\" is defined in config ")   \
                    ACE_TEXT ("file, but is missing value - using code default.\n"), \
                    KEY));                                                       \
      }                                                                          \
    }                                                                            \
    else                                                                         \
    {                                                                            \
      VALUE = static_cast<TYPE>(ACE_OS::atoi (stringvalue.c_str ()));            \
    }                                                                            \
  }

Macro to get the individual configuration value from ACE_Configuration_Heap and cast to the specific type from integer.

Definition at line 37 of file TransportDefs.h.

Referenced by OpenDDS::DCPS::UdpInst::load(), OpenDDS::DCPS::TransportInst::load(), OpenDDS::DCPS::TcpInst::load(), OpenDDS::DCPS::ShmemInst::load(), OpenDDS::DCPS::RtpsUdpInst::load(), OpenDDS::DCPS::MulticastInst::load(), and OpenDDS::DCPS::Service_Participant::load_common_configuration().

#define RECEIVE_SYNCH   ACE_SYNCH_MUTEX

Guard the allocations for the underlying memory management of the receive processing with the following:

Notice that even we have only one thread for receiving per transport, the underly message blocks would interact with the threads from EndHistoricSamplesMissedSweeper which are different from the receiving threads. Therefore, we cannot use ACE_SYNCH_NULL_MUTEX here.

Definition at line 32 of file TransportDefs.h.
