OpenDDS::DCPS::RtpsUdpInst Class Reference

#include <RtpsUdpInst.h>

Inheritance diagram for OpenDDS::DCPS::RtpsUdpInst:

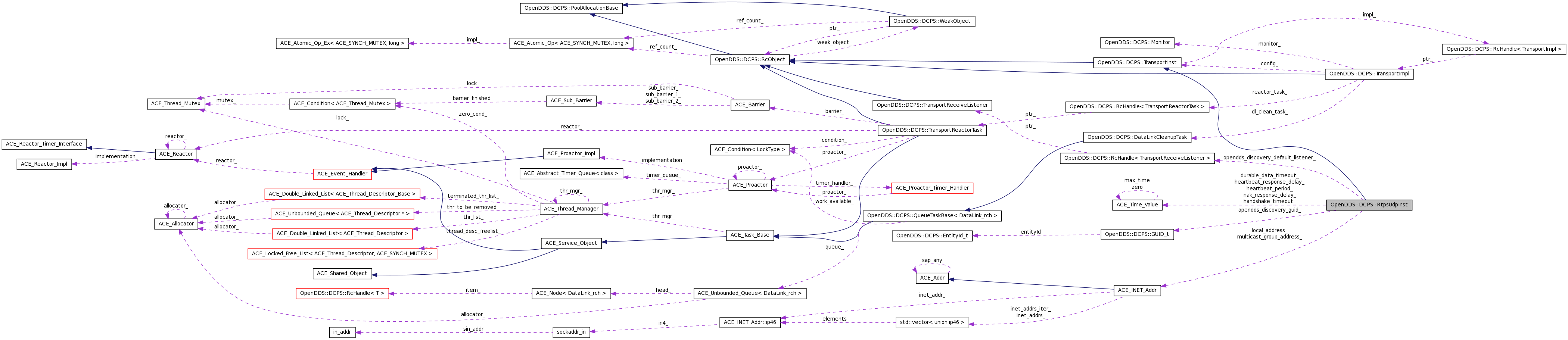

Collaboration diagram for OpenDDS::DCPS::RtpsUdpInst:

Public Member Functions
virtual int	load (ACE_Configuration_Heap &cf, ACE_Configuration_Section_Key &sect)
virtual OPENDDS_STRING	dump_to_str () const
	Diagnostic aid.
bool	is_reliable () const
	Does the transport as configured support RELIABLE_RELIABILITY_QOS?
bool	requires_cdr () const
	Does the transport require a CDR-encapsulated data payload?
virtual size_t	populate_locator (OpenDDS::DCPS::TransportLocator &trans_info) const
	Populate a transport locator sequence. Return the number of "locators.".
const TransportBLOB *	get_blob (const OpenDDS::DCPS::TransportLocatorSeq &trans_info) const
OPENDDS_STRING	local_address_string () const
ACE_INET_Addr	local_address () const
void	local_address (const char *str)
void	local_address (u_short port_number, const char *host_name)
void	local_address_set_port (u_short port_number)
Public Attributes
ACE_INT32	send_buffer_size_
ACE_INT32	rcv_buffer_size_
bool	use_multicast_
unsigned char	ttl_
ACE_INET_Addr	multicast_group_address_
OPENDDS_STRING	multicast_interface_
size_t	nak_depth_
ACE_Time_Value	nak_response_delay_
ACE_Time_Value	heartbeat_period_
ACE_Time_Value	heartbeat_response_delay_
ACE_Time_Value	handshake_timeout_
ACE_Time_Value	durable_data_timeout_
Private Member Functions
	RtpsUdpInst (const OPENDDS_STRING &name)
TransportImpl_rch	new_impl ()
Private Attributes
TransportReceiveListener_rch	opendds_discovery_default_listener_
RepoId	opendds_discovery_guid_
ACE_INET_Addr	local_address_
OPENDDS_STRING	local_address_config_str_
Friends
class	RtpsUdpType
class	RTPS::Sedp
class	RtpsUdpTransport
template<typename T , typename U >
RcHandle< T >	OpenDDS::DCPS::make_rch (U const &)

Detailed Description

Definition at line 28 of file RtpsUdpInst.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::RtpsUdpInst::RtpsUdpInst ( const OPENDDS_STRING & name ) [explicit, private]

Definition at line 25 of file RtpsUdpInst.cpp.

References defined(), and if().

00026   : TransportInst("rtps_udp", name)
00027 #if defined (ACE_DEFAULT_MAX_SOCKET_BUFSIZ)
00028   , send_buffer_size_(ACE_DEFAULT_MAX_SOCKET_BUFSIZ)
00029   , rcv_buffer_size_(ACE_DEFAULT_MAX_SOCKET_BUFSIZ)
00030 #else
00031   , send_buffer_size_(0)
00032   , rcv_buffer_size_(0)
00033 #endif
00034   , use_multicast_(true)
00035   , ttl_(1)
00036   , multicast_group_address_(7401, "239.255.0.2")
00037   , nak_depth_(32) // default nak_depth in OpenDDS_Multicast
00038   , nak_response_delay_(0, 200*1000 /*microseconds*/) // default from RTPS
00039   , heartbeat_period_(1) // no default in RTPS spec
00040   , heartbeat_response_delay_(0, 500*1000 /*microseconds*/) // default from RTPS
00041   , handshake_timeout_(30) // default syn_timeout in OpenDDS_Multicast
00042   , durable_data_timeout_(60)
00043   , opendds_discovery_guid_(GUID_UNKNOWN)
00044 {
00045 }

Here is the call graph for this function:

Member Function Documentation

OPENDDS_STRING OpenDDS::DCPS::RtpsUdpInst::dump_to_str ( ) const [virtual]

Diagnostic aid.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 103 of file RtpsUdpInst.cpp.

References OpenDDS::DCPS::TransportInst::formatNameForDump(), ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_port_number(), handshake_timeout_, heartbeat_period_, heartbeat_response_delay_, local_address(), ACE_Time_Value::msec(), multicast_group_address_, multicast_interface_, nak_depth_, nak_response_delay_, OPENDDS_STRING, OpenDDS::DCPS::to_dds_string(), and use_multicast_.

00104 {
00105   OPENDDS_STRING ret;
00106   // ACE_INET_Addr uses a static buffer for get_host_addr() so we can't
00107   // directly call it on both local_address_ and multicast_group_address_,
00108   // since the second call could overwrite the result of the first before the
00109   // OPENDDS_STRING gets a chance to see it.
00110   OPENDDS_STRING local;
00111   OPENDDS_STRING multi;
00112   const char* loc = local_address().get_host_addr();
00113   if (loc) {
00114     local = loc;
00115   } else {
00116     local = "NOT_SUPPORTED";
00117   }
00118   const char* mul = multicast_group_address_.get_host_addr();
00119   if (mul) {
00120     multi = mul;
00121   } else {
00122     multi = "NOT_SUPPORTED";
00123   }
00124   ret += TransportInst::dump_to_str();
00125   ret += formatNameForDump("local_address") + local;
00126   ret += ':' + to_dds_string(local_address().get_port_number()) + '\n';
00127   ret += formatNameForDump("use_multicast") + (use_multicast_ ? "true" : "false") + '\n';
00128   ret += formatNameForDump("multicast_group_address") + multi
00129       + ':' + to_dds_string(multicast_group_address_.get_port_number()) + '\n';
00130   ret += formatNameForDump("multicast_interface") + multicast_interface_ + '\n';
00131   ret += formatNameForDump("nak_depth") + to_dds_string(unsigned(nak_depth_)) + '\n';
00132   ret += formatNameForDump("nak_response_delay") + to_dds_string(nak_response_delay_.msec()) + '\n';
00133   ret += formatNameForDump("heartbeat_period") + to_dds_string(heartbeat_period_.msec()) + '\n';
00134   ret += formatNameForDump("heartbeat_response_delay") + to_dds_string(heartbeat_response_delay_.msec()) + '\n';
00135   ret += formatNameForDump("handshake_timeout") + to_dds_string(handshake_timeout_.msec()) + '\n';
00136   return ret;
00137 }

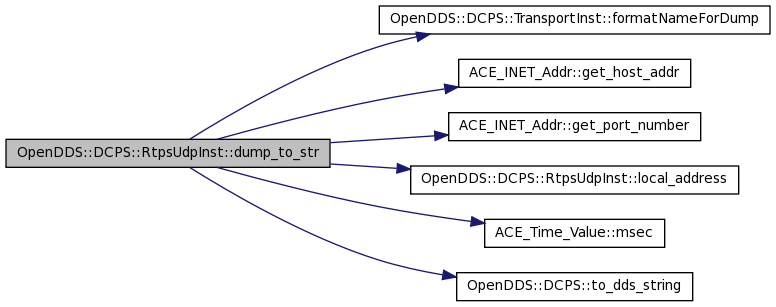

Here is the call graph for this function:

const TransportBLOB * OpenDDS::DCPS::RtpsUdpInst::get_blob ( const OpenDDS::DCPS::TransportLocatorSeq & trans_info ) const

Definition at line 191 of file RtpsUdpInst.cpp.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::register_for_reader(), and OpenDDS::DCPS::RtpsUdpTransport::register_for_writer().

00192 {
00193   for (CORBA::ULong idx = 0, limit = trans_info.length(); idx != limit; ++idx) {
00194     if (std::strcmp(trans_info[idx].transport_type, "rtps_udp") == 0) {
00195       return &trans_info[idx].data;
00196     }
00197   }
00198
00199   return 0;
00200 }

Here is the caller graph for this function:

bool OpenDDS::DCPS::RtpsUdpInst::is_reliable ( ) const [inline, virtual]

Does the transport as configured support RELIABLE_RELIABILITY_QOS?

Implements OpenDDS::DCPS::TransportInst.

Definition at line 48 of file RtpsUdpInst.h.

00048 { return true; }

int OpenDDS::DCPS::RtpsUdpInst::load	(	ACE_Configuration_Heap &	cf,
		ACE_Configuration_Section_Key &	sect
	)			`[virtual]`

Overwrite the default configurations with the configuration from the given section in the ACE_Configuration_Heap object.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 54 of file RtpsUdpInst.cpp.

References ACE_TEXT(), ACE_TEXT_ALWAYS_CHAR, ACE_String_Base< ACE_CHAR_T >::c_str(), GET_CONFIG_STRING_VALUE, GET_CONFIG_TIME_VALUE, GET_CONFIG_TSTRING_VALUE, GET_CONFIG_VALUE, handshake_timeout_, heartbeat_period_, heartbeat_response_delay_, ACE_String_Base< ACE_CHAR_T >::is_empty(), local_address(), multicast_group_address_, multicast_interface_, nak_depth_, nak_response_delay_, ACE_String_Base_Const::npos, rcv_buffer_size_, ACE_String_Base< ACE_CHAR_T >::rfind(), send_buffer_size_, ACE_INET_Addr::set(), ttl_, and use_multicast_.

00056 {
00057   TransportInst::load(cf, sect); // delegate to parent
00058
00059   ACE_TString local_address_s;
00060   GET_CONFIG_TSTRING_VALUE(cf, sect, ACE_TEXT("local_address"),
00061                            local_address_s);
00062   if (!local_address_s.is_empty()) {
00063     local_address(ACE_TEXT_ALWAYS_CHAR(local_address_s.c_str()));
00064   }
00065
00066   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("send_buffer_size"), this->send_buffer_size_, ACE_UINT32);
00067
00068   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("rcv_buffer_size"), this->rcv_buffer_size_, ACE_UINT32);
00069
00070
00071   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("use_multicast"), use_multicast_, bool);
00072
00073   ACE_TString group_address_s;
00074   GET_CONFIG_TSTRING_VALUE(cf, sect, ACE_TEXT("multicast_group_address"),
00075                            group_address_s);
00076   if (!group_address_s.is_empty()) {
00077     if (group_address_s.rfind(':') == group_address_s.npos) {
00078       // Concatenate a port number if the user does not supply one.
00079       group_address_s += ACE_TEXT(":7401");
00080     }
00081     multicast_group_address_.set(group_address_s.c_str());
00082   }
00083
00084   GET_CONFIG_STRING_VALUE(cf, sect, ACE_TEXT("multicast_interface"),
00085                           multicast_interface_);
00086
00087   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_depth"), nak_depth_, size_t);
00088
00089   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("ttl"), ttl_, unsigned char);
00090
00091   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("nak_response_delay"),
00092                         nak_response_delay_);
00093   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("heartbeat_period"),
00094                         heartbeat_period_);
00095   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("heartbeat_response_delay"),
00096                         heartbeat_response_delay_);
00097   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("handshake_timeout"),
00098                         handshake_timeout_);
00099   return 0;
00100 }

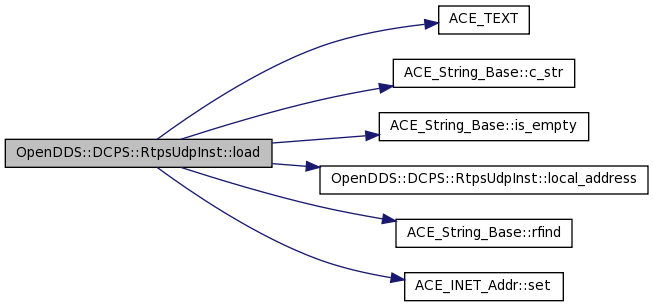

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpInst::local_address	(	u_short	port_number,
		const char *	host_name
	)			`[inline]`

Definition at line 61 of file RtpsUdpInst.h.

References OpenDDS::DCPS::to_dds_string().

00062   {
00063     local_address_config_str_ = host_name;
00064     local_address_config_str_ += ":" + to_dds_string(port_number);
00065     local_address_.set(port_number, host_name);
00066   }

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpInst::local_address ( const char * str ) [inline]

Definition at line 56 of file RtpsUdpInst.h.

References ACE_INET_Addr::set().

00057   {
00058     local_address_config_str_ = str;
00059     local_address_.set(str);
00060   }

Here is the call graph for this function:

ACE_INET_Addr OpenDDS::DCPS::RtpsUdpInst::local_address ( ) const [inline]

Definition at line 55 of file RtpsUdpInst.h.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::configure_i(), dump_to_str(), load(), and populate_locator().

00055 { return local_address_; }

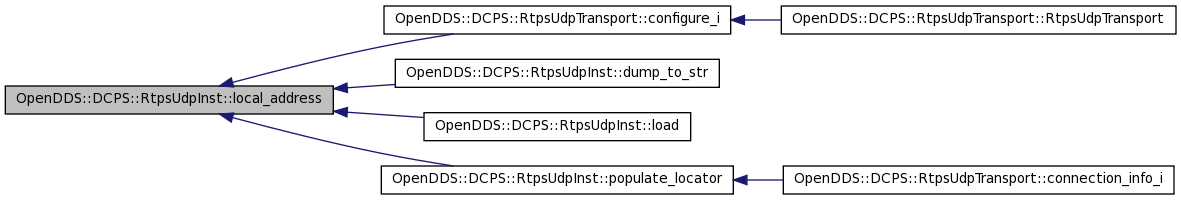

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpInst::local_address_set_port ( u_short port_number ) [inline]

Definition at line 67 of file RtpsUdpInst.h.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::configure_i().

00067                                                    {
00068     local_address_.set_port_number(port_number);
00069     set_port_in_addr_string(local_address_config_str_, port_number);
00070   }

Here is the caller graph for this function:

OPENDDS_STRING OpenDDS::DCPS::RtpsUdpInst::local_address_string ( ) const [inline]

Definition at line 54 of file RtpsUdpInst.h.

Referenced by populate_locator().

00054 { return local_address_config_str_; }

Here is the caller graph for this function:

TransportImpl_rch OpenDDS::DCPS::RtpsUdpInst::new_impl ( ) [private, virtual]

Implements OpenDDS::DCPS::TransportInst.

Definition at line 48 of file RtpsUdpInst.cpp.

References OpenDDS::DCPS::ref().

00049 {
00050   return make_rch<RtpsUdpTransport>(ref(*this));
00051 }

Here is the call graph for this function:

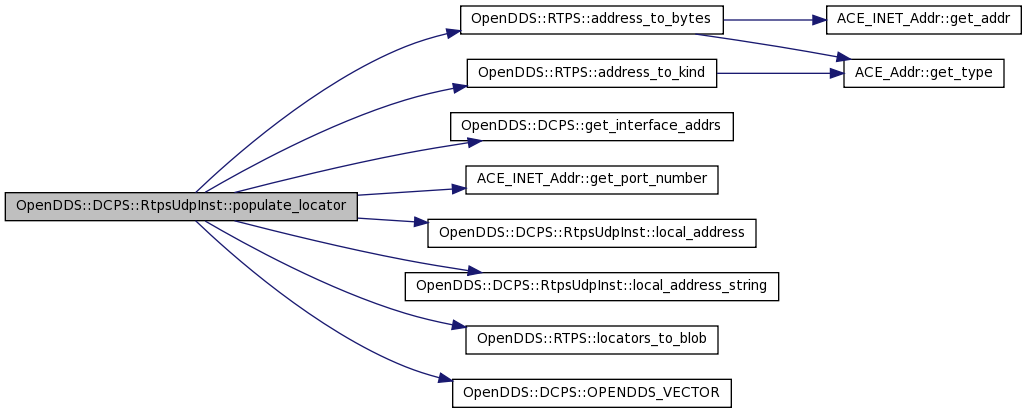

size_t OpenDDS::DCPS::RtpsUdpInst::populate_locator ( OpenDDS::DCPS::TransportLocator & trans_info ) const [virtual]

Populate a transport locator sequence. Return the number of "locators.".

Implements OpenDDS::DCPS::TransportInst.

Definition at line 140 of file RtpsUdpInst.cpp.

References OpenDDS::RTPS::address_to_bytes(), OpenDDS::RTPS::address_to_kind(), OpenDDS::DCPS::TransportLocator::data, OpenDDS::DCPS::get_interface_addrs(), ACE_INET_Addr::get_port_number(), local_address(), local_address_string(), OpenDDS::RTPS::locators_to_blob(), multicast_group_address_, OpenDDS::DCPS::OPENDDS_VECTOR(), TheServiceParticipant, OpenDDS::DCPS::TransportLocator::transport_type, and use_multicast_.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::connection_info_i().

00141 {
00142   using namespace OpenDDS::RTPS;
00143
00144   LocatorSeq locators;
00145   CORBA::ULong idx = 0;
00146
00147   // multicast first so it's preferred by remote peers
00148   if (this->use_multicast_ && this->multicast_group_address_ != ACE_INET_Addr()) {
00149     idx = locators.length();
00150     locators.length(idx + 1);
00151     locators[idx].kind = address_to_kind(this->multicast_group_address_);
00152     locators[idx].port = this->multicast_group_address_.get_port_number();
00153     RTPS::address_to_bytes(locators[idx].address,
00154                            this->multicast_group_address_);
00155   }
00156
00157   //if local_address_string is empty, or only the port has been set
00158   //need to get interface addresses to populate into the locator
00159   if (this->local_address_string().empty() ||
00160       this->local_address_string().rfind(':') == 0) {
00161     typedef OPENDDS_VECTOR(ACE_INET_Addr) AddrVector;
00162     AddrVector addrs;
00163     if (TheServiceParticipant->default_address ().empty ()) {
00164       get_interface_addrs(addrs);
00165     } else {
00166       addrs.push_back (ACE_INET_Addr (static_cast<u_short> (0), TheServiceParticipant->default_address ().c_str ()));
00167     }
00168     for (AddrVector::iterator adr_it = addrs.begin(); adr_it != addrs.end(); ++adr_it) {
00169       idx = locators.length();
00170       locators.length(idx + 1);
00171       locators[idx].kind = address_to_kind(*adr_it);
00172       locators[idx].port = this->local_address().get_port_number();
00173       RTPS::address_to_bytes(locators[idx].address, *adr_it);
00174     }
00175   } else {
00176     idx = locators.length();
00177     locators.length(idx + 1);
00178     locators[idx].kind = address_to_kind(this->local_address());
00179     locators[idx].port = this->local_address().get_port_number();
00180     RTPS::address_to_bytes(locators[idx].address,
00181                            this->local_address());
00182   }
00183
00184   info.transport_type = "rtps_udp";
00185   RTPS::locators_to_blob(locators, info.data);
00186
00187   return locators.length();
00188 }
