OpenDDS::RTPS::Sedp Class Reference

#include <Sedp.h>

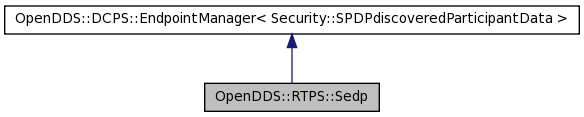

Inheritance diagram for OpenDDS::RTPS::Sedp:
Inheritance graph
[legend]

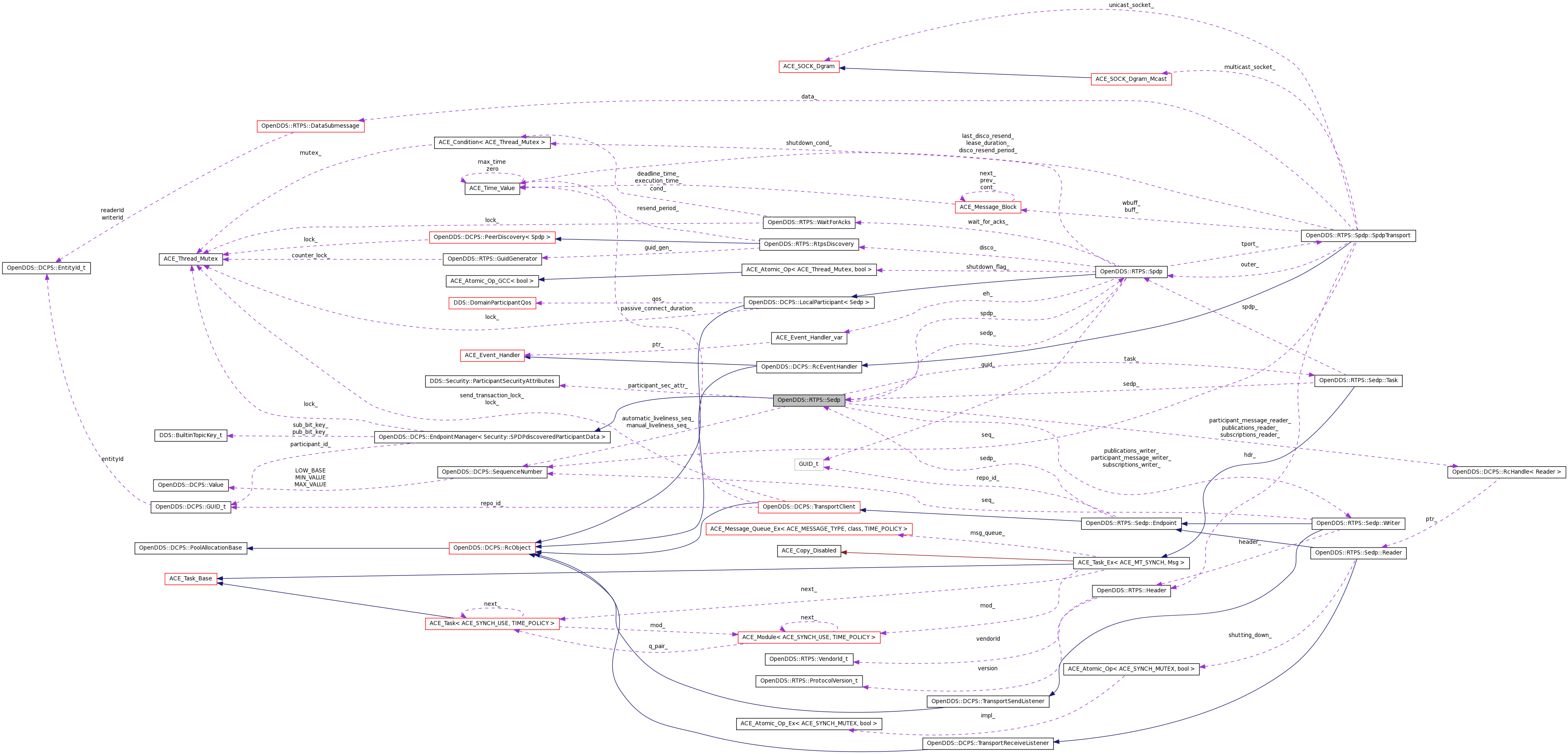

Collaboration diagram for OpenDDS::RTPS::Sedp:
Collaboration graph
[legend]

List of all members.

Classes

class  Endpoint
struct  LocalParticipantMessage
struct  Msg
class  Reader
struct  Task
class  Writer

Public Member Functions

 Sedp (const DCPS::RepoId &participant_id, Spdp &owner, ACE_Thread_Mutex &lock)
DDS::ReturnCode_t init (const DCPS::RepoId &guid, const RtpsDiscovery &disco, DDS::DomainId_t domainId)
void acknowledge ()
 request for acknowledgement from all Sedp threads (Task)
void shutdown ()
void unicast_locators (DCPS::LocatorSeq &locators) const
const ACE_INET_Addr & local_address () const
const ACE_INET_Addr & multicast_group () const
bool map_ipv4_to_ipv6 () const
void associate (const Security::SPDPdiscoveredParticipantData &pdata)
bool disassociate (const Security::SPDPdiscoveredParticipantData &pdata)
DDS::ReturnCode_t write_dcps_participant_dispose (const DCPS::RepoId &part)
bool update_topic_qos (const DCPS::RepoId &topicId, const DDS::TopicQos &qos, OPENDDS_STRING &name)
bool update_publication_qos (const DCPS::RepoId &publicationId, const DDS::DataWriterQos &qos, const DDS::PublisherQos &publisherQos)
bool update_subscription_qos (const DCPS::RepoId &subscriptionId, const DDS::DataReaderQos &qos, const DDS::SubscriberQos &subscriberQos)
bool update_subscription_params (const DCPS::RepoId &subId, const DDS::StringSeq &params)
void association_complete (const DCPS::RepoId &localId, const DCPS::RepoId &remoteId)
void signal_liveliness (DDS::LivelinessQosPolicyKind kind)
void signal_liveliness_unsecure (DDS::LivelinessQosPolicyKind kind)
template<typename Map >
void remove_entities_belonging_to (Map &m, RepoId participant)

Static Public Attributes

static const bool host_is_bigendian_

Private Types

typedef DCPS::RcHandle< Reader > Reader_rch
typedef
LocalParticipantMessageMap::iterator 		LocalParticipantMessageIter
typedef
LocalParticipantMessageMap::const_iterator 		LocalParticipantMessageCIter
typedef std::pair
< DCPS::MessageId,
DCPS::DiscoveredWriterData > 		MsgIdWtrDataPair
typedef std::pair
< DCPS::MessageId,
DCPS::DiscoveredReaderData > 		MsgIdRdrDataPair

Private Member Functions

DCPS::TopicBuiltinTopicDataDataReaderImpl * topic_bit ()
DCPS::PublicationBuiltinTopicDataDataReaderImpl * pub_bit ()
DCPS::SubscriptionBuiltinTopicDataDataReaderImpl * sub_bit ()
void populate_discovered_writer_msg (DCPS::DiscoveredWriterData &dwd, const DCPS::RepoId &publication_id, const LocalPublication &pub)
void populate_discovered_reader_msg (DCPS::DiscoveredReaderData &drd, const DCPS::RepoId &subscription_id, const LocalSubscription &sub)
typedef OPENDDS_MAP_CMP (DCPS::RepoId, LocalParticipantMessage, DCPS::GUID_tKeyLessThan) LocalParticipantMessageMap
void process_discovered_writer_data (DCPS::MessageId message_id, const DCPS::DiscoveredWriterData &wdata, const DCPS::RepoId &guid, const DDS::Security::EndpointSecurityInfo *security_info=NULL)
void data_received (DCPS::MessageId message_id, const DCPS::DiscoveredWriterData &wdata)
void process_discovered_reader_data (DCPS::MessageId message_id, const DCPS::DiscoveredReaderData &rdata, const DCPS::RepoId &guid, const DDS::Security::EndpointSecurityInfo *security_info=NULL)
void data_received (DCPS::MessageId message_id, const DCPS::DiscoveredReaderData &rdata)
void data_received (DCPS::MessageId message_id, const ParticipantMessageData &data)
typedef OPENDDS_MAP_CMP (DCPS::RepoId, MsgIdWtrDataPair, DCPS::GUID_tKeyLessThan) DeferredPublicationMap
typedef OPENDDS_MAP_CMP (DCPS::RepoId, MsgIdRdrDataPair, DCPS::GUID_tKeyLessThan) DeferredSubscriptionMap
void assign_bit_key (DiscoveredPublication &pub)
void assign_bit_key (DiscoveredSubscription &sub)
template<typename Map >
void remove_entities_belonging_to (Map &m, DCPS::RepoId participant)
void remove_from_bit_i (const DiscoveredPublication &pub)
void remove_from_bit_i (const DiscoveredSubscription &sub)
virtual DDS::ReturnCode_t remove_publication_i (const DCPS::RepoId &publicationId)
virtual DDS::ReturnCode_t remove_subscription_i (const DCPS::RepoId &subscriptionId)
void inconsistent_topic (const DCPS::RepoIdSet &endpoints) const
virtual bool shutting_down () const
virtual void populate_transport_locator_sequence (DCPS::TransportLocatorSeq *&tls, DiscoveredSubscriptionIter &iter, const DCPS::RepoId &reader)
virtual void populate_transport_locator_sequence (DCPS::TransportLocatorSeq *&tls, DiscoveredPublicationIter &iter, const DCPS::RepoId &writer)
virtual bool defer_writer (const DCPS::RepoId &writer, const DCPS::RepoId &writer_participant)
virtual bool defer_reader (const DCPS::RepoId &reader, const DCPS::RepoId &reader_participant)
void write_durable_publication_data (const DCPS::RepoId &reader)
void write_durable_subscription_data (const DCPS::RepoId &reader)
void write_durable_participant_message_data (const DCPS::RepoId &reader)
DDS::ReturnCode_t write_publication_data (const DCPS::RepoId &rid, LocalPublication &pub, const DCPS::RepoId &reader=DCPS::GUID_UNKNOWN)
DDS::ReturnCode_t write_publication_data_unsecure (const DCPS::RepoId &rid, LocalPublication &pub, const DCPS::RepoId &reader=DCPS::GUID_UNKNOWN)
DDS::ReturnCode_t write_subscription_data (const DCPS::RepoId &rid, LocalSubscription &pub, const DCPS::RepoId &reader=DCPS::GUID_UNKNOWN)
DDS::ReturnCode_t write_subscription_data_unsecure (const DCPS::RepoId &rid, LocalSubscription &pub, const DCPS::RepoId &reader=DCPS::GUID_UNKNOWN)
DDS::ReturnCode_t write_participant_message_data (const DCPS::RepoId &rid, LocalParticipantMessage &part, const DCPS::RepoId &reader=DCPS::GUID_UNKNOWN)
bool is_opendds (const GUID_t &endpoint) const

Static Private Member Functions

static DCPS::RepoId make_id (const DCPS::RepoId &participant_id, const EntityId_t &entity)
static void set_inline_qos (DCPS::TransportLocatorSeq &locators)

Private Attributes

Spdp & spdp_
DDS::Security::ParticipantSecurityAttributes participant_sec_attr_
Writer publications_writer_
Writer subscriptions_writer_
Writer participant_message_writer_
Reader_rch publications_reader_
Reader_rch subscriptions_reader_
Reader_rch participant_message_reader_
OpenDDS::RTPS::Sedp::Task task_
DCPS::TransportInst_rch transport_inst_
LocalParticipantMessageMap local_participant_messages_
DeferredPublicationMap deferred_publications_
DeferredSubscriptionMap deferred_subscriptions_
DCPS::RepoIdSet defer_match_endpoints_
DCPS::RepoIdSet associated_participants_
DCPS::SequenceNumber automatic_liveliness_seq_
DCPS::SequenceNumber manual_liveliness_seq_

Detailed Description

Definition at line 60 of file Sedp.h.

Member Typedef Documentation

typedef LocalParticipantMessageMap::const_iterator OpenDDS::RTPS::Sedp::LocalParticipantMessageCIter [private]

Definition at line 495 of file Sedp.h.

typedef LocalParticipantMessageMap::iterator OpenDDS::RTPS::Sedp::LocalParticipantMessageIter [private]

Definition at line 494 of file Sedp.h.

typedef std::pair<DCPS::MessageId, DCPS::DiscoveredReaderData> OpenDDS::RTPS::Sedp::MsgIdRdrDataPair [private]

Definition at line 547 of file Sedp.h.

typedef std::pair<DCPS::MessageId, DCPS::DiscoveredWriterData> OpenDDS::RTPS::Sedp::MsgIdWtrDataPair [private]

Definition at line 542 of file Sedp.h.

typedef DCPS::RcHandle<Reader> OpenDDS::RTPS::Sedp::Reader_rch [private]

Definition at line 388 of file Sedp.h.

Constructor & Destructor Documentation

OpenDDS::RTPS::Sedp::Sedp ( const DCPS::RepoId &  participant_id,
Spdp &  owner,
ACE_Thread_Mutex &  lock
)

Member Function Documentation

void OpenDDS::RTPS::Sedp::acknowledge (  )

request for acknowledgement from all Sedp threads (Task)

Definition at line 3485 of file Sedp.cpp.

References OpenDDS::RTPS::Sedp::Task::acknowledge(), and task_.

Referenced by OpenDDS::RTPS::Spdp::fini_bit().

03486 {
03487   task_.acknowledge();
03488 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::assign_bit_key ( DiscoveredSubscription &  sub  )  [private]

Definition at line 683 of file Sedp.cpp.

References OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::increment_key(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::sub_bit_key_, and OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::sub_key_to_id_.

00684 {
00685   increment_key(sub_bit_key_);
00686   sub_key_to_id_[sub_bit_key_] = sub.reader_data_.readerProxy.remoteReaderGuid;
00687   sub.reader_data_.ddsSubscriptionData.key = sub_bit_key_;
00688 }

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::assign_bit_key ( DiscoveredPublication &  pub  )  [private]

Definition at line 675 of file Sedp.cpp.

References OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::increment_key(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::pub_bit_key_, and OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::pub_key_to_id_.

00676 {
00677   increment_key(pub_bit_key_);
00678   pub_key_to_id_[pub_bit_key_] = pub.writer_data_.writerProxy.remoteWriterGuid;
00679   pub.writer_data_.ddsPublicationData.key = pub_bit_key_;
00680 }

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::associate ( const Security::SPDPdiscoveredParticipantData &  pdata  )

Definition at line 755 of file Sedp.cpp.

References OpenDDS::RTPS::ParticipantProxy_t::availableBuiltinEndpoints, OpenDDS::RTPS::BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_WRITER, OpenDDS::RTPS::create_association_data_proto(), OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_PUBLICATION_ANNOUNCER, OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_ANNOUNCER, OpenDDS::RTPS::Sedp::Task::enqueue(), OpenDDS::DCPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_WRITER, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_PUBLICATIONS_WRITER, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_WRITER, OpenDDS::DCPS::move(), participant_message_reader_, OpenDDS::Security::SPDPdiscoveredParticipantData::participantProxy, publications_reader_, OpenDDS::DCPS::AssociationData::remote_id_, OpenDDS::DCPS::SAMPLE_DATA, subscriptions_reader_, and task_.

Referenced by OpenDDS::RTPS::Spdp::match_unauthenticated().

00756 {
00757   // First create a 'prototypical' instance of AssociationData.  It will
00758   // be copied and modified for each of the (up to) four SEDP Endpoints.
00759   DCPS::AssociationData proto;
00760   create_association_data_proto(proto, pdata);
00761
00762   const BuiltinEndpointSet_t& avail =
00763     pdata.participantProxy.availableBuiltinEndpoints;
00764
00765   // See RTPS v2.1 section 8.5.5.1
00766   if (avail & DISC_BUILTIN_ENDPOINT_PUBLICATION_ANNOUNCER) {
00767     DCPS::AssociationData peer = proto;
00768     peer.remote_id_.entityId = ENTITYID_SEDP_BUILTIN_PUBLICATIONS_WRITER;
00769     publications_reader_->assoc(peer);
00770   }
00771   if (avail & DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_ANNOUNCER) {
00772     DCPS::AssociationData peer = proto;
00773     peer.remote_id_.entityId = ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_WRITER;
00774     subscriptions_reader_->assoc(peer);
00775   }
00776   if (avail & BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_WRITER) {
00777     DCPS::AssociationData peer = proto;
00778     peer.remote_id_.entityId = ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_WRITER;
00779     participant_message_reader_->assoc(peer);
00780   }
00781
00782   DCPS::unique_ptr<Security::SPDPdiscoveredParticipantData> dpd(
00783     new Security::SPDPdiscoveredParticipantData(pdata));
00784
00785   task_.enqueue(DCPS::SAMPLE_DATA, move(dpd));
00786 }

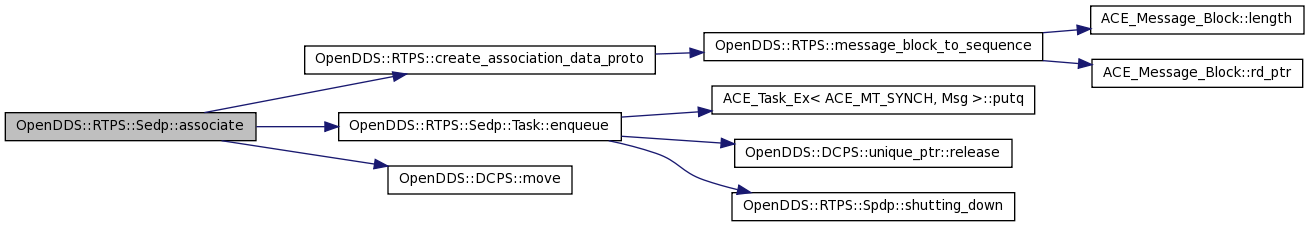

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::association_complete ( const DCPS::RepoId &  localId,
const DCPS::RepoId &  remoteId
) [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

void OpenDDS::RTPS::Sedp::data_received ( DCPS::MessageId  message_id,
const ParticipantMessageData &  data
) [private]

Definition at line 2159 of file Sedp.cpp.

References OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::RTPS::Spdp::has_discovered_participant(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::ignoring(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::local_subscriptions_, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::lock_, OpenDDS::RTPS::ParticipantMessageData::participantGuid, OpenDDS::RTPS::Spdp::shutting_down(), and spdp_.

02161 {
02162   if (spdp_.shutting_down()) { return; }
02163
02164   const RepoId& guid = data.participantGuid;
02165   RepoId guid_participant = guid;
02166   guid_participant.entityId = ENTITYID_PARTICIPANT;
02167   RepoId prefix = data.participantGuid;
02168   prefix.entityId = EntityId_t(); // Clear the entityId so lower bound will work.
02169
02170   ACE_GUARD(ACE_Thread_Mutex, g, lock_);
02171
02172   if (ignoring(guid)
02173       || ignoring(guid_participant)) {
02174     return;
02175   }
02176
02177   if (!spdp_.has_discovered_participant(guid_participant)) {
02178     return;
02179   }
02180
02181   for (LocalSubscriptionMap::const_iterator sub_pos = local_subscriptions_.begin(),
02182          sub_limit = local_subscriptions_.end();
02183        sub_pos != sub_limit; ++sub_pos) {
02184     const DCPS::RepoIdSet::const_iterator pos =
02185       sub_pos->second.matched_endpoints_.lower_bound(prefix);
02186     if (pos != sub_pos->second.matched_endpoints_.end() &&
02187         DCPS::GuidPrefixEqual()(pos->guidPrefix, prefix.guidPrefix)) {
02188       sub_pos->second.subscription_->signal_liveliness(guid_participant);
02189     }
02190   }
02191 }

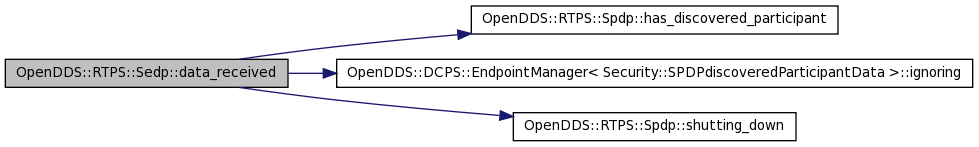

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::data_received ( DCPS::MessageId  message_id,
const DCPS::DiscoveredReaderData &  rdata
) [private]

Definition at line 2089 of file Sedp.cpp.

References OpenDDS::DCPS::DiscoveredReaderData::ddsSubscriptionData, deferred_subscriptions_, OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::RTPS::Spdp::has_discovered_participant(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::ignoring(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::lock_, process_discovered_reader_data(), OpenDDS::DCPS::DiscoveredReaderData::readerProxy, OpenDDS::RTPS::Spdp::shutting_down(), spdp_, and DDS::SubscriptionBuiltinTopicData::topic_name.

02091 {
02092   if (spdp_.shutting_down()) { return; }
02093
02094   const RepoId& guid = rdata.readerProxy.remoteReaderGuid;
02095   RepoId guid_participant = guid;
02096   guid_participant.entityId = ENTITYID_PARTICIPANT;
02097
02098   ACE_GUARD(ACE_Thread_Mutex, g, lock_);
02099
02100   if (ignoring(guid)
02101       || ignoring(guid_participant)
02102       || ignoring(rdata.ddsSubscriptionData.topic_name)) {
02103     return;
02104   }
02105
02106 #if defined(OPENDDS_SECURITY)
02107   if (should_drop_message(rdata.ddsSubscriptionData.topic_name)) {
02108     return;
02109   }
02110 #endif
02111
02112   if (!spdp_.has_discovered_participant(guid_participant)) {
02113     deferred_subscriptions_[guid] = std::make_pair(message_id, rdata);
02114     return;
02115   }
02116
02117   process_discovered_reader_data(message_id, rdata, guid);
02118 }

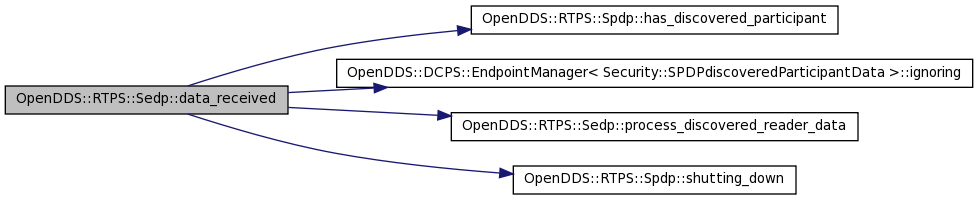

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::data_received ( DCPS::MessageId  message_id,
const DCPS::DiscoveredWriterData &  wdata
) [private]

Definition at line 1754 of file Sedp.cpp.

References OpenDDS::DCPS::DiscoveredWriterData::ddsPublicationData, deferred_publications_, OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::RTPS::Spdp::has_discovered_participant(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::ignoring(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::lock_, process_discovered_writer_data(), OpenDDS::RTPS::Spdp::shutting_down(), spdp_, DDS::PublicationBuiltinTopicData::topic_name, and OpenDDS::DCPS::DiscoveredWriterData::writerProxy.

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

01756 {
01757   if (spdp_.shutting_down()) { return; }
01758
01759   const RepoId& guid = wdata.writerProxy.remoteWriterGuid;
01760   RepoId guid_participant = guid;
01761   guid_participant.entityId = ENTITYID_PARTICIPANT;
01762
01763   ACE_GUARD(ACE_Thread_Mutex, g, lock_);
01764
01765   if (ignoring(guid)
01766       || ignoring(guid_participant)
01767       || ignoring(wdata.ddsPublicationData.topic_name)) {
01768     return;
01769   }
01770
01771 #if defined(OPENDDS_SECURITY)
01772   if (should_drop_message(wdata.ddsPublicationData.topic_name)) {
01773     return;
01774   }
01775 #endif
01776
01777   if (!spdp_.has_discovered_participant(guid_participant)) {
01778     deferred_publications_[guid] = std::make_pair(message_id, wdata);
01779     return;
01780   }
01781
01782   process_discovered_writer_data(message_id, wdata, guid);
01783 }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool OpenDDS::RTPS::Sedp::defer_reader ( const DCPS::RepoId &  reader,
const DCPS::RepoId &  reader_participant
) [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

virtual bool OpenDDS::RTPS::Sedp::defer_writer ( const DCPS::RepoId &  writer,
const DCPS::RepoId &  writer_participant
) [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

bool OpenDDS::RTPS::Sedp::disassociate ( const Security::SPDPdiscoveredParticipantData &  pdata  )  [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

Definition at line 1137 of file Sedp.cpp.

References associated_participants_, OpenDDS::RTPS::ParticipantProxy_t::availableBuiltinEndpoints, OpenDDS::RTPS::BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_READER, OpenDDS::RTPS::BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_WRITER, DDS::Security::BUILTIN_PARTICIPANT_STATELESS_MESSAGE_READER, DDS::Security::BUILTIN_PARTICIPANT_STATELESS_MESSAGE_WRITER, OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_PUBLICATION_ANNOUNCER, OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_PUBLICATION_DETECTOR, OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_ANNOUNCER, OpenDDS::RTPS::DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_DETECTOR, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::discovered_publications_, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::discovered_subscriptions_, OpenDDS::DCPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_READER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_SECURE_READER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_SECURE_WRITER, OpenDDS::DCPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_WRITER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_STATELESS_READER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_STATELESS_WRITER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_READER, OpenDDS::RTPS::ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER, OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_PUBLICATIONS_READER, OpenDDS::RTPS::ENTITYID_SEDP_BUILTIN_PUBLICATIONS_SECURE_READER, OpenDDS::RTPS::ENTITYID_SEDP_BUILTIN_PUBLICATIONS_SECURE_WRITER, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_PUBLICATIONS_WRITER, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_READER, OpenDDS::RTPS::ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_READER, OpenDDS::RTPS::ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_WRITER, OpenDDS::DCPS::ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_WRITER, OpenDDS::RTPS::ENTITYID_SPDP_RELIABLE_BUILTIN_PARTICIPANT_SECURE_READER, OpenDDS::RTPS::ENTITYID_SPDP_RELIABLE_BUILTIN_PARTICIPANT_SECURE_WRITER, OpenDDS::RTPS::ParticipantProxy_t::guidPrefix, OpenDDS::RTPS::Spdp::has_discovered_participant(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::lock_, participant_message_reader_, participant_message_writer_, OpenDDS::Security::SPDPdiscoveredParticipantData::participantProxy, publications_reader_, publications_writer_, remove_entities_belonging_to(), spdp_, subscriptions_reader_, and subscriptions_writer_.

01138 {
01139   RepoId part;
01140   std::memcpy(part.guidPrefix, pdata.participantProxy.guidPrefix,
01141               sizeof(GuidPrefix_t));
01142   part.entityId = ENTITYID_PARTICIPANT;
01143   associated_participants_.erase(part);
01144   const BuiltinEndpointSet_t avail =
01145     pdata.participantProxy.availableBuiltinEndpoints;
01146
01147   { // Release lock, so we can call into transport
01148     ACE_Reverse_Lock<ACE_Thread_Mutex> rev_lock(lock_);
01149     ACE_GUARD_RETURN(ACE_Reverse_Lock< ACE_Thread_Mutex>, rg, rev_lock, false);
01150
01151     disassociate_helper(avail, DISC_BUILTIN_ENDPOINT_PUBLICATION_DETECTOR, part,
01152       ENTITYID_SEDP_BUILTIN_PUBLICATIONS_READER, publications_writer_);
01153     disassociate_helper(avail, DISC_BUILTIN_ENDPOINT_PUBLICATION_ANNOUNCER, part,
01154       ENTITYID_SEDP_BUILTIN_PUBLICATIONS_WRITER, *publications_reader_);
01155
01156     disassociate_helper(avail, DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_DETECTOR, part,
01157       ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_READER, subscriptions_writer_);
01158     disassociate_helper(avail, DISC_BUILTIN_ENDPOINT_SUBSCRIPTION_ANNOUNCER, part,
01159       ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_WRITER, *subscriptions_reader_);
01160
01161     disassociate_helper(avail, BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_READER, part,
01162       ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_READER, participant_message_writer_);
01163     disassociate_helper(avail, BUILTIN_ENDPOINT_PARTICIPANT_MESSAGE_DATA_WRITER, part,
01164       ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_WRITER, *participant_message_reader_);
01165
01166     //FUTURE: if/when topic propagation is supported, add it here
01167
01168 #if defined(OPENDDS_SECURITY)
01169     using namespace DDS::Security;
01170
01171     disassociate_helper(avail, SEDP_BUILTIN_PUBLICATIONS_SECURE_READER, part,
01172       ENTITYID_SEDP_BUILTIN_PUBLICATIONS_SECURE_READER, publications_secure_writer_);
01173     disassociate_helper(avail, SEDP_BUILTIN_PUBLICATIONS_SECURE_WRITER, part,
01174       ENTITYID_SEDP_BUILTIN_PUBLICATIONS_SECURE_WRITER, *publications_secure_reader_);
01175
01176     disassociate_helper(avail, SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_READER, part,
01177       ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_READER, subscriptions_secure_writer_);
01178     disassociate_helper(avail, SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_WRITER, part,
01179       ENTITYID_SEDP_BUILTIN_SUBSCRIPTIONS_SECURE_WRITER, *subscriptions_secure_reader_);
01180
01181     disassociate_helper(avail, BUILTIN_PARTICIPANT_MESSAGE_SECURE_READER, part,
01182       ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_SECURE_READER, participant_message_secure_writer_);
01183     disassociate_helper(avail, BUILTIN_PARTICIPANT_MESSAGE_SECURE_WRITER, part,
01184       ENTITYID_P2P_BUILTIN_PARTICIPANT_MESSAGE_SECURE_WRITER, *participant_message_secure_reader_);
01185
01186     disassociate_helper(avail, BUILTIN_PARTICIPANT_STATELESS_MESSAGE_READER, part,
01187       ENTITYID_P2P_BUILTIN_PARTICIPANT_STATELESS_READER, participant_stateless_message_writer_);
01188     disassociate_helper(avail, BUILTIN_PARTICIPANT_STATELESS_MESSAGE_WRITER, part,
01189       ENTITYID_P2P_BUILTIN_PARTICIPANT_STATELESS_WRITER, *participant_stateless_message_reader_);
01190
01191     disassociate_helper(avail, BUILTIN_PARTICIPANT_VOLATILE_MESSAGE_SECURE_READER, part,
01192       ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_READER, participant_volatile_message_secure_writer_);
01193     disassociate_helper(avail, BUILTIN_PARTICIPANT_VOLATILE_MESSAGE_SECURE_WRITER, part,
01194       ENTITYID_P2P_BUILTIN_PARTICIPANT_VOLATILE_SECURE_WRITER, *participant_volatile_message_secure_reader_);
01195
01196     disassociate_helper(avail, SPDP_BUILTIN_PARTICIPANT_SECURE_READER, part,
01197       ENTITYID_SPDP_RELIABLE_BUILTIN_PARTICIPANT_SECURE_READER, dcps_participant_secure_writer_);
01198     disassociate_helper(avail, SPDP_BUILTIN_PARTICIPANT_SECURE_WRITER, part,
01199       ENTITYID_SPDP_RELIABLE_BUILTIN_PARTICIPANT_SECURE_WRITER, *dcps_participant_secure_reader_);
01200 #endif
01201
01202   }
01203
01204   if (spdp_.has_discovered_participant(part)) {
01205     remove_entities_belonging_to(discovered_publications_, part);
01206     remove_entities_belonging_to(discovered_subscriptions_, part);
01207     return true;
01208   } else {
01209     return false;
01210   }
01211 }

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::inconsistent_topic ( const DCPS::RepoIdSet &  endpoints  )  const [private]

Definition at line 1376 of file Sedp.cpp.

References OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::local_publications_, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::local_subscriptions_, and OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::participant_id_.

01377 {
01378   using DCPS::RepoIdSet;
01379   for (RepoIdSet::const_iterator iter(eps.begin()); iter != eps.end(); ++iter) {
01380     if (0 == std::memcmp(participant_id_.guidPrefix, iter->guidPrefix,
01381                          sizeof(GuidPrefix_t))) {
01382       const bool reader = iter->entityId.entityKind & 4;
01383       if (reader) {
01384         const LocalSubscriptionCIter lsi = local_subscriptions_.find(*iter);
01385         if (lsi != local_subscriptions_.end()) {
01386           lsi->second.subscription_->inconsistent_topic();
01387           // Only make one callback per inconsistent topic, even if we have
01388           // more than one reader/writer on the topic -- it's the Topic object
01389           // that will actually see the InconsistentTopicStatus change.
01390           return;
01391         }
01392       } else {
01393         const LocalPublicationCIter lpi = local_publications_.find(*iter);
01394         if (lpi != local_publications_.end()) {
01395           lpi->second.publication_->inconsistent_topic();
01396           return; // see comment above
01397         }
01398       }
01399     }
01400   }
01401 }

DDS::ReturnCode_t OpenDDS::RTPS::Sedp::init ( const DCPS::RepoId &  guid,
const RtpsDiscovery &  disco,
DDS::DomainId_t  domainId
)

Referenced by OpenDDS::RTPS::Spdp::init().

Here is the caller graph for this function:

bool OpenDDS::RTPS::Sedp::is_opendds ( const GUID_t &  endpoint  )  const [private]

Definition at line 2372 of file Sedp.cpp.

References OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::RTPS::Spdp::is_opendds(), and spdp_.

02373 {
02374   GUID_t participant = endpoint;
02375   participant.entityId = DCPS::ENTITYID_PARTICIPANT;
02376   return spdp_.is_opendds(participant);
02377 }

Here is the call graph for this function:

const ACE_INET_Addr & OpenDDS::RTPS::Sedp::local_address (  )  const

Definition at line 650 of file Sedp.cpp.

References OpenDDS::DCPS::static_rchandle_cast(), and transport_inst_.

Referenced by map_ipv4_to_ipv6().

00651 {
00652   DCPS::RtpsUdpInst_rch rtps_inst =
00653       DCPS::static_rchandle_cast<DCPS::RtpsUdpInst>(transport_inst_);
00654   return rtps_inst->local_address_;
00655 }

Here is the call graph for this function:

Here is the caller graph for this function:

static DCPS::RepoId OpenDDS::RTPS::Sedp::make_id ( const DCPS::RepoId &  participant_id,
const EntityId_t &  entity
) [static, private]
bool OpenDDS::RTPS::Sedp::map_ipv4_to_ipv6 (  )  const

Definition at line 665 of file Sedp.cpp.

References local_address().

00666 {
00667   bool map = false;
00668   if (local_address().get_type() != AF_INET) {
00669     map = true;
00670   }
00671   return map;
00672 }

Here is the call graph for this function:

const ACE_INET_Addr & OpenDDS::RTPS::Sedp::multicast_group (  )  const

Definition at line 658 of file Sedp.cpp.

References OpenDDS::DCPS::static_rchandle_cast(), and transport_inst_.

Referenced by OpenDDS::RTPS::Spdp::init().

00659 {
00660   DCPS::RtpsUdpInst_rch rtps_inst =
00661       DCPS::static_rchandle_cast<DCPS::RtpsUdpInst>(transport_inst_);
00662   return rtps_inst->multicast_group_address_;
00663 }

Here is the call graph for this function:

Here is the caller graph for this function:

typedef OpenDDS::RTPS::Sedp::OPENDDS_MAP_CMP ( DCPS::RepoId  ,
MsgIdRdrDataPair  ,
DCPS::GUID_tKeyLessThan
) [private]
typedef OpenDDS::RTPS::Sedp::OPENDDS_MAP_CMP ( DCPS::RepoId  ,
MsgIdWtrDataPair  ,
DCPS::GUID_tKeyLessThan
) [private]
typedef OpenDDS::RTPS::Sedp::OPENDDS_MAP_CMP ( DCPS::RepoId  ,
LocalParticipantMessage  ,
DCPS::GUID_tKeyLessThan
) [private]
void OpenDDS::RTPS::Sedp::populate_discovered_reader_msg ( DCPS::DiscoveredReaderData &  drd,
const DCPS::RepoId &  subscription_id,
const LocalSubscription &  sub
) [private]
void OpenDDS::RTPS::Sedp::populate_discovered_writer_msg ( DCPS::DiscoveredWriterData &  dwd,
const DCPS::RepoId &  publication_id,
const LocalPublication &  pub
) [private]
virtual void OpenDDS::RTPS::Sedp::populate_transport_locator_sequence ( DCPS::TransportLocatorSeq *&  tls,
DiscoveredPublicationIter &  iter,
const DCPS::RepoId &  writer
) [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

virtual void OpenDDS::RTPS::Sedp::populate_transport_locator_sequence ( DCPS::TransportLocatorSeq *&  tls,
DiscoveredSubscriptionIter &  iter,
const DCPS::RepoId &  reader
) [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

void OpenDDS::RTPS::Sedp::process_discovered_reader_data ( DCPS::MessageId  message_id,
const DCPS::DiscoveredReaderData &  rdata,
const DCPS::RepoId &  guid,
const DDS::Security::EndpointSecurityInfo *  security_info = NULL
) [private]

Referenced by data_received().

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::process_discovered_writer_data ( DCPS::MessageId  message_id,
const DCPS::DiscoveredWriterData &  wdata,
const DCPS::RepoId &  guid,
const DDS::Security::EndpointSecurityInfo *  security_info = NULL
) [private]

Referenced by data_received().

Here is the caller graph for this function:

DCPS::PublicationBuiltinTopicDataDataReaderImpl * OpenDDS::RTPS::Sedp::pub_bit (  )  [private]

Definition at line 1309 of file Sedp.cpp.

References OpenDDS::DCPS::LocalParticipant< EndpointManagerType >::bit_subscriber(), OpenDDS::DCPS::BUILT_IN_PUBLICATION_TOPIC, and spdp_.

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

01310 {
01311   DDS::Subscriber_var sub = spdp_.bit_subscriber();
01312   if (!sub.in())
01313     return 0;
01314
01315   DDS::DataReader_var d =
01316     sub->lookup_datareader(DCPS::BUILT_IN_PUBLICATION_TOPIC);
01317   return dynamic_cast<DCPS::PublicationBuiltinTopicDataDataReaderImpl*>(d.in());
01318 }

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename Map >
void OpenDDS::RTPS::Sedp::remove_entities_belonging_to ( Map &  m,
RepoId  participant
) [inline]

Definition at line 1215 of file Sedp.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::get_topic_name(), LM_DEBUG, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::match_endpoints(), OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::OPENDDS_MAP(), OPENDDS_STRING, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::remove_from_bit(), OpenDDS::RTPS::Spdp::shutting_down(), and spdp_.

01216 {
01217   participant.entityId.entityKey[0] = 0;
01218   participant.entityId.entityKey[1] = 0;
01219   participant.entityId.entityKey[2] = 0;
01220   participant.entityId.entityKind = 0;
01221   for (typename Map::iterator i = m.lower_bound(participant);
01222        i != m.end() && 0 == std::memcmp(i->first.guidPrefix,
01223                                         participant.guidPrefix,
01224                                         sizeof(GuidPrefix_t));) {
01225     OPENDDS_STRING topic_name = get_topic_name(i->second);
01226     OPENDDS_MAP(OPENDDS_STRING, TopicDetails)::iterator top_it =
01227       topics_.find(topic_name);
01228     if (top_it != topics_.end()) {
01229       top_it->second.endpoints_.erase(i->first);
01230       if (DCPS::DCPS_debug_level > 3) {
01231         ACE_DEBUG((LM_DEBUG,
01232                    ACE_TEXT("(%P|%t) Sedp::remove_entities_belonging_to - ")
01233                    ACE_TEXT("calling match_endpoints remove\n")));
01234       }
01235       match_endpoints(i->first, top_it->second, true /*remove*/);
01236       if (spdp_.shutting_down()) { return; }
01237     }
01238     remove_from_bit(i->second);
01239     m.erase(i++);
01240   }
01241 }

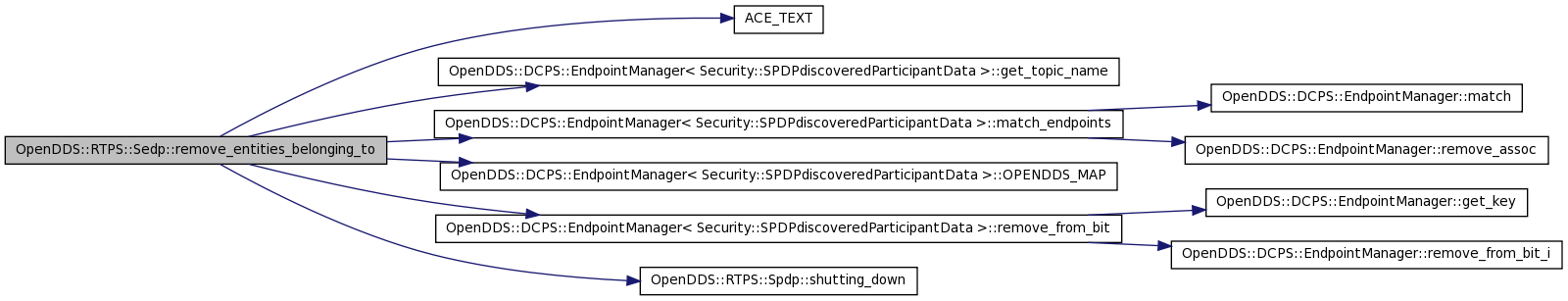

Here is the call graph for this function:

template<typename Map >
void OpenDDS::RTPS::Sedp::remove_entities_belonging_to ( Map &  m,
DCPS::RepoId  participant
) [inline, private]

Referenced by disassociate().

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::remove_from_bit_i ( const DiscoveredSubscription &  sub  )  [private, virtual]

Reimplemented from OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

Definition at line 1254 of file Sedp.cpp.

References OpenDDS::RTPS::Sedp::Task::enqueue(), OpenDDS::RTPS::Sedp::Msg::MSG_REMOVE_FROM_SUB_BIT, and task_.

01255 {
01256 #ifndef DDS_HAS_MINIMUM_BIT
01257   task_.enqueue(Msg::MSG_REMOVE_FROM_SUB_BIT, sub.bit_ih_);
01258 #else
01259   ACE_UNUSED_ARG(sub);
01260 #endif /* DDS_HAS_MINIMUM_BIT */
01261 }

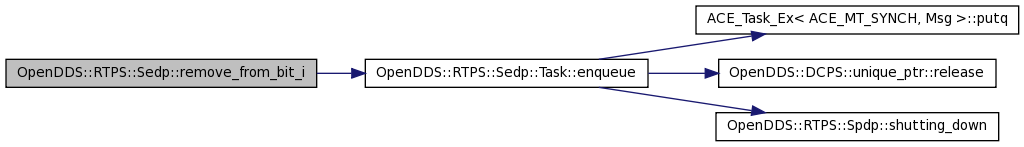

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::remove_from_bit_i ( const DiscoveredPublication &  pub  )  [private, virtual]

Reimplemented from OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

Definition at line 1244 of file Sedp.cpp.

References OpenDDS::RTPS::Sedp::Task::enqueue(), OpenDDS::RTPS::Sedp::Msg::MSG_REMOVE_FROM_PUB_BIT, and task_.

01245 {
01246 #ifndef DDS_HAS_MINIMUM_BIT
01247   task_.enqueue(Msg::MSG_REMOVE_FROM_PUB_BIT, pub.bit_ih_);
01248 #else
01249   ACE_UNUSED_ARG(pub);
01250 #endif /* DDS_HAS_MINIMUM_BIT */
01251 }

Here is the call graph for this function:

virtual DDS::ReturnCode_t OpenDDS::RTPS::Sedp::remove_publication_i ( const DCPS::RepoId &  publicationId  )  [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

virtual DDS::ReturnCode_t OpenDDS::RTPS::Sedp::remove_subscription_i ( const DCPS::RepoId &  subscriptionId  )  [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

void OpenDDS::RTPS::Sedp::set_inline_qos ( DCPS::TransportLocatorSeq &  locators  )  [static, private]

Definition at line 3472 of file Sedp.cpp.

References OPENDDS_STRING.

Referenced by OpenDDS::RTPS::Sedp::Reader::data_received().

03473 {
03474   const OPENDDS_STRING rtps_udp = "rtps_udp";
03475   for (CORBA::ULong i = 0; i < locators.length(); ++i) {
03476     if (locators[i].transport_type.in() == rtps_udp) {
03477       const CORBA::ULong len = locators[i].data.length();
03478       locators[i].data.length(len + 1);
03479       locators[i].data[len] = CORBA::Octet(1);
03480     }
03481   }
03482 }

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::shutdown ( void   )

Definition at line 1498 of file Sedp.cpp.

References participant_message_reader_, publications_reader_, OpenDDS::RTPS::Sedp::Task::shutdown(), subscriptions_reader_, and task_.

Referenced by OpenDDS::RTPS::Spdp::~Spdp().

01499 {
01500   task_.shutdown();
01501   publications_reader_->shutting_down_ = true;
01502   subscriptions_reader_->shutting_down_ = true;
01503   participant_message_reader_->shutting_down_ = true;
01504 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::RTPS::Sedp::shutting_down ( void   )  const [private, virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

Definition at line 3673 of file Sedp.cpp.

References OpenDDS::RTPS::Spdp::shutting_down(), and spdp_.

03674 {
03675   return spdp_.shutting_down();
03676 }

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::signal_liveliness ( DDS::LivelinessQosPolicyKind  kind  )

Definition at line 2399 of file Sedp.cpp.

References ACE_TEXT(), DDS::Security::SecurityException::code, DDS::Security::TopicSecurityAttributes::is_liveliness_protected, LM_WARNING, DDS::Security::SecurityException::message, DDS::Security::SecurityException::minor_code, and signal_liveliness_unsecure().

Referenced by OpenDDS::RTPS::Spdp::signal_liveliness().

02400 {
02401
02402 #if defined(OPENDDS_SECURITY)
02403   DDS::Security::SecurityException se = {"", 0, 0};
02404   DDS::Security::TopicSecurityAttributes attribs;
02405
02406   if (is_security_enabled()) {
02407     // TODO: Pending issue DDSSEC12-28 Topic security attributes
02408     // may get changed to a different set of security attributes.
02409     bool ok = get_access_control()->get_topic_sec_attributes(
02410       get_permissions_handle(), "DCPSParticipantMessageSecure", attribs, se);
02411
02412     if (ok) {
02413
02414       if (attribs.is_liveliness_protected) {
02415         signal_liveliness_secure(kind);
02416
02417       } else {
02418         signal_liveliness_unsecure(kind);
02419       }
02420
02421     } else {
02422       ACE_DEBUG((LM_WARNING, ACE_TEXT("(%P|%t) WARNING: Sedp::signal_liveliness() - ")
02423         ACE_TEXT("Failure calling get_topic_sec_attributes(). Security Exception[%d.%d]: %C\n"),
02424           se.code, se.minor_code, se.message.in()));
02425     }
02426
02427   } else {
02428 #endif
02429
02430     signal_liveliness_unsecure(kind);
02431
02432 #if defined(OPENDDS_SECURITY)
02433   }
02434 #endif
02435 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::signal_liveliness_unsecure ( DDS::LivelinessQosPolicyKind  kind  )

Definition at line 2438 of file Sedp.cpp.

References DDS::AUTOMATIC_LIVELINESS_QOS, automatic_liveliness_seq_, OpenDDS::DCPS::GUID_t::entityId, OpenDDS::DCPS::GUID_UNKNOWN, DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS, DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS, manual_liveliness_seq_, OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >::participant_id_, OpenDDS::RTPS::PARTICIPANT_MESSAGE_DATA_KIND_AUTOMATIC_LIVELINESS_UPDATE, OpenDDS::RTPS::PARTICIPANT_MESSAGE_DATA_KIND_MANUAL_LIVELINESS_UPDATE, participant_message_writer_, OpenDDS::RTPS::ParticipantMessageData::participantGuid, and OpenDDS::RTPS::Sedp::Writer::write_participant_message().

Referenced by signal_liveliness().

02439 {
02440   ParticipantMessageData data;
02441   data.participantGuid = participant_id_;
02442
02443   switch (kind) {
02444   case DDS::AUTOMATIC_LIVELINESS_QOS:
02445     data.participantGuid.entityId = DCPS::EntityIdConverter(PARTICIPANT_MESSAGE_DATA_KIND_AUTOMATIC_LIVELINESS_UPDATE);
02446     participant_message_writer_.write_participant_message(data, GUID_UNKNOWN, automatic_liveliness_seq_);
02447     break;
02448
02449   case DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS:
02450     data.participantGuid.entityId = DCPS::EntityIdConverter(PARTICIPANT_MESSAGE_DATA_KIND_MANUAL_LIVELINESS_UPDATE);
02451     participant_message_writer_.write_participant_message(data, GUID_UNKNOWN, manual_liveliness_seq_);
02452     break;
02453
02454   case DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS:
02455     // Do nothing.
02456     break;
02457   }
02458 }

Here is the call graph for this function:

Here is the caller graph for this function:

DCPS::SubscriptionBuiltinTopicDataDataReaderImpl * OpenDDS::RTPS::Sedp::sub_bit (  )  [private]

Definition at line 1321 of file Sedp.cpp.

References OpenDDS::DCPS::LocalParticipant< EndpointManagerType >::bit_subscriber(), OpenDDS::DCPS::BUILT_IN_SUBSCRIPTION_TOPIC, and spdp_.

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

01322 {
01323   DDS::Subscriber_var sub = spdp_.bit_subscriber();
01324   if (!sub.in())
01325     return 0;
01326
01327   DDS::DataReader_var d =
01328     sub->lookup_datareader(DCPS::BUILT_IN_SUBSCRIPTION_TOPIC);
01329   return dynamic_cast<DCPS::SubscriptionBuiltinTopicDataDataReaderImpl*>(d.in());
01330 }

Here is the call graph for this function:

Here is the caller graph for this function:

DCPS::TopicBuiltinTopicDataDataReaderImpl * OpenDDS::RTPS::Sedp::topic_bit (  )  [private]

Definition at line 1297 of file Sedp.cpp.

References OpenDDS::DCPS::LocalParticipant< EndpointManagerType >::bit_subscriber(), OpenDDS::DCPS::BUILT_IN_TOPIC_TOPIC, and spdp_.

01298 {
01299   DDS::Subscriber_var sub = spdp_.bit_subscriber();
01300   if (!sub.in())
01301     return 0;
01302
01303   DDS::DataReader_var d =
01304     sub->lookup_datareader(DCPS::BUILT_IN_TOPIC_TOPIC);
01305   return dynamic_cast<DCPS::TopicBuiltinTopicDataDataReaderImpl*>(d.in());
01306 }

Here is the call graph for this function:

void OpenDDS::RTPS::Sedp::unicast_locators ( DCPS::LocatorSeq &  locators  )  const

Definition at line 602 of file Sedp.cpp.

References OpenDDS::RTPS::address_to_bytes(), OpenDDS::RTPS::address_to_kind(), OpenDDS::DCPS::get_interface_addrs(), OPENDDS_VECTOR, OpenDDS::DCPS::static_rchandle_cast(), TheServiceParticipant, and transport_inst_.

Referenced by OpenDDS::RTPS::Spdp::init().

00603 {
00604   DCPS::RtpsUdpInst_rch rtps_inst =
00605     DCPS::static_rchandle_cast<DCPS::RtpsUdpInst>(transport_inst_);
00606   using namespace OpenDDS::RTPS;
00607
00608   CORBA::ULong idx = 0;
00609
00610   // multicast first so it's preferred by remote peers
00611   if (rtps_inst->use_multicast_ && rtps_inst->multicast_group_address_ != ACE_INET_Addr()) {
00612     idx = locators.length();
00613     locators.length(idx + 1);
00614     locators[idx].kind = address_to_kind(rtps_inst->multicast_group_address_);
00615     locators[idx].port = rtps_inst->multicast_group_address_.get_port_number();
00616     RTPS::address_to_bytes(locators[idx].address,
00617       rtps_inst->multicast_group_address_);
00618   }
00619
00620   //if local_address_string is empty, or only the port has been set
00621   //need to get interface addresses to populate into the locator
00622   if (rtps_inst->local_address_config_str_.empty() ||
00623       rtps_inst->local_address_config_str_.rfind(':') == 0) {
00624     typedef OPENDDS_VECTOR(ACE_INET_Addr) AddrVector;
00625     AddrVector addrs;
00626     if (TheServiceParticipant->default_address ().empty ()) {
00627       DCPS::get_interface_addrs(addrs);
00628     } else {
00629       addrs.push_back(ACE_INET_Addr(static_cast<u_short>(0), TheServiceParticipant->default_address().c_str()));
00630     }
00631     for (AddrVector::iterator adr_it = addrs.begin(); adr_it != addrs.end(); ++adr_it) {
00632       idx = locators.length();
00633       locators.length(idx + 1);
00634       locators[idx].kind = address_to_kind(*adr_it);
00635       locators[idx].port = rtps_inst->local_address_.get_port_number();
00636       RTPS::address_to_bytes(locators[idx].address,
00637         *adr_it);
00638     }
00639   } else {
00640     idx = locators.length();
00641     locators.length(idx + 1);
00642     locators[idx].kind = address_to_kind(rtps_inst->local_address_);
00643     locators[idx].port = rtps_inst->local_address_.get_port_number();
00644     RTPS::address_to_bytes(locators[idx].address,
00645       rtps_inst->local_address_);
00646   }
00647 }

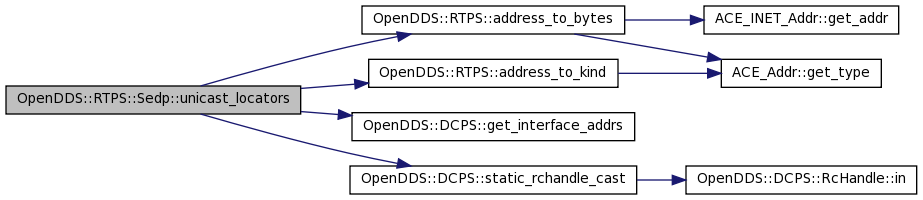

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::RTPS::Sedp::update_publication_qos ( const DCPS::RepoId &  publicationId,
const DDS::DataWriterQos &  qos,
const DDS::PublisherQos &  publisherQos
) [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

bool OpenDDS::RTPS::Sedp::update_subscription_params ( const DCPS::RepoId &  subId,
const DDS::StringSeq &  params
) [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

bool OpenDDS::RTPS::Sedp::update_subscription_qos ( const DCPS::RepoId &  subscriptionId,
const DDS::DataReaderQos &  qos,
const DDS::SubscriberQos &  subscriberQos
) [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

bool OpenDDS::RTPS::Sedp::update_topic_qos ( const DCPS::RepoId &  topicId,
const DDS::TopicQos &  qos,
OPENDDS_STRING &  name
) [virtual]

Implements OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_dcps_participant_dispose ( const DCPS::RepoId &  part  )
void OpenDDS::RTPS::Sedp::write_durable_participant_message_data ( const DCPS::RepoId &  reader  )  [private]

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::write_durable_publication_data ( const DCPS::RepoId &  reader  )  [private]

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

Here is the caller graph for this function:

void OpenDDS::RTPS::Sedp::write_durable_subscription_data ( const DCPS::RepoId &  reader  )  [private]

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

Here is the caller graph for this function:

DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_participant_message_data ( const DCPS::RepoId &  rid,
LocalParticipantMessage &  part,
const DCPS::RepoId &  reader = DCPS::GUID_UNKNOWN
) [private]
DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_publication_data ( const DCPS::RepoId &  rid,
LocalPublication &  pub,
const DCPS::RepoId &  reader = DCPS::GUID_UNKNOWN
) [private, virtual]

Reimplemented from OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_publication_data_unsecure ( const DCPS::RepoId &  rid,
LocalPublication &  pub,
const DCPS::RepoId &  reader = DCPS::GUID_UNKNOWN
) [private]
DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_subscription_data ( const DCPS::RepoId &  rid,
LocalSubscription &  pub,
const DCPS::RepoId &  reader = DCPS::GUID_UNKNOWN
) [private, virtual]

Reimplemented from OpenDDS::DCPS::EndpointManager< Security::SPDPdiscoveredParticipantData >.

DDS::ReturnCode_t OpenDDS::RTPS::Sedp::write_subscription_data_unsecure ( const DCPS::RepoId &  rid,
LocalSubscription &  pub,
const DCPS::RepoId &  reader = DCPS::GUID_UNKNOWN
) [private]

Member Data Documentation

DCPS::RepoIdSet OpenDDS::RTPS::Sedp::associated_participants_ [private]

Definition at line 566 of file Sedp.h.

Referenced by disassociate(), and OpenDDS::RTPS::Sedp::Task::svc_i().

DCPS::SequenceNumber OpenDDS::RTPS::Sedp::automatic_liveliness_seq_ [private]

Definition at line 646 of file Sedp.h.

Referenced by signal_liveliness_unsecure().

DCPS::RepoIdSet OpenDDS::RTPS::Sedp::defer_match_endpoints_ [private]

Definition at line 566 of file Sedp.h.

Referenced by OpenDDS::RTPS::Sedp::Task::svc_i().

DeferredPublicationMap OpenDDS::RTPS::Sedp::deferred_publications_ [private]

Definition at line 545 of file Sedp.h.

Referenced by data_received(), and OpenDDS::RTPS::Sedp::Task::svc_i().

DeferredSubscriptionMap OpenDDS::RTPS::Sedp::deferred_subscriptions_ [private]

Definition at line 550 of file Sedp.h.

Referenced by data_received(), and OpenDDS::RTPS::Sedp::Task::svc_i().

const bool OpenDDS::RTPS::Sedp::host_is_bigendian_ [static]

Definition at line 142 of file Sedp.h.

LocalParticipantMessageMap OpenDDS::RTPS::Sedp::local_participant_messages_ [private]

Definition at line 496 of file Sedp.h.

DCPS::SequenceNumber OpenDDS::RTPS::Sedp::manual_liveliness_seq_ [private]

Definition at line 647 of file Sedp.h.

Referenced by signal_liveliness_unsecure().

Reader_rch OpenDDS::RTPS::Sedp::participant_message_reader_ [private]

Definition at line 402 of file Sedp.h.

Referenced by associate(), disassociate(), and shutdown().

Writer OpenDDS::RTPS::Sedp::participant_message_writer_ [private]

Definition at line 353 of file Sedp.h.

Referenced by disassociate(), signal_liveliness_unsecure(), and OpenDDS::RTPS::Sedp::Task::svc_i().

DDS::Security::ParticipantSecurityAttributes OpenDDS::RTPS::Sedp::participant_sec_attr_ [private]

Definition at line 145 of file Sedp.h.

Reader_rch OpenDDS::RTPS::Sedp::publications_reader_ [private]

Definition at line 390 of file Sedp.h.

Referenced by associate(), disassociate(), and shutdown().

Writer OpenDDS::RTPS::Sedp::publications_writer_ [private]

Definition at line 341 of file Sedp.h.

Referenced by disassociate(), and OpenDDS::RTPS::Sedp::Task::svc_i().

Spdp& OpenDDS::RTPS::Sedp::spdp_ [private]

Definition at line 144 of file Sedp.h.

Referenced by data_received(), disassociate(), is_opendds(), pub_bit(), remove_entities_belonging_to(), shutting_down(), sub_bit(), and topic_bit().

Reader_rch OpenDDS::RTPS::Sedp::subscriptions_reader_ [private]

Definition at line 396 of file Sedp.h.

Referenced by associate(), disassociate(), and shutdown().

Writer OpenDDS::RTPS::Sedp::subscriptions_writer_ [private]

Definition at line 347 of file Sedp.h.

Referenced by disassociate(), and OpenDDS::RTPS::Sedp::Task::svc_i().

OpenDDS::RTPS::Sedp::Task OpenDDS::RTPS::Sedp::task_ [private]

Referenced by acknowledge(), associate(), OpenDDS::RTPS::Sedp::Reader::data_received(), remove_from_bit_i(), and shutdown().

DCPS::TransportInst_rch OpenDDS::RTPS::Sedp::transport_inst_ [private]

Definition at line 472 of file Sedp.h.

Referenced by local_address(), multicast_group(), and unicast_locators().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
