OpenDDS::DCPS::RtpsUdpSendStrategy Class Reference

#include <RtpsUdpSendStrategy.h>

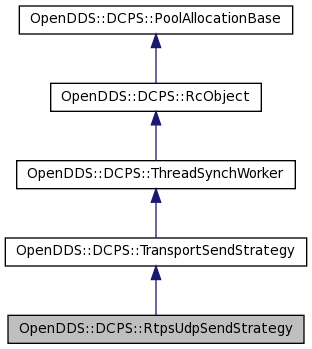

Inheritance diagram for OpenDDS::DCPS::RtpsUdpSendStrategy:
Inheritance graph
[legend]

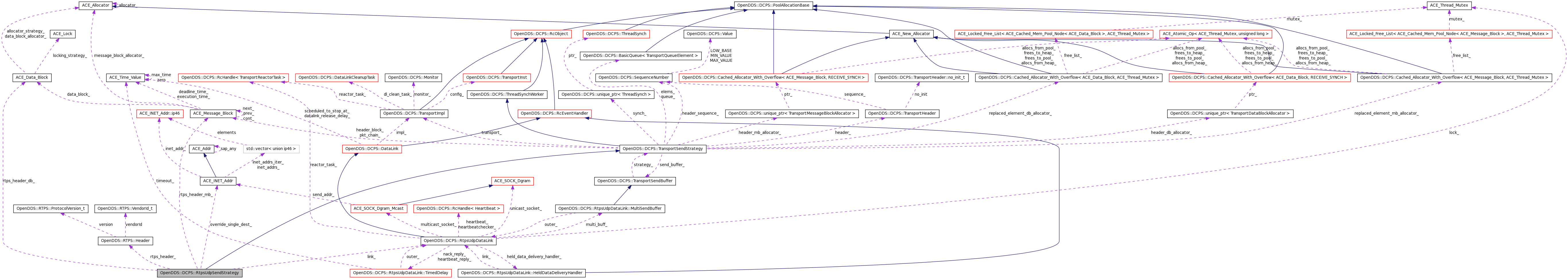

Collaboration diagram for OpenDDS::DCPS::RtpsUdpSendStrategy:
Collaboration graph
[legend]

List of all members.

Classes

struct  OverrideToken

Public Member Functions

 RtpsUdpSendStrategy (RtpsUdpDataLink *link, const GuidPrefix_t &local_prefix)
virtual void stop_i ()
 Let the subclass stop.
OverrideToken override_destinations (const ACE_INET_Addr &destination)
OverrideToken override_destinations (const OPENDDS_SET(ACE_INET_Addr)&destinations)
void send_rtps_control (ACE_Message_Block &submessages, const ACE_INET_Addr &destination)
void send_rtps_control (ACE_Message_Block &submessages, const OPENDDS_SET(ACE_INET_Addr)&destinations)

Protected Member Functions

virtual ssize_t send_bytes_i (const iovec iov[], int n)
ssize_t send_bytes_i_helper (const iovec iov[], int n)
virtual size_t max_message_size () const
virtual void add_delayed_notification (TransportQueueElement *element)
virtual RemoveResult do_remove_sample (const RepoId &pub_id, const TransportQueueElement::MatchCriteria &criteria, void *context)
 Implement framework chain visitations to remove a sample.

Private Member Functions

bool marshal_transport_header (ACE_Message_Block *mb)
ssize_t send_multi_i (const iovec iov[], int n, const OPENDDS_SET(ACE_INET_Addr)&addrs)
ssize_t send_single_i (const iovec iov[], int n, const ACE_INET_Addr &addr)
const OPENDDS_SET (ACE_INET_Addr)*override _dest_

Private Attributes

RtpsUdpDataLink * link_
const ACE_INET_Addr * override_single_dest_
RTPS::Header rtps_header_
char rtps_header_data_ [RTPS::RTPSHDR_SZ]
ACE_Data_Block rtps_header_db_
ACE_Message_Block rtps_header_mb_

Friends

struct OverrideToken

Detailed Description

Definition at line 32 of file RtpsUdpSendStrategy.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::RtpsUdpSendStrategy::RtpsUdpSendStrategy ( RtpsUdpDataLink *  link,
const GuidPrefix_t &  local_prefix
)

Definition at line 31 of file RtpsUdpSendStrategy.cpp.

References OpenDDS::RTPS::Header::guidPrefix, OpenDDS::RTPS::Header::prefix, OpenDDS::RTPS::PROTOCOLVERSION, rtps_header_, rtps_header_mb_, OpenDDS::RTPS::Header::vendorId, OpenDDS::RTPS::VENDORID_OPENDDS, and OpenDDS::RTPS::Header::version.

00033   : TransportSendStrategy(0, link->impl(),
00034                           0,  // synch_resource
00035                           link->transport_priority(),
00036                           make_rch<NullSynchStrategy>()),
00037     link_(link),
00038     override_dest_(0),
00039     override_single_dest_(0),
00040     rtps_header_db_(RTPS::RTPSHDR_SZ, ACE_Message_Block::MB_DATA,
00041                     rtps_header_data_, 0, 0, ACE_Message_Block::DONT_DELETE, 0),
00042     rtps_header_mb_(&rtps_header_db_, ACE_Message_Block::DONT_DELETE)
00043 {
00044   rtps_header_.prefix[0] = 'R';
00045   rtps_header_.prefix[1] = 'T';
00046   rtps_header_.prefix[2] = 'P';
00047   rtps_header_.prefix[3] = 'S';
00048   rtps_header_.version = OpenDDS::RTPS::PROTOCOLVERSION;
00049   rtps_header_.vendorId = OpenDDS::RTPS::VENDORID_OPENDDS;
00050   std::memcpy(rtps_header_.guidPrefix, local_prefix,
00051               sizeof(GuidPrefix_t));
00052   Serializer writer(&rtps_header_mb_);
00053   // byte order doesn't matter for the RTPS Header
00054   writer << rtps_header_;
00055 }

Member Function Documentation

void OpenDDS::DCPS::RtpsUdpSendStrategy::add_delayed_notification ( TransportQueueElement *  element  )  [protected, virtual]

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 246 of file RtpsUdpSendStrategy.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::add_delayed_notification(), and link_.

00247 {
00248   if (!link_->add_delayed_notification(element)) {
00249     TransportSendStrategy::add_delayed_notification(element);
00250   }
00251 }

Here is the call graph for this function:

RemoveResult OpenDDS::DCPS::RtpsUdpSendStrategy::do_remove_sample ( const RepoId &  pub_id,
const TransportQueueElement::MatchCriteria &  criteria,
void *  context
) [protected, virtual]

Implement framework chain visitations to remove a sample.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 254 of file RtpsUdpSendStrategy.cpp.

References OpenDDS::DCPS::RtpsUdpDataLink::do_remove_sample(), and link_.

00257 {
00258   ACE_Guard<ACE_Thread_Mutex>* guard =
00259     static_cast<ACE_Guard<ACE_Thread_Mutex>*>(context);
00260   link_->do_remove_sample(pub_id, criteria, *guard);
00261   return TransportSendStrategy::do_remove_sample(pub_id, criteria, 0);
00262 }

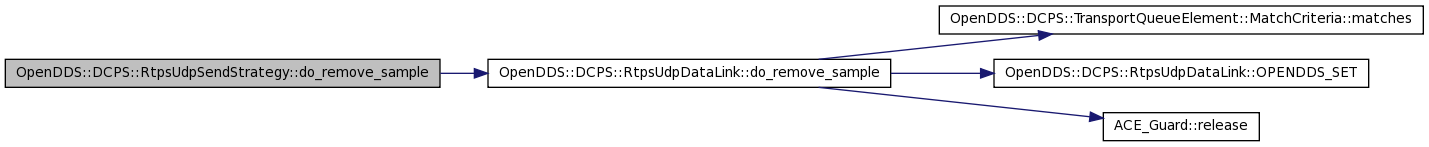

Here is the call graph for this function:

bool OpenDDS::DCPS::RtpsUdpSendStrategy::marshal_transport_header ( ACE_Message_Block *  mb  )  [private, virtual]

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 143 of file RtpsUdpSendStrategy.cpp.

References rtps_header_data_, OpenDDS::RTPS::RTPSHDR_SZ, and OpenDDS::DCPS::Serializer::write_octet_array().

00144 {
00145   Serializer writer(mb); // byte order doesn't matter for the RTPS Header
00146   return writer.write_octet_array(reinterpret_cast<ACE_CDR::Octet*>(rtps_header_data_),
00147     RTPS::RTPSHDR_SZ);
00148 }

Here is the call graph for this function:

virtual size_t OpenDDS::DCPS::RtpsUdpSendStrategy::max_message_size ( void   )  const [inline, protected, virtual]

The maximum size of a message allowed by the this TransportImpl, or 0 if there is no such limit. This is expected to be a constant, for example UDP/IPv4 can send messages of up to 65466 bytes. The transport framework will use the returned value (if > 0) to fragment larger messages. This fragmentation and reassembly will be transparent to the user.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 65 of file RtpsUdpSendStrategy.h.

00066   {
00067     return UDP_MAX_MESSAGE_SIZE;
00068   }

const OpenDDS::DCPS::RtpsUdpSendStrategy::OPENDDS_SET ( ACE_INET_Addr   )  [override, private]

Referenced by send_bytes_i_helper(), and send_multi_i().

Here is the caller graph for this function:

RtpsUdpSendStrategy::OverrideToken OpenDDS::DCPS::RtpsUdpSendStrategy::override_destinations ( const OPENDDS_SET(ACE_INET_Addr)&  destinations  )

Definition at line 130 of file RtpsUdpSendStrategy.cpp.

References OverrideToken.

00131 {
00132   override_dest_ = &dest;
00133   return OverrideToken(this);
00134 }

RtpsUdpSendStrategy::OverrideToken OpenDDS::DCPS::RtpsUdpSendStrategy::override_destinations ( const ACE_INET_Addr &  destination  )

Definition at line 123 of file RtpsUdpSendStrategy.cpp.

References override_single_dest_, and OverrideToken.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::send_directed_nack_replies(), OpenDDS::DCPS::RtpsUdpDataLink::send_nack_replies(), and OpenDDS::DCPS::RtpsUdpDataLink::send_nackfrag_replies().

00124 {
00125   override_single_dest_ = &destination;
00126   return OverrideToken(this);
00127 }

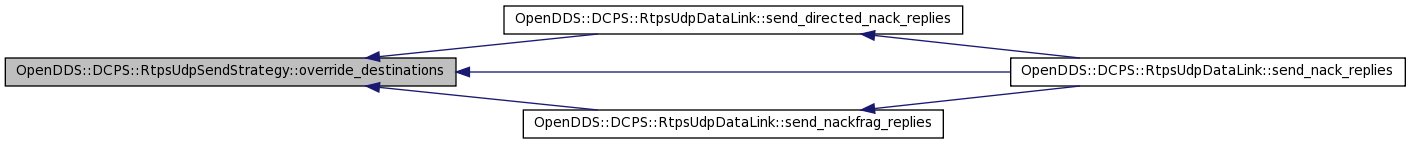

Here is the caller graph for this function:

ssize_t OpenDDS::DCPS::RtpsUdpSendStrategy::send_bytes_i ( const iovec  iov[],
int  n
) [protected, virtual]

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 64 of file RtpsUdpSendStrategy.cpp.

References iovec::iov_len, and send_bytes_i_helper().

00065 {
00066   ssize_t result = send_bytes_i_helper(iov, n);
00067
00068   if (result == -1 && shouldWarn(errno)) {
00069     // Make the framework think this was a successful send to avoid
00070     // putting the send strategy in suspended mode. If reliability
00071     // is enabled, the data may be resent later.
00072     ssize_t b = 0;
00073     for (int i = 0; i < n; ++i) {
00074       b += iov[i].iov_len;
00075     }
00076     result = b;
00077   }
00078
00079   return result;
00080 }

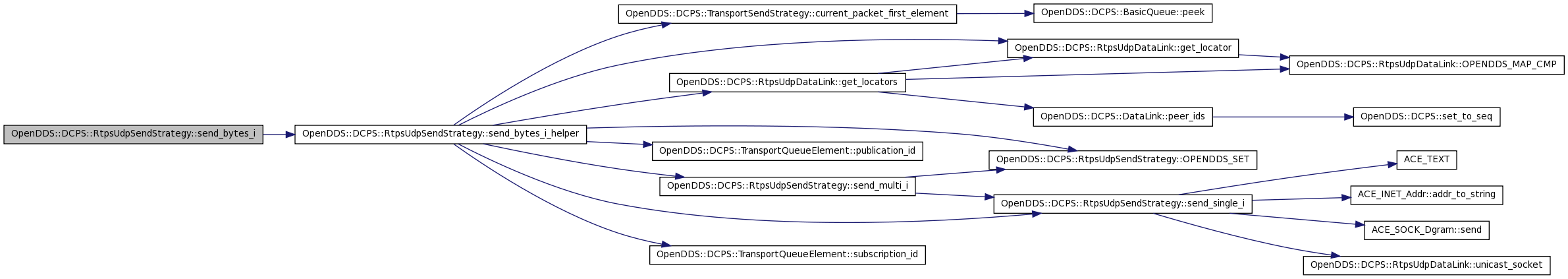

Here is the call graph for this function:

ssize_t OpenDDS::DCPS::RtpsUdpSendStrategy::send_bytes_i_helper ( const iovec  iov[],
int  n
) [protected]

Definition at line 83 of file RtpsUdpSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendStrategy::current_packet_first_element(), OpenDDS::DCPS::RtpsUdpDataLink::get_locator(), OpenDDS::DCPS::RtpsUdpDataLink::get_locators(), OpenDDS::DCPS::GUID_UNKNOWN, link_, OPENDDS_SET(), override_single_dest_, OpenDDS::DCPS::TransportQueueElement::publication_id(), send_multi_i(), send_single_i(), and OpenDDS::DCPS::TransportQueueElement::subscription_id().

Referenced by send_bytes_i().

00084 {
00085   if (override_single_dest_) {
00086     return send_single_i(iov, n, *override_single_dest_);
00087   }
00088
00089   if (override_dest_) {
00090     return send_multi_i(iov, n, *override_dest_);
00091   }
00092
00093   // determine destination address(es) from TransportQueueElement in progress
00094   TransportQueueElement* elem = current_packet_first_element();
00095   if (!elem) {
00096     errno = ENOTCONN;
00097     return -1;
00098   }
00099
00100   const RepoId remote_id = elem->subscription_id();
00101   OPENDDS_SET(ACE_INET_Addr) addrs;
00102
00103   if (remote_id != GUID_UNKNOWN) {
00104     const ACE_INET_Addr remote = link_->get_locator(remote_id);
00105     if (remote != ACE_INET_Addr()) {
00106       addrs.insert(remote);
00107     }
00108   }
00109
00110   if (addrs.empty()) {
00111     link_->get_locators(elem->publication_id(), addrs);
00112   }
00113
00114   if (addrs.empty()) {
00115     errno = ENOTCONN;
00116     return -1;
00117   }
00118
00119   return send_multi_i(iov, n, addrs);
00120 }

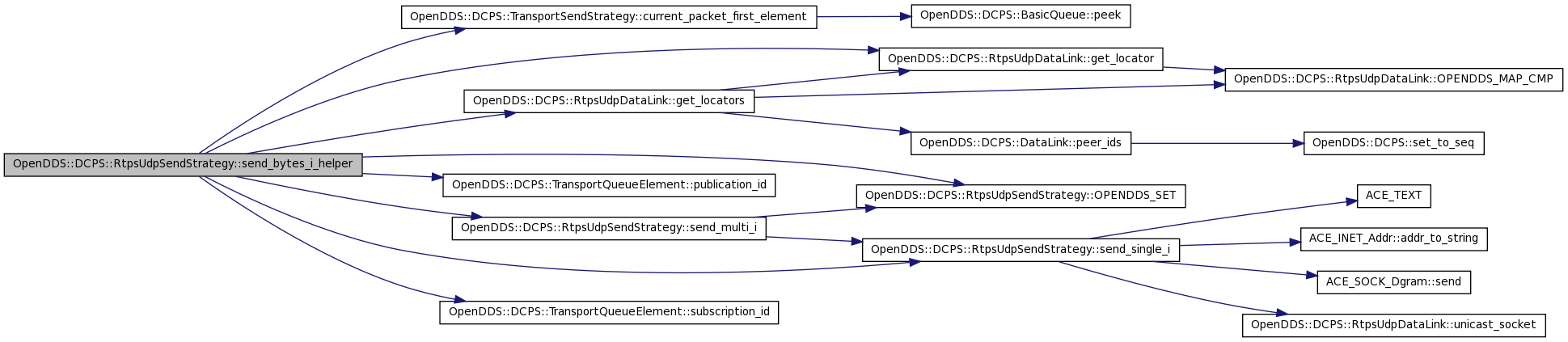

Here is the call graph for this function:

Here is the caller graph for this function:

ssize_t OpenDDS::DCPS::RtpsUdpSendStrategy::send_multi_i ( const iovec  iov[],
int  n,
const OPENDDS_SET(ACE_INET_Addr)&  addrs
) [private]

Definition at line 199 of file RtpsUdpSendStrategy.cpp.

References OPENDDS_SET(), and send_single_i().

Referenced by send_bytes_i_helper(), and send_rtps_control().

00201 {
00202   ssize_t result = -1;
00203   typedef OPENDDS_SET(ACE_INET_Addr)::const_iterator iter_t;
00204   for (iter_t iter = addrs.begin(); iter != addrs.end(); ++iter) {
00205     const ssize_t result_per_dest = send_single_i(iov, n, *iter);
00206     if (result_per_dest >= 0) {
00207       result = result_per_dest;
00208     }
00209   }
00210   return result;
00211 }

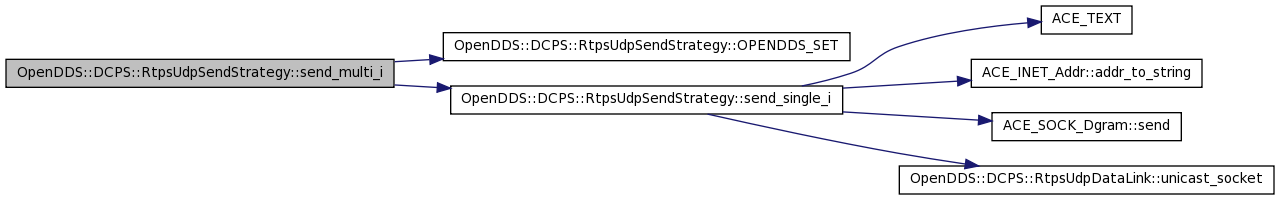

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control ( ACE_Message_Block &  submessages,
const OPENDDS_SET(ACE_INET_Addr)&  destinations
)

Definition at line 175 of file RtpsUdpSendStrategy.cpp.

References ACE_Message_Block::cont(), LM_ERROR, LM_WARNING, OpenDDS::DCPS::MAX_SEND_BLOCKS, OpenDDS::DCPS::TransportSendStrategy::mb_to_iov(), rtps_header_mb_, and send_multi_i().

00177 {
00178   rtps_header_mb_.cont(&submessages);
00179 #if defined(OPENDDS_SECURITY)
00180   Message_Block_Ptr alternate(pre_send_packet(&rtps_header_mb_));
00181   ACE_Message_Block& use_mb = alternate ? *alternate : rtps_header_mb_;
00182 #else
00183   ACE_Message_Block& use_mb =  rtps_header_mb_;
00184 #endif
00185
00186   iovec iov[MAX_SEND_BLOCKS];
00187   const int num_blocks = mb_to_iov(use_mb, iov);
00188   const ssize_t result = send_multi_i(iov, num_blocks, addrs);
00189   if (result < 0) {
00190     const ACE_Log_Priority prio = shouldWarn(errno) ? LM_WARNING : LM_ERROR;
00191     ACE_ERROR((prio, "(%P|%t) RtpsUdpSendStrategy::send_rtps_control() - "
00192       "failed to send RTPS control message\n"));
00193   }
00194
00195   rtps_header_mb_.cont(0);
00196 }

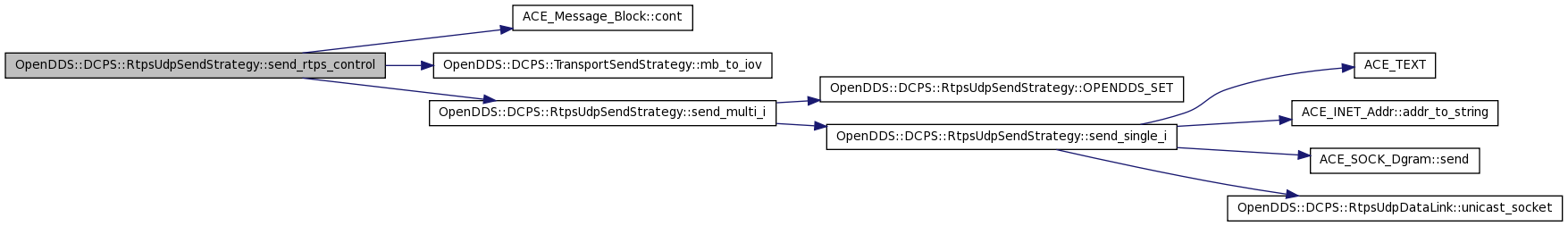

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control ( ACE_Message_Block &  submessages,
const ACE_INET_Addr &  destination
)

Definition at line 151 of file RtpsUdpSendStrategy.cpp.

References ACE_Message_Block::cont(), LM_ERROR, LM_WARNING, OpenDDS::DCPS::MAX_SEND_BLOCKS, OpenDDS::DCPS::TransportSendStrategy::mb_to_iov(), rtps_header_mb_, and send_single_i().

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::durability_resend(), OpenDDS::DCPS::RtpsUdpDataLink::send_ack_nacks(), OpenDDS::DCPS::RtpsUdpDataLink::send_directed_heartbeats(), OpenDDS::DCPS::RtpsUdpDataLink::send_directed_nack_replies(), OpenDDS::DCPS::RtpsUdpDataLink::send_durability_gaps(), OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeat_replies(), OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeats(), OpenDDS::DCPS::RtpsUdpDataLink::send_heartbeats_manual(), and OpenDDS::DCPS::RtpsUdpDataLink::send_nack_replies().

00153 {
00154   rtps_header_mb_.cont(&submessages);
00155 #if defined(OPENDDS_SECURITY)
00156   Message_Block_Ptr alternate(pre_send_packet(&rtps_header_mb_));
00157   ACE_Message_Block& use_mb = alternate ? *alternate : rtps_header_mb_;
00158 #else
00159   ACE_Message_Block& use_mb =  rtps_header_mb_;
00160 #endif
00161
00162   iovec iov[MAX_SEND_BLOCKS];
00163   const int num_blocks = mb_to_iov(use_mb, iov);
00164   const ssize_t result = send_single_i(iov, num_blocks, addr);
00165   if (result < 0) {
00166     const ACE_Log_Priority prio = shouldWarn(errno) ? LM_WARNING : LM_ERROR;
00167     ACE_ERROR((prio, "(%P|%t) RtpsUdpSendStrategy::send_rtps_control() - "
00168       "failed to send RTPS control message\n"));
00169   }
00170
00171   rtps_header_mb_.cont(0);
00172 }

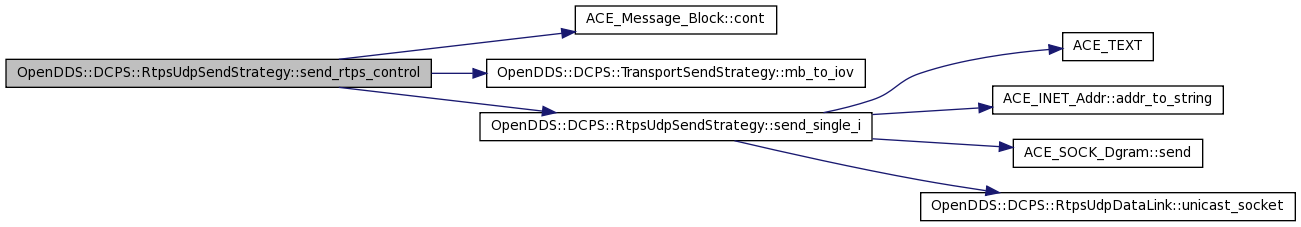

Here is the call graph for this function:

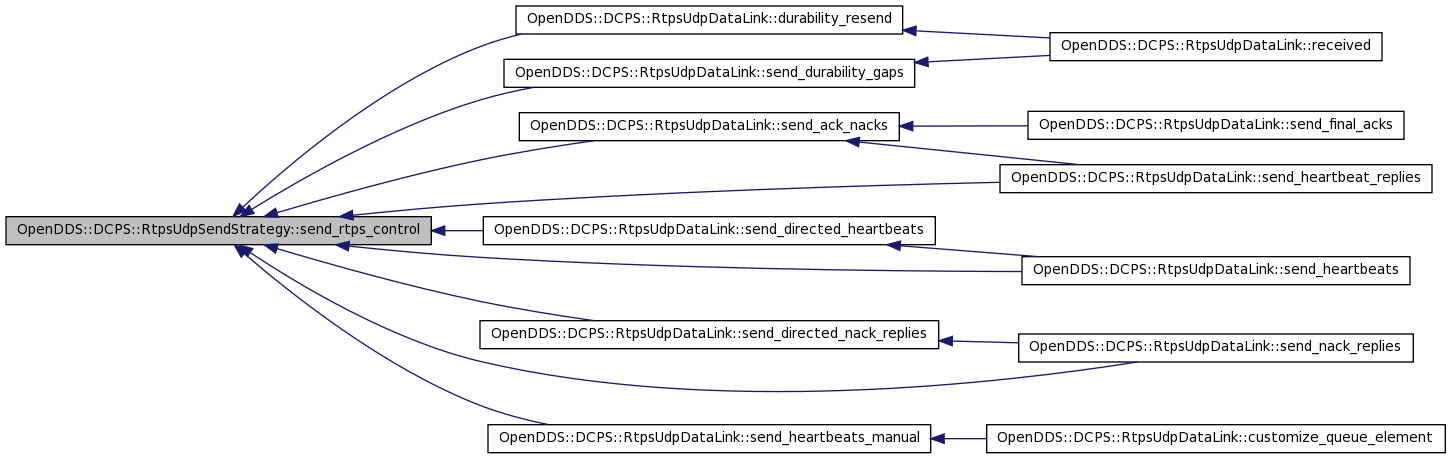

Here is the caller graph for this function:

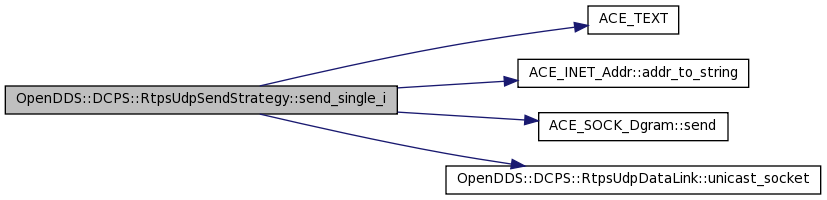

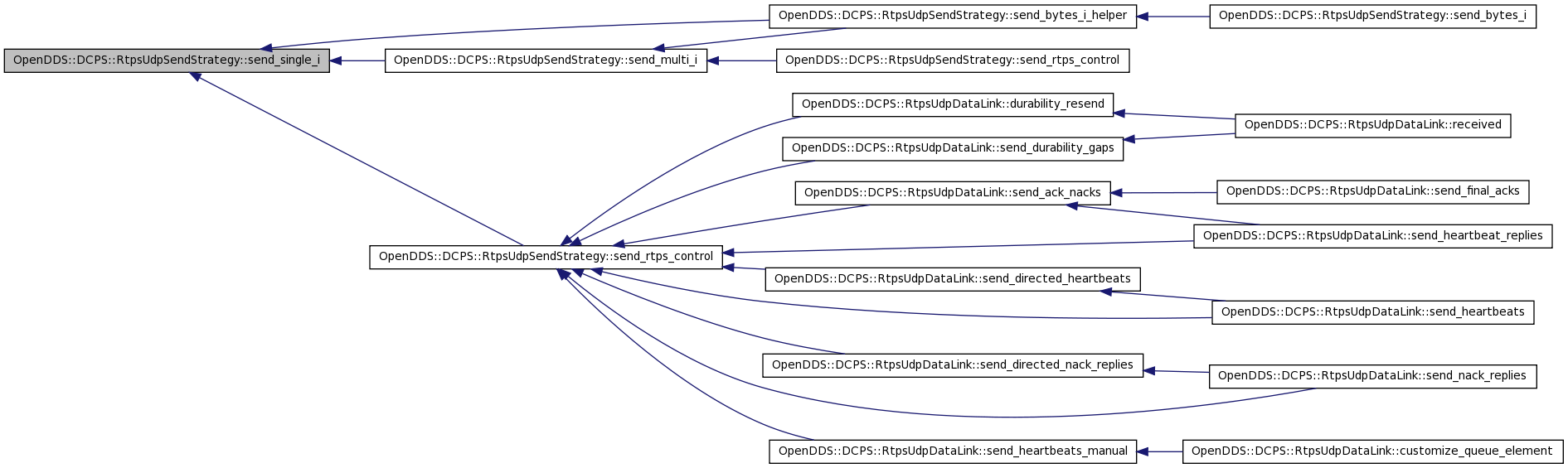

ssize_t OpenDDS::DCPS::RtpsUdpSendStrategy::send_single_i ( const iovec  iov[],
int  n,
const ACE_INET_Addr &  addr
) [private]

Definition at line 214 of file RtpsUdpSendStrategy.cpp.

References ACE_TEXT(), ACE_INET_Addr::addr_to_string(), iovec::iov_len, link_, LM_ERROR, LM_WARNING, ACE_SOCK_Dgram::send(), OpenDDS::DCPS::TransportSendStrategy::UDP_MAX_MESSAGE_SIZE, and OpenDDS::DCPS::RtpsUdpDataLink::unicast_socket().

Referenced by send_bytes_i_helper(), send_multi_i(), and send_rtps_control().

00216 {
00217 #ifdef ACE_LACKS_SENDMSG
00218   char buffer[UDP_MAX_MESSAGE_SIZE];
00219   char *iter = buffer;
00220   for (int i = 0; i < n; ++i) {
00221     if (size_t(iter - buffer + iov[i].iov_len) > UDP_MAX_MESSAGE_SIZE) {
00222       ACE_ERROR((LM_ERROR, "(%P|%t) RtpsUdpSendStrategy::send_single_i() - "
00223                  "message too large at index %d size %d\n", i, iov[i].iov_len));
00224       return -1;
00225     }
00226     std::memcpy(iter, iov[i].iov_base, iov[i].iov_len);
00227     iter += iov[i].iov_len;
00228   }
00229   const ssize_t result = link_->unicast_socket().send(buffer, iter - buffer, addr);
00230 #else
00231   const ssize_t result = link_->unicast_socket().send(iov, n, addr);
00232 #endif
00233   if (result < 0) {
00234     ACE_TCHAR addr_buff[256] = {};
00235     int err = errno;
00236     addr.addr_to_string(addr_buff, 256, 0);
00237     errno = err;
00238     const ACE_Log_Priority prio = shouldWarn(errno) ? LM_WARNING : LM_ERROR;
00239     ACE_ERROR((prio, "(%P|%t) RtpsUdpSendStrategy::send_single_i() - "
00240       "destination %s failed %p\n", addr_buff, ACE_TEXT("send")));
00241   }
00242   return result;
00243 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpSendStrategy::stop_i (  )  [virtual]

Let the subclass stop.

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 643 of file RtpsUdpSendStrategy.cpp.

00644 {
00645 }

Friends And Related Function Documentation

friend struct OverrideToken [friend]

Definition at line 45 of file RtpsUdpSendStrategy.h.

Referenced by override_destinations().

Member Data Documentation

RtpsUdpDataLink* OpenDDS::DCPS::RtpsUdpSendStrategy::link_ [private]

Definition at line 108 of file RtpsUdpSendStrategy.h.

Referenced by add_delayed_notification(), do_remove_sample(), send_bytes_i_helper(), and send_single_i().

const ACE_INET_Addr* OpenDDS::DCPS::RtpsUdpSendStrategy::override_single_dest_ [private]

Definition at line 110 of file RtpsUdpSendStrategy.h.

Referenced by override_destinations(), send_bytes_i_helper(), and OpenDDS::DCPS::RtpsUdpSendStrategy::OverrideToken::~OverrideToken().

RTPS::Header OpenDDS::DCPS::RtpsUdpSendStrategy::rtps_header_ [private]

Definition at line 112 of file RtpsUdpSendStrategy.h.

Referenced by RtpsUdpSendStrategy().

char OpenDDS::DCPS::RtpsUdpSendStrategy::rtps_header_data_[RTPS::RTPSHDR_SZ] [private]

Definition at line 113 of file RtpsUdpSendStrategy.h.

Referenced by marshal_transport_header().

ACE_Data_Block OpenDDS::DCPS::RtpsUdpSendStrategy::rtps_header_db_ [private]

Definition at line 114 of file RtpsUdpSendStrategy.h.

ACE_Message_Block OpenDDS::DCPS::RtpsUdpSendStrategy::rtps_header_mb_ [private]

Definition at line 115 of file RtpsUdpSendStrategy.h.

Referenced by RtpsUdpSendStrategy(), and send_rtps_control().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
