OpenDDS::DCPS::TransportSendStrategy Class Reference

#include <TransportSendStrategy.h>

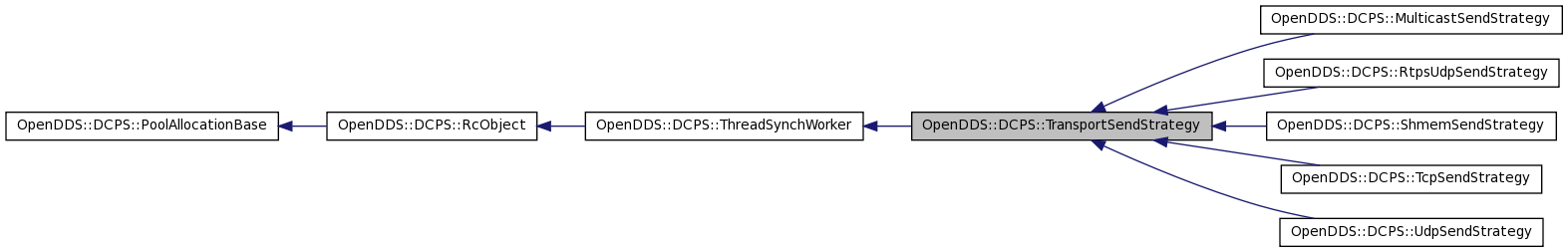

Inheritance diagram for OpenDDS::DCPS::TransportSendStrategy:

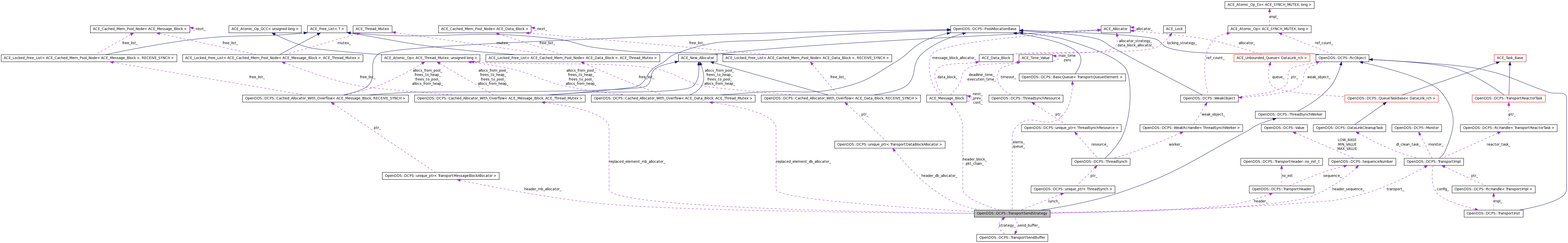

Collaboration diagram for OpenDDS::DCPS::TransportSendStrategy:

Public Types
enum	SendMode { MODE_NOT_SET, MODE_DIRECT, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED }
typedef BasicQueue < TransportQueueElement >	QueueType
Public Member Functions
virtual	~TransportSendStrategy ()
void	send_buffer (TransportSendBuffer *send_buffer)
	Assigns an optional send buffer.
int	start ()
void	stop ()
void	send_start ()
void	send (TransportQueueElement *element, bool relink=true)
void	send_stop (RepoId repoId)
RemoveResult	remove_sample (const DataSampleElement sample, void context)
void	remove_all_msgs (RepoId pub_id)
virtual WorkOutcome	perform_work ()
virtual void	relink (bool do_suspend=true)
void	suspend_send ()
void	resume_send ()
void	terminate_send (bool graceful_disconnecting=false)
	Remove all samples in the backpressure queue and packet queue.
virtual void	stop_i ()=0
	Let the subclass stop.
virtual bool	start_i ()
	Let the subclass start.
void	link_released (bool flag)
bool	isDirectMode ()
virtual ACE_HANDLE	get_handle ()
void	deliver_ack_request (TransportQueueElement *element)
void	clear (SendMode mode=MODE_DIRECT)
	Clear queued messages and messages in current packet.
SendMode	mode () const
	Access the current sending mode.
Static Public Member Functions
static int	mb_to_iov (const ACE_Message_Block &msg, iovec *iov)
Protected Member Functions
	TransportSendStrategy (std::size_t id, TransportImpl &transport, ThreadSynchResource *synch_resource, Priority priority, const ThreadSynchStrategy_rch &thread_sync_strategy)
virtual ssize_t	send_bytes (const iovec iov[], int n, int &bp)
virtual ssize_t	non_blocking_send (const iovec iov[], int n, int &bp)
virtual ssize_t	send_bytes_i (const iovec iov[], int n)=0
virtual void	prepare_header_i ()
	Specific implementation processing of prepared packet header.
virtual void	prepare_packet_i ()
	Specific implementation processing of prepared packet.
TransportQueueElement *	current_packet_first_element () const
virtual size_t	max_message_size () const
void	set_graceful_disconnecting (bool flag)
	Set graceful disconnecting flag.
virtual void	add_delayed_notification (TransportQueueElement *element)
bool	send_delayed_notifications (const TransportQueueElement::MatchCriteria *match=0)
virtual RemoveResult	do_remove_sample (const RepoId &pub_id, const TransportQueueElement::MatchCriteria &criteria, void *context)
	Implement framework chain visitations to remove a sample.
ThreadSynch *	synch () const
Protected Attributes
TransportHeader	header_
	Current transport packet header.
Static Protected Attributes
static const size_t	UDP_MAX_MESSAGE_SIZE = 65466
Private Types
enum	SendPacketOutcome { OUTCOME_COMPLETE_SEND, OUTCOME_PARTIAL_SEND, OUTCOME_BACKPRESSURE, OUTCOME_PEER_LOST, OUTCOME_SEND_ERROR }
typedef ACE_SYNCH_MUTEX	LockType
typedef ACE_Guard< LockType >	GuardType
typedef std::pair < TransportQueueElement *, SendMode >	TQESendModePair
	Used for delayed notifications when performing work.
Private Member Functions
void	direct_send (bool relink)
void	get_packet_elems_from_queue ()
void	prepare_header ()
void	prepare_packet ()
SendPacketOutcome	send_packet ()
ssize_t	do_send_packet (const ACE_Message_Block *packet, int &bp)
	Form an IOV and call the send_bytes() template method.
int	adjust_packet_after_send (ssize_t num_bytes_sent)
size_t	space_available () const
virtual bool	marshal_transport_header (ACE_Message_Block *mb)
	OPENDDS_VECTOR (TQESendModePair) delayed_delivered_notification_queue_
Static Private Member Functions
static const char *	mode_as_str (SendMode mode)
	Helper function to debugging.
Private Attributes
size_t	max_samples_
	Configuration - max number of samples per transport packet.
ACE_UINT32	optimum_size_
	Configuration - optimum transport packet size (bytes).
ACE_UINT32	max_size_
	Configuration - max transport packet size (bytes).
QueueType	queue_
size_t	max_header_size_
	Maximum marshalled size of the transport packet header.
ACE_Message_Block *	header_block_
	Current transport packet header, marshalled.
SequenceNumber	header_sequence_
	Current transport header sequence number.
QueueType	elems_
ACE_Message_Block *	pkt_chain_
bool	header_complete_
unsigned	start_counter_
SendMode	mode_
	This mode determines how send() calls will be handled.
SendMode	mode_before_suspend_
unique_ptr < TransportMessageBlockAllocator >	header_mb_allocator_
	Allocator for header data block.
unique_ptr < TransportDataBlockAllocator >	header_db_allocator_
	Allocator for header message block.
unique_ptr< ThreadSynch >	synch_
	The thread synch object.
LockType	lock_
MessageBlockAllocator	replaced_element_mb_allocator_
	Cached allocator for TransportReplaceElement.
DataBlockAllocator	replaced_element_db_allocator_
TransportImpl &	transport_
bool	graceful_disconnecting_
bool	link_released_
TransportSendBuffer *	send_buffer_
Friends
class	TransportSendBuffer

Detailed Description

This class provides methods to fill packets with samples for sending and handles backpressure. It maintains the list of samples in current packets and also the list of samples queued during backpressure. A thread per connection is created to handle the queued samples.

Notes for the object ownership: 1) Owns ThreadSynch object, list of samples in current packet and list of samples in queue.

Definition at line 49 of file TransportSendStrategy.h.

Member Typedef Documentation

typedef ACE_Guard<LockType> OpenDDS::DCPS::TransportSendStrategy::GuardType [private]

Definition at line 267 of file TransportSendStrategy.h.

typedef ACE_SYNCH_MUTEX OpenDDS::DCPS::TransportSendStrategy::LockType [private]

Definition at line 266 of file TransportSendStrategy.h.

typedef BasicQueue<TransportQueueElement> OpenDDS::DCPS::TransportSendStrategy::QueueType

Definition at line 129 of file TransportSendStrategy.h.

typedef std::pair<TransportQueueElement*, SendMode> OpenDDS::DCPS::TransportSendStrategy::TQESendModePair [private]

Used for delayed notifications when performing work.

Definition at line 367 of file TransportSendStrategy.h.

Member Enumeration Documentation

enum OpenDDS::DCPS::TransportSendStrategy::SendMode

Enumerator:

MODE_NOT_SET
MODE_DIRECT
MODE_QUEUE
MODE_SUSPEND
MODE_TERMINATED

Definition at line 270 of file TransportSendStrategy.h.

00270                 {
00271     // MODE_NOT_SET is used as the initial value of mode_before_suspend_ so
00272     // we can check if the resume_send is paired with suspend_send.
00273     MODE_NOT_SET,
00274     // Send out the sample with current packet.
00275     MODE_DIRECT,
00276     // The samples need be queued because of the backpressure or partial send.
00277     MODE_QUEUE,
00278     // The samples need be queued because the connection is lost and we are
00279     // trying to reconnect.
00280     MODE_SUSPEND,
00281     // The samples need be dropped since we lost connection and could not
00282     // reconnect.
00283     MODE_TERMINATED
00284   };

enum OpenDDS::DCPS::TransportSendStrategy::SendPacketOutcome [private]

Enumerator:

OUTCOME_COMPLETE_SEND
OUTCOME_PARTIAL_SEND
OUTCOME_BACKPRESSURE
OUTCOME_PEER_LOST
OUTCOME_SEND_ERROR

Definition at line 196 of file TransportSendStrategy.h.

00196                          {
00197     OUTCOME_COMPLETE_SEND,
00198     OUTCOME_PARTIAL_SEND,
00199     OUTCOME_BACKPRESSURE,
00200     OUTCOME_PEER_LOST,
00201     OUTCOME_SEND_ERROR
00202   };

Constructor & Destructor Documentation

OpenDDS::DCPS::TransportSendStrategy::~TransportSendStrategy ( ) [virtual]

Definition at line 103 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL.

00104 {
00105   DBG_ENTRY_LVL("TransportSendStrategy","~TransportSendStrategy",6);
00106
00107
00108   this->delayed_delivered_notification_queue_.clear();
00109 }

OpenDDS::DCPS::TransportSendStrategy::TransportSendStrategy	(	std::size_t	id,
		TransportImpl &	transport,
		ThreadSynchResource *	synch_resource,
		Priority	priority,
		const ThreadSynchStrategy_rch &	thread_sync_strategy
	)			`[protected]`

Definition at line 58 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, max_header_size_, OpenDDS::DCPS::TransportHeader::max_marshaled_size(), max_samples_, OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), synch_, TheServiceParticipant, and OpenDDS::DCPS::DirectPriorityMapper::thread_priority().

00064   : ThreadSynchWorker(id),
00065     max_samples_(transport.config().max_samples_per_packet_),
00066     optimum_size_(transport.config().optimum_packet_size_),
00067     max_size_(transport.config().max_packet_size_),
00068     max_header_size_(0),
00069     header_block_(0),
00070     pkt_chain_(0),
00071     header_complete_(false),
00072     start_counter_(0),
00073     mode_(MODE_DIRECT),
00074     mode_before_suspend_(MODE_NOT_SET),
00075     lock_(),
00076     replaced_element_mb_allocator_(NUM_REPLACED_ELEMENT_CHUNKS * 2),
00077     replaced_element_db_allocator_(NUM_REPLACED_ELEMENT_CHUNKS * 2),
00078     transport_(transport),
00079     graceful_disconnecting_(false),
00080     link_released_(true),
00081     send_buffer_(0)
00082 {
00083   DBG_ENTRY_LVL("TransportSendStrategy","TransportSendStrategy",6);
00084
00085   // Create a ThreadSynch object just for us.
00086   DirectPriorityMapper mapper(priority);
00087   this->synch_.reset(thread_sync_strategy->create_synch_object(
00088                    synch_resource,
00089 #ifdef ACE_WIN32
00090                    ACE_DEFAULT_THREAD_PRIORITY,
00091 #else
00092                    mapper.thread_priority(),
00093 #endif
00094                    TheServiceParticipant->scheduler()));
00095
00096   // We cache this value in data member since it doesn't change, and we
00097   // don't want to keep asking for it over and over.
00098   this->max_header_size_ = TransportHeader::max_marshaled_size();
00099
00100   delayed_delivered_notification_queue_.reserve(this->max_samples_);
00101 }

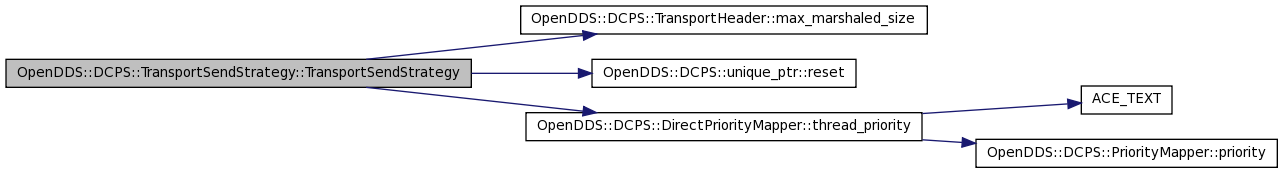

Here is the call graph for this function:

Member Function Documentation

void OpenDDS::DCPS::TransportSendStrategy::add_delayed_notification ( TransportQueueElement * element ) [protected, virtual]

Reimplemented in OpenDDS::DCPS::RtpsUdpSendStrategy, and OpenDDS::DCPS::TcpSendStrategy.

Definition at line 1857 of file TransportSendStrategy.cpp.

References LM_DEBUG, max_samples_, mode_, size, and OpenDDS::DCPS::Transport_debug_level.

Referenced by adjust_packet_after_send(), and send().

01858 {
01859   if (Transport_debug_level) {
01860     size_t size = this->delayed_delivered_notification_queue_.size();
01861     if ((size > 0) && (size % this->max_samples_ == 0)) {
01862       ACE_DEBUG((LM_DEBUG,
01863                  "(%P|%t) Transport send strategy notification queue threshold, size=%d\n",
01864                  size));
01865     }
01866   }
01867
01868   this->delayed_delivered_notification_queue_.push_back(std::make_pair(element, this->mode_));
01869 }

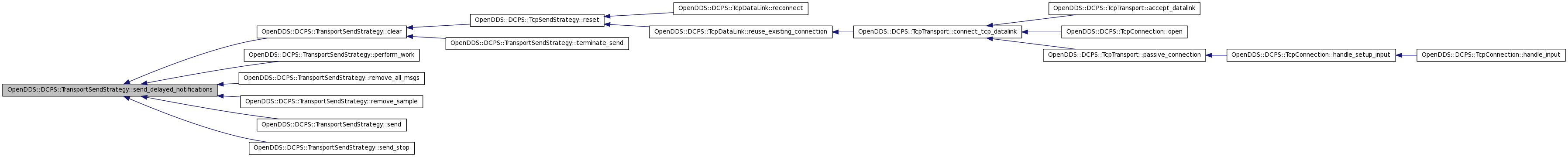

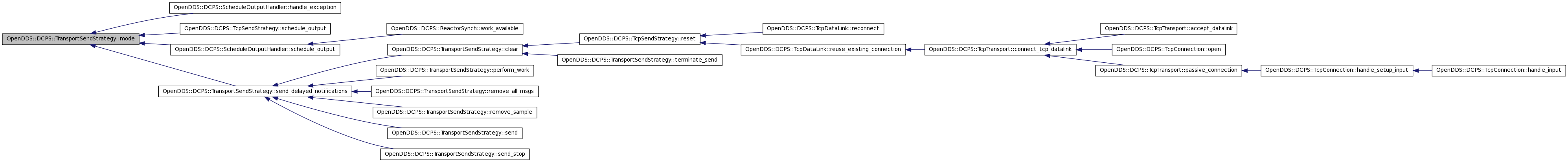

Here is the caller graph for this function:

int OpenDDS::DCPS::TransportSendStrategy::adjust_packet_after_send ( ssize_t num_bytes_sent ) [private]

This is called from the send_packet() method after it has sent at least one byte from the current packet. This method will update the current packet appropriately, as well as deal with all of the release()'ing of fully sent ACE_Message_Blocks, and the data_delivered() calls on the fully sent elements. Returns 0 if the entire packet was sent, and returns 1 if the entire packet was not sent.

Definition at line 353 of file TransportSendStrategy.cpp.

References add_delayed_notification(), ACE_Message_Block::base(), ACE_Message_Block::cont(), DBG_ENTRY_LVL, elems_, OpenDDS::DCPS::BasicQueue< T >::get(), header_, header_complete_, ACE_Message_Block::length(), OpenDDS::DCPS::TransportHeader::length_, LM_DEBUG, LM_INFO, OpenDDS::DCPS::TransportQueueElement::msg(), OpenDDS::DCPS::BasicQueue< T >::peek(), pkt_chain_, ACE_Message_Block::rd_ptr(), ACE_Message_Block::release(), and VDBG.

Referenced by clear(), and send_packet().

00355 00356 00357 00358 00359 00360 00361 00362 00363 00364 00365 00366 00367 00368 00369 00370 00371 00372 00373 00374 00375 00376 00377 00378 00379 00380 00381 00382 00383 00384 00385 00386 00387 00388 00389 00390 00391 00392 00393     } 00394 00395 00396 00397 00398 00399 00400 00401 00402 00403 00404 00405 00406 00407 00408 00409 00410 00411 00412 00413 00414 00415 00416 00417 00418 00419 00420 00421 00422 00423 00424 00425 00426 00427 00428 00429 00430 00431 00432 00433 00434 00435 00436 00437 00438 00439 00440 00441 00442 00443 00444 00445 00446 00447 00448 00449 00450 00451 00452 00453 00454 00455 00456 00457 00458 00459 00460 00461 00462 00463 00464 00465 00466 00467 00468 00469 00470 00471 00472 00473 00474 00475 00476 00477 00478 00479 00480 00481 00482 00483 00484 00485 00486 00487 00488 00489 00490 00491 00492 00493 00494 00495 00496 00497 00498 00499 00500 00501 00502 00503 00504 00505 00506 00507 00508 00509 00510 00511 00512 00513 00514 00515 00516 00517 00518 00519 00520 00521 00522 00523 00524 00525 00526 00527 00528 00529 00530 00531 00532 00533 00534 00535 00536 00537 00538 00539 00540 00541 00542 00543 00544 00545 00546 00547 00548 00549 00550 00551 00552 00553 00554 00555 00556 00557 00558 00559 00560 00561 00562 00563 00564 00565 00566 00567 00568 00569 00570 00571 00572 00573           } 00574         } 00575 00576 00577 00578 00579 00580 00581 00582 00583 00584 00585 00586 00587 00588 00589 00590 00591 00592 00593 00594 00595 00596 00597 00598 00599 00600 00601 00602 00603 00604 00605 00606 00607         } 00608 00609 00610 00611 00612 00613       } 00614     } 00615   } 00616 00617 00618 00619 00620 00621 00622 00623 00624 00625 00626 00627 00628 00629 00630 00631 00632 00633 00634 00635 00636 00637 00638 00639 00640 00641 00642 00643 00644 }

class="fragment">00354 { DBG_ENTRY_LVL("TransportSendStrategy", "adjust_packet_after_send", 6); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Adjusting the current packet because %d bytes of the packet " "have been sent.\n", num_bytes_sent)); ssize_t num_bytes_left = num_bytes_sent; ssize_t num_non_header_bytes_sent = 0; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set num_bytes_left to %d.\n", num_bytes_left)); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set num_non_header_bytes_sent to %d.\n", num_non_header_bytes_sent)); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Peek at the element at the front of the packet elems_.\n")); // This is the element currently at the front of elems_. TransportQueueElement* element = this->elems_.peek(); if(!element){ ACE_DEBUG((LM_INFO, "(%P|%t) WARNING: adjust_packet_after_send skipping due to NULL element\n")); } else { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Use the element's msg() to find the last block in " "the msg() chain.\n")); // Get a pointer to the last message block in the element. const ACE_Message_Block* elem_tail_block = element->msg(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Start with tail block == element->msg().\n")); while (elem_tail_block->cont() != 0) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set tail block to its cont() block (next in chain).\n")); elem_tail_block = elem_tail_block->cont(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Tail block now set (because tail block's cont() is 0).\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Start the 'while (num_bytes_left > 0)' loop.\n")); while (num_bytes_left > 0) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "At top of 'num bytes left' loop. num_bytes_left == [%d].\n", num_bytes_left)); const int block_length = static_cast<int>(this->pkt_chain_->length()); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Length of block at front of pkt_chain_ is [%d].\n", block_length)); if (block_length <= num_bytes_left) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "The whole block at the front of pkt_chain_ was sent.\n")); // The entire message block at the front of the chain has been sent. // Detach the head message block from the chain and adjust // the pkt_chain_ to point to the next block (if any) in // the chain. VDBG((LM_DEBUG, "(%P|%t) DBG: " "Extract the fully sent block from the pkt_chain_.\n")); ACE_Message_Block* fully_sent_block = this->pkt_chain_; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set pkt_chain_ to pkt_chain_->cont().\n")); this->pkt_chain_ = this->pkt_chain_->cont(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set the fully sent block's cont() to 0.\n")); fully_sent_block->cont(0); // Update the num_bytes_left to indicate that we have // processed the entire length of the block. num_bytes_left -= block_length; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Updated num_bytes_left to account for fully sent " "block (block_length == [%d]).\n", block_length)); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Now, num_bytes_left == [%d].\n", num_bytes_left)); if (!this->header_complete_) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Since the header_complete_ flag is false, it means " "that the packet header block was still in the " "pkt_chain_.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Not anymore... Set the header_complete_ flag " "to true.\n")); // That was the packet header block. And now we know that it // has been completely sent. this->header_complete_ = true; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Release the fully sent block.\n")); // Release the fully_sent_block fully_sent_block->release(); } else { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Since the header_complete_ flag is true, it means " "that the packet header block was not in the " "pkt_chain_.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "So, the fully sent block was part of an element.\n")); // That wasn't the packet header block. It was from the // element currently at the front of the elems_ // collection. If it was the last block from the // element, then we need to extract the element from the // elems_ collection and invoke data_delivered() on it. num_non_header_bytes_sent += block_length; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Updated num_non_header_bytes_sent to account for " "fully sent block (block_length == [%d]).\n", block_length)); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Now, num_non_header_bytes_sent == [%d].\n", num_non_header_bytes_sent)); if (fully_sent_block->base() == elem_tail_block->base()) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Ok. The fully sent block was a duplicate of " "the tail block of the element that is at the " "front of the packet elems_.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "This means that we have completely sent the " "element at the front of the packet elems_.\n")); // This means that we have completely sent the element // that is currently at the front of the elems_ collection. VDBG((LM_DEBUG, "(%P|%t) DBG: " "We can release the fully sent block now.\n")); // Release the fully_sent_block fully_sent_block->release(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "We can extract the element from the front of " "the packet elems_ (we were just peeking).\n")); // Extract the element from the elems_ collection element = this->elems_.get(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Tell the element that a decision has been made " "regarding its fate - data_delivered().\n")); // Inform the element that the data has been delivered. this->add_delayed_notification(element); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Peek at the next element in the packet " "elems_.\n")); // Set up for the next element in elems_ by peek()'ing. element = this->elems_.peek(); if (element != 0) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "The is an element still in the packet " "elems_ (we are peeking at it now).\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "We are going to find the tail block for the " "current element (we are peeking at).\n")); // There was a "next element". Determine the // elem_tail_block for it. elem_tail_block = element->msg(); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Start w/tail block == element->msg().\n")); while (elem_tail_block->cont() != 0) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set tail block to next in chain.\n")); elem_tail_block = elem_tail_block->cont(); } VDBG((LM_DEBUG, "(%P|%t) DBG: " "Done finding tail block.\n")); } } else { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Ok. The fully sent block is *not* a " "duplicate of the tail block of the element " "at the front of the packet elems_.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Thus, we have not completely sent the " "element yet.\n")); // We didn't completely send the element - it has more // message blocks that haven't been sent (that we know of). VDBG((LM_DEBUG, "(%P|%t) DBG: " "We can release the fully_sent_block now.\n")); // Release the fully_sent_block fully_sent_block->release(); } else { VDBG((LM_DEBUG, "(%P|%t) DBG: " "Only part of the block at the front of pkt_chain_ " "was sent.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Advance the rd_ptr() of the front block (of pkt_chain_) " "by the num_bytes_left (%d).\n", num_bytes_left)); // Only part of the current block was sent. this->pkt_chain_->rd_ptr(num_bytes_left); if (this->header_complete_) { VDBG((LM_DEBUG, "(%P|%t) DBG: " "And since the packet header block has already been " "completely sent, add num_bytes_left to the " "num_non_header_bytes_sent.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Before, num_non_header_bytes_sent == %d.\n", num_non_header_bytes_sent)); // We know that the current block isn't the packet header // block because the packet header block has already been // completely sent. We need to count these bytes in the // num_non_header_bytes_sent. num_non_header_bytes_sent += num_bytes_left; VDBG((LM_DEBUG, "(%P|%t) DBG: " "After, num_non_header_bytes_sent == %d.\n", num_non_header_bytes_sent)); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Set the num_bytes_left to 0 now.\n")); num_bytes_left = 0; VDBG((LM_DEBUG, "(%P|%t) DBG: " "The 'num_bytes_left' loop has completed.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Adjust the header_.length_ to account for the " "num_non_header_bytes_sent.\n")); VDBG((LM_DEBUG, "(%P|%t) DBG: " "Before, header_.length_ == %d.\n", this->header_.length_)); // Adjust the packet header_.length_ to indicate how many non header // bytes are left to send. this->header_.length_ -= static_cast<ACE_UINT32>(num_non_header_bytes_sent); VDBG((LM_DEBUG, "(%P|%t) DBG: " "After, header_.length_ == %d.\n", this->header_.length_)); // Returns 0 if the entire packet was sent, and returns 1 otherwise. int rc = (this->header_.length_ == 0) ? 0 : 1; VDBG((LM_DEBUG, "(%P|%t) DBG: " "Adjustments all done. Returning [%d]. 0 means entire packet " "has been sent. 1 means otherwise.\n", rc)); return rc;

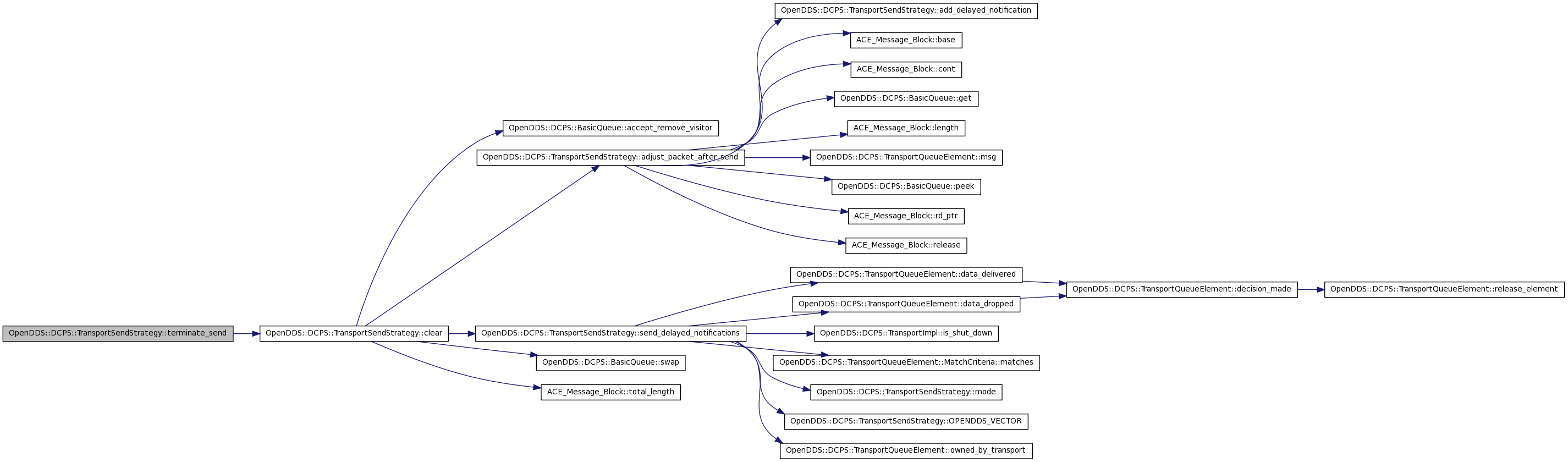

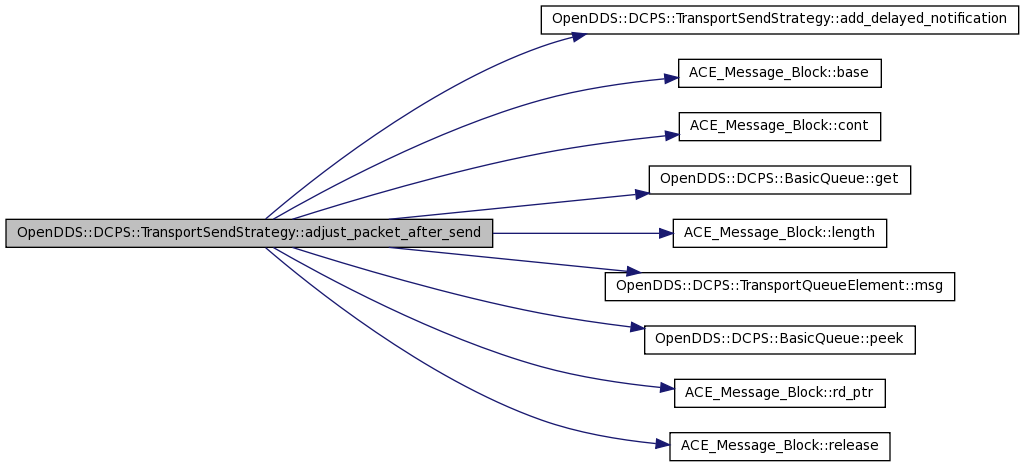

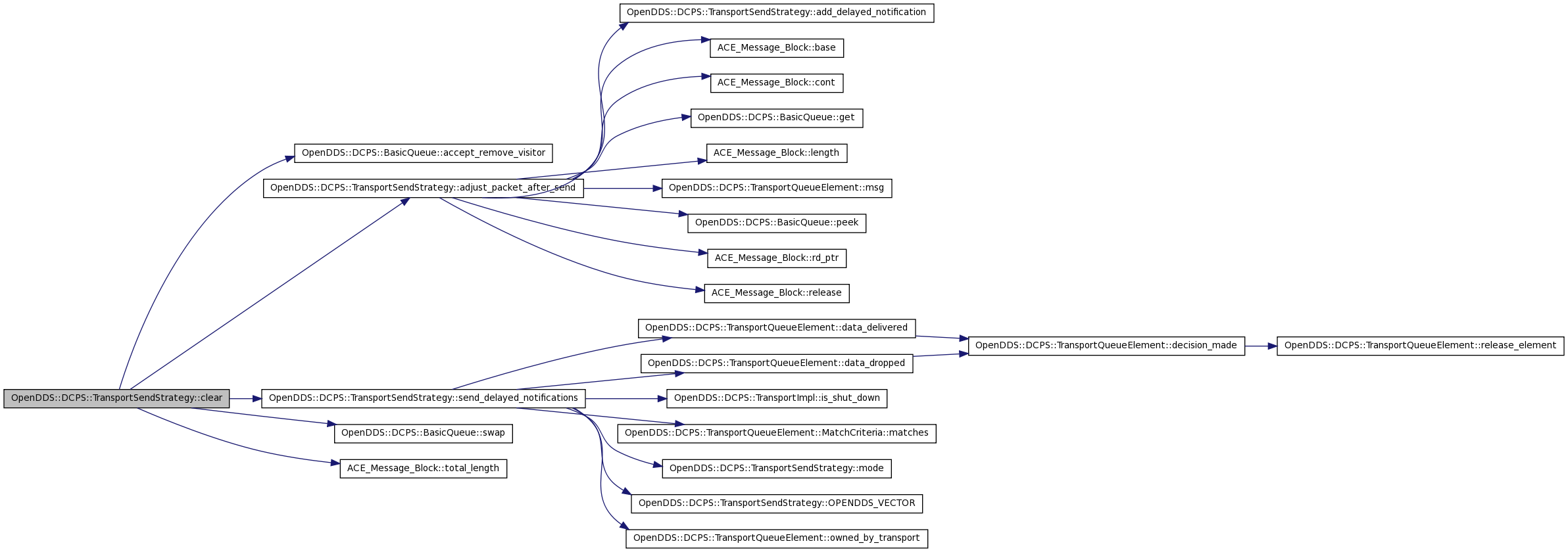

Here is the call graph for this function:

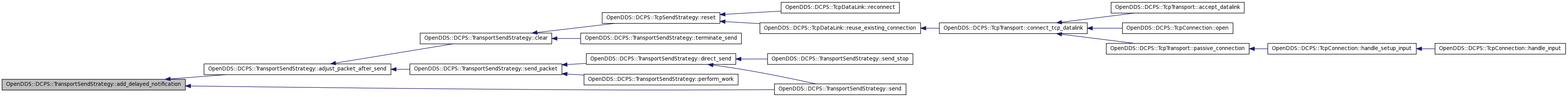

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::clear ( SendMode mode = MODE_DIRECT )

Clear queued messages and messages in current packet.

Definition at line 759 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::BasicQueue< T >::accept_remove_visitor(), adjust_packet_after_send(), DBG_ENTRY_LVL, elems_, header_, header_complete_, OpenDDS::DCPS::TransportHeader::length_, LM_DEBUG, lock_, mode_, mode_before_suspend_, MODE_NOT_SET, pkt_chain_, queue_, send_delayed_notifications(), start_counter_, OpenDDS::DCPS::BasicQueue< T >::swap(), ACE_Message_Block::total_length(), and VDBG.

Referenced by OpenDDS::DCPS::TcpSendStrategy::reset(), and terminate_send().

00760 {
00761   DBG_ENTRY_LVL("TransportSendStrategy","clear",6);
00762
00763   send_delayed_notifications();
00764   QueueType elems;
00765   QueueType queue;
00766   {
00767     GuardType guard(this->lock_);
00768
00769     if (this->header_.length_ > 0) {
00770       // Clear the messages in the pkt_chain_ that is partially sent.
00771       // We just reuse these functions for normal partial send except actual sending.
00772       int num_bytes_left = static_cast<int>(this->pkt_chain_->total_length());
00773       int result = this->adjust_packet_after_send(num_bytes_left);
00774
00775       if (result == 0) {
00776         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00777               "The adjustment logic says that the packet is cleared.\n"));
00778
00779       } else {
00780         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00781               "The adjustment returned partial sent.\n"));
00782       }
00783     }
00784
00785     elems.swap(this->elems_);
00786     queue.swap(this->queue_);
00787
00788     this->header_.length_ = 0;
00789     this->pkt_chain_ = 0;
00790     this->header_complete_ = false;
00791     this->start_counter_ = 0;
00792     this->mode_ = mode;
00793     this->mode_before_suspend_ = MODE_NOT_SET;
00794   }
00795
00796   // We need remove the queued elements outside the lock,
00797   // otherwise we have a deadlock situation when remove vistor
00798   // calls the data_droped on each dropped elements.
00799
00800   // Clear all samples in queue.
00801   RemoveAllVisitor remove_all_visitor;
00802
00803   elems.accept_remove_visitor(remove_all_visitor);
00804   queue.accept_remove_visitor(remove_all_visitor);
00805 }

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE OpenDDS::DCPS::TransportQueueElement * OpenDDS::DCPS::TransportSendStrategy::current_packet_first_element ( ) const [protected]

Definition at line 143 of file TransportSendStrategy.inl.

References elems_, and OpenDDS::DCPS::BasicQueue< T >::peek().

Referenced by OpenDDS::DCPS::RtpsUdpSendStrategy::send_bytes_i_helper().

00144 {
00145   return this->elems_.peek();
00146 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::deliver_ack_request ( TransportQueueElement * element )

Definition at line 1872 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::TransportQueueElement::data_delivered(), and lock_.

01873 {
01874   GuardType guard(this->lock_);
01875   element->data_delivered();
01876 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::direct_send ( bool relink ) [private]

Called from send() when it is time to attempt to send our current packet to the socket while in MODE_DIRECT mode_. If backpressure occurs, our current packet will be adjusted to account for bytes that were sent, and the mode will be changed to MODE_QUEUE. If no backpressure occurs (ie, the entire packet is sent), then our current packet will be "reset" to be an empty packet following the send.

Definition at line 1414 of file TransportSendStrategy.cpp.

References ACE_TEXT(), OpenDDS::DCPS::TransportImpl::config(), DBG_ENTRY_LVL, OpenDDS::DCPS::TransportInst::dump(), LM_DEBUG, LM_WARNING, mode_, mode_before_suspend_, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED, OUTCOME_BACKPRESSURE, OUTCOME_PARTIAL_SEND, OUTCOME_PEER_LOST, OUTCOME_SEND_ERROR, prepare_packet(), relink(), send_packet(), transport_, OpenDDS::DCPS::Transport_debug_level, VDBG, and VDBG_LVL.

Referenced by send(), and send_stop().

01415 {
01416   DBG_ENTRY_LVL("TransportSendStrategy", "direct_send", 6);
01417
01418   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01419         "Prepare the current packet for a direct send attempt.\n"));
01420
01421   // Prepare the packet for sending.
01422   this->prepare_packet();
01423
01424   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01425         "Now attempt to send the packet.\n"));
01426
01427   // We will try resend the packet if the send() fails and then connection
01428   // is re-established.  Only loops if the "continue" line is hit.
01429   while (true) {
01430     // Attempt to send the packet
01431     const SendPacketOutcome outcome = this->send_packet();
01432
01433     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01434           "The outcome of the send_packet() was %d.\n", outcome));
01435
01436     if ((outcome == OUTCOME_BACKPRESSURE) ||
01437         (outcome == OUTCOME_PARTIAL_SEND)) {
01438       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01439                 "The outcome of the send_packet() was either "
01440                 "OUTCOME_BACKPRESSURE or OUTCOME_PARTIAL_SEND.\n"), 5);
01441
01442       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01443                 "Flip into the MODE_QUEUE mode_.\n"), 5);
01444
01445       // We encountered backpressure, or only sent part of the packet.
01446       this->mode_ = MODE_QUEUE;
01447
01448     } else if ((outcome == OUTCOME_PEER_LOST) ||
01449                (outcome == OUTCOME_SEND_ERROR)) {
01450       if (outcome == OUTCOME_SEND_ERROR) {
01451         ACE_ERROR((LM_WARNING,
01452                    ACE_TEXT("(%P|%t) WARNING: Problem detected in ")
01453                    ACE_TEXT("send buffer management: %p.\n"),
01454                    ACE_TEXT("send_bytes")));
01455
01456         if (Transport_debug_level > 0) {
01457           this->transport_.config().dump();
01458         }
01459       } else {
01460         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01461               "The outcome of the send_packet() was "
01462               "OUTCOME_PEER_LOST.\n"));
01463       }
01464
01465       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01466                 "Now flip to MODE_SUSPEND before we try to reconnect.\n"), 5);
01467
01468       if (this->mode_ != MODE_SUSPEND) {
01469         this->mode_before_suspend_ = this->mode_;
01470         this->mode_ = MODE_SUSPEND;
01471       }
01472
01473       if (relink) {
01474         bool do_suspend = false;
01475         this->relink(do_suspend);
01476
01477         if (this->mode_ == MODE_SUSPEND) {
01478           VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01479                     "The reconnect has not done yet and we are "
01480                     "still in MODE_SUSPEND.\n"), 5);
01481
01482         } else if (this->mode_ == MODE_TERMINATED) {
01483           VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01484                     "Reconnect failed, we are in MODE_TERMINATED\n"), 5);
01485
01486         } else {
01487           VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01488                     "Try send the packet again since the connection "
01489                     "is re-established.\n"), 5);
01490
01491           // Try send the packet again since the connection is re-established.
01492           continue;
01493         }
01494       }
01495
01496     } else {
01497       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01498             "The outcome of the send_packet() must have been "
01499             "OUTCOME_COMPLETE_SEND.\n"));
01500       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01501             "So, we will just stay in MODE_DIRECT.\n"));
01502     }
01503
01504     break;
01505   }
01506
01507   // We stay in MODE_DIRECT mode if we didn't encounter any backpressure.
01508 }

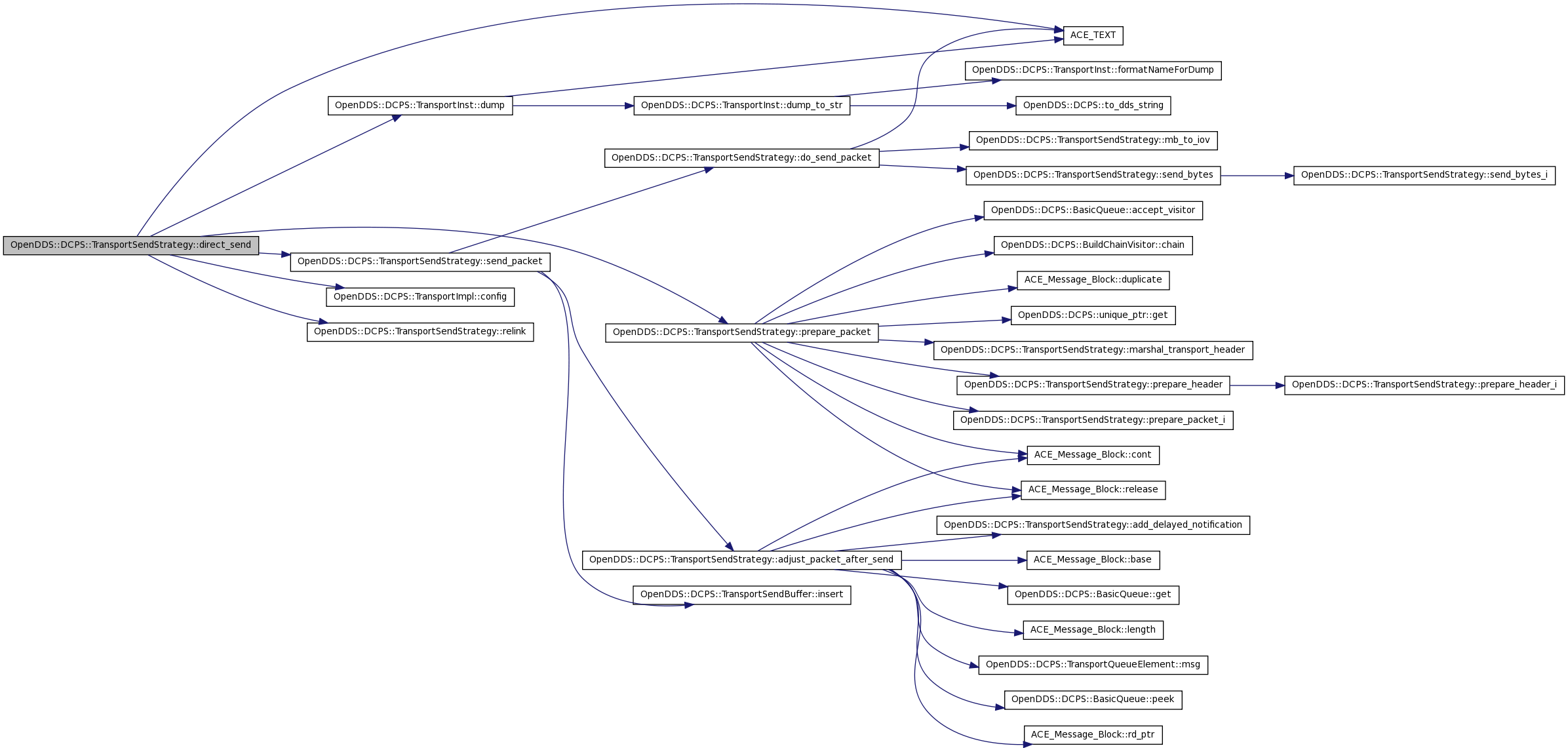

Here is the call graph for this function:

Here is the caller graph for this function:

RemoveResult OpenDDS::DCPS::TransportSendStrategy::do_remove_sample	(	const RepoId &	pub_id,
		const TransportQueueElement::MatchCriteria &	criteria,
		void *	context
	)			`[protected, virtual]`

Implement framework chain visitations to remove a sample.

Reimplemented in OpenDDS::DCPS::RtpsUdpSendStrategy.

Definition at line 1311 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::BasicQueue< T >::accept_remove_visitor(), OpenDDS::DCPS::BasicQueue< T >::accept_replace_visitor(), DBG_ENTRY_LVL, elems_, header_, header_block_, OpenDDS::DCPS::TransportHeader::length_, LM_DEBUG, mode_, MODE_DIRECT, pkt_chain_, queue_, OpenDDS::DCPS::REMOVE_ERROR, OpenDDS::DCPS::REMOVE_FOUND, OpenDDS::DCPS::REMOVE_NOT_FOUND, OpenDDS::DCPS::REMOVE_RELEASED, OpenDDS::DCPS::QueueRemoveVisitor::removed_bytes(), replaced_element_db_allocator_, replaced_element_mb_allocator_, OpenDDS::DCPS::BasicQueue< T >::size(), OpenDDS::DCPS::PacketRemoveVisitor::status(), OpenDDS::DCPS::QueueRemoveVisitor::status(), status, and VDBG.

Referenced by remove_all_msgs(), and remove_sample().

01314 {
01315   DBG_ENTRY_LVL("TransportSendStrategy", "do_remove_sample", 6);
01316
01317   //ciju: Tim had the idea that we could do the following check
01318   // if ((this->mode_ == MODE_DIRECT) ||
01319   //     ((this->pkt_chain_ == 0) && (queue_ == empty)))
01320   // then we can assume that the sample can be safely removed (no need for
01321   // replacement) from the elems_ queue.
01322   if ((this->mode_ == MODE_DIRECT)
01323       || ((this->pkt_chain_ == 0) && (this->queue_.size() == 0))) {
01324     //ciju: I believe this is the only mode where a safe
01325     // assumption can be made that the samples
01326     // in the elems_ queue aren't part of a packet.
01327     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01328           "The mode is MODE_DIRECT, or the queue is empty and no "
01329           "transport packet is in progress.\n"));
01330
01331     QueueRemoveVisitor simple_rem_vis(criteria);
01332     this->elems_.accept_remove_visitor(simple_rem_vis);
01333
01334     const RemoveResult status = simple_rem_vis.status();
01335
01336     if (status == REMOVE_RELEASED || status == REMOVE_FOUND) {
01337       this->header_.length_ -= simple_rem_vis.removed_bytes();
01338
01339     } else if (status == REMOVE_NOT_FOUND) {
01340       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01341             "Failed to find the sample to remove.\n"));
01342     }
01343
01344     return status;
01345   }
01346
01347   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01348         "Visit the queue_ with the RemoveElementVisitor.\n"));
01349
01350   QueueRemoveVisitor simple_rem_vis(criteria);
01351   this->queue_.accept_remove_visitor(simple_rem_vis);
01352
01353   RemoveResult status = simple_rem_vis.status();
01354
01355   if (status == REMOVE_RELEASED || status == REMOVE_FOUND) {
01356     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01357           "The sample was removed from the queue_.\n"));
01358     // This means that the visitor did not encounter any fatal error
01359     // along the way, *AND* the sample was found in the queue_,
01360     // and has now been removed.  We are done.
01361     return status;
01362   }
01363
01364   if (status == REMOVE_ERROR) {
01365     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01366           "The RemoveElementVisitor encountered a fatal error in queue_.\n"));
01367     // This means that the visitor encountered some fatal error along
01368     // the way (and it already reported something to the log).
01369     // Return our failure code.
01370     return status;
01371   }
01372
01373   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01374         "The RemoveElementVisitor did not find the sample in queue_.\n"));
01375
01376   // We get here if the visitor did not encounter any fatal error, but it
01377   // also didn't find the sample - and hence it didn't perform any
01378   // "remove sample" logic.
01379
01380   // Now we need to turn our attention to the current transport packet,
01381   // since the packet is likely in a "partially sent" state, and the
01382   // sample may still be contributing unsent bytes in the pkt_chain_.
01383
01384   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01385         "Visit our elems_ with the PacketRemoveVisitor.\n"));
01386
01387   PacketRemoveVisitor pac_rem_vis(criteria,
01388                                   this->pkt_chain_,
01389                                   this->header_block_,
01390                                   this->replaced_element_mb_allocator_,
01391                                   this->replaced_element_db_allocator_);
01392
01393   this->elems_.accept_replace_visitor(pac_rem_vis);
01394
01395   status = pac_rem_vis.status();
01396
01397   if (status == REMOVE_ERROR) {
01398     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01399           "The PacketRemoveVisitor encountered a fatal error.\n"));
01400
01401   } else if (status == REMOVE_NOT_FOUND) {
01402     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01403           "The PacketRemoveVisitor didn't find the sample.\n"));
01404
01405   } else {
01406     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01407           "The PacketRemoveVisitor found the sample and removed it.\n"));
01408   }
01409
01410   return status;
01411 }

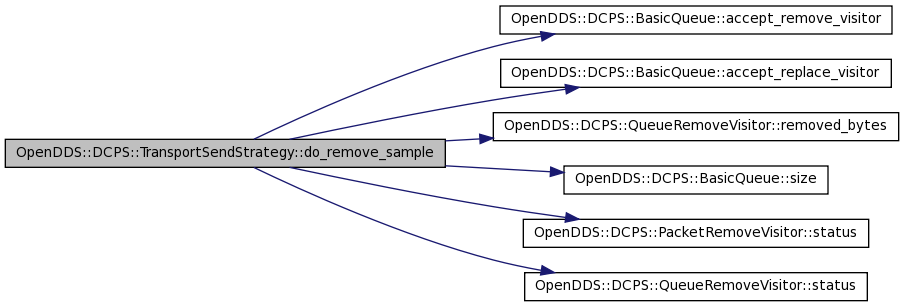

Here is the call graph for this function:

Here is the caller graph for this function:

ssize_t OpenDDS::DCPS::TransportSendStrategy::do_send_packet	(	const ACE_Message_Block *	packet,
		int &	bp
	)			`[private]`

Form an IOV and call the send_bytes() template method.

Definition at line 1684 of file TransportSendStrategy.cpp.

References ACE_TEXT(), DBG_ENTRY_LVL, LM_DEBUG, OpenDDS::DCPS::MAX_SEND_BLOCKS, mb_to_iov(), send_bytes(), OpenDDS::DCPS::Transport_debug_level, and VDBG_LVL.

Referenced by OpenDDS::DCPS::TransportSendBuffer::resend_one(), and send_packet().

01685 {
01686   if (Transport_debug_level > 9) {
01687     ACE_DEBUG((LM_DEBUG,
01688                ACE_TEXT("(%P|%t) TransportSendStrategy::do_send_packet() [%d] - ")
01689                ACE_TEXT("sending data at 0x%x.\n"),
01690                id(), packet));
01691   }
01692   DBG_ENTRY_LVL("TransportSendStrategy", "do_send_packet", 6);
01693
01694 #if defined(OPENDDS_SECURITY)
01695   // pre_send_packet may provide different data that takes the place of the
01696   // original "packet" (used for security encryption/authentication)
01697   Message_Block_Ptr substitute(pre_send_packet(packet));
01698 #endif
01699
01700   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01701             "Populate the iovec array using the packet.\n"), 5);
01702
01703   iovec iov[MAX_SEND_BLOCKS];
01704
01705 #if defined(OPENDDS_SECURITY)
01706   const int num_blocks = mb_to_iov(substitute ? *substitute : *packet, iov);
01707 #else
01708   const int num_blocks = mb_to_iov(*packet, iov);
01709 #endif
01710
01711   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01712             "There are [%d] number of entries in the iovec array.\n",
01713             num_blocks), 5);
01714
01715   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01716             "Attempt to send_bytes() now.\n"), 5);
01717
01718   const ssize_t num_bytes_sent = this->send_bytes(iov, num_blocks, bp);
01719
01720   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01721             "The send_bytes() said that num_bytes_sent == [%d].\n",
01722             num_bytes_sent), 5);
01723
01724 #if defined(OPENDDS_SECURITY)
01725   if (substitute && num_bytes_sent > 0) {
01726     // Although the "substitute" data took the place of "packet", the rest
01727     // of the framework needs to account for the bytes in "packet" being taken
01728     // care of, as if they were actually sent.
01729     // Since this is done with datagram sockets, partial sends aren't possible.
01730     return packet->total_length();
01731   }
01732 #endif
01733
01734   return num_bytes_sent;
01735 }

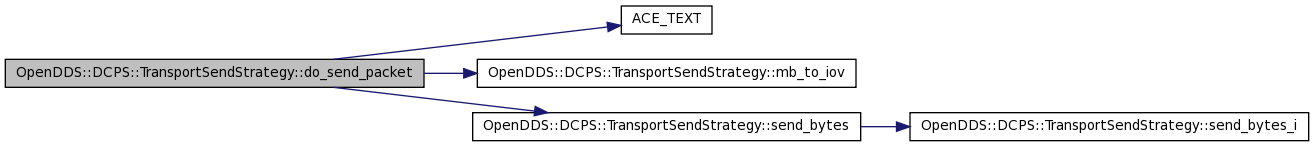

Here is the call graph for this function:

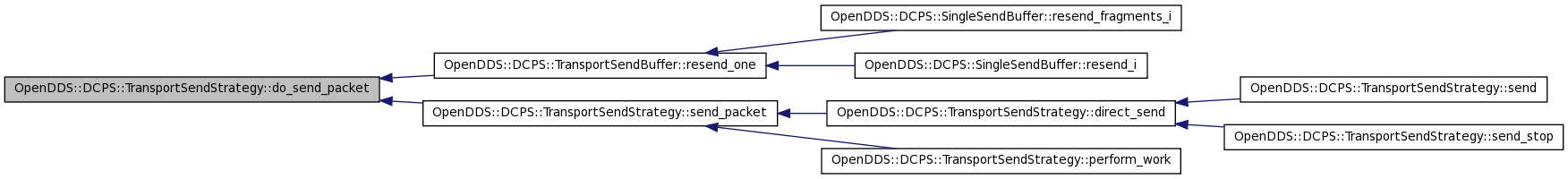

Here is the caller graph for this function:

ACE_INLINE ACE_HANDLE OpenDDS::DCPS::TransportSendStrategy::get_handle ( void ) [virtual]

Implements OpenDDS::DCPS::ThreadSynchWorker.

Reimplemented in OpenDDS::DCPS::TcpSendStrategy.

Definition at line 130 of file TransportSendStrategy.inl.

Referenced by OpenDDS::DCPS::ScheduleOutputHandler::handle_exception(), and non_blocking_send().

00131 {
00132   return ACE_INVALID_HANDLE;
00133 }

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::get_packet_elems_from_queue ( ) [private]

This method is used while in MODE_QUEUE mode, and a new packet needs to be formulated using elements from the queue_. This is the first step of formulating the new packet. It will extract elements from the queue_ and insert those elements into the pkt_elems_ collection.

After this step has been done, the prepare_packet() step can be performed, followed by the actual send_packet() call.

Definition at line 1511 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, elems_, OpenDDS::DCPS::TransportHeader::first_fragment_, OpenDDS::DCPS::BasicQueue< T >::get(), header_, OpenDDS::DCPS::TransportHeader::last_fragment_, OpenDDS::DCPS::TransportHeader::length_, LM_TRACE, max_message_size(), max_samples_, optimum_size_, OpenDDS::DCPS::BasicQueue< T >::peek(), OpenDDS::DCPS::BasicQueue< T >::put(), queue_, OpenDDS::DCPS::BasicQueue< T >::replace_head(), OpenDDS::DCPS::BasicQueue< T >::size(), space_available(), and VDBG_LVL.

Referenced by perform_work().

01512 {
01513   DBG_ENTRY_LVL("TransportSendStrategy", "get_packet_elems_from_queue", 6);
01514
01515   for (TransportQueueElement* element = this->queue_.peek(); element != 0;
01516        element = this->queue_.peek()) {
01517
01518     // Total number of bytes in the current element's message block chain.
01519     size_t element_length = element->msg()->total_length();
01520
01521     // Flag used to determine if the element requires a packet all to itself.
01522     const bool exclusive_packet = element->requires_exclusive_packet();
01523
01524     const size_t avail = this->space_available();
01525
01526     bool frag = false;
01527     if (element_length > avail) {
01528       // The current element won't fit into the current packet
01529       if (this->max_message_size()) { // fragmentation enabled
01530         this->header_.first_fragment_ = !element->is_fragment();
01531         VDBG_LVL((LM_TRACE, "(%P|%t) DBG:   Fragmenting from queue\n"), 0);
01532         ElementPair ep = element->fragment(avail);
01533         element = ep.first;
01534         element_length = element->msg()->total_length();
01535         this->queue_.replace_head(ep.second);
01536         frag = true; // queue_ is already taken care of, don't get() later
01537       } else {
01538         break;
01539       }
01540     }
01541
01542     // If exclusive and the current packet is empty, we won't violate the
01543     // exclusive_packet requirement by put()'ing the element
01544     // into the elems_ collection.
01545     if ((exclusive_packet && this->elems_.size() == 0)
01546         || !exclusive_packet) {
01547       // At this point, we have passed all of the pre-conditions and we can
01548       // now extract the current element from the queue_, put it into the
01549       // packet elems_, and adjust the packet header_.length_.
01550       this->elems_.put(frag ? element : this->queue_.get());
01551       if (this->header_.length_ == 0) {
01552         this->header_.last_fragment_ = !frag && element->is_fragment();
01553       }
01554       this->header_.length_ += static_cast<ACE_UINT32>(element_length);
01555       VDBG_LVL((LM_TRACE, "(%P|%t) DBG:   Packetizing from queue\n"), 0);
01556     }
01557
01558     // With exclusive and (elems_.size() != 0), we don't use the current
01559     // element as part of the packet.  We know that there is already
01560     // at least one element in the packet, and the current element
01561     // is going to need its own (exclusive) packet.  We will just
01562     // use the packet elems_ as it is now.  Always break once
01563     // we've encountered and dealt with the exclusive_packet case.
01564     // Also break if fragmentation was required.
01565     if (exclusive_packet || frag
01566         // If the current number of packet elems_ has reached the maximum
01567         // number of samples per packet, then we are done.
01568         || this->elems_.size() == this->max_samples_
01569         // If the current value of the header_.length_ exceeds (or equals)
01570         // the optimum_size_ for a packet, then we are done.
01571         || this->header_.length_ >= this->optimum_size_) {
01572       break;
01573     }
01574   }
01575 }

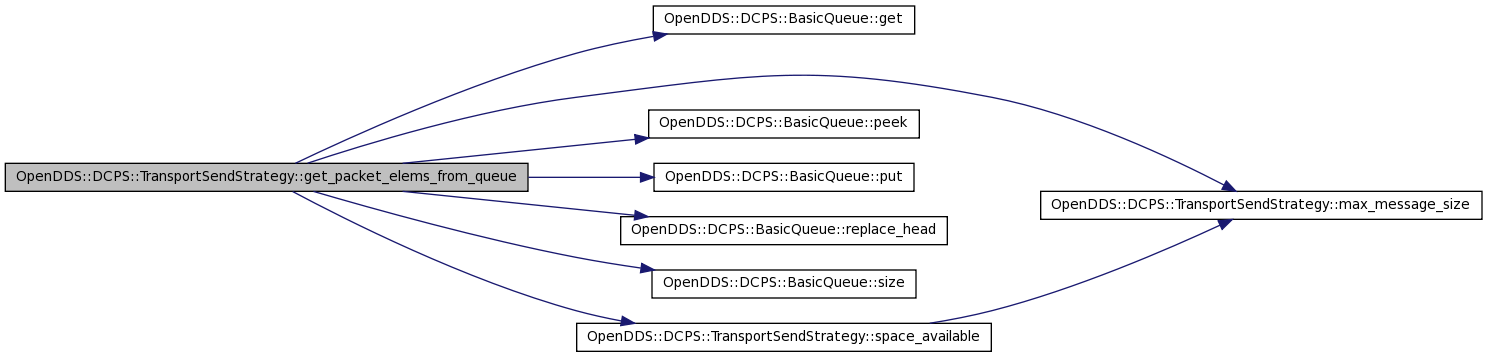

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE bool OpenDDS::DCPS::TransportSendStrategy::isDirectMode ( )

Definition at line 116 of file TransportSendStrategy.inl.

References mode_, and MODE_DIRECT.

00117 {
00118   return this->mode_ == MODE_DIRECT;
00119 }

ACE_INLINE void OpenDDS::DCPS::TransportSendStrategy::link_released ( bool flag )

Definition at line 42 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, link_released_, and lock_.

Referenced by OpenDDS::DCPS::MulticastSendStrategy::MulticastSendStrategy().

00043 {
00044   DBG_ENTRY_LVL("TransportSendStrategy","link_released",6);
00045
00046   GuardType guard(this->lock_);
00047   this->link_released_ = flag;
00048 }

Here is the caller graph for this function:

bool OpenDDS::DCPS::TransportSendStrategy::marshal_transport_header ( ACE_Message_Block * mb ) [private, virtual]

Reimplemented in OpenDDS::DCPS::RtpsUdpSendStrategy.

Definition at line 1664 of file TransportSendStrategy.cpp.

References header_.

Referenced by prepare_packet().

01665 {
01666   return *mb << this->header_;
01667 }

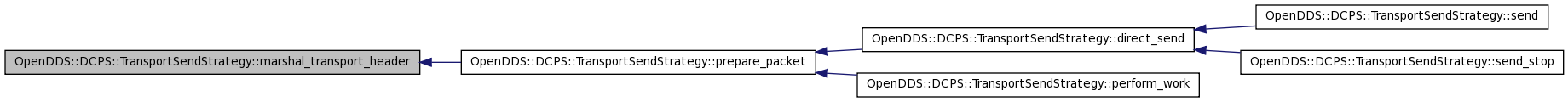

Here is the caller graph for this function:

ACE_INLINE size_t OpenDDS::DCPS::TransportSendStrategy::max_message_size ( void ) const [protected, virtual]

The maximum size of a message allowed by the this TransportImpl, or 0 if there is no such limit. This is expected to be a constant, for example UDP/IPv4 can send messages of up to 65466 bytes. The transport framework will use the returned value (if > 0) to fragment larger messages. This fragmentation and reassembly will be transparent to the user.

Reimplemented in OpenDDS::DCPS::MulticastSendStrategy, OpenDDS::DCPS::RtpsUdpSendStrategy, and OpenDDS::DCPS::UdpSendStrategy.

Definition at line 137 of file TransportSendStrategy.inl.

Referenced by get_packet_elems_from_queue(), send(), and space_available().

00138 {
00139   return 0;
00140 }

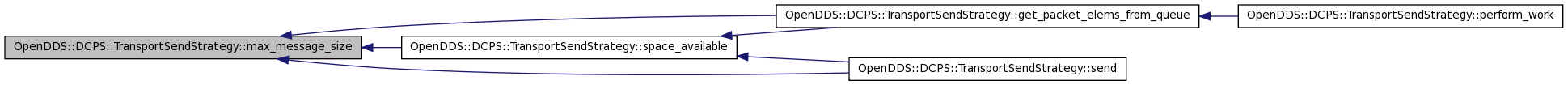

Here is the caller graph for this function:

int OpenDDS::DCPS::TransportSendStrategy::mb_to_iov	(	const ACE_Message_Block &	msg,
		iovec *	iov
	)			`[static]`

Convert ACE_Message_Block chain into iovec[] entries for send(), returns number of iovec[] entries used (up to MAX_SEND_BLOCKS). Precondition: iov must be an iovec[] of size MAX_SEND_BLOCKS or greater.

Definition at line 1890 of file TransportSendStrategy.cpp.

References iovec::iov_base, iovec::iov_len, and OpenDDS::DCPS::MAX_SEND_BLOCKS.

Referenced by do_send_packet(), OpenDDS::DCPS::UdpDataLink::open(), and OpenDDS::DCPS::RtpsUdpSendStrategy::send_rtps_control().

01891 {
01892   int num_blocks = 0;
01893 #ifdef _MSC_VER
01894 #pragma warning(push)
01895 // iov_len is 32-bit on 64-bit VC++, but we don't want a cast here
01896 // since on other platforms iov_len is 64-bit
01897 #pragma warning(disable : 4267)
01898 #endif
01899   for (const ACE_Message_Block* block = &msg;
01900        block && num_blocks < MAX_SEND_BLOCKS;
01901        block = block->cont()) {
01902     iov[num_blocks].iov_len = block->length();
01903     iov[num_blocks++].iov_base = block->rd_ptr();
01904   }
01905 #ifdef _MSC_VER
01906 #pragma warning(pop)
01907 #endif
01908   return num_blocks;
01909 }

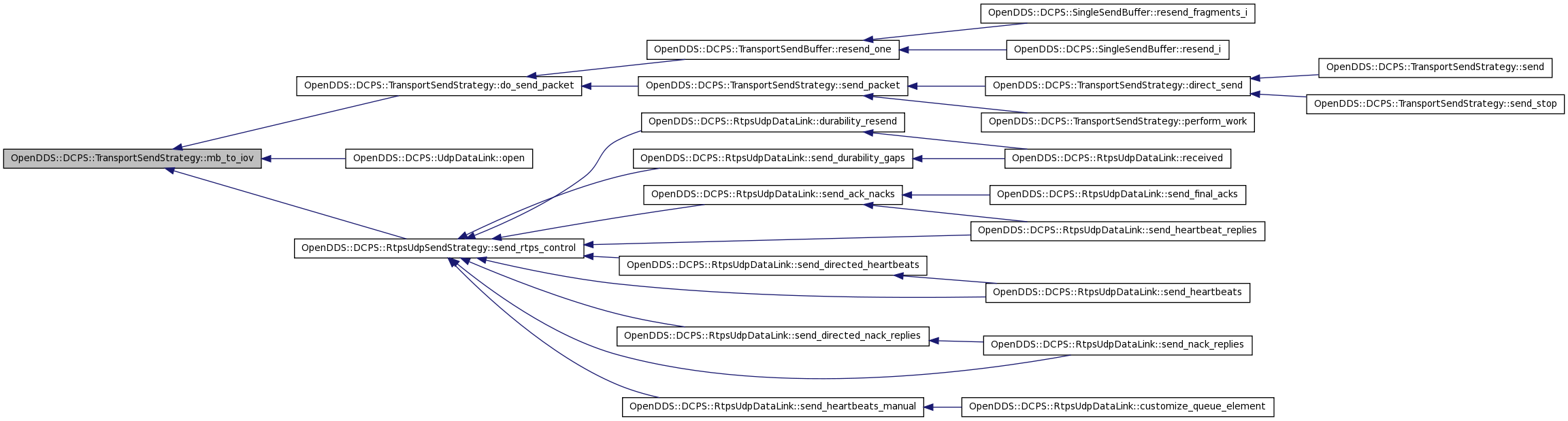

Here is the caller graph for this function:

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE OpenDDS::DCPS::TransportSendStrategy::SendMode OpenDDS::DCPS::TransportSendStrategy::mode ( void ) const

Access the current sending mode.

Definition at line 14 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, and mode_.

Referenced by OpenDDS::DCPS::ScheduleOutputHandler::handle_exception(), OpenDDS::DCPS::TcpSendStrategy::schedule_output(), OpenDDS::DCPS::ScheduleOutputHandler::schedule_output(), and send_delayed_notifications().

00015 {
00016   DBG_ENTRY_LVL("TransportSendStrategy","mode",6);
00017
00018   return mode_;
00019 }

Here is the caller graph for this function:

ACE_INLINE const char * OpenDDS::DCPS::TransportSendStrategy::mode_as_str ( SendMode mode ) [static, private]

Helper function to debugging.

Definition at line 102 of file TransportSendStrategy.inl.

Referenced by perform_work(), send(), and send_stop().

00103 {
00104   static const char* SendModeStr[] = { "MODE_NOT_SET",
00105                                        "MODE_DIRECT",
00106                                        "MODE_QUEUE",
00107                                        "MODE_SUSPEND",
00108                                        "MODE_TERMINATED",
00109                                        "UNKNOWN"
00110                                      };
00111
00112   return SendModeStr [mode];
00113 }

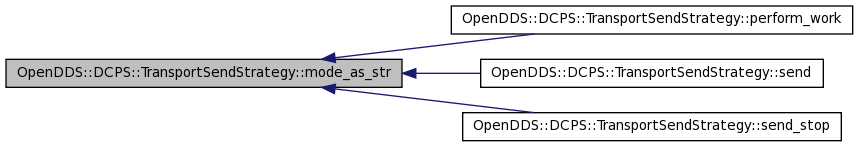

Here is the caller graph for this function:

ssize_t OpenDDS::DCPS::TransportSendStrategy::non_blocking_send	(	const iovec	iov[],
		int	n,
		int &	bp
	)			`[protected, virtual]`

Definition at line 1810 of file TransportSendStrategy.cpp.

References ACE_TEXT(), get_handle(), LM_DEBUG, LM_ERROR, ACE::record_and_set_non_blocking_mode(), ACE::restore_non_blocking_mode(), send_bytes_i(), VDBG, and VDBG_LVL.

Referenced by OpenDDS::DCPS::TcpSendStrategy::send_bytes().

01811 {
01812   int val = 0;
01813   ACE_HANDLE handle = this->get_handle();
01814
01815   if (handle == ACE_INVALID_HANDLE)
01816     return -1;
01817
01818   ACE::record_and_set_non_blocking_mode(handle, val);
01819
01820   // Set the back-pressure flag to false.
01821   bp = 0;
01822
01823   // Clear errno
01824   errno = 0;
01825
01826   ssize_t result = this->send_bytes_i(iov, n);
01827
01828   if (result == -1) {
01829     if ((errno == EWOULDBLOCK) || (errno == ENOBUFS)) {
01830       VDBG((LM_DEBUG,"(%P|%t) DBG:   "
01831             "Backpressure encountered.\n"));
01832       // Set the back-pressure flag to true
01833       bp = 1;
01834
01835     } else {
01836       VDBG_LVL((LM_ERROR, "(%P|%t) TransportSendStrategy::send_bytes: ERROR: %p iovec count: %d\n",
01837                 ACE_TEXT("sendv"), n),1);
01838
01839       // try to get the application to core when "Bad Address" is returned
01840       // by looking at the iovec
01841       for (int ii = 0; ii < n; ii++) {
01842         ACE_DEBUG((LM_DEBUG, "(%P|%t) send_bytes: iov[%d].iov_len = %d .iov_base =%X\n",
01843                    ii, iov[ii].iov_len, iov[ii].iov_base));
01844       }
01845     }
01846   }
01847
01848   VDBG_LVL((LM_DEBUG,"(%P|%t) DBG:   "
01849             "The sendv() returned [%d].\n", result), 5);
01850
01851   ACE::restore_non_blocking_mode(handle, val);
01852
01853   return result;
01854 }

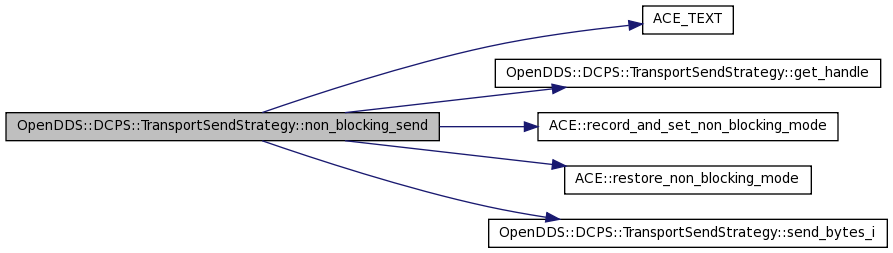

Here is the call graph for this function:

Here is the caller graph for this function:

OpenDDS::DCPS::TransportSendStrategy::OPENDDS_VECTOR ( TQESendModePair ) [private]

Referenced by send_delayed_notifications().

Here is the caller graph for this function:

ThreadSynchWorker::WorkOutcome OpenDDS::DCPS::TransportSendStrategy::perform_work ( void ) [virtual]

Called by our ThreadSynch object when we should be able to start sending any partial packet bytes and/or compose a new packet using elements from the queue_.

Returns 0 to indicate that the ThreadSynch object doesn't need to call perform_work() again since the queue (and any unsent packet bytes) has been drained, and the mode_ has been switched to MODE_DIRECT.

Returns 1 to indicate that there is more work to do, and the ThreadSynch object should have this perform_work() method called again.

Implements OpenDDS::DCPS::ThreadSynchWorker.

Definition at line 122 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, get_packet_elems_from_queue(), header_, OpenDDS::DCPS::TransportHeader::length_, LM_DEBUG, lock_, mode_, mode_as_str(), MODE_DIRECT, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED, OUTCOME_BACKPRESSURE, OUTCOME_COMPLETE_SEND, OUTCOME_PEER_LOST, OUTCOME_SEND_ERROR, prepare_packet(), queue_, relink(), send_delayed_notifications(), send_packet(), OpenDDS::DCPS::BasicQueue< T >::size(), synch_, VDBG_LVL, OpenDDS::DCPS::ThreadSynchWorker::WORK_OUTCOME_BROKEN_RESOURCE, OpenDDS::DCPS::ThreadSynchWorker::WORK_OUTCOME_CLOGGED_RESOURCE, OpenDDS::DCPS::ThreadSynchWorker::WORK_OUTCOME_MORE_TO_DO, and OpenDDS::DCPS::ThreadSynchWorker::WORK_OUTCOME_NO_MORE_TO_DO.

00123 {
00124   DBG_ENTRY_LVL("TransportSendStrategy","perform_work",6);
00125
00126   SendPacketOutcome outcome;
00127   bool no_more_work = false;
00128
00129   { // scope for the guard(this->lock_);
00130     GuardType guard(this->lock_);
00131
00132     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG: perform_work mode: %C\n", mode_as_str(this->mode_)), 5);
00133
00134     if (this->mode_ == MODE_TERMINATED) {
00135       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00136                 "Entered perform_work() and mode_ is MODE_TERMINATED - "
00137                 "we lost connection and could not reconnect, just return "
00138                 "WORK_OUTCOME_BROKEN_RESOURCE.\n"), 5);
00139       return WORK_OUTCOME_BROKEN_RESOURCE;
00140     }
00141
00142     // The perform_work() is called by our synch_ object using
00143     // a thread designated to call this method when it thinks
00144     // we need to be called in order to "service" the queue_ and/or
00145     // deal with a partially sent current packet.
00146     //
00147     // We will return a 0 if we don't see a need to have our perform_work()
00148     // called again, and we will return a 1 if we do see the need to have our
00149     // perform_work() method called again.
00150
00151     // First, make sure that the mode_ indicates that we are, indeed, in
00152     // the MODE_QUEUE mode.  If we are not in MODE_QUEUE mode (meaning we are
00153     // in MODE_DIRECT), then it means we didn't need to have this perform_work()
00154     // method called - in this case, do nothing other than return
00155     // WORK_OUTCOME_NO_MORE_TO_DO to tell our caller that we really don't
00156     // see a need for it to call our perform_work() again (at least not
00157     // right now).
00158     if (this->mode_ != MODE_QUEUE && this->mode_ != MODE_SUSPEND) {
00159       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00160                 "Entered perform_work() and mode_ is %C - just return "
00161                 "WORK_OUTCOME_NO_MORE_TO_DO.\n", mode_as_str(this->mode_)), 5);
00162       return WORK_OUTCOME_NO_MORE_TO_DO;
00163     }
00164
00165     // Check the "state" of the current packet.  We will either find that the
00166     // current packet is in a state of being "partially sent", or we will find
00167     // it in a state of being "empty".  When the current packet is "empty", it
00168     // means that it is time to build up the current packet using elements
00169     // extracted from the queue_, and then we will attempt to send the
00170     // packet.  When we find the current packet in the "partially sent" state,
00171     // we will not touch the queue_ - we will just try to send the unsent
00172     // bytes in the current (partially sent) packet.
00173     const size_t header_length = this->header_.length_;
00174
00175     if (header_length == 0) {
00176       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00177                 "The current packet doesn't have any unsent bytes - we "
00178                 "need to 'populate' the current packet with elems from "
00179                 "the queue.\n"), 5);
00180
00181       // The current packet is "empty".  Build up the current packet using
00182       // elements from the queue_, and prepare the current packet to be sent.
00183
00184       // Before we build the packet from the queue_, let's make sure that
00185       // there is actually something on the queue_ to build from.
00186       if (this->queue_.size() == 0) {
00187         VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00188                   "But the queue is empty.  We have cleared the "
00189                   "backpressure situation.\n"),5);
00190         // We are here because the queue_ is empty, and there isn't
00191         // any "partial packet" bytes left to send.  We have overcome
00192         // the backpressure situation and don't have anything to do
00193         // right now.
00194
00195         VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00196                   "Flip mode to MODE_DIRECT, and return "
00197                   "WORK_OUTCOME_NO_MORE_TO_DO.\n"), 5);
00198
00199         // Flip the mode back to MODE_DIRECT.
00200         this->mode_ = MODE_DIRECT;
00201
00202         // And return WORK_OUTCOME_NO_MORE_TO_DO to tell our caller that
00203         // perform_work() doesn't need to be called again (at this time).
00204         return WORK_OUTCOME_NO_MORE_TO_DO;
00205       }
00206
00207       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00208                 "There is at least one elem in the queue - get the packet "
00209                 "elems from the queue.\n"), 5);
00210
00211       // There is stuff in the queue_ if we get to this point in the logic.
00212       // Build-up the current packet using element(s) from the queue_.
00213       this->get_packet_elems_from_queue();
00214
00215       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00216                 "Prepare the packet from the packet elems_.\n"), 5);
00217
00218       // Now we can prepare the new packet to be sent.
00219       this->prepare_packet();
00220
00221       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00222                 "Packet has been prepared from packet elems_.\n"), 5);
00223
00224     } else {
00225       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00226                 "We have a current packet that still has unsent bytes.\n"), 5);
00227     }
00228
00229     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00230               "Attempt to send the current packet.\n"), 5);
00231
00232     // Now we can attempt to send the current packet - whether it is
00233     // a "partially sent" packet or one that we just built-up using elements
00234     // from the queue_ (and subsequently prepared for sending) - it doesn't
00235     // matter.  Just attempt to send as many of the "unsent" bytes in the
00236     // packet as possible.
00237     outcome = this->send_packet();
00238
00239     // If we sent the whole packet (eg, partial_send is false), and the queue_
00240     // is now empty, then we've cleared the backpressure situation.
00241     if ((outcome == OUTCOME_COMPLETE_SEND) && (this->queue_.size() == 0)) {
00242       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00243                 "Flip the mode to MODE_DIRECT, and then return "
00244                 "WORK_OUTCOME_NO_MORE_TO_DO.\n"), 5);
00245
00246       // Revert back to MODE_DIRECT mode.
00247       this->mode_ = MODE_DIRECT;
00248       no_more_work = true;
00249     }
00250   } // End of scope for guard(this->lock_);
00251
00252   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00253             "The outcome of the send_packet() was %d.\n", outcome), 5);
00254
00255   send_delayed_notifications();
00256
00257   // If we sent the whole packet (eg, partial_send is false), and the queue_
00258   // is now empty, then we've cleared the backpressure situation.
00259   if (no_more_work) {
00260     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00261               "We sent the whole packet, and there is nothing left on "
00262               "the queue now.\n"), 5);
00263
00264     // Return WORK_OUTCOME_NO_MORE_TO_DO to tell our caller that we
00265     // don't desire another call to this perform_work() method.
00266     return WORK_OUTCOME_NO_MORE_TO_DO;
00267   }
00268
00269   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00270             "We still have unsent bytes in the current packet AND/OR there "
00271             "are still elements in the queue.\n"), 5);
00272
00273   if ((outcome == OUTCOME_PEER_LOST) || (outcome == OUTCOME_SEND_ERROR)) {
00274     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00275               "We lost our connection, or had some fatal connection "
00276               "error.  Return WORK_OUTCOME_BROKEN_RESOURCE.\n"), 5);
00277
00278     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00279               "Now flip to MODE_SUSPEND before we try to reconnect.\n"), 5);
00280
00281     bool do_suspend = true;
00282     this->relink(do_suspend);
00283
00284     if (this->mode_ == MODE_SUSPEND) {
00285       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00286                 "The reconnect has not done yet and we are still in MODE_SUSPEND. "
00287                 "Return WORK_OUTCOME_CLOGGED_RESOURCE.\n"), 5);
00288       // Return WORK_OUTCOME_NO_MORE_TO_DO to tell our caller that we
00289       // don't desire another call to this perform_work() method.
00290       return WORK_OUTCOME_NO_MORE_TO_DO;
00291
00292     } else if (this->mode_ == MODE_TERMINATED) {
00293       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00294                 "Reconnect failed, now we are in MODE_TERMINATED\n"), 5);
00295       return WORK_OUTCOME_BROKEN_RESOURCE;
00296
00297     } else {
00298       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00299                 "Reconnect succeeded, Notify synch thread of work "
00300                 "availability.\n"), 5);
00301       // If the datalink is re-established then notify the synch
00302       // thread to perform work.  We do not hold the object lock at
00303       // this point.
00304       this->synch_->work_available();
00305     }
00306   }
00307
00308   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00309             "We still have an 'unbroken' connection.\n"), 5);
00310
00311   if (outcome == OUTCOME_BACKPRESSURE) {
00312     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00313               "We experienced backpressure on our attempt to send the "
00314               "packet.  Return WORK_OUTCOME_CLOGGED_RESOURCE.\n"), 5);
00315     // We have a "clogged resource".
00316     return WORK_OUTCOME_CLOGGED_RESOURCE;
00317   }
00318
00319   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00320             "We may have sent the whole current packet, but still have "
00321             "elements on the queue.\n"), 5);
00322   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00323             "Or, we may have only partially sent the current packet.\n"), 5);
00324
00325   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00326             "Either way, we return WORK_OUTCOME_MORE_TO_DO now.\n"), 5);
00327
00328   // We may have had an OUTCOME_COMPLETE_SEND, but there is still stuff
00329   // in the queue_ to be sent.  *OR* we have have had an OUTCOME_PARTIAL_SEND,
00330   // which equates to the same thing - we still have work to do.
00331
00332   // We are still in MODE_QUEUE mode, thus there is still work to be
00333   // done to service the queue_ and/or a partially sent current packet.
00334   // Return WORK_OUTCOME_MORE_TO_DO so that our caller knows that we still
00335   // want it to call this perform_work() method.
00336   return WORK_OUTCOME_MORE_TO_DO;
00337 }

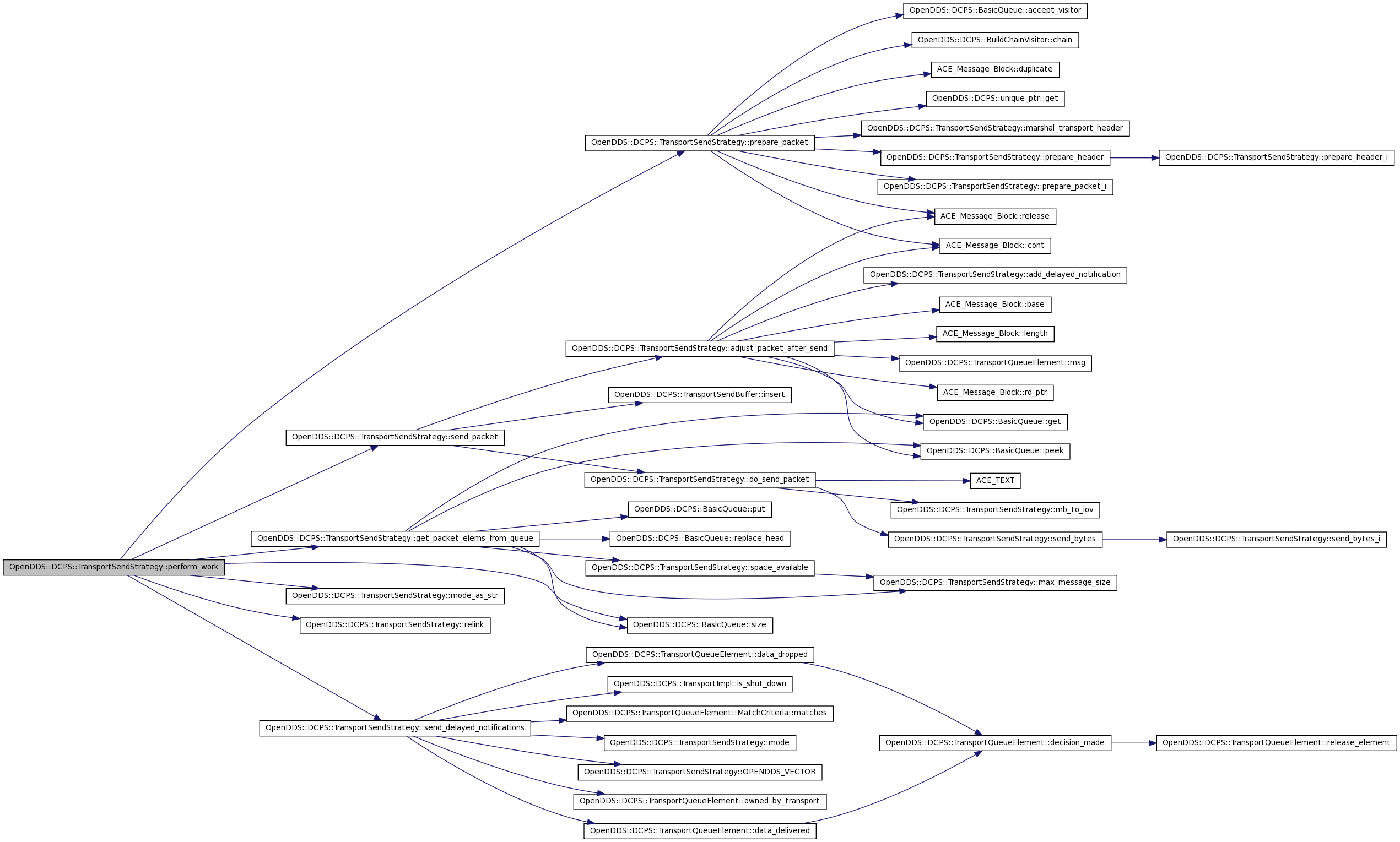

Here is the call graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::prepare_header ( ) [private]

This method is responsible for updating the packet header. Called exclusively by prepare_packet.

Definition at line 1578 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, header_, header_sequence_, prepare_header_i(), and OpenDDS::DCPS::TransportHeader::sequence_.

Referenced by prepare_packet().

01579 {
01580   DBG_ENTRY_LVL("TransportSendStrategy", "prepare_header", 6);
01581
01582   // Increment header sequence for packet:
01583   this->header_.sequence_ = ++this->header_sequence_;
01584
01585   // Allow the specific implementation the opportunity to set
01586   // values in the packet header.
01587   this->prepare_header_i();
01588 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::prepare_header_i ( ) [protected, virtual]

Specific implementation processing of prepared packet header.

Reimplemented in OpenDDS::DCPS::MulticastSendStrategy.

Definition at line 1591 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL.

Referenced by prepare_header().

01592 {
01593   DBG_ENTRY_LVL("TransportSendStrategy","prepare_header_i",6);
01594
01595   // Default implementation does nothing.
01596 }

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::prepare_packet ( ) [private]

This method is responsible for actually "creating" the current send packet using the packet header and the collection of packet elements that are to make-up the packet's contents.

Definition at line 1599 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::BasicQueue< T >::accept_visitor(), OpenDDS::DCPS::BuildChainVisitor::chain(), ACE_Message_Block::cont(), DBG_ENTRY_LVL, ACE_Message_Block::duplicate(), elems_, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), header_block_, header_complete_, header_db_allocator_, header_mb_allocator_, LM_DEBUG, marshal_transport_header(), max_header_size_, ACE_Time_Value::max_time, ACE_Message_Block::MB_DATA, pkt_chain_, prepare_header(), prepare_packet_i(), ACE_Message_Block::release(), VDBG, and ACE_Time_Value::zero.

Referenced by direct_send(), and perform_work().

01600 {
01601   DBG_ENTRY_LVL("TransportSendStrategy", "prepare_packet", 6);
01602
01603   // Prepare the header for sending.
01604   this->prepare_header();
01605
01606   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01607         "Marshal the packet header.\n"));
01608
01609   if (this->header_block_ != 0) {
01610     this->header_block_->release();
01611   }
01612
01613   ACE_NEW_MALLOC(this->header_block_,
01614     static_cast<ACE_Message_Block*>(this->header_mb_allocator_->malloc()),
01615     ACE_Message_Block(this->max_header_size_,
01616                       ACE_Message_Block::MB_DATA,
01617                       0,
01618                       0,
01619                       0,
01620                       0,
01621                       ACE_DEFAULT_MESSAGE_BLOCK_PRIORITY,
01622                       ACE_Time_Value::zero,
01623                       ACE_Time_Value::max_time,
01624                       this->header_db_allocator_.get(),
01625                       this->header_mb_allocator_.get()));
01626
01627   marshal_transport_header(this->header_block_);
01628
01629   this->pkt_chain_ = this->header_block_->duplicate();
01630
01631   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01632         "Use a BuildChainVisitor to visit the packet elems_.\n"));
01633
01634   // Build up a chain of blocks by duplicating the message block chain
01635   // held by each element (in elems_), and then chaining the new duplicate
01636   // blocks together to form one long chain.
01637   BuildChainVisitor visitor;
01638   this->elems_.accept_visitor(visitor);
01639
01640   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01641         "Attach the visitor's chain of blocks to the lone (packet "
01642         "header) block currently in the pkt_chain_.\n"));
01643
01644   // Attach the visitor's chain of blocks to the packet header block.
01645   this->pkt_chain_->cont(visitor.chain());
01646
01647   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01648         "Increment header sequence for next packet.\n"));
01649
01650   // Allow the specific implementation the opportunity to process the
01651   // newly prepared packet.
01652   this->prepare_packet_i();
01653
01654   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01655         "Set the header_complete_ flag to false.\n"));
01656
01657   // Set the header_complete_ to false to indicate
01658   // that the first block in the pkt_chain_ is the packet header block
01659   // (actually a duplicate() of the packet header_block_).
01660   this->header_complete_ = false;
01661 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::prepare_packet_i ( ) [protected, virtual]

Specific implementation processing of prepared packet.

Definition at line 1670 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL.

Referenced by prepare_packet().

01671 {
01672   DBG_ENTRY_LVL("TransportSendStrategy","prepare_packet_i",6);
01673
01674   // Default implementation does nothing.
01675 }

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportSendStrategy::relink ( bool do_suspend = true ) [virtual]

The subclass needs to provide the implementation for re-establishing the datalink. This is called when send returns an error.

Reimplemented in OpenDDS::DCPS::TcpSendStrategy.

Definition at line 51 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL.

Referenced by direct_send(), and perform_work().

00052 {
00053   DBG_ENTRY_LVL("TransportSendStrategy","relink",6);
00054   // The subsclass needs implement this function for re-establishing
00055   // the link upon send failure.
00056 }

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::remove_all_msgs ( RepoId pub_id )

Definition at line 1264 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, do_remove_sample(), lock_, OpenDDS::DCPS::TransportSendBuffer::retain_all(), send_buffer_, and send_delayed_notifications().

01265 {
01266   DBG_ENTRY_LVL("TransportSendStrategy","remove_all_msgs",6);
01267
01268   const TransportQueueElement::MatchOnPubId match(pub_id);
01269   send_delayed_notifications(&match);
01270
01271   GuardType guard(this->lock_);
01272
01273   if (this->send_buffer_ != 0) {
01274     // If a secondary send buffer is bound, removed samples must
01275     // be retained in order to properly maintain the buffer:
01276     this->send_buffer_->retain_all(pub_id);
01277   }
01278
01279   do_remove_sample(pub_id, match, 0);
01280 }

Here is the call graph for this function:

RemoveResult OpenDDS::DCPS::TransportSendStrategy::remove_sample	(	const DataSampleElement *	sample,
		void *	context
	)

Our DataLink has been requested by some particular TransportClient to remove the supplied sample (basically, an "unsend" attempt) from this strategy object.

Definition at line 1283 of file TransportSendStrategy.cpp.

References ACE_Message_Block::cont(), DBG_ENTRY_LVL, do_remove_sample(), OpenDDS::DCPS::DataSampleElement::get_pub_id(), OpenDDS::DCPS::DataSampleElement::get_sample(), LM_DEBUG, lock_, ACE_Message_Block::rd_ptr(), OpenDDS::DCPS::REMOVE_RELEASED, send_delayed_notifications(), and VDBG_LVL.

01284 {
01285   DBG_ENTRY_LVL("TransportSendStrategy", "remove_sample", 6);
01286
01287   VDBG_LVL((LM_DEBUG, "(%P|%t)  Removing sample: %@\n", sample->get_sample()), 5);
01288
01289   // The sample to remove is either in temporary delayed notification list or
01290   // internal list (elems_ or queue_). If it's going to be removed from temporary delayed
01291   // notification list by transport thread, it needs acquire WriterDataContainer lock for
01292   // data_dropped/data_delivered callback, then it needs wait for this remove_sample() call
01293   // complete as this call already hold the WriterContainer's lock. So this call is safe to
01294   // access the sample to remove. If it's going to be removed by this remove_sample() calling
01295   // thread, it will be removed either from delayed notification list or from internal list
01296   // in which case the element carry the info if the sample is released so the datalinkset
01297   // can stop calling rest datalinks to remove this sample if it's already released..
01298
01299   const char* const payload = sample->get_sample()->cont()->rd_ptr();
01300   RepoId pub_id = sample->get_pub_id();
01301   const TransportQueueElement::MatchOnDataPayload modp(payload);
01302   if (send_delayed_notifications(&modp)) {
01303     return REMOVE_RELEASED;
01304   }
01305
01306   GuardType guard(this->lock_);
01307   return do_remove_sample(pub_id, modp, context);
01308 }

Here is the call graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportSendStrategy::resume_send ( )

This is called when connection is lost and reconnect succeeds. The send mode is set to the mode before suspend which is either MODE_QUEUE or MODE_DIRECT.

Definition at line 71 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, header_, header_complete_, OpenDDS::DCPS::TransportHeader::length_, LM_ERROR, lock_, mode_, mode_before_suspend_, MODE_DIRECT, MODE_NOT_SET, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED, pkt_chain_, queue_, OpenDDS::DCPS::BasicQueue< T >::size(), start_counter_, and synch_.

00072 {
00073   DBG_ENTRY_LVL("TransportSendStrategy","resume_send",6);
00074   GuardType guard(this->lock_);
00075
00076   // If this send strategy is reused when the connection is reestablished, then
00077   // we need re-initialize the mode_ and mode_before_suspend_.
00078   if (this->mode_ == MODE_TERMINATED) {
00079     this->header_.length_ = 0;
00080     this->pkt_chain_ = 0;
00081     this->header_complete_ = false;
00082     this->start_counter_ = 0;
00083     this->mode_ = MODE_DIRECT;
00084     this->mode_before_suspend_ = MODE_NOT_SET;
00085     this->delayed_delivered_notification_queue_.clear();
00086
00087   } else if (this->mode_ == MODE_SUSPEND) {
00088     this->mode_ = this->mode_before_suspend_;
00089     this->mode_before_suspend_ = MODE_NOT_SET;
00090     if (this->queue_.size() > 0) {
00091       this->mode_ = MODE_QUEUE;
00092       this->synch_->work_available();
00093     }
00094
00095   } else {
00096     ACE_ERROR((LM_ERROR, "(%P|%t) ERROR: TransportSendStrategy::resume_send  The suspend or terminate"
00097                " is not called previously.\n"));
00098   }
00099 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::send	(	TransportQueueElement *	element,
		bool	relink = `true`
	)

Our DataLink has been requested by some particular TransportClient to send the element.

Definition at line 890 of file TransportSendStrategy.cpp.

00891 {
00892   if (Transport_debug_level > 9) {
00893     ACE_DEBUG((LM_DEBUG,
00894                ACE_TEXT("(%P|%t) TransportSendStrategy::send() [%d] - ")
00895                ACE_TEXT("sending data at 0x%x.\n"),
00896                id(), element));
00897   }
00898
00899   DBG_ENTRY_LVL("TransportSendStrategy", "send", 6);
00900
00901   {
00902     GuardType guard(this->lock_);
00903
00904     if (this->link_released_) {
00905       this->add_delayed_notification(element);
00906
00907     } else {
00908       if (this->mode_ == MODE_TERMINATED && !this->graceful_disconnecting_) {
00909         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00910               "TransportSendStrategy::send: mode is MODE_TERMINATED and not in "
00911               "graceful disconnecting, so discard message.\n"));
00912         element->data_dropped(true);
00913         return;
00914       }
00915
00916       size_t element_length = element->msg()->total_length();
00917
00918       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00919             "Send element msg() has total_length() == [%d].\n",
00920             element_length));
00921
00922       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00923             "this->max_header_size_ == [%d].\n",
00924             this->max_header_size_));
00925
00926       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00927             "this->max_size_ == [%d].\n",
00928             this->max_size_));
00929
00930       const size_t max_message_size = this->max_message_size();
00931
00932       // Really an assert.  We can't accept any element that wouldn't fit into
00933       // a transport packet by itself (ie, it would be the only element in the
00934       // packet).  This max_size_ is the user-configurable maximum, not based
00935       // on the transport's inherent maximum message size.  If max_message_size
00936       // is non-zero, we will fragment so max_size_ doesn't apply per-element.
00937       if (max_message_size == 0 &&
00938           this->max_header_size_ + element_length > this->max_size_) {
00939         ACE_ERROR((LM_ERROR,
00940                    "(%P|%t) ERROR: Element too large (%Q) "
00941                    "- won't fit into packet.\n", ACE_UINT64(element_length)));
00942         return;
00943       }
00944
00945       // Check the mode_ to see if we simply put the element on the queue.
00946       if (this->mode_ == MODE_QUEUE || this->mode_ == MODE_SUSPEND) {
00947         VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
00948                   "this->mode_ == %C, so queue elem and leave.\n",
00949                   mode_as_str(this->mode_)), 5);
00950
00951         this->queue_.put(element);
00952
00953         if (this->mode_ != MODE_SUSPEND) {
00954           this->synch_->work_available();
00955         }
00956
00957         return;
00958       }
00959
00960       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00961             "this->mode_ == MODE_DIRECT.\n"));
00962
00963       // We are in the MODE_DIRECT send mode.  When in this mode, the send()
00964       // calls will "build up" the transport packet to be sent directly when it
00965       // reaches the optimal size, contains the maximum number of samples, etc.
00966
00967       // We need to check if the current element (the arg passed-in to this
00968       // send() method) should be appended to the transport packet, or if the
00969       // transport packet should be sent (directly) first, dealing with the
00970       // current element afterwards.
00971
00972       // We will decide to send the packet as it is now, under two circumstances:
00973       //
00974       //    Either:
00975       //
00976       //    (1) The current element won't fit into the current packet since it
00977       //        would violate the max_packet_size_.
00978       //
00979       //    -OR-
00980       //
00981       //    (2) There is at least one element already in the current packet,
00982       //        and the current element says that it must be sent in an
00983       //        exclusive packet (ie, in a packet all by itself).
00984       //
00985       const bool exclusive = element->requires_exclusive_packet();
00986
00987       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00988             "The element %C require an exclusive packet.\n",
00989             (exclusive ? "DOES" : "does NOT")
00990           ));
00991
00992       const size_t space_needed =
00993         (max_message_size > 0)
00994         ? /* fragmenting */ DataSampleHeader::max_marshaled_size() + MIN_FRAG
00995         : /* not fragmenting */ element_length;
00996
00997       if ((exclusive && (this->elems_.size() != 0))
00998           || (this->space_available() < space_needed)) {
00999
01000         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01001               "Element won't fit in current packet or requires exclusive"
01002               " - send current packet (directly) now.\n"));
01003
01004         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01005               "max_header_size_: %d, header_.length_: %d, element_length: %d\n"
01006               , this->max_header_size_, this->header_.length_, element_length));
01007
01008         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01009               "Tot possible length: %d, max_len: %d\n"
01010               , this->max_header_size_ + this->header_.length_ + element_length
01011               , this->max_size_));
01012         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01013               "current elem size: %d\n"
01014               , this->elems_.size()));
01015
01016         // Send the current packet, and deal with the current element
01017         // afterwards.
01018         // The invocation's relink status should dictate the direct_send's
01019         // relink. We don't want a (relink == false) invocation to end up
01020         // doing a relink. Think of (relink == false) as a non-blocking call.
01021         this->direct_send(relink);
01022
01023         // Now check to see if we flipped into MODE_QUEUE, which would mean
01024         // that the direct_send() experienced backpressure, and the
01025         // packet was only partially sent.  If this has happened, we deal with
01026         // the current element by placing it on the queue (and then we are done).
01027         //
01028         // Otherwise, if the mode_ is still MODE_DIRECT, we can just
01029         // "drop" through to the next step in the logic where we append the
01030         // current element to the current packet.
01031         if (this->mode_ == MODE_QUEUE) {
01032           VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01033                     "We experienced backpressure on that direct send, as "
01034                     "the mode_ is now MODE_QUEUE or MODE_SUSPEND.  "
01035                     "Queue elem and leave.\n"), 5);
01036           this->queue_.put(element);
01037           this->synch_->work_available();
01038
01039           return;
01040         }
01041       }
01042
01043       // Loop for sending 'element', in fragments if needed
01044       bool first_pkt = true; // enter the loop 1st time through unconditionally
01045       for (TransportQueueElement* next_fragment = 0;
01046            (first_pkt || next_fragment)
01047            && (this->mode_ == MODE_DIRECT || this->mode_ == MODE_TERMINATED);) {
01048            // We do need to send in MODE_TERMINATED (GRACEFUL_DISCONNECT msg)
01049
01050         if (next_fragment) {
01051           element = next_fragment;
01052           element_length = next_fragment->msg()->total_length();
01053           this->header_.first_fragment_ = false;
01054         }
01055
01056         this->header_.last_fragment_ = false;
01057         if (max_message_size) { // fragmentation enabled
01058           const size_t avail = this->space_available();
01059           if (element_length > avail) {
01060             VDBG_LVL((LM_TRACE, "(%P|%t) DBG:   Fragmenting\n"), 0);
01061             ElementPair ep = element->fragment(avail);
01062             element = ep.first;
01063             element_length = element->msg()->total_length();
01064             next_fragment = ep.second;
01065             this->header_.first_fragment_ = first_pkt;
01066           } else if (next_fragment) {
01067             // We are sending the "tail" element of a previous fragment()
01068             // operation, and this element didn't itself require fragmentation
01069             this->header_.last_fragment_ = true;
01070             next_fragment = 0;
01071           }
01072         }
01073         first_pkt = false;
01074
01075         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01076               "Start the 'append elem' to current packet logic.\n"));
01077
01078         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01079               "Put element into current packet elems_.\n"));
01080
01081         // Now that we know the current element should go into the current
01082         // packet, we can just go ahead and "append" the current element to
01083         // the current packet.
01084
01085         // Add the current element to the collection of packet elements.
01086         this->elems_.put(element);
01087
01088         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01089               "Before, the header_.length_ == [%d].\n",
01090               this->header_.length_));
01091
01092         // Adjust the header_.length_ to account for the length of the element.
01093         this->header_.length_ += static_cast<ACE_UINT32>(element_length);
01094         const size_t message_length = this->header_.length_;
01095
01096         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01097               "After adding element's length, the header_.length_ == [%d].\n",
01098               message_length));
01099
01100         // The current packet now contains the current element.  We need to
01101         // check to see if the conditions are such that we should go ahead and
01102         // attempt to send the packet "directly" now, or if we can just leave
01103         // and send the current packet later (in another send() call or in a
01104         // send_stop() call).
01105
01106         // There a few conditions that will cause us to attempt to send the
01107         // packet (directly) right now:
01108         // - Fragmentation was needed
01109         // - The current packet has the maximum number of samples per packet.
01110         // - The current packet's total length exceeds the optimum packet size.
01111         // - The current element (currently part of the packet elems_)
01112         //   requires an exclusive packet.
01113         //
01114         if (next_fragment || (this->elems_.size() >= this->max_samples_)
01115             || (this->max_header_size_ + message_length > this->optimum_size_)
01116             || exclusive) {
01117           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01118                 "Now the current packet looks full - send it (directly).\n"));
01119
01120           this->direct_send(relink);
01121
01122           if (next_fragment && this->mode_ != MODE_DIRECT) {
01123             if (this->mode_ == MODE_QUEUE) {
01124               this->queue_.put(next_fragment);
01125               this->synch_->work_available();
01126
01127             } else {
01128               next_fragment->data_dropped(true /* dropped by transport */);
01129             }
01130           } else if (mode_ == MODE_QUEUE) {
01131             // Background thread handles packets in progress
01132             this->synch_->work_available();
01133           }
01134
01135           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01136                 "Back from the direct_send() attempt.\n"));
01137
01138           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01139                 "And we %C as a result of the direct_send() call.\n",
01140                 ((this->mode_ == MODE_QUEUE) ? "flipped into MODE_QUEUE"
01141                                              : "stayed in MODE_DIRECT")));
01142
01143         } else {
01144           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01145                 "Packet not sent. Send conditions weren't satisfied.\n"));
01146           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01147                 "elems_.size(): %d, max_samples_: %d\n",
01148                 int(this->elems_.size()), int(this->max_samples_)));
01149           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01150                 "header_size_: %d, optimum_size_: %d\n",
01151                 int(this->max_header_size_ + message_length),
01152                 int(this->optimum_size_)));
01153           VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01154                 "element_requires_exclusive_packet: %d\n", int(exclusive)));
01155
01156           if (this->mode_ == MODE_QUEUE) {
01157             VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01158                   "We flipped into MODE_QUEUE.\n"));
01159
01160           } else {
01161             VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01162                   "We stayed in MODE_DIRECT.\n"));
01163           }
01164         }
01165       }
01166     }
01167   }
01168
01169   send_delayed_notifications();
01170 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::send_buffer ( TransportSendBuffer * send_buffer )

Assigns an optional send buffer.

Definition at line 112 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendBuffer::bind(), and send_buffer_.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::open().

00113 {
00114   this->send_buffer_ = send_buffer;
00115
00116   if (this->send_buffer_ != 0) {
00117     this->send_buffer_->bind(this);
00118   }
00119 }

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE ssize_t OpenDDS::DCPS::TransportSendStrategy::send_bytes	(	const iovec	iov[],
		int	n,
		int &	bp
	)			`[protected, virtual]`

Reimplemented in OpenDDS::DCPS::TcpSendStrategy.

Definition at line 122 of file TransportSendStrategy.inl.

References send_bytes_i().

Referenced by do_send_packet().

00125 {
00126   return send_bytes_i(iov, n);
00127 }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual ssize_t OpenDDS::DCPS::TransportSendStrategy::send_bytes_i	(	const iovec	iov[],
		int	n
	)			`[protected, pure virtual]`

Implemented in OpenDDS::DCPS::MulticastSendStrategy, OpenDDS::DCPS::RtpsUdpSendStrategy, OpenDDS::DCPS::ShmemSendStrategy, OpenDDS::DCPS::TcpSendStrategy, and OpenDDS::DCPS::UdpSendStrategy.

Referenced by non_blocking_send(), and send_bytes().

Here is the caller graph for this function:

bool OpenDDS::DCPS::TransportSendStrategy::send_delayed_notifications ( const TransportQueueElement::MatchCriteria * match = 0 ) [protected]

If delayed notifications were queued up, issue those callbacks here. The default match is "match all", otherwise match can be used to specify either a certain individual packet or a publication id. Returns true if anything in the delayed notification list matched.

Definition at line 647 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::TransportQueueElement::data_delivered(), OpenDDS::DCPS::TransportQueueElement::data_dropped(), DBG_ENTRY_LVL, OpenDDS::DCPS::TransportImpl::is_shut_down(), lock_, OpenDDS::DCPS::TransportQueueElement::MatchCriteria::matches(), mode(), MODE_NOT_SET, MODE_TERMINATED, OPENDDS_VECTOR(), OpenDDS::DCPS::TransportQueueElement::owned_by_transport(), and transport_.

Referenced by clear(), perform_work(), remove_all_msgs(), remove_sample(), send(), and send_stop().

00648 {
00649   DBG_ENTRY_LVL("TransportSendStrategy","send_delayed_notifications",6);
00650   TransportQueueElement* sample = 0;
00651   SendMode mode = MODE_NOT_SET;
00652
00653   OPENDDS_VECTOR(TQESendModePair) samples;
00654
00655   size_t num_delayed_notifications = 0;
00656   bool found_element = false;
00657
00658   {
00659     GuardType guard(lock_);
00660
00661     num_delayed_notifications = delayed_delivered_notification_queue_.size();
00662
00663     if (num_delayed_notifications == 0) {
00664       return false;
00665
00666     } else if (num_delayed_notifications == 1) {
00667       // Optimization for the most common case (doesn't need vectors)
00668
00669       if (!match || match->matches(*delayed_delivered_notification_queue_[0].first)) {
00670         found_element = true;
00671         sample = delayed_delivered_notification_queue_[0].first;
00672         mode = delayed_delivered_notification_queue_[0].second;
00673
00674         delayed_delivered_notification_queue_.clear();
00675       }
00676
00677     } else {
00678       OPENDDS_VECTOR(TQESendModePair)::iterator iter;
00679       for (iter = delayed_delivered_notification_queue_.begin(); iter != delayed_delivered_notification_queue_.end(); ) {
00680         sample = iter->first;
00681         mode = iter->second;
00682         if (!match || match->matches(*sample)) {
00683           found_element = true;
00684           samples.push_back(*iter);
00685           iter = delayed_delivered_notification_queue_.erase(iter);
00686         } else {
00687           ++iter;
00688         }
00689       }
00690     }
00691   }
00692
00693   if (!found_element)
00694     return false;
00695
00696   bool transport_shutdown = this->transport_.is_shut_down();
00697
00698   if (num_delayed_notifications == 1) {
00699     // optimization for the common case
00700     if (mode == MODE_TERMINATED) {
00701       if (!transport_shutdown || sample->owned_by_transport()) {
00702         sample->data_dropped(true);
00703       }
00704     } else {
00705       if (!transport_shutdown || sample->owned_by_transport()) {
00706         sample->data_delivered();
00707       }
00708     }
00709
00710   } else {
00711     for (size_t i = 0; i < samples.size(); ++i) {
00712       if (samples[i].second == MODE_TERMINATED) {
00713         if (!transport_shutdown || samples[i].first->owned_by_transport()) {
00714           samples[i].first->data_dropped(true);
00715         }
00716       } else {
00717         if (!transport_shutdown || samples[i].first->owned_by_transport()) {
00718           samples[i].first->data_delivered();
00719         }
00720       }
00721     }
00722   }
00723   return true;
00724 }

Here is the call graph for this function:

Here is the caller graph for this function:

TransportSendStrategy::SendPacketOutcome OpenDDS::DCPS::TransportSendStrategy::send_packet ( ) [private]

This is called to send the current packet. The current packet will either be a "partially sent" packet, or a packet that has just been prepared via a call to prepare_packet().

Definition at line 1738 of file TransportSendStrategy.cpp.

References adjust_packet_after_send(), DBG_ENTRY_LVL, do_send_packet(), header_, OpenDDS::DCPS::TransportSendBuffer::insert(), LM_DEBUG, OUTCOME_BACKPRESSURE, OUTCOME_COMPLETE_SEND, OUTCOME_PARTIAL_SEND, OUTCOME_PEER_LOST, OUTCOME_SEND_ERROR, pkt_chain_, send_buffer_, OpenDDS::DCPS::TransportHeader::sequence_, VDBG, and VDBG_LVL.

Referenced by direct_send(), and perform_work().

01739 {
01740   DBG_ENTRY_LVL("TransportSendStrategy", "send_packet", 6);
01741
01742   int bp_flag = 0;
01743   const ssize_t num_bytes_sent =
01744     this->do_send_packet(this->pkt_chain_, bp_flag);
01745
01746   if (num_bytes_sent == 0) {
01747     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01748               "Since num_bytes_sent == 0, return OUTCOME_PEER_LOST.\n"), 5);
01749     // This means that the peer has disconnected.
01750     return OUTCOME_PEER_LOST;
01751   }
01752
01753   if (num_bytes_sent < 0) {
01754     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01755               "Since num_bytes_sent < 0, check the backpressure flag.\n"), 5);
01756
01757     // Check for backpressure...
01758     if (bp_flag == 1) {
01759       VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01760                 "Since backpressure flag is true, return "
01761                 "OUTCOME_BACKPRESSURE.\n"), 5);
01762       // Ok.  Not really an error - just backpressure.
01763       return OUTCOME_BACKPRESSURE;
01764     }
01765
01766     VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01767               "Since backpressure flag is false, return "
01768               "OUTCOME_SEND_ERROR.\n"), 5);
01769
01770     // Not backpressure - it's a real error.
01771     // Note: moved this to send_bytes so the errno msg could be written.
01772     //ACE_ERROR((LM_ERROR,
01773     //           "(%P|%t) ERROR: Call to peer().send() failed with negative "
01774     //           "return code.\n"));
01775
01776     return OUTCOME_SEND_ERROR;
01777   }
01778
01779   if (this->send_buffer_ != 0) {
01780     // If a secondary send buffer is bound, sent samples must
01781     // be inserted in order to properly maintain the buffer:
01782     this->send_buffer_->insert(this->header_.sequence_,
01783       &this->elems_, this->pkt_chain_);
01784   }
01785
01786   VDBG_LVL((LM_DEBUG, "(%P|%t) DBG:   "
01787             "Since num_bytes_sent > 0, adjust the packet to account for "
01788             "the bytes that did get sent.\n"),5);
01789
01790   // We sent some bytes - adjust the current packet (elems_ and pkt_chain_)
01791   // to account for the bytes that have been sent.
01792   const int result =
01793     this->adjust_packet_after_send(num_bytes_sent);
01794
01795   if (result == 0) {
01796     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01797           "The adjustment logic says that the complete packet was "
01798           "sent.  Return OUTCOME_COMPLETE_SEND.\n"));
01799     return OUTCOME_COMPLETE_SEND;
01800   }
01801
01802   VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01803         "The adjustment logic says that only a part of the packet was "
01804         "sent. Return OUTCOME_PARTIAL_SEND.\n"));
01805
01806   return OUTCOME_PARTIAL_SEND;
01807 }

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportSendStrategy::send_start ( )

Invoked prior to one or more send() invocations from a particular TransportClient.

Definition at line 31 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, link_released_, lock_, and start_counter_.

00032 {
00033   DBG_ENTRY_LVL("TransportSendStrategy","send_start",6);
00034
00035   GuardType guard(this->lock_);
00036
00037   if (!this->link_released_)
00038     ++this->start_counter_;
00039 }

void OpenDDS::DCPS::TransportSendStrategy::send_stop ( RepoId repoId )

Invoked after one or more send() invocations from a particular TransportClient.

Definition at line 1173 of file TransportSendStrategy.cpp.

References DBG_ENTRY_LVL, direct_send(), elems_, graceful_disconnecting_, header_, OpenDDS::DCPS::TransportHeader::length_, link_released_, LM_DEBUG, LM_ERROR, lock_, mode_, mode_as_str(), MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED, send_delayed_notifications(), OpenDDS::DCPS::BasicQueue< T >::size(), start_counter_, synch_, VDBG, and VDBG_LVL.

01174 {
01175   DBG_ENTRY_LVL("TransportSendStrategy","send_stop",6);
01176   {
01177     GuardType guard(this->lock_);
01178
01179     if (this->link_released_)
01180       return;
01181
01182     if (this->start_counter_ == 0) {
01183       // This is an indication of a logic error.  This is more of an assert.
01184       VDBG_LVL((LM_ERROR,
01185                 "(%P|%t) ERROR: Received unexpected send_stop() call.\n"), 5);
01186       return;
01187     }
01188
01189     --this->start_counter_;
01190
01191     if (this->start_counter_ != 0) {
01192       // This wasn't the last send_stop() that we are expecting.  We only
01193       // really honor the first send_start() and the last send_stop().
01194       // We can return without doing anything else in this case.
01195       return;
01196     }
01197
01198     if (this->mode_ == MODE_TERMINATED && !this->graceful_disconnecting_) {
01199       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01200             "TransportSendStrategy::send_stop: dont try to send current packet "
01201             "since mode is MODE_TERMINATED and not in graceful disconnecting.\n"));
01202       return;
01203     }
01204
01205     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01206           "This is an 'important' send_stop() event since our "
01207           "start_counter_ is 0.\n"));
01208
01209     // We just caused the start_counter_ to become zero.  This
01210     // means that we aren't expecting another send() or send_stop() at any
01211     // time in the near future (ie, it isn't imminent).
01212
01213     // If our mode_ is currently MODE_QUEUE or MODE_SUSPEND, then we don't have
01214     // anything to do here because samples have already been going to the
01215     // queue.
01216
01217     // We only need to do something if the mode_ is
01218     // MODE_DIRECT.  It means that we may have some sample(s) in the
01219     // current packet that have never been sent.  This is our
01220     // opportunity to send the current packet directly if this is the case.
01221     if (this->mode_ == MODE_QUEUE || this->mode_ == MODE_SUSPEND) {
01222       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01223             "But since we are in %C, we don't have to do "
01224             "anything more in this important send_stop().\n",
01225             mode_as_str(this->mode_)));
01226       // We don't do anything if we are in MODE_QUEUE.  Just leave.
01227       return;
01228     }
01229
01230     size_t header_length = this->header_.length_;
01231     VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01232           "We are in MODE_DIRECT in an important send_stop() - "
01233           "header_.length_ == [%d].\n", header_length));
01234
01235     // Only attempt to send the current packet (directly) if the current
01236     // packet actually contains something (it could be empty).
01237     if ((header_length > 0) &&
01238         //(this->elems_.size ()+this->not_yet_pac_q_->size() > 0))
01239         (this->elems_.size() > 0)) {
01240       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01241             "There is something in the current packet - attempt to send "
01242             "it (directly) now.\n"));
01243       // If a relink needs to be done for this packet to be sent, do it.
01244       this->direct_send(true);
01245       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01246             "Back from the attempt to send leftover packet directly.\n"));
01247
01248       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01249             "But we %C as a result.\n",
01250             ((this->mode_ == MODE_QUEUE)? "flipped into MODE_QUEUE":
01251                                           "stayed in MODE_DIRECT" )));
01252       if (this->mode_ == MODE_QUEUE  && this->mode_ != MODE_SUSPEND) {
01253         VDBG((LM_DEBUG, "(%P|%t) DBG:   "
01254               "Notify Synch thread of work availability\n"));
01255         this->synch_->work_available();
01256       }
01257     }
01258   }
01259
01260   send_delayed_notifications();
01261 }

Here is the call graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::set_graceful_disconnecting ( bool flag ) [protected]

Set graceful disconnecting flag.

Definition at line 1678 of file TransportSendStrategy.cpp.

References graceful_disconnecting_.

Referenced by OpenDDS::DCPS::TcpSendStrategy::reset().

01679 {
01680   this->graceful_disconnecting_ = flag;
01681 }

Here is the caller graph for this function:

size_t OpenDDS::DCPS::TransportSendStrategy::space_available ( ) const [private]

How much space is available in the current packet before we reach one of the limits: max_message_size() [transport's inherent limitation] or max_size_ [user's configured limit]

Definition at line 1879 of file TransportSendStrategy.cpp.

References header_, OpenDDS::DCPS::TransportHeader::length_, max_header_size_, max_message_size(), and max_size_.

Referenced by get_packet_elems_from_queue(), and send().

01880 {
01881   const size_t used = this->max_header_size_ + this->header_.length_,
01882     max_msg = this->max_message_size();
01883   if (max_msg) {
01884     return std::min(this->max_size_ - used, max_msg - used);
01885   }
01886   return this->max_size_ - used;
01887 }

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::TransportSendStrategy::start ( void )

Start the TransportSendStrategy. This happens once, when the DataLink that "owns" this strategy object has established a connection.

Definition at line 808 of file TransportSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendBuffer::capacity(), DBG_ENTRY_LVL, header_db_allocator_, header_mb_allocator_, LM_ERROR, lock_, OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), send_buffer_, start_i(), and synch_.

Referenced by OpenDDS::DCPS::ShmemSendStrategy::send_bytes_i().

00809 {
00810   DBG_ENTRY_LVL("TransportSendStrategy","start",6);
00811
00812   {
00813     GuardType guard(this->lock_);
00814
00815     if (!this->start_i()) {
00816       return -1;
00817     }
00818   }
00819
00820   size_t header_chunks(1);
00821
00822   // If a secondary send buffer is bound, sent headers should
00823   // be cached to properly maintain the buffer:
00824   if (this->send_buffer_ != 0) {
00825     header_chunks += this->send_buffer_->capacity();
00826
00827   } else {
00828     header_chunks += 1;
00829   }
00830
00831   this->header_db_allocator_.reset( new TransportDataBlockAllocator(header_chunks));
00832   this->header_mb_allocator_.reset( new TransportMessageBlockAllocator(header_chunks));
00833
00834   // Since we (the TransportSendStrategy object) are a reference-counted
00835   // object, but the synch_ object doesn't necessarily know this, we need
00836   // to give a "copy" of a reference to ourselves to the synch_ object here.
00837   // We will do the reverse when we unregister ourselves (as a worker) from
00838   // the synch_ object.
00839
00840   if (this->synch_->register_worker(*this) == -1) {
00841
00842     ACE_ERROR_RETURN((LM_ERROR,
00843                       "(%P|%t) ERROR: TransportSendStrategy failed to register "
00844                       "as a worker with the ThreadSynch object.\n"),
00845                      -1);
00846   }
00847
00848   return 0;
00849 }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::TransportSendStrategy::start_i ( ) [inline, virtual]

Let the subclass start.

Reimplemented in OpenDDS::DCPS::ShmemSendStrategy.

Definition at line 123 of file TransportSendStrategy.h.

Referenced by start().

00123 { return true; }

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::stop ( void )

Stop the TransportSendStrategy. This happens once, when the DataLink that "owns" this strategy object is going away.

Definition at line 852 of file TransportSendStrategy.cpp.

References ACE_TEXT(), DBG_ENTRY_LVL, header_block_, LM_WARNING, lock_, pkt_chain_, ACE_Message_Block::release(), size, stop_i(), synch_, and ACE_Message_Block::total_length().

00853 {
00854   DBG_ENTRY_LVL("TransportSendStrategy","stop",6);
00855
00856   if (this->header_block_ != 0) {
00857     this->header_block_->release ();
00858     this->header_block_ = 0;
00859   }
00860
00861   this->synch_->unregister_worker();
00862
00863   {
00864     GuardType guard(this->lock_);
00865
00866     if (this->pkt_chain_ != 0) {
00867       size_t size = this->pkt_chain_->total_length();
00868
00869       if (size > 0) {
00870         this->pkt_chain_->release();
00871         ACE_DEBUG((LM_WARNING,
00872                    ACE_TEXT("(%P|%t) WARNING: TransportSendStrategy::stop() - ")
00873                    ACE_TEXT("terminating with %d unsent bytes.\n"),
00874                    size));
00875       }
00876     }
00877   }
00878
00879   {
00880     GuardType guard(this->lock_);
00881
00882     this->stop_i();
00883   }
00884
00885   // TBD SOON - What about all of the samples that may still be stuck in
00886   //            our queue_ and/or elems_?
00887 }

Here is the call graph for this function:

virtual void OpenDDS::DCPS::TransportSendStrategy::stop_i ( ) [pure virtual]

Let the subclass stop.

Implemented in OpenDDS::DCPS::MulticastSendStrategy, OpenDDS::DCPS::RtpsUdpSendStrategy, OpenDDS::DCPS::ShmemSendStrategy, OpenDDS::DCPS::TcpSendStrategy, and OpenDDS::DCPS::UdpSendStrategy.

Referenced by stop().

Here is the caller graph for this function:

ACE_INLINE void OpenDDS::DCPS::TransportSendStrategy::suspend_send ( )

This is called when first time reconnect is attempted. The send mode is set to MODE_SUSPEND. Messages are queued at this state.

Definition at line 59 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, lock_, mode_, mode_before_suspend_, MODE_SUSPEND, and MODE_TERMINATED.

00060 {
00061   DBG_ENTRY_LVL("TransportSendStrategy","suspend_send",6);
00062   GuardType guard(this->lock_);
00063
00064   if (this->mode_ != MODE_TERMINATED && this->mode_ != MODE_SUSPEND) {
00065     this->mode_before_suspend_ = this->mode_;
00066     this->mode_ = MODE_SUSPEND;
00067   }
00068 }

ACE_INLINE OpenDDS::DCPS::ThreadSynch * OpenDDS::DCPS::TransportSendStrategy::synch ( ) const [protected]

Definition at line 23 of file TransportSendStrategy.inl.

References DBG_ENTRY_LVL, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), and synch_.

Referenced by OpenDDS::DCPS::TcpSendStrategy::schedule_output().

00024 {
00025   DBG_ENTRY_LVL("TransportSendStrategy","synch",6);
00026
00027   return synch_.get();
00028 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::TransportSendStrategy::terminate_send ( bool graceful_disconnecting = false )

Remove all samples in the backpressure queue and packet queue.

This is called whenver the connection is lost and reconnect fails. It removes all samples in the backpressure queue and packet queue.

Definition at line 728 of file TransportSendStrategy.cpp.

References clear(), DBG_ENTRY_LVL, graceful_disconnecting_, LM_DEBUG, lock_, mode_, MODE_SUSPEND, MODE_TERMINATED, and VDBG.

00729 {
00730   DBG_ENTRY_LVL("TransportSendStrategy","terminate_send",6);
00731
00732   bool reset_flag = true;
00733
00734   {
00735     GuardType guard(this->lock_);
00736
00737     // If the terminate_send call due to a non-graceful disconnection before
00738     // a datalink shutdown then we will not try to send the graceful disconnect
00739     // message.
00740     if ((this->mode_ == MODE_TERMINATED || this->mode_ == MODE_SUSPEND)
00741         && !this->graceful_disconnecting_) {
00742       VDBG((LM_DEBUG, "(%P|%t) DBG:   "
00743             "It was already terminated non gracefully, will not set to graceful disconnecting \n"));
00744       reset_flag = false;
00745     }
00746   }
00747
00748   VDBG((LM_DEBUG, "(%P|%t) DBG:  Now flip to MODE_TERMINATED \n"));
00749
00750   this->clear(MODE_TERMINATED);
00751
00752   if (reset_flag) {
00753     GuardType guard(this->lock_);
00754     this->graceful_disconnecting_ = graceful_disconnecting;
00755   }
00756 }

Here is the call graph for this function:

Friends And Related Function Documentation

friend class TransportSendBuffer [friend]

Definition at line 398 of file TransportSendStrategy.h.

Member Data Documentation

QueueType OpenDDS::DCPS::TransportSendStrategy::elems_ [private]

Current elements that have contributed blocks to the current transport packet.

Definition at line 337 of file TransportSendStrategy.h.

Referenced by adjust_packet_after_send(), clear(), current_packet_first_element(), do_remove_sample(), get_packet_elems_from_queue(), prepare_packet(), send(), and send_stop().

bool OpenDDS::DCPS::TransportSendStrategy::graceful_disconnecting_ [private]

Definition at line 389 of file TransportSendStrategy.h.

Referenced by send(), send_stop(), set_graceful_disconnecting(), and terminate_send().

TransportHeader OpenDDS::DCPS::TransportSendStrategy::header_ [protected]

Current transport packet header.

Definition at line 404 of file TransportSendStrategy.h.

Referenced by adjust_packet_after_send(), clear(), do_remove_sample(), get_packet_elems_from_queue(), marshal_transport_header(), perform_work(), prepare_header(), OpenDDS::DCPS::MulticastSendStrategy::prepare_header_i(), resume_send(), send(), send_packet(), send_stop(), and space_available().

ACE_Message_Block* OpenDDS::DCPS::TransportSendStrategy::header_block_ [private]

Current transport packet header, marshalled.

Definition at line 330 of file TransportSendStrategy.h.

Referenced by do_remove_sample(), prepare_packet(), and stop().

bool OpenDDS::DCPS::TransportSendStrategy::header_complete_ [private]

Set to false when the packet header hasn't been fully sent. Set to true once the packet header has been fully sent.

Definition at line 345 of file TransportSendStrategy.h.

Referenced by adjust_packet_after_send(), clear(), prepare_packet(), and resume_send().

unique_ptr<TransportDataBlockAllocator> OpenDDS::DCPS::TransportSendStrategy::header_db_allocator_ [private]

Allocator for header message block.

Definition at line 374 of file TransportSendStrategy.h.

Referenced by prepare_packet(), and start().

unique_ptr<TransportMessageBlockAllocator> OpenDDS::DCPS::TransportSendStrategy::header_mb_allocator_ [private]

Allocator for header data block.

Definition at line 371 of file TransportSendStrategy.h.

Referenced by prepare_packet(), and start().

SequenceNumber OpenDDS::DCPS::TransportSendStrategy::header_sequence_ [private]

Current transport header sequence number.

Definition at line 333 of file TransportSendStrategy.h.

Referenced by prepare_header().

bool OpenDDS::DCPS::TransportSendStrategy::link_released_ [private]

Definition at line 391 of file TransportSendStrategy.h.

Referenced by link_released(), send(), send_start(), and send_stop().

LockType OpenDDS::DCPS::TransportSendStrategy::lock_ [private]

This lock will protect critical sections of code that play a role in the sending of data.

Definition at line 381 of file TransportSendStrategy.h.

Referenced by clear(), deliver_ack_request(), link_released(), perform_work(), remove_all_msgs(), remove_sample(), resume_send(), send(), send_delayed_notifications(), send_start(), send_stop(), start(), stop(), suspend_send(), and terminate_send().

size_t OpenDDS::DCPS::TransportSendStrategy::max_header_size_ [private]

Maximum marshalled size of the transport packet header.

Definition at line 327 of file TransportSendStrategy.h.

Referenced by prepare_packet(), send(), space_available(), and TransportSendStrategy().

size_t OpenDDS::DCPS::TransportSendStrategy::max_samples_ [private]

Configuration - max number of samples per transport packet.

Definition at line 311 of file TransportSendStrategy.h.

Referenced by add_delayed_notification(), get_packet_elems_from_queue(), send(), and TransportSendStrategy().

ACE_UINT32 OpenDDS::DCPS::TransportSendStrategy::max_size_ [private]

Configuration - max transport packet size (bytes).

Definition at line 317 of file TransportSendStrategy.h.

Referenced by send(), and space_available().

SendMode OpenDDS::DCPS::TransportSendStrategy::mode_ [private]

This mode determines how send() calls will be handled.

Definition at line 359 of file TransportSendStrategy.h.

Referenced by add_delayed_notification(), clear(), direct_send(), do_remove_sample(), isDirectMode(), mode(), perform_work(), resume_send(), send(), send_stop(), suspend_send(), and terminate_send().

SendMode OpenDDS::DCPS::TransportSendStrategy::mode_before_suspend_ [private]

This mode remembers the mode before send is suspended and is used after the send is resumed because the connection is re-established.

Definition at line 364 of file TransportSendStrategy.h.

Referenced by clear(), direct_send(), resume_send(), and suspend_send().

ACE_UINT32 OpenDDS::DCPS::TransportSendStrategy::optimum_size_ [private]

Configuration - optimum transport packet size (bytes).

Definition at line 314 of file TransportSendStrategy.h.

Referenced by get_packet_elems_from_queue(), and send().

ACE_Message_Block* OpenDDS::DCPS::TransportSendStrategy::pkt_chain_ [private]

Current (head of chain) block containing unsent bytes for the current transport packet.

Definition at line 341 of file TransportSendStrategy.h.

Referenced by adjust_packet_after_send(), clear(), do_remove_sample(), prepare_packet(), resume_send(), send_packet(), and stop().

QueueType OpenDDS::DCPS::TransportSendStrategy::queue_ [private]

Used during backpressure situations to hold samples that have not yet been made to be part of a transport packet, and are completely unsent. Also used as a bucket for packets which still have to become part of a packet.

Definition at line 324 of file TransportSendStrategy.h.

Referenced by clear(), do_remove_sample(), get_packet_elems_from_queue(), perform_work(), resume_send(), and send().

DataBlockAllocator OpenDDS::DCPS::TransportSendStrategy::replaced_element_db_allocator_ [private]

Definition at line 385 of file TransportSendStrategy.h.

Referenced by do_remove_sample().

MessageBlockAllocator OpenDDS::DCPS::TransportSendStrategy::replaced_element_mb_allocator_ [private]

Cached allocator for TransportReplaceElement.

Definition at line 384 of file TransportSendStrategy.h.

Referenced by do_remove_sample().

TransportSendBuffer* OpenDDS::DCPS::TransportSendStrategy::send_buffer_ [private]

Definition at line 393 of file TransportSendStrategy.h.

Referenced by remove_all_msgs(), send_buffer(), send_packet(), and start().

unsigned OpenDDS::DCPS::TransportSendStrategy::start_counter_ [private]

Counter that, when greater than zero, indicates that we still expect to receive a send_stop() event. Incremented once for each call to our send_start() method, and decremented once for each call to our send_stop() method. We only care about the transitions of the start_counter_ value from 0 to 1, and from 1 to 0. This accomodates the case where more than one TransportClient is sending to us at the same time. We use this counter to enable a "composite" send_start() and send_stop().

Definition at line 356 of file TransportSendStrategy.h.

Referenced by clear(), resume_send(), send_start(), and send_stop().

unique_ptr<ThreadSynch> OpenDDS::DCPS::TransportSendStrategy::synch_ [private]

The thread synch object.

Definition at line 377 of file TransportSendStrategy.h.

Referenced by perform_work(), resume_send(), send(), send_stop(), start(), stop(), synch(), and TransportSendStrategy().

TransportImpl& OpenDDS::DCPS::TransportSendStrategy::transport_ [private]

Definition at line 387 of file TransportSendStrategy.h.

Referenced by direct_send(), and send_delayed_notifications().

const size_t OpenDDS::DCPS::TransportSendStrategy::UDP_MAX_MESSAGE_SIZE = 65466 [static, protected]

Put the maximum UDP payload size here so that it can be shared by all UDP-based transports. This is the worst-case (conservative) value for UDP/IPv4. If there are no IP options, or if IPv6 is used, it could actually be a little larger.

Definition at line 181 of file TransportSendStrategy.h.

Referenced by OpenDDS::DCPS::RtpsUdpSendStrategy::send_single_i().

The documentation for this class was generated from the following files:

OpenDDS::DCPS::TransportSendStrategy Class Reference

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
