OpenDDS::DCPS::TransportSendBuffer Class Reference

#include <TransportSendBuffer.h>

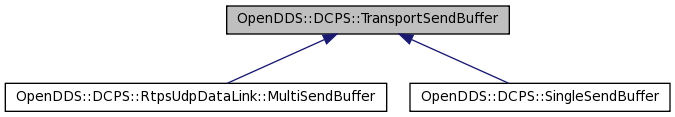

Inheritance diagram for OpenDDS::DCPS::TransportSendBuffer:

[legend]

Collaboration diagram for OpenDDS::DCPS::TransportSendBuffer:

[legend]

List of all members.

Public Types
typedef TransportSendStrategy::LockType	LockType
Public Member Functions
size_t	capacity () const
void	bind (TransportSendStrategy *strategy)
virtual void	retain_all (RepoId pub_id)=0
virtual void	insert (SequenceNumber sequence, TransportSendStrategy::QueueType *queue, ACE_Message_Block *chain)=0
LockType &	strategy_lock ()
Protected Types
typedef TransportSendStrategy::QueueType	QueueType
typedef std::pair< QueueType *, ACE_Message_Block * >	BufferType
Protected Member Functions
	TransportSendBuffer (size_t capacity)
virtual	~TransportSendBuffer ()
void	resend_one (const BufferType &buffer)
Protected Attributes
TransportSendStrategy *	strategy_
const size_t	capacity_
Private Member Functions
	TransportSendBuffer (const TransportSendBuffer &)
TransportSendBuffer &	operator= (const TransportSendBuffer &)

---

Detailed Description

Abstract base class that forms the interface for TransportSendStrategy to store data for potential retransmission. Derived classes actually store the data and can utilize TransportSendBuffer's friendship in TransportSendStrategy to retransmit (see method "resend_one").

Definition at line 38 of file TransportSendBuffer.h.

---

Member Typedef Documentation

typedef std::pair<QueueType*, ACE_Message_Block*> OpenDDS::DCPS::TransportSendBuffer::BufferType [protected]

Definition at line 57 of file TransportSendBuffer.h.

typedef TransportSendStrategy::LockType OpenDDS::DCPS::TransportSendBuffer::LockType

Definition at line 48 of file TransportSendBuffer.h.

typedef TransportSendStrategy::QueueType OpenDDS::DCPS::TransportSendBuffer::QueueType [protected]

Definition at line 56 of file TransportSendBuffer.h.

---

Constructor & Destructor Documentation

OpenDDS::DCPS::TransportSendBuffer::TransportSendBuffer

(

size_t

capacity

)

[inline, explicit, protected]

Definition at line 52 of file TransportSendBuffer.h.

    : strategy_(0), capacity_(capacity) {}

OpenDDS::DCPS::TransportSendBuffer::~TransportSendBuffer

(

)

[protected, virtual]

Definition at line 32 of file TransportSendBuffer.cpp.

{
}

OpenDDS::DCPS::TransportSendBuffer::TransportSendBuffer

(

const TransportSendBuffer &

)

[private]

---

Member Function Documentation

ACE_INLINE void OpenDDS::DCPS::TransportSendBuffer::bind

(

TransportSendStrategy *

strategy

)

Definition at line 20 of file TransportSendBuffer.inl.

References strategy_.

Referenced by OpenDDS::DCPS::TransportSendStrategy::send_buffer().

{
  this->strategy_ = strategy;
}

Here is the caller graph for this function:

ACE_INLINE size_t OpenDDS::DCPS::TransportSendBuffer::capacity

(

void

)

const

Definition at line 14 of file TransportSendBuffer.inl.

References capacity_.

Referenced by OpenDDS::DCPS::TransportSendStrategy::start().

{
  return this->capacity_;
}

Here is the caller graph for this function:

virtual void OpenDDS::DCPS::TransportSendBuffer::insert	(	SequenceNumber	sequence,
		TransportSendStrategy::QueueType *	queue,
		ACE_Message_Block *	chain
	)			[pure virtual]

Implemented in OpenDDS::DCPS::SingleSendBuffer, and OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer.

Referenced by OpenDDS::DCPS::TransportSendStrategy::send_packet().

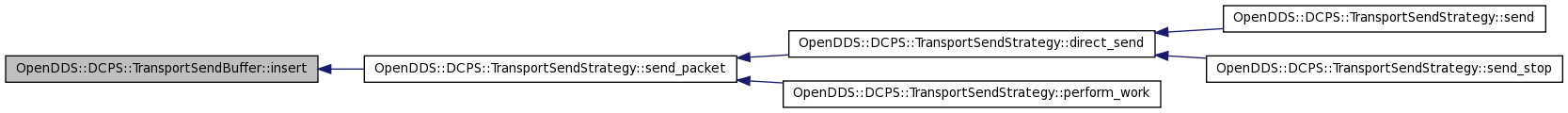

Here is the caller graph for this function:

TransportSendBuffer& OpenDDS::DCPS::TransportSendBuffer::operator=

(

const TransportSendBuffer &

)

[private]

void OpenDDS::DCPS::TransportSendBuffer::resend_one

(

const BufferType &

buffer

)

[protected]

Definition at line 37 of file TransportSendBuffer.cpp.

References OpenDDS::DCPS::TransportSendStrategy::do_send_packet(), and strategy_.

Referenced by OpenDDS::DCPS::SingleSendBuffer::resend_fragments_i(), and OpenDDS::DCPS::SingleSendBuffer::resend_i().

{
  int bp = 0;
  this->strategy_->do_send_packet(buffer.second, bp);
}

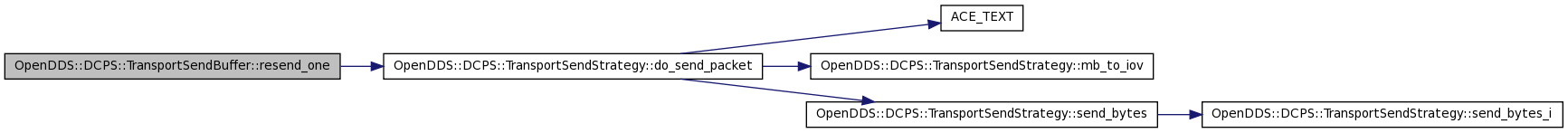

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void OpenDDS::DCPS::TransportSendBuffer::retain_all

(

RepoId

pub_id

)

[pure virtual]

Implemented in OpenDDS::DCPS::SingleSendBuffer, and OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer.

Referenced by OpenDDS::DCPS::TransportSendStrategy::remove_all_msgs().

Here is the caller graph for this function:

LockType& OpenDDS::DCPS::TransportSendBuffer::strategy_lock

(

)

[inline]

Definition at line 49 of file TransportSendBuffer.h.

Referenced by OpenDDS::DCPS::SingleSendBuffer::resend(), OpenDDS::DCPS::RtpsUdpDataLink::send_directed_nack_replies(), and OpenDDS::DCPS::RtpsUdpDataLink::send_nack_replies().

{ return this->strategy_->lock_; }

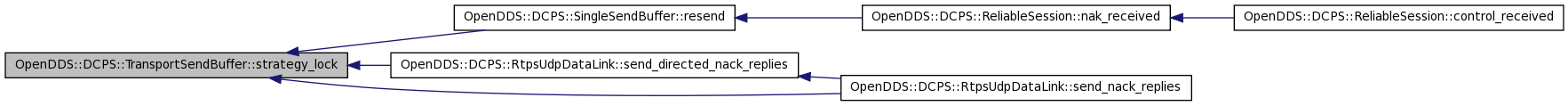

Here is the caller graph for this function:

---

Member Data Documentation

const size_t OpenDDS::DCPS::TransportSendBuffer::capacity_ [protected]

Definition at line 62 of file TransportSendBuffer.h.

Referenced by capacity(), and OpenDDS::DCPS::SingleSendBuffer::check_capacity().

TransportSendStrategy* OpenDDS::DCPS::TransportSendBuffer::strategy_ [protected]

Definition at line 61 of file TransportSendBuffer.h.

Referenced by bind(), and resend_one().

---

The documentation for this class was generated from the following files:

• TransportSendBuffer.h
• TransportSendBuffer.cpp
• TransportSendBuffer.inl
