OpenDDS::DCPS::TransportReactorTask Class Reference

#include <TransportReactorTask.h>

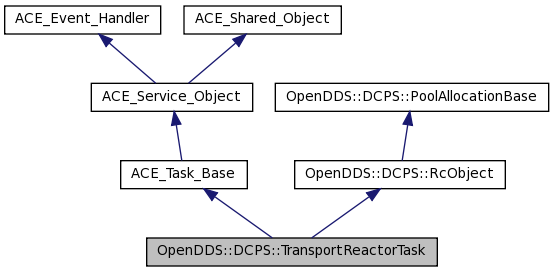

Inheritance diagram for OpenDDS::DCPS::TransportReactorTask:

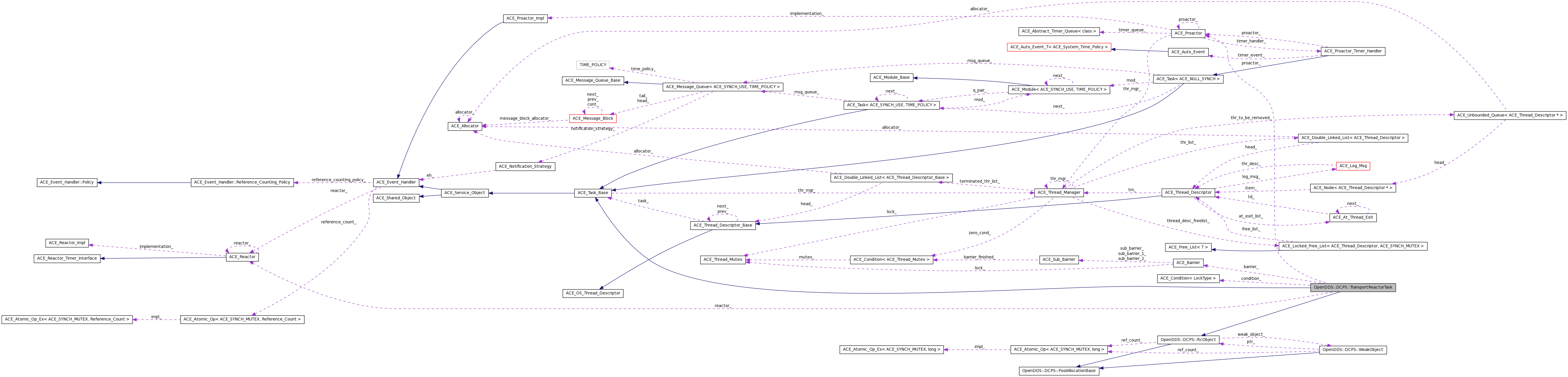

Collaboration diagram for OpenDDS::DCPS::TransportReactorTask:

Public Member Functions
	TransportReactorTask (bool useAsyncSend)
virtual	~TransportReactorTask ()
virtual int	open (void *)
virtual int	svc ()
virtual int	close (u_long flags=0)
void	stop ()
ACE_Reactor *	get_reactor ()
const ACE_Reactor *	get_reactor () const
ACE_thread_t	get_reactor_owner () const
ACE_Proactor *	get_proactor ()
const ACE_Proactor *	get_proactor () const
void	wait_for_startup ()
bool	is_shut_down () const
Private Types
enum	State { STATE_NOT_RUNNING, STATE_OPENING, STATE_RUNNING }
typedef ACE_SYNCH_MUTEX	LockType
typedef ACE_Guard< LockType >	GuardType
typedef ACE_Condition< LockType >	ConditionType
Private Attributes
ACE_Barrier	barrier_
LockType	lock_
State	state_
ConditionType	condition_
ACE_Reactor *	reactor_
ACE_thread_t	reactor_owner_
ACE_Proactor *	proactor_

Detailed Description

Definition at line 29 of file TransportReactorTask.h.

Member Typedef Documentation

typedef ACE_Condition<LockType> OpenDDS::DCPS::TransportReactorTask::ConditionType [private]

Definition at line 60 of file TransportReactorTask.h.

typedef ACE_Guard<LockType> OpenDDS::DCPS::TransportReactorTask::GuardType [private]

Definition at line 59 of file TransportReactorTask.h.

typedef ACE_SYNCH_MUTEX OpenDDS::DCPS::TransportReactorTask::LockType [private]

Definition at line 58 of file TransportReactorTask.h.

Member Enumeration Documentation

enum OpenDDS::DCPS::TransportReactorTask::State [private]

Enumerator:

STATE_NOT_RUNNING
STATE_OPENING
STATE_RUNNING

Definition at line 62 of file TransportReactorTask.h.

00062 { STATE_NOT_RUNNING, STATE_OPENING, STATE_RUNNING };

Constructor & Destructor Documentation

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::TransportReactorTask::TransportReactorTask ( bool useAsyncSend )

Definition at line 23 of file TransportReactorTask.cpp.

References DBG_ENTRY_LVL, ACE_WIN32_Proactor::get_handle(), NULL_thread, proactor_, reactor_, and ACE_Reactor::register_handler().

00024   : barrier_(2)
00025   , state_(STATE_NOT_RUNNING)
00026   , condition_(this->lock_)
00027   , reactor_owner_(ACE_OS::NULL_thread)
00028 {
00029   DBG_ENTRY_LVL("TransportReactorTask","TransportReactorTask",6);
00030
00031 #if defined (ACE_WIN32) && defined (ACE_HAS_WIN32_OVERLAPPED_IO)
00032   // Set our reactor and proactor pointers to a new reactor/proactor objects.
00033   if (useAsyncSend) {
00034     this->reactor_ = new ACE_Reactor(new ACE_WFMO_Reactor, 1);
00035
00036     ACE_WIN32_Proactor* proactor_impl = new ACE_WIN32_Proactor(0, 1);
00037     this->proactor_ = new ACE_Proactor(proactor_impl, 1);
00038     this->reactor_->register_handler(proactor_impl, proactor_impl->get_handle());
00039     return;
00040   }
00041 #else
00042   ACE_UNUSED_ARG(useAsyncSend);
00043 #endif
00044
00045   this->reactor_ = new ACE_Reactor(new ACE_Select_Reactor, 1);
00046   this->proactor_ = 0;
00047 }

Here is the call graph for this function:

OpenDDS::DCPS::TransportReactorTask::~TransportReactorTask ( ) [virtual]

Definition at line 49 of file TransportReactorTask.cpp.

References DBG_ENTRY_LVL, ACE_Event_Handler::DONT_CALL, ACE_Proactor_Impl::get_handle(), ACE_Proactor::implementation(), proactor_, reactor_, and ACE_Reactor::remove_handler().

00050 {
00051   DBG_ENTRY_LVL("TransportReactorTask","~TransportReactorTask",6);
00052
00053 #if defined (ACE_HAS_WIN32_OVERLAPPED_IO) || defined (ACE_HAS_AIO_CALLS)
00054   if (this->proactor_) {
00055     this->reactor_->remove_handler(this->proactor_->implementation()->get_handle(),
00056                                    ACE_Event_Handler::DONT_CALL);
00057     delete this->proactor_;
00058   }
00059 #endif
00060
00061   delete this->reactor_;
00062 }

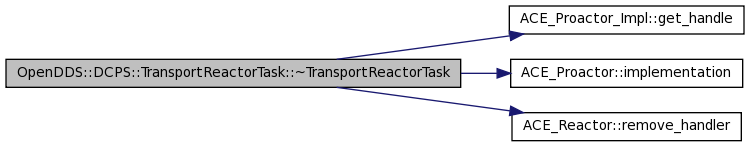

Here is the call graph for this function:

Member Function Documentation

int OpenDDS::DCPS::TransportReactorTask::close ( u_long flags = 0 ) [virtual]

Reimplemented from ACE_Task_Base.

Definition at line 167 of file TransportReactorTask.cpp.

References OpenDDS::DCPS::RcObject::_remove_ref(), and DBG_ENTRY_LVL.

00168 {
00169   DBG_ENTRY_LVL("TransportReactorTask","close",6);
00170   ACE_UNUSED_ARG(flags);
00171   // This is called after the reactor threads exit.
00172   // We should not set state here since we are not
00173   // sure how many reactor threads we will use.
00174   // If there is one reactor thread then we should
00175   // set the state so the stop will not call
00176   // end_reactor_event_loop.
00177   // If there are multiple reactor threads, we still
00178   // need call end_reactor_event_loop in stop() while
00179   // one reactor thread already exited.
00180 //MJM: Right.
00181
00182   this->_remove_ref();
00183   return 0;
00184 }

Here is the call graph for this function:

ACE_INLINE const ACE_Proactor * OpenDDS::DCPS::TransportReactorTask::get_proactor ( ) const

Definition at line 42 of file TransportReactorTask.inl.

References DBG_ENTRY_LVL, and proactor_.

00043 {
00044   DBG_ENTRY_LVL("TransportReactorTask","get_proactor",6);
00045   return this->proactor_;
00046 }

ACE_INLINE ACE_Proactor * OpenDDS::DCPS::TransportReactorTask::get_proactor ( )

Definition at line 35 of file TransportReactorTask.inl.

References DBG_ENTRY_LVL, and proactor_.

Referenced by OpenDDS::DCPS::MulticastDataLink::get_proactor().

00036 {
00037   DBG_ENTRY_LVL("TransportReactorTask","get_proactor",6);
00038   return this->proactor_;
00039 }

Here is the caller graph for this function:

ACE_INLINE const ACE_Reactor * OpenDDS::DCPS::TransportReactorTask::get_reactor ( void ) const

Definition at line 21 of file TransportReactorTask.inl.

References DBG_ENTRY_LVL, and reactor_.

00022 {
00023   DBG_ENTRY_LVL("TransportReactorTask","get_reactor",6);
00024   return this->reactor_;
00025 }

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Reactor * OpenDDS::DCPS::TransportReactorTask::get_reactor ( void )

Definition at line 14 of file TransportReactorTask.inl.

References DBG_ENTRY_LVL, and reactor_.

Referenced by OpenDDS::DCPS::UdpDataLink::get_reactor(), and OpenDDS::DCPS::MulticastDataLink::get_reactor().

00015 {
00016   DBG_ENTRY_LVL("TransportReactorTask","get_reactor",6);
00017   return this->reactor_;
00018 }

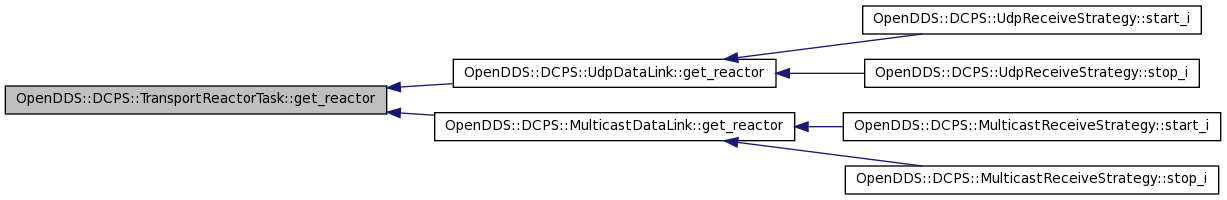

Here is the caller graph for this function:

ACE_INLINE ACE_thread_t OpenDDS::DCPS::TransportReactorTask::get_reactor_owner ( ) const

Definition at line 28 of file TransportReactorTask.inl.

References DBG_ENTRY_LVL, and reactor_owner_.

00029 {
00030   DBG_ENTRY_LVL("TransportReactorTask","get_reactor",6);
00031   return this->reactor_owner_;
00032 }

bool OpenDDS::DCPS::TransportReactorTask::is_shut_down ( ) const [inline]

Definition at line 52 of file TransportReactorTask.h.

00052 { return state_ == STATE_NOT_RUNNING; }

int OpenDDS::DCPS::TransportReactorTask::open ( void * ) [virtual]

Reimplemented from ACE_Task_Base.

Definition at line 65 of file TransportReactorTask.cpp.

References ACE_Task_Base::activate(), condition_, DBG_ENTRY_LVL, LM_ERROR, lock_, state_, STATE_NOT_RUNNING, STATE_OPENING, ACE_Condition< MUTEX >::wait(), and wait_for_startup().

00066 {
00067   DBG_ENTRY_LVL("TransportReactorTask","open",6);
00068
00069   GuardType guard(this->lock_);
00070
00071   // Reset our state.
00072   this->state_ = STATE_NOT_RUNNING;
00073
00074   // For now, we only support one thread to run the reactor event loop.
00075   // Parts of the logic in this class would need to change to support
00076   // more than one thread running the reactor.
00077
00078   // Attempt to activate ourselves.  If successful, a new thread will be
00079   // started and it will invoke our svc() method.  Note that we still have
00080   // a hold on our lock while we do this.
00081   if (this->activate(THR_NEW_LWP | THR_JOINABLE,1) != 0) {
00082     ACE_ERROR_RETURN((LM_ERROR,
00083                       "(%P|%t) ERROR: TransportReactorTask Failed to activate "
00084                       "itself.\n"),
00085                      -1);
00086   }
00087
00088   this->wait_for_startup();
00089
00090   // Here we need to wait until a condition is triggered by the new thread(s)
00091   // that we created.  Note that this will cause us to release the lock and
00092   // wait until the condition_ is signal()'ed.  When it is signaled, the
00093   // condition will attempt to obtain the lock again, and then return to us
00094   // here.  We can then go on.
00095   if (this->state_ == STATE_NOT_RUNNING) {
00096     this->state_ = STATE_OPENING;
00097     this->condition_.wait();
00098   }
00099
00100   return 0;
00101 }

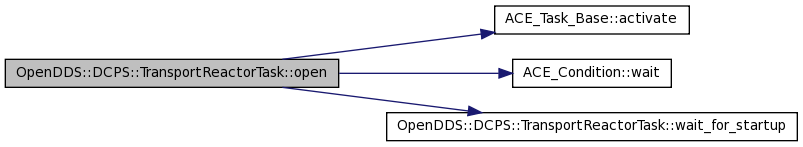

Here is the call graph for this function:

void OpenDDS::DCPS::TransportReactorTask::stop ( void )

Definition at line 187 of file TransportReactorTask.cpp.

References DBG_ENTRY_LVL, ACE_Event_Handler::DONT_CALL, ACE_Reactor::end_reactor_event_loop(), ACE_Proactor_Impl::get_handle(), ACE_Proactor::implementation(), lock_, proactor_, reactor_, ACE_Reactor::remove_handler(), state_, STATE_NOT_RUNNING, and ACE_Task_Base::wait().

00188 {
00189   DBG_ENTRY_LVL("TransportReactorTask","stop",6);
00190   {
00191     GuardType guard(this->lock_);
00192
00193     if (this->state_ == STATE_NOT_RUNNING) {
00194       // We are already "stopped".  Just return.
00195       return;
00196     }
00197
00198     this->state_ = STATE_NOT_RUNNING;
00199   }
00200
00201 #if defined (ACE_HAS_WIN32_OVERLAPPED_IO) || defined (ACE_HAS_AIO_CALLS)
00202   // Remove the proactor handler so the reactor stops forwarding messages.
00203   if (this->proactor_) {
00204     this->reactor_->remove_handler(this->proactor_->implementation()->get_handle(),
00205                                    ACE_Event_Handler::DONT_CALL);
00206   }
00207 #endif
00208
00209   this->reactor_->end_reactor_event_loop();
00210
00211   // Let's wait for the reactor task's thread to complete before we
00212   // leave this stop method.
00213   this->wait();
00214 }

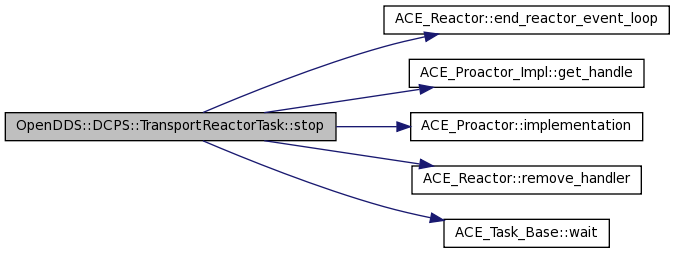

Here is the call graph for this function:

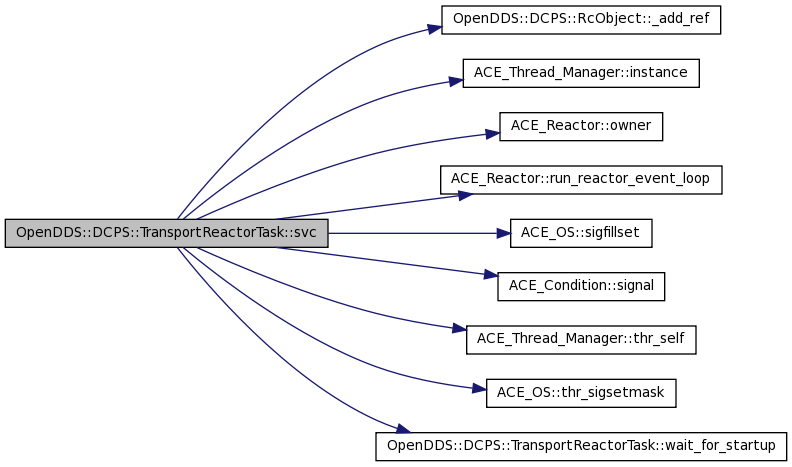

int OpenDDS::DCPS::TransportReactorTask::svc ( void ) [virtual]

Reimplemented from ACE_Task_Base.

Definition at line 104 of file TransportReactorTask.cpp.

References OpenDDS::DCPS::RcObject::_add_ref(), condition_, DBG_ENTRY_LVL, ACE_Thread_Manager::instance(), LM_ERROR, lock_, ACE_Reactor::owner(), reactor_, reactor_owner_, ACE_Reactor::run_reactor_event_loop(), SIG_SETMASK, ACE_OS::sigfillset(), ACE_Condition< MUTEX >::signal(), sigset_t, state_, STATE_OPENING, STATE_RUNNING, ACE_Thread_Manager::thr_self(), ACE_OS::thr_sigsetmask(), and wait_for_startup().

00105 {
00106   DBG_ENTRY_LVL("TransportReactorTask","svc",6);
00107
00108   // First off - We need to obtain our own reference to ourselves such
00109   // that we don't get deleted while still running in our own thread.
00110   // In essence, our current thread "owns" a copy of our reference.
00111   // It's all done with the magic of intrusive reference counting!
00112   this->_add_ref();
00113
00114   // Ignore all signals to avoid
00115   //     ERROR: <something descriptive> Interrupted system call
00116   // The main thread will handle signals.
00117   sigset_t set;
00118   ACE_OS::sigfillset(&set);
00119   ACE_OS::thr_sigsetmask(SIG_SETMASK, &set, NULL);
00120
00121   // VERY IMPORTANT!Tell the reactor that this task's thread will be
00122   //                  its "owner".
00123   if (this->reactor_->owner(ACE_Thread_Manager::instance()->thr_self()) != 0) {
00124     ACE_ERROR((LM_ERROR,
00125                "(%P|%t) ERROR: Failed to change the reactor's owner().\n"));
00126   }
00127   this->reactor_owner_ = ACE_Thread_Manager::instance()->thr_self();
00128   this->wait_for_startup();
00129
00130
00131   {
00132     // Obtain the lock.  This should only happen once the open() has hit
00133     // the condition_.wait() line of code, and has released the lock.
00134     GuardType guard(this->lock_);
00135
00136     if (this->state_ == STATE_OPENING) {
00137       // Advance the state.
00138       this->state_ = STATE_RUNNING;
00139
00140       // Signal the condition_ that we are here.
00141       this->condition_.signal();
00142     }
00143   }
00144
00145   //TBD: Should the reactor continue running if there are some exceptions
00146   //     are caught while handling events?
00147 //MJM: Put this in a loop with a state conditional and use the state to
00148 //MJM: indicate whether or not to terminate.  But I can think of no
00149 //MJM: reason to have anything in the conditional, so just expire.
00150 //MJM: Nevermind.
00151   try {
00152     // Tell the reactor to handle events.
00153     this->reactor_->run_reactor_event_loop();
00154   } catch (const std::exception& e) {
00155     ACE_ERROR((LM_ERROR,
00156                "(%P|%t) ERROR: TransportReactorTask::svc caught exception - %C.\n",
00157                e.what()));
00158   } catch (...) {
00159     ACE_ERROR((LM_ERROR,
00160                "(%P|%t) ERROR: TransportReactorTask::svc caught exception.\n"));
00161   }
00162
00163   return 0;
00164 }
