OpenDDS::Security::SecurityRegistry Class Reference

#include <SecurityRegistry.h>

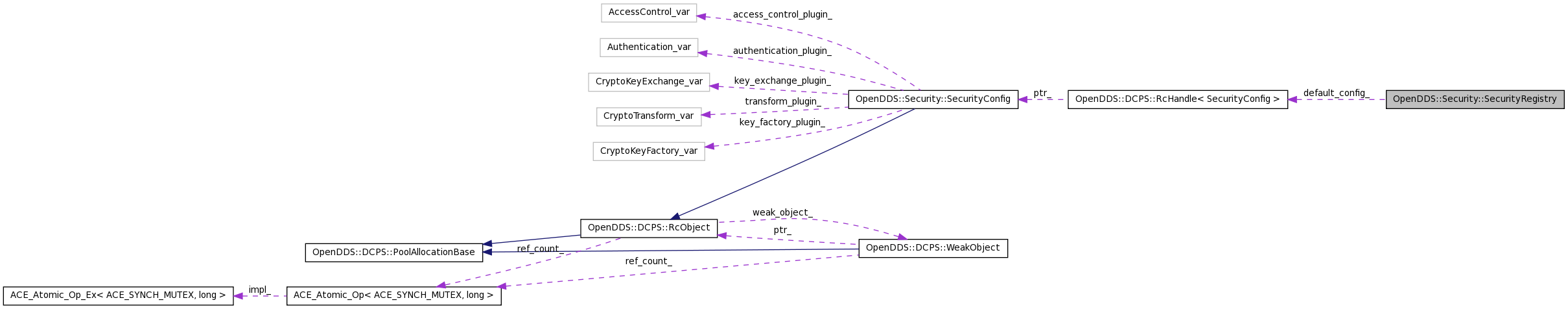

Collaboration diagram for OpenDDS::Security::SecurityRegistry:
Collaboration graph
[legend]

List of all members.

Classes

class  SecurityConfigEntry

Public Member Functions

void release ()
void register_plugin (const OPENDDS_STRING &plugin_name, SecurityPluginInst_rch plugin)
SecurityConfig_rch create_config (const OPENDDS_STRING &config_name)
SecurityConfig_rch create_config (const OPENDDS_STRING &config_name, SecurityPluginInst_rch plugin)
SecurityConfig_rch get_config (const OPENDDS_STRING &config_name) const
SecurityConfig_rch default_config () const
void default_config (const SecurityConfig_rch &cfg)
void bind_config (const OPENDDS_STRING &name, DDS::DomainParticipant_ptr domain_participant)
void bind_config (const SecurityConfig_rch &config, DDS::DomainParticipant_ptr domain_participant)
int load_security_configuration (ACE_Configuration_Heap &cf)
SecurityConfig_rch fix_empty_default ()

Static Public Member Functions

static SecurityRegistry * instance ()
 Return a singleton instance of this class.
static void close ()
 Close the singleton instance of this class.

Static Public Attributes

static const OPENDDS_STRING DEFAULT_CONFIG_NAME

Private Types

typedef DCPS::RcHandle
< SecurityConfigEntry > 		SecurityConfigEntry_rch
typedef ACE_SYNCH_MUTEX LockType
typedef ACE_Guard< LockType > GuardType

Private Member Functions

typedef OPENDDS_MAP (OPENDDS_STRING, SecurityConfig_rch) ConfigMap
typedef OPENDDS_MAP (OPENDDS_STRING, SecurityPluginInst_rch) InstMap
typedef OPENDDS_MAP (OPENDDS_STRING, OPENDDS_STRING) LibDirectiveMap
typedef OPENDDS_MAP (OPENDDS_STRING, SecurityConfigEntry_rch) ConfigEntryMap
 SecurityRegistry ()
 ~SecurityRegistry ()
int load_security_sections (ACE_Configuration_Heap &cf, ConfigEntryMap &entries)
void load_security_plugin_lib (const OPENDDS_STRING &security_plugin_type)
SecurityPluginInst_rch get_plugin_inst (const OPENDDS_STRING &plugin_name)
bool find_config (const OPENDDS_STRING &name, SecurityConfig_rch &config)
bool add_config (const OPENDDS_STRING &name, SecurityConfig_rch &config)

Private Attributes

ConfigEntryMap config_entries_
ConfigMap config_map_
InstMap registered_plugins_
LibDirectiveMap lib_directive_map_
SecurityConfig_rch default_config_
LockType lock_

Static Private Attributes

static const OPENDDS_STRING DEFAULT_INST_PREFIX
static const OPENDDS_STRING DEFAULT_PLUGIN_NAME
static const OPENDDS_STRING SECURITY_SECTION_NAME
static const OPENDDS_STRING ACCESS_CTRL_PLUGIN_NAME
static const OPENDDS_STRING AUTHENTICATION_PLUGIN_NAME
static const OPENDDS_STRING CRYPTO_PLUGIN_NAME

Friends

class ACE_Singleton< SecurityRegistry, ACE_Recursive_Thread_Mutex >

Detailed Description

The TheSecurityRegistry is a singleton object which provides a mechanism to the application code to configure OpenDDS's security plugins.

Definition at line 38 of file SecurityRegistry.h.

Member Typedef Documentation

typedef ACE_Guard<LockType> OpenDDS::Security::SecurityRegistry::GuardType [private]

Definition at line 141 of file SecurityRegistry.h.

typedef ACE_SYNCH_MUTEX OpenDDS::Security::SecurityRegistry::LockType [private]

Definition at line 140 of file SecurityRegistry.h.

typedef DCPS::RcHandle<SecurityConfigEntry> OpenDDS::Security::SecurityRegistry::SecurityConfigEntry_rch [private]

Definition at line 121 of file SecurityRegistry.h.

Constructor & Destructor Documentation

OpenDDS::Security::SecurityRegistry::SecurityRegistry (  )  [private]

Definition at line 90 of file SecurityRegistry.cpp.

References DBG_ENTRY_LVL, DEFAULT_PLUGIN_NAME, and lib_directive_map_.

00091 {
00092   DBG_ENTRY_LVL("SecurityRegistry", "SecurityRegistry", 6);
00093
00094   lib_directive_map_[DEFAULT_PLUGIN_NAME] = "dynamic OpenDDS_Security Service_Object * OpenDDS_Security:_make_BuiltInPluginLoader()";
00095 }

OpenDDS::Security::SecurityRegistry::~SecurityRegistry (  )  [private]

Definition at line 45 of file SecurityRegistry.cpp.

References DBG_ENTRY_LVL, and release().

00046 {
00047   DBG_ENTRY_LVL("SecurityRegistry", "~SecurityRegistry", 6);
00048   release();
00049 }

Here is the call graph for this function:

Member Function Documentation

bool OpenDDS::Security::SecurityRegistry::add_config ( const OPENDDS_STRING &  name,
SecurityConfig_rch &  config
) [private]

Definition at line 402 of file SecurityRegistry.cpp.

References config_map_, and lock_.

Referenced by create_config().

00403 {
00404   GuardType guard(lock_);
00405
00406   bool added_config = false;
00407   ConfigMap::iterator iConfig = config_map_.find(name);
00408   if (iConfig == config_map_.end()) {
00409     config_map_[name] = config;
00410     added_config = true;
00411   } else {
00412     // Someone else added this already. Use it instead
00413     config = iConfig->second;
00414     added_config = true;
00415   }
00416
00417   return added_config;
00418 }

Here is the caller graph for this function:

void OpenDDS::Security::SecurityRegistry::bind_config ( const SecurityConfig_rch &  config,
DDS::DomainParticipant_ptr  domain_participant
)

Definition at line 273 of file SecurityRegistry.cpp.

00275 {
00276
00277 #if defined(OPENDDS_SECURITY)
00278   DCPS::DomainParticipantImpl* const dpi =
00279     dynamic_cast<DCPS::DomainParticipantImpl*>(domain_participant);
00280   if (dpi) {
00281     dpi->set_security_config(config);
00282   }
00283
00284 #else
00285   ACE_UNUSED_ARG(config);
00286   ACE_UNUSED_ARG(domain_participant);
00287 #endif
00288
00289 }

void OpenDDS::Security::SecurityRegistry::bind_config ( const OPENDDS_STRING &  name,
DDS::DomainParticipant_ptr  domain_participant
)

Definition at line 266 of file SecurityRegistry.cpp.

References get_config().

00268 {
00269   bind_config(get_config(name), domain_participant);
00270 }

Here is the call graph for this function:

void OpenDDS::Security::SecurityRegistry::close ( void   )  [static]

Close the singleton instance of this class.

Definition at line 85 of file SecurityRegistry.cpp.

00086 {
00087   ACE_Unmanaged_Singleton<SecurityRegistry, ACE_Recursive_Thread_Mutex>::close();
00088 }

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::create_config ( const OPENDDS_STRING &  config_name,
SecurityPluginInst_rch  plugin
)

Definition at line 204 of file SecurityRegistry.cpp.

References ACE_TEXT(), add_config(), find_config(), and LM_ERROR.

00206 {
00207   SecurityConfig_rch existing_config;
00208   if (find_config(config_name, existing_config)) {
00209     return existing_config;
00210   }
00211
00212   SecurityConfig_rch new_config =
00213     DCPS::make_rch<SecurityConfig>(config_name,
00214                                    plugin->create_authentication(),
00215                                    plugin->create_access_control(),
00216                                    plugin->create_crypto_key_exchange(),
00217                                    plugin->create_crypto_key_factory(),
00218                                    plugin->create_crypto_transform(),
00219                                    ConfigPropertyList());
00220
00221   if (!add_config(config_name, new_config)) {
00222     ACE_ERROR((LM_ERROR,
00223                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00224                ACE_TEXT("Error storing config instance %C\n"),
00225                config_name.c_str()));
00226     return SecurityConfig_rch();
00227   }
00228
00229   return new_config;
00230 }

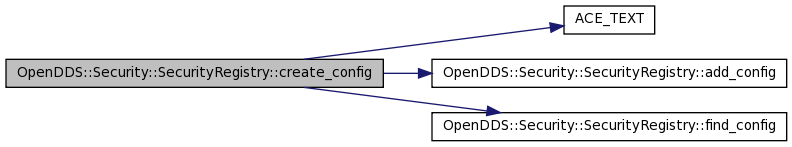

Here is the call graph for this function:

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::create_config ( const OPENDDS_STRING &  config_name  )

Definition at line 129 of file SecurityRegistry.cpp.

References ACE_TEXT(), add_config(), config_entries_, find_config(), get_plugin_inst(), OpenDDS::DCPS::RcHandle< T >::is_nil(), and LM_ERROR.

00130 {
00131   // If the configuration instance already exists, then it can be reused.
00132   // Otherwise create a new one and save it for any later needs
00133   SecurityConfig_rch existing_config;
00134   if (find_config(config_name, existing_config)) {
00135     return existing_config;
00136   }
00137
00138   // This is making an assumption that the entry map is only written
00139   // to in single-threaded operation, and all acess from that point on
00140   // is read-only
00141   ConfigEntryMap::const_iterator iEntry = config_entries_.find(config_name);
00142   if (iEntry == config_entries_.end()) {
00143     ACE_ERROR((LM_ERROR,
00144                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00145                ACE_TEXT("config=%C does not exist.\n"),
00146                config_name.c_str()));
00147     return SecurityConfig_rch();
00148   }
00149
00150   // This will load any libraries that need to be loaded, and use the
00151   // resulting plugin instance objects to create the concrete implementations
00152   const SecurityConfigEntry_rch& entry = iEntry->second;
00153   SecurityPluginInst_rch auth_plugin_inst = get_plugin_inst(entry->get_auth_name());
00154   if (auth_plugin_inst.is_nil()) {
00155     ACE_ERROR((LM_ERROR,
00156                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00157                ACE_TEXT("Failed to load authentication plugin %C\n"),
00158                entry->get_auth_name().c_str()));
00159     return SecurityConfig_rch();
00160   }
00161
00162   SecurityPluginInst_rch ac_plugin_inst = get_plugin_inst(entry->get_access_control_name());
00163   if (ac_plugin_inst.is_nil()) {
00164     ACE_ERROR((LM_ERROR,
00165                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00166                ACE_TEXT("Failed to load access control plugin %C\n"),
00167                entry->get_access_control_name().c_str()));
00168     return SecurityConfig_rch();
00169   }
00170
00171   SecurityPluginInst_rch crypto_plugin_inst = get_plugin_inst(entry->get_crypto_name());
00172   if (crypto_plugin_inst.is_nil()) {
00173     ACE_ERROR((LM_ERROR,
00174                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00175                ACE_TEXT("Failed to load crypto plugin %C\n"),
00176                entry->get_crypto_name().c_str()));
00177     return SecurityConfig_rch();
00178   }
00179
00180   // Create the new config and try to add it to the container
00181   // of existing configs.  If this fails for some reason, then
00182   // release the new config and fail
00183   SecurityConfig_rch new_config =
00184     DCPS::make_rch<SecurityConfig>(config_name,
00185                                    auth_plugin_inst->create_authentication(),
00186                                    ac_plugin_inst->create_access_control(),
00187                                    crypto_plugin_inst->create_crypto_key_exchange(),
00188                                    crypto_plugin_inst->create_crypto_key_factory(),
00189                                    crypto_plugin_inst->create_crypto_transform(),
00190                                    entry->get_properties());
00191
00192   if (!add_config(config_name, new_config)) {
00193     ACE_ERROR((LM_ERROR,
00194                ACE_TEXT("(%P|%t) SecurityRegistry::create_config: ")
00195                ACE_TEXT("Error storing config instance %C\n"),
00196                config_name.c_str()));
00197     return SecurityConfig_rch();
00198   }
00199
00200   return new_config;
00201 }

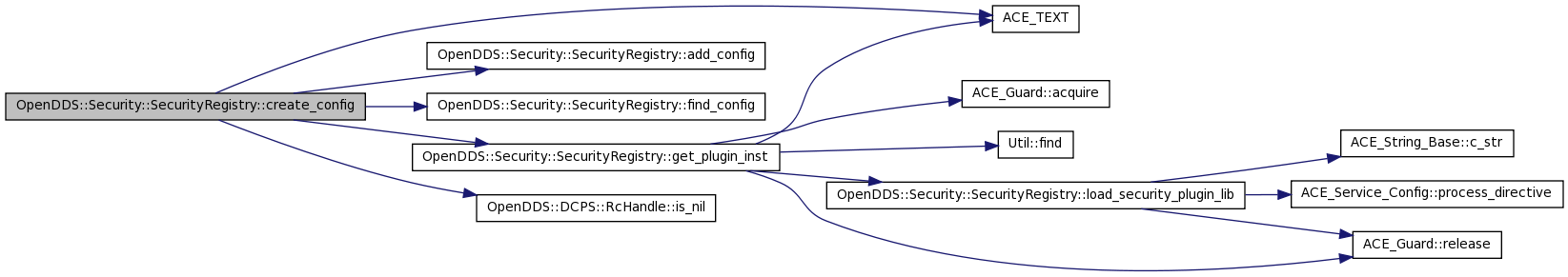

Here is the call graph for this function:

void OpenDDS::Security::SecurityRegistry::default_config ( const SecurityConfig_rch &  cfg  )

Definition at line 259 of file SecurityRegistry.cpp.

References default_config_, and lock_.

00260 {
00261   GuardType guard(lock_);
00262   default_config_ = config;
00263 }

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::default_config (  )  const

Definition at line 241 of file SecurityRegistry.cpp.

References c, default_config_, lock_, and TheServiceParticipant.

Referenced by fix_empty_default().

00242 {
00243 #if defined(OPENDDS_SECURITY)
00244   GuardType guard(lock_);
00245   if (!default_config_ && !TheServiceParticipant->get_security()) {
00246     Authentication_var a;
00247     AccessControl_var b;
00248     CryptoKeyExchange_var c;
00249     CryptoKeyFactory_var d;
00250     CryptoTransform_var e;
00251     default_config_ = DCPS::make_rch<SecurityConfig>("NoPlugins", a, b, c, d, e,
00252                                                      ConfigPropertyList());
00253   }
00254 #endif
00255   return default_config_;
00256 }

Here is the caller graph for this function:

bool OpenDDS::Security::SecurityRegistry::find_config ( const OPENDDS_STRING &  name,
SecurityConfig_rch &  config
) [private]

Definition at line 387 of file SecurityRegistry.cpp.

References config_map_, and lock_.

Referenced by create_config().

00388 {
00389   GuardType guard(lock_);
00390
00391   bool found_config = false;
00392   ConfigMap::iterator iConfig = config_map_.find(name);
00393   if (iConfig != config_map_.end()) {
00394     config = iConfig->second;
00395     found_config = true;
00396   }
00397
00398   return found_config;
00399 }

Here is the caller graph for this function:

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::fix_empty_default (  )

Definition at line 360 of file SecurityRegistry.cpp.

References default_config(), DEFAULT_PLUGIN_NAME, and load_security_plugin_lib().

00361 {
00362 #if defined(OPENDDS_SECURITY)
00363   if (!default_config()) {
00364     load_security_plugin_lib(DEFAULT_PLUGIN_NAME);
00365   }
00366 #endif
00367
00368   return default_config();
00369 }

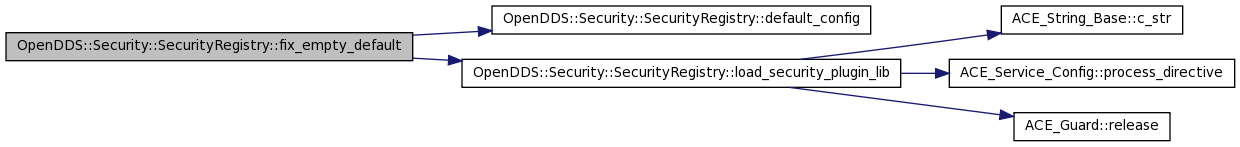

Here is the call graph for this function:

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::get_config ( const OPENDDS_STRING &  config_name  )  const

Definition at line 233 of file SecurityRegistry.cpp.

References config_map_, and lock_.

Referenced by bind_config().

00234 {
00235   GuardType guard(lock_);
00236   ConfigMap::const_iterator found = config_map_.find(config_name);
00237   return found == config_map_.end() ? SecurityConfig_rch() : found->second;
00238 }

Here is the caller graph for this function:

SecurityPluginInst_rch OpenDDS::Security::SecurityRegistry::get_plugin_inst ( const OPENDDS_STRING &  plugin_name  )  [private]

Definition at line 421 of file SecurityRegistry.cpp.

References ACE_TEXT(), ACE_Guard< ACE_LOCK >::acquire(), Util::find(), LM_ERROR, load_security_plugin_lib(), lock_, registered_plugins_, and ACE_Guard< ACE_LOCK >::release().

Referenced by create_config().

00422 {
00423   GuardType guard(lock_);
00424
00425   SecurityPluginInst_rch plugin_inst;
00426
00427   if (find(registered_plugins_, plugin_name, plugin_inst) != 0) {
00428 #if !defined(ACE_AS_STATIC_LIBS)
00429     guard.release();
00430     // Not present, try to load library
00431     load_security_plugin_lib(plugin_name);
00432     guard.acquire();
00433
00434     // Try to find it again
00435     if (find(registered_plugins_, plugin_name, plugin_inst) != 0) {
00436 #endif
00437       ACE_ERROR((LM_ERROR,
00438                  ACE_TEXT("(%P|%t) SecurityRegistry::create_inst: ")
00439                  ACE_TEXT("plugin_type=%C is not registered.\n"),
00440                  plugin_name.c_str()));
00441       return SecurityPluginInst_rch();
00442 #if !defined(ACE_AS_STATIC_LIBS)
00443     }
00444 #endif
00445   }
00446
00447   return plugin_inst;
00448 }

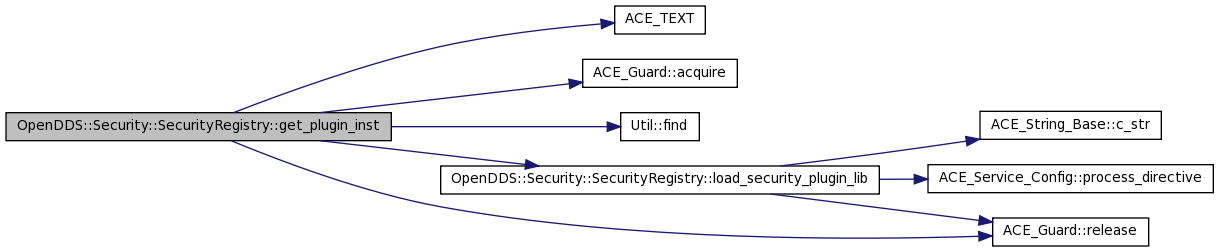

Here is the call graph for this function:

Here is the caller graph for this function:

SecurityRegistry * OpenDDS::Security::SecurityRegistry::instance ( void   )  [static]

Return a singleton instance of this class.

Definition at line 79 of file SecurityRegistry.cpp.

00080 {
00081   return ACE_Unmanaged_Singleton<SecurityRegistry, ACE_Recursive_Thread_Mutex>::instance();
00082 }

int OpenDDS::Security::SecurityRegistry::load_security_configuration ( ACE_Configuration_Heap &  cf  )

For internal use by OpenDDS DCPS layer: Transfer the configuration in ACE_Configuration_Heap object to the SecurityRegistry. This is called by the Service_Participant at initialization time. This function iterates each section in the configuration file, and creates SecurityConfigEntry objects and adds them to the registry.

Definition at line 292 of file SecurityRegistry.cpp.

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), config_entries_, ACE_Configuration_Heap::enumerate_sections(), LM_ERROR, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), ACE_Configuration::root_section(), SECURITY_SECTION_NAME, and ACE_OS::strcmp().

00293 {
00294   const ACE_Configuration_Section_Key& root = cf.root_section();
00295   ACE_TString sect_name;
00296
00297   for (int index = 0; cf.enumerate_sections(root, index, sect_name) == 0; ++index) {
00298     if (ACE_OS::strcmp(sect_name.c_str(), SECURITY_SECTION_NAME.c_str()) == 0) {
00299       // found the section, now iterate through subsections...
00300       ACE_Configuration_Section_Key sect;
00301       if (cf.open_section(root, sect_name.c_str(), 0, sect) != 0) {
00302         ACE_ERROR_RETURN((LM_ERROR,
00303                           ACE_TEXT("(%P|%t) SecurityRegistry::load_plugin_properties: ")
00304                           ACE_TEXT("failed to open section %s\n"),
00305                           sect_name.c_str()),
00306                          -1);
00307       }
00308
00309       // Ensure there are no properties in this section
00310       DCPS::ValueMap vm;
00311       if (DCPS::pullValues(cf, sect, vm) > 0) {
00312         // There are values inside [transport]
00313         ACE_ERROR_RETURN((LM_ERROR,
00314                           ACE_TEXT("(%P|%t) SecurityRegistry::load_plugin_properties: ")
00315                           ACE_TEXT("[%s] sections must have a section name\n"),
00316                           sect_name.c_str()),
00317                          -1);
00318       }
00319       // Process the subsections of this section
00320       DCPS::KeyList keys;
00321       if (DCPS::processSections(cf, sect, keys) != 0) {
00322         ACE_ERROR_RETURN((LM_ERROR,
00323                           ACE_TEXT("(%P|%t) SecurityRegistry::load_plugin_properties: ")
00324                           ACE_TEXT("too many nesting layers in [%s] section.\n"),
00325                           sect_name.c_str()),
00326                          -1);
00327       }
00328
00329       // Save the properties configured for each security entry
00330       for (DCPS::KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
00331         const OPENDDS_STRING& entry_name = it->first;
00332         // Duplicate entry check
00333         if (config_entries_.find(entry_name) != config_entries_.end()) {
00334           ACE_ERROR_RETURN((LM_ERROR,
00335                             ACE_TEXT("(%P|%t) SecurityRegistry::load_plugin_properties: ")
00336                             ACE_TEXT("duplicate sections named [%s/%C].\n"),
00337                             sect_name.c_str(), entry_name.c_str()),
00338                            -1);
00339         }
00340
00341         // Copy any existing properties in the entry and create the SecurityConfigEntry, which
00342         // will be stored until actual plugin instances are needed for this configuration
00343         SecurityConfigEntry_rch newEntry =
00344           DCPS::make_rch<SecurityConfigEntry>(it->first);
00345         DCPS::ValueMap values;
00346         DCPS::pullValues(cf, it->second, values);
00347         for (DCPS::ValueMap::const_iterator val = values.begin(); val != values.end(); ++val) {
00348           newEntry->add_property(val->first, val->second);
00349         }
00350
00351         config_entries_[it->first] = newEntry;
00352       }
00353     }
00354   }
00355
00356   return 0;
00357 }

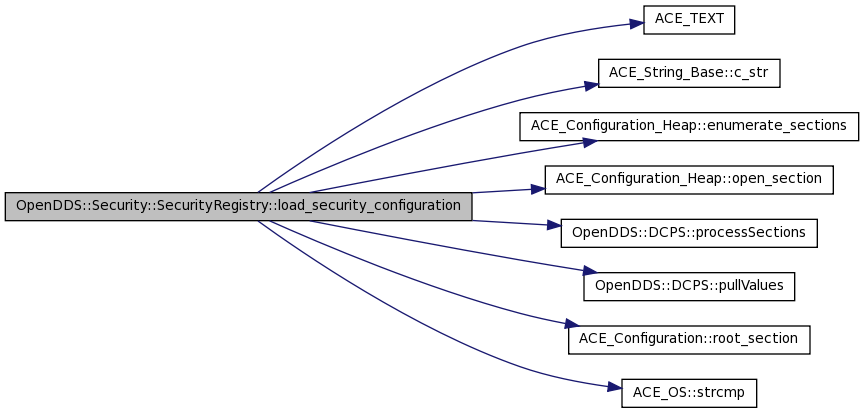

Here is the call graph for this function:

void OpenDDS::Security::SecurityRegistry::load_security_plugin_lib ( const OPENDDS_STRING &  security_plugin_type  )  [private]

For internal use by OpenDDS DCPS layer: Dynamically load the library for the supplied security plugin type.

Definition at line 372 of file SecurityRegistry.cpp.

References ACE_TEXT_CHAR_TO_TCHAR, ACE_String_Base< ACE_CHAR_T >::c_str(), lib_directive_map_, lock_, ACE_Service_Config::process_directive(), and ACE_Guard< ACE_LOCK >::release().

Referenced by fix_empty_default(), and get_plugin_inst().

00373 {
00374   ACE_UNUSED_ARG(security_plugin_type);
00375 #if !defined(ACE_AS_STATIC_LIBS)
00376   GuardType guard(lock_);
00377   LibDirectiveMap::iterator lib_iter = lib_directive_map_.find(security_plugin_type);
00378   if (lib_iter != lib_directive_map_.end()) {
00379     ACE_TString directive = ACE_TEXT_CHAR_TO_TCHAR(lib_iter->second.c_str());
00380     guard.release();
00381     ACE_Service_Config::process_directive(directive.c_str());
00382   }
00383 #endif
00384 }

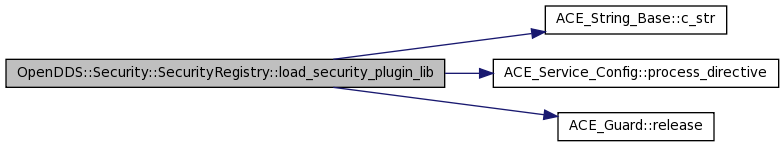

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::Security::SecurityRegistry::load_security_sections ( ACE_Configuration_Heap &  cf,
ConfigEntryMap &  entries
) [private]
typedef OpenDDS::Security::SecurityRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
SecurityConfigEntry_rch
) [private]
typedef OpenDDS::Security::SecurityRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
OPENDDS_STRING
) [private]
typedef OpenDDS::Security::SecurityRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
SecurityPluginInst_rch
) [private]
typedef OpenDDS::Security::SecurityRegistry::OPENDDS_MAP ( OPENDDS_STRING  ,
SecurityConfig_rch
) [private]
void OpenDDS::Security::SecurityRegistry::register_plugin ( const OPENDDS_STRING &  plugin_name,
SecurityPluginInst_rch  plugin
)

Definition at line 112 of file SecurityRegistry.cpp.

References ACE_TEXT(), LM_ERROR, lock_, registered_plugins_, and ACE_Guard< ACE_LOCK >::release().

00114 {
00115   GuardType guard(lock_);
00116
00117   if (registered_plugins_.find(plugin_name) != registered_plugins_.end()) {
00118     guard.release();
00119     ACE_ERROR((LM_ERROR,
00120                ACE_TEXT("(%P|%t) SecurityRegistry::register_plugin: ")
00121                ACE_TEXT("plugin=%C already exists.\n"),
00122                plugin_name.c_str()));
00123   } else {
00124     registered_plugins_.insert(std::make_pair(plugin_name, plugin));
00125   }
00126 }

Here is the call graph for this function:

void OpenDDS::Security::SecurityRegistry::release ( void   )

This will shutdown all Security plugin objects.

Client Application calls this method to tear down the security framework.

Definition at line 98 of file SecurityRegistry.cpp.

References config_map_, DBG_ENTRY_LVL, lock_, and registered_plugins_.

Referenced by ~SecurityRegistry().

00099 {
00100   DBG_ENTRY_LVL("SecurityRegistry", "release", 6);
00101   GuardType guard(lock_);
00102
00103   for (InstMap::iterator iter = registered_plugins_.begin(); iter != registered_plugins_.end(); ++iter) {
00104     iter->second->shutdown();
00105   }
00106
00107   registered_plugins_.clear();
00108   config_map_.clear();
00109 }

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ACE_Singleton< SecurityRegistry, ACE_Recursive_Thread_Mutex > [friend]

Definition at line 86 of file SecurityRegistry.h.

Member Data Documentation

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::ACCESS_CTRL_PLUGIN_NAME [static, private]

Definition at line 91 of file SecurityRegistry.h.

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::AUTHENTICATION_PLUGIN_NAME [static, private]

Definition at line 92 of file SecurityRegistry.h.

ConfigEntryMap OpenDDS::Security::SecurityRegistry::config_entries_ [private]

Definition at line 143 of file SecurityRegistry.h.

Referenced by create_config(), and load_security_configuration().

ConfigMap OpenDDS::Security::SecurityRegistry::config_map_ [private]

Definition at line 144 of file SecurityRegistry.h.

Referenced by add_config(), find_config(), get_config(), and release().

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::CRYPTO_PLUGIN_NAME [static, private]

Definition at line 93 of file SecurityRegistry.h.

SecurityConfig_rch OpenDDS::Security::SecurityRegistry::default_config_ [mutable, private]

Definition at line 147 of file SecurityRegistry.h.

Referenced by default_config().

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::DEFAULT_CONFIG_NAME [static]

Definition at line 47 of file SecurityRegistry.h.

Referenced by OpenDDS::Security::BuiltInPluginLoader::init().

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::DEFAULT_INST_PREFIX [static, private]

Definition at line 88 of file SecurityRegistry.h.

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::DEFAULT_PLUGIN_NAME [static, private]

Definition at line 89 of file SecurityRegistry.h.

Referenced by fix_empty_default(), and SecurityRegistry().

LibDirectiveMap OpenDDS::Security::SecurityRegistry::lib_directive_map_ [private]

Definition at line 146 of file SecurityRegistry.h.

Referenced by load_security_plugin_lib(), and SecurityRegistry().

LockType OpenDDS::Security::SecurityRegistry::lock_ [mutable, private]

Definition at line 149 of file SecurityRegistry.h.

Referenced by add_config(), default_config(), find_config(), get_config(), get_plugin_inst(), load_security_plugin_lib(), register_plugin(), and release().

InstMap OpenDDS::Security::SecurityRegistry::registered_plugins_ [private]

Definition at line 145 of file SecurityRegistry.h.

Referenced by get_plugin_inst(), register_plugin(), and release().

const OPENDDS_STRING OpenDDS::Security::SecurityRegistry::SECURITY_SECTION_NAME [static, private]

Definition at line 90 of file SecurityRegistry.h.

Referenced by load_security_configuration().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
