OpenDDS::Security Namespace Reference

Namespaces

namespace  CommonUtilities
namespace  SSL

Classes

struct  SPDPdiscoveredParticipantData
class  Governance
class  LocalAccessCredentialData
class  Permissions
class  AccessControlBuiltInImpl
 Implements the DDS built-in version of the Access Control plugin for the DDS Security Specification. More...
class  CredentialHash
class  LocalAuthCredentialData
struct  SharedSecret
class  AuthenticationBuiltInImpl
 Implements the DDS built-in version of the Authentication plugin for the DDS Security Specification. More...
class  BuiltInPluginLoader
class  BuiltinPluginsInitializer
class  BuiltInSecurityPluginInst
 Factory object to create interfaces for the BuiltIn plugin. More...
struct  CryptoTransformIdentifier
struct  KeyMaterial_AES_GCM_GMAC
struct  CryptoHeader
struct  CryptoContent
struct  ReceiverSpecificMAC
struct  CryptoFooter
class  CryptoBuiltInImpl
class  SecurityConfig
class  SecurityPluginInst
 Base class for concrete security plugins to provide new objects. More...
class  SecurityRegistry
struct  has_property
class  TokenReader
 Implements some simple wrapper functions to provide a const API around the Token data structure as specified in the DDS security specification. More...
class  TokenWriter
 Implements some simple wrapper functions to provide a non-const API around the Token data structure as specified in the DDS security specification. More...

Typedefs

typedef
Governance::GovernanceAccessRules::iterator 		gov_iter
typedef
Permissions::PermissionGrantRules::iterator 		perm_grant_iter
typedef
Permissions::TopicRules::iterator 		perm_topic_rules_iter
typedef
Permissions::Partitions::iterator 		perm_partitions_iter
typedef
Permissions::TopicPsRules::iterator 		perm_topic_ps_rules_iter
typedef
Permissions::PartitionPsList::iterator 		perm_partition_ps_iter
typedef octet CryptoTransformKind [4]
typedef octet CryptoTransformKeyId [4]
typedef sequence< octet, 32 > KeyOctetSeq
typedef sequence
< KeyMaterial_AES_GCM_GMAC > 		KeyMaterial_AES_GCM_GMAC_Seq
typedef octet SessionIdType [4]
typedef octet IV_SuffixType [8]
typedef octet ReceiverMAC_Type [16]
typedef sequence
< ReceiverSpecificMAC > 		ReceiverSpecificMACSeq
typedef octet CommonMAC_Type [16]
typedef DCPS::RcHandle
< SecurityConfig > 		SecurityConfig_rch
typedef std::pair
< OPENDDS_STRING,
OPENDDS_STRING > 		ConfigProperty
typedef DCPS::RcHandle
< SecurityPluginInst > 		SecurityPluginInst_rch

Enumerations

enum  DiscoveredParticipantDataKind { DPDK_NONE, DPDK_ORIGINAL, DPDK_ENHANCED, DPDK_SECURE }

Functions

static const std::string PermissionsTokenClassId ("DDS:Access:Permissions:1.0")
static const std::string AccessControl_Plugin_Name ("DDS:Access:Permissions")
static const std::string AccessControl_Major_Version ("1")
static const std::string AccessControl_Minor_Version ("0")
static const std::string PermissionsCredentialTokenClassId ("DDS:Access:PermissionsCredential")
static bool challenges_match (const DDS::OctetSeq &c1, const DDS::OctetSeq &c2)
static void extract_participant_guid_from_cpdata (const DDS::OctetSeq &cpdata, DCPS::GUID_t &dst)
static bool validate_topic_data_guid (const DDS::OctetSeq &cpdata, const std::vector< unsigned char > &subject_name_hash, DDS::Security::SecurityException &ex)
const std::string Auth_Plugin_Name ("DDS:Auth:PKI-DH")
const std::string Auth_Plugin_Major_Version ("1")
const std::string Auth_Plugin_Minor_Version ("0")
const std::string Identity_Status_Token_Class_Id ("DDS:Auth:PKI-DH:1.0")
const std::string Auth_Peer_Cred_Token_Class_Id ("DDS:Auth:PKI-DH:1.0")
const std::string Auth_Request_Class_Ext ("AuthReq")
const std::string Handshake_Request_Class_Ext ("Req")
const std::string Handshake_Reply_Class_Ext ("Reply")
const std::string Handshake_Final_Class_Ext ("Final")
static void make_reply_signature_sequence (const DDS::OctetSeq &hash_c2, const DDS::OctetSeq &challenge2, const DDS::OctetSeq &dh2, const DDS::OctetSeq &challenge1, const DDS::OctetSeq &dh1, const DDS::OctetSeq &hash_c1, DDS::BinaryPropertySeq &dst)
static void make_final_signature_sequence (const DDS::OctetSeq &hash_c1, const DDS::OctetSeq &challenge1, const DDS::OctetSeq &dh1, const DDS::OctetSeq &challenge2, const DDS::OctetSeq &dh2, const DDS::OctetSeq &hash_c2, DDS::BinaryPropertySeq &dst)
static const std::string PLUGIN_NAME ("BuiltIn")
 ACE_FACTORY_DEFINE (DdsSecurity, BuiltInPluginLoader)
typedef OPENDDS_VECTOR (ConfigProperty) ConfigPropertyList

Variables

static BuiltinPluginsInitializer builtin_plugins_init
const unsigned long TransformKindIndex = 3
const octet CRYPTO_TRANSFORMATION_KIND_NONE = 0
const octet CRYPTO_TRANSFORMATION_KIND_AES128_GMAC = 1
const octet CRYPTO_TRANSFORMATION_KIND_AES128_GCM = 2
const octet CRYPTO_TRANSFORMATION_KIND_AES256_GMAC = 3
const octet CRYPTO_TRANSFORMATION_KIND_AES256_GCM = 4
const unsigned long FLAG_IS_SUBMESSAGE_ENCRYPTED = 1
const unsigned long FLAG_IS_PAYLOAD_ENCRYPTED = 2

Typedef Documentation

typedef octet OpenDDS::Security::CommonMAC_Type[16]

Definition at line 92 of file CryptoBuiltIn.idl.

typedef std::pair<OPENDDS_STRING, OPENDDS_STRING> OpenDDS::Security::ConfigProperty

Definition at line 19 of file SecurityConfigPropertyList.h.

typedef octet OpenDDS::Security::CryptoTransformKeyId[4]

Definition at line 51 of file CryptoBuiltIn.idl.

typedef octet OpenDDS::Security::CryptoTransformKind[4]

Definition at line 50 of file CryptoBuiltIn.idl.

typedef Governance::GovernanceAccessRules::iterator OpenDDS::Security::gov_iter

Definition at line 37 of file AccessControlBuiltInImpl.cpp.

typedef octet OpenDDS::Security::IV_SuffixType[8]

Definition at line 73 of file CryptoBuiltIn.idl.

typedef sequence<KeyMaterial_AES_GCM_GMAC> OpenDDS::Security::KeyMaterial_AES_GCM_GMAC_Seq

Definition at line 70 of file CryptoBuiltIn.idl.

typedef sequence<octet, 32> OpenDDS::Security::KeyOctetSeq

Definition at line 57 of file CryptoBuiltIn.idl.

typedef Permissions::PermissionGrantRules::iterator OpenDDS::Security::perm_grant_iter

Definition at line 38 of file AccessControlBuiltInImpl.cpp.

typedef Permissions::PartitionPsList::iterator OpenDDS::Security::perm_partition_ps_iter

Definition at line 42 of file AccessControlBuiltInImpl.cpp.

typedef Permissions::Partitions::iterator OpenDDS::Security::perm_partitions_iter

Definition at line 40 of file AccessControlBuiltInImpl.cpp.

typedef Permissions::TopicPsRules::iterator OpenDDS::Security::perm_topic_ps_rules_iter

Definition at line 41 of file AccessControlBuiltInImpl.cpp.

typedef Permissions::TopicRules::iterator OpenDDS::Security::perm_topic_rules_iter

Definition at line 39 of file AccessControlBuiltInImpl.cpp.

typedef octet OpenDDS::Security::ReceiverMAC_Type[16]

Definition at line 85 of file CryptoBuiltIn.idl.

typedef sequence<ReceiverSpecificMAC> OpenDDS::Security::ReceiverSpecificMACSeq

Definition at line 91 of file CryptoBuiltIn.idl.

typedef DCPS::RcHandle<SecurityConfig> OpenDDS::Security::SecurityConfig_rch

Definition at line 24 of file SecurityConfig_rch.h.

typedef DCPS::RcHandle<SecurityPluginInst> OpenDDS::Security::SecurityPluginInst_rch

Definition at line 19 of file SecurityPluginInst_rch.h.

typedef octet OpenDDS::Security::SessionIdType[4]

Definition at line 72 of file CryptoBuiltIn.idl.

Enumeration Type Documentation

enum OpenDDS::Security::DiscoveredParticipantDataKind
Enumerator:
DPDK_NONE
DPDK_ORIGINAL
DPDK_ENHANCED
DPDK_SECURE

Definition at line 17 of file RtpsSecurity.idl.

00017                                        {
00018       DPDK_NONE,
00019       DPDK_ORIGINAL,
00020       DPDK_ENHANCED,
00021       DPDK_SECURE
00022     };

Function Documentation

static const std::string OpenDDS::Security::AccessControl_Major_Version ( "1"   )  [static]
static const std::string OpenDDS::Security::AccessControl_Minor_Version ( "0"   )  [static]
static const std::string OpenDDS::Security::AccessControl_Plugin_Name ( "DDS:Access:Permissions"   )  [static]
OpenDDS::Security::ACE_FACTORY_DEFINE ( DdsSecurity  ,
BuiltInPluginLoader
)
const std::string OpenDDS::Security::Auth_Peer_Cred_Token_Class_Id ( "DDS:Auth:PKI-DH:1.0"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::get_authenticated_peer_credential_token().

Here is the caller graph for this function:

const std::string OpenDDS::Security::Auth_Plugin_Major_Version ( "1"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::build_class_id(), and OpenDDS::Security::AuthenticationBuiltInImpl::check_class_versions().

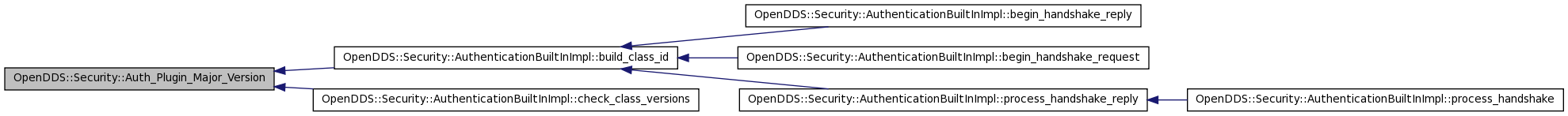

Here is the caller graph for this function:

const std::string OpenDDS::Security::Auth_Plugin_Minor_Version ( "0"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::build_class_id().

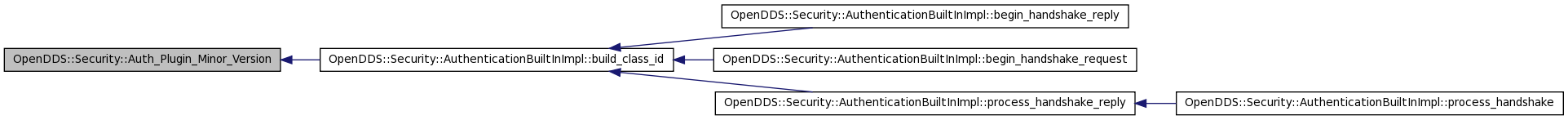

Here is the caller graph for this function:

const std::string OpenDDS::Security::Auth_Plugin_Name ( "DDS:Auth:PKI-DH"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::build_class_id(), and OpenDDS::Security::AuthenticationBuiltInImpl::check_class_versions().

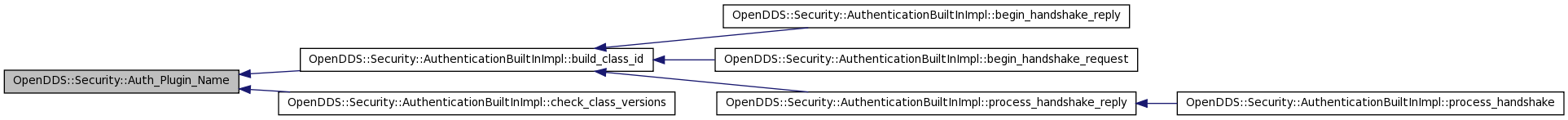

Here is the caller graph for this function:

const std::string OpenDDS::Security::Auth_Request_Class_Ext ( "AuthReq"   )
bool OpenDDS::Security::challenges_match ( const DDS::OctetSeq &  c1,
const DDS::OctetSeq &  c2
) [static]

Definition at line 1161 of file AuthenticationBuiltInImpl.cpp.

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_reply(), OpenDDS::Security::AuthenticationBuiltInImpl::process_final_handshake(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply().

01162 {
01163   if ((c1.length()) < 1 || (c2.length() < 1)) {
01164     return false;
01165   }
01166   if (c1.length() != c2.length()) {
01167     return false;
01168   }
01169
01170   if (0 != std::memcmp(c1.get_buffer(), c2.get_buffer(), c2.length())) {
01171     return false;
01172   }
01173
01174   return true;
01175 }

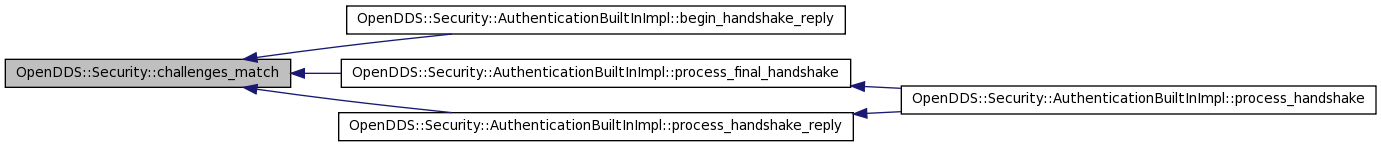

Here is the caller graph for this function:

void OpenDDS::Security::extract_participant_guid_from_cpdata ( const DDS::OctetSeq &  cpdata,
DCPS::GUID_t &  dst
) [static]

Definition at line 407 of file AuthenticationBuiltInImpl.cpp.

References ACE_TEXT(), OpenDDS::DCPS::Serializer::ALIGN_CDR, OpenDDS::RTPS::Parameter::guid, OpenDDS::DCPS::GUID_UNKNOWN, LM_WARNING, OpenDDS::RTPS::PID_PARTICIPANT_GUID, and OpenDDS::DCPS::Serializer::SWAP_BE.

Referenced by validate_topic_data_guid().

00408 {
00409   dst = DCPS::GUID_UNKNOWN;
00410
00411   ACE_Message_Block buffer(reinterpret_cast<const char*>(cpdata.get_buffer()), cpdata.length());
00412   buffer.wr_ptr(cpdata.length());
00413   OpenDDS::DCPS::Serializer serializer(&buffer, DCPS::Serializer::SWAP_BE, DCPS::Serializer::ALIGN_CDR);
00414   RTPS::ParameterList params;
00415
00416   if (serializer >> params) {
00417     for (size_t i = 0; i < params.length(); ++i) {
00418       const RTPS::Parameter& p = params[i];
00419
00420       if (p._d() == RTPS::PID_PARTICIPANT_GUID) {
00421         dst = p.guid();
00422         break;
00423       }
00424     }
00425
00426   } else {
00427     ACE_ERROR((LM_WARNING,
00428                ACE_TEXT("(%P|%t) WARNING: extract_participant_guid_from_cpdata, ")
00429                ACE_TEXT("failed to deserialize guid from cpdata.\n")));
00430   }
00431
00432 }

Here is the call graph for this function:

Here is the caller graph for this function:

const std::string OpenDDS::Security::Handshake_Final_Class_Ext ( "Final"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply().

Here is the caller graph for this function:

const std::string OpenDDS::Security::Handshake_Reply_Class_Ext ( "Reply"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_reply(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake().

Here is the caller graph for this function:

const std::string OpenDDS::Security::Handshake_Request_Class_Ext ( "Req"   )

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_request().

Here is the caller graph for this function:

const std::string OpenDDS::Security::Identity_Status_Token_Class_Id ( "DDS:Auth:PKI-DH:1.0"   )
static void OpenDDS::Security::make_final_signature_sequence ( const DDS::OctetSeq &  hash_c1,
const DDS::OctetSeq &  challenge1,
const DDS::OctetSeq &  dh1,
const DDS::OctetSeq &  challenge2,
const DDS::OctetSeq &  dh2,
const DDS::OctetSeq &  hash_c2,
DDS::BinaryPropertySeq &  dst
) [static]

Definition at line 533 of file AuthenticationBuiltInImpl.cpp.

References DDS::BinaryProperty_t::name, DDS::BinaryProperty_t::propagate, and DDS::BinaryProperty_t::value.

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::process_final_handshake(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply().

00540 {
00541   DCPS::SequenceBackInsertIterator<DDS::BinaryPropertySeq> inserter(dst);
00542
00543   {
00544     DDS::BinaryProperty_t p;
00545     p.name = "hash_c1";
00546     p.value = hash_c1;
00547     p.propagate = true;
00548     *inserter = p;
00549   }
00550
00551   {
00552     DDS::BinaryProperty_t p;
00553     p.name = "challenge1";
00554     p.value = challenge1;
00555     p.propagate = true;
00556     *inserter = p;
00557   }
00558
00559   {
00560     DDS::BinaryProperty_t p;
00561     p.name = "dh1";
00562     p.value = dh1;
00563     p.propagate = true;
00564     *inserter = p;
00565   }
00566
00567   {
00568     DDS::BinaryProperty_t p;
00569     p.name = "challenge2";
00570     p.value = challenge2;
00571     p.propagate = true;
00572     *inserter = p;
00573   }
00574
00575   {
00576     DDS::BinaryProperty_t p;
00577     p.name = "dh2";
00578     p.value = dh2;
00579     p.propagate = true;
00580     *inserter = p;
00581   }
00582
00583   {
00584     DDS::BinaryProperty_t p;
00585     p.name = "hash_c2";
00586     p.value = hash_c2;
00587     p.propagate = true;
00588     *inserter = p;
00589   }
00590 }

Here is the caller graph for this function:

static void OpenDDS::Security::make_reply_signature_sequence ( const DDS::OctetSeq &  hash_c2,
const DDS::OctetSeq &  challenge2,
const DDS::OctetSeq &  dh2,
const DDS::OctetSeq &  challenge1,
const DDS::OctetSeq &  dh1,
const DDS::OctetSeq &  hash_c1,
DDS::BinaryPropertySeq &  dst
) [static]

Definition at line 474 of file AuthenticationBuiltInImpl.cpp.

References DDS::BinaryProperty_t::name, DDS::BinaryProperty_t::propagate, and DDS::BinaryProperty_t::value.

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_reply(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply().

00481 {
00482   DCPS::SequenceBackInsertIterator<DDS::BinaryPropertySeq> inserter(dst);
00483
00484   {
00485     DDS::BinaryProperty_t p;
00486     p.name = "hash_c2";
00487     p.value = hash_c2;
00488     p.propagate = true;
00489     *inserter = p;
00490   }
00491
00492   {
00493     DDS::BinaryProperty_t p;
00494     p.name = "challenge2";
00495     p.value = challenge2;
00496     p.propagate = true;
00497     *inserter = p;
00498   }
00499
00500   {
00501     DDS::BinaryProperty_t p;
00502     p.name = "dh2";
00503     p.value = dh2;
00504     p.propagate = true;
00505     *inserter = p;
00506   }
00507
00508   {
00509     DDS::BinaryProperty_t p;
00510     p.name = "challenge1";
00511     p.value = challenge1;
00512     p.propagate = true;
00513     *inserter = p;
00514   }
00515
00516   {
00517     DDS::BinaryProperty_t p;
00518     p.name = "dh1";
00519     p.value = dh1;
00520     p.propagate = true;
00521     *inserter = p;
00522   }
00523
00524   {
00525     DDS::BinaryProperty_t p;
00526     p.name = "hash_c1";
00527     p.value = hash_c1;
00528     p.propagate = true;
00529     *inserter = p;
00530   }
00531 }

Here is the caller graph for this function:

typedef OpenDDS::Security::OPENDDS_VECTOR ( ConfigProperty   )
static const std::string OpenDDS::Security::PermissionsCredentialTokenClassId ( "DDS:Access:PermissionsCredential"   )  [static]

Referenced by OpenDDS::Security::AccessControlBuiltInImpl::validate_local_permissions().

Here is the caller graph for this function:

static const std::string OpenDDS::Security::PermissionsTokenClassId ( "DDS:Access:Permissions:1.0"   )  [static]

Referenced by OpenDDS::Security::AccessControlBuiltInImpl::validate_local_permissions().

Here is the caller graph for this function:

static const std::string OpenDDS::Security::PLUGIN_NAME ( "BuiltIn"   )  [static]

Referenced by OpenDDS::Security::BuiltInPluginLoader::init().

Here is the caller graph for this function:

bool OpenDDS::Security::validate_topic_data_guid ( const DDS::OctetSeq &  cpdata,
const std::vector< unsigned char > &  subject_name_hash,
DDS::Security::SecurityException &  ex
) [static]

Definition at line 434 of file AuthenticationBuiltInImpl.cpp.

References extract_participant_guid_from_cpdata(), OpenDDS::DCPS::GUID_t::guidPrefix, OpenDDS::Security::SSL::offset_1bit(), and OpenDDS::Security::CommonUtilities::set_security_error().

Referenced by OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_reply(), and OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply().

00437 {
00438   if (cpdata.length() > 5u) { /* Enough to withstand the hash-comparison below */
00439
00440     DCPS::GUID_t remote_participant_guid;
00441     extract_participant_guid_from_cpdata(cpdata, remote_participant_guid);
00442
00443     const DCPS::GuidPrefix_t& prefix = remote_participant_guid.guidPrefix;
00444
00445     /* Make sure first bit is set */
00446
00447     if ((prefix[0] & 0x80) != 0x80) {
00448       set_security_error(ex, -1, 0, "Malformed participant_guid in 'c.pdata'; First bit must be set.");
00449       return false;
00450     }
00451
00452     /* Check the following 47 bits match the subject-hash */
00453
00454     /* First byte needs to remove the manually-set first-bit before comparison */
00455     if ((prefix[0] & 0x7F) != SSL::offset_1bit(&subject_name_hash[0], 0)) {
00456       set_security_error(ex, -1, 0, "First byte of participant_guid in 'c.pdata' does not match bits of subject-name hash in 'c.id'");
00457       return false;
00458     }
00459     for (size_t i = 1; i <= 5u; ++i) { /* Compare remaining 5 bytes */
00460       if (prefix[i] != SSL::offset_1bit(&subject_name_hash[0], i)) { /* Slide the hash to the right 1 so it aligns with the guid prefix */
00461         set_security_error(ex, -1, 0, "Bits 2 - 48 of 'c.pdata' participant_guid does not match first 47 bits of subject-name hash in 'c.id'");
00462         return false;
00463       }
00464     }
00465
00466   } else {
00467     set_security_error(ex, -1, 0, "Data missing in 'c.pdata'");
00468     return false;
00469   }
00470
00471   return true;
00472 }

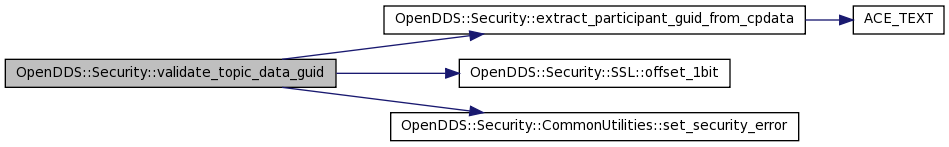

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

BuiltinPluginsInitializer OpenDDS::Security::builtin_plugins_init [static]

Definition at line 22 of file BuiltInPlugins.h.

const octet OpenDDS::Security::CRYPTO_TRANSFORMATION_KIND_AES128_GCM = 2

Definition at line 31 of file CryptoBuiltIn.idl.

const octet OpenDDS::Security::CRYPTO_TRANSFORMATION_KIND_AES128_GMAC = 1

Definition at line 23 of file CryptoBuiltIn.idl.

const octet OpenDDS::Security::CRYPTO_TRANSFORMATION_KIND_AES256_GCM = 4

Definition at line 48 of file CryptoBuiltIn.idl.

Referenced by OpenDDS::Security::CryptoBuiltInImpl::decrypt().

const octet OpenDDS::Security::CRYPTO_TRANSFORMATION_KIND_AES256_GMAC = 3

Definition at line 39 of file CryptoBuiltIn.idl.

Referenced by OpenDDS::Security::CryptoBuiltInImpl::verify().

const octet OpenDDS::Security::CRYPTO_TRANSFORMATION_KIND_NONE = 0

Definition at line 16 of file CryptoBuiltIn.idl.

const unsigned long OpenDDS::Security::FLAG_IS_PAYLOAD_ENCRYPTED = 2

Definition at line 101 of file CryptoBuiltIn.idl.

const unsigned long OpenDDS::Security::FLAG_IS_SUBMESSAGE_ENCRYPTED = 1

Definition at line 100 of file CryptoBuiltIn.idl.

const unsigned long OpenDDS::Security::TransformKindIndex = 3

Definition at line 13 of file CryptoBuiltIn.idl.

 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
