OpenDDS::Security::AuthenticationBuiltInImpl Class Reference

Implements the DDS built-in version of the Authentication plugin for the DDS Security Specification. More...

#include <AuthenticationBuiltInImpl.h>

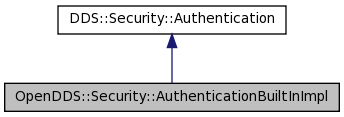

Inheritance diagram for OpenDDS::Security::AuthenticationBuiltInImpl:
Inheritance graph
[legend]

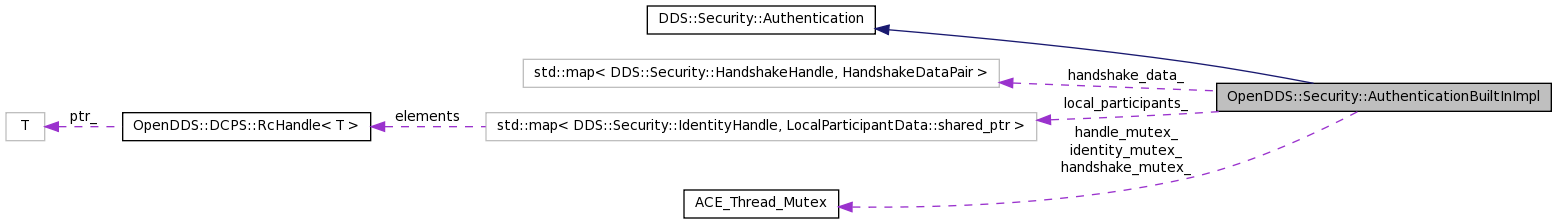

Collaboration diagram for OpenDDS::Security::AuthenticationBuiltInImpl:
Collaboration graph
[legend]

List of all members.

Classes

struct  local_has_remote_handle
struct  LocalParticipantData
struct  RemoteParticipantData
struct  was_guid_validated

Public Member Functions

 AuthenticationBuiltInImpl ()
virtual ~AuthenticationBuiltInImpl ()
virtual
::DDS::Security::ValidationResult_t 		validate_local_identity (::DDS::Security::IdentityHandle &local_identity_handle, DCPS::GUID_t &adjusted_participant_guid,::DDS::Security::DomainId_t domain_id, const ::DDS::DomainParticipantQos &participant_qos, const DCPS::GUID_t &candidate_participant_guid,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean get_identity_token (::DDS::Security::IdentityToken &identity_token,::DDS::Security::IdentityHandle handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean get_identity_status_token (::DDS::Security::IdentityStatusToken &identity_status_token,::DDS::Security::IdentityHandle handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean set_permissions_credential_and_token (::DDS::Security::IdentityHandle handle, const ::DDS::Security::PermissionsCredentialToken &permissions_credential, const ::DDS::Security::PermissionsToken &permissions_token,::DDS::Security::SecurityException &ex)
virtual
::DDS::Security::ValidationResult_t 		validate_remote_identity (::DDS::Security::IdentityHandle &remote_identity_handle,::DDS::Security::AuthRequestMessageToken &local_auth_request_token, const ::DDS::Security::AuthRequestMessageToken &remote_auth_request_token,::DDS::Security::IdentityHandle local_identity_handle, const ::DDS::Security::IdentityToken &remote_identity_token, const DCPS::GUID_t &remote_participant_guid,::DDS::Security::SecurityException &ex)
virtual
::DDS::Security::ValidationResult_t 		begin_handshake_request (::DDS::Security::HandshakeHandle &handshake_handle,::DDS::Security::HandshakeMessageToken &handshake_message,::DDS::Security::IdentityHandle initiator_identity_handle,::DDS::Security::IdentityHandle replier_identity_handle, const ::DDS::OctetSeq &serialized_local_participant_data,::DDS::Security::SecurityException &ex)
virtual
::DDS::Security::ValidationResult_t 		begin_handshake_reply (::DDS::Security::HandshakeHandle &handshake_handle,::DDS::Security::HandshakeMessageToken &handshake_message_out,::DDS::Security::IdentityHandle initiator_identity_handle,::DDS::Security::IdentityHandle replier_identity_handle, const ::DDS::OctetSeq &serialized_local_participant_data,::DDS::Security::SecurityException &ex)
virtual
::DDS::Security::ValidationResult_t 		process_handshake (::DDS::Security::HandshakeMessageToken &handshake_message_out, const ::DDS::Security::HandshakeMessageToken &handshake_message_in,::DDS::Security::HandshakeHandle handshake_handle,::DDS::Security::SecurityException &ex)
virtual
::DDS::Security::SharedSecretHandle * 		get_shared_secret (::DDS::Security::HandshakeHandle handshake_handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean get_authenticated_peer_credential_token (::DDS::Security::AuthenticatedPeerCredentialToken &peer_credential_token,::DDS::Security::HandshakeHandle handshake_handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean set_listener (::DDS::Security::AuthenticationListener_ptr listener,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_identity_token (const ::DDS::Security::IdentityToken &token,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_identity_status_token (const ::DDS::Security::IdentityStatusToken &token,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_authenticated_peer_credential_token (const ::DDS::Security::AuthenticatedPeerCredentialToken &peer_credential_token,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_handshake_handle (::DDS::Security::HandshakeHandle handshake_handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_identity_handle (::DDS::Security::IdentityHandle identity_handle,::DDS::Security::SecurityException &ex)
virtual ::CORBA::Boolean return_sharedsecret_handle (::DDS::Security::SharedSecretHandle *sharedsecret_handle,::DDS::Security::SecurityException &ex)

Private Types

typedef std::map
< DDS::Security::IdentityHandle,
RemoteParticipantData::shared_ptr > 		RemoteParticipantMap
typedef std::map
< DDS::Security::IdentityHandle,
LocalParticipantData::shared_ptr > 		LocalParticipantMap
typedef std::pair
< LocalParticipantData::shared_ptr,
RemoteParticipantData::shared_ptr > 		HandshakeDataPair
typedef std::map
< DDS::Security::HandshakeHandle,
HandshakeDataPair > 		HandshakeDataMap

Private Member Functions

LocalParticipantData::shared_ptr get_local_participant (DDS::Security::IdentityHandle handle)
HandshakeDataPair get_handshake_data (DDS::Security::HandshakeHandle handle)
HandshakeDataPair make_handshake_pair (DDS::Security::IdentityHandle h1, DDS::Security::IdentityHandle h2)
 Finds the local and remote data objects associated with h1 and h2 and creates a new handshake pair with them. It does not matter which handle is local and which is remote.
DDS::Security::ValidationResult_t process_handshake_reply (DDS::Security::HandshakeMessageToken &handshake_message_out, const DDS::Security::HandshakeMessageToken &handshake_message_in, DDS::Security::HandshakeHandle handshake_handle, DDS::Security::SecurityException &ex)
DDS::Security::ValidationResult_t process_final_handshake (const DDS::Security::HandshakeMessageToken &handshake_message_in, DDS::Security::HandshakeHandle handshake_handle, DDS::Security::SecurityException &ex)
bool is_handshake_initiator (const DCPS::GUID_t &local, const DCPS::GUID_t &remote)
bool check_class_versions (const char *remote_class_id)
std::string build_class_id (const std::string &message_ext)
std::string get_extension (const char *class_id)
CORBA::Long get_next_handle ()

Private Attributes

LocalParticipantMap local_participants_
HandshakeDataMap handshake_data_
DDS::Security::AuthenticationListener_ptr listener_ptr_
ACE_Thread_Mutex identity_mutex_
ACE_Thread_Mutex handshake_mutex_
ACE_Thread_Mutex handle_mutex_
CORBA::Long next_handle_

Detailed Description

Implements the DDS built-in version of the Authentication plugin for the DDS Security Specification.

See the DDS security specification, OMG formal/17-09-20, for a description of the interface this class is implementing.

Definition at line 48 of file AuthenticationBuiltInImpl.h.

Member Typedef Documentation

typedef std::map<DDS::Security::HandshakeHandle, HandshakeDataPair> OpenDDS::Security::AuthenticationBuiltInImpl::HandshakeDataMap [private]

Definition at line 205 of file AuthenticationBuiltInImpl.h.

typedef std::pair<LocalParticipantData::shared_ptr, RemoteParticipantData::shared_ptr> OpenDDS::Security::AuthenticationBuiltInImpl::HandshakeDataPair [private]

Definition at line 204 of file AuthenticationBuiltInImpl.h.

typedef std::map<DDS::Security::IdentityHandle, LocalParticipantData::shared_ptr> OpenDDS::Security::AuthenticationBuiltInImpl::LocalParticipantMap [private]

Definition at line 199 of file AuthenticationBuiltInImpl.h.

typedef std::map<DDS::Security::IdentityHandle, RemoteParticipantData::shared_ptr> OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantMap [private]

Definition at line 182 of file AuthenticationBuiltInImpl.h.

Constructor & Destructor Documentation

OpenDDS::Security::AuthenticationBuiltInImpl::AuthenticationBuiltInImpl (  )

Definition at line 73 of file AuthenticationBuiltInImpl.cpp.

00074 : listener_ptr_()
00075 , identity_mutex_()
00076 , handshake_mutex_()
00077 , handle_mutex_()
00078 , next_handle_(1)
00079 {
00080 }

OpenDDS::Security::AuthenticationBuiltInImpl::~AuthenticationBuiltInImpl (  )  [virtual]

Definition at line 82 of file AuthenticationBuiltInImpl.cpp.

00083 {
00084
00085 }

Member Function Documentation

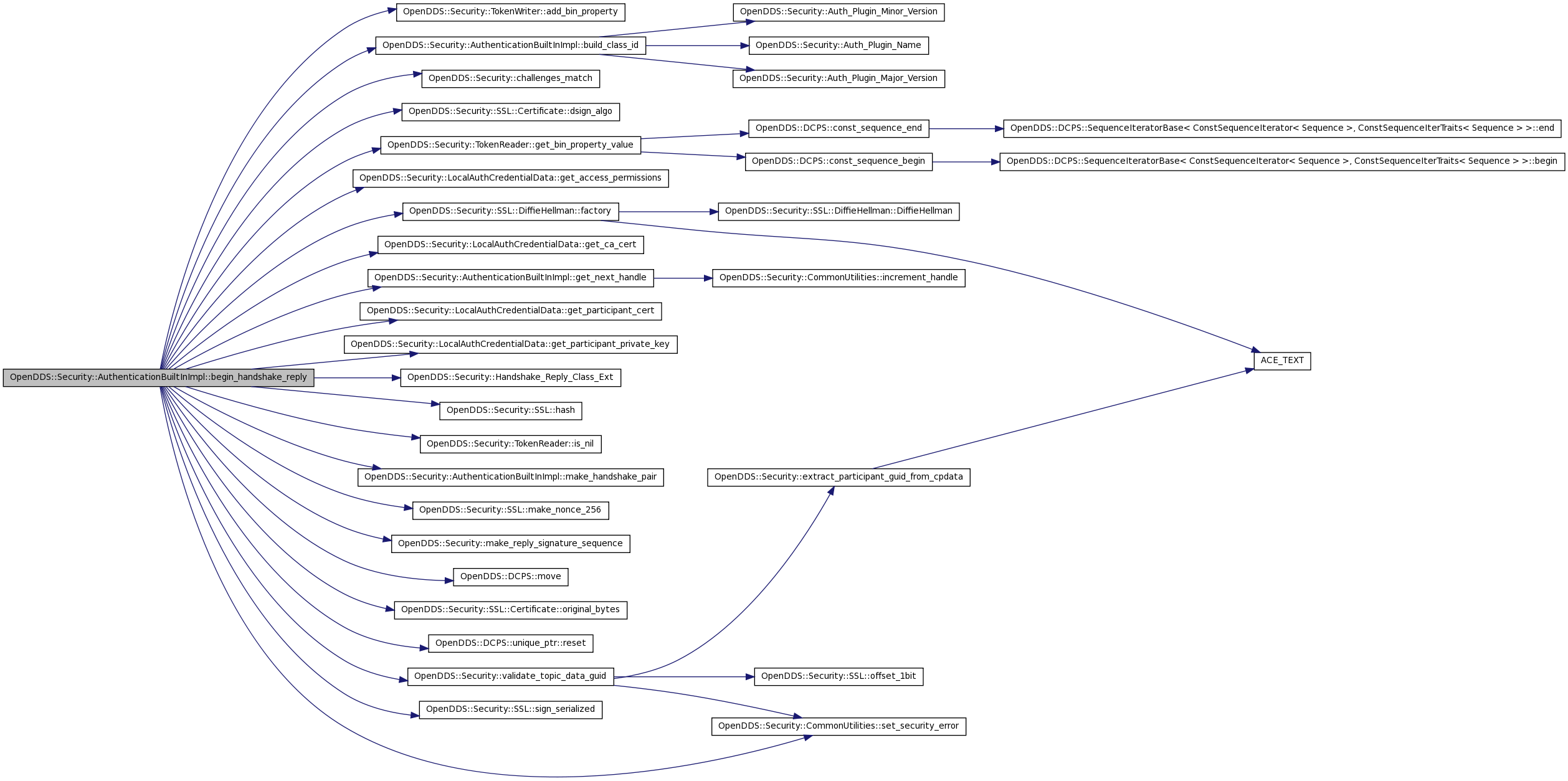

DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_reply ( ::DDS::Security::HandshakeHandle &  handshake_handle,
::DDS::Security::HandshakeMessageToken &  handshake_message_out,
::DDS::Security::IdentityHandle  initiator_identity_handle,
::DDS::Security::IdentityHandle  replier_identity_handle,
const ::DDS::OctetSeq &  serialized_local_participant_data,
::DDS::Security::SecurityException &  ex
)

Definition at line 592 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::TokenWriter::add_bin_property(), build_class_id(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::c_perm, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::certificate, OpenDDS::Security::challenges_match(), OpenDDS::Security::AuthenticationBuiltInImpl::LocalParticipantData::credentials, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::diffie_hellman, OpenDDS::Security::SSL::Certificate::dsign_algo(), OpenDDS::Security::SSL::DiffieHellman::factory(), OpenDDS::Security::LocalAuthCredentialData::get_access_permissions(), OpenDDS::Security::TokenReader::get_bin_property_value(), OpenDDS::Security::LocalAuthCredentialData::get_ca_cert(), get_next_handle(), OpenDDS::Security::LocalAuthCredentialData::get_participant_cert(), OpenDDS::Security::LocalAuthCredentialData::get_participant_private_key(), handshake_data_, handshake_mutex_, OpenDDS::Security::Handshake_Reply_Class_Ext(), OpenDDS::Security::SSL::hash(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c1, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c2, identity_mutex_, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::initiator_identity, OpenDDS::Security::TokenReader::is_nil(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::local_auth_request, make_handshake_pair(), OpenDDS::Security::SSL::make_nonce_256(), OpenDDS::Security::make_reply_signature_sequence(), OpenDDS::DCPS::move(), OpenDDS::Security::SSL::Certificate::original_bytes(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::remote_auth_request, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::replier_identity, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::reply, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::request, OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), OpenDDS::Security::CommonUtilities::set_security_error(), OpenDDS::Security::SSL::sign_serialized(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::state, OpenDDS::Security::validate_topic_data_guid(), DDS::Security::VALIDATION_FAILED, and DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE.

00599 {
00600   using OpenDDS::Security::TokenWriter;
00601   using OpenDDS::Security::TokenReader;
00602
00603   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00604
00605   // Copy the "in" part of the inout param
00606   const DDS::Security::HandshakeMessageToken request_token = handshake_message_out;
00607   handshake_message_out = DDS::Security::HandshakeMessageToken();
00608
00609   DDS::OctetSeq challenge1, challenge2, dh2, cperm, hash_c1, hash_c2;
00610
00611   SSL::Certificate::unique_ptr remote_cert(new SSL::Certificate);
00612   SSL::DiffieHellman::unique_ptr diffie_hellman;
00613
00614   const DDS::Security::ValidationResult_t Failure = DDS::Security::VALIDATION_FAILED,
00615                                           Pending = DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE;
00616
00617   if (serialized_local_participant_data.length() == 0) {
00618     set_security_error(ex, -1, 0, "No participant data provided");
00619     return Failure;
00620   }
00621
00622   HandshakeDataPair handshake_data = make_handshake_pair(initiator_identity_handle, replier_identity_handle);
00623
00624   if (! handshake_data.first) {
00625     set_security_error(ex, -1, 0, "Unknown local participant");
00626     return DDS::Security::VALIDATION_FAILED;
00627   }
00628
00629   if (! handshake_data.second) {
00630     set_security_error(ex, -1, 0, "Unknown remote participant");
00631     return DDS::Security::VALIDATION_FAILED;
00632   }
00633
00634   LocalParticipantData& local_data = *(handshake_data.first);
00635   RemoteParticipantData& remote_data = *(handshake_data.second);
00636
00637   DDS::Security::HandshakeMessageToken message_data_in(request_token);
00638   TokenReader message_in(message_data_in);
00639   if (message_in.is_nil()) {
00640     set_security_error(ex, -1, 0, "Handshake_message_out is an inout param and must not be nil");
00641     return Failure;
00642
00643   }
00644   challenge1 = message_in.get_bin_property_value("challenge1");
00645
00646   TokenReader initiator_remote_auth_request(remote_data.remote_auth_request);
00647   if (! initiator_remote_auth_request.is_nil()) {
00648     const DDS::OctetSeq& future_challenge = initiator_remote_auth_request.get_bin_property_value("future_challenge");
00649
00650     if (! challenges_match(challenge1, future_challenge)) {
00651       return Failure;
00652     }
00653   }
00654
00655   const LocalAuthCredentialData& local_credential_data = *(local_data.credentials);
00656
00657   const DDS::OctetSeq& cid = message_in.get_bin_property_value("c.id");
00658   if (cid.length() > 0) {
00659
00660     remote_cert->deserialize(cid);
00661     if (X509_V_OK != remote_cert->validate(local_credential_data.get_ca_cert()))
00662     {
00663       set_security_error(ex, -1, 0, "Certificate validation failed");
00664       return Failure;
00665     }
00666
00667   } else {
00668     set_security_error(ex, -1, 0, "Certificate validation failed due to empty 'c.id' property supplied");
00669     return Failure;
00670   }
00671
00672   /* Validate participant_guid in c.pdata */
00673
00674   const DDS::OctetSeq& cpdata = message_in.get_bin_property_value("c.pdata");
00675
00676   std::vector<unsigned char> hash;
00677   if (0 != remote_cert->subject_name_digest(hash)) {
00678     set_security_error(ex, -1, 0, "Failed to generate subject-name digest from remote certificate.");
00679     return Failure;
00680   }
00681
00682   if (! validate_topic_data_guid(cpdata, hash, ex)) {
00683     return Failure;
00684   }
00685
00686   cperm = message_in.get_bin_property_value("c.perm");
00687
00688   const DDS::OctetSeq& dh_algo = message_in.get_bin_property_value("c.kagree_algo");
00689   diffie_hellman.reset(SSL::DiffieHellman::factory(dh_algo));
00690
00691   /* Compute hash_c1 and store for later */
00692
00693   {
00694     CredentialHash hash(*remote_cert,
00695                         *diffie_hellman,
00696                         cpdata,
00697                         cperm);
00698     int err = hash(hash_c1);
00699     if (err) {
00700       set_security_error(ex, -1, 0, "Failed to compute hash_c1.");
00701       return Failure;
00702     }
00703   }
00704
00705   /* Compute hash_c2 and store for later */
00706
00707   {
00708     CredentialHash hash(local_credential_data.get_participant_cert(),
00709                         *diffie_hellman,
00710                         serialized_local_participant_data,
00711                         local_credential_data.get_access_permissions());
00712     int err = hash(hash_c2);
00713     if (err) {
00714       set_security_error(ex, -1, 0, "Failed to compute hash_c2.");
00715       return Failure;
00716     }
00717   }
00718
00719   // TODO: Currently support for OCSP is optional in the security spec and
00720   // so it has been deferred to a post-beta release.
00721   // Add OCSP checks when "ocsp_status" property is given in message_in.
00722   // Most of this logic would probably be placed in the Certificate directly
00723   // or an OCSP abstraction that the Certificate uses.
00724
00725   const DDS::OctetSeq& dh1 = message_in.get_bin_property_value("dh1");
00726
00727   TokenWriter message_out(handshake_message_out, build_class_id(Handshake_Reply_Class_Ext));
00728
00729   message_out.add_bin_property("c.id", local_credential_data.get_participant_cert().original_bytes());
00730   message_out.add_bin_property("c.perm", local_credential_data.get_access_permissions());
00731   message_out.add_bin_property("c.pdata", serialized_local_participant_data);
00732   message_out.add_bin_property("c.dsign_algo", local_credential_data.get_participant_cert().dsign_algo());
00733   message_out.add_bin_property("c.kagree_algo", diffie_hellman->kagree_algo());
00734   message_out.add_bin_property("hash_c2", hash_c2);
00735
00736   diffie_hellman->pub_key(dh2);
00737   message_out.add_bin_property("dh2", dh2);
00738   message_out.add_bin_property("hash_c1", hash_c1);
00739   message_out.add_bin_property("dh1", dh1);
00740   message_out.add_bin_property("challenge1", challenge1);
00741
00742   TokenReader initiator_local_auth_request(remote_data.local_auth_request);
00743   if (! initiator_local_auth_request.is_nil()) {
00744     const DDS::OctetSeq& future_challenge = initiator_local_auth_request.get_bin_property_value("future_challenge");
00745     message_out.add_bin_property("challenge2", future_challenge);
00746     challenge2 = future_challenge;
00747
00748   } else {
00749     int err = SSL::make_nonce_256(challenge2);
00750     if (! err) {
00751       message_out.add_bin_property("challenge2", challenge2);
00752
00753     } else {
00754       set_security_error(ex, -1, 0, "SSL::make_nonce_256 failed.");
00755       return Failure;
00756     }
00757   }
00758
00759   DDS::BinaryPropertySeq sign_these;
00760   make_reply_signature_sequence(hash_c2,
00761                                 challenge2,
00762                                 dh2,
00763                                 challenge1,
00764                                 dh1,
00765                                 hash_c1,
00766                                 sign_these);
00767
00768   DDS::OctetSeq signature;
00769   SSL::sign_serialized(sign_these, local_credential_data.get_participant_private_key(), signature);
00770   message_out.add_bin_property("signature", signature);
00771
00772   remote_data.replier_identity = replier_identity_handle;
00773   remote_data.initiator_identity = initiator_identity_handle;
00774   remote_data.state = DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE;
00775   remote_data.diffie_hellman = DCPS::move(diffie_hellman);
00776   remote_data.certificate = DCPS::move(remote_cert);
00777   remote_data.c_perm = cperm;
00778   remote_data.reply = handshake_message_out;
00779   remote_data.request = request_token;
00780   remote_data.hash_c1 = hash_c1;
00781   remote_data.hash_c2 = hash_c2;
00782
00783   handshake_handle = get_next_handle();
00784   {
00785     ACE_Guard<ACE_Thread_Mutex> guard(handshake_mutex_);
00786     handshake_data_[handshake_handle] = handshake_data;
00787   }
00788
00789   return Pending;
00790 }

Here is the call graph for this function:

DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::begin_handshake_request ( ::DDS::Security::HandshakeHandle &  handshake_handle,
::DDS::Security::HandshakeMessageToken &  handshake_message,
::DDS::Security::IdentityHandle  initiator_identity_handle,
::DDS::Security::IdentityHandle  replier_identity_handle,
const ::DDS::OctetSeq &  serialized_local_participant_data,
::DDS::Security::SecurityException &  ex
)

Definition at line 308 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::TokenWriter::add_bin_property(), build_class_id(), OpenDDS::Security::AuthenticationBuiltInImpl::LocalParticipantData::credentials, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::diffie_hellman, OpenDDS::Security::SSL::Certificate::dsign_algo(), OpenDDS::Security::LocalAuthCredentialData::get_access_permissions(), OpenDDS::Security::TokenReader::get_bin_property_value(), get_next_handle(), OpenDDS::Security::LocalAuthCredentialData::get_participant_cert(), handshake_data_, handshake_mutex_, OpenDDS::Security::Handshake_Request_Class_Ext(), OpenDDS::Security::SSL::hash(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c1, identity_mutex_, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::initiator_identity, OpenDDS::Security::TokenReader::is_nil(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::local_auth_request, make_handshake_pair(), OpenDDS::Security::SSL::make_nonce_256(), OpenDDS::DCPS::move(), OpenDDS::Security::SSL::Certificate::original_bytes(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::replier_identity, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::reply, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::request, OpenDDS::Security::CommonUtilities::set_security_error(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::state, DDS::Security::VALIDATION_FAILED, and DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE.

00315 {
00316   if (serialized_local_participant_data.length() == 0) {
00317     set_security_error(ex, -1, 0, "No participant data provided");
00318     return DDS::Security::VALIDATION_FAILED;
00319   }
00320
00321   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00322
00323   HandshakeDataPair handshake_data = make_handshake_pair(initiator_identity_handle, replier_identity_handle);
00324
00325   if (! handshake_data.first) {
00326     set_security_error(ex, -1, 0, "Unknown local participant");
00327     return DDS::Security::VALIDATION_FAILED;
00328   }
00329
00330   if (! handshake_data.second) {
00331     set_security_error(ex, -1, 0, "Unknown remote participant");
00332     return DDS::Security::VALIDATION_FAILED;
00333   }
00334
00335   LocalParticipantData& local_data = *(handshake_data.first);
00336   RemoteParticipantData& remote_data = *(handshake_data.second);
00337
00338   const LocalAuthCredentialData& local_credential_data = *(local_data.credentials);
00339
00340   SSL::DiffieHellman::unique_ptr diffie_hellman(new SSL::DiffieHellman(new SSL::ECDH_PRIME_256_V1_CEUM));
00341
00342   OpenDDS::Security::TokenWriter message_out(handshake_message, build_class_id(Handshake_Request_Class_Ext));
00343
00344   // Compute hash_c1 and store for later
00345
00346   DDS::OctetSeq hash_c1;
00347
00348   {
00349     CredentialHash hash(local_credential_data.get_participant_cert(),
00350                         *diffie_hellman,
00351                         serialized_local_participant_data,
00352                         local_credential_data.get_access_permissions());
00353
00354     int err = hash(hash_c1);
00355     if (err) {
00356       set_security_error(ex, -1, 0, "Failed to generate credential-hash 'hash_c1'");
00357       return DDS::Security::VALIDATION_FAILED;
00358     }
00359   }
00360
00361   message_out.add_bin_property("c.id", local_credential_data.get_participant_cert().original_bytes());
00362   message_out.add_bin_property("c.perm", local_credential_data.get_access_permissions());
00363   message_out.add_bin_property("c.pdata", serialized_local_participant_data);
00364   message_out.add_bin_property("c.dsign_algo", local_credential_data.get_participant_cert().dsign_algo());
00365   message_out.add_bin_property("c.kagree_algo", diffie_hellman->kagree_algo());
00366   message_out.add_bin_property("hash_c1", hash_c1);
00367
00368   DDS::OctetSeq dhpub;
00369   diffie_hellman->pub_key(dhpub);
00370   message_out.add_bin_property("dh1", dhpub);
00371
00372   OpenDDS::Security::TokenReader auth_wrapper(remote_data.local_auth_request);
00373   if (auth_wrapper.is_nil()) {
00374     DDS::OctetSeq nonce;
00375     int err = SSL::make_nonce_256(nonce);
00376     if (! err) {
00377       message_out.add_bin_property("challenge1", nonce);
00378
00379     } else {
00380       set_security_error(ex, -1, 0, "Failed to generate 256-bit nonce value for challenge1 property");
00381       return DDS::Security::VALIDATION_FAILED;
00382     }
00383
00384   } else {
00385     const DDS::OctetSeq& challenge_data = auth_wrapper.get_bin_property_value("future_challenge");
00386     message_out.add_bin_property("challenge1", challenge_data);
00387
00388   }
00389
00390   remote_data.initiator_identity = initiator_identity_handle;
00391   remote_data.replier_identity = replier_identity_handle;
00392   remote_data.state = DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE;
00393   remote_data.request = handshake_message;
00394   remote_data.reply = DDS::Security::Token();
00395   remote_data.diffie_hellman = DCPS::move(diffie_hellman);
00396   remote_data.hash_c1 = hash_c1;
00397
00398   handshake_handle = get_next_handle();
00399   {
00400     ACE_Guard<ACE_Thread_Mutex> identity_data_guard(handshake_mutex_);
00401     handshake_data_[handshake_handle] = handshake_data;
00402   }
00403
00404   return DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE;
00405 }

Here is the call graph for this function:

std::string OpenDDS::Security::AuthenticationBuiltInImpl::build_class_id ( const std::string &  message_ext  )  [private]

Definition at line 1363 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::Auth_Plugin_Major_Version(), OpenDDS::Security::Auth_Plugin_Minor_Version(), and OpenDDS::Security::Auth_Plugin_Name().

Referenced by begin_handshake_reply(), begin_handshake_request(), and process_handshake_reply().

01364 {
01365   std::stringstream class_id_stream;
01366   class_id_stream << Auth_Plugin_Name
01367     << ":" << Auth_Plugin_Major_Version
01368     << "." << Auth_Plugin_Minor_Version
01369     << "+" << message_ext;
01370
01371   return class_id_stream.str();
01372 }

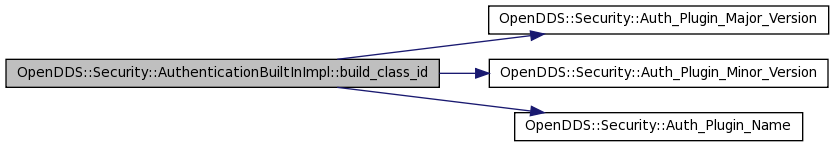

Here is the call graph for this function:

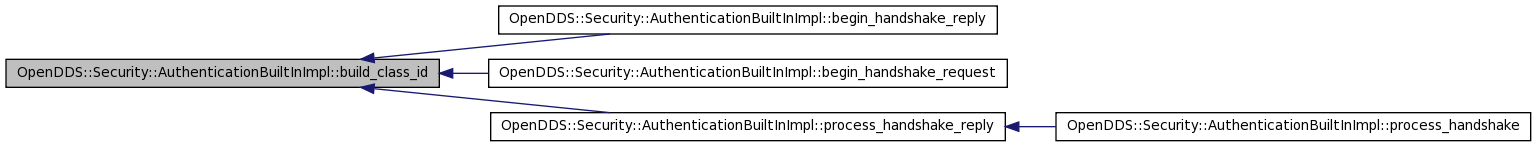

Here is the caller graph for this function:

bool OpenDDS::Security::AuthenticationBuiltInImpl::check_class_versions ( const char *  remote_class_id  )  [private]

Definition at line 1332 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::Auth_Plugin_Major_Version(), OpenDDS::Security::Auth_Plugin_Name(), and major_version().

01333 {
01334   if (NULL == remote_class_id) {
01335     return false;
01336     }
01337   bool class_matches = false;
01338
01339   // Slow, but this is just for the stub
01340   std::string class_id_str(remote_class_id);
01341
01342   // Class name is the text prior to the final ':'
01343   size_t colon_pos = class_id_str.find_last_of(':');
01344   if (std::string::npos != colon_pos && colon_pos > 0) {
01345     // Compare the class name vs the expected class name
01346     std::string remote_class_name  = class_id_str.substr(0, colon_pos);
01347     if (0 == Auth_Plugin_Name.compare(remote_class_name)) {
01348       // Major version is the text between the final : and a  .
01349       size_t major_start = colon_pos + 1;
01350       size_t period_pos = class_id_str.find_first_of('.', major_start);
01351       if (std::string::npos != period_pos && period_pos > major_start) {
01352         std::string major_version = class_id_str.substr(major_start, period_pos - major_start);
01353         if (0 == Auth_Plugin_Major_Version.compare(major_version)) {
01354           class_matches = true;
01355         }
01356       }
01357     }
01358   }
01359
01360   return class_matches;
01361 }

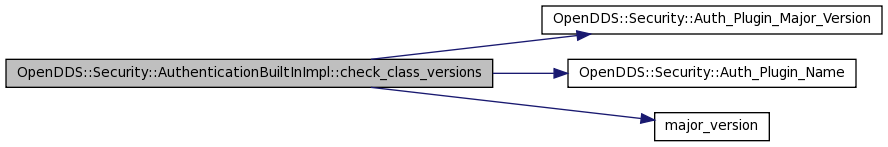

Here is the call graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::get_authenticated_peer_credential_token ( ::DDS::Security::AuthenticatedPeerCredentialToken &  peer_credential_token,
::DDS::Security::HandshakeHandle  handshake_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 845 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::Auth_Peer_Cred_Token_Class_Id(), DDS::Security::DataHolder::binary_properties, get_handshake_data(), handshake_mutex_, DDS::BinaryProperty_t::name, DDS::BinaryProperty_t::propagate, OpenDDS::Security::CommonUtilities::set_security_error(), state, DDS::Security::VALIDATION_OK, DDS::Security::VALIDATION_OK_FINAL_MESSAGE, and DDS::BinaryProperty_t::value.

00849 {
00850   using namespace DDS::Security;
00851   ::CORBA::Boolean result = false;
00852
00853   ACE_Guard<ACE_Thread_Mutex> handshake_data_guard(handshake_mutex_);
00854
00855   HandshakeDataPair handshake_data = get_handshake_data(handshake_handle);
00856   if (handshake_data.first && handshake_data.second) {
00857     ValidationResult_t state = handshake_data.second->state;
00858     if (state == VALIDATION_OK || state == VALIDATION_OK_FINAL_MESSAGE) {
00859       OpenDDS::Security::TokenWriter peer_token(peer_credential_token, Auth_Peer_Cred_Token_Class_Id);
00860
00861       DDS::BinaryPropertySeq& props = peer_credential_token.binary_properties;
00862       props.length(2);
00863
00864       DDS::BinaryProperty_t p1;
00865       p1.name = "c.id";
00866       p1.value = handshake_data.second->certificate->original_bytes();
00867       p1.propagate = true;
00868
00869       DDS::BinaryProperty_t p2;
00870       p2.name = "c.perm";
00871       p2.value = handshake_data.second->c_perm;
00872       p2.propagate = true;
00873
00874       props[0] = p1;
00875       props[1] = p2;
00876
00877       result = true;
00878
00879     } else {
00880       set_security_error(ex, -1, 0, "Validation state must be either VALIDATION_OK or VALIDATION_OK_FINAL_MESSAGE");
00881     }
00882
00883   } else {
00884     set_security_error(ex, -1, 0, "Unknown handshake handle");
00885   }
00886
00887   return result;
00888 }

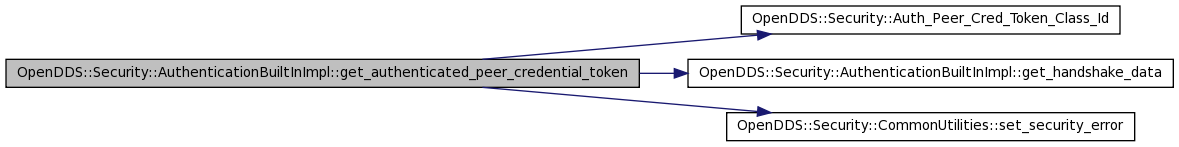

Here is the call graph for this function:

std::string OpenDDS::Security::AuthenticationBuiltInImpl::get_extension ( const char *  class_id  )  [private]

Definition at line 1374 of file AuthenticationBuiltInImpl.cpp.

Referenced by process_handshake().

01375 {
01376   std::string ext_string("");
01377
01378   std::string class_id_str(class_id);
01379   size_t extension_delim_pos = class_id_str.find_last_of('+');
01380   if (extension_delim_pos != std::string::npos) {
01381     size_t start_ext_pos = extension_delim_pos + 1;
01382     if (start_ext_pos < class_id_str.length()) {
01383     ext_string = class_id_str.substr(start_ext_pos);
01384     }
01385   }
01386
01387   return ext_string;
01388 }

Here is the caller graph for this function:

AuthenticationBuiltInImpl::HandshakeDataPair OpenDDS::Security::AuthenticationBuiltInImpl::get_handshake_data ( DDS::Security::HandshakeHandle  handle  )  [private]

Definition at line 1283 of file AuthenticationBuiltInImpl.cpp.

References handshake_data_.

Referenced by get_authenticated_peer_credential_token(), get_shared_secret(), process_final_handshake(), and process_handshake_reply().

01284 {
01285   HandshakeDataMap::iterator found = handshake_data_.find(handle);
01286   if (found != handshake_data_.end()) {
01287     return found->second;
01288   }
01289
01290   return HandshakeDataPair();
01291 }

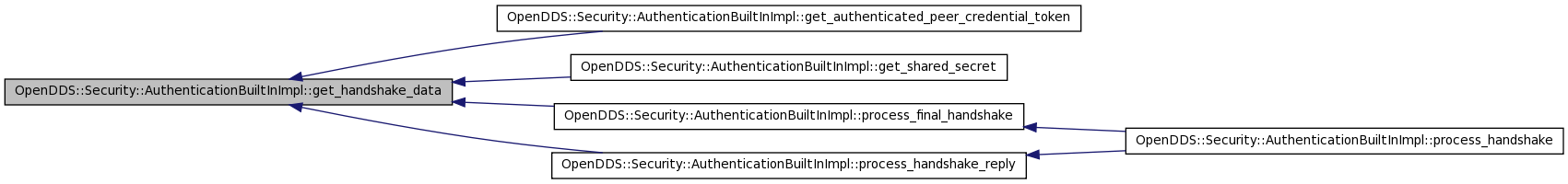

Here is the caller graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::get_identity_status_token ( ::DDS::Security::IdentityStatusToken &  identity_status_token,
::DDS::Security::IdentityHandle  handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 173 of file AuthenticationBuiltInImpl.cpp.

References get_local_participant(), identity_mutex_, OpenDDS::Security::CommonUtilities::set_security_error(), and status.

00177 {
00178   ::CORBA::Boolean status = false;
00179
00180   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00181
00182   // Populate a simple version of an IdentityStatusToken as long as the handle is known
00183   LocalParticipantData::shared_ptr local_data = get_local_participant(handle);
00184   if (local_data) {
00185
00186     // TODO: Pending AuthenticationListener support (see security spec. 8.3.2.2).
00187     // This routine will most likely populate the IdentityStatusToken with
00188     // useful data once this has been completed. For now it's a glorified no-op!
00189
00190     status = true;
00191   } else {
00192     set_security_error(ex, -1, 0, "Unknown Identity handle");
00193   }
00194
00195   return status;
00196 }

Here is the call graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::get_identity_token ( ::DDS::Security::IdentityToken &  identity_token,
::DDS::Security::IdentityHandle  handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 137 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::TokenWriter::add_property(), OpenDDS::Security::LocalAuthCredentialData::get_ca_cert(), get_local_participant(), OpenDDS::Security::LocalAuthCredentialData::get_participant_cert(), identity_mutex_, OpenDDS::Security::SSL::Certificate::keypair_algo(), OpenDDS::Security::CommonUtilities::set_security_error(), status, and OpenDDS::Security::SSL::Certificate::subject_name_to_str().

00141 {
00142   ::CORBA::Boolean status = false;
00143
00144   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00145
00146   LocalParticipantData::shared_ptr local_data = get_local_participant(handle);
00147   if (local_data) {
00148     const LocalAuthCredentialData& local_credential_data = *(local_data->credentials);
00149
00150     const SSL::Certificate& pcert = local_credential_data.get_participant_cert();
00151     const SSL::Certificate& cacert = local_credential_data.get_ca_cert();
00152
00153     std::string tmp;
00154
00155     OpenDDS::Security::TokenWriter identity_wrapper(identity_token, "DDS:Auth:PKI-DH:1.0");
00156
00157     pcert.subject_name_to_str(tmp);
00158     identity_wrapper.add_property("dds.cert.sn", tmp.c_str());
00159     identity_wrapper.add_property("dds.cert.algo", pcert.keypair_algo());
00160
00161     cacert.subject_name_to_str(tmp);
00162     identity_wrapper.add_property("dds.ca.sn", tmp.c_str());
00163     identity_wrapper.add_property("dds.ca.algo", cacert.keypair_algo());
00164
00165     status = true;
00166
00167   } else {
00168     set_security_error(ex, -1, 0, "Unknown Identity handle");
00169   }
00170   return status;
00171 }

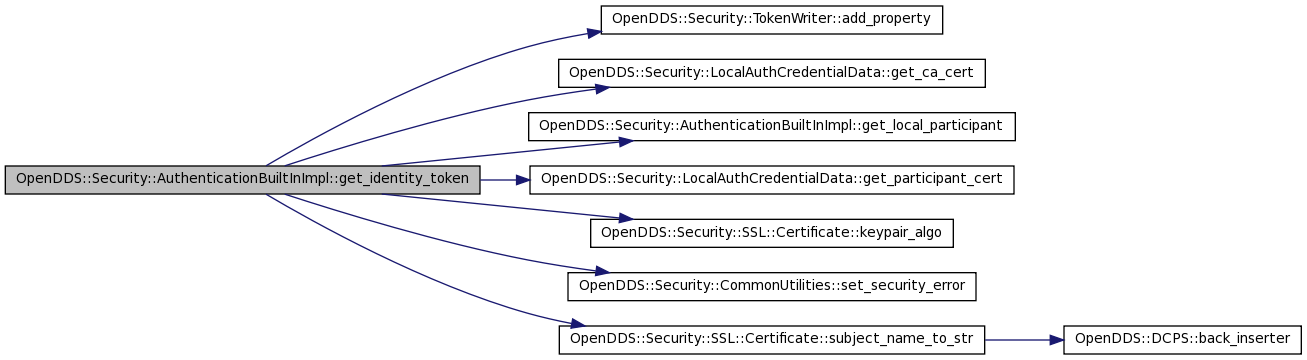

Here is the call graph for this function:

AuthenticationBuiltInImpl::LocalParticipantData::shared_ptr OpenDDS::Security::AuthenticationBuiltInImpl::get_local_participant ( DDS::Security::IdentityHandle  handle  )  [private]

Definition at line 1272 of file AuthenticationBuiltInImpl.cpp.

References local_participants_.

Referenced by get_identity_status_token(), get_identity_token(), and set_permissions_credential_and_token().

01273 {
01274   LocalParticipantMap::iterator found = local_participants_.find(handle);
01275   if (found != local_participants_.end()) {
01276     return found->second;
01277   }
01278
01279   return LocalParticipantData::shared_ptr();
01280 }

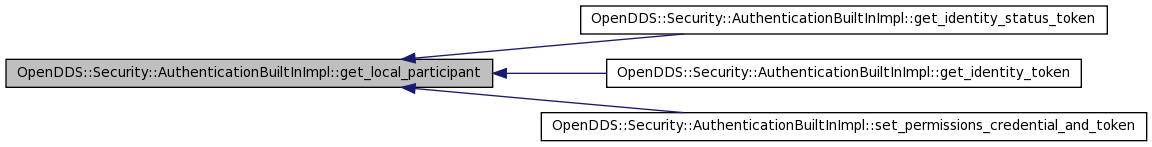

Here is the caller graph for this function:

CORBA::Long OpenDDS::Security::AuthenticationBuiltInImpl::get_next_handle (  )  [private]

Definition at line 1390 of file AuthenticationBuiltInImpl.cpp.

References handle_mutex_, OpenDDS::Security::CommonUtilities::increment_handle(), and next_handle_.

Referenced by begin_handshake_reply(), and begin_handshake_request().

01391 {
01392   ACE_Guard<ACE_Thread_Mutex> guard(handle_mutex_);
01393   return CommonUtilities::increment_handle(next_handle_);
01394 }

Here is the call graph for this function:

Here is the caller graph for this function:

DDS::Security::SharedSecretHandle * OpenDDS::Security::AuthenticationBuiltInImpl::get_shared_secret ( ::DDS::Security::HandshakeHandle  handshake_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 816 of file AuthenticationBuiltInImpl.cpp.

References get_handshake_data(), handshake_mutex_, OpenDDS::Security::CommonUtilities::set_security_error(), state, DDS::Security::VALIDATION_OK, and DDS::Security::VALIDATION_OK_FINAL_MESSAGE.

00819 {
00820   using namespace DDS::Security;
00821
00822   SharedSecretHandle* result = 0;
00823
00824   ACE_Guard<ACE_Thread_Mutex> handshake_data_guard(handshake_mutex_);
00825
00826   HandshakeDataPair handshake_data = get_handshake_data(handshake_handle);
00827   if (handshake_data.first && handshake_data.second) {
00828
00829     ValidationResult_t state = handshake_data.second->state;
00830     if (state == VALIDATION_OK || state == VALIDATION_OK_FINAL_MESSAGE) {
00831       SharedSecretHandle_var handle = handshake_data.second->shared_secret;
00832       result = handle._retn();
00833
00834     } else {
00835       set_security_error(ex, -1, 0, "Validation state must be either VALIDATION_OK or VALIDATION_OK_FINAL_MESSAGE");
00836     }
00837
00838   } else {
00839     set_security_error(ex, -1, 0, "Unknown handshake handle");
00840   }
00841
00842   return result;
00843 }

Here is the call graph for this function:

bool OpenDDS::Security::AuthenticationBuiltInImpl::is_handshake_initiator ( const DCPS::GUID_t &  local,
const DCPS::GUID_t &  remote
) [private]

Definition at line 1321 of file AuthenticationBuiltInImpl.cpp.

01322 {
01323   const unsigned char* local_ = reinterpret_cast<const unsigned char*>(&local);
01324   const unsigned char* remote_ = reinterpret_cast<const unsigned char*>(&remote);
01325
01326   /* if remote > local, pending request; else pending handshake message */
01327   return std::lexicographical_compare(local_, local_ + sizeof(local),
01328                                       remote_, remote_ + sizeof(remote));
01329
01330 }

AuthenticationBuiltInImpl::HandshakeDataPair OpenDDS::Security::AuthenticationBuiltInImpl::make_handshake_pair ( DDS::Security::IdentityHandle  h1,
DDS::Security::IdentityHandle  h2
) [private]

Finds the local and remote data objects associated with h1 and h2 and creates a new handshake pair with them. It does not matter which handle is local and which is remote.

Parameters:
h1 Either a local or remote handle.
h2 Either a local or remote handle.

Definition at line 1294 of file AuthenticationBuiltInImpl.cpp.

References DDS::HANDLE_NIL, and local_participants_.

Referenced by begin_handshake_reply(), and begin_handshake_request().

01296 {
01297   DDS::Security::IdentityHandle other = DDS::HANDLE_NIL;
01298
01299   LocalParticipantMap::iterator found_local = local_participants_.find(h1);
01300   if (found_local != local_participants_.end()) {
01301     other = h2;
01302
01303   } else {
01304     found_local = local_participants_.find(h2);
01305     if (found_local != local_participants_.end()) {
01306       other = h1;
01307
01308     } else {
01309       return HandshakeDataPair();
01310     }
01311   }
01312
01313   RemoteParticipantMap::iterator found_remote = found_local->second->validated_remotes.find(other);
01314   if (found_remote != found_local->second->validated_remotes.end()) {
01315     return std::make_pair(found_local->second, found_remote->second);
01316   }
01317
01318   return HandshakeDataPair();
01319 }

Here is the caller graph for this function:

DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::process_final_handshake ( const DDS::Security::HandshakeMessageToken &  handshake_message_in,
DDS::Security::HandshakeHandle  handshake_handle,
DDS::Security::SecurityException &  ex
) [private]

Definition at line 1177 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::certificate, OpenDDS::Security::challenges_match(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::diffie_hellman, OpenDDS::Security::TokenReader::get_bin_property_value(), get_handshake_data(), handshake_mutex_, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c1, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c2, identity_mutex_, OpenDDS::Security::TokenReader::is_nil(), OpenDDS::Security::make_final_signature_sequence(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::reply, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::request, OpenDDS::Security::CommonUtilities::set_security_error(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::shared_secret, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::state, DDS::Security::VALIDATION_FAILED, DDS::Security::VALIDATION_OK, DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE, and OpenDDS::Security::SSL::verify_serialized().

Referenced by process_handshake().

01181 {
01182   const DDS::Security::ValidationResult_t Failure = DDS::Security::VALIDATION_FAILED;
01183   const DDS::Security::ValidationResult_t ValidationOkay = DDS::Security::VALIDATION_OK;
01184
01185   ACE_Guard<ACE_Thread_Mutex> handshake_data_guard(handshake_mutex_);
01186   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
01187
01188   HandshakeDataPair handshake_data = get_handshake_data(handshake_handle);
01189   if (!handshake_data.first || !handshake_data.second) {
01190     set_security_error(ex, -1, 0, "Unknown handshake handle");
01191     return Failure;
01192   }
01193
01194   RemoteParticipantData& remote_data = *(handshake_data.second);
01195
01196   if (remote_data.state != DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE) {
01197     set_security_error(ex, -1, 0, "Handshake state is not valid");
01198     return Failure;
01199   }
01200
01201   /* Check challenge1 and challenge2 match what was sent with the reply-message-token */
01202
01203   TokenReader handshake_final_token(handshake_message_in);
01204   if (handshake_final_token.is_nil()) {
01205     set_security_error(ex, -1, 0, "Handshake-final-token is nil");
01206     return Failure;
01207   }
01208
01209   TokenReader handshake_reply_token(remote_data.reply);
01210   if (handshake_reply_token.is_nil()) {
01211     set_security_error(ex, -1, 0, "Handshake-reply-token is nil");
01212     return Failure;
01213   }
01214
01215   /* Per the spec, dh1 is optional in all _but_ the request token so it's grabbed from the request */
01216   TokenReader handshake_request_token(remote_data.request);
01217   if (handshake_reply_token.is_nil()) {
01218     set_security_error(ex, -1, 0, "Handshake-reply-token is nil");
01219     return Failure;
01220   }
01221
01222   const DDS::OctetSeq& dh1 = handshake_request_token.get_bin_property_value("dh1");
01223   const DDS::OctetSeq& dh2 = handshake_reply_token.get_bin_property_value("dh2");
01224
01225   const DDS::OctetSeq& challenge1_reply = handshake_reply_token.get_bin_property_value("challenge1");
01226   const DDS::OctetSeq& challenge2_reply = handshake_reply_token.get_bin_property_value("challenge2");
01227
01228   const DDS::OctetSeq& challenge1_final = handshake_final_token.get_bin_property_value("challenge1");
01229   const DDS::OctetSeq& challenge2_final = handshake_final_token.get_bin_property_value("challenge2");
01230
01231   if (! challenges_match(challenge1_reply, challenge1_final) || ! challenges_match(challenge2_reply, challenge2_final)) {
01232       return Failure;
01233   }
01234
01235   /* Validate Signature field */
01236
01237   const SSL::Certificate::unique_ptr& remote_cert = remote_data.certificate;
01238
01239   DDS::BinaryPropertySeq verify_these;
01240   make_final_signature_sequence(remote_data.hash_c1,
01241                                 challenge1_reply,
01242                                 dh1,
01243                                 challenge2_reply,
01244                                 dh2,
01245                                 remote_data.hash_c2,
01246                                 verify_these);
01247
01248   const DDS::OctetSeq& remote_signature = handshake_final_token.get_bin_property_value("signature");
01249
01250   int err = SSL::verify_serialized(verify_these, *remote_cert, remote_signature);
01251   if (err) {
01252     set_security_error(ex, -1, 0, "Remote 'signature' field failed signature verification");
01253     return Failure;
01254   }
01255
01256   /* Compute/Store the Diffie-Hellman shared-secret */
01257
01258   if (0 != remote_data.diffie_hellman->gen_shared_secret(dh1)) {
01259     set_security_error(ex, -1, 0, "Failed to generate shared secret from dh2 and dh1");
01260     return Failure;
01261   }
01262
01263   remote_data.state = DDS::Security::VALIDATION_OK;
01264   remote_data.shared_secret = new SharedSecret(challenge1_reply,
01265                                                  challenge2_reply,
01266                                                  remote_data.diffie_hellman->get_shared_secret());
01267
01268   return ValidationOkay;
01269 }

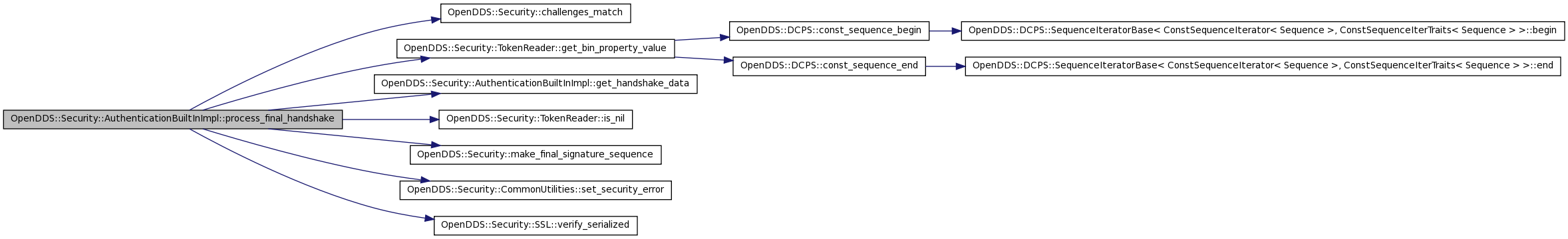

Here is the call graph for this function:

Here is the caller graph for this function:

DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake ( ::DDS::Security::HandshakeMessageToken &  handshake_message_out,
const ::DDS::Security::HandshakeMessageToken &  handshake_message_in,
::DDS::Security::HandshakeHandle  handshake_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 792 of file AuthenticationBuiltInImpl.cpp.

References get_extension(), OpenDDS::Security::Handshake_Final_Class_Ext(), OpenDDS::Security::Handshake_Reply_Class_Ext(), process_final_handshake(), process_handshake_reply(), and DDS::Security::VALIDATION_OK.

00797 {
00798   // - SecurityException is populated if VALIDATION_FAILED
00799   DDS::Security::ValidationResult_t result = DDS::Security::VALIDATION_OK;
00800
00801   // Handle differently based on which direction this handshake is going
00802   std::string incoming_class_ext = get_extension(handshake_message_in.class_id);
00803
00804   if (0 == Handshake_Reply_Class_Ext.compare(incoming_class_ext))
00805   {
00806     result = process_handshake_reply(handshake_message_out, handshake_message_in, handshake_handle, ex);
00807   }
00808   else if (0 == Handshake_Final_Class_Ext.compare(incoming_class_ext))
00809   {
00810     result = process_final_handshake(handshake_message_in, handshake_handle, ex);
00811   }
00812
00813   return result;
00814 }

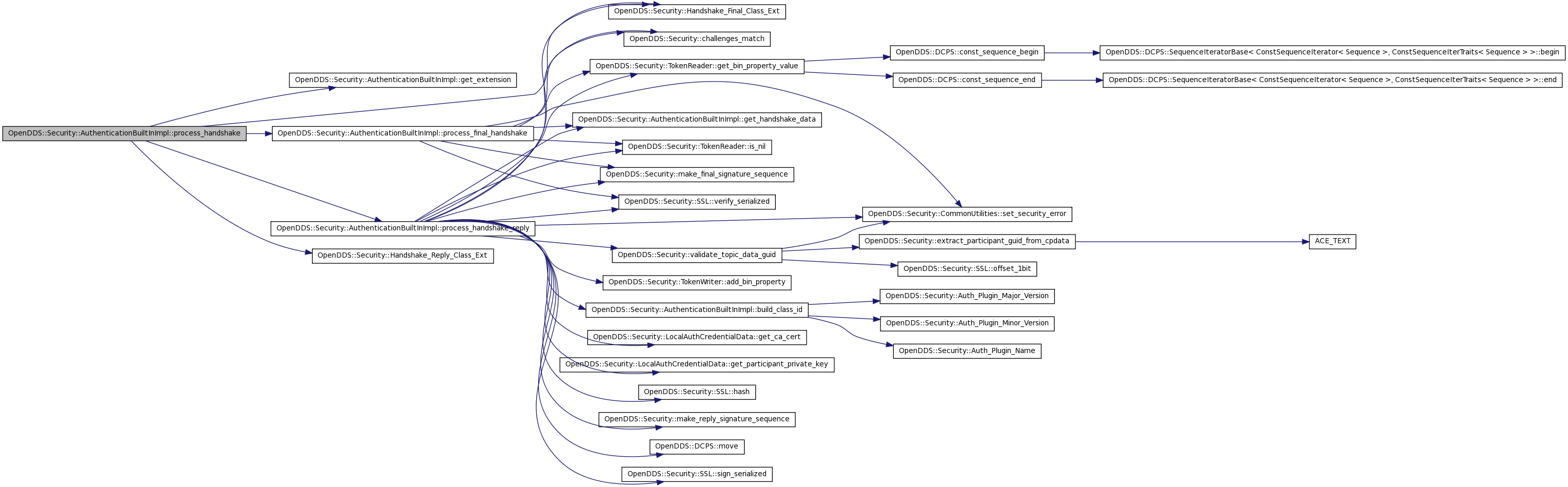

Here is the call graph for this function:

DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::process_handshake_reply ( DDS::Security::HandshakeMessageToken &  handshake_message_out,
const DDS::Security::HandshakeMessageToken &  handshake_message_in,
DDS::Security::HandshakeHandle  handshake_handle,
DDS::Security::SecurityException &  ex
) [private]

Definition at line 988 of file AuthenticationBuiltInImpl.cpp.

References OpenDDS::Security::TokenWriter::add_bin_property(), build_class_id(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::c_perm, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::certificate, OpenDDS::Security::challenges_match(), OpenDDS::Security::AuthenticationBuiltInImpl::LocalParticipantData::credentials, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::diffie_hellman, OpenDDS::Security::TokenReader::get_bin_property_value(), OpenDDS::Security::LocalAuthCredentialData::get_ca_cert(), get_handshake_data(), OpenDDS::Security::LocalAuthCredentialData::get_participant_private_key(), OpenDDS::Security::Handshake_Final_Class_Ext(), handshake_mutex_, OpenDDS::Security::SSL::hash(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c1, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::hash_c2, identity_mutex_, OpenDDS::Security::TokenReader::is_nil(), OpenDDS::Security::make_final_signature_sequence(), OpenDDS::Security::make_reply_signature_sequence(), OpenDDS::DCPS::move(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::remote_auth_request, OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::request, OpenDDS::Security::CommonUtilities::set_security_error(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::shared_secret, OpenDDS::Security::SSL::sign_serialized(), OpenDDS::Security::AuthenticationBuiltInImpl::RemoteParticipantData::state, OpenDDS::Security::validate_topic_data_guid(), DDS::Security::VALIDATION_FAILED, DDS::Security::VALIDATION_OK_FINAL_MESSAGE, DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE, and OpenDDS::Security::SSL::verify_serialized().

Referenced by process_handshake().

00993 {
00994
00995   ACE_Guard<ACE_Thread_Mutex> handshake_data_guard(handshake_mutex_);
00996   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00997
00998   DDS::OctetSeq challenge1, hash_c2;
00999   SSL::Certificate::unique_ptr remote_cert(new SSL::Certificate);
01000
01001   const DDS::Security::ValidationResult_t Failure = DDS::Security::VALIDATION_FAILED;
01002   const DDS::Security::ValidationResult_t FinalMessage = DDS::Security::VALIDATION_OK_FINAL_MESSAGE;
01003
01004   HandshakeDataPair handshake_data = get_handshake_data(handshake_handle);
01005   if (!handshake_data.first || !handshake_data.second) {
01006     set_security_error(ex, -1, 0, "Unknown handshake handle");
01007     return Failure;
01008   }
01009
01010   LocalParticipantData& local_data = *(handshake_data.first);
01011   RemoteParticipantData& remote_data = *(handshake_data.second);
01012
01013   if (remote_data.state != DDS::Security::VALIDATION_PENDING_HANDSHAKE_MESSAGE) {
01014     set_security_error(ex, -1, 0, "Handshake state is not valid");
01015     return Failure;
01016   }
01017
01018   TokenReader message_in(handshake_message_in);
01019   if (message_in.is_nil()) {
01020     set_security_error(ex, -1, 0, "Handshake_message_in must not be nil");
01021     return Failure;
01022   }
01023
01024   const DDS::OctetSeq& challenge2 = message_in.get_bin_property_value("challenge2");
01025
01026   TokenReader auth_wrapper(remote_data.remote_auth_request);
01027   if (! auth_wrapper.is_nil()) {
01028     const DDS::OctetSeq& future_challenge = auth_wrapper.get_bin_property_value("future_challenge");
01029
01030     if (! challenges_match(challenge2, future_challenge)) {
01031       set_security_error(ex, -1, 0, "challenge2 does not match future_challenge");
01032       return Failure;
01033     }
01034   }
01035
01036   const LocalAuthCredentialData& local_credential_data = *(local_data.credentials);
01037
01038   const DDS::OctetSeq& cid = message_in.get_bin_property_value("c.id");
01039   if (cid.length() > 0) {
01040
01041       remote_cert->deserialize(cid);
01042
01043     if (X509_V_OK != remote_cert->validate(local_credential_data.get_ca_cert()))
01044     {
01045       set_security_error(ex, -1, 0, "Certificate validation failed");
01046       return Failure;
01047     }
01048
01049   } else {
01050     set_security_error(ex, -1, 0, "Certificate validation failed due to empty 'c.id' property supplied");
01051     return Failure;
01052   }
01053
01054   /* Check that challenge1 on message_in matches the one sent in HandshakeRequestMessageToken */
01055
01056   TokenReader handshake_request_token(remote_data.request);
01057   if (handshake_request_token.is_nil()) {
01058     set_security_error(ex, -1, 0, "Handshake-request-token is nil");
01059     return Failure;
01060
01061   } else {
01062     challenge1 = handshake_request_token.get_bin_property_value("challenge1");
01063     const DDS::OctetSeq& challenge1_reply =  message_in.get_bin_property_value("challenge1");
01064
01065     if (! challenges_match(challenge1, challenge1_reply)) {
01066       set_security_error(ex, -1, 0, "handshake-request challenge1 value does not match local challenge1");
01067       return Failure;
01068     }
01069   }
01070
01071   /* Validate participant_guid in c.pdata */
01072
01073   const DDS::OctetSeq& cpdata = message_in.get_bin_property_value("c.pdata");
01074
01075   std::vector<unsigned char> hash;
01076   if (0 != remote_cert->subject_name_digest(hash)) {
01077     set_security_error(ex, -1, 0, "Failed to generate subject-name digest from remote certificate.");
01078     return Failure;
01079   }
01080
01081   if (! validate_topic_data_guid(cpdata, hash, ex)) {
01082     return Failure;
01083   }
01084
01085   /* Compute/Store the Diffie-Hellman shared-secret */
01086
01087   const DDS::OctetSeq& dh2 = message_in.get_bin_property_value("dh2");
01088   if (0 != remote_data.diffie_hellman->gen_shared_secret(dh2)) {
01089     set_security_error(ex, -1, 0, "Failed to generate shared secret from dh1 and dh2");
01090     return Failure;
01091   }
01092
01093   const DDS::OctetSeq& cperm = message_in.get_bin_property_value("c.perm");
01094
01095   /* Compute hash_c2 and store for later (hash_c1 was already computed in request) */
01096
01097   {
01098     CredentialHash hash(*remote_cert,
01099                         *remote_data.diffie_hellman,
01100                         cpdata,
01101                         cperm);
01102     int err = hash(hash_c2);
01103     if (err) {
01104       set_security_error(ex, -1, 0, "Computing hash_c2 failed");
01105       return Failure;
01106     }
01107   }
01108
01109   /* Validate Signature field */
01110   const DDS::OctetSeq& dh1 = handshake_request_token.get_bin_property_value("dh1");
01111
01112   DDS::BinaryPropertySeq verify_these;
01113   make_reply_signature_sequence(hash_c2,
01114                                 challenge2,
01115                                 dh2,
01116                                 challenge1,
01117                                 dh1,
01118                                 remote_data.hash_c1,
01119                                 verify_these);
01120
01121   const DDS::OctetSeq& remote_signature = message_in.get_bin_property_value("signature");
01122
01123   int err = SSL::verify_serialized(verify_these, *remote_cert, remote_signature);
01124   if (err) {
01125     set_security_error(ex, -1, 0, "Remote 'signature' field failed signature verification");
01126     return Failure;
01127   }
01128
01129   OpenDDS::Security::TokenWriter final_msg(handshake_message_out, build_class_id(Handshake_Final_Class_Ext));
01130
01131   final_msg.add_bin_property("hash_c1", remote_data.hash_c1);
01132   final_msg.add_bin_property("hash_c2", hash_c2);
01133   final_msg.add_bin_property("dh1", dh1);
01134   final_msg.add_bin_property("dh2", dh2);
01135   final_msg.add_bin_property("challenge1", challenge1);
01136   final_msg.add_bin_property("challenge2", challenge2);
01137
01138   DDS::BinaryPropertySeq sign_these;
01139   make_final_signature_sequence(remote_data.hash_c1,
01140                                 challenge1,
01141                                 dh1,
01142                                 challenge2,
01143                                 dh2,
01144                                 hash_c2,
01145                                 sign_these);
01146
01147   DDS::OctetSeq tmp;
01148   SSL::sign_serialized(sign_these, local_credential_data.get_participant_private_key(), tmp);
01149   final_msg.add_bin_property("signature", tmp);
01150
01151   remote_data.certificate = DCPS::move(remote_cert);
01152   remote_data.state = FinalMessage;
01153   remote_data.c_perm = message_in.get_bin_property_value("c.perm");
01154   remote_data.hash_c2 = hash_c2;
01155   remote_data.shared_secret = new SharedSecret(challenge1,
01156                                                challenge2,
01157                                                remote_data.diffie_hellman->get_shared_secret());
01158   return FinalMessage;
01159 }

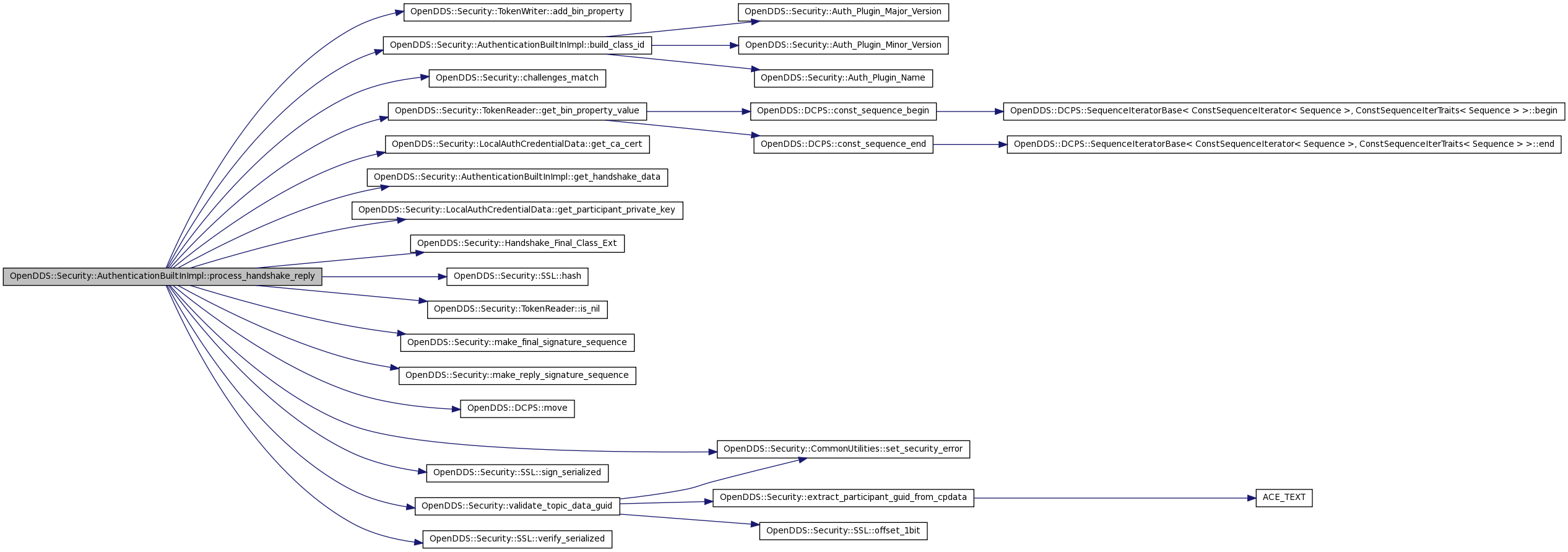

Here is the call graph for this function:

Here is the caller graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_authenticated_peer_credential_token ( const ::DDS::Security::AuthenticatedPeerCredentialToken &  peer_credential_token,
::DDS::Security::SecurityException &  ex
)

Definition at line 927 of file AuthenticationBuiltInImpl.cpp.

00930 {
00931   // Nothing to do here yet
00932   ACE_UNUSED_ARG(peer_credential_token);
00933   ACE_UNUSED_ARG(ex);
00934   return true;
00935 }

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_handshake_handle ( ::DDS::Security::HandshakeHandle  handshake_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 937 of file AuthenticationBuiltInImpl.cpp.

References handshake_data_, handshake_mutex_, and OpenDDS::Security::CommonUtilities::set_security_error().

00940 {
00941   ACE_Guard<ACE_Thread_Mutex> guard(handshake_mutex_);
00942
00943   HandshakeDataMap::iterator found = handshake_data_.find(handshake_handle);
00944   if (found != handshake_data_.end()) {
00945     handshake_data_.erase(found);
00946     return true;
00947   }
00948
00949   set_security_error(ex, -1, 0, "Handshake handle not recognized");
00950   return false;
00951 }

Here is the call graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_identity_handle ( ::DDS::Security::IdentityHandle  identity_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 953 of file AuthenticationBuiltInImpl.cpp.

References identity_mutex_, local_participants_, and OpenDDS::Security::CommonUtilities::set_security_error().

00956 {
00957   ACE_Guard<ACE_Thread_Mutex> guard(identity_mutex_);
00958
00959   LocalParticipantMap::iterator local = local_participants_.find(identity_handle);
00960   if (local != local_participants_.end()) {
00961     local_participants_.erase(local);
00962     return true;
00963   }
00964
00965   local = std::find_if(local_participants_.begin(), local_participants_.end(),
00966                        local_has_remote_handle(identity_handle));
00967
00968   if (local != local_participants_.end()) {
00969     local->second->validated_remotes.erase(identity_handle);
00970     return true;
00971   }
00972
00973   set_security_error(ex, -1, 0, "Identity handle not recognized");
00974   return false;
00975 }

Here is the call graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_identity_status_token ( const ::DDS::Security::IdentityStatusToken &  token,
::DDS::Security::SecurityException &  ex
)

Definition at line 916 of file AuthenticationBuiltInImpl.cpp.

00919 {
00920   // Nothing to do here yet
00921   ACE_UNUSED_ARG(token);
00922   ACE_UNUSED_ARG(ex);
00923   return true;
00924 }

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_identity_token ( const ::DDS::Security::IdentityToken &  token,
::DDS::Security::SecurityException &  ex
)

Definition at line 905 of file AuthenticationBuiltInImpl.cpp.

00908 {
00909   // Nothing to do here yet
00910   ACE_UNUSED_ARG(token);
00911   ACE_UNUSED_ARG(ex);
00912   return true;
00913 }

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::return_sharedsecret_handle ( ::DDS::Security::SharedSecretHandle *  sharedsecret_handle,
::DDS::Security::SecurityException &  ex
)

Definition at line 977 of file AuthenticationBuiltInImpl.cpp.

00980 {
00981   // Nothing to do here in the stub version
00982   ACE_UNUSED_ARG(sharedsecret_handle);
00983   ACE_UNUSED_ARG(ex);
00984   return true;
00985 }

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::set_listener ( ::DDS::Security::AuthenticationListener_ptr  listener,
::DDS::Security::SecurityException &  ex
)

Definition at line 890 of file AuthenticationBuiltInImpl.cpp.

References listener_ptr_, and OpenDDS::Security::CommonUtilities::set_security_error().

00893 {
00894   ::CORBA::Boolean results = false;
00895
00896   if (NULL == listener) {
00897     set_security_error(ex, -1, 0, "Null listener provided");
00898   } else {
00899     results = true;
00900     listener_ptr_ = listener;
00901   }
00902   return results;
00903 }

Here is the call graph for this function:

CORBA::Boolean OpenDDS::Security::AuthenticationBuiltInImpl::set_permissions_credential_and_token ( ::DDS::Security::IdentityHandle  handle,
const ::DDS::Security::PermissionsCredentialToken &  permissions_credential,
const ::DDS::Security::PermissionsToken &  permissions_token,
::DDS::Security::SecurityException &  ex
)

Definition at line 198 of file AuthenticationBuiltInImpl.cpp.

References get_local_participant(), identity_mutex_, and OpenDDS::Security::CommonUtilities::set_security_error().

00203 {
00204   ACE_UNUSED_ARG(permissions_token);
00205
00206   ACE_Guard<ACE_Thread_Mutex> identity_data_guard(identity_mutex_);
00207
00208   LocalParticipantData::shared_ptr local_data = get_local_participant(handle);
00209   if (! local_data) {
00210     set_security_error(ex, -1, 0, "Identity handle not recognized");
00211     return false;
00212   }
00213
00214   return local_data->credentials->load_access_permissions(permissions_credential, ex);
00215 }

Here is the call graph for this function:

virtual ::DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::validate_local_identity ( ::DDS::Security::IdentityHandle &  local_identity_handle,
DCPS::GUID_t &  adjusted_participant_guid,
::DDS::Security::DomainId_t  domain_id,
const ::DDS::DomainParticipantQos &  participant_qos,
const DCPS::GUID_t &  candidate_participant_guid,
::DDS::Security::SecurityException &  ex
)
virtual ::DDS::Security::ValidationResult_t OpenDDS::Security::AuthenticationBuiltInImpl::validate_remote_identity ( ::DDS::Security::IdentityHandle &  remote_identity_handle,
::DDS::Security::AuthRequestMessageToken &  local_auth_request_token,
const ::DDS::Security::AuthRequestMessageToken &  remote_auth_request_token,
::DDS::Security::IdentityHandle  local_identity_handle,
const ::DDS::Security::IdentityToken &  remote_identity_token,
const DCPS::GUID_t &  remote_participant_guid,
::DDS::Security::SecurityException &  ex
)

Member Data Documentation

ACE_Thread_Mutex OpenDDS::Security::AuthenticationBuiltInImpl::handle_mutex_ [private]

Definition at line 268 of file AuthenticationBuiltInImpl.h.

Referenced by get_next_handle().

HandshakeDataMap OpenDDS::Security::AuthenticationBuiltInImpl::handshake_data_ [private]

Definition at line 206 of file AuthenticationBuiltInImpl.h.

Referenced by begin_handshake_reply(), begin_handshake_request(), get_handshake_data(), and return_handshake_handle().

ACE_Thread_Mutex OpenDDS::Security::AuthenticationBuiltInImpl::handshake_mutex_ [private]

Definition at line 267 of file AuthenticationBuiltInImpl.h.

Referenced by begin_handshake_reply(), begin_handshake_request(), get_authenticated_peer_credential_token(), get_shared_secret(), process_final_handshake(), process_handshake_reply(), and return_handshake_handle().

ACE_Thread_Mutex OpenDDS::Security::AuthenticationBuiltInImpl::identity_mutex_ [private]

Definition at line 266 of file AuthenticationBuiltInImpl.h.

Referenced by begin_handshake_reply(), begin_handshake_request(), get_identity_status_token(), get_identity_token(), process_final_handshake(), process_handshake_reply(), return_identity_handle(), and set_permissions_credential_and_token().

DDS::Security::AuthenticationListener_ptr OpenDDS::Security::AuthenticationBuiltInImpl::listener_ptr_ [private]

Definition at line 264 of file AuthenticationBuiltInImpl.h.

Referenced by set_listener().

LocalParticipantMap OpenDDS::Security::AuthenticationBuiltInImpl::local_participants_ [private]

Definition at line 200 of file AuthenticationBuiltInImpl.h.

Referenced by get_local_participant(), make_handshake_pair(), and return_identity_handle().

CORBA::Long OpenDDS::Security::AuthenticationBuiltInImpl::next_handle_ [private]

Definition at line 270 of file AuthenticationBuiltInImpl.h.

Referenced by get_next_handle().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
