#include <UdpSendStrategy.h>

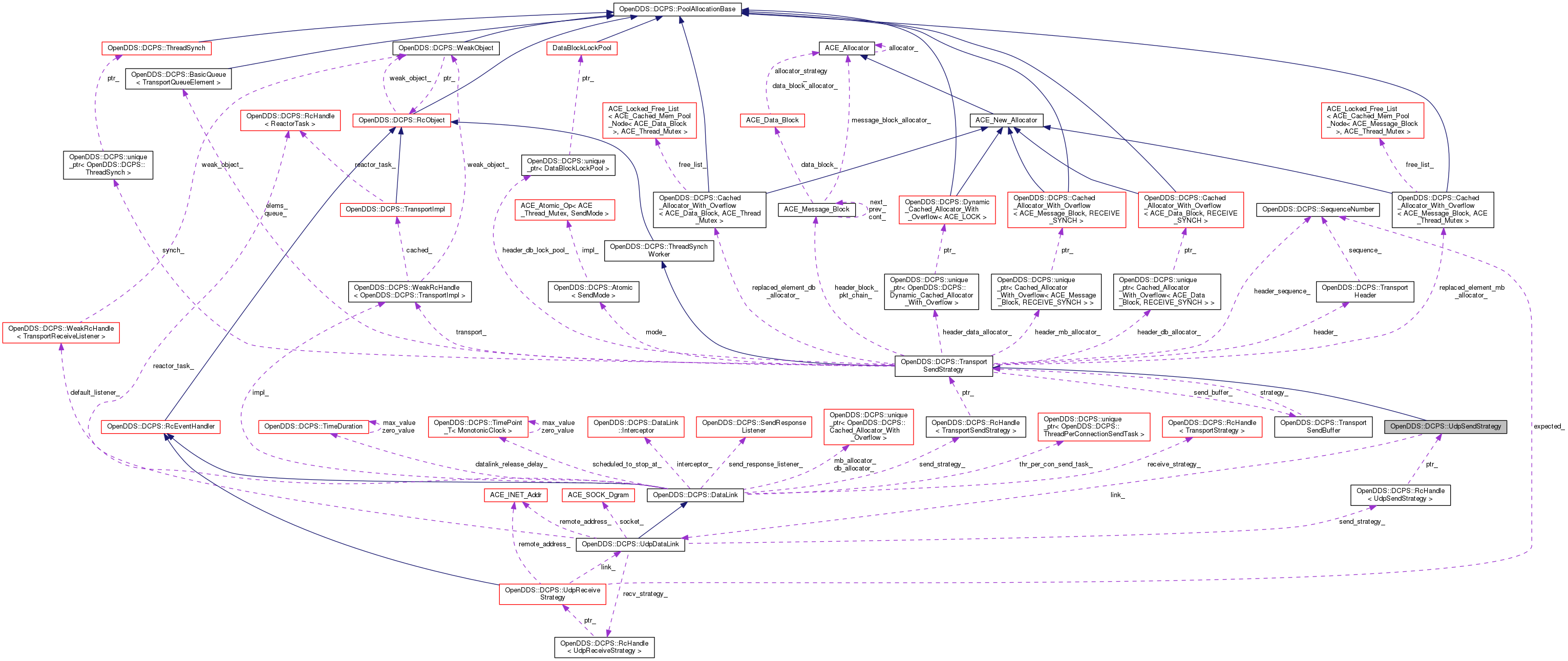

Inheritance diagram for OpenDDS::DCPS::UdpSendStrategy:

[legend]

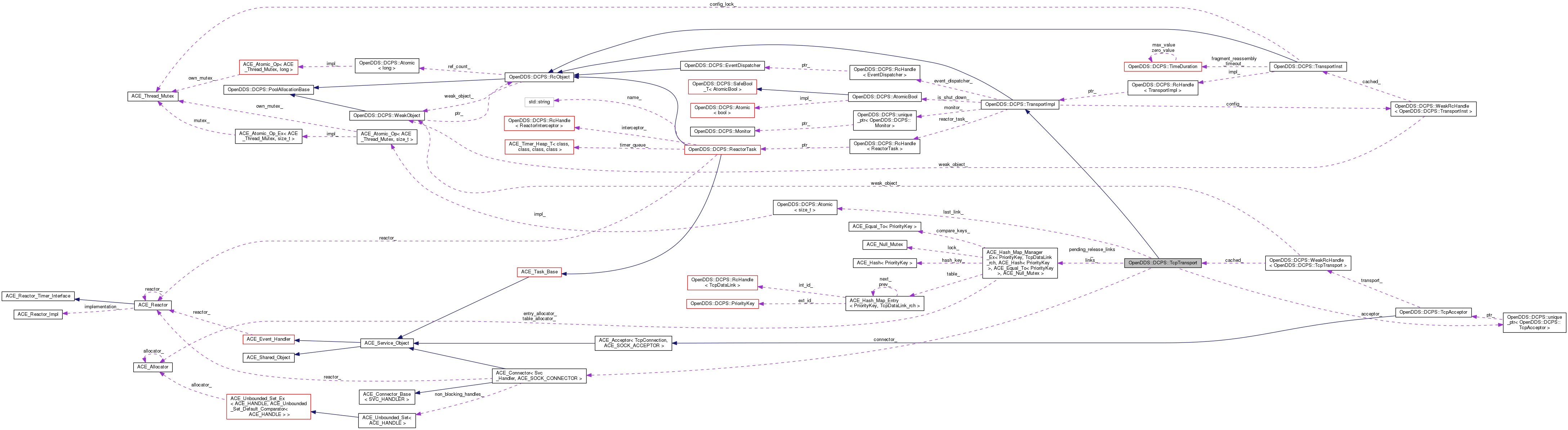

Collaboration diagram for OpenDDS::DCPS::UdpSendStrategy:

[legend]

Public Member Functions
	UdpSendStrategy (UdpDataLink *link)

virtual void	stop_i ()
	Let the subclass stop. More...

Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
virtual	~TransportSendStrategy ()

void	send_buffer (TransportSendBuffer *send_buffer)
	Assigns an optional send buffer. More...

int	start ()

void	stop ()

void	send_start ()

void	send (TransportQueueElement *element, bool relink=true)

void	send_stop (GUID_t repoId)

RemoveResult	remove_sample (const DataSampleElement *sample)

void	remove_all_msgs (const GUID_t &pub_id)

virtual WorkOutcome	perform_work ()

virtual void	relink (bool do_suspend=true)

void	suspend_send ()

void	resume_send ()

void	terminate_send (bool graceful_disconnecting=false)
	Remove all samples in the backpressure queue and packet queue. More...

virtual void	terminate_send_if_suspended ()

virtual bool	start_i ()
	Let the subclass start. More...

void	link_released (bool flag)

bool	isDirectMode ()

virtual ACE_HANDLE	get_handle ()

void	deliver_ack_request (TransportQueueElement *element)

bool	fragmentation_helper (TransportQueueElement *original_element, TqeVector &elements_to_send)

void	clear (SendMode new_mode, SendMode old_mode=MODE_NOT_SET)

SendMode	mode () const
	Access the current sending mode. More...

Public Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
virtual	~ThreadSynchWorker ()

virtual void	schedule_output ()
	Indicate that queued data is available to be sent. More...

std::size_t	id () const
	DataLink reference value for diagnostics. More...

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Protected Member Functions
virtual ssize_t	send_bytes_i (const iovec iov[], int n)

virtual size_t	max_message_size () const

Protected Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
	TransportSendStrategy (std::size_t id, const TransportImpl_rch &transport, ThreadSynchResource *synch_resource, Priority priority, const ThreadSynchStrategy_rch &thread_sync_strategy)

virtual ssize_t	send_bytes (const iovec iov[], int n, int &bp)

virtual ssize_t	non_blocking_send (const iovec iov[], int n, int &bp)

virtual void	prepare_header_i ()
	Specific implementation processing of prepared packet header. More...

virtual void	prepare_packet_i ()
	Specific implementation processing of prepared packet. More...

TransportQueueElement *	current_packet_first_element () const

void	set_graceful_disconnecting (bool flag)
	Set graceful disconnecting flag. More...

virtual void	add_delayed_notification (TransportQueueElement *element)

bool	send_delayed_notifications (const TransportQueueElement::MatchCriteria *match=0)

virtual Security::SecurityConfig_rch	security_config () const

virtual RemoveResult	do_remove_sample (const GUID_t &pub_id, const TransportQueueElement::MatchCriteria &criteria, bool remove_all=false)
	Implement framework chain visitations to remove a sample. More...

ThreadSynch *	synch () const

void	set_header_source (ACE_INT64 source)

Protected Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
	ThreadSynchWorker (std::size_t id=0)

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Private Attributes
UdpDataLink *	link_

Additional Inherited Members
Public Types inherited from OpenDDS::DCPS::TransportSendStrategy
enum	SendMode { MODE_NOT_SET, MODE_DIRECT, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED }

typedef BasicQueue< TransportQueueElement >	QueueType

Public Types inherited from OpenDDS::DCPS::ThreadSynchWorker
enum	WorkOutcome { WORK_OUTCOME_MORE_TO_DO, WORK_OUTCOME_NO_MORE_TO_DO, WORK_OUTCOME_CLOGGED_RESOURCE, WORK_OUTCOME_BROKEN_RESOURCE }

Static Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
static int	mb_to_iov (const ACE_Message_Block &msg, iovec *iov)

Static Public Attributes inherited from OpenDDS::DCPS::TransportSendStrategy
static const size_t	UDP_MAX_MESSAGE_SIZE = 65466

Detailed Description

Definition at line 24 of file UdpSendStrategy.h.

Constructor & Destructor Documentation

◆ UdpSendStrategy()

OpenDDS::DCPS::UdpSendStrategy::UdpSendStrategy ( UdpDataLink * link )

Definition at line 18 of file UdpSendStrategy.cpp.

   : TransportSendStrategy(0, link->impl(),
                           0,  // synch_resource
                           link->transport_priority(),
                           make_rch<NullSynchStrategy>()),
     link_(link)
 {
 }

Member Function Documentation

◆ max_message_size()

virtual size_t OpenDDS::DCPS::UdpSendStrategy::max_message_size ( void ) const

inlineprotectedvirtual

The maximum size of a message allowed by the this TransportImpl, or 0 if there is no such limit. This is expected to be a constant, for example UDP/IPv4 can send messages of up to 65466 bytes. The transport framework will use the returned value (if > 0) to fragment larger messages. This fragmentation and reassembly will be transparent to the user.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 34 of file UdpSendStrategy.h.

   {
     return UDP_MAX_MESSAGE_SIZE;
   }

◆ send_bytes_i()

ssize_t OpenDDS::DCPS::UdpSendStrategy::send_bytes_i	(	const iovec	iov[],
		int	n
	)

protectedvirtual

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 28 of file UdpSendStrategy.cpp.

References link_, OpenDDS::DCPS::UdpDataLink::remote_address(), ACE_SOCK_Dgram::send(), socket(), and OpenDDS::DCPS::UdpDataLink::socket().

 {
   ACE_SOCK_Dgram& socket = this->link_->socket();
   return socket.send(iov, n, this->link_->remote_address());
 }

◆ stop_i()

void OpenDDS::DCPS::UdpSendStrategy::stop_i ( )

virtual

Let the subclass stop.

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 35 of file UdpSendStrategy.cpp.

References OPENDDS_END_VERSIONED_NAMESPACE_DECL.

36 {

37 }

Member Data Documentation

◆ link_

UdpDataLink* OpenDDS::DCPS::UdpSendStrategy::link_

private

Definition at line 40 of file UdpSendStrategy.h.

Referenced by send_bytes_i().

The documentation for this class was generated from the following files:
