OpenDDS::DCPS::TransportImpl Class Reference

#include <TransportImpl.h>

Inheritance diagram for OpenDDS::DCPS::TransportImpl:

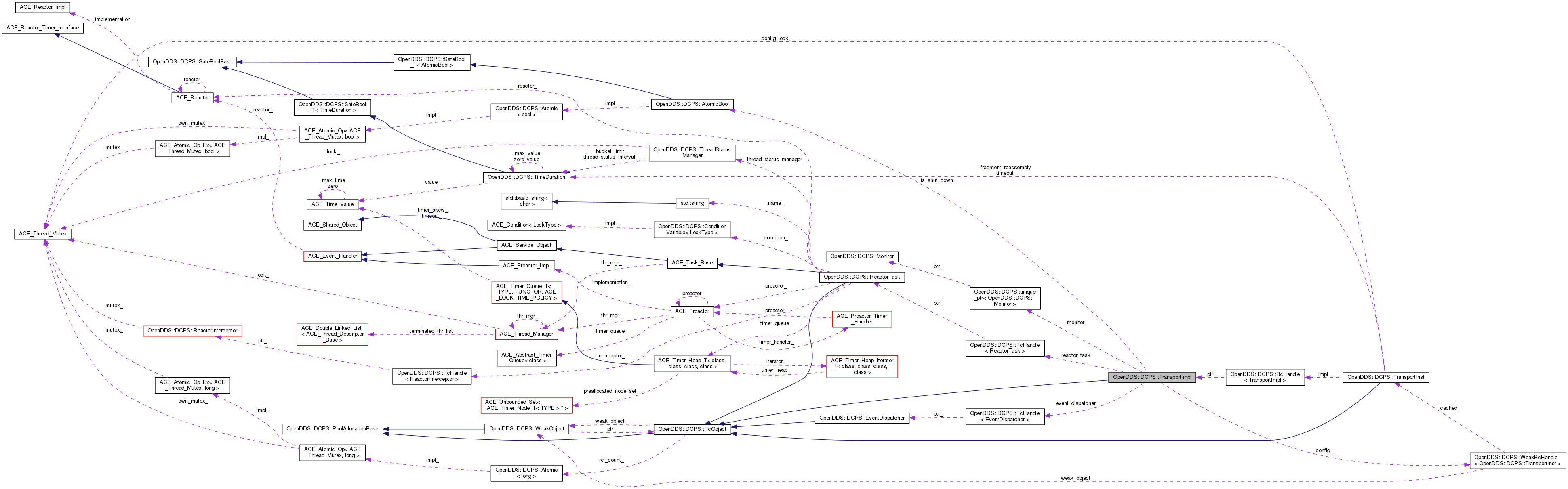

Collaboration diagram for OpenDDS::DCPS::TransportImpl:

Classes
struct	AcceptConnectResult
struct	ConnectionAttribs
struct	DoClear
struct	RemoteTransport

Public Member Functions
virtual	~TransportImpl ()
virtual void	unbind_link (DataLink *link)
	Remove any pending_release mappings. More...
bool	release_link_resources (DataLink *link)
TransportInst_rch	config () const
virtual bool	connection_info_i (TransportLocator &local_info, ConnectionInfoFlags flags) const =0
virtual void	register_for_reader (const GUID_t &, const GUID_t &, const GUID_t &, const TransportLocatorSeq &, OpenDDS::DCPS::DiscoveryListener *)
virtual void	unregister_for_reader (const GUID_t &, const GUID_t &, const GUID_t &)
virtual void	register_for_writer (const GUID_t &, const GUID_t &, const GUID_t &, const TransportLocatorSeq &, DiscoveryListener *)
virtual void	unregister_for_writer (const GUID_t &, const GUID_t &, const GUID_t &)
virtual void	update_locators (const GUID_t &, const TransportLocatorSeq &)
virtual void	get_last_recv_locator (const GUID_t &, TransportLocator &)
virtual void	rtps_relay_address_change ()
virtual void	append_transport_statistics (TransportStatisticsSequence &)
ACE_Reactor_Timer_Interface *	timer () const
	Interface to the transport's reactor for scheduling timers. More...
ACE_Reactor *	reactor () const
ACE_thread_t	reactor_owner () const
bool	is_shut_down () const
void	create_reactor_task (bool useAsyncSend=false, const OPENDDS_STRING &name="")
void	dump ()
	Diagnostic aid. More...
OPENDDS_STRING	dump_to_str ()
void	report ()
virtual WeakRcHandle< ICE::Endpoint >	get_ice_endpoint ()
virtual void	rtps_relay_only_now (bool)
virtual void	use_rtps_relay_now (bool)
virtual void	use_ice_now (bool)
ReactorTask_rch	reactor_task ()
EventDispatcher_rch	event_dispatcher ()
int	acquire ()
int	tryacquire ()
int	release ()
int	remove ()
virtual OPENDDS_STRING	transport_type () const =0
bool	connection_info (TransportLocator &local_info, ConnectionInfoFlags flags) const
Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()
virtual void	_add_ref ()
virtual void	_remove_ref ()
long	ref_count () const
WeakObject *	_get_weak_object () const

Public Attributes
LockType	lock_
	Lock to protect the config_ and reactor_task_ data members. More...
WeakRcHandle< TransportInst >	config_
ReactorTask_rch	reactor_task_
EventDispatcher_rch	event_dispatcher_
	smart ptr to the associated DL cleanup task More...
unique_ptr< Monitor >	monitor_
	Monitor object for this entity. More...

Protected Types
typedef ACE_SYNCH_MUTEX	LockType
typedef ACE_Guard< LockType >	GuardType

Protected Member Functions
	TransportImpl (TransportInst_rch config)
bool	open ()
virtual AcceptConnectResult	connect_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)=0
virtual AcceptConnectResult	accept_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)=0
virtual void	stop_accepting_or_connecting (const TransportClient_wrch &client, const GUID_t &remote_id, bool disassociate, bool association_failed)=0
virtual void	shutdown_i ()=0
typedef	OPENDDS_MULTIMAP (TransportClient_wrch, DataLink_rch) PendConnMap
void	add_pending_connection (const TransportClient_rch &client, DataLink_rch link)
void	shutdown ()
Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Attributes
LockType	pending_connections_lock_
	Lock to protect the pending_connections_ data member. More...
PendConnMap	pending_connections_
AtomicBool	is_shut_down_
	Id of the last link established. More...

Private Member Functions
virtual void	release_datalink (DataLink *link)=0
virtual void	client_stop (const GUID_t &)
DataLink *	find_connect_i (const GUID_t &local_id, const AssociationData &remote_association, const ConnectionAttribs &attribs, bool active, bool connect)
virtual void	local_crypto_handle (DDS::Security::ParticipantCryptoHandle)

Friends
class	TransportInst
class	TransportClient
class	DataLink

Detailed Description

The TransportImpl class includes the abstract methods that must be implemented by any implementation to provide data delivery service to the DCPS implementation. This includes methods to send data, received data, configure the operation, and manage associations and datalinks between local and remote objects of the implementation.

Notes about object ownership: 1)Has longer lifetime than the publisher and subscriber objects. The publishers and subscribers are owned by the DomainParticipant and transport factory shutdown is always after DomainParticipant factory shutdown. 2)The concrete transport object owns the datalink objects. 3)Own a DataLinkCleanup object. 4)Reference to TransportInst object and TransportReactorTask object owned by TransportRegistry. 5)During transport shutdown, if this object does not have ownership of an object but has a references via smart pointer then the reference should be freed; if this object has ownership of task objects then the tasks should be closed.

Definition at line 64 of file TransportImpl.h.

Member Typedef Documentation

GuardType

typedef ACE_Guard<LockType> OpenDDS::DCPS::TransportImpl::GuardType

protected

Definition at line 228 of file TransportImpl.h.

LockType

typedef ACE_SYNCH_MUTEX OpenDDS::DCPS::TransportImpl::LockType

protected

Definition at line 227 of file TransportImpl.h.

Constructor & Destructor Documentation

~TransportImpl()

OpenDDS::DCPS::TransportImpl::~TransportImpl ( )

virtual

Definition at line 44 of file TransportImpl.cpp.

References DBG_ENTRY_LVL, event_dispatcher_, and OpenDDS::DCPS::EventDispatcher::shutdown().

{
  DBG_ENTRY_LVL("TransportImpl", "~TransportImpl", 6);
  event_dispatcher_->shutdown(true);
}

TransportImpl()

OpenDDS::DCPS::TransportImpl::TransportImpl ( TransportInst_rch  config )

protected

Definition at line 33 of file TransportImpl.cpp.

References DBG_ENTRY_LVL, monitor_, and TheServiceParticipant.

  : config_(config)
  , event_dispatcher_(make_rch<ServiceEventDispatcher>(1))
  , is_shut_down_(false)
{
  DBG_ENTRY_LVL("TransportImpl", "TransportImpl", 6);
  if (TheServiceParticipant->monitor_factory_) {
    monitor_.reset(TheServiceParticipant->monitor_factory_->create_transport_monitor(this));
  }
}

Member Function Documentation

accept_datalink()

virtual AcceptConnectResult OpenDDS::DCPS::TransportImpl::accept_datalink ( const RemoteTransport &  remote, const ConnectionAttribs &  attribs, const TransportClient_rch &  client  )

protectedpure virtual

accept_datalink() is called from TransportClient to initiate an association as the passive peer. A DataLink may be returned if one is already connected and ready to use, otherwise passively wait for a physical connection from the active side (either in the form of a connection event or handshaking message). Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implemented in OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by OpenDDS::DCPS::TransportClient::associate().

acquire()

int OpenDDS::DCPS::TransportImpl::acquire

(

)

Called by our friends, the TransportClient, and the DataLink. Since this TransportImpl can be attached to many TransportClient objects, and each TransportClient object could be "running" in a separate thread, we need to protect all of the "reservation" methods with a lock. The protocol is that a client of ours must "acquire" our reservation_lock_ before it can proceed to call any methods that affect the DataLink reservations. It should release the reservation_lock_ as soon as it is done.

add_pending_connection()

void OpenDDS::DCPS::TransportImpl::add_pending_connection ( const TransportClient_rch &  client, DataLink_rch  link  )

protected

Definition at line 93 of file TransportImpl.cpp.

References pending_connections_, and pending_connections_lock_.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::accept_datalink(), OpenDDS::DCPS::TcpTransport::accept_datalink(), OpenDDS::DCPS::ShmemTransport::connect_datalink(), OpenDDS::DCPS::RtpsUdpTransport::connect_datalink(), and OpenDDS::DCPS::TcpTransport::connect_datalink().

{
  GuardType guard(pending_connections_lock_);
  pending_connections_.insert( PendConnMap::value_type(client, link) );
}

append_transport_statistics()

virtual void OpenDDS::DCPS::TransportImpl::append_transport_statistics ( TransportStatisticsSequence &  )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 114 of file TransportImpl.h.

References name, and OPENDDS_STRING.

{}

client_stop()

virtual void OpenDDS::DCPS::TransportImpl::client_stop ( const GUID_t &  )

inlineprivatevirtual

Reimplemented in OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::RtpsUdpTransport, and OpenDDS::DCPS::MulticastTransport.

Definition at line 258 of file TransportImpl.h.

References connect().

Referenced by OpenDDS::DCPS::TransportClient::transport_stop().

{}

config()

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE OpenDDS::DCPS::TransportInst_rch OpenDDS::DCPS::TransportImpl::config

(

)

const

Expose the configuration information so others can see what we can do.

Definition at line 19 of file TransportImpl.inl.

References ACE_INLINE, and config_.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::config(), OpenDDS::DCPS::UdpTransport::config(), OpenDDS::DCPS::MulticastTransport::config(), OpenDDS::DCPS::ShmemTransport::config(), OpenDDS::DCPS::TcpTransport::config(), OpenDDS::DCPS::DataLink::DataLink(), and OpenDDS::DCPS::TransportSendStrategy::TransportSendStrategy().

{
  return config_.lock();
}

connect_datalink()

virtual AcceptConnectResult OpenDDS::DCPS::TransportImpl::connect_datalink ( const RemoteTransport &  remote, const ConnectionAttribs &  attribs, const TransportClient_rch &  client  )

protectedpure virtual

connect_datalink() is called from TransportClient to initiate an association as the active peer. A DataLink may be returned if one is already connected and ready to use, otherwise initiate a connection to the passive side and return from this method. Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implemented in OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by OpenDDS::DCPS::TransportClient::initiate_connect_i().

connection_info()

ACE_INLINE bool OpenDDS::DCPS::TransportImpl::connection_info	(	TransportLocator &	local_info,
		ConnectionInfoFlags	flags
	)		const

Called by our friend, the TransportClient. Accessor for the TransportInterfaceInfo. Accepts a reference to a TransportInterfaceInfo object that will be "populated" with this TransportImpl's connection information (ie, how another process would connect to this TransportImpl).

Definition at line 52 of file TransportImpl.inl.

References connection_info_i(), and OPENDDS_END_VERSIONED_NAMESPACE_DECL.

Referenced by OpenDDS::DCPS::TransportClient::populate_connection_info(), and reactor_owner().

{
  return connection_info_i(local_info, flags);
}

connection_info_i()

virtual bool OpenDDS::DCPS::TransportImpl::connection_info_i ( TransportLocator &  local_info, ConnectionInfoFlags  flags  ) const

pure virtual

Called by our connection_info() method to allow the concrete TransportImpl subclass to do the dirty work since it really is the one that knows how to populate the supplied TransportLocator object.

Implemented in OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by connection_info().

create_reactor_task()

void OpenDDS::DCPS::TransportImpl::create_reactor_task	(	bool	useAsyncSend = false,
		const OPENDDS_STRING &	name = ""
	)

Create the reactor task using sync send or optionally async send by parameter on supported Windows platforms only.

Definition at line 100 of file TransportImpl.cpp.

References OpenDDS::DCPS::RcHandle< T >::in(), is_shut_down_, name, OpenDDS::DCPS::ReactorTask::open_reactor_task(), reactor_task_, and TheServiceParticipant.

Referenced by OpenDDS::DCPS::UdpTransport::configure_i(), OpenDDS::DCPS::MulticastTransport::configure_i(), OpenDDS::DCPS::ShmemTransport::configure_i(), OpenDDS::DCPS::RtpsUdpTransport::configure_i(), and OpenDDS::DCPS::TcpTransport::configure_i().

{
  if (is_shut_down_ || this->reactor_task_.in()) {
    return;
  }

  this->reactor_task_= make_rch<ReactorTask>(useAsyncSend);

  if (reactor_task_->open_reactor_task(0,
                                       &TheServiceParticipant->get_thread_status_manager(),
                                       name)) {
    throw Transport::MiscProblem(); // error already logged by TRT::open()
  }
}

dump()

void OpenDDS::DCPS::TransportImpl::dump

(

void

)

Diagnostic aid.

Definition at line 143 of file TransportImpl.cpp.

References ACE_DEBUG, ACE_TEXT(), dump_to_str(), LM_DEBUG, and OPENDDS_STRING.

Referenced by OpenDDS::DCPS::TransportSendStrategy::direct_send().

{
  ACE_DEBUG((LM_DEBUG,
             ACE_TEXT("(%P|%t) TransportImpl::dump() -\n%C"),
             dump_to_str().c_str()));
}

dump_to_str()

OPENDDS_STRING OpenDDS::DCPS::TransportImpl::dump_to_str

(

)

Definition at line 151 of file TransportImpl.cpp.

References config_, OpenDDS::DCPS::TransportInst::dump_to_str(), OPENDDS_END_VERSIONED_NAMESPACE_DECL, and OPENDDS_STRING.

Referenced by dump(), and open().

{
  TransportInst_rch cfg = config_.lock();
  return cfg ? cfg->dump_to_str() : OPENDDS_STRING();
}

event_dispatcher()

EventDispatcher_rch OpenDDS::DCPS::TransportImpl::event_dispatcher ( )

inline

Definition at line 182 of file TransportImpl.h.

References open().

Referenced by OpenDDS::DCPS::TransportInst::event_dispatcher().

{ return event_dispatcher_; }

find_connect_i()

DataLink* OpenDDS::DCPS::TransportImpl::find_connect_i ( const GUID_t &  local_id, const AssociationData &  remote_association, const ConnectionAttribs &  attribs, bool  active, bool  connect  )

private

get_ice_endpoint()

virtual WeakRcHandle<ICE::Endpoint> OpenDDS::DCPS::TransportImpl::get_ice_endpoint ( )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 172 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::get_ice_endpoint(), OpenDDS::DCPS::TransportInst::get_ice_endpoint(), and OpenDDS::DCPS::RtpsUdpDataLink::get_ice_endpoint().

{ return WeakRcHandle<ICE::Endpoint>(); }

get_last_recv_locator()

virtual void OpenDDS::DCPS::TransportImpl::get_last_recv_locator ( const GUID_t &  , TransportLocator &    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 110 of file TransportImpl.h.

                                                          {}

is_shut_down()

bool OpenDDS::DCPS::TransportImpl::is_shut_down

(

)

const

Definition at line 51 of file TransportImpl.cpp.

References is_shut_down_.

Referenced by OpenDDS::DCPS::UdpTransport::accept_datalink(), OpenDDS::DCPS::RtpsUdpTransport::accept_datalink(), OpenDDS::DCPS::TcpTransport::accept_datalink(), OpenDDS::DCPS::TransportClient::associate(), OpenDDS::DCPS::UdpTransport::connect_datalink(), OpenDDS::DCPS::RtpsUdpTransport::connect_datalink(), OpenDDS::DCPS::TcpTransport::connect_datalink(), OpenDDS::DCPS::TcpTransport::fresh_link(), OpenDDS::DCPS::RtpsUdpTransport::get_last_recv_locator(), OpenDDS::DCPS::TcpTransport::passive_connection(), OpenDDS::DCPS::ShmemTransport::read_from_links(), OpenDDS::DCPS::RtpsUdpTransport::register_for_reader(), OpenDDS::DCPS::RtpsUdpTransport::register_for_writer(), OpenDDS::DCPS::TransportSendStrategy::send_delayed_notifications(), OpenDDS::DCPS::ShmemTransport::signal_semaphore(), and OpenDDS::DCPS::RtpsUdpTransport::update_locators().

{
  return is_shut_down_;
}

local_crypto_handle()

virtual void OpenDDS::DCPS::TransportImpl::local_crypto_handle ( DDS::Security::ParticipantCryptoHandle  )

inlineprivatevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 266 of file TransportImpl.h.

References OPENDDS_STRING, and release().

Referenced by OpenDDS::DCPS::TransportClient::enable_transport_using_config().

{}

open()

bool OpenDDS::DCPS::TransportImpl::open ( void  )

protected

Definition at line 75 of file TransportImpl.cpp.

References ACE_DEBUG, ACE_TEXT(), dump_to_str(), LM_DEBUG, monitor_, and OpenDDS::DCPS::Transport_debug_level.

Referenced by OpenDDS::DCPS::MulticastTransport::MulticastTransport(), OpenDDS::DCPS::RtpsUdpTransport::RtpsUdpTransport(), OpenDDS::DCPS::ShmemTransport::ShmemTransport(), OpenDDS::DCPS::TcpTransport::TcpTransport(), and OpenDDS::DCPS::UdpTransport::UdpTransport().

{
  // Success.
  if (this->monitor_) {
    this->monitor_->report();
  }

  if (Transport_debug_level > 0) {

    ACE_DEBUG((LM_DEBUG,
               ACE_TEXT("(%P|%t) TransportImpl::open()\n%C"),
               dump_to_str().c_str()));
  }

  return true;
}

OPENDDS_MULTIMAP()

typedef OpenDDS::DCPS::TransportImpl::OPENDDS_MULTIMAP ( TransportClient_wrch  , DataLink_rch    )

protected

reactor()

ACE_INLINE ACE_Reactor * OpenDDS::DCPS::TransportImpl::reactor

(

void

)

const

Definition at line 38 of file TransportImpl.inl.

References ACE_INLINE, OpenDDS::DCPS::ReactorTask::get_reactor(), OpenDDS::DCPS::RcHandle< T >::is_nil(), and reactor_task_.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::configure_i(), and timer().

{
  ReactorTask_rch task = this->reactor_task_;
  return task.is_nil() ? 0 : task->get_reactor();
}

reactor_owner()

ACE_INLINE ACE_thread_t OpenDDS::DCPS::TransportImpl::reactor_owner

(

)

const

Definition at line 45 of file TransportImpl.inl.

References ACE_INLINE, connection_info(), OpenDDS::DCPS::ReactorTask::get_reactor_owner(), ACE_OS::NULL_thread, and reactor_task_.

{
  return reactor_task_ ? reactor_task_->get_reactor_owner() : ACE_OS::NULL_thread;
}

reactor_task()

ACE_INLINE OpenDDS::DCPS::ReactorTask_rch OpenDDS::DCPS::TransportImpl::reactor_task

(

)

Accessor to obtain a "copy" of the reference to the reactor task. Caller is responsible for the "copy" of the reference that is returned.

Definition at line 25 of file TransportImpl.inl.

References ACE_INLINE, DBG_ENTRY_LVL, and reactor_task_.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::configure_i(), OpenDDS::DCPS::TcpTransport::configure_i(), OpenDDS::DCPS::TcpTransport::connect_tcp_datalink(), OpenDDS::DCPS::UdpTransport::make_datalink(), OpenDDS::DCPS::MulticastTransport::make_datalink(), OpenDDS::DCPS::RtpsUdpTransport::make_datalink(), OpenDDS::DCPS::DataLink::notify_reactor(), and OpenDDS::DCPS::TransportInst::reactor_task().

{
  DBG_ENTRY_LVL("TransportImpl","reactor_task",6);
  return this->reactor_task_;
}

register_for_reader()

virtual void OpenDDS::DCPS::TransportImpl::register_for_reader ( const GUID_t &  , const GUID_t &  , const GUID_t &  , const TransportLocatorSeq &  , OpenDDS::DCPS::DiscoveryListener *    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 87 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::register_for_reader().

                                                                    { }

register_for_writer()

virtual void OpenDDS::DCPS::TransportImpl::register_for_writer ( const GUID_t &  , const GUID_t &  , const GUID_t &  , const TransportLocatorSeq &  , DiscoveryListener *    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 97 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::register_for_writer().

                                                         { }

release()

int OpenDDS::DCPS::TransportImpl::release

(

)

release_datalink()

virtual void OpenDDS::DCPS::TransportImpl::release_datalink ( DataLink *  link )

privatepure virtual

Called by the TransportRegistry when this TransportImpl object is released while the TransportRegistry is handling a release() "event". The DataLink itself calls this method when it thinks it is no longer used for any associations. This occurs during a "remove associations" operation being performed by some TransportClient that uses this TransportImpl. The TransportClient is known to have acquired our reservation_lock_, so there won't be any reserve_datalink() calls being made from any other threads while we perform this release.

Implemented in OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by OpenDDS::DCPS::DataLink::release_reservations().

release_link_resources()

bool OpenDDS::DCPS::TransportImpl::release_link_resources

(

DataLink *

link

)

Callback from the DataLink to clean up any associated resources. This usually is done when the DataLink is lost. The call is made with no transport/DCPS locks held.

Definition at line 124 of file TransportImpl.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::EventDispatcher::dispatch(), event_dispatcher_, and OpenDDS::DCPS::rchandle_from().

Referenced by OpenDDS::DCPS::DataLink::release_resources().

{
  DBG_ENTRY_LVL("TransportImpl", "release_link_resources",6);

  DataLink_rch link_rch = rchandle_from(link);
  EventBase_rch do_clear = make_rch<DoClear>(link_rch);
  event_dispatcher_->dispatch(do_clear);
  return true;
}

remove()

int OpenDDS::DCPS::TransportImpl::remove

(

)

report()

void OpenDDS::DCPS::TransportImpl::report

(

)

Definition at line 135 of file TransportImpl.cpp.

References monitor_.

{
  if (this->monitor_) {
    this->monitor_->report();
  }
}

rtps_relay_address_change()

virtual void OpenDDS::DCPS::TransportImpl::rtps_relay_address_change ( )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 113 of file TransportImpl.h.

{}

rtps_relay_only_now()

virtual void OpenDDS::DCPS::TransportImpl::rtps_relay_only_now ( bool  )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 173 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportInst::rtps_relay_only_now().

{}

shutdown()

void OpenDDS::DCPS::TransportImpl::shutdown ( void  )

protected

Definition at line 57 of file TransportImpl.cpp.

References DBG_ENTRY_LVL, event_dispatcher_, OpenDDS::DCPS::RcHandle< T >::is_nil(), is_shut_down_, reactor_task_, OpenDDS::DCPS::EventDispatcher::shutdown(), shutdown_i(), and OpenDDS::DCPS::ReactorTask::stop().

Referenced by OpenDDS::DCPS::TransportInst::shutdown(), and OpenDDS::DCPS::TcpTransport::TcpTransport().

{
  DBG_ENTRY_LVL("TransportImpl", "shutdown", 6);

  is_shut_down_ = true;

  if (!this->reactor_task_.is_nil()) {
    this->reactor_task_->stop();
  }

  event_dispatcher_->shutdown(true);

  // Tell our subclass about the "shutdown event".
  this->shutdown_i();
}

shutdown_i()

virtual void OpenDDS::DCPS::TransportImpl::shutdown_i ( )

protectedpure virtual

Called during the shutdown() method in order to give the concrete TransportImpl subclass a chance to do something when the shutdown "event" occurs.

Implemented in OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by shutdown().

stop_accepting_or_connecting()

virtual void OpenDDS::DCPS::TransportImpl::stop_accepting_or_connecting ( const TransportClient_wrch &  client, const GUID_t &  remote_id, bool  disassociate, bool  association_failed  )

protectedpure virtual

stop_accepting_or_connecting() is called from TransportClient to terminate the accepting process begun by accept_datalink() or connect_datalink(). This allows the TransportImpl to clean up any resources associated with this pending connection. The TransportClient* passed in to accept or connect is not valid after this method is called.

Implemented in OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by OpenDDS::DCPS::TransportClient::disassociate(), OpenDDS::DCPS::TransportClient::stop_associating(), OpenDDS::DCPS::TransportClient::use_datalink_i(), and OpenDDS::DCPS::TransportClient::~TransportClient().

timer()

ACE_INLINE ACE_Reactor_Timer_Interface * OpenDDS::DCPS::TransportImpl::timer

(

void

)

const

Interface to the transport's reactor for scheduling timers.

Definition at line 32 of file TransportImpl.inl.

References ACE_INLINE, and reactor().

Referenced by OpenDDS::DCPS::DataLink::handle_exception(), and OpenDDS::DCPS::DataLink::transport_shutdown().

{
  return reactor();
}

transport_type()

virtual OPENDDS_STRING OpenDDS::DCPS::TransportImpl::transport_type ( ) const

pure virtual

Implemented in OpenDDS::DCPS::RtpsUdpTransport, OpenDDS::DCPS::TcpTransport, OpenDDS::DCPS::ShmemTransport, OpenDDS::DCPS::MulticastTransport, and OpenDDS::DCPS::UdpTransport.

Referenced by OpenDDS::DCPS::DataReaderImpl::add_link(), OpenDDS::DCPS::TransportClient::associate(), and OpenDDS::DCPS::TransportClient::PendingAssoc::initiate_connect().

tryacquire()

int OpenDDS::DCPS::TransportImpl::tryacquire

(

)

unbind_link()

void OpenDDS::DCPS::TransportImpl::unbind_link ( DataLink *  link )

virtual

Remove any pending_release mappings.

Reimplemented in OpenDDS::DCPS::TcpTransport.

Definition at line 117 of file TransportImpl.cpp.

References DBG_ENTRY_LVL.

Referenced by OpenDDS::DCPS::DataLink::handle_timeout().

{
  // may be overridden by subclass
  DBG_ENTRY_LVL("TransportImpl", "unbind_link",6);
}

unregister_for_reader()

virtual void OpenDDS::DCPS::TransportImpl::unregister_for_reader ( const GUID_t &  , const GUID_t &  , const GUID_t &    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 93 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::unregister_for_reader().

                                                      { }

unregister_for_writer()

virtual void OpenDDS::DCPS::TransportImpl::unregister_for_writer ( const GUID_t &  , const GUID_t &  , const GUID_t &    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 103 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::unregister_for_writer().

                                                      { }

update_locators()

virtual void OpenDDS::DCPS::TransportImpl::update_locators ( const GUID_t &  , const TransportLocatorSeq &    )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 107 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportClient::update_locators().

                                                             { }

use_ice_now()

virtual void OpenDDS::DCPS::TransportImpl::use_ice_now ( bool  )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 175 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportInst::use_ice_now().

{}

use_rtps_relay_now()

virtual void OpenDDS::DCPS::TransportImpl::use_rtps_relay_now ( bool  )

inlinevirtual

Reimplemented in OpenDDS::DCPS::RtpsUdpTransport.

Definition at line 174 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::TransportInst::use_rtps_relay_now().

{}

Friends And Related Function Documentation

DataLink

friend class DataLink

friend

Definition at line 244 of file TransportImpl.h.

TransportClient

friend class TransportClient

friend

Definition at line 243 of file TransportImpl.h.

TransportInst

friend class TransportInst

friend

We have a few friends in the transport framework so that they can access our private methods. We do this to avoid pollution of our public interface with internal framework methods.

Definition at line 242 of file TransportImpl.h.

Member Data Documentation

config_

WeakRcHandle<TransportInst> OpenDDS::DCPS::TransportImpl::config_

A reference to the TransportInst object that was supplied to us during our configure() method.

Definition at line 297 of file TransportImpl.h.

Referenced by config(), and dump_to_str().

event_dispatcher_

EventDispatcher_rch OpenDDS::DCPS::TransportImpl::event_dispatcher_

smart ptr to the associated DL cleanup task

Definition at line 316 of file TransportImpl.h.

Referenced by release_link_resources(), shutdown(), and ~TransportImpl().

is_shut_down_

AtomicBool OpenDDS::DCPS::TransportImpl::is_shut_down_

protected

Id of the last link established.

Definition at line 323 of file TransportImpl.h.

Referenced by create_reactor_task(), is_shut_down(), and shutdown().

lock_

LockType OpenDDS::DCPS::TransportImpl::lock_

mutable

Lock to protect the config_ and reactor_task_ data members.

Definition at line 293 of file TransportImpl.h.

monitor_

unique_ptr<Monitor> OpenDDS::DCPS::TransportImpl::monitor_

Monitor object for this entity.

Definition at line 319 of file TransportImpl.h.

Referenced by open(), report(), and TransportImpl().

pending_connections_

PendConnMap OpenDDS::DCPS::TransportImpl::pending_connections_

protected

Definition at line 234 of file TransportImpl.h.

Referenced by add_pending_connection(), OpenDDS::DCPS::TcpTransport::shutdown_i(), OpenDDS::DCPS::ShmemTransport::stop_accepting_or_connecting(), OpenDDS::DCPS::RtpsUdpTransport::stop_accepting_or_connecting(), and OpenDDS::DCPS::TcpTransport::stop_accepting_or_connecting().

pending_connections_lock_

LockType OpenDDS::DCPS::TransportImpl::pending_connections_lock_

mutableprotected

Lock to protect the pending_connections_ data member.

Definition at line 231 of file TransportImpl.h.

Referenced by add_pending_connection(), OpenDDS::DCPS::TcpTransport::shutdown_i(), OpenDDS::DCPS::ShmemTransport::stop_accepting_or_connecting(), OpenDDS::DCPS::RtpsUdpTransport::stop_accepting_or_connecting(), and OpenDDS::DCPS::TcpTransport::stop_accepting_or_connecting().

reactor_task_

ReactorTask_rch OpenDDS::DCPS::TransportImpl::reactor_task_

The reactor (task) object - may not even be used if the concrete subclass (of TransportImpl) doesn't require a reactor.

Definition at line 301 of file TransportImpl.h.

Referenced by OpenDDS::DCPS::RtpsUdpTransport::configure_i(), create_reactor_task(), OpenDDS::DCPS::RtpsUdpTransport::make_datalink(), reactor(), reactor_owner(), reactor_task(), shutdown(), OpenDDS::DCPS::RtpsUdpTransport::start_ice(), and OpenDDS::DCPS::RtpsUdpTransport::stop_ice().

---

The documentation for this class was generated from the following files:

• TransportImpl.h
• TransportImpl.cpp
• TransportImpl.inl
