OpenDDS::DCPS::TransportSendBuffer Class Reference

#include <TransportSendBuffer.h>

Inheritance diagram for OpenDDS::DCPS::TransportSendBuffer:

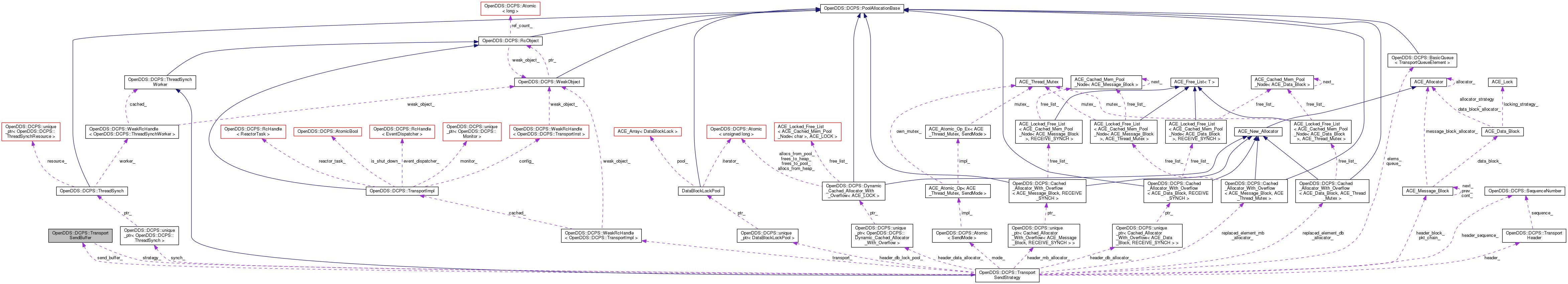

Collaboration diagram for OpenDDS::DCPS::TransportSendBuffer:

Public Types
typedef TransportSendStrategy::LockType	LockType

Public Member Functions
size_t	capacity () const
void	bind (TransportSendStrategy *strategy)
virtual void	retain_all (const GUID_t &pub_id)
virtual void	insert (SequenceNumber sequence, TransportSendStrategy::QueueType *queue, ACE_Message_Block *chain)=0
LockType &	strategy_lock ()

Protected Types
typedef TransportSendStrategy::QueueType	QueueType
typedef std::pair< QueueType *, ACE_Message_Block * >	BufferType

Protected Member Functions
	TransportSendBuffer (size_t capacity)
virtual	~TransportSendBuffer ()
void	resend_one (const BufferType &buffer)

Protected Attributes
TransportSendStrategy *	strategy_
const size_t	capacity_

Private Member Functions
	TransportSendBuffer (const TransportSendBuffer &)
TransportSendBuffer &	operator= (const TransportSendBuffer &)

Detailed Description

Abstract base class that forms the interface for TransportSendStrategy to store data for potential retransmission. Derived classes actually store the data and can utilize TransportSendBuffer's friendship in TransportSendStrategy to retransmit (see method "resend_one").

Definition at line 38 of file TransportSendBuffer.h.

Member Typedef Documentation

BufferType

typedef std::pair<QueueType*, ACE_Message_Block*> OpenDDS::DCPS::TransportSendBuffer::BufferType

protected

Definition at line 57 of file TransportSendBuffer.h.

LockType

typedef TransportSendStrategy::LockType OpenDDS::DCPS::TransportSendBuffer::LockType

Definition at line 48 of file TransportSendBuffer.h.

QueueType

typedef TransportSendStrategy::QueueType OpenDDS::DCPS::TransportSendBuffer::QueueType

protected

Definition at line 56 of file TransportSendBuffer.h.

Constructor & Destructor Documentation

TransportSendBuffer() [1/2]

OpenDDS::DCPS::TransportSendBuffer::TransportSendBuffer ( size_t  capacity )

inlineexplicitprotected

Definition at line 52 of file TransportSendBuffer.h.

    : strategy_(0), capacity_(capacity) {}

~TransportSendBuffer()

OpenDDS::DCPS::TransportSendBuffer::~TransportSendBuffer ( )

protectedvirtual

Definition at line 32 of file TransportSendBuffer.cpp.

{
}

TransportSendBuffer() [2/2]

OpenDDS::DCPS::TransportSendBuffer::TransportSendBuffer ( const TransportSendBuffer &  )

private

Member Function Documentation

bind()

ACE_INLINE void OpenDDS::DCPS::TransportSendBuffer::bind

(

TransportSendStrategy *

strategy

)

Definition at line 20 of file TransportSendBuffer.inl.

References ACE_INLINE, and strategy_.

Referenced by OpenDDS::DCPS::TransportSendStrategy::send_buffer().

{
  this->strategy_ = strategy;
}

capacity()

ACE_INLINE size_t OpenDDS::DCPS::TransportSendBuffer::capacity

(

void

)

const

Definition at line 14 of file TransportSendBuffer.inl.

References ACE_INLINE, and capacity_.

Referenced by OpenDDS::DCPS::RtpsUdpDataLink::associated(), and OpenDDS::DCPS::TransportSendStrategy::start().

{
  return this->capacity_;
}

insert()

virtual void OpenDDS::DCPS::TransportSendBuffer::insert ( SequenceNumber  sequence, TransportSendStrategy::QueueType *  queue, ACE_Message_Block *  chain  )

pure virtual

Implemented in OpenDDS::DCPS::RtpsUdpDataLink::MultiSendBuffer, and OpenDDS::DCPS::SingleSendBuffer.

Referenced by OpenDDS::DCPS::TransportSendStrategy::send_packet().

operator=()

TransportSendBuffer& OpenDDS::DCPS::TransportSendBuffer::operator= ( const TransportSendBuffer &  )

private

resend_one()

void OpenDDS::DCPS::TransportSendBuffer::resend_one ( const BufferType &  buffer )

protected

Definition at line 42 of file TransportSendBuffer.cpp.

References OpenDDS::DCPS::TransportSendStrategy::do_send_packet(), strategy_, and OpenDDS::DCPS::SingleSendBuffer::UNLIMITED.

Referenced by OpenDDS::DCPS::SingleSendBuffer::resend_fragments_i(), and OpenDDS::DCPS::SingleSendBuffer::resend_i().

{
  int bp = 0;
  strategy_->do_send_packet(buffer.second, bp);
}

retain_all()

void OpenDDS::DCPS::TransportSendBuffer::retain_all ( const GUID_t &  pub_id )

virtual

Reimplemented in OpenDDS::DCPS::SingleSendBuffer.

Definition at line 37 of file TransportSendBuffer.cpp.

Referenced by OpenDDS::DCPS::TransportSendStrategy::remove_all_msgs().

{
}

strategy_lock()

LockType& OpenDDS::DCPS::TransportSendBuffer::strategy_lock ( )

inline

Definition at line 49 of file TransportSendBuffer.h.

Referenced by OpenDDS::DCPS::SingleSendBuffer::resend().

{ return this->strategy_->lock_; }

Member Data Documentation

capacity_

const size_t OpenDDS::DCPS::TransportSendBuffer::capacity_

protected

Definition at line 62 of file TransportSendBuffer.h.

Referenced by capacity(), and OpenDDS::DCPS::SingleSendBuffer::check_capacity_i().

strategy_

TransportSendStrategy* OpenDDS::DCPS::TransportSendBuffer::strategy_

protected

Definition at line 61 of file TransportSendBuffer.h.

Referenced by bind(), and resend_one().

---

The documentation for this class was generated from the following files:

• TransportSendBuffer.h
• TransportSendBuffer.cpp
• TransportSendBuffer.inl
