#include <MulticastSendStrategy.h>

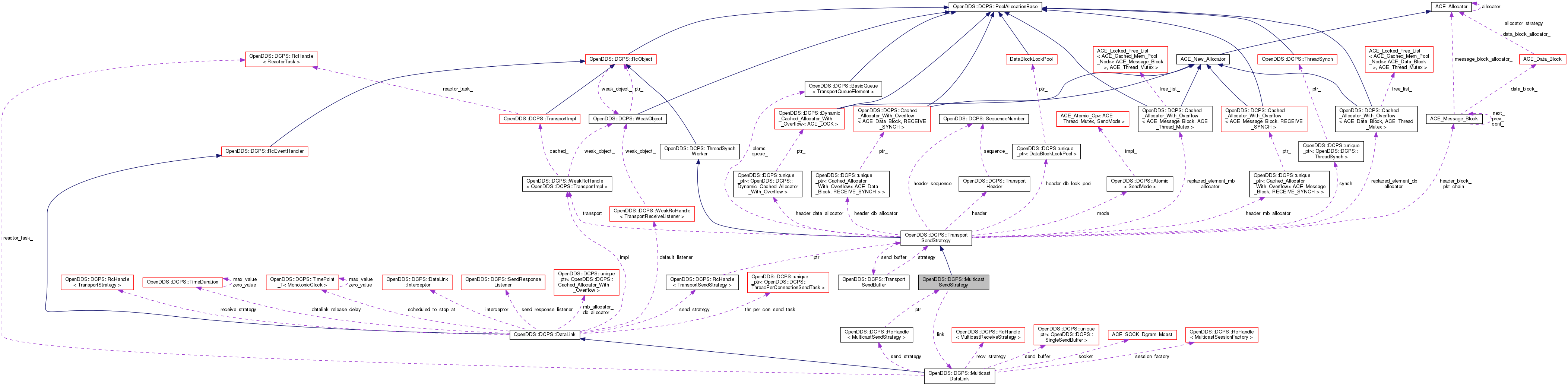

Inheritance diagram for OpenDDS::DCPS::MulticastSendStrategy:

[legend]

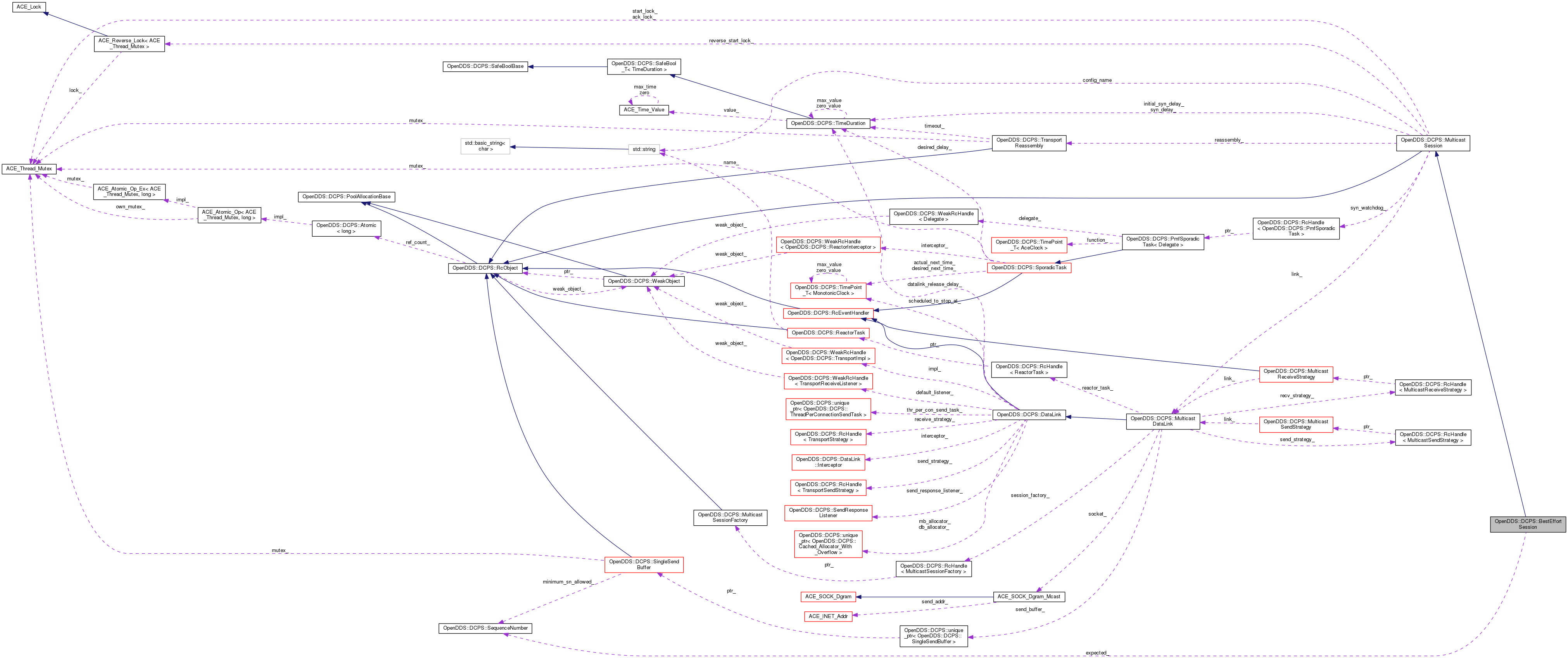

Collaboration diagram for OpenDDS::DCPS::MulticastSendStrategy:

[legend]

Public Member Functions
	MulticastSendStrategy (MulticastDataLink *link)

virtual void	stop_i ()
	Let the subclass stop. More...

Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
virtual	~TransportSendStrategy ()

void	send_buffer (TransportSendBuffer *send_buffer)
	Assigns an optional send buffer. More...

int	start ()

void	stop ()

void	send_start ()

void	send (TransportQueueElement *element, bool relink=true)

void	send_stop (GUID_t repoId)

RemoveResult	remove_sample (const DataSampleElement *sample)

void	remove_all_msgs (const GUID_t &pub_id)

virtual WorkOutcome	perform_work ()

virtual void	relink (bool do_suspend=true)

void	suspend_send ()

void	resume_send ()

void	terminate_send (bool graceful_disconnecting=false)
	Remove all samples in the backpressure queue and packet queue. More...

virtual void	terminate_send_if_suspended ()

virtual bool	start_i ()
	Let the subclass start. More...

void	link_released (bool flag)

bool	isDirectMode ()

virtual ACE_HANDLE	get_handle ()

void	deliver_ack_request (TransportQueueElement *element)

bool	fragmentation_helper (TransportQueueElement *original_element, TqeVector &elements_to_send)

void	clear (SendMode new_mode, SendMode old_mode=MODE_NOT_SET)

SendMode	mode () const
	Access the current sending mode. More...

Public Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
virtual	~ThreadSynchWorker ()

virtual void	schedule_output ()
	Indicate that queued data is available to be sent. More...

std::size_t	id () const
	DataLink reference value for diagnostics. More...

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Protected Member Functions
virtual void	prepare_header_i ()
	Specific implementation processing of prepared packet header. More...

virtual ssize_t	send_bytes_i (const iovec iov[], int n)

ssize_t	sync_send (const iovec iov[], int n)

ssize_t	async_send (const iovec iov[], int n, const ACE_INET_Addr &addr)

virtual size_t	max_message_size () const

Protected Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
	TransportSendStrategy (std::size_t id, const TransportImpl_rch &transport, ThreadSynchResource *synch_resource, Priority priority, const ThreadSynchStrategy_rch &thread_sync_strategy)

virtual ssize_t	send_bytes (const iovec iov[], int n, int &bp)

virtual ssize_t	non_blocking_send (const iovec iov[], int n, int &bp)

virtual void	prepare_packet_i ()
	Specific implementation processing of prepared packet. More...

TransportQueueElement *	current_packet_first_element () const

void	set_graceful_disconnecting (bool flag)
	Set graceful disconnecting flag. More...

virtual void	add_delayed_notification (TransportQueueElement *element)

bool	send_delayed_notifications (const TransportQueueElement::MatchCriteria *match=0)

virtual Security::SecurityConfig_rch	security_config () const

virtual RemoveResult	do_remove_sample (const GUID_t &pub_id, const TransportQueueElement::MatchCriteria &criteria, bool remove_all=false)
	Implement framework chain visitations to remove a sample. More...

ThreadSynch *	synch () const

void	set_header_source (ACE_INT64 source)

Protected Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
	ThreadSynchWorker (std::size_t id=0)

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Private Attributes
MulticastDataLink *	link_

Additional Inherited Members
Public Types inherited from OpenDDS::DCPS::TransportSendStrategy
enum	SendMode { MODE_NOT_SET, MODE_DIRECT, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED }

typedef BasicQueue< TransportQueueElement >	QueueType

Public Types inherited from OpenDDS::DCPS::ThreadSynchWorker
enum	WorkOutcome { WORK_OUTCOME_MORE_TO_DO, WORK_OUTCOME_NO_MORE_TO_DO, WORK_OUTCOME_CLOGGED_RESOURCE, WORK_OUTCOME_BROKEN_RESOURCE }

Static Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
static int	mb_to_iov (const ACE_Message_Block &msg, iovec *iov)

Static Public Attributes inherited from OpenDDS::DCPS::TransportSendStrategy
static const size_t	UDP_MAX_MESSAGE_SIZE = 65466

Detailed Description

Definition at line 23 of file MulticastSendStrategy.h.

Constructor & Destructor Documentation

◆ MulticastSendStrategy()

OpenDDS::DCPS::MulticastSendStrategy::MulticastSendStrategy ( MulticastDataLink * link )

Definition at line 18 of file MulticastSendStrategy.cpp.

References if(), and OpenDDS::DCPS::TransportSendStrategy::link_released().

   : TransportSendStrategy(0, link->impl(),
                           0,  // synch_resource
                           link->transport_priority(),
                           make_rch<NullSynchStrategy>()),
     link_(link)
 #if defined (ACE_HAS_WIN32_OVERLAPPED_IO) || defined (ACE_HAS_AIO_CALLS)
   , async_init_(false)
 #endif
 {
   // Multicast will send a SYN (TRANSPORT_CONTROL) before any reservations
   // are made on the DataLink, if the link is "release" it will be dropped.
   this->link_released(false);
 }

Member Function Documentation

◆ async_send()

ssize_t OpenDDS::DCPS::MulticastSendStrategy::async_send	(	const iovec	iov[],
		int	n,
		const ACE_INET_Addr &	addr
	)

protected

Definition at line 67 of file MulticastSendStrategy.cpp.

References ACE_Message_Block::cont(), ACE_IPC_SAP::get_handle(), OpenDDS::DCPS::MulticastDataLink::get_proactor(), link_, ACE_Message_Block::release(), OpenDDS::DCPS::MulticastDataLink::socket(), and ACE_Message_Block::wr_ptr().

Referenced by send_bytes_i().

 {
 #if defined (ACE_HAS_WIN32_OVERLAPPED_IO) || defined (ACE_HAS_AIO_CALLS)
   if (!async_init_) {
     if (-1 == async_writer_.open(*this, link_->socket().get_handle(), 0 /*completion_key*/,
                                  link_->get_proactor())) {
         return -1;
     }
     async_init_ = true;
   }

   ACE_Message_Block* mb = 0;
   size_t total_length = 0;

   for (int i = n - 1; i >= 0; --i) {
     ACE_Message_Block* next =
       new ACE_Message_Block(static_cast<const char*>(iov[i].iov_base),
                             iov[i].iov_len);
     next->wr_ptr(iov[i].iov_len);
     total_length += iov[i].iov_len;
     next->cont(mb);
     mb = next;
   }

   size_t bytes_sent = 0;
   ssize_t result = async_writer_.send(mb, bytes_sent, 0 /*flags*/, group_address);

   if (result < 0) {
     if (mb) mb->release();
     return result;
   }

   // framework needs to think we sent the entire datagram
   return total_length;
 #else
   ACE_UNUSED_ARG(iov);
   ACE_UNUSED_ARG(n);
   return -1;
 #endif
 }

◆ max_message_size()

virtual size_t OpenDDS::DCPS::MulticastSendStrategy::max_message_size ( void ) const

inlineprotectedvirtual

The maximum size of a message allowed by the this TransportImpl, or 0 if there is no such limit. This is expected to be a constant, for example UDP/IPv4 can send messages of up to 65466 bytes. The transport framework will use the returned value (if > 0) to fragment larger messages. This fragmentation and reassembly will be transparent to the user.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 42 of file MulticastSendStrategy.h.

   {
     return UDP_MAX_MESSAGE_SIZE;
   }

◆ prepare_header_i()

void OpenDDS::DCPS::MulticastSendStrategy::prepare_header_i ( )

protectedvirtual

Specific implementation processing of prepared packet header.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 34 of file MulticastSendStrategy.cpp.

References link_, OpenDDS::DCPS::MulticastDataLink::local_peer(), and OpenDDS::DCPS::TransportSendStrategy::set_header_source().

 {
   // Tag outgoing packets with our peer ID:
   set_header_source(link_->local_peer());
 }

◆ send_bytes_i()

ssize_t OpenDDS::DCPS::MulticastSendStrategy::send_bytes_i	(	const iovec	iov[],
		int	n
	)

protectedvirtual

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 41 of file MulticastSendStrategy.cpp.

References async_send(), OpenDDS::DCPS::MulticastDataLink::config(), link_, and sync_send().

 {
   MulticastInst_rch cfg = link_->config();
   return (cfg && cfg->async_send()) ? async_send(iov, n, cfg->group_address_) : sync_send(iov, n);
 }

◆ stop_i()

void OpenDDS::DCPS::MulticastSendStrategy::stop_i ( )

virtual

Let the subclass stop.

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 109 of file MulticastSendStrategy.cpp.

References ACE_ERROR, ACE_Asynch_Result::error(), LM_ERROR, ACE_Asynch_Write_Dgram::Result::message_block(), OPENDDS_END_VERSIONED_NAMESPACE_DECL, ACE_Message_Block::release(), and ACE_Asynch_Result::success().

 {
 #if defined (ACE_HAS_WIN32_OVERLAPPED_IO) || defined (ACE_HAS_AIO_CALLS)
   if (async_init_) {
     async_writer_.cancel();
   }
 #endif
 }

◆ sync_send()

ssize_t OpenDDS::DCPS::MulticastSendStrategy::sync_send	(	const iovec	iov[],
		int	n
	)

protected

Definition at line 48 of file MulticastSendStrategy.cpp.

References ENOBUFS, link_, ACE_SOCK_Dgram_Mcast::send(), socket(), and OpenDDS::DCPS::MulticastDataLink::socket().

Referenced by send_bytes_i().

 {
   ACE_SOCK_Dgram_Mcast& socket = this->link_->socket();

   const ssize_t result = socket.send(iov, n);

   if (result == -1 && errno == ENOBUFS) {
     // Make the framework think this was a successful send to avoid
     // putting the send strategy in suspended mode.  If reliability
     // is enabled, the data may be resent later in response to a NAK.
     ssize_t b = 0;
     for (int i = 0; i < n; ++i) b += iov[i].iov_len;
     return b;
   }

   return result;
 }

Member Data Documentation

◆ link_

MulticastDataLink* OpenDDS::DCPS::MulticastSendStrategy::link_

private

Definition at line 53 of file MulticastSendStrategy.h.

Referenced by async_send(), prepare_header_i(), send_bytes_i(), and sync_send().

The documentation for this class was generated from the following files:
