OpenDDS::DCPS::ShmemTransport Class Reference

#include <ShmemTransport.h>

Inheritance diagram for OpenDDS::DCPS::ShmemTransport:

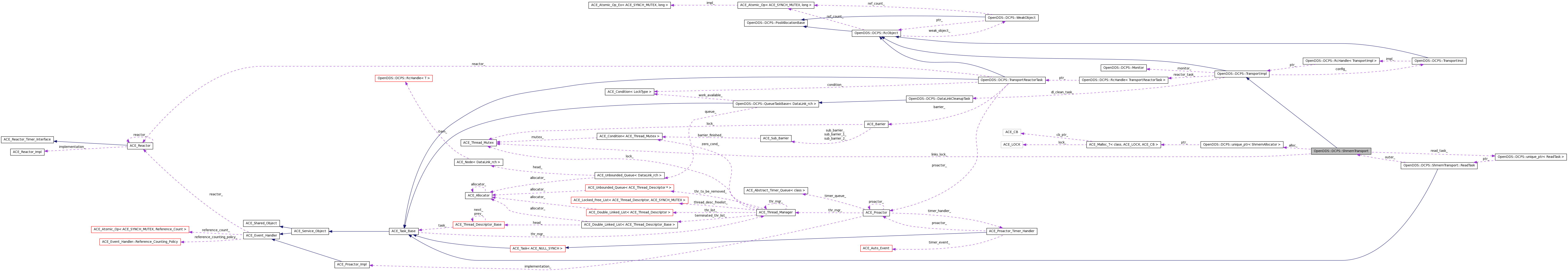

Collaboration diagram for OpenDDS::DCPS::ShmemTransport:

Classes
struct	ReadTask
Public Member Functions
	ShmemTransport (ShmemInst &inst)
ShmemAllocator *	alloc ()
std::string	address ()
void	signal_semaphore ()
ShmemInst &	config () const
Protected Member Functions
virtual AcceptConnectResult	connect_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)
virtual AcceptConnectResult	accept_datalink (const RemoteTransport &remote, const ConnectionAttribs &attribs, const TransportClient_rch &client)
virtual void	stop_accepting_or_connecting (const TransportClient_wrch &client, const RepoId &remote_id)
bool	configure_i (ShmemInst &config)
virtual void	shutdown_i ()
virtual bool	connection_info_i (TransportLocator &info) const
virtual void	release_datalink (DataLink *link)
virtual std::string	transport_type () const
Private Types
typedef ACE_Thread_Mutex	LockType
typedef ACE_Guard< LockType >	GuardType
Private Member Functions
DataLink_rch	add_datalink (const std::string &remote_address)
	Create a new link (using make_datalink) and add it to the map.
ShmemDataLink_rch	make_datalink (const std::string &remote_address)
	Create the DataLink object and start it.
std::pair< std::string, std::string >	blob_to_key (const TransportBLOB &blob)
void	read_from_links ()
typedef	OPENDDS_MAP (std::string, ShmemDataLink_rch) ShmemDataLinkMap
Private Attributes
LockType	links_lock_
ShmemDataLinkMap	links_
unique_ptr< ShmemAllocator >	alloc_
unique_ptr< ReadTask >	read_task_

Detailed Description

Definition at line 28 of file ShmemTransport.h.

Member Typedef Documentation

typedef ACE_Guard<LockType> OpenDDS::DCPS::ShmemTransport::GuardType [private]

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 74 of file ShmemTransport.h.

typedef ACE_Thread_Mutex OpenDDS::DCPS::ShmemTransport::LockType [private]

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 73 of file ShmemTransport.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::ShmemTransport::ShmemTransport ( ShmemInst & inst ) [explicit]

Definition at line 27 of file ShmemTransport.cpp.

References configure_i(), and OpenDDS::DCPS::TransportImpl::open().

00028   : TransportImpl(inst)
00029 {
00030   if (! (configure_i(inst) && open()) ) {
00031     throw Transport::UnableToCreate();
00032   }
00033 }

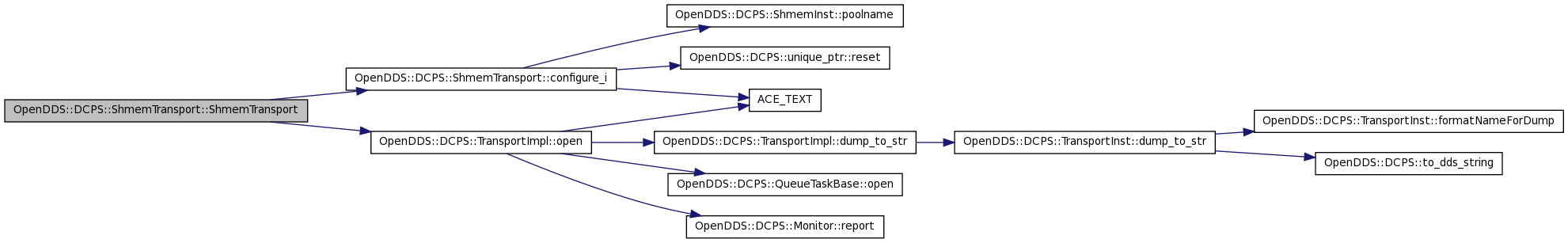

Here is the call graph for this function:

Member Function Documentation

TransportImpl::AcceptConnectResult OpenDDS::DCPS::ShmemTransport::accept_datalink	(	const RemoteTransport &	remote,
		const ConnectionAttribs &	attribs,
		const TransportClient_rch &	client
	)			`[protected, virtual]`

accept_datalink() is called from TransportClient to initiate an association as the passive peer. A DataLink may be returned if one is already connected and ready to use, otherwise passively wait for a physical connection from the active side (either in the form of a connection event or handshaking message). Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 89 of file ShmemTransport.cpp.

References connect_datalink().

00092 {
00093   return connect_datalink(remote, attribs, client);
00094 }

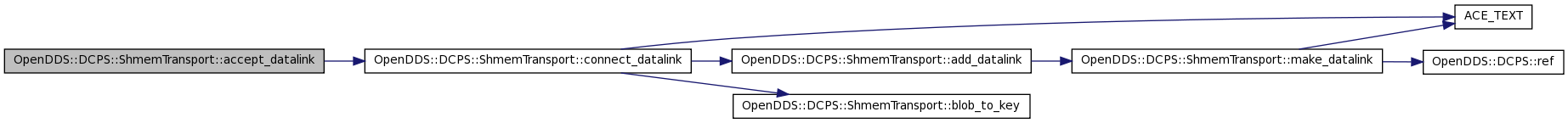

Here is the call graph for this function:

DataLink_rch OpenDDS::DCPS::ShmemTransport::add_datalink ( const std::string & remote_address ) [private]

Create a new link (using make_datalink) and add it to the map.

Definition at line 81 of file ShmemTransport.cpp.

References links_, and make_datalink().

Referenced by connect_datalink().

00082 {
00083   ShmemDataLink_rch link = make_datalink(remote_address);
00084   links_.insert(ShmemDataLinkMap::value_type(remote_address, link));
00085   return link;
00086 }

Here is the call graph for this function:

Here is the caller graph for this function:

std::string OpenDDS::DCPS::ShmemTransport::address ( void )

Definition at line 297 of file ShmemTransport.cpp.

References config(), and OpenDDS::DCPS::ShmemInst::poolname().

Referenced by OpenDDS::DCPS::ShmemDataLink::local_address().

00298 {
00299   return this->config().poolname();
00300 }

Here is the call graph for this function:

Here is the caller graph for this function:

ShmemAllocator* OpenDDS::DCPS::ShmemTransport::alloc ( void ) [inline]

Definition at line 33 of file ShmemTransport.h.

Referenced by OpenDDS::DCPS::ShmemDataLink::local_allocator().

00033 { return alloc_.get(); }

Here is the caller graph for this function:

std::pair< std::string, std::string > OpenDDS::DCPS::ShmemTransport::blob_to_key ( const TransportBLOB & blob ) [private]

Definition at line 217 of file ShmemTransport.cpp.

Referenced by connect_datalink().

00218 {
00219   const char* const c_str = reinterpret_cast<const char*>(blob.get_buffer());
00220   const std::string host(c_str);
00221   const size_t host_len = host.size();
00222
00223   const std::string pool(c_str + host_len + 1, blob.length() - host_len - 1);
00224   return make_pair(host, pool);
00225 }

Here is the caller graph for this function:

ShmemInst & OpenDDS::DCPS::ShmemTransport::config ( ) const

Expose the configuration information so others can see what we can do.

Reimplemented from OpenDDS::DCPS::TransportImpl.

Definition at line 36 of file ShmemTransport.cpp.

Referenced by address(), and connection_info_i().

00037 {
00038   return static_cast<ShmemInst&>(TransportImpl::config());
00039 }

Here is the caller graph for this function:

bool OpenDDS::DCPS::ShmemTransport::configure_i ( ShmemInst & config ) [protected]

Definition at line 103 of file ShmemTransport.cpp.

References ACE_TEXT(), ACE_TEXT_CHAR_TO_TCHAR, alloc_, ACE_sema_t::count_nonzero_, LM_ERROR, LM_INFO, ACE_sema_t::lock_, OpenDDS::DCPS::ShmemInst::pool_size_, OpenDDS::DCPS::ShmemInst::poolname(), read_task_, OpenDDS::DCPS::unique_ptr< T, Deleter >::reset(), ACE_sema_t::sema_, and VDBG_LVL.

Referenced by ShmemTransport().

00104 {
00105 #if (!defined ACE_WIN32 && defined ACE_LACKS_SYSV_SHMEM) || defined ACE_HAS_WINCE
00106   ACE_UNUSED_ARG(config);
00107   ACE_ERROR_RETURN((LM_ERROR,
00108                     ACE_TEXT("(%P|%t) ERROR: ")
00109                     ACE_TEXT("ShmemTransport::configure_i: ")
00110                     ACE_TEXT("no platform support for shared memory!\n")),
00111                    false);
00112 #else
00113
00114   ShmemAllocator::MEMORY_POOL_OPTIONS alloc_opts;
00115 # ifdef ACE_WIN32
00116   alloc_opts.max_size_ = config.pool_size_;
00117 # elif !defined ACE_LACKS_SYSV_SHMEM
00118   alloc_opts.base_addr_ = 0;
00119   alloc_opts.segment_size_ = config.pool_size_;
00120   alloc_opts.minimum_bytes_ = alloc_opts.segment_size_;
00121   alloc_opts.max_segments_ = 1;
00122 # endif
00123
00124   alloc_.reset(
00125     new ShmemAllocator(ACE_TEXT_CHAR_TO_TCHAR(config.poolname().c_str()),
00126                        0 /*lock_name is optional*/, &alloc_opts));
00127
00128   void* mem = alloc_->malloc(sizeof(ShmemSharedSemaphore));
00129   if (mem == 0) {
00130     ACE_ERROR_RETURN((LM_ERROR, ACE_TEXT("(%P|%t) ERROR: ")
00131                       ACE_TEXT("ShmemTrasport::configure_i: failed to allocate")
00132                       ACE_TEXT(" space for semaphore in shared memory!\n")),
00133                      false);
00134   }
00135
00136   ShmemSharedSemaphore* pSem = reinterpret_cast<ShmemSharedSemaphore*>(mem);
00137   alloc_->bind("Semaphore", pSem);
00138
00139   bool ok;
00140 # ifdef ACE_WIN32
00141   *pSem = ::CreateSemaphoreW(0 /*default security*/,
00142                              0 /*initial count*/,
00143                              0x7fffffff /*max count (ACE's default)*/,
00144                              0 /*no name*/);
00145   ACE_sema_t ace_sema = *pSem;
00146   ok = (*pSem != 0);
00147 # elif !defined ACE_LACKS_UNNAMED_SEMAPHORE
00148   ok = (0 == ::sem_init(pSem, 1 /*process shared*/, 0 /*initial count*/));
00149   ACE_sema_t ace_sema;
00150   std::memset(&ace_sema, 0, sizeof ace_sema);
00151   ace_sema.sema_ = pSem;
00152 #  if !defined (ACE_HAS_POSIX_SEM_TIMEOUT) && !defined (ACE_DISABLE_POSIX_SEM_TIMEOUT_EMULATION)
00153   ace_sema.lock_ = PTHREAD_MUTEX_INITIALIZER;
00154   ace_sema.count_nonzero_ = PTHREAD_COND_INITIALIZER;
00155 #  endif
00156 # else
00157   ok = false;
00158   ACE_sema_t ace_sema;
00159 # endif
00160   if (!ok) {
00161     ACE_ERROR_RETURN((LM_ERROR,
00162                       ACE_TEXT("(%P|%t) ERROR: ")
00163                       ACE_TEXT("ShmemTransport::configure_i: ")
00164                       ACE_TEXT("could not create semaphore\n")),
00165                      false);
00166   }
00167
00168   read_task_.reset(new ReadTask(this, ace_sema));
00169
00170   VDBG_LVL((LM_INFO, "(%P|%t) ShmemTransport %@ configured with address %C\n",
00171             this, config.poolname().c_str()), 1);
00172
00173   return true;
00174 #endif
00175 }

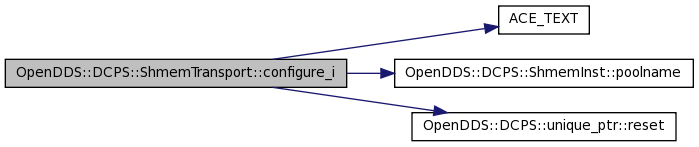

Here is the call graph for this function:

Here is the caller graph for this function:

TransportImpl::AcceptConnectResult OpenDDS::DCPS::ShmemTransport::connect_datalink	(	const RemoteTransport &	remote,
		const ConnectionAttribs &	attribs,
		const TransportClient_rch &	client
	)			`[protected, virtual]`

connect_datalink() is called from TransportClient to initiate an association as the active peer. A DataLink may be returned if one is already connected and ready to use, otherwise initiate a connection to the passive side and return from this method. Upon completion of the physical connection, the transport calls back to TransportClient::use_datalink().

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 59 of file ShmemTransport.cpp.

References ACE_TEXT(), add_datalink(), OpenDDS::DCPS::TransportImpl::RemoteTransport::blob_, blob_to_key(), links_, links_lock_, LM_DEBUG, and VDBG_LVL.

Referenced by accept_datalink().

00062 {
00063   const std::pair<std::string, std::string> key = blob_to_key(remote.blob_);
00064   if (key.first != this->config().hostname()) {
00065     return AcceptConnectResult();
00066   }
00067   GuardType guard(links_lock_);
00068   ShmemDataLinkMap::iterator iter = links_.find(key.second);
00069   if (iter != links_.end()) {
00070     ShmemDataLink_rch link = iter->second;
00071     VDBG_LVL((LM_DEBUG, ACE_TEXT("(%P|%t) ShmemTransport::connect_datalink ")
00072               ACE_TEXT("link found.\n")), 2);
00073     return AcceptConnectResult(link);
00074   }
00075     VDBG_LVL((LM_DEBUG, ACE_TEXT("(%P|%t) ShmemTransport::connect_datalink ")
00076               ACE_TEXT("new link.\n")), 2);
00077   return AcceptConnectResult(add_datalink(key.second));
00078 }

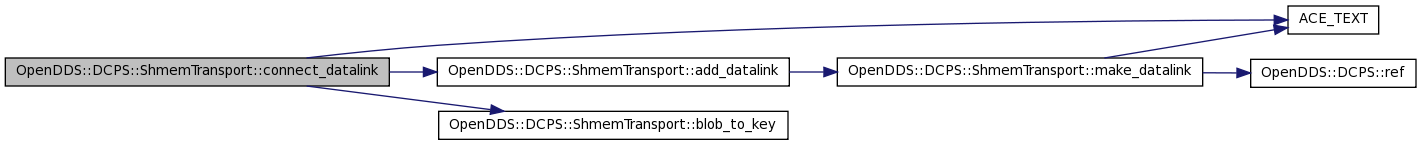

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::ShmemTransport::connection_info_i ( TransportLocator & local_info ) const [protected, virtual]

Called by our connection_info() method to allow the concrete TransportImpl subclass to do the dirty work since it really is the one that knows how to populate the supplied TransportLocator object.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 210 of file ShmemTransport.cpp.

References config(), and OpenDDS::DCPS::ShmemInst::populate_locator().

00211 {
00212   this->config().populate_locator(info);
00213   return true;
00214 }

Here is the call graph for this function:

ShmemDataLink_rch OpenDDS::DCPS::ShmemTransport::make_datalink ( const std::string & remote_address ) [private]

Create the DataLink object and start it.

Definition at line 42 of file ShmemTransport.cpp.

References ACE_TEXT(), LM_ERROR, and OpenDDS::DCPS::ref().

Referenced by add_datalink().

00043 {
00044
00045   ShmemDataLink_rch link = make_rch<ShmemDataLink>(ref(*this));
00046
00047   // Open logical connection:
00048   if (link->open(remote_address))
00049     return link;
00050
00051   ACE_ERROR((LM_ERROR,
00052                     ACE_TEXT("(%P|%t) ERROR: ")
00053                     ACE_TEXT("ShmemTransport::make_datalink: ")
00054                     ACE_TEXT("failed to open DataLink!\n")));
00055   return ShmemDataLink_rch();
00056 }

Here is the call graph for this function:

Here is the caller graph for this function:

typedef OpenDDS::DCPS::ShmemTransport::OPENDDS_MAP	(	std::string	,
		ShmemDataLink_rch
	)			`[private]`

Map of fully associated DataLinks for this transport. Protected by links_lock_.

void OpenDDS::DCPS::ShmemTransport::read_from_links ( ) [private]

Definition at line 273 of file ShmemTransport.cpp.

References links_, and links_lock_.

Referenced by OpenDDS::DCPS::ShmemTransport::ReadTask::svc().

00274 {
00275   std::vector<ShmemDataLink_rch> dl_copies;
00276   {
00277     GuardType guard(links_lock_);
00278     typedef ShmemDataLinkMap::iterator iter_t;
00279     for (iter_t it = links_.begin(); it != links_.end(); ++it) {
00280       dl_copies.push_back(it->second);
00281     }
00282   }
00283
00284   typedef std::vector<ShmemDataLink_rch>::iterator dl_iter_t;
00285   for (dl_iter_t dl_it = dl_copies.begin(); dl_it != dl_copies.end(); ++dl_it) {
00286     dl_it->in()->read();
00287   }
00288 }

Here is the caller graph for this function:

void OpenDDS::DCPS::ShmemTransport::release_datalink ( DataLink * link ) [protected, virtual]

Called by the TransportRegistry when this TransportImpl object is released while the TransportRegistry is handling a release() "event". The DataLink itself calls this method when it thinks it is no longer used for any associations. This occurs during a "remove associations" operation being performed by some TransportClient that uses this TransportImpl. The TransportClient is known to have acquired our reservation_lock_, so there won't be any reserve_datalink() calls being made from any other threads while we perform this release.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 228 of file ShmemTransport.cpp.

References links_, links_lock_, and OpenDDS::DCPS::DataLink::stop().

00229 {
00230   GuardType guard(links_lock_);
00231   for (ShmemDataLinkMap::iterator it(links_.begin());
00232        it != links_.end(); ++it) {
00233     // We are guaranteed to have exactly one matching DataLink
00234     // in the map; release any resources held and return.
00235     if (link == static_cast<DataLink*>(it->second.in())) {
00236       link->stop();
00237       links_.erase(it);
00238       return;
00239     }
00240   }
00241 }

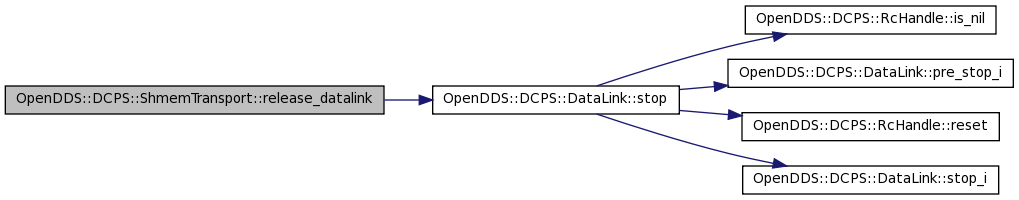

Here is the call graph for this function:

void OpenDDS::DCPS::ShmemTransport::shutdown_i ( ) [protected, virtual]

Called during the shutdown() method in order to give the concrete TransportImpl subclass a chance to do something when the shutdown "event" occurs.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 178 of file ShmemTransport.cpp.

References alloc_, links_, links_lock_, read_task_, OpenDDS::DCPS::unique_ptr< T, Deleter >::release(), and OpenDDS::DCPS::unique_ptr< T, Deleter >::reset().

00179 {
00180   // Shutdown reserved datalinks and release configuration:
00181   GuardType guard(links_lock_);
00182   if (read_task_) read_task_->stop();
00183
00184   for (ShmemDataLinkMap::iterator it(links_.begin());
00185        it != links_.end(); ++it) {
00186     it->second->transport_shutdown();
00187   }
00188   links_.clear();
00189
00190   read_task_.reset();
00191
00192   if (alloc_) {
00193     void* mem = 0;
00194     alloc_->find("Semaphore", mem);
00195     ShmemSharedSemaphore* pSem = reinterpret_cast<ShmemSharedSemaphore*>(mem);
00196 #ifdef ACE_WIN32
00197     ::CloseHandle(*pSem);
00198 #elif defined ACE_HAS_POSIX_SEM && !defined ACE_LACKS_UNNAMED_SEMAPHORE
00199     ::sem_destroy(pSem);
00200 #else
00201     ACE_UNUSED_ARG(pSem);
00202 #endif
00203
00204     alloc_->release(1 /*close*/);
00205     alloc_.reset();
00206   }
00207 }

Here is the call graph for this function:

void OpenDDS::DCPS::ShmemTransport::signal_semaphore ( )

Definition at line 291 of file ShmemTransport.cpp.

References read_task_, and ACE_OS::sema_post().

Referenced by OpenDDS::DCPS::ShmemDataLink::signal_semaphore().

00292 {
00293   ACE_OS::sema_post(&read_task_->semaphore_);
00294 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::ShmemTransport::stop_accepting_or_connecting	(	const TransportClient_wrch &	client,
		const RepoId &	remote_id
	)			`[protected, virtual]`

stop_accepting_or_connecting() is called from TransportClient to terminate the accepting process begun by accept_datalink() or connect_datalink(). This allows the TransportImpl to clean up any resources associated with this pending connection. The TransportClient* passed in to accept or connect is not valid after this method is called.

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 97 of file ShmemTransport.cpp.

00098 {
00099   // no-op: accept and connect either complete or fail immediately
00100 }

virtual std::string OpenDDS::DCPS::ShmemTransport::transport_type ( ) const [inline, protected, virtual]

Implements OpenDDS::DCPS::TransportImpl.

Definition at line 59 of file ShmemTransport.h.

00059 { return "shmem"; }

Member Data Documentation

unique_ptr<ShmemAllocator> OpenDDS::DCPS::ShmemTransport::alloc_ [private]

Definition at line 83 of file ShmemTransport.h.

Referenced by configure_i(), and shutdown_i().

ShmemDataLinkMap OpenDDS::DCPS::ShmemTransport::links_ [private]

Definition at line 81 of file ShmemTransport.h.

Referenced by add_datalink(), connect_datalink(), read_from_links(), release_datalink(), and shutdown_i().

LockType OpenDDS::DCPS::ShmemTransport::links_lock_ [private]

Definition at line 76 of file ShmemTransport.h.

Referenced by connect_datalink(), read_from_links(), release_datalink(), and shutdown_i().

unique_ptr<ReadTask> OpenDDS::DCPS::ShmemTransport::read_task_ [private]

Definition at line 95 of file ShmemTransport.h.

Referenced by configure_i(), shutdown_i(), and signal_semaphore().

The documentation for this class was generated from the following files:

OpenDDS::DCPS::ShmemTransport Class Reference

Classes

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
