OpenDDS::DCPS::ShmemDataLink Class Reference

#include <ShmemDataLink.h>

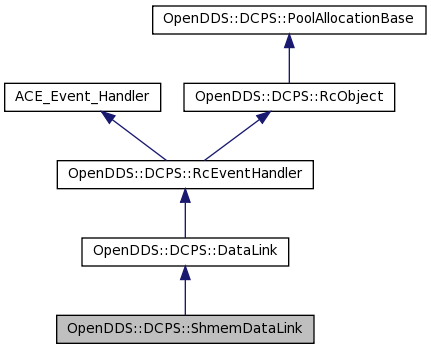

Inheritance diagram for OpenDDS::DCPS::ShmemDataLink:

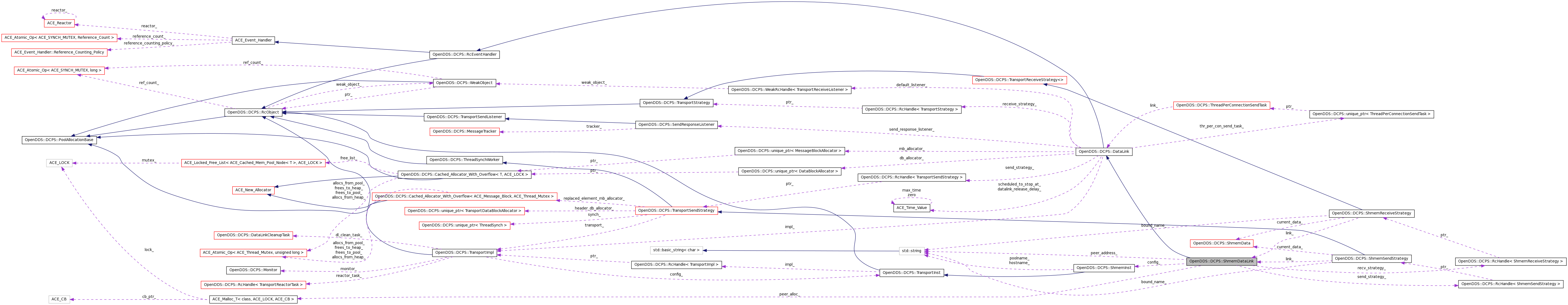

Collaboration diagram for OpenDDS::DCPS::ShmemDataLink:

Public Member Functions
	ShmemDataLink (ShmemTransport &transport)
bool	open (const std::string &peer_address)
void	control_received (ReceivedDataSample &sample)
std::string	local_address ()
std::string	peer_address ()
pid_t	peer_pid ()
ShmemAllocator *	local_allocator ()
ShmemAllocator *	peer_allocator ()
void	read ()
void	signal_semaphore ()
ShmemTransport &	impl () const
Protected Member Functions
virtual void	stop_i ()
Protected Attributes
ShmemInst *	config_
ShmemSendStrategy_rch	send_strategy_
	The transport send strategy object for this DataLink.
ShmemReceiveStrategy_rch	recv_strategy_
Private Attributes
std::string	peer_address_
ShmemAllocator *	peer_alloc_

Detailed Description

Definition at line 71 of file ShmemDataLink.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::ShmemDataLink::ShmemDataLink ( ShmemTransport & transport )

Definition at line 27 of file ShmemDataLink.cpp.

00028   : DataLink(transport,
00029              0,     // priority
00030              false, // is_loopback,
00031              false) // is_active
00032   , config_(0)
00033   , send_strategy_(make_rch<ShmemSendStrategy>(this))
00034   , recv_strategy_(make_rch<ShmemReceiveStrategy>(this))
00035   , peer_alloc_(0)
00036 {
00037 }

Member Function Documentation

void OpenDDS::DCPS::ShmemDataLink::control_received ( ReceivedDataSample & sample )

Definition at line 99 of file ShmemDataLink.cpp.

Referenced by OpenDDS::DCPS::ShmemReceiveStrategy::deliver_sample().

00100 {
00101 }

Here is the caller graph for this function:

ShmemTransport & OpenDDS::DCPS::ShmemDataLink::impl ( void ) const

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 114 of file ShmemDataLink.cpp.

Referenced by local_address(), local_allocator(), and signal_semaphore().

00115 {
00116   return static_cast<ShmemTransport&>(DataLink::impl());
00117 }

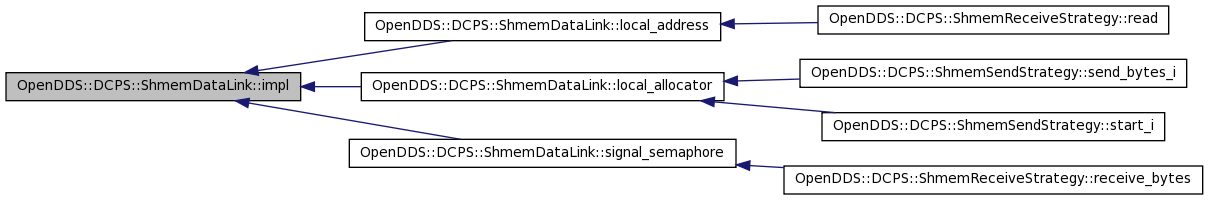

Here is the caller graph for this function:

std::string OpenDDS::DCPS::ShmemDataLink::local_address ( )

Definition at line 126 of file ShmemDataLink.cpp.

References OpenDDS::DCPS::ShmemTransport::address(), and impl().

Referenced by OpenDDS::DCPS::ShmemReceiveStrategy::read().

00127 {
00128   return impl().address();
00129 }

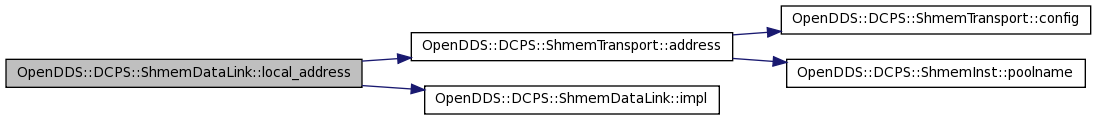

Here is the call graph for this function:

Here is the caller graph for this function:

ShmemAllocator * OpenDDS::DCPS::ShmemDataLink::local_allocator ( )

Definition at line 120 of file ShmemDataLink.cpp.

References OpenDDS::DCPS::ShmemTransport::alloc(), and impl().

Referenced by OpenDDS::DCPS::ShmemSendStrategy::send_bytes_i(), and OpenDDS::DCPS::ShmemSendStrategy::start_i().

00121 {
00122   return impl().alloc();
00123 }

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::ShmemDataLink::open ( const std::string & peer_address )

Definition at line 40 of file ShmemDataLink.cpp.

References ACE_TEXT(), ACE_TEXT_CHAR_TO_TCHAR, ACE_TEXT_CreateFileMapping, ACE_String_Base< ACE_CHAR_T >::c_str(), ACE_Malloc_T< class, ACE_LOCK, ACE_CB >::find(), LM_ERROR, LM_INFO, peer_address_, peer_alloc_, recv_strategy_, send_strategy_, OpenDDS::DCPS::DataLink::start(), stop_i(), and VDBG_LVL.

00041 {
00042   peer_address_ = peer_address;
00043   const ACE_TString name = ACE_TEXT_CHAR_TO_TCHAR(peer_address.c_str());
00044   ShmemAllocator::MEMORY_POOL_OPTIONS alloc_opts;
00045
00046 #ifdef ACE_WIN32
00047   const bool use_opts = true;
00048   const ACE_TString name_under = name + ACE_TEXT('_');
00049   // Find max size of peer's pool so enough local address space is reserved.
00050   HANDLE fm = ACE_TEXT_CreateFileMapping(INVALID_HANDLE_VALUE, 0, PAGE_READONLY,
00051     0, ACE_DEFAULT_PAGEFILE_POOL_CHUNK, name_under.c_str());
00052   void* view;
00053   if (fm == 0 || (view = MapViewOfFile(fm, FILE_MAP_READ, 0, 0, 0)) == 0) {
00054     stop_i();
00055     ACE_ERROR_RETURN((LM_ERROR,
00056                       ACE_TEXT("(%P|%t) ERROR: ShmemDataLink::open: ")
00057                       ACE_TEXT("peer's shared memory area not found (%C)\n"),
00058                       peer_address.c_str()),
00059                      false);
00060   }
00061   // location of max_size_ in ctrl block: a size_t after two void*s
00062   const size_t* pmax = (const size_t*)(((void**)view) + 2);
00063   alloc_opts.max_size_ = *pmax;
00064   UnmapViewOfFile(view);
00065   CloseHandle(fm);
00066 #else
00067   const bool use_opts = false;
00068 #endif
00069
00070   peer_alloc_ = new ShmemAllocator(name.c_str(), 0 /*lock_name*/,
00071                                    use_opts ? &alloc_opts : 0);
00072
00073   if (-1 == peer_alloc_->find("Semaphore")) {
00074     stop_i();
00075     ACE_ERROR_RETURN((LM_ERROR,
00076                       ACE_TEXT("(%P|%t) ERROR: ShmemDataLink::open: ")
00077                       ACE_TEXT("peer's shared memory area not found (%C)\n"),
00078                       peer_address.c_str()),
00079                      false);
00080   }
00081
00082   if (start(static_rchandle_cast<TransportSendStrategy>(send_strategy_),
00083             static_rchandle_cast<TransportStrategy>(recv_strategy_))
00084       != 0) {
00085     stop_i();
00086     ACE_ERROR_RETURN((LM_ERROR,
00087                       ACE_TEXT("(%P|%t) ERROR: ")
00088                       ACE_TEXT("ShmemDataLink::open: start failed!\n")),
00089                      false);
00090   }
00091
00092   VDBG_LVL((LM_INFO, "(%P|%t) ShmemDataLink link %@ open to peer %C\n",
00093             this, peer_address_.c_str()), 1);
00094
00095   return true;
00096 }

Here is the call graph for this function:

ACE_INLINE std::string OpenDDS::DCPS::ShmemDataLink::peer_address ( )

Definition at line 15 of file ShmemDataLink.inl.

References peer_address_.

Referenced by OpenDDS::DCPS::ShmemSendStrategy::start_i().

00016 {
00017   return this->peer_address_;
00018 }

Here is the caller graph for this function:

ShmemAllocator* OpenDDS::DCPS::ShmemDataLink::peer_allocator ( ) [inline]

Definition at line 86 of file ShmemDataLink.h.

Referenced by OpenDDS::DCPS::ShmemReceiveStrategy::read(), OpenDDS::DCPS::ShmemReceiveStrategy::receive_bytes(), and OpenDDS::DCPS::ShmemSendStrategy::start_i().

00086 { return peer_alloc_; }

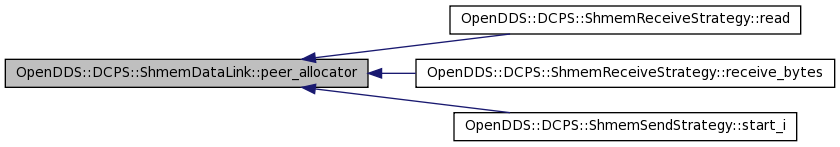

Here is the caller graph for this function:

pid_t OpenDDS::DCPS::ShmemDataLink::peer_pid ( )

Definition at line 138 of file ShmemDataLink.cpp.

References peer_address_.

Referenced by OpenDDS::DCPS::ShmemSendStrategy::start_i().

00139 {
00140   return std::atoi(peer_address_.c_str() + peer_address_.find('-') + 1);
00141 }

Here is the caller graph for this function:

void OpenDDS::DCPS::ShmemDataLink::read ( void ) [inline]

Definition at line 88 of file ShmemDataLink.h.

00088 { recv_strategy_->read(); }

void OpenDDS::DCPS::ShmemDataLink::signal_semaphore ( )

Definition at line 132 of file ShmemDataLink.cpp.

References impl(), and OpenDDS::DCPS::ShmemTransport::signal_semaphore().

Referenced by OpenDDS::DCPS::ShmemReceiveStrategy::receive_bytes().

00133 {
00134   return impl().signal_semaphore();
00135 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::ShmemDataLink::stop_i ( ) [protected, virtual]

This announces the "stop" event to our subclass. The "stop" event will occur when this DataLink is handling a release_reservations() call and determines that it has just released all of the remaining reservations on this DataLink. The "stop" event will also occur when the TransportImpl is being shutdown() - we call stop_i() from our transport_shutdown() method to handle this case.

Reimplemented from OpenDDS::DCPS::DataLink.

Definition at line 104 of file ShmemDataLink.cpp.

References peer_alloc_, and ACE_Malloc_T< class, ACE_LOCK, ACE_CB >::release().

Referenced by open().

00105 {
00106   if (peer_alloc_) {
00107     peer_alloc_->release(0 /*don't close*/);
00108   }
00109   delete peer_alloc_;
00110   peer_alloc_ = 0;
00111 }
