OpenDDS::DCPS::ScheduleOutputHandler Class Reference

event handler used to enable and disable output processing. More...

#include <ScheduleOutputHandler.h>

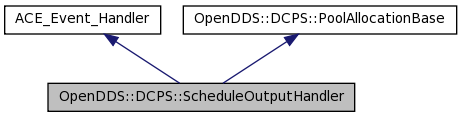

Inheritance diagram for OpenDDS::DCPS::ScheduleOutputHandler:

[legend]

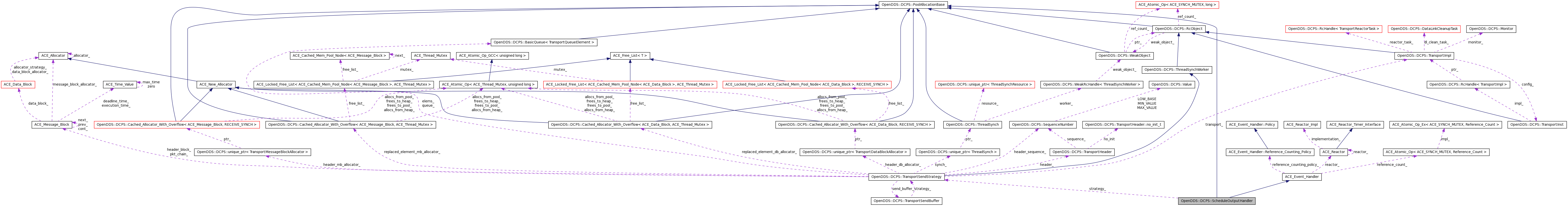

Collaboration diagram for OpenDDS::DCPS::ScheduleOutputHandler:

[legend]

List of all members.

Public Member Functions
	ScheduleOutputHandler (TransportSendStrategy strategy, ACE_Reactor reactor)
	Construct with the reactor and strategy.
void	schedule_output ()
	Update output processing in the reactor.
ACE_Event_Handler methods

virtual int	handle_exception (ACE_HANDLE)
	modify the reactor mask for the handle.
Private Types
enum	HandlerState { Disabled, Enabled }
	Cache the state that we have set the reactor into. More...
Private Attributes
TransportSendStrategy *	strategy_
	Strategy sending data to be scheduled (or not).
HandlerState	state_

Detailed Description

event handler used to enable and disable output processing.

This class implements a simple notification handler that is used to schedule or cancel output processing for queued data according to the current mode state of the TransportSendStrategy. If the send strategy is queueing data, then the reactor is enabled to process on output events. Otherwise the output processing callbacks are cancelled.

Definition at line 32 of file ScheduleOutputHandler.h.

Member Enumeration Documentation

enum OpenDDS::DCPS::ScheduleOutputHandler::HandlerState [private]

Cache the state that we have set the reactor into.

Enumerator:

Disabled
Enabled

Definition at line 53 of file ScheduleOutputHandler.h.

00053 { Disabled, Enabled };

Constructor & Destructor Documentation

ACE_INLINE OpenDDS::DCPS::ScheduleOutputHandler::ScheduleOutputHandler	(	TransportSendStrategy *	strategy,
		ACE_Reactor *	reactor
	)

Construct with the reactor and strategy.

Definition at line 12 of file ScheduleOutputHandler.inl.

References DBG_ENTRY_LVL, ACE_Event_Handler::Reference_Counting_Policy::ENABLED, ACE_Event_Handler::reference_counting_policy(), and ACE_Event_Handler::Reference_Counting_Policy::value().

00015   : ACE_Event_Handler( reactor),
00016     strategy_( strategy),
00017     state_( Disabled)
00018 {
00019   DBG_ENTRY_LVL("ScheduleOutputHandler","ScheduleOutputHandler",6);
00020
00021   reference_counting_policy().value(
00022     ACE_Event_Handler::Reference_Counting_Policy::ENABLED);
00023 }

Here is the call graph for this function:

Member Function Documentation

int OpenDDS::DCPS::ScheduleOutputHandler::handle_exception ( ACE_HANDLE ) [virtual]

modify the reactor mask for the handle.

Reimplemented from ACE_Event_Handler.

Definition at line 37 of file ScheduleOutputHandler.cpp.

References ACE_TEXT(), ACE_Reactor::cancel_wakeup(), DBG_ENTRY_LVL, OpenDDS::DCPS::DCPS_debug_level, Disabled, Enabled, OpenDDS::DCPS::TransportSendStrategy::get_handle(), OpenDDS::DCPS::ThreadSynchWorker::id(), LM_DEBUG, OpenDDS::DCPS::TransportSendStrategy::mode(), OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, OpenDDS::DCPS::TransportSendStrategy::MODE_QUEUE, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, ACE_Event_Handler::reactor(), ACE_Event_Handler::reference_count_, ACE_Reactor::schedule_wakeup(), state_, strategy_, and ACE_Event_Handler::WRITE_MASK.

00038 {
00039   DBG_ENTRY_LVL("ScheduleOutputHandler","handle_exception",6);
00040
00041   if( reference_count_ == 1) {
00042     // The containing TransportSendStrategy has unregistered, so we are
00043     // going away and can't determine the mode, don't process.
00044     return -1;
00045   }
00046
00047   // Check the *current* mode value as it might have been changed since
00048   // we were scheduled to run.
00049   //
00050   // We already hold the Reactor::token_ (since we are being called from
00051   // the reactor), and it will see the recursion and allow the call back
00052   // into the reactor.  We hold no other locks, and so avoid deadlock.
00053   TransportSendStrategy::SendMode mode = strategy_->mode();
00054   bool changed = false;
00055
00056   ACE_HANDLE handle = strategy_->get_handle();
00057   // We need to recheck the mode here since it might have already changed.
00058   if( mode == TransportSendStrategy::MODE_DIRECT) {
00059     // Don't cancel a canceled handle.
00060     if( state_ == Enabled) {
00061       reactor()->cancel_wakeup(handle, ACE_Event_Handler::WRITE_MASK);
00062       state_ = Disabled;
00063       changed = true;
00064     }
00065
00066   } else if( (mode == TransportSendStrategy::MODE_QUEUE)
00067           || (mode == TransportSendStrategy::MODE_SUSPEND)) {
00068
00069     // Don't schedule a scheduled handle.
00070     if( state_ == Disabled) {
00071       reactor()->schedule_wakeup(handle, ACE_Event_Handler::WRITE_MASK);
00072       state_ = Enabled;
00073       changed = true;
00074     }
00075   }
00076
00077   if (DCPS_debug_level > 4) {
00078     ACE_DEBUG((LM_DEBUG,
00079                ACE_TEXT("(%P|%t) ScheduleOutputHandler::handle_exception() - [%d] ")
00080                ACE_TEXT("%C data queueing for handle %d.\n"),
00081                strategy_->id(),
00082                (changed? ((state_ == Enabled)? "starting": "canceling"): "declining to change"),
00083                handle));
00084   }
00085
00086   // Terminate the upcall and remove from the reactor, if there (and
00087   // decrement_reference()).
00088   return -1;
00089 }

Here is the call graph for this function:

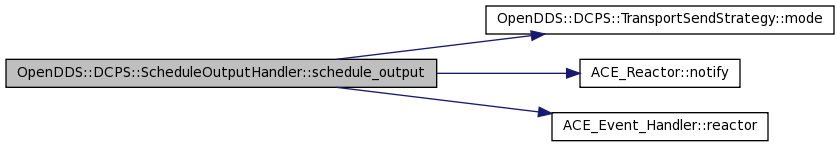

void OpenDDS::DCPS::ScheduleOutputHandler::schedule_output ( )

Update output processing in the reactor.

Filter the notifications here to reduce load.

Definition at line 18 of file ScheduleOutputHandler.cpp.

References DBG_ENTRY_LVL, Disabled, Enabled, OpenDDS::DCPS::TransportSendStrategy::mode(), OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, OpenDDS::DCPS::TransportSendStrategy::MODE_QUEUE, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, ACE_Reactor::notify(), ACE_Event_Handler::reactor(), ACE_Event_Handler::reference_count_, state_, and strategy_.

Referenced by OpenDDS::DCPS::ReactorSynch::work_available().

00019 {
00020   DBG_ENTRY_LVL("ScheduleOutputHandler","schedule_output",6);
00021
00022   // Only emit once into the notification queue since we check which
00023   // operation to perform when we process.
00024   if( reference_count_ == 1) {
00025     /// Filter the notifications here to reduce load.
00026     TransportSendStrategy::SendMode mode = strategy_->mode();
00027
00028     if( ( (state_ ==  Enabled) && (mode == TransportSendStrategy::MODE_DIRECT))
00029      || ( (state_ == Disabled) && ( (mode == TransportSendStrategy::MODE_QUEUE)
00030                                  || (mode == TransportSendStrategy::MODE_SUSPEND)))) {
00031       reactor()->notify(this);
00032     }
00033   }
00034 }
