OpenDDS::DCPS::ReliableSession Class Reference

#include <ReliableSession.h>

Inheritance diagram for OpenDDS::DCPS::ReliableSession:

[legend]

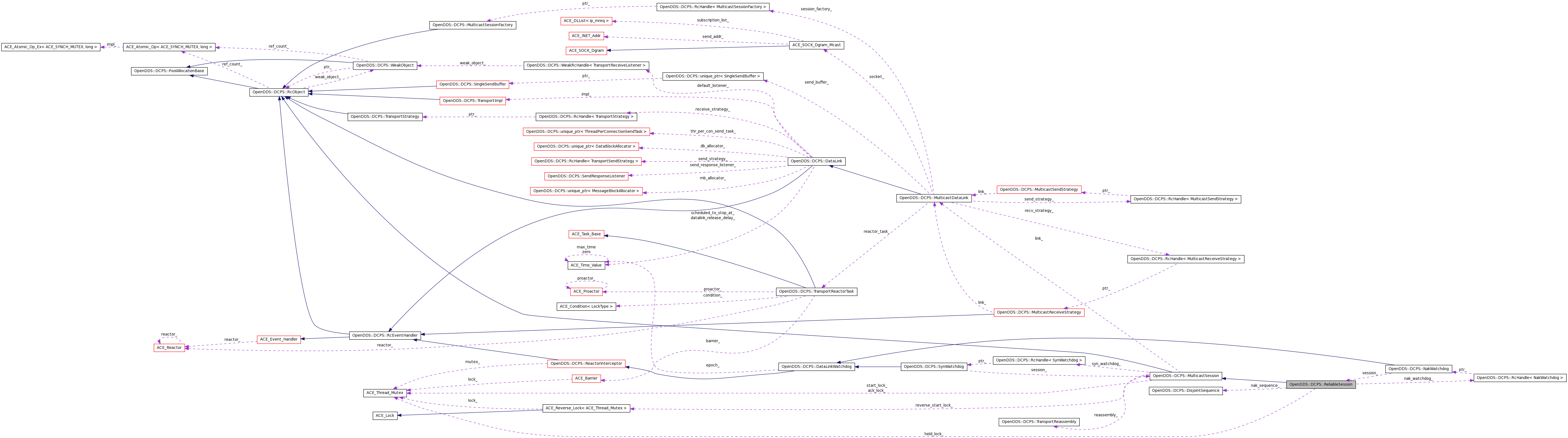

Collaboration diagram for OpenDDS::DCPS::ReliableSession:

[legend]

List of all members.

Public Member Functions
	ReliableSession (ACE_Reactor *reactor, ACE_thread_t owner, MulticastDataLink *link, MulticastPeer remote_peer)
	~ReliableSession ()
virtual bool	check_header (const TransportHeader &header)
virtual void	record_header_received (const TransportHeader &header)
virtual bool	ready_to_deliver (const TransportHeader &header, const ReceivedDataSample &data)
void	deliver_held_data ()
virtual void	release_remote (const RepoId &remote)
virtual bool	control_received (char submessage_id, const Message_Block_Ptr &control)
void	expire_naks ()
void	send_naks ()
void	nak_received (const Message_Block_Ptr &control)
void	send_naks (DisjointSequence &found)
void	nakack_received (const Message_Block_Ptr &control)
virtual void	send_nakack (SequenceNumber low)
virtual bool	start (bool active, bool acked)
virtual void	stop ()
virtual bool	is_reliable ()
virtual void	syn_hook (const SequenceNumber &seq)
Private Types
typedef SequenceNumber	TransportHeaderSN
Private Member Functions
typedef	OPENDDS_MAP (ACE_Time_Value, SequenceNumber) NakRequestMap
	OPENDDS_MULTIMAP (TransportHeaderSN, ReceivedDataSample) held_
typedef	OPENDDS_SET (SequenceRange) NakPeerSet
Private Attributes
RcHandle< NakWatchdog >	nak_watchdog_
DisjointSequence	nak_sequence_
NakRequestMap	nak_requests_
ACE_Thread_Mutex	held_lock_
NakPeerSet	nak_peers_

---

Detailed Description

Definition at line 47 of file ReliableSession.h.

---

Member Typedef Documentation

typedef SequenceNumber OpenDDS::DCPS::ReliableSession::TransportHeaderSN [private]

Definition at line 92 of file ReliableSession.h.

---

Constructor & Destructor Documentation

OpenDDS::DCPS::ReliableSession::ReliableSession	(	ACE_Reactor *	reactor,
		ACE_thread_t	owner,
		MulticastDataLink *	link,
		MulticastPeer	remote_peer
	)

Definition at line 61 of file ReliableSession.cpp.

  : MulticastSession(reactor, owner, link, remote_peer),
    nak_watchdog_(make_rch<NakWatchdog> (reactor, owner, this))
{
}

OpenDDS::DCPS::ReliableSession::~ReliableSession

(

)

Definition at line 70 of file ReliableSession.cpp.

References nak_watchdog_.

{
  nak_watchdog_->cancel();
  nak_watchdog_->wait();
}

---

Member Function Documentation

bool OpenDDS::DCPS::ReliableSession::check_header

(

const TransportHeader &

header

)

[virtual]

Implements OpenDDS::DCPS::MulticastSession.

Definition at line 83 of file ReliableSession.cpp.

References OpenDDS::DCPS::MulticastSession::active_, OpenDDS::DCPS::DisjointSequence::insert(), nak_sequence_, OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::TransportHeader::sequence_, and OpenDDS::DCPS::TransportHeader::source_.

{
  // Not from the remote peer for this session.
  if (this->remote_peer_ != header.source_) return false;

  // Active sessions don't need to track nak_sequence_
  if (this->active_) return true;

  // Update last seen sequence for remote peer; return false if we
  // have already seen this datagram to prevent duplicate delivery
  // Note: SN 2 is first SN recorded - fill in up to 2 when rcvd
  return this->nak_sequence_.insert(SequenceRange(
      header.sequence_ == 2 ? SequenceNumber() : header.sequence_,
      header.sequence_));
}

Here is the call graph for this function:

bool OpenDDS::DCPS::ReliableSession::control_received	(	char	submessage_id,
		const Message_Block_Ptr &	control
	)			[virtual]

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 217 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::control_received(), LM_WARNING, OpenDDS::DCPS::MULTICAST_NAK, OpenDDS::DCPS::MULTICAST_NAKACK, nak_received(), and nakack_received().

{
  if (MulticastSession::control_received(submessage_id, control)) {
    return true; // base class handled message
  }

  switch (submessage_id) {
  case MULTICAST_NAK:
    nak_received(control);
    break;

  case MULTICAST_NAKACK:
    nakack_received(control);
    break;

  default:
    ACE_ERROR((LM_WARNING,
               ACE_TEXT("(%P|%t) WARNING: ")
               ACE_TEXT("ReliableSession::control_received: ")
               ACE_TEXT("unknown TRANSPORT_CONTROL submessage: 0x%x!\n"),
               submessage_id));
    break;
  }
  return true;
}

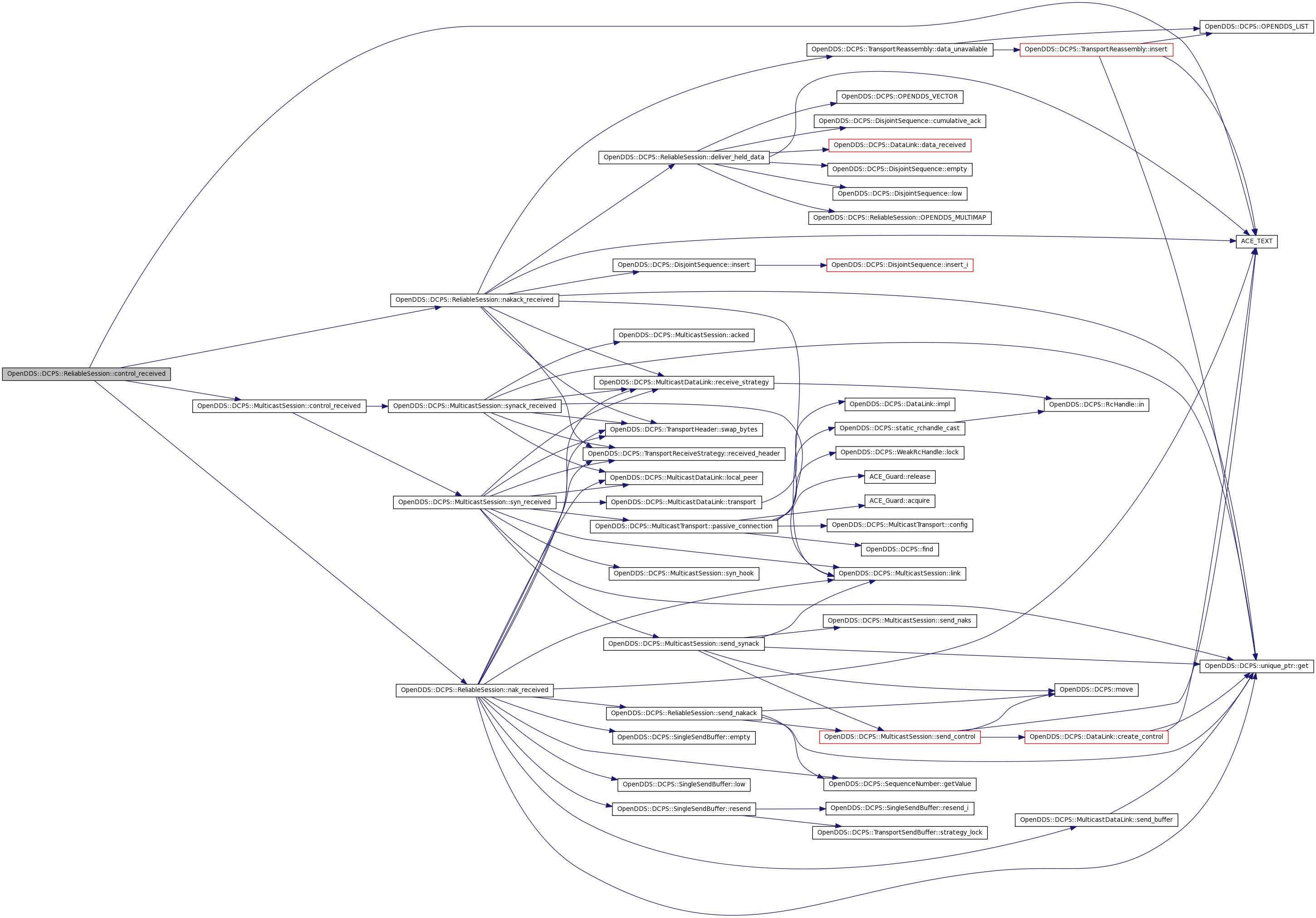

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::deliver_held_data

(

)

Definition at line 169 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DisjointSequence::cumulative_ack(), OpenDDS::DCPS::DataLink::data_received(), OpenDDS::DCPS::DisjointSequence::empty(), held_lock_, OpenDDS::DCPS::MulticastSession::link_, LM_DEBUG, OpenDDS::DCPS::DisjointSequence::low(), nak_sequence_, OPENDDS_MULTIMAP(), OPENDDS_STRING, OpenDDS::DCPS::OPENDDS_VECTOR(), and OpenDDS::DCPS::Transport_debug_level.

Referenced by expire_naks(), nakack_received(), ready_to_deliver(), and record_header_received().

{
  if (nak_sequence_.empty() || nak_sequence_.low() > 1) return;

  OPENDDS_VECTOR(ReceivedDataSample) to_deliver;
  const SequenceNumber ca = nak_sequence_.cumulative_ack();

  {
    ACE_GUARD(ACE_Thread_Mutex, guard, held_lock_);

    typedef OPENDDS_MULTIMAP(SequenceNumber, ReceivedDataSample)::iterator iter;
    const iter end = this->held_.upper_bound(ca);
    for (iter it = this->held_.begin(); it != end; /*increment in loop body*/) {
      if (Transport_debug_level > 5) {
        GuidConverter writer(it->second.header_.publication_id_);
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) MulticastDataLink::deliver_held_data -")
                             ACE_TEXT(" deliver tseq: %q dseq: %q from %C\n"),
                             it->first.getValue(),
                             it->second.header_.sequence_.getValue(),
                             OPENDDS_STRING(writer).c_str()));
      }
      to_deliver.push_back(it->second);
      this->held_.erase(it++);
    }
  }
  for (size_t i = 0; i < to_deliver.size(); ++i) {
    this->link_->data_received(to_deliver.at(i));
  }
}

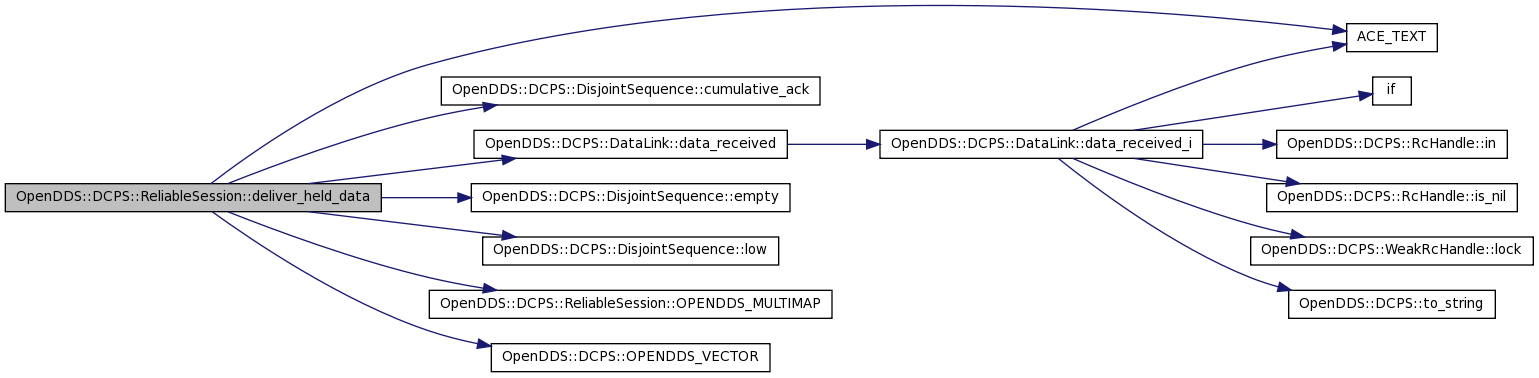

Here is the call graph for this function:

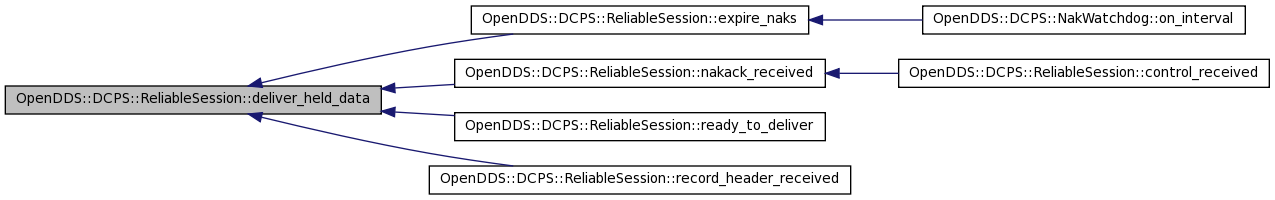

Here is the caller graph for this function:

void OpenDDS::DCPS::ReliableSession::expire_naks

(

)

Definition at line 258 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastDataLink::config(), OpenDDS::DCPS::TransportReassembly::data_unavailable(), deliver_held_data(), ACE_OS::gettimeofday(), OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::DCPS::MulticastSession::link_, LM_WARNING, OpenDDS::DCPS::DisjointSequence::low(), nak_requests_, nak_sequence_, OpenDDS::DCPS::MulticastInst::nak_timeout_, OpenDDS::DCPS::MulticastSession::reassembly_, and OpenDDS::DCPS::MulticastSession::remote_peer_.

Referenced by OpenDDS::DCPS::NakWatchdog::on_interval().

{
  if (this->nak_requests_.empty()) return; // nothing to expire

  ACE_Time_Value deadline(ACE_OS::gettimeofday());
  deadline -= this->link_->config().nak_timeout_;

  NakRequestMap::iterator first(this->nak_requests_.begin());
  NakRequestMap::iterator last(this->nak_requests_.upper_bound(deadline));

  if (first == last) return; // nothing to expire

  // Skip unrecoverable datagrams to
  // re-establish a baseline to detect future reception gaps.
  SequenceNumber lastSeq = (last == this->nak_requests_.end())
                         ? this->nak_requests_.rbegin()->second
                         : last->second;

  std::vector<SequenceRange> dropped;
  if (this->nak_sequence_.insert(SequenceRange(this->nak_sequence_.low(),
                                               lastSeq), dropped)) {

    for (size_t i = 0; i < dropped.size(); ++i) {
      this->reassembly_.data_unavailable(dropped[i]);
    }

    ACE_ERROR((LM_WARNING,
                ACE_TEXT("(%P|%t) WARNING: ")
                ACE_TEXT("ReliableSession::expire_naks: ")
                ACE_TEXT("timed out waiting on remote peer %#08x%08x to send missing samples: %q - %q!\n"),
                (unsigned int)(this->remote_peer_ >> 32),
                (unsigned int) this->remote_peer_,
                this->nak_sequence_.low().getValue(),
                lastSeq.getValue()));
  }

  // Clear expired repair requests:
  this->nak_requests_.erase(first, last);
  deliver_held_data();
}

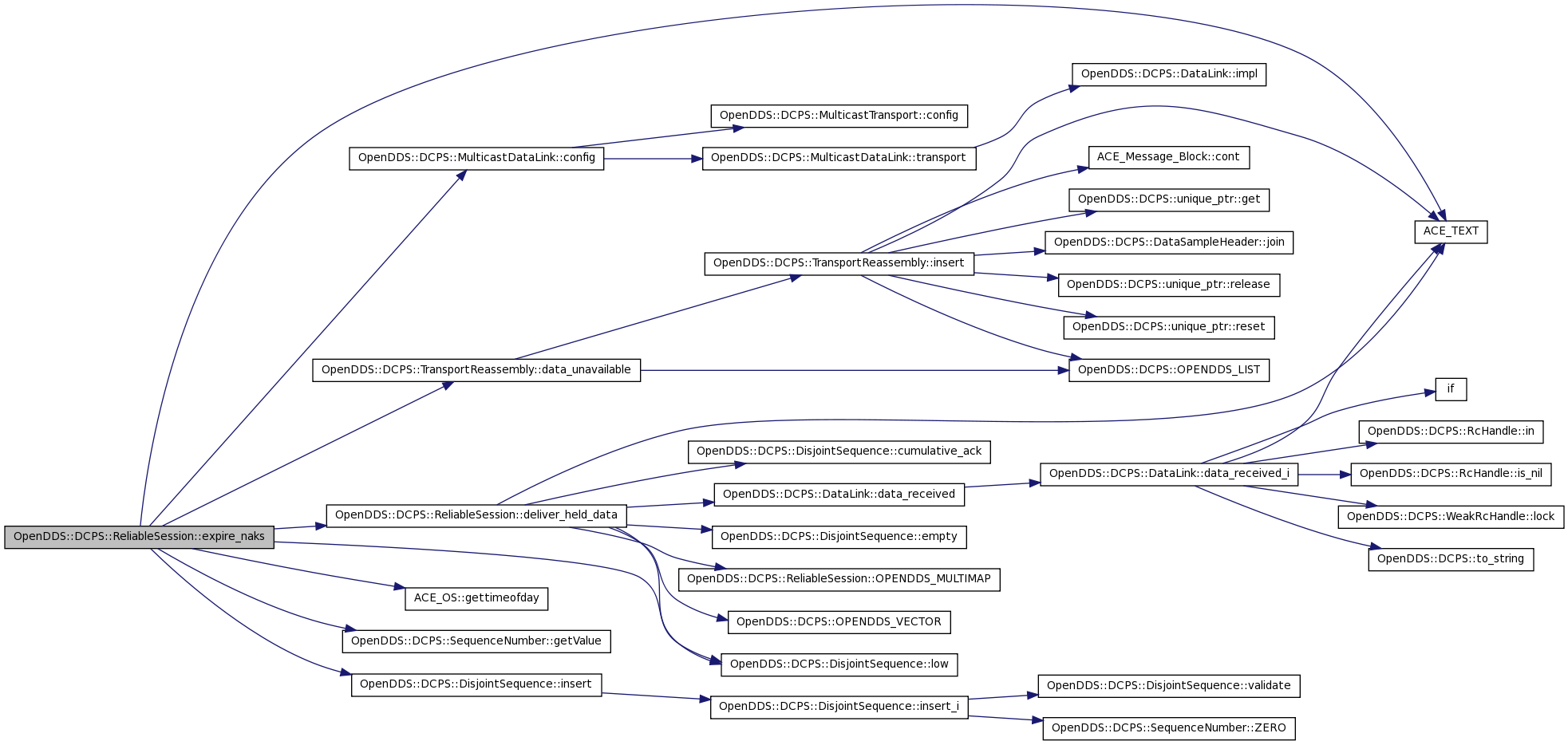

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::ReliableSession::is_reliable

(

)

[inline, virtual]

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 79 of file ReliableSession.h.

{ return true;}

void OpenDDS::DCPS::ReliableSession::nak_received

(

const Message_Block_Ptr &

control

)

Definition at line 517 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::active_, OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::SingleSendBuffer::empty(), OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), OpenDDS::DCPS::SequenceNumber::getValue(), header, OpenDDS::DCPS::MulticastSession::link(), OpenDDS::DCPS::MulticastSession::link_, LM_DEBUG, OpenDDS::DCPS::MulticastDataLink::local_peer(), OpenDDS::DCPS::SingleSendBuffer::low(), OpenDDS::DCPS::MulticastDataLink::receive_strategy(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header(), OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::SingleSendBuffer::resend(), OpenDDS::DCPS::MulticastDataLink::send_buffer(), send_nakack(), size, OpenDDS::DCPS::TransportHeader::source_, and OpenDDS::DCPS::TransportHeader::swap_bytes().

Referenced by control_received().

{
  if (!this->active_) return; // sub send naks, then doesn't receive them.

  const TransportHeader& header =
    this->link_->receive_strategy()->received_header();

  Serializer serializer(control.get(), header.swap_bytes());

  MulticastPeer local_peer;
  CORBA::ULong size = 0;
  serializer >> local_peer; // sent as remote_peer
  serializer >> size;

  std::vector<SequenceRange> ranges;

  for (CORBA::ULong i = 0; i < size; ++i) {
    SequenceRange range;
    serializer >> range.first;
    serializer >> range.second;
    ranges.push_back(range);
  }

  // Ignore sample if not destined for us:
  if ((local_peer != this->link_->local_peer())        // Not to us.
    || (this->remote_peer_ != header.source_)) return; // Not from the remote peer for this session.

  SingleSendBuffer* send_buffer = this->link_->send_buffer();
  // Broadcast a MULTICAST_NAKACK control sample before resending to suppress
  // repair requests for unrecoverable samples by providing a
  // new low-water mark for affected peers:
  if (!send_buffer->empty() && send_buffer->low() > ranges.begin()->first) {
      if (OpenDDS::DCPS::DCPS_debug_level > 0) {
        ACE_DEBUG ((LM_DEBUG,
                    ACE_TEXT ("(%P|%t) ReliableSession::nak_received")
                    ACE_TEXT (" local %#08x%08x remote %#08x%08x sending nakack for lowest available: %q\n"),
                    (unsigned int)(this->link()->local_peer() >> 32),
                    (unsigned int) this->link()->local_peer(),
                    (unsigned int)(this->remote_peer_ >> 32),
                    (unsigned int) this->remote_peer_,
                    send_buffer->low().getValue()));
      }
    send_nakack(send_buffer->low());
  }

  for (CORBA::ULong i = 0; i < size; ++i) {
    bool ret = send_buffer->resend(ranges[i]);
    if (OpenDDS::DCPS::DCPS_debug_level > 0) {
      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("(%P|%t) ReliableSession::nak_received")
                  ACE_TEXT (" local %#08x%08x remote %#08x%08x [%q - %q] resend result %C\n"),
                  (unsigned int)(this->link()->local_peer() >> 32),
                  (unsigned int) this->link()->local_peer(),
                  (unsigned int)(this->remote_peer_ >> 32),
                  (unsigned int) this->remote_peer_,
                  ranges[i].first.getValue(), ranges[i].second.getValue(),
                  ret ? "SUCCESS" : "FAILED"));
    }
  }
}

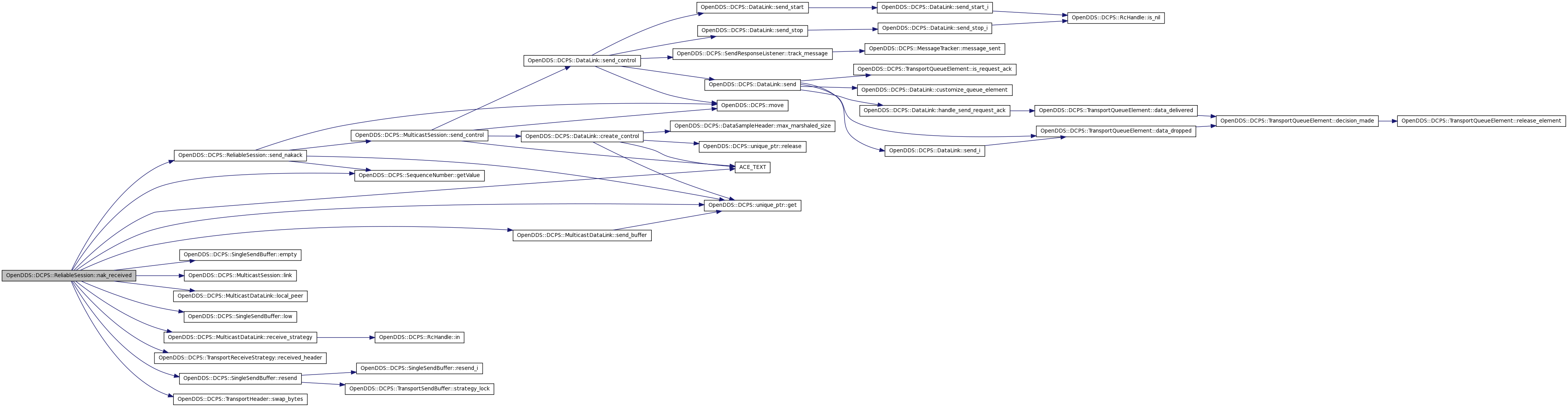

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::ReliableSession::nakack_received

(

const Message_Block_Ptr &

control

)

Definition at line 615 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::active_, OpenDDS::DCPS::TransportReassembly::data_unavailable(), OpenDDS::DCPS::DCPS_debug_level, deliver_held_data(), OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), header, OpenDDS::DCPS::DisjointSequence::insert(), OpenDDS::DCPS::MulticastSession::link(), OpenDDS::DCPS::MulticastSession::link_, LM_WARNING, nak_sequence_, OpenDDS::DCPS::MulticastSession::reassembly_, OpenDDS::DCPS::MulticastDataLink::receive_strategy(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header(), OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::TransportHeader::source_, and OpenDDS::DCPS::TransportHeader::swap_bytes().

Referenced by control_received().

{
  if (this->active_) return; // pub send nakack, doesn't receive them.

  const TransportHeader& header =
    this->link_->receive_strategy()->received_header();

  // Not from the remote peer for this session.
  if (this->remote_peer_ != header.source_) return;

  Serializer serializer(control.get(), header.swap_bytes());

  SequenceNumber low;
  serializer >> low;

  // MULTICAST_NAKACK control samples indicate data which cannot be
  // repaired by a remote peer; if any values were needed below
  // this value, then the sequence needs to be shifted:
  std::vector<SequenceRange> dropped;
  SequenceNumber range_low =  SequenceNumber();
  SequenceNumber range_high = low == SequenceNumber() ? SequenceNumber() : low.previous();

  if (range_low == SequenceNumber() && range_high == SequenceNumber()) {

    this->nak_sequence_.insert(range_low);

  } else if (this->nak_sequence_.insert(SequenceRange(range_low, range_high), dropped)) {

    for (size_t i = 0; i < dropped.size(); ++i) {
      this->reassembly_.data_unavailable(dropped[i]);
    }

    if (DCPS_debug_level > 0) {
      ACE_ERROR((LM_WARNING,
                ACE_TEXT("(%P|%t) WARNING: ReliableSession::nakack_received ")
                ACE_TEXT("local %#08x%08x remote %#08x%08x with low [%q] ")
                ACE_TEXT("- some ranges dropped.\n"),
                (unsigned int)(this->link()->local_peer() >> 32),
                (unsigned int) this->link()->local_peer(),
                (unsigned int)(this->remote_peer_ >> 32),
                (unsigned int) this->remote_peer_,
                low.getValue()));
    }
  }
  deliver_held_data();
}

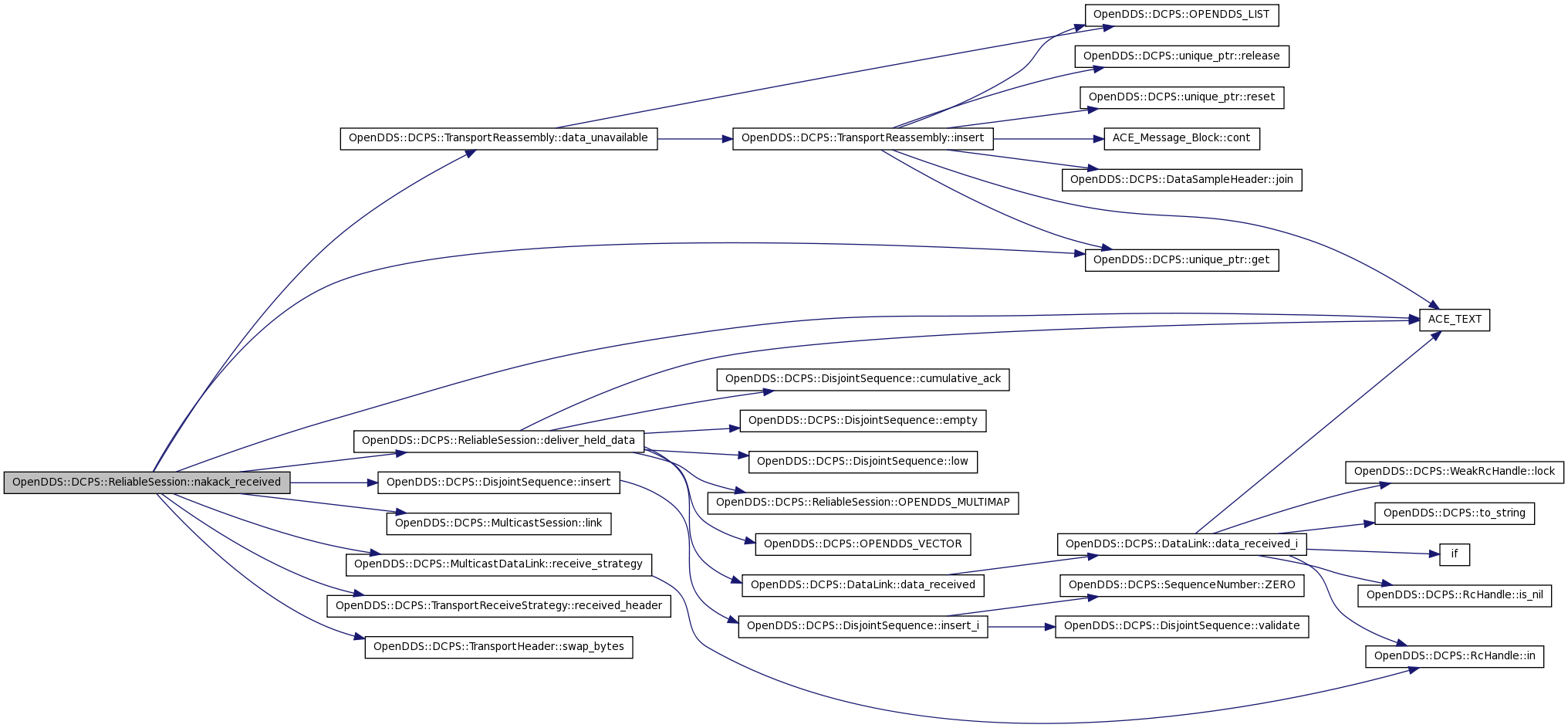

Here is the call graph for this function:

Here is the caller graph for this function:

typedef OpenDDS::DCPS::ReliableSession::OPENDDS_MAP	(	ACE_Time_Value	,
		SequenceNumber
	)			[private]

OpenDDS::DCPS::ReliableSession::OPENDDS_MULTIMAP	(	TransportHeaderSN	,
		ReceivedDataSample
	)			[private]

Referenced by deliver_held_data(), ready_to_deliver(), and release_remote().

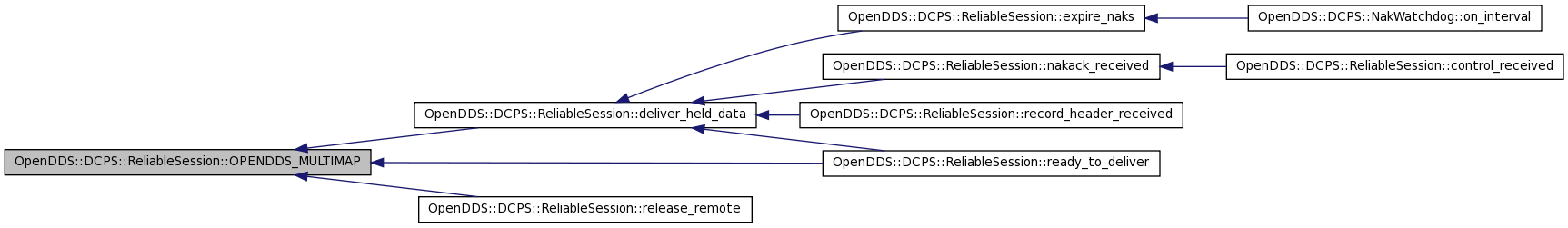

Here is the caller graph for this function:

typedef OpenDDS::DCPS::ReliableSession::OPENDDS_SET

(

SequenceRange

)

[private]

bool OpenDDS::DCPS::ReliableSession::ready_to_deliver	(	const TransportHeader &	header,
		const ReceivedDataSample &	data
	)			[virtual]

Implements OpenDDS::DCPS::MulticastSession.

Definition at line 115 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::acked(), OpenDDS::DCPS::DisjointSequence::cumulative_ack(), deliver_held_data(), OpenDDS::DCPS::DisjointSequence::disjoint(), OpenDDS::DCPS::DisjointSequence::empty(), OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::ReceivedDataSample::header_, held_lock_, LM_DEBUG, OpenDDS::DCPS::DisjointSequence::low(), nak_sequence_, OPENDDS_MULTIMAP(), OPENDDS_STRING, OpenDDS::DCPS::DataSampleHeader::publication_id_, OpenDDS::DCPS::DataSampleHeader::sequence_, OpenDDS::DCPS::TransportHeader::sequence_, and OpenDDS::DCPS::Transport_debug_level.

{
  if (!acked()
      || nak_sequence_.disjoint()
      || (!nak_sequence_.empty() && nak_sequence_.cumulative_ack() != header.sequence_)
      || (!nak_sequence_.empty() && nak_sequence_.low() > 1)
      || (nak_sequence_.empty() && header.sequence_ > 1)) {

    if (Transport_debug_level > 5) {
      GuidConverter writer(data.header_.publication_id_);
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::ready_to_deliver -")
                           ACE_TEXT(" tseq: %q data seq: %q from %C being WITHHELD because can't receive yet\n"),
                           header.sequence_.getValue(),
                           data.header_.sequence_.getValue(),
                           OPENDDS_STRING(writer).c_str()));
    }
    {
      ACE_GUARD_RETURN(ACE_Thread_Mutex, guard, held_lock_, false);

      held_.insert(std::pair<const SequenceNumber, ReceivedDataSample>(header.sequence_, data));

      if (Transport_debug_level > 5) {
        OPENDDS_MULTIMAP(SequenceNumber, ReceivedDataSample)::iterator it = held_.begin();
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::ready_to_deliver -")
                             ACE_TEXT(" held_ data currently contains: %d samples\n"),
                             held_.size()));
        while (it != held_.end()) {
          GuidConverter writer(it->second.header_.publication_id_);
          ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::ready_to_deliver -")
                               ACE_TEXT(" held_ data currently contains: tseq: %q dseq: %q from %C HELD\n"),
                               it->first.getValue(),
                               it->second.header_.sequence_.getValue(),
                               OPENDDS_STRING(writer).c_str()));
          ++it;
        }
      }
    }
    deliver_held_data();
    return false;
  } else {
    if (Transport_debug_level > 5) {
      GuidConverter writer(data.header_.publication_id_);
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::ready_to_deliver -")
                           ACE_TEXT(" tseq: %q data seq: %q from %C OK to deliver\n"),
                           header.sequence_.getValue(),
                           data.header_.sequence_.getValue(),
                           OPENDDS_STRING(writer).c_str()));
    }
    return true;
  }
}

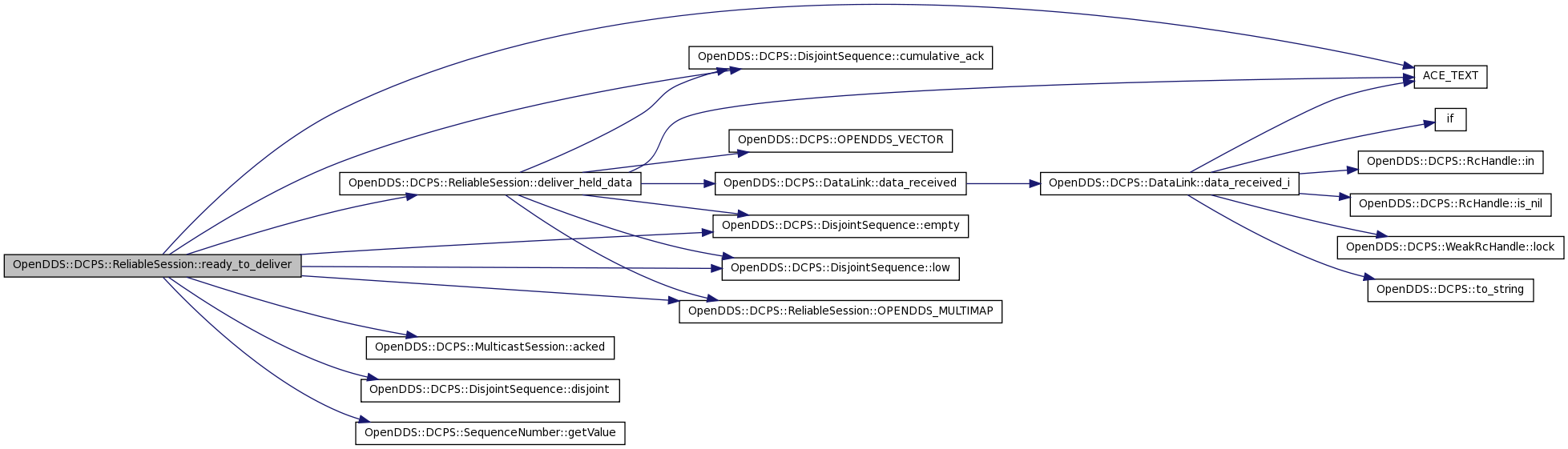

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::record_header_received

(

const TransportHeader &

header

)

[virtual]

Implements OpenDDS::DCPS::MulticastSession.

Definition at line 100 of file ReliableSession.cpp.

References OpenDDS::DCPS::MulticastSession::active_, deliver_held_data(), OpenDDS::DCPS::DisjointSequence::insert(), nak_sequence_, OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::TransportHeader::sequence_, and OpenDDS::DCPS::TransportHeader::source_.

{
  // Not from the remote peer for this session.
  if (this->remote_peer_ != header.source_) return;

  // Active sessions don't need to track nak_sequence_
  if (this->active_) return;

  // Update nak sequence for seen sequence from remote peer
  this->nak_sequence_.insert(header.sequence_);
  deliver_held_data();
}

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::release_remote

(

const RepoId &

remote

)

[virtual]

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 200 of file ReliableSession.cpp.

References held_lock_, and OPENDDS_MULTIMAP().

{
  ACE_GUARD(ACE_Thread_Mutex, guard, held_lock_);
  if (!held_.empty()) {
    OPENDDS_MULTIMAP(TransportHeaderSN, ReceivedDataSample)::iterator it = held_.begin();
    while (it != held_.end()) {
      if (it->second.header_.publication_id_ == remote) {
        held_.erase(it++);
      } else {
        it++;
      }
    }
  }
}

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::send_nakack

(

SequenceNumber

low

)

[virtual]

Definition at line 663 of file ReliableSession.cpp.

References OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), OpenDDS::DCPS::SequenceNumber::getValue(), len, OpenDDS::DCPS::move(), OpenDDS::DCPS::MULTICAST_NAKACK, and OpenDDS::DCPS::MulticastSession::send_control().

Referenced by nak_received().

{
  size_t len = sizeof(low.getValue());

  Message_Block_Ptr data(new ACE_Message_Block(len));

  Serializer serializer(data.get());

  serializer << low;
  // Broadcast control sample to all peers:
  send_control(MULTICAST_NAKACK, move(data));
}

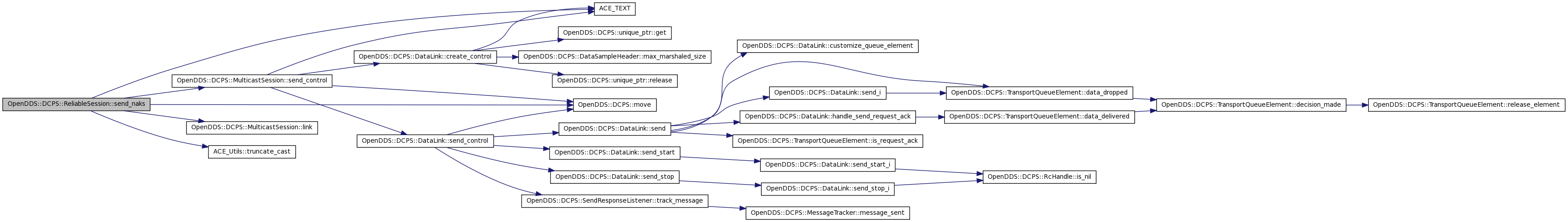

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::ReliableSession::send_naks

(

DisjointSequence &

found

)

Definition at line 579 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DCPS_debug_level, len, OpenDDS::DCPS::MulticastSession::link(), LM_DEBUG, OpenDDS::DCPS::move(), OpenDDS::DCPS::MULTICAST_NAK, OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::MulticastSession::send_control(), size, and ACE_Utils::truncate_cast().

{
  const std::vector<SequenceRange> ranges(received.missing_sequence_ranges());

  CORBA::ULong size = ACE_Utils::truncate_cast<CORBA::ULong>(ranges.size());

  size_t len = sizeof(this->remote_peer_)
             + sizeof(size)
             + size * 2 * sizeof(SequenceNumber);

  Message_Block_Ptr data(new ACE_Message_Block(len));

  Serializer serializer(data.get());

  serializer << this->remote_peer_;
  serializer << size;
  for (std::vector<SequenceRange>::const_iterator iter = ranges.begin();
       iter != ranges.end(); ++iter) {
    serializer << iter->first;
    serializer << iter->second;
    if (OpenDDS::DCPS::DCPS_debug_level > 0) {
      ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("(%P|%t) ReliableSession::send_naks (Disjoint) ")
                            ACE_TEXT (" local %#08x%08x remote %#08x%08x [%q - %q]\n"),
                            (unsigned int)(this->link()->local_peer() >> 32),
                            (unsigned int) this->link()->local_peer(),
                            (unsigned int)(this->remote_peer_ >> 32),
                            (unsigned int) this->remote_peer_,
                            iter->first.getValue(), iter->second.getValue()));
    }
  }
  // Send control sample to remote peer:
  send_control(MULTICAST_NAK, move(data));
}

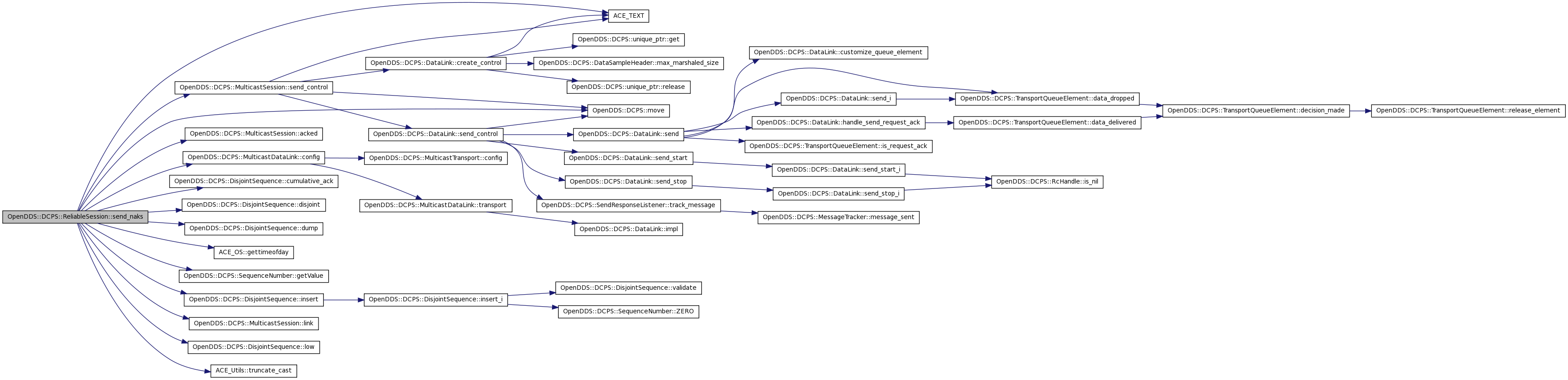

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::send_naks

(

)

[virtual]

The range first - second will be skipped (no naks sent for it).

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 300 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::acked(), OpenDDS::DCPS::MulticastDataLink::config(), OpenDDS::DCPS::DisjointSequence::cumulative_ack(), OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::DisjointSequence::disjoint(), OpenDDS::DCPS::DisjointSequence::dump(), ACE_OS::gettimeofday(), OpenDDS::DCPS::SequenceNumber::getValue(), OpenDDS::DCPS::DisjointSequence::insert(), len, OpenDDS::DCPS::MulticastSession::link(), LM_DEBUG, OpenDDS::DCPS::DisjointSequence::low(), OpenDDS::DCPS::move(), OpenDDS::DCPS::MULTICAST_NAK, OpenDDS::DCPS::MulticastInst::nak_delay_intervals_, OpenDDS::DCPS::MulticastInst::nak_max_, nak_peers_, nak_requests_, nak_sequence_, OpenDDS::DCPS::MulticastSession::remote_peer_, OpenDDS::DCPS::MulticastSession::send_control(), size, and ACE_Utils::truncate_cast().

Referenced by OpenDDS::DCPS::NakWatchdog::on_interval().

{
  // Could get data samples before syn control message.
  // No use nak'ing until syn control message is received and session is acked.
  if (!this->acked()) {
    if (DCPS_debug_level > 5) {
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::send_naks local %#08x%08x ")
                           ACE_TEXT("remote %#08x%08x session NOT acked yet, don't send naks\n"),
                           (unsigned int)(this->link()->local_peer() >> 32),
                           (unsigned int) this->link()->local_peer(),
                           (unsigned int)(this->remote_peer_ >> 32),
                           (unsigned int) this->remote_peer_));
    }
    return;
  }

  if (DCPS_debug_level > 5) {
    ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::send_naks local %#08x%08x ")
                         ACE_TEXT("remote %#08x%08x nak request size %d \n"),
                         (unsigned int)(this->link()->local_peer() >> 32),
                         (unsigned int) this->link()->local_peer(),
                         (unsigned int)(this->remote_peer_ >> 32),
                         (unsigned int) this->remote_peer_,
                         this->nak_requests_.size()));
  }

  if (!(this->nak_sequence_.low() > 1) && !this->nak_sequence_.disjoint()) {
    if (DCPS_debug_level > 5) {
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::send_naks local %#08x%08x ")
                           ACE_TEXT("remote %#08x%08x nak sequence not disjoint, don't send naks \n"),
                           (unsigned int)(this->link()->local_peer() >> 32),
                           (unsigned int) this->link()->local_peer(),
                           (unsigned int)(this->remote_peer_ >> 32),
                           (unsigned int) this->remote_peer_));
    }

    if (DCPS_debug_level > 9) {
      const std::vector<SequenceRange> ranges(this->nak_sequence_.present_sequence_ranges());
      for (std::vector<SequenceRange>::const_iterator iter = ranges.begin();
           iter != ranges.end(); ++iter) {
          ACE_DEBUG((LM_DEBUG, "(%P|%t) ReliableSession::send_naks - local %#08x%08x remote %#08x%08x nak_sequence includes: [%q - %q]\n",
                     (unsigned int)(this->link()->local_peer() >> 32),
                     (unsigned int) this->link()->local_peer(),
                     (unsigned int)(this->remote_peer_ >> 32),
                     (unsigned int) this->remote_peer_,
                     iter->first.getValue(),
                     iter->second.getValue()));
      }
    }
    return;  // nothing to send
  }

  ACE_Time_Value now(ACE_OS::gettimeofday());

  // Record low-water mark for this interval; this value will
  // be used to reset the low-water mark in the event the remote
  // peer becomes unresponsive:
  if (this->nak_sequence_.low() > 1) {
    this->nak_requests_[now] = SequenceNumber();
  } else {
    this->nak_requests_[now] = this->nak_sequence_.cumulative_ack();
  }

  typedef std::vector<SequenceRange> RangeVector;
  RangeVector ignored;

  /// The range first - second will be skipped (no naks sent for it).
  SequenceNumber first;
  SequenceNumber second;

  NakRequestMap::reverse_iterator itr(this->nak_requests_.rbegin());

  if (this->nak_requests_.size() > 1) {
    // The sequences between rbegin - 1 and rbegin will not be ignored for naking.
    ++itr;

    size_t nak_delay_intervals = this->link()->config().nak_delay_intervals_;
    size_t nak_max = this->link()->config().nak_max_;
    size_t sz = this->nak_requests_.size();

    // Image i is the index of element in nak_requests_ in reverse order.
    // index 0 sequence is most recent high water mark.
    // e.g index , 20, 19, 18, 17, 16, 15, 14, 13, 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1, 0
    //  0 (rbegin) is always skipped because missing sample between 1 and 0 interval
    //  should always be naked.,
    //  if nak_delay_intervals=4, nak_max=3, any sequence between 5 - 1, 10 - 6, 15 - 11
    //  are skipped for naking due to nak_delay_intervals and 20 - 16 are skipped for
    //  naking due to nak_max.
    for (size_t i = 1; i < sz; ++i) {
      if ((i * 1.0) / (nak_delay_intervals + 1) > nak_max) {
        if (first != SequenceNumber()) {
          first = this->nak_requests_.begin()->second;
        }
        else {
          ignored.push_back(std::make_pair(this->nak_requests_.begin()->second, itr->second));
        }
        break;
      }

      if (i % (nak_delay_intervals + 1) == 1) {
        second = itr->second;
      }
      if (second != SequenceNumber()) {
        first = itr->second;
      }

      if (i % (nak_delay_intervals + 1) == 0) {
        first = itr->second;

        if (first != SequenceNumber() && second != SequenceNumber()) {
          ignored.push_back(std::make_pair(first, second));
          first = SequenceNumber();
          second = SequenceNumber();
        }
      }

      ++itr;
    }

    if (first != SequenceNumber() && second != SequenceNumber() && first != second) {
      ignored.push_back(std::make_pair(first, second));
    }
  }

  // Take a copy to facilitate temporary suppression:
  DisjointSequence received(this->nak_sequence_);
  if (DCPS_debug_level > 0) {
    received.dump();
  }

  size_t sz = ignored.size();
  for (size_t i = 0; i < sz; ++i) {

    if (ignored[i].second > received.cumulative_ack()) {
      SequenceNumber high = ignored[i].second;
      SequenceNumber low = ignored[i].first;
      if (low < received.cumulative_ack()) {
        low = received.cumulative_ack();
      }

      if (DCPS_debug_level > 5) {
        ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::send_naks local %#08x%08x ")
          ACE_TEXT("remote %#08x%08x ignore missing [%q - %q]\n"),
          (unsigned int)(this->link()->local_peer() >> 32),
          (unsigned int) this->link()->local_peer(),
          (unsigned int)(this->remote_peer_ >> 32),
          (unsigned int) this->remote_peer_,
          low.getValue(), high.getValue()));
      }

      // Make contiguous between ignored sequences.
      received.insert(SequenceRange(low, high));
    }
  }

  for (NakPeerSet::iterator it(this->nak_peers_.begin());
       it != this->nak_peers_.end(); ++it) {
    // Update sequence to temporarily suppress repair requests for
    // ranges already requested by other peers for this interval:
    received.insert(*it);
  }
  bool sending_naks = false;
  if (received.low() > 1){
    //Special case: nak from beginning to make sure no missing sequence
    //number below the first received
    sending_naks = true;
    std::vector<SequenceRange> ranges;
    ranges.push_back(SequenceRange(SequenceNumber(), received.low()));

    CORBA::ULong size = ACE_Utils::truncate_cast<CORBA::ULong>(ranges.size());

    size_t len = sizeof(this->remote_peer_)
               + sizeof(size)
               + size * 2 * sizeof(SequenceNumber);

    Message_Block_Ptr data(new ACE_Message_Block(len));

    Serializer serializer(data.get());

    serializer << this->remote_peer_;
    serializer << size;
    for (std::vector<SequenceRange>::const_iterator iter = ranges.begin();
         iter != ranges.end(); ++iter) {
      serializer << iter->first;
      serializer << iter->second;
      if (DCPS_debug_level > 0) {
        ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("(%P|%t) ReliableSession::send_naks ")
                              ACE_TEXT (" local %#08x%08x remote %#08x%08x [%q - %q]\n"),
                              (unsigned int)(this->link()->local_peer() >> 32),
                              (unsigned int) this->link()->local_peer(),
                              (unsigned int)(this->remote_peer_ >> 32),
                              (unsigned int) this->remote_peer_,
                              iter->first.getValue(), iter->second.getValue()));
      }
    }
    // Send control sample to remote peer:
    send_control(MULTICAST_NAK, move(data));
  }
  if (received.disjoint()) {
    sending_naks = true;
    send_naks(received);
  }

  if (!sending_naks && DCPS_debug_level > 5){
    ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) ReliableSession::send_naks local %#08x%08x ")
                         ACE_TEXT("remote %#08x%08x received sequence not disjoint, don't send naks \n"),
                         (unsigned int)(this->link()->local_peer() >> 32),
                         (unsigned int) this->link()->local_peer(),
                         (unsigned int)(this->remote_peer_ >> 32),
                         (unsigned int) this->remote_peer_));
  }

  // Clear peer repair requests:
  this->nak_peers_.clear();
}

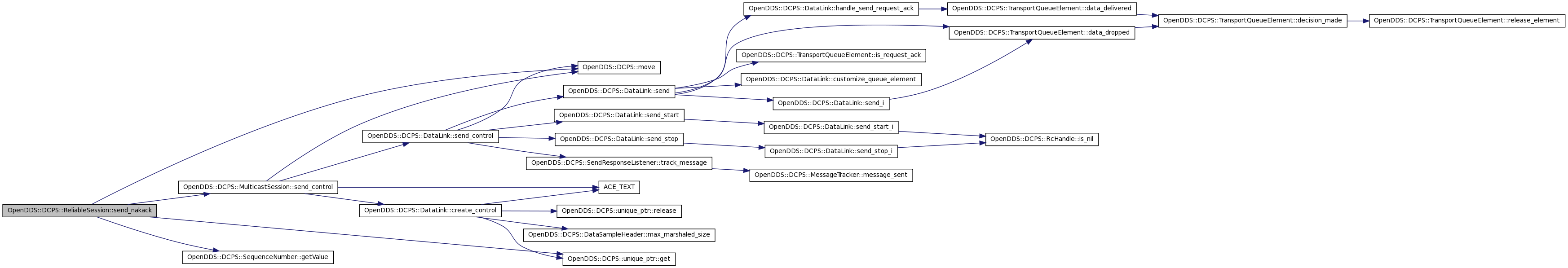

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::ReliableSession::start	(	bool	active,
		bool	acked
	)			[virtual]

Implements OpenDDS::DCPS::MulticastSession.

Definition at line 677 of file ReliableSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::MulticastSession::active_, LM_ERROR, nak_watchdog_, OpenDDS::DCPS::MulticastSession::reverse_start_lock_, OpenDDS::DCPS::MulticastSession::set_acked(), OpenDDS::DCPS::MulticastSession::start_lock_, OpenDDS::DCPS::MulticastSession::start_syn(), and OpenDDS::DCPS::MulticastSession::started_.

{
  ACE_GUARD_RETURN(ACE_Thread_Mutex, guard, this->start_lock_, false);

  if (this->started_) {
    return true;  // already started
  }

  this->active_  = active;
  {
    //can't call accept_datalink while holding lock due to possible reactor deadlock with passive_connection
    ACE_GUARD_RETURN(Reverse_Lock_t, unlock_guard, this->reverse_start_lock_, false);

    // A watchdog timer is scheduled to periodically check for gaps in
    // received data. If a gap is discovered, MULTICAST_NAK control
    // samples will be sent to initiate repairs.
    // Only subscriber send naks so just schedule for sub role.
    if (!active) {
      if (acked) {
        this->set_acked();
      }
      if (!this->nak_watchdog_->schedule()) {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: ")
                          ACE_TEXT("ReliableSession::start: ")
                          ACE_TEXT("failed to schedule NAK watchdog!\n")),
                         false);
      }
    }

    // Active peers schedule a watchdog timer to initiate a 2-way
    // handshake to verify that passive endpoints can send/receive
    // data reliably. This process must be executed using the
    // transport reactor thread to prevent blocking.
    // Only publisher send syn so just schedule for pub role.
    if (active && !this->start_syn()) {
      this->nak_watchdog_->cancel();
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: ")
                        ACE_TEXT("ReliableSession::start: ")
                        ACE_TEXT("failed to schedule SYN watchdog!\n")),
                       false);
    }
  } //Reacquire start_lock_ after releasing unlock_guard with release_start_lock_

  return this->started_ = true;
}

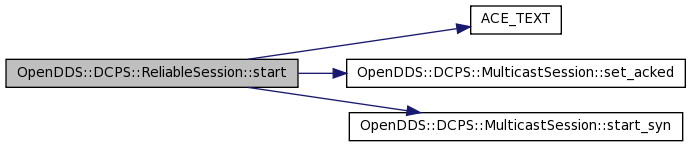

Here is the call graph for this function:

void OpenDDS::DCPS::ReliableSession::stop

(

void

)

[virtual]

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 726 of file ReliableSession.cpp.

References nak_watchdog_.

{
  MulticastSession::stop();
  this->nak_watchdog_->cancel();
}

void OpenDDS::DCPS::ReliableSession::syn_hook

(

const SequenceNumber &

seq

)

[virtual]

Reimplemented from OpenDDS::DCPS::MulticastSession.

Definition at line 245 of file ReliableSession.cpp.

References OpenDDS::DCPS::DisjointSequence::insert(), nak_sequence_, and OpenDDS::DCPS::DisjointSequence::reset().

{
  const std::vector<SequenceRange> ranges(this->nak_sequence_.present_sequence_ranges());
  this->nak_sequence_.reset();
  this->nak_sequence_.insert(seq);

  for (std::vector<SequenceRange>::const_iterator iter = ranges.begin();
       iter != ranges.end(); ++iter) {
    this->nak_sequence_.insert(SequenceRange(iter->first, iter->second));
  }
}

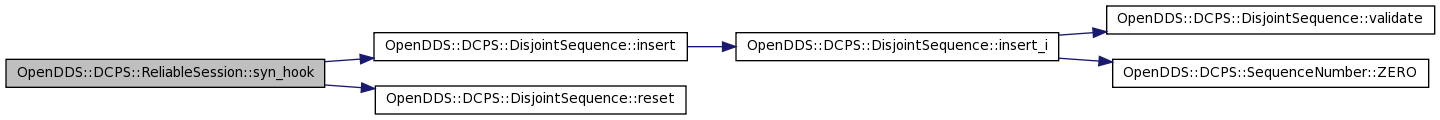

Here is the call graph for this function:

---

Member Data Documentation

ACE_Thread_Mutex OpenDDS::DCPS::ReliableSession::held_lock_ [private]

Definition at line 91 of file ReliableSession.h.

Referenced by deliver_held_data(), ready_to_deliver(), and release_remote().

NakPeerSet OpenDDS::DCPS::ReliableSession::nak_peers_ [private]

Definition at line 96 of file ReliableSession.h.

Referenced by send_naks().

NakRequestMap OpenDDS::DCPS::ReliableSession::nak_requests_ [private]

Definition at line 89 of file ReliableSession.h.

Referenced by expire_naks(), and send_naks().

DisjointSequence OpenDDS::DCPS::ReliableSession::nak_sequence_ [private]

Definition at line 86 of file ReliableSession.h.

Referenced by check_header(), deliver_held_data(), expire_naks(), nakack_received(), ready_to_deliver(), record_header_received(), send_naks(), and syn_hook().

RcHandle<NakWatchdog> OpenDDS::DCPS::ReliableSession::nak_watchdog_ [private]

Definition at line 84 of file ReliableSession.h.

Referenced by start(), stop(), and ~ReliableSession().

---

The documentation for this class was generated from the following files:

• ReliableSession.h
• ReliableSession.cpp
