OpenDDS::DCPS::MulticastSession Class Reference

#include <MulticastSession.h>

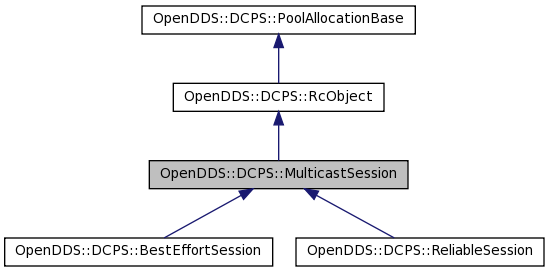

Inheritance diagram for OpenDDS::DCPS::MulticastSession:

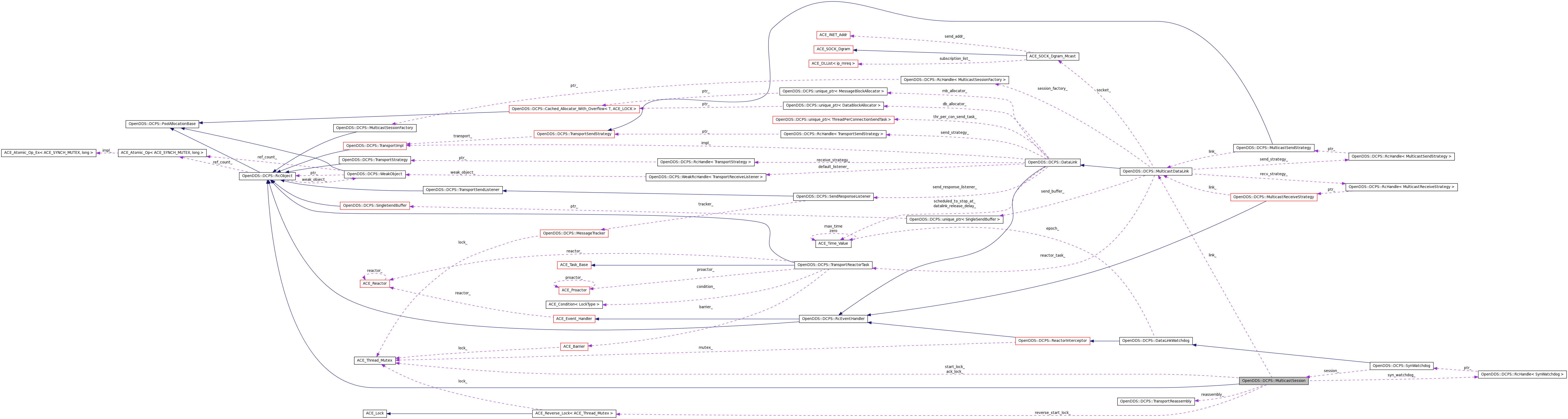

Collaboration diagram for OpenDDS::DCPS::MulticastSession:

Public Member Functions
virtual	~MulticastSession ()
MulticastDataLink *	link ()
MulticastPeer	remote_peer () const
bool	acked ()
void	set_acked ()
virtual bool	is_reliable ()
void	syn_received (const Message_Block_Ptr &control)
void	send_syn ()
void	synack_received (const Message_Block_Ptr &control)
void	send_synack ()
virtual void	send_naks ()
virtual bool	check_header (const TransportHeader &header)=0
virtual void	record_header_received (const TransportHeader &header)=0
virtual bool	ready_to_deliver (const TransportHeader &header, const ReceivedDataSample &data)=0
virtual void	release_remote (const RepoId &)
virtual bool	control_received (char submessage_id, const Message_Block_Ptr &control)
virtual bool	start (bool active, bool acked)=0
virtual void	stop ()
bool	reassemble (ReceivedDataSample &data, const TransportHeader &header)
Protected Types
typedef ACE_Reverse_Lock < ACE_Thread_Mutex >	Reverse_Lock_t
Protected Member Functions
	MulticastSession (ACE_Reactor reactor, ACE_thread_t owner, MulticastDataLink link, MulticastPeer remote_peer)
void	send_control (char submessage_id, Message_Block_Ptr data)
bool	start_syn ()
virtual void	syn_hook (const SequenceNumber &)
Protected Attributes
MulticastDataLink *	link_
MulticastPeer	remote_peer_
Reverse_Lock_t	reverse_start_lock_
ACE_Thread_Mutex	start_lock_
bool	started_
bool	active_
TransportReassembly	reassembly_
bool	acked_
Private Attributes
ACE_Thread_Mutex	ack_lock_
RcHandle< SynWatchdog >	syn_watchdog_

Detailed Description

Definition at line 58 of file MulticastSession.h.

Member Typedef Documentation

typedef ACE_Reverse_Lock<ACE_Thread_Mutex> OpenDDS::DCPS::MulticastSession::Reverse_Lock_t [protected]

Definition at line 109 of file MulticastSession.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::MulticastSession::~MulticastSession ( ) [virtual]

Definition at line 96 of file MulticastSession.cpp.

References syn_watchdog_.

00097 {
00098   syn_watchdog_->cancel();
00099   syn_watchdog_->wait();
00100 }

OpenDDS::DCPS::MulticastSession::MulticastSession	(	ACE_Reactor *	reactor,
		ACE_thread_t	owner,
		MulticastDataLink *	link,
		MulticastPeer	remote_peer
	)			`[protected]`

Definition at line 82 of file MulticastSession.cpp.

00086   : link_(link)
00087   , remote_peer_(remote_peer)
00088   , reverse_start_lock_(start_lock_)
00089   , started_(false)
00090   , active_(true)
00091   , acked_(false)
00092   , syn_watchdog_(make_rch<SynWatchdog> (reactor, owner, this))
00093 {
00094 }

Member Function Documentation

bool OpenDDS::DCPS::MulticastSession::acked ( )

Definition at line 103 of file MulticastSession.cpp.

References ack_lock_, and acked_.

Referenced by OpenDDS::DCPS::ReliableSession::ready_to_deliver(), OpenDDS::DCPS::ReliableSession::send_naks(), and synack_received().

00104 {
00105   ACE_GUARD_RETURN(ACE_SYNCH_MUTEX, guard, this->ack_lock_, false);
00106   return this->acked_;
00107 }

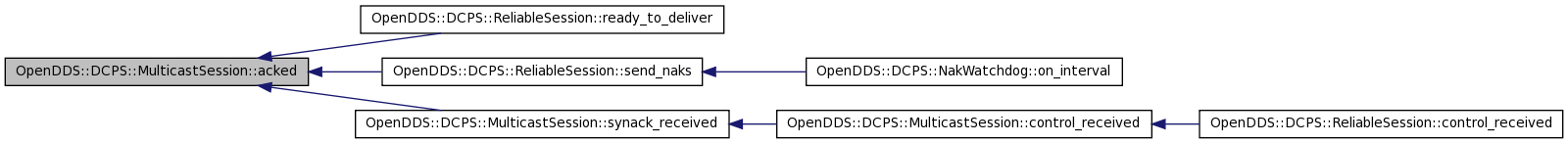

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::MulticastSession::check_header ( const TransportHeader & header ) [pure virtual]

Implemented in OpenDDS::DCPS::BestEffortSession, and OpenDDS::DCPS::ReliableSession.

bool OpenDDS::DCPS::MulticastSession::control_received	(	char	submessage_id,
		const Message_Block_Ptr &	control
	)			`[virtual]`

Reimplemented in OpenDDS::DCPS::ReliableSession.

Definition at line 147 of file MulticastSession.cpp.

References OpenDDS::DCPS::MULTICAST_SYN, OpenDDS::DCPS::MULTICAST_SYNACK, syn_received(), and synack_received().

Referenced by OpenDDS::DCPS::ReliableSession::control_received().

00149 {
00150   switch (submessage_id) {
00151   case MULTICAST_SYN:
00152     syn_received(control);
00153     break;
00154
00155   case MULTICAST_SYNACK:
00156     synack_received(control);
00157     break;
00158
00159   default:
00160     return false;
00161   }
00162
00163   return true;
00164 }

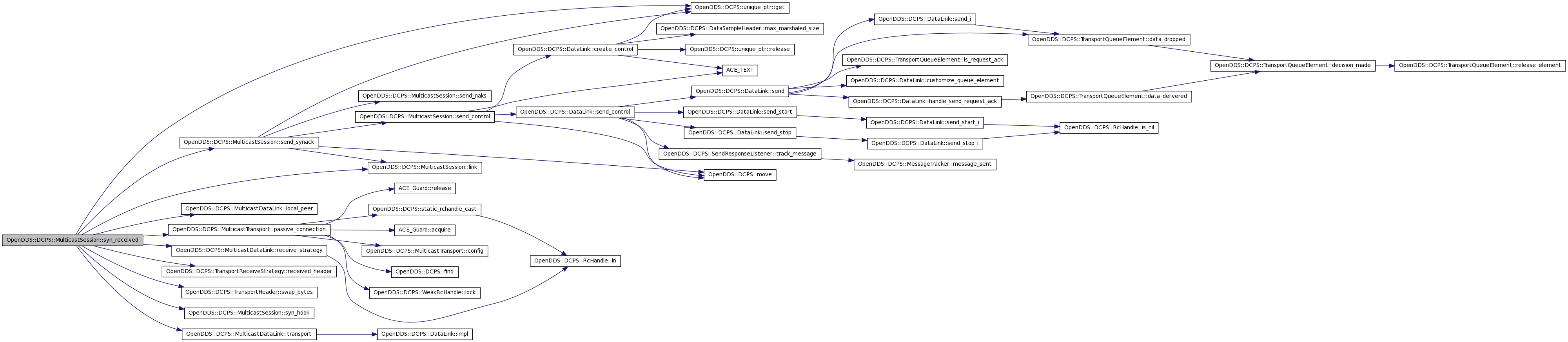

Here is the call graph for this function:

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::MulticastSession::is_reliable ( ) [inline, virtual]

Reimplemented in OpenDDS::DCPS::BestEffortSession, and OpenDDS::DCPS::ReliableSession.

Definition at line 69 of file MulticastSession.h.

00069 { return false;}

ACE_INLINE MulticastDataLink * OpenDDS::DCPS::MulticastSession::link ( void )

Definition at line 14 of file MulticastSession.inl.

References link_.

Referenced by OpenDDS::DCPS::ReliableSession::nak_received(), OpenDDS::DCPS::ReliableSession::nakack_received(), OpenDDS::DCPS::NakWatchdog::next_interval(), OpenDDS::DCPS::SynWatchdog::next_interval(), OpenDDS::DCPS::SynWatchdog::next_timeout(), OpenDDS::DCPS::SynWatchdog::on_timeout(), OpenDDS::DCPS::NakWatchdog::reactor_is_shut_down(), OpenDDS::DCPS::SynWatchdog::reactor_is_shut_down(), OpenDDS::DCPS::ReliableSession::send_naks(), send_syn(), send_synack(), syn_received(), and synack_received().

00015 {
00016   return this->link_;
00017 }

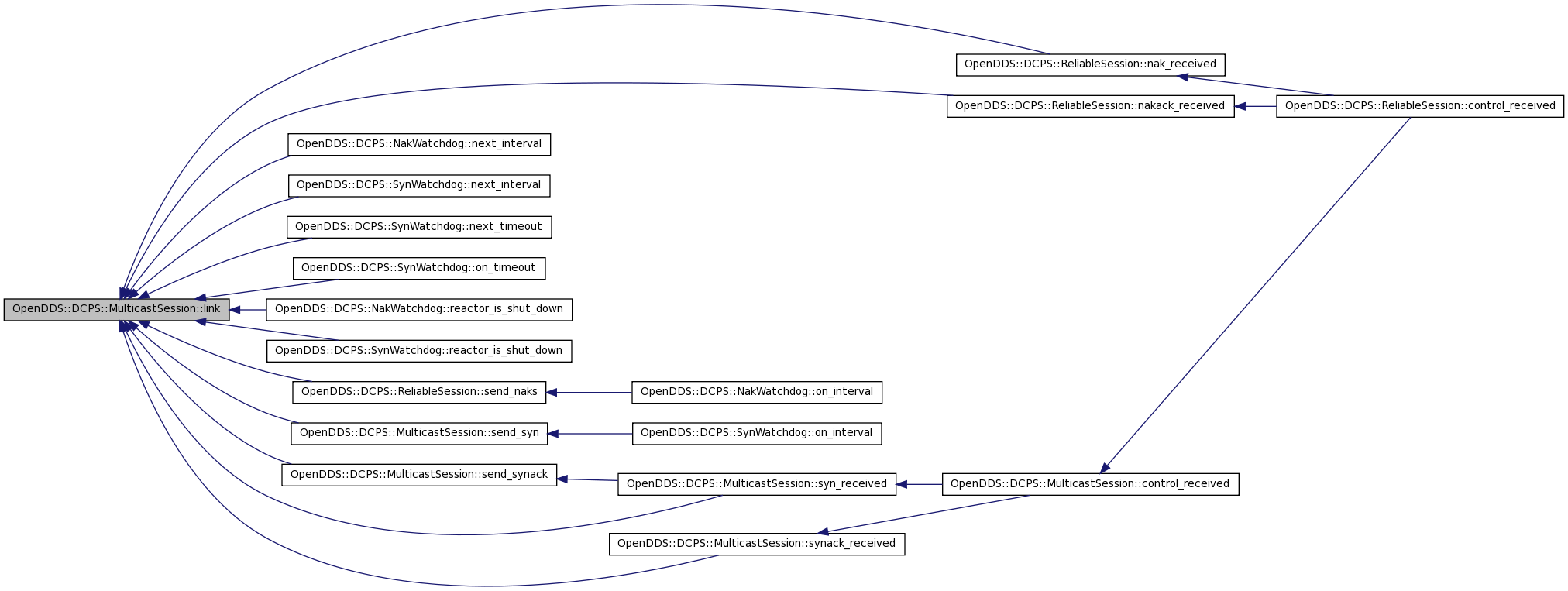

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::MulticastSession::ready_to_deliver	(	const TransportHeader &	header,
		const ReceivedDataSample &	data
	)			`[pure virtual]`

Implemented in OpenDDS::DCPS::BestEffortSession, and OpenDDS::DCPS::ReliableSession.

bool OpenDDS::DCPS::MulticastSession::reassemble	(	ReceivedDataSample &	data,
		const TransportHeader &	header
	)

Definition at line 308 of file MulticastSession.cpp.

References OpenDDS::DCPS::TransportHeader::first_fragment_, OpenDDS::DCPS::TransportReassembly::reassemble(), reassembly_, and OpenDDS::DCPS::TransportHeader::sequence_.

00310 {
00311   return this->reassembly_.reassemble(header.sequence_,
00312                                       header.first_fragment_,
00313                                       data);
00314 }

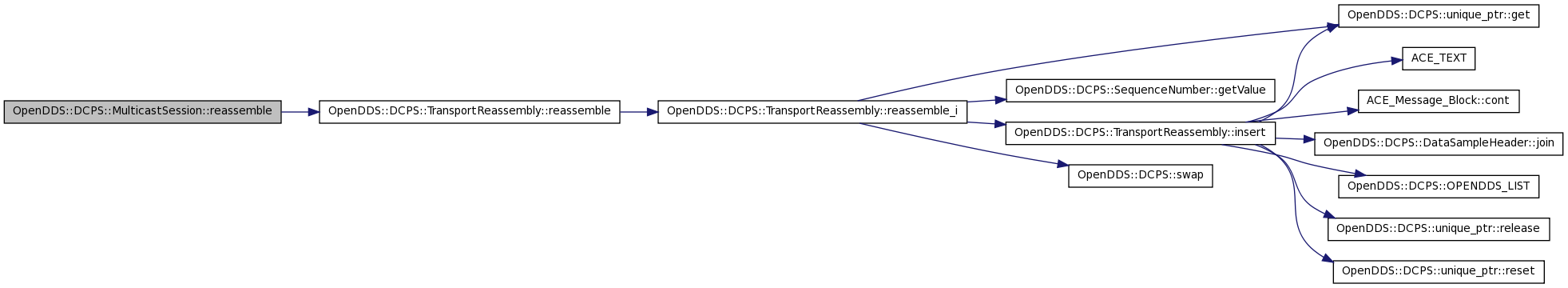

Here is the call graph for this function:

virtual void OpenDDS::DCPS::MulticastSession::record_header_received ( const TransportHeader & header ) [pure virtual]

Implemented in OpenDDS::DCPS::BestEffortSession, and OpenDDS::DCPS::ReliableSession.

virtual void OpenDDS::DCPS::MulticastSession::release_remote ( const RepoId & ) [inline, virtual]

Reimplemented in OpenDDS::DCPS::ReliableSession.

Definition at line 82 of file MulticastSession.h.

00082 {};

ACE_INLINE MulticastPeer OpenDDS::DCPS::MulticastSession::remote_peer ( ) const

Definition at line 20 of file MulticastSession.inl.

References remote_peer_.

Referenced by OpenDDS::DCPS::SynWatchdog::on_timeout().

00021 {
00022   return this->remote_peer_;
00023 }

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::send_control	(	char	submessage_id,
		Message_Block_Ptr	data
	)			`[protected]`

Definition at line 122 of file MulticastSession.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DataLink::create_control(), header, link_, LM_ERROR, OpenDDS::DCPS::move(), OpenDDS::DCPS::DataLink::send_control(), and OpenDDS::DCPS::SEND_CONTROL_OK.

Referenced by OpenDDS::DCPS::ReliableSession::send_nakack(), OpenDDS::DCPS::ReliableSession::send_naks(), send_syn(), and send_synack().

00123 {
00124   DataSampleHeader header;
00125   Message_Block_Ptr control(
00126     this->link_->create_control(submessage_id, header, move(data)));
00127   if (!control) {
00128     ACE_ERROR((LM_ERROR,
00129                ACE_TEXT("(%P|%t) ERROR: ")
00130                ACE_TEXT("MulticastSession::send_control: ")
00131                ACE_TEXT("create_control failed!\n")));
00132     return;
00133   }
00134
00135   int error = this->link_->send_control(header, move(control));
00136   if (error != SEND_CONTROL_OK) {
00137     ACE_ERROR((LM_ERROR,
00138                ACE_TEXT("(%P|%t) ERROR: ")
00139                ACE_TEXT("MulticastSession::send_control: ")
00140                ACE_TEXT("send_control failed: %d!\n"),
00141                error));
00142     return;
00143   }
00144 }

Here is the call graph for this function:

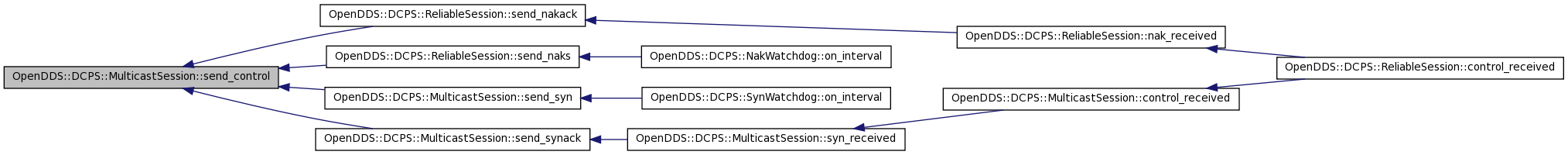

Here is the caller graph for this function:

virtual void OpenDDS::DCPS::MulticastSession::send_naks ( ) [inline, virtual]

Reimplemented in OpenDDS::DCPS::ReliableSession.

Definition at line 76 of file MulticastSession.h.

Referenced by send_synack().

00076 {}

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::send_syn ( )

Definition at line 211 of file MulticastSession.cpp.

References OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), len, link(), LM_DEBUG, OpenDDS::DCPS::move(), OpenDDS::DCPS::MULTICAST_SYN, remote_peer_, send_control(), and VDBG_LVL.

Referenced by OpenDDS::DCPS::SynWatchdog::on_interval().

00212 {
00213   size_t len = sizeof(this->remote_peer_);
00214
00215   Message_Block_Ptr data( new ACE_Message_Block(len));
00216
00217   Serializer serializer(data.get());
00218
00219   serializer << this->remote_peer_;
00220
00221   VDBG_LVL((LM_DEBUG, "(%P|%t) MulticastSession[%C]::send_syn "
00222                       "local %#08x%08x remote %#08x%08x\n",
00223                       this->link()->config().name().c_str(),
00224                       (unsigned int)(this->link()->local_peer() >> 32),
00225                       (unsigned int) this->link()->local_peer(),
00226                       (unsigned int)(this->remote_peer_ >> 32),
00227                       (unsigned int) this->remote_peer_), 2);
00228
00229   // Send control sample to remote peer:
00230   send_control(MULTICAST_SYN, move(data));
00231 }

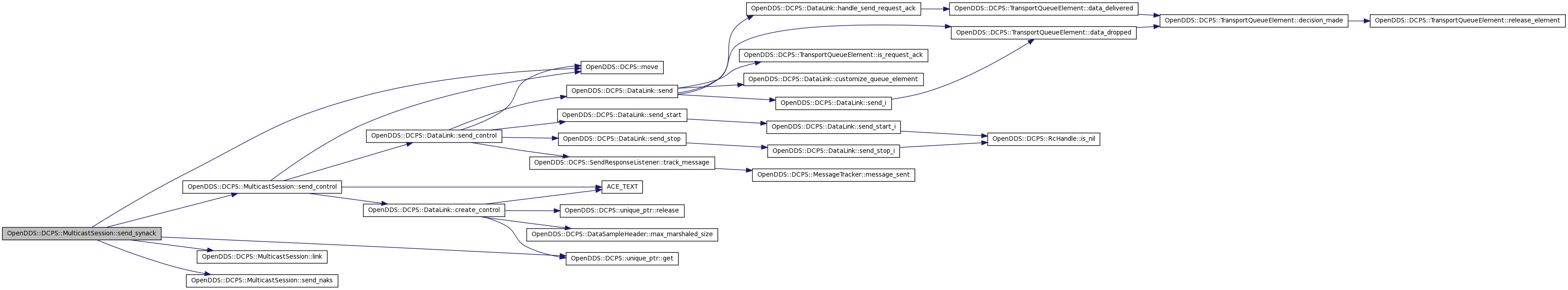

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::send_synack ( )

Definition at line 274 of file MulticastSession.cpp.

References active_, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), len, link(), LM_DEBUG, OpenDDS::DCPS::move(), OpenDDS::DCPS::MULTICAST_SYNACK, remote_peer_, send_control(), send_naks(), and VDBG_LVL.

Referenced by syn_received().

00275 {
00276   size_t len = sizeof(this->remote_peer_);
00277
00278   Message_Block_Ptr data(new ACE_Message_Block(len));
00279
00280   Serializer serializer(data.get());
00281
00282   serializer << this->remote_peer_;
00283
00284   VDBG_LVL((LM_DEBUG, "(%P|%t) MulticastSession[%C]::send_synack "
00285                       "local %#08x%08x remote %#08x%08x active %d\n",
00286                       this->link()->config().name().c_str(),
00287                       (unsigned int)(this->link()->local_peer() >> 32),
00288                       (unsigned int) this->link()->local_peer(),
00289                       (unsigned int)(this->remote_peer_ >> 32),
00290                       (unsigned int) this->remote_peer_,
00291                       this->active_ ? 1 : 0), 2);
00292
00293   // Send control sample to remote peer:
00294   send_control(MULTICAST_SYNACK, move(data));
00295
00296   // Send naks before sending synack to
00297   // reduce wait time for resends from remote.
00298   send_naks();
00299 }

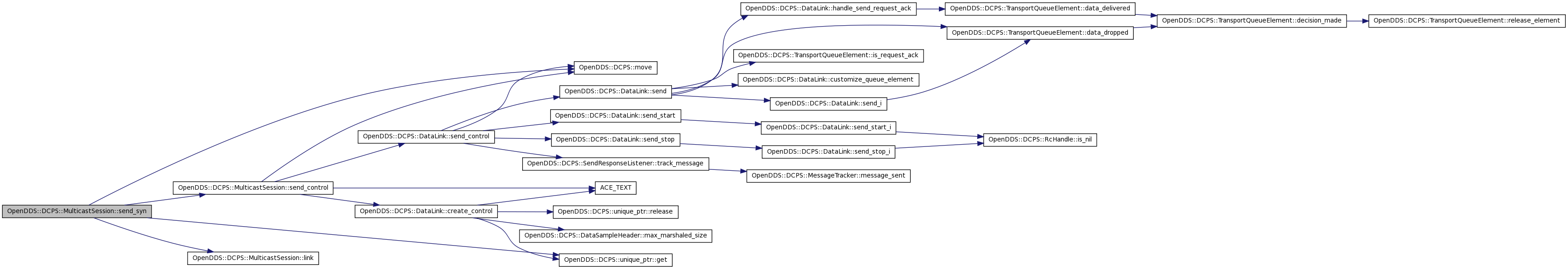

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::set_acked ( )

Definition at line 110 of file MulticastSession.cpp.

References ack_lock_, and acked_.

Referenced by OpenDDS::DCPS::ReliableSession::start().

00110                             {
00111   ACE_GUARD(ACE_SYNCH_MUTEX, guard, this->ack_lock_);
00112   this->acked_ = true;
00113 }

Here is the caller graph for this function:

virtual bool OpenDDS::DCPS::MulticastSession::start	(	bool	active,
		bool	acked
	)			`[pure virtual]`

Implemented in OpenDDS::DCPS::BestEffortSession, and OpenDDS::DCPS::ReliableSession.

bool OpenDDS::DCPS::MulticastSession::start_syn ( ) [protected]

Definition at line 116 of file MulticastSession.cpp.

References syn_watchdog_.

Referenced by OpenDDS::DCPS::ReliableSession::start(), and OpenDDS::DCPS::BestEffortSession::start().

00117 {
00118   return this->syn_watchdog_->schedule_now();
00119 }

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::stop ( void ) [virtual]

Reimplemented in OpenDDS::DCPS::ReliableSession.

Definition at line 302 of file MulticastSession.cpp.

References syn_watchdog_.

00303 {
00304   this->syn_watchdog_->cancel();
00305 }

virtual void OpenDDS::DCPS::MulticastSession::syn_hook ( const SequenceNumber & ) [inline, protected, virtual]

Reimplemented in OpenDDS::DCPS::ReliableSession.

Definition at line 107 of file MulticastSession.h.

Referenced by syn_received().

00107 {}

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::syn_received ( const Message_Block_Ptr & control )

Definition at line 167 of file MulticastSession.cpp.

References ack_lock_, acked_, active_, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), header, link(), link_, LM_DEBUG, OpenDDS::DCPS::MulticastDataLink::local_peer(), OpenDDS::DCPS::MulticastTransport::passive_connection(), OpenDDS::DCPS::MulticastDataLink::receive_strategy(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header(), remote_peer_, send_synack(), OpenDDS::DCPS::TransportHeader::sequence_, OpenDDS::DCPS::TransportHeader::source_, OpenDDS::DCPS::TransportHeader::swap_bytes(), syn_hook(), OpenDDS::DCPS::MulticastDataLink::transport(), and VDBG_LVL.

Referenced by control_received().

00168 {
00169   if (this->active_) return; // pub send syn, then doesn't receive them.
00170
00171   const TransportHeader& header =
00172     this->link_->receive_strategy()->received_header();
00173
00174   // Not from the remote peer for this session.
00175   if (this->remote_peer_ != header.source_) return;
00176
00177   Serializer serializer(control.get(), header.swap_bytes());
00178
00179   MulticastPeer local_peer;
00180   serializer >> local_peer; // sent as remote_peer
00181
00182   // Ignore sample if not destined for us:
00183   if (local_peer != this->link_->local_peer()) return;
00184
00185   VDBG_LVL((LM_DEBUG, "(%P|%t) MulticastSession[%C]::syn_received "
00186                     "local %#08x%08x remote %#08x%08x\n",
00187                     this->link()->config().name().c_str(),
00188                     (unsigned int)(this->link()->local_peer() >> 32),
00189                     (unsigned int) this->link()->local_peer(),
00190                     (unsigned int)(this->remote_peer_ >> 32),
00191                     (unsigned int) this->remote_peer_), 2);
00192
00193   {
00194     ACE_GUARD(ACE_SYNCH_MUTEX, guard, this->ack_lock_);
00195
00196     if (!this->acked_) {
00197       this->acked_ = true;
00198       syn_hook(header.sequence_);
00199     }
00200   }
00201
00202   // MULTICAST_SYN control samples are always positively
00203   // acknowledged by a matching remote peer:
00204   send_synack();
00205
00206   this->link_->transport().passive_connection(this->link_->local_peer(), this->remote_peer_);
00207
00208 }

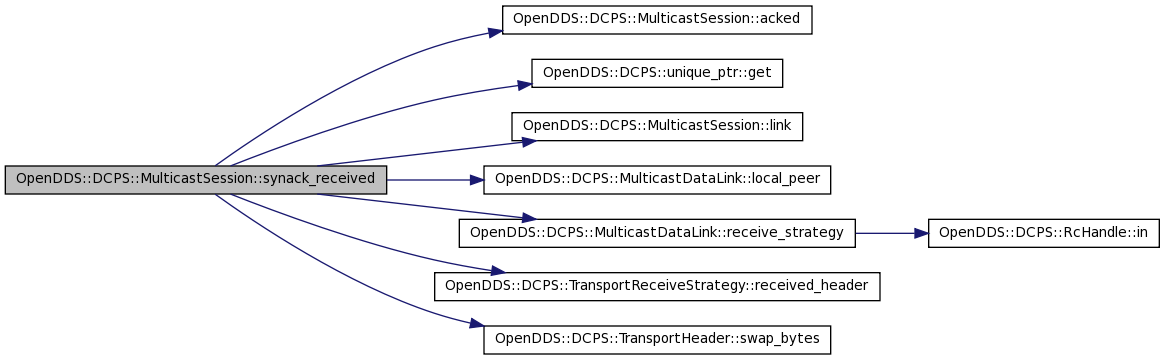

Here is the call graph for this function:

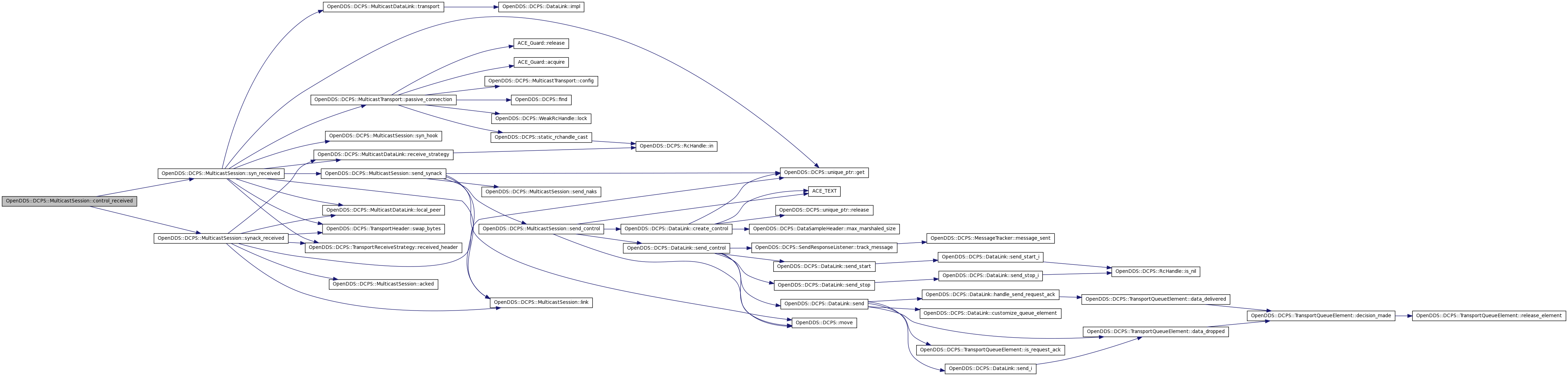

Here is the caller graph for this function:

void OpenDDS::DCPS::MulticastSession::synack_received ( const Message_Block_Ptr & control )

Definition at line 234 of file MulticastSession.cpp.

References ack_lock_, acked(), acked_, active_, OpenDDS::DCPS::unique_ptr< T, Deleter >::get(), header, link(), link_, LM_DEBUG, OpenDDS::DCPS::MulticastDataLink::local_peer(), OpenDDS::DCPS::MulticastDataLink::receive_strategy(), OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::received_header(), remote_peer_, OpenDDS::DCPS::TransportHeader::source_, OpenDDS::DCPS::TransportHeader::swap_bytes(), syn_watchdog_, and VDBG_LVL.

Referenced by control_received().

00235 {
00236   if (!this->active_) return; // sub send synack, then doesn't receive them.
00237
00238   // Already received ack.
00239   if (this->acked()) return;
00240
00241   const TransportHeader& header =
00242     this->link_->receive_strategy()->received_header();
00243
00244   // Not from the remote peer for this session.
00245   if (this->remote_peer_ != header.source_) return;
00246
00247   Serializer serializer(control.get(), header.swap_bytes());
00248
00249   MulticastPeer local_peer;
00250   serializer >> local_peer; // sent as remote_peer
00251
00252   // Ignore sample if not destined for us:
00253   if (local_peer != this->link_->local_peer()) return;
00254
00255   VDBG_LVL((LM_DEBUG, "(%P|%t) MulticastSession[%C]::synack_received "
00256                       "local %#08x%08x remote %#08x%08x\n",
00257                       this->link()->config().name().c_str(),
00258                       (unsigned int)(this->link()->local_peer() >> 32),
00259                       (unsigned int) this->link()->local_peer(),
00260                       (unsigned int)(this->remote_peer_ >> 32),
00261                       (unsigned int) this->remote_peer_), 2);
00262
00263   {
00264     ACE_GUARD(ACE_SYNCH_MUTEX, guard, this->ack_lock_);
00265
00266     if (this->acked_) return; // already acked
00267
00268     this->syn_watchdog_->cancel();
00269     this->acked_ = true;
00270   }
00271 }
