OpenDDS::FaceTSS::config::Parser Class Reference

#include <Parser.h>

List of all members.

Public Member Functions

int parse (const char *filename)
int find_connection (const char *name, ConnectionSettings &target)
int find_topic (const char *name, TopicSettings &target)
int find_qos (const ConnectionSettings &conn, QosSettings &target)

Private Member Functions

int parse_topic (ACE_Configuration_Heap &config, ACE_Configuration_Section_Key &key, const char *topic_name)
int parse_connection (ACE_Configuration_Heap &config, ACE_Configuration_Section_Key &key, const char *connection_name)
int parse_qos (ACE_Configuration_Heap &config, ACE_Configuration_Section_Key &key, const char *qos_name, QosSettings::QosLevel level)
int parse_sections (ACE_Configuration_Heap &config, const char *section_type, bool required)

Static Private Attributes

static ConnectionMap connection_map_
static QosMap qos_map_
static TopicMap topic_map_

Detailed Description

Definition at line 18 of file Parser.h.

Member Function Documentation

int OpenDDS::FaceTSS::config::Parser::find_connection ( const char *  name,
ConnectionSettings &  target
)

Definition at line 261 of file Parser.cpp.

References connection_map_, and status.

00263 {
00264   int status = 1;
00265   ConnectionMap::iterator result;
00266   if ((result = connection_map_.find(name)) != connection_map_.end()) {
00267     status = 0;
00268     target = result->second;
00269   }
00270   return status;
00271 }

int OpenDDS::FaceTSS::config::Parser::find_qos ( const ConnectionSettings &  conn,
QosSettings &  target
)

Definition at line 287 of file Parser.cpp.

References OpenDDS::FaceTSS::config::QosSettings::datareader_qos(), OpenDDS::FaceTSS::config::ConnectionSettings::datareader_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::datareader_qos_set(), OpenDDS::FaceTSS::config::QosSettings::datawriter_qos(), OpenDDS::FaceTSS::config::ConnectionSettings::datawriter_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::datawriter_qos_set(), OpenDDS::FaceTSS::config::ConnectionSettings::direction_, OpenDDS::FaceTSS::config::QosSettings::publisher_qos(), OpenDDS::FaceTSS::config::ConnectionSettings::publisher_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::publisher_qos_set(), qos_map_, status, OpenDDS::FaceTSS::config::QosSettings::subscriber_qos(), OpenDDS::FaceTSS::config::ConnectionSettings::subscriber_qos_name(), and OpenDDS::FaceTSS::config::ConnectionSettings::subscriber_qos_set().

00288 {
00289   int status = 0;
00290   QosMap::iterator result;
00291   // If thie is a SOURCE
00292   if (conn.direction_ == FACE::SOURCE) {
00293     if (conn.datawriter_qos_set()) {
00294       // Name specified, must be in map
00295       result = qos_map_.find(conn.datawriter_qos_name());
00296       if (result != qos_map_.end()) {
00297         result->second.apply_to(target.datawriter_qos());
00298       } else {
00299         // Failed
00300         status = 1;
00301       }
00302     }
00303     if (status == 0 && (conn.publisher_qos_set())) {
00304       // Name specified, must be in map
00305       result = qos_map_.find(conn.publisher_qos_name());
00306       if (result != qos_map_.end()) {
00307         result->second.apply_to(target.publisher_qos());
00308       } else {
00309         // Failed
00310         status = 1;
00311       }
00312     }
00313   // Else DESTINATION
00314   } else {
00315     if (conn.datareader_qos_set()) {
00316       // Name specified, must be in map
00317       result = qos_map_.find(conn.datareader_qos_name());
00318       if (result != qos_map_.end()) {
00319         result->second.apply_to(target.datareader_qos());
00320       } else {
00321         // Failed
00322         status = 1;
00323       }
00324     }
00325     if (status == 0 && (conn.subscriber_qos_set())) {
00326       // Name specified, must be in map
00327       result = qos_map_.find(conn.subscriber_qos_name());
00328       if (result != qos_map_.end()) {
00329         result->second.apply_to(target.subscriber_qos());
00330       } else {
00331         // Failed
00332         status = 1;
00333       }
00334     }
00335   }
00336
00337   return status;
00338 }

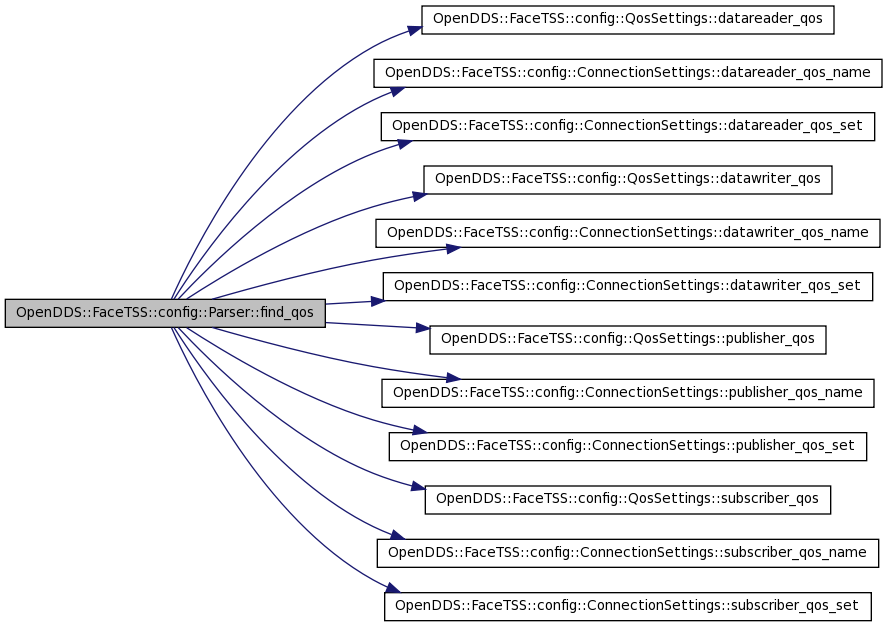

Here is the call graph for this function:

int OpenDDS::FaceTSS::config::Parser::find_topic ( const char *  name,
TopicSettings &  target
)

Definition at line 274 of file Parser.cpp.

References status, and topic_map_.

00276 {
00277   int status = 1;
00278   TopicMap::iterator result;
00279   if ((result = topic_map_.find(name)) != topic_map_.end()) {
00280     status = 0;
00281     target = result->second;
00282   }
00283   return status;
00284 }

int OpenDDS::FaceTSS::config::Parser::parse ( const char *  filename  )

Definition at line 72 of file Parser.cpp.

References ACE_TEXT(), OpenDDS::FaceTSS::config::ConnectionSettings::config_name(), OpenDDS::FaceTSS::config::ConnectionSettings::config_set(), OpenDDS::FaceTSS::config::ConnectionSettings::connection_id_, connection_map_, OpenDDS::FaceTSS::config::ConnectionSettings::datareader_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::datareader_qos_set(), OpenDDS::FaceTSS::config::ConnectionSettings::datawriter_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::datawriter_qos_set(), OpenDDS::FaceTSS::config::ConnectionSettings::direction_, OpenDDS::FaceTSS::config::ConnectionSettings::domain_id_, OpenDDS::DCPS::StaticDiscovery::instance(), OpenDDS::DCPS::RcHandle< T >::is_nil(), LM_ERROR, ACE_Configuration_Heap::open(), OPENDDS_STRING, parse_sections(), OpenDDS::FaceTSS::config::ConnectionSettings::publisher_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::publisher_qos_set(), qos_map_, status, OpenDDS::FaceTSS::config::ConnectionSettings::subscriber_qos_name(), OpenDDS::FaceTSS::config::ConnectionSettings::subscriber_qos_set(), TheServiceParticipant, TheTransportRegistry, and OpenDDS::FaceTSS::config::ConnectionSettings::topic_name_.

00073 {
00074   ACE_Configuration_Heap config;
00075   config.open();
00076   ACE_Ini_ImpExp import(config);
00077   int status = import.import_config(filename);
00078   if (status) {
00079     ACE_ERROR((LM_ERROR,
00080                ACE_TEXT("(%P|%t) ERROR: Initialize() ")
00081                ACE_TEXT("import_config () returned %d\n"),
00082                status));
00083     return status;
00084   }
00085
00086   status = parse_sections(config, DATAWRITER_QOS_SECTION, false) ||
00087     parse_sections(config, DATAREADER_QOS_SECTION, false) ||
00088     parse_sections(config, PUBLISHER_QOS_SECTION, false) ||
00089     parse_sections(config, SUBSCRIBER_QOS_SECTION, false) ||
00090     parse_sections(config, TOPIC_SECTION, true) ||
00091     parse_sections(config, CONNECTION_SECTION, true);
00092
00093   if (status)
00094     return status;
00095
00096   status = TheServiceParticipant->load_configuration(config,
00097                                                      filename);
00098
00099   if (status)
00100     return status;
00101
00102   for (ConnectionMap::const_iterator pos = connection_map_.begin(), limit = connection_map_.end();
00103        pos != limit;
00104        ++pos) {
00105     const ConnectionSettings& conn = pos->second;
00106     OpenDDS::DCPS::RepoId id = build_id(conn);
00107
00108     switch (conn.direction_) {
00109     case FACE::SOURCE:
00110       {
00111         OPENDDS_STRING topic_name = conn.topic_name_;
00112
00113         DDS::DataWriterQos qos(TheServiceParticipant->initial_DataWriterQos());
00114         if (conn.datawriter_qos_set()) {
00115           QosMap::const_iterator p = qos_map_.find(conn.datawriter_qos_name());
00116           if (p != qos_map_.end()) {
00117             p->second.apply_to(qos);
00118           } else {
00119             ACE_ERROR((LM_ERROR,
00120                        ACE_TEXT("(%P|%t) ERROR: Could not find datawriterqos/%s\n"),
00121                        conn.datawriter_qos_name()));
00122             return -1;
00123           }
00124         }
00125
00126         DDS::PublisherQos publisher_qos(TheServiceParticipant->initial_PublisherQos());
00127         if (conn.publisher_qos_set()) {
00128           QosMap::const_iterator p = qos_map_.find(conn.publisher_qos_name());
00129           if (p != qos_map_.end()) {
00130             p->second.apply_to(publisher_qos);
00131           } else {
00132             ACE_ERROR((LM_ERROR,
00133                        ACE_TEXT("(%P|%t) ERROR: Could not find publisherqos/%s\n"),
00134                        conn.publisher_qos_name()));
00135             return -1;
00136           }
00137         }
00138
00139         DCPS::TransportLocatorSeq trans_info;
00140
00141         OpenDDS::DCPS::TransportConfig_rch config;
00142
00143         if (conn.config_set()) {
00144           config = TheTransportRegistry->get_config(conn.config_name());
00145           if (config.is_nil()) {
00146             ACE_ERROR((LM_ERROR,
00147                        ACE_TEXT("(%P|%t) ERROR: Could not find config/%s\n"),
00148                        conn.config_name()));
00149             return -1;
00150           }
00151         }
00152
00153         if (config.is_nil()) {
00154           config = TheTransportRegistry->domain_default_config(conn.domain_id_);
00155         }
00156
00157         if (config.is_nil()) {
00158           config = TheTransportRegistry->global_config();
00159         }
00160
00161         config->populate_locators(trans_info);
00162
00163         // Typically, we would ensure that trans_info is not empty.
00164         // However, when using RTPS, trans_info will be empty so don't check.
00165
00166         // Populate the userdata.
00167         qos.user_data.value.length(3);
00168         qos.user_data.value[0] = (conn.connection_id_ >> 0) & 0xFF;
00169         qos.user_data.value[1] = (conn.connection_id_ >> 8) & 0xFF;
00170         qos.user_data.value[2] = (conn.connection_id_ >> 16) & 0xFF;
00171
00172         OpenDDS::DCPS::EndpointRegistry::Writer w(topic_name, qos, publisher_qos, conn.config_name(), trans_info);
00173         OpenDDS::DCPS::StaticDiscovery::instance()->registry.writer_map.insert(std::make_pair(id, w));
00174       }
00175       break;
00176     case FACE::DESTINATION:
00177       {
00178         OPENDDS_STRING topic_name = conn.topic_name_;
00179
00180         DDS::DataReaderQos qos(TheServiceParticipant->initial_DataReaderQos());
00181         if (conn.datareader_qos_set()) {
00182           QosMap::const_iterator p = qos_map_.find(conn.datareader_qos_name());
00183           if (p != qos_map_.end()) {
00184             p->second.apply_to(qos);
00185           } else {
00186             ACE_ERROR((LM_ERROR,
00187                        ACE_TEXT("(%P|%t) ERROR: Could not find datareaderqos/%s\n"),
00188                        conn.datawriter_qos_name()));
00189             return -1;
00190           }
00191         }
00192
00193         DDS::SubscriberQos subscriber_qos(TheServiceParticipant->initial_SubscriberQos());
00194         if (conn.subscriber_qos_set()) {
00195           QosMap::const_iterator p = qos_map_.find(conn.subscriber_qos_name());
00196           if (p != qos_map_.end()) {
00197             p->second.apply_to(subscriber_qos);
00198           } else {
00199             ACE_ERROR((LM_ERROR,
00200                        ACE_TEXT("(%P|%t) ERROR: Could not find subscriberqos/%s\n"),
00201                        conn.subscriber_qos_name()));
00202             return -1;
00203           }
00204         }
00205
00206         DCPS::TransportLocatorSeq trans_info;
00207
00208         OpenDDS::DCPS::TransportConfig_rch config;
00209
00210         if (conn.config_set()) {
00211           config = TheTransportRegistry->get_config(conn.config_name());
00212           if (config.is_nil()) {
00213             ACE_ERROR((LM_ERROR,
00214                        ACE_TEXT("(%P|%t) ERROR: Could not find transport/%s\n"),
00215                        conn.config_name()));
00216             return -1;
00217           }
00218         }
00219
00220         if (config.is_nil()) {
00221           config = TheTransportRegistry->domain_default_config(conn.domain_id_);
00222         }
00223
00224         if (config.is_nil()) {
00225           config = TheTransportRegistry->global_config();
00226         }
00227
00228         config->populate_locators(trans_info);
00229
00230         // Typically, we would ensure that trans_info is not empty.
00231         // However, when using RTPS, trans_info will be empty so don't check.
00232
00233         // Populate the userdata.
00234         qos.user_data.value.length(3);
00235         qos.user_data.value[0] = (conn.connection_id_ >> 0) & 0xFF;
00236         qos.user_data.value[1] = (conn.connection_id_ >> 8) & 0xFF;
00237         qos.user_data.value[2] = (conn.connection_id_ >> 16) & 0xFF;
00238
00239         OpenDDS::DCPS::EndpointRegistry::Reader r(topic_name, qos, subscriber_qos, conn.config_name(), trans_info);
00240         OpenDDS::DCPS::StaticDiscovery::instance()->registry.reader_map.insert(std::make_pair(id, r));
00241       }
00242       break;
00243     case FACE::BI_DIRECTIONAL:
00244     case FACE::ONE_WAY_REQUEST_SOURCE:
00245     case FACE::ONE_WAY_REQUEST_DESTINATION:
00246     case FACE::TWO_WAY_REQUEST_SYNCHRONOUS_SOURCE:
00247     case FACE::TWO_WAY_REQUEST_SYNCHRONOUS_DESTINATION:
00248     case FACE::TWO_WAY_REQUEST_REPLY_ASYNCHRONOUS_SOURCE:
00249     case FACE::TWO_WAY_REQUEST_REPLY_ASYNCHRONOUS_DESTINATION:
00250     case FACE::NOT_DEFINED_CONNECTION_DIRECTION_TYPE:
00251       break;
00252     }
00253   }
00254
00255   DCPS::StaticDiscovery::instance()->registry.match();
00256
00257   return status;
00258 }

Here is the call graph for this function:

int OpenDDS::FaceTSS::config::Parser::parse_connection ( ACE_Configuration_Heap &  config,
ACE_Configuration_Section_Key &  key,
const char *  connection_name
) [private]

Definition at line 374 of file Parser.cpp.

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), connection_map_, ACE_Configuration_Heap::enumerate_values(), ACE_Configuration_Heap::get_string_value(), LM_ERROR, OpenDDS::FaceTSS::config::ConnectionSettings::set(), status, and ACE_Configuration::STRING.

Referenced by parse_sections().

00377 {
00378   int status = 0;
00379   int value_index = 0;
00380   ACE_TString value_name, value;
00381   ACE_Configuration::VALUETYPE value_type;
00382
00383   ConnectionSettings connection;
00384
00385   while (!config.enumerate_values(key,
00386                                   value_index++,
00387                                   value_name,
00388                                   value_type)) {
00389     if (value_type == ACE_Configuration::STRING) {
00390       status = config.get_string_value(key, value_name.c_str(), value);
00391       if (!status) {
00392         status = status || connection.set(value_name.c_str(), value.c_str());
00393       }
00394     } else {
00395       ACE_ERROR((LM_ERROR, ACE_TEXT("unexpected value type %d\n"), value_type));
00396       status = -1;
00397       break;
00398     }
00399   }
00400   if (!status) {
00401     connection_map_[connection_name] = connection;
00402   }
00403   return status;
00404 }

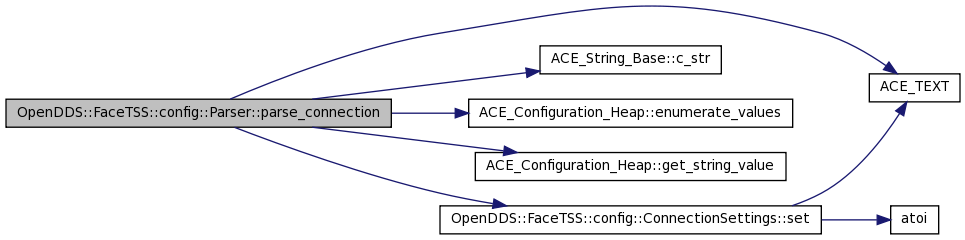

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::FaceTSS::config::Parser::parse_qos ( ACE_Configuration_Heap &  config,
ACE_Configuration_Section_Key &  key,
const char *  qos_name,
QosSettings::QosLevel  level
) [private]

Definition at line 407 of file Parser.cpp.

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), ACE_Configuration_Heap::enumerate_values(), ACE_Configuration_Heap::get_string_value(), LM_ERROR, qos_map_, OpenDDS::FaceTSS::config::QosSettings::set_qos(), status, and ACE_Configuration::STRING.

Referenced by parse_sections().

00411 {
00412   int status = 0;
00413   int value_index = 0;
00414   ACE_TString value_name, value;
00415   ACE_Configuration::VALUETYPE value_type;
00416
00417   // Find existing or create new settings
00418   QosSettings& qos = qos_map_[qos_name];
00419
00420   while (!config.enumerate_values(key,
00421                                   value_index++,
00422                                   value_name,
00423                                   value_type)) {
00424     if (value_type == ACE_Configuration::STRING) {
00425       status = config.get_string_value(key, value_name.c_str(), value);
00426       if (!status) {
00427         status = status ||
00428                  qos.set_qos(level, value_name.c_str(), value.c_str());
00429       }
00430     } else {
00431       ACE_ERROR((LM_ERROR, ACE_TEXT("unexpected value type %d\n"), value_type));
00432       status = -1;
00433       break;
00434     }
00435   }
00436   return status;
00437 }

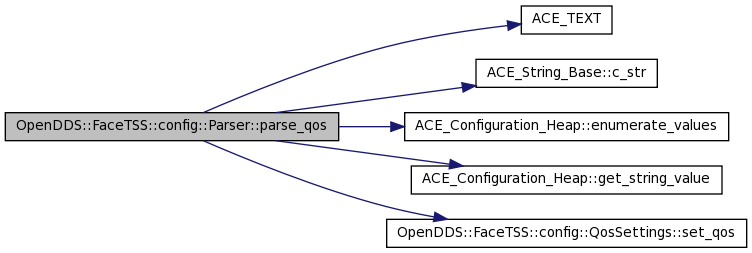

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::FaceTSS::config::Parser::parse_sections ( ACE_Configuration_Heap &  config,
const char *  section_type,
bool  required
) [private]

Definition at line 440 of file Parser.cpp.

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), OpenDDS::FaceTSS::config::QosSettings::datareader, OpenDDS::FaceTSS::config::QosSettings::datawriter, ACE_Configuration_Heap::enumerate_sections(), LM_ERROR, ACE_Configuration_Heap::open_section(), parse_connection(), parse_qos(), parse_topic(), OpenDDS::FaceTSS::config::QosSettings::publisher, ACE_Configuration::root_section(), status, and OpenDDS::FaceTSS::config::QosSettings::subscriber.

Referenced by parse().

00443 {
00444   int status = 0;
00445   ACE_Configuration_Section_Key key;
00446   // If we can't open this section
00447   if (config.open_section(config.root_section(),
00448                           section_type,
00449                           0, // don't create if missing
00450                           key) != 0) {
00451     if (required) {
00452       ACE_ERROR((LM_ERROR, ACE_TEXT("Could not open %C section in config file, status %d\n"), section_type, status));
00453       status = -1;
00454     }
00455   // Else, we can open this section
00456   } else {
00457     // Open subsections
00458     int section_index = 0;
00459     ACE_TString section_name;
00460
00461     while (!config.enumerate_sections(key,
00462                                       section_index++,
00463                                       section_name)) {
00464       ACE_Configuration_Section_Key subkey;
00465       // Open subsection
00466       if (config.open_section(key,
00467                               section_name.c_str(),
00468                               0, // don't create if missing
00469                               subkey) != 0) {
00470         ACE_ERROR((LM_ERROR, ACE_TEXT("Could not open subsections of %C\n"), section_name.c_str()));
00471         break;
00472       }
00473
00474       if (std::strcmp(section_type, CONNECTION_SECTION) == 0) {
00475         status = parse_connection(config, subkey, section_name.c_str());
00476       } else if (std::strcmp(section_type, TOPIC_SECTION) == 0) {
00477         status = parse_topic(config, subkey, section_name.c_str());
00478       } else if (std::strcmp(section_type, DATAWRITER_QOS_SECTION) == 0) {
00479         status = parse_qos(
00480             config, subkey, section_name.c_str(), QosSettings::datawriter);
00481       } else if (std::strcmp(section_type, DATAREADER_QOS_SECTION) == 0) {
00482         status = parse_qos(
00483             config, subkey, section_name.c_str(), QosSettings::datareader);
00484       } else if (std::strcmp(section_type, PUBLISHER_QOS_SECTION) == 0) {
00485         status = parse_qos(
00486             config, subkey, section_name.c_str(), QosSettings::publisher);
00487       } else if (std::strcmp(section_type, SUBSCRIBER_QOS_SECTION) == 0) {
00488         status = parse_qos(
00489             config, subkey, section_name.c_str(), QosSettings::subscriber);
00490       } else {
00491         ACE_ERROR((LM_ERROR, ACE_TEXT("unknown section %C\n"), section_type));
00492       }
00493     }
00494   }
00495   return status;
00496 }

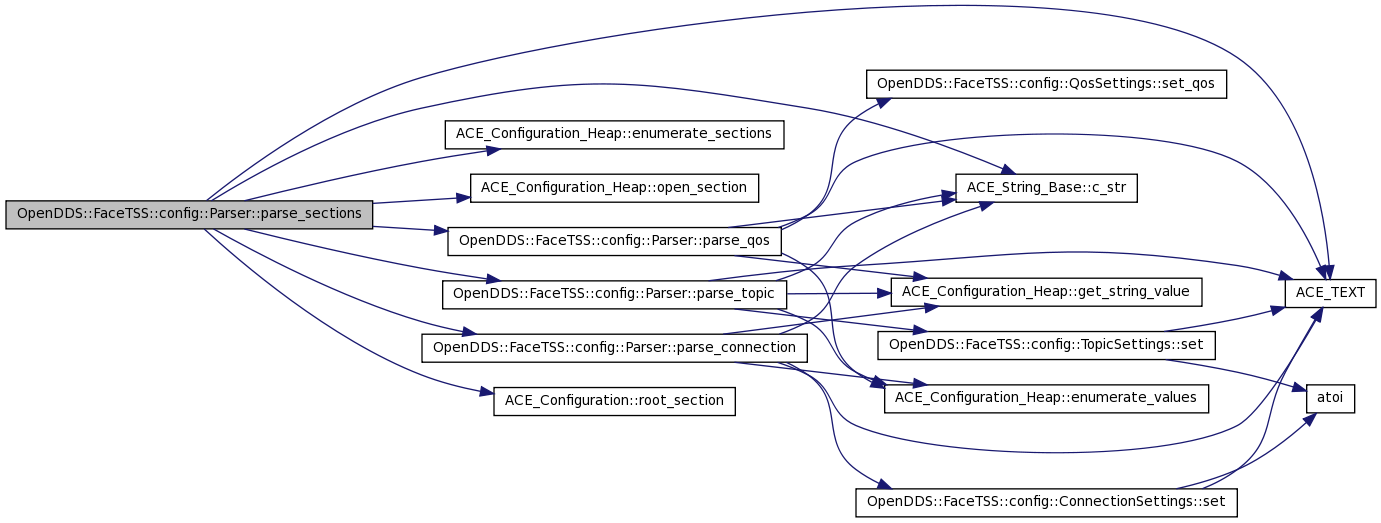

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::FaceTSS::config::Parser::parse_topic ( ACE_Configuration_Heap &  config,
ACE_Configuration_Section_Key &  key,
const char *  topic_name
) [private]

Definition at line 341 of file Parser.cpp.

References ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), ACE_Configuration_Heap::enumerate_values(), ACE_Configuration_Heap::get_string_value(), LM_ERROR, OpenDDS::FaceTSS::config::TopicSettings::set(), status, ACE_Configuration::STRING, and topic_map_.

Referenced by parse_sections().

00344 {
00345   int status = 0;
00346   int value_index = 0;
00347   ACE_TString value_name, value;
00348   ACE_Configuration::VALUETYPE value_type;
00349
00350   TopicSettings topic;
00351
00352   while (!config.enumerate_values(key,
00353                                   value_index++,
00354                                   value_name,
00355                                   value_type)) {
00356     if (value_type == ACE_Configuration::STRING) {
00357       status = config.get_string_value(key, value_name.c_str(), value);
00358       if (!status) {
00359         status = status || topic.set(value_name.c_str(), value.c_str());
00360       }
00361     } else {
00362       ACE_ERROR((LM_ERROR, ACE_TEXT("unexpected value type %d\n"), value_type));
00363       status = -1;
00364       break;
00365     }
00366   }
00367   if (!status) {
00368     topic_map_[topic_name] = topic;
00369   }
00370   return status;
00371 }

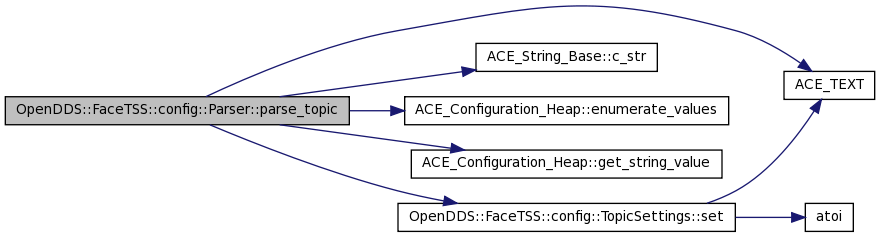

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

ConnectionMap OpenDDS::FaceTSS::config::Parser::connection_map_ [static, private]

Definition at line 27 of file Parser.h.

Referenced by find_connection(), parse(), and parse_connection().

QosMap OpenDDS::FaceTSS::config::Parser::qos_map_ [static, private]

Definition at line 28 of file Parser.h.

Referenced by find_qos(), parse(), and parse_qos().

TopicMap OpenDDS::FaceTSS::config::Parser::topic_map_ [static, private]

Definition at line 29 of file Parser.h.

Referenced by find_topic(), and parse_topic().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
