OpenDDS::DCPS::StaticDiscovery Class Reference

#include <StaticDiscovery.h>

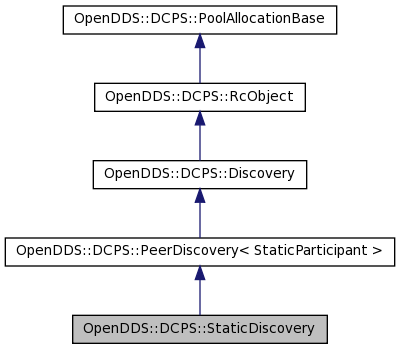

Inheritance diagram for OpenDDS::DCPS::StaticDiscovery:

[legend]

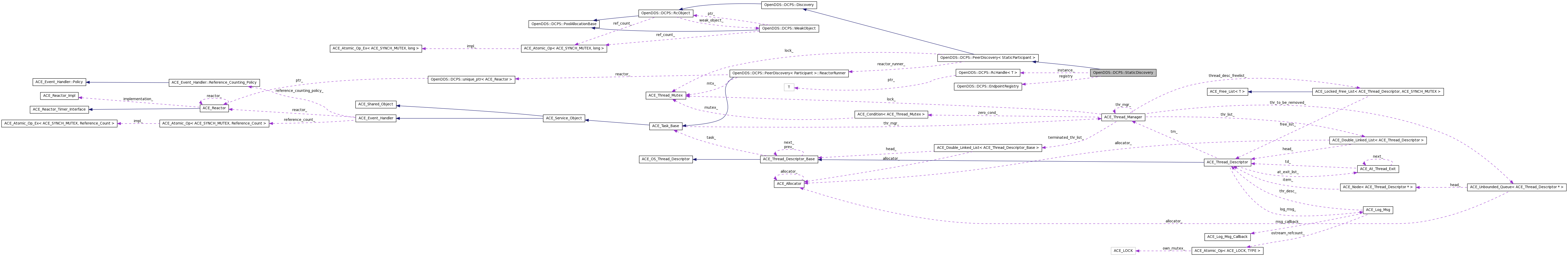

Collaboration diagram for OpenDDS::DCPS::StaticDiscovery:

[legend]

List of all members.

Public Member Functions
	StaticDiscovery (const RepoKey &key)
int	load_configuration (ACE_Configuration_Heap &config)
virtual OpenDDS::DCPS::RepoId	generate_participant_guid ()
virtual AddDomainStatus	add_domain_participant (DDS::DomainId_t domain, const DDS::DomainParticipantQos &qos)
Static Public Member Functions
static StaticDiscovery_rch	instance ()
Public Attributes
EndpointRegistry	registry
Private Member Functions

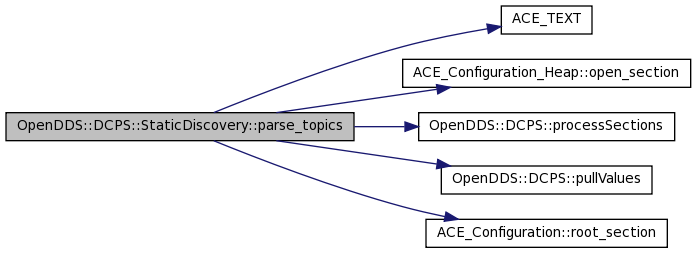

int	parse_topics (ACE_Configuration_Heap &cf)
int	parse_datawriterqos (ACE_Configuration_Heap &cf)
int	parse_datareaderqos (ACE_Configuration_Heap &cf)

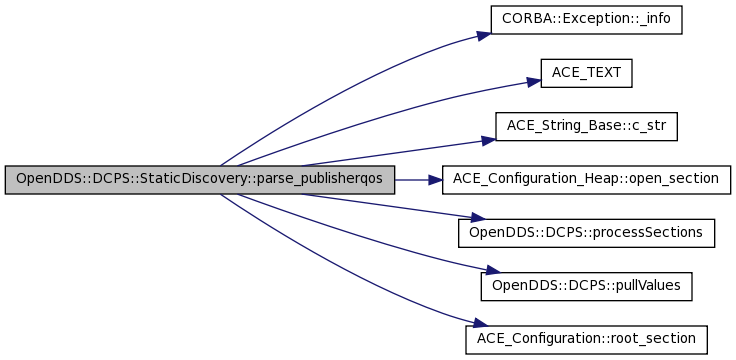

int	parse_publisherqos (ACE_Configuration_Heap &cf)
int	parse_subscriberqos (ACE_Configuration_Heap &cf)
int	parse_endpoints (ACE_Configuration_Heap &cf)
void	pre_writer (DataWriterImpl *writer)
void	pre_reader (DataReaderImpl *reader)
Static Private Attributes
static StaticDiscovery_rch	instance_

---

Detailed Description

Definition at line 239 of file StaticDiscovery.h.

---

Constructor & Destructor Documentation

OpenDDS::DCPS::StaticDiscovery::StaticDiscovery

(

const RepoKey &

key

)

[explicit]

Definition at line 610 of file StaticDiscovery.cpp.

  : PeerDiscovery<StaticParticipant>(key)
{}

---

Member Function Documentation

AddDomainStatus OpenDDS::DCPS::StaticDiscovery::add_domain_participant	(	DDS::DomainId_t	domain,
		const DDS::DomainParticipantQos &	qos
	)			[virtual]

Implements OpenDDS::DCPS::Discovery.

Definition at line 680 of file StaticDiscovery.cpp.

References ACE_TEXT(), OpenDDS::DCPS::EndpointRegistry::build_id(), OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::DCPS::PeerDiscovery< StaticParticipant >::get_part(), OpenDDS::DCPS::AddDomainStatus::id, OpenDDS::DCPS::RcHandle< T >::is_nil(), LM_ERROR, OpenDDS::DCPS::PeerDiscovery< StaticParticipant >::lock_, OpenDDS::DCPS::PeerDiscovery< StaticParticipant >::participants_, OpenDDS::DCPS::ref(), registry, and DDS::DomainParticipantQos::user_data.

{
  AddDomainStatus ads = {RepoId(), false /*federated*/};

  if (qos.user_data.value.length() != BYTES_IN_PARTICIPANT) {
    ACE_ERROR((LM_ERROR,
                ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::add_domain_participant ")
                ACE_TEXT("No userdata to identify participant\n")));
    return ads;
  }

  RepoId id = EndpointRegistry::build_id(domain,
                                         qos.user_data.value.get_buffer(),
                                         ENTITYID_PARTICIPANT);
  if (!get_part(domain, id).is_nil()) {
    ACE_ERROR((LM_ERROR,
                ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::add_domain_participant ")
                ACE_TEXT("Duplicate participant\n")));
    return ads;
  }

  const RcHandle<StaticParticipant> participant (make_rch<StaticParticipant>(ref(id), qos, registry));

  {
    ACE_GUARD_RETURN(ACE_Thread_Mutex, g, lock_, ads);
    participants_[domain][id] = participant;
  }

  ads.id = id;
  return ads;
}

Here is the call graph for this function:

OpenDDS::DCPS::RepoId OpenDDS::DCPS::StaticDiscovery::generate_participant_guid

(

)

[virtual]

Implements OpenDDS::DCPS::Discovery.

Definition at line 674 of file StaticDiscovery.cpp.

References OpenDDS::DCPS::GUID_UNKNOWN.

{
  return GUID_UNKNOWN;
}

static StaticDiscovery_rch OpenDDS::DCPS::StaticDiscovery::instance

(

void

)

[inline, static]

Definition at line 263 of file StaticDiscovery.h.

Referenced by OpenDDS::DCPS::Service_Participant::load_configuration(), OpenDDS::FaceTSS::config::Parser::parse(), pre_reader(), and pre_writer().

{ return instance_; }

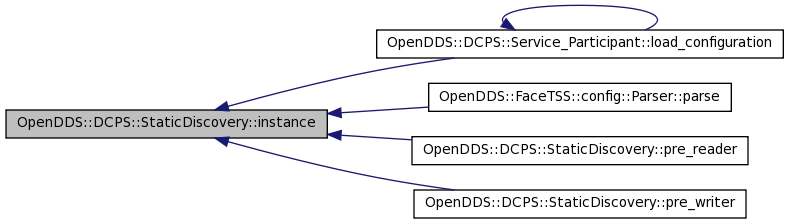

Here is the caller graph for this function:

int OpenDDS::DCPS::StaticDiscovery::load_configuration

(

ACE_Configuration_Heap &

config

)

Definition at line 793 of file StaticDiscovery.cpp.

References OpenDDS::DCPS::EndpointRegistry::match(), parse_datareaderqos(), parse_datawriterqos(), parse_endpoints(), parse_publisherqos(), parse_subscriberqos(), parse_topics(), and registry.

{
  if (parse_topics(cf) ||
      parse_datawriterqos(cf) ||
      parse_datareaderqos(cf) ||
      parse_publisherqos(cf) ||
      parse_subscriberqos(cf) ||
      parse_endpoints(cf)) {
    return -1;
  }

  registry.match();

  return 0;
}

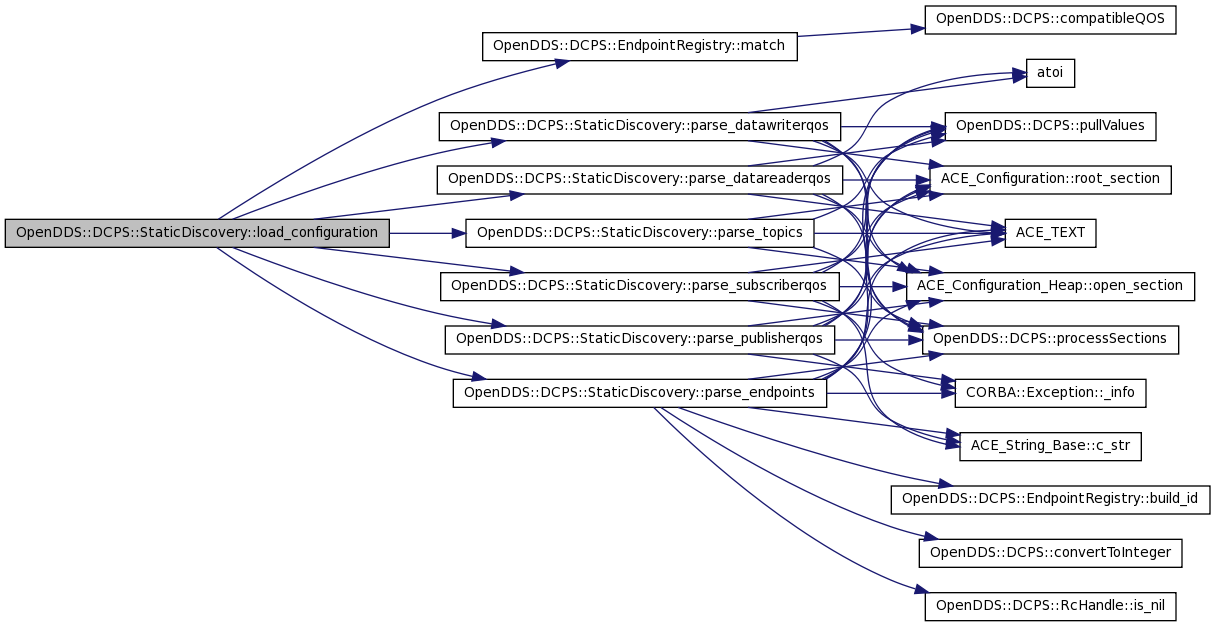

Here is the call graph for this function:

int OpenDDS::DCPS::StaticDiscovery::parse_datareaderqos

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 1087 of file StaticDiscovery.cpp.

References ACE_TEXT(), atoi(), DDS::AUTOMATIC_LIVELINESS_QOS, DDS::BEST_EFFORT_RELIABILITY_QOS, DDS::BY_RECEPTION_TIMESTAMP_DESTINATIONORDER_QOS, DDS::BY_SOURCE_TIMESTAMP_DESTINATIONORDER_QOS, OpenDDS::DCPS::EndpointRegistry::datareaderqos_map, OpenDDS::DCPS::DCPS_debug_level, DDS::KEEP_ALL_HISTORY_QOS, DDS::KEEP_LAST_HISTORY_QOS, LM_ERROR, LM_NOTICE, DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS, DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, DDS::PERSISTENT_DURABILITY_QOS, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), registry, DDS::RELIABLE_RELIABILITY_QOS, ACE_Configuration::root_section(), TheServiceParticipant, DDS::TRANSIENT_DURABILITY_QOS, DDS::TRANSIENT_LOCAL_DURABILITY_QOS, and DDS::VOLATILE_DURABILITY_QOS.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, DATAREADERQOS_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any datareaderqos (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_datareaderqos ")
                  ACE_TEXT("no [%s] sections.\n"),
                  DATAREADERQOS_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [datareaderqos] section.
  // Every key/value must be in a [datareaderqos/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                      ACE_TEXT("[datareaderqos] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                      ACE_TEXT("too many nesting layers in the [datareaderqos] section.\n")),
                      -1);
  }

  // Loop through the [datareaderqos/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING datareaderqos_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_datareaderqos ")
                  ACE_TEXT("processing [datareaderqos/%C] section.\n"),
                  datareaderqos_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);

    DDS::DataReaderQos datareaderqos(TheServiceParticipant->initial_DataReaderQos());

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "durability.kind") {
        if (value == "VOLATILE") {
          datareaderqos.durability.kind = DDS::VOLATILE_DURABILITY_QOS;
        } else if (value == "TRANSIENT_LOCAL") {
          datareaderqos.durability.kind = DDS::TRANSIENT_LOCAL_DURABILITY_QOS;
#ifndef OPENDDS_NO_PERSISTENCE_PROFILE
        } else if (value == "TRANSIENT") {
          datareaderqos.durability.kind = DDS::TRANSIENT_DURABILITY_QOS;
        } else if (value == "PERSISTENT") {
          datareaderqos.durability.kind = DDS::PERSISTENT_DURABILITY_QOS;
#endif
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                            ACE_TEXT("Illegal value for durability.kind (%C) in [datareaderqos/%C] section.\n"),
                            value.c_str(), datareaderqos_name.c_str()),
                            -1);
        }
      } else if (name == "deadline.period.sec") {
        parse_second(datareaderqos.deadline.period.sec, value);
      } else if (name == "deadline.period.nanosec") {
        parse_nanosecond(datareaderqos.deadline.period.nanosec, value);
      } else if (name == "latency_budget.duration.sec") {
        parse_second(datareaderqos.latency_budget.duration.sec, value);
      } else if (name == "latency_budget.duration.nanosec") {
        parse_nanosecond(datareaderqos.latency_budget.duration.nanosec, value);
      } else if (name == "liveliness.kind") {
        if (value == "AUTOMATIC") {
          datareaderqos.liveliness.kind = DDS::AUTOMATIC_LIVELINESS_QOS;
        } else if (value == "MANUAL_BY_TOPIC") {
          datareaderqos.liveliness.kind = DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS;
        } else if (value == "MANUAL_BY_PARTICIPANT") {
          datareaderqos.liveliness.kind = DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                            ACE_TEXT("Illegal value for liveliness.kind (%C) in [datareaderqos/%C] section.\n"),
                            value.c_str(), datareaderqos_name.c_str()),
                            -1);
        }
      } else if (name == "liveliness.lease_duration.sec") {
        parse_second(datareaderqos.liveliness.lease_duration.sec, value);
      } else if (name == "liveliness.lease_duration.nanosec") {
        parse_nanosecond(datareaderqos.liveliness.lease_duration.nanosec, value);
      } else if (name == "reliability.kind") {
        if (value == "BEST_EFFORT") {
          datareaderqos.reliability.kind = DDS::BEST_EFFORT_RELIABILITY_QOS;
        } else if (value == "RELIABLE") {
          datareaderqos.reliability.kind = DDS::RELIABLE_RELIABILITY_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                            ACE_TEXT("Illegal value for reliability.kind (%C) in [datareaderqos/%C] section.\n"),
                            value.c_str(), datareaderqos_name.c_str()),
                            -1);
        }
      } else if (name == "reliability.max_blocking_time.sec") {
        parse_second(datareaderqos.reliability.max_blocking_time.sec, value);
      } else if (name == "reliability.max_blocking_time.nanosec") {
        parse_nanosecond(datareaderqos.reliability.max_blocking_time.nanosec, value);
      } else if (name == "destination_order.kind") {
        if (value == "BY_RECEPTION_TIMESTAMP") {
          datareaderqos.destination_order.kind = DDS::BY_RECEPTION_TIMESTAMP_DESTINATIONORDER_QOS;
        } else if (value == "BY_SOURCE_TIMESTAMP") {
          datareaderqos.destination_order.kind = DDS::BY_SOURCE_TIMESTAMP_DESTINATIONORDER_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                            ACE_TEXT("Illegal value for destination_order.kind (%C) in [datareaderqos/%C] section.\n"),
                            value.c_str(), datareaderqos_name.c_str()),
                            -1);
        }
      } else if (name == "history.kind") {
        if (value == "KEEP_ALL") {
          datareaderqos.history.kind = DDS::KEEP_ALL_HISTORY_QOS;
        } else if (value == "KEEP_LAST") {
          datareaderqos.history.kind = DDS::KEEP_LAST_HISTORY_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                            ACE_TEXT("Illegal value for history.kind (%C) in [datareaderqos/%C] section.\n"),
                            value.c_str(), datareaderqos_name.c_str()),
                            -1);
        }
      } else if (name == "history.depth") {
        datareaderqos.history.depth = atoi(value.c_str());
      } else if (name == "resource_limits.max_samples") {
        datareaderqos.resource_limits.max_samples = atoi(value.c_str());
      } else if (name == "resource_limits.max_instances") {
        datareaderqos.resource_limits.max_instances = atoi(value.c_str());
      } else if (name == "resource_limits.max_samples_per_instance") {
        datareaderqos.resource_limits.max_samples_per_instance = atoi(value.c_str());
      } else if (name == "time_based_filter.minimum_separation.sec") {
        parse_second(datareaderqos.time_based_filter.minimum_separation.sec, value);
      } else if (name == "time_based_filter.minimum_separation.nanosec") {
        parse_nanosecond(datareaderqos.time_based_filter.minimum_separation.nanosec, value);
      } else if (name == "reader_data_lifecycle.autopurge_nowriter_samples_delay.sec") {
        parse_second(datareaderqos.reader_data_lifecycle.autopurge_nowriter_samples_delay.sec, value);
      } else if (name == "reader_data_lifecycle.autopurge_nowriter_samples_delay.nanosec") {
        parse_nanosecond(datareaderqos.reader_data_lifecycle.autopurge_nowriter_samples_delay.nanosec, value);
      } else if (name == "reader_data_lifecycle.autopurge_disposed_samples_delay.sec") {
        parse_second(datareaderqos.reader_data_lifecycle.autopurge_disposed_samples_delay.sec, value);
      } else if (name == "reader_data_lifecycle.autopurge_disposed_samples_delay.nanosec") {
        parse_nanosecond(datareaderqos.reader_data_lifecycle.autopurge_disposed_samples_delay.nanosec, value);
      } else {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) StaticDiscovery::parse_datareaderqos ")
                          ACE_TEXT("Unexpected entry (%C) in [datareaderqos/%C] section.\n"),
                          name.c_str(), datareaderqos_name.c_str()),
                          -1);
      }
    }

    registry.datareaderqos_map[datareaderqos_name] = datareaderqos;
  }

  return 0;
}

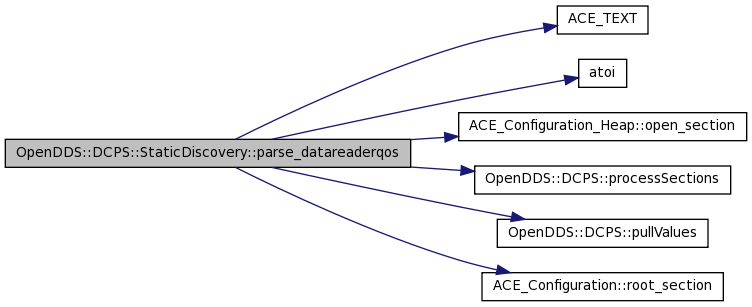

Here is the call graph for this function:

Here is the caller graph for this function:

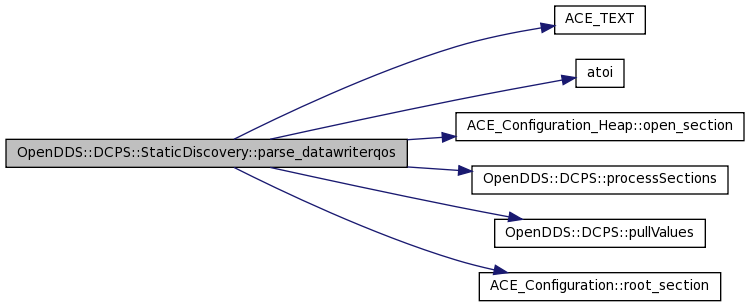

int OpenDDS::DCPS::StaticDiscovery::parse_datawriterqos

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 904 of file StaticDiscovery.cpp.

References ACE_TEXT(), atoi(), DDS::AUTOMATIC_LIVELINESS_QOS, DDS::BEST_EFFORT_RELIABILITY_QOS, DDS::BY_RECEPTION_TIMESTAMP_DESTINATIONORDER_QOS, DDS::BY_SOURCE_TIMESTAMP_DESTINATIONORDER_QOS, OpenDDS::DCPS::EndpointRegistry::datawriterqos_map, OpenDDS::DCPS::DCPS_debug_level, DDS::EXCLUSIVE_OWNERSHIP_QOS, DDS::KEEP_ALL_HISTORY_QOS, DDS::KEEP_LAST_HISTORY_QOS, LM_ERROR, LM_NOTICE, DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS, DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, DDS::PERSISTENT_DURABILITY_QOS, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), registry, DDS::RELIABLE_RELIABILITY_QOS, ACE_Configuration::root_section(), DDS::SHARED_OWNERSHIP_QOS, TheServiceParticipant, DDS::TRANSIENT_DURABILITY_QOS, DDS::TRANSIENT_LOCAL_DURABILITY_QOS, and DDS::VOLATILE_DURABILITY_QOS.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, DATAWRITERQOS_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any datawriterqos (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_datawriterqos ")
                  ACE_TEXT("no [%s] sections.\n"),
                  DATAWRITERQOS_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [datawriterqos] section.
  // Every key/value must be in a [datawriterqos/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                      ACE_TEXT("[datawriterqos] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                      ACE_TEXT("too many nesting layers in the [datawriterqos] section.\n")),
                      -1);
  }

  // Loop through the [datawriterqos/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING datawriterqos_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_datawriterqos ")
                  ACE_TEXT("processing [datawriterqos/%C] section.\n"),
                  datawriterqos_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);

    DDS::DataWriterQos datawriterqos(TheServiceParticipant->initial_DataWriterQos());

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "durability.kind") {
        if (value == "VOLATILE") {
          datawriterqos.durability.kind = DDS::VOLATILE_DURABILITY_QOS;
        } else if (value == "TRANSIENT_LOCAL") {
          datawriterqos.durability.kind = DDS::TRANSIENT_LOCAL_DURABILITY_QOS;
#ifndef OPENDDS_NO_PERSISTENCE_PROFILE
        } else if (value == "TRANSIENT") {
          datawriterqos.durability.kind = DDS::TRANSIENT_DURABILITY_QOS;
        } else if (value == "PERSISTENT") {
          datawriterqos.durability.kind = DDS::PERSISTENT_DURABILITY_QOS;
#endif
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for durability.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "deadline.period.sec") {
        parse_second(datawriterqos.deadline.period.sec, value);
      } else if (name == "deadline.period.nanosec") {
        parse_nanosecond(datawriterqos.deadline.period.nanosec, value);
      } else if (name == "latency_budget.duration.sec") {
        parse_second(datawriterqos.latency_budget.duration.sec, value);
      } else if (name == "latency_budget.duration.nanosec") {
        parse_nanosecond(datawriterqos.latency_budget.duration.nanosec, value);
      } else if (name == "liveliness.kind") {
        if (value == "AUTOMATIC") {
          datawriterqos.liveliness.kind = DDS::AUTOMATIC_LIVELINESS_QOS;
        } else if (value == "MANUAL_BY_TOPIC") {
          datawriterqos.liveliness.kind = DDS::MANUAL_BY_TOPIC_LIVELINESS_QOS;
        } else if (value == "MANUAL_BY_PARTICIPANT") {
          datawriterqos.liveliness.kind = DDS::MANUAL_BY_PARTICIPANT_LIVELINESS_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for liveliness.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "liveliness.lease_duration.sec") {
        parse_second(datawriterqos.liveliness.lease_duration.sec, value);
      } else if (name == "liveliness.lease_duration.nanosec") {
        parse_nanosecond(datawriterqos.liveliness.lease_duration.nanosec, value);
      } else if (name == "reliability.kind") {
        if (value == "BEST_EFFORT") {
          datawriterqos.reliability.kind = DDS::BEST_EFFORT_RELIABILITY_QOS;
        } else if (value == "RELIABLE") {
          datawriterqos.reliability.kind = DDS::RELIABLE_RELIABILITY_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for reliability.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "reliability.max_blocking_time.sec") {
        parse_second(datawriterqos.reliability.max_blocking_time.sec, value);
      } else if (name == "reliability.max_blocking_time.nanosec") {
        parse_nanosecond(datawriterqos.reliability.max_blocking_time.nanosec, value);
      } else if (name == "destination_order.kind") {
        if (value == "BY_RECEPTION_TIMESTAMP") {
          datawriterqos.destination_order.kind = DDS::BY_RECEPTION_TIMESTAMP_DESTINATIONORDER_QOS;
        } else if (value == "BY_SOURCE_TIMESTAMP") {
          datawriterqos.destination_order.kind = DDS::BY_SOURCE_TIMESTAMP_DESTINATIONORDER_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for destination_order.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "history.kind") {
        if (value == "KEEP_ALL") {
          datawriterqos.history.kind = DDS::KEEP_ALL_HISTORY_QOS;
        } else if (value == "KEEP_LAST") {
          datawriterqos.history.kind = DDS::KEEP_LAST_HISTORY_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for history.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "history.depth") {
        datawriterqos.history.depth = atoi(value.c_str());
      } else if (name == "resource_limits.max_samples") {
        datawriterqos.resource_limits.max_samples = atoi(value.c_str());
      } else if (name == "resource_limits.max_instances") {
        datawriterqos.resource_limits.max_instances = atoi(value.c_str());
      } else if (name == "resource_limits.max_samples_per_instance") {
        datawriterqos.resource_limits.max_samples_per_instance = atoi(value.c_str());
      } else if (name == "transport_priority.value") {
        datawriterqos.transport_priority.value = atoi(value.c_str());
      } else if (name == "lifespan.duration.sec") {
        parse_second(datawriterqos.lifespan.duration.sec, value);
      } else if (name == "lifespan.duration.nanosec") {
        parse_nanosecond(datawriterqos.lifespan.duration.nanosec, value);
      } else if (name == "ownership.kind") {
        if (value == "SHARED") {
          datawriterqos.ownership.kind = DDS::SHARED_OWNERSHIP_QOS;
        } else if (value == "EXCLUSIVE") {
          datawriterqos.ownership.kind = DDS::EXCLUSIVE_OWNERSHIP_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                            ACE_TEXT("Illegal value for ownership.kind (%C) in [datawriterqos/%C] section.\n"),
                            value.c_str(), datawriterqos_name.c_str()),
                            -1);
        }
      } else if (name == "ownership_strength.value") {
        datawriterqos.ownership_strength.value = atoi(value.c_str());
      } else {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) StaticDiscovery::parse_datawriterqos ")
                          ACE_TEXT("Unexpected entry (%C) in [datawriterqos/%C] section.\n"),
                          name.c_str(), datawriterqos_name.c_str()),
                          -1);
      }
    }

    registry.datawriterqos_map[datawriterqos_name] = datawriterqos;
  }

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::StaticDiscovery::parse_endpoints

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 1493 of file StaticDiscovery.cpp.

References CORBA::Exception::_info(), ACE_TEXT(), OpenDDS::DCPS::EndpointRegistry::build_id(), ACE_String_Base< ACE_CHAR_T >::c_str(), OpenDDS::DCPS::convertToInteger(), OpenDDS::DCPS::EndpointRegistry::datareaderqos_map, OpenDDS::DCPS::EndpointRegistry::datawriterqos_map, OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::EntityId_t::entityKey, OpenDDS::DCPS::ENTITYKIND_USER_READER_WITH_KEY, OpenDDS::DCPS::ENTITYKIND_USER_WRITER_WITH_KEY, OpenDDS::DCPS::RcHandle< T >::is_nil(), LM_DEBUG, LM_ERROR, LM_NOTICE, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::EndpointRegistry::publisherqos_map, OpenDDS::DCPS::pullValues(), OpenDDS::DCPS::EndpointRegistry::reader_map, registry, ACE_Configuration::root_section(), OpenDDS::DCPS::EndpointRegistry::subscriberqos_map, TheServiceParticipant, TheTransportRegistry, OpenDDS::DCPS::EndpointRegistry::topic_map, and OpenDDS::DCPS::EndpointRegistry::writer_map.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, ENDPOINT_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any endpoint (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_endpoints ")
                  ACE_TEXT("no [%s] sections.\n"),
                  ENDPOINT_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [endpoint] section.
  // Every key/value must be in a [endpoint/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                      ACE_TEXT("[endpoint] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                      ACE_TEXT("too many nesting layers in the [endpoint] section.\n")),
                      -1);
  }

  // Loop through the [endpoint/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING endpoint_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_endpoints ")
                  ACE_TEXT("processing [endpoint/%C] section.\n"),
                  endpoint_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);
    int domain = 0;
    unsigned char participant[6];
    unsigned char entity[3];
    enum Type {
      Reader,
      Writer
    };
    Type type = Reader; // avoid warning
    OPENDDS_STRING topic_name;
    DDS::DataWriterQos datawriterqos(TheServiceParticipant->initial_DataWriterQos());
    DDS::DataReaderQos datareaderqos(TheServiceParticipant->initial_DataReaderQos());
    DDS::PublisherQos publisherqos(TheServiceParticipant->initial_PublisherQos());
    DDS::SubscriberQos subscriberqos(TheServiceParticipant->initial_SubscriberQos());
    TransportLocatorSeq trans_info;
    OPENDDS_STRING config_name;

    bool domain_specified = false,
      participant_specified = false,
      entity_specified = false,
      type_specified = false,
      topic_name_specified = false,
      config_name_specified = false;

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "domain") {
        if (convertToInteger(value, domain)) {
          domain_specified = true;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal integer value for domain (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "participant") {
#ifdef __SUNPRO_CC
        int count = 0; std::count_if(value.begin(), value.end(), isxdigit, count);
#else
        int count = std::count_if(value.begin(), value.end(), isxdigit);
#endif
        if (value.size() != HEX_DIGITS_IN_PARTICIPANT || static_cast<size_t>(count) != HEX_DIGITS_IN_PARTICIPANT) {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("participant (%C) must be 12 hexadecimal digits in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }

        for (size_t idx = 0; idx != BYTES_IN_PARTICIPANT; ++idx) {
          participant[idx] = fromhex(value, idx);
        }
        participant_specified = true;
      } else if (name == "entity") {
#ifdef __SUNPRO_CC
        int count = 0; std::count_if(value.begin(), value.end(), isxdigit, count);
#else
        int count = std::count_if(value.begin(), value.end(), isxdigit);
#endif
        if (value.size() != HEX_DIGITS_IN_ENTITY || static_cast<size_t>(count) != HEX_DIGITS_IN_ENTITY) {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("entity (%C) must be 6 hexadecimal digits in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }

        for (size_t idx = 0; idx != BYTES_IN_ENTITY; ++idx) {
          entity[idx] = fromhex(value, idx);
        }
        entity_specified = true;
      } else if (name == "type") {
        if (value == "reader") {
          type = Reader;
          type_specified = true;
        } else if (value == "writer") {
          type = Writer;
          type_specified = true;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal string value for type (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "topic") {
        EndpointRegistry::TopicMapType::const_iterator pos = this->registry.topic_map.find(value);
        if (pos != this->registry.topic_map.end()) {
          topic_name = pos->second.name;
          topic_name_specified = true;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal topic reference (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "datawriterqos") {
        EndpointRegistry::DataWriterQosMapType::const_iterator pos = this->registry.datawriterqos_map.find(value);
        if (pos != this->registry.datawriterqos_map.end()) {
          datawriterqos = pos->second;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal datawriterqos reference (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "publisherqos") {
        EndpointRegistry::PublisherQosMapType::const_iterator pos = this->registry.publisherqos_map.find(value);
        if (pos != this->registry.publisherqos_map.end()) {
          publisherqos = pos->second;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal publisherqos reference (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "datareaderqos") {
        EndpointRegistry::DataReaderQosMapType::const_iterator pos = this->registry.datareaderqos_map.find(value);
        if (pos != this->registry.datareaderqos_map.end()) {
          datareaderqos = pos->second;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal datareaderqos reference (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "subscriberqos") {
        EndpointRegistry::SubscriberQosMapType::const_iterator pos = this->registry.subscriberqos_map.find(value);
        if (pos != this->registry.subscriberqos_map.end()) {
          subscriberqos = pos->second;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                            ACE_TEXT("Illegal subscriberqos reference (%C) in [endpoint/%C] section.\n"),
                            value.c_str(), endpoint_name.c_str()),
                            -1);
        }
      } else if (name == "config") {
        config_name = value;
        config_name_specified = true;
      } else {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                          ACE_TEXT("Unexpected entry (%C) in [endpoint/%C] section.\n"),
                          name.c_str(), endpoint_name.c_str()),
                          -1);
      }
    }

    if (!domain_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("No domain specified for [endpoint/%C] section.\n"),
                        endpoint_name.c_str()),
                        -1);
    }

    if (!participant_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("No participant specified for [endpoint/%C] section.\n"),
                        endpoint_name.c_str()),
                        -1);
    }

    if (!entity_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("No entity specified for [endpoint/%C] section.\n"),
                        endpoint_name.c_str()),
                        -1);
    }

    if (!type_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR:StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("No type specified for [endpoint/%C] section.\n"),
                        endpoint_name.c_str()),
                        -1);
    }

    if (!topic_name_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("No topic specified for [endpoint/%C] section.\n"),
                        endpoint_name.c_str()),
                        -1);
    }

    TransportConfig_rch config;

    if (config_name_specified) {
      config = TheTransportRegistry->get_config(config_name);
      if (config.is_nil()) {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                          ACE_TEXT("Illegal config reference (%C) in [endpoint/%C] section.\n"),
                          config_name.c_str(), endpoint_name.c_str()),
                          -1);
      }
    }

    if (config.is_nil() && domain_specified) {
      config = TheTransportRegistry->domain_default_config(domain);
    }

    if (config.is_nil()) {
      config = TheTransportRegistry->global_config();
    }

    try {
      config->populate_locators(trans_info);
    }
    catch (const CORBA::Exception& ex) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                        ACE_TEXT("Exception caught while populating locators for [endpoint/%C] section. %C\n"),
                        endpoint_name.c_str(), ex._info().c_str()),
                        -1);
    }
    if (trans_info.length() == 0) {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                          ACE_TEXT("No locators for [endpoint/%C] section.\n"),
                          endpoint_name.c_str()),
                          -1);
    }

    EntityId_t entity_id = EndpointRegistry::build_id(entity,
      (type == Reader) ? ENTITYKIND_USER_READER_WITH_KEY : ENTITYKIND_USER_WRITER_WITH_KEY);

    RepoId id = EndpointRegistry::build_id(domain, participant, entity_id);

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_DEBUG, ACE_TEXT("(%P|%t) DEBUG: StaticDiscovery::parse_endpoints adding entity with id %C\n"), LogGuid(id).c_str()));
    }

    switch (type) {
    case Reader:
      // Populate the userdata.
      datareaderqos.user_data.value.length(3);
      datareaderqos.user_data.value[0] = entity_id.entityKey[0];
      datareaderqos.user_data.value[1] = entity_id.entityKey[1];
      datareaderqos.user_data.value[2] = entity_id.entityKey[2];

      if (!registry.reader_map.insert(std::make_pair(id,
            EndpointRegistry::Reader(topic_name, datareaderqos, subscriberqos, config_name, trans_info))).second) {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                          ACE_TEXT("Section [endpoint/%C] ignored - duplicate reader.\n"),
                          endpoint_name.c_str()),
                          -1);
      }
      break;
    case Writer:
      // Populate the userdata.
      datawriterqos.user_data.value.length(3);
      datawriterqos.user_data.value[0] = entity_id.entityKey[0];
      datawriterqos.user_data.value[1] = entity_id.entityKey[1];
      datawriterqos.user_data.value[2] = entity_id.entityKey[2];

      if (!registry.writer_map.insert(std::make_pair(id,
            EndpointRegistry::Writer(topic_name, datawriterqos, publisherqos, config_name, trans_info))).second) {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) ERROR: StaticDiscovery::parse_endpoints ")
                          ACE_TEXT("Section [endpoint/%C] ignored - duplicate writer.\n"),
                          endpoint_name.c_str()),
                          -1);
      }
      break;
    }
  }

  return 0;
}

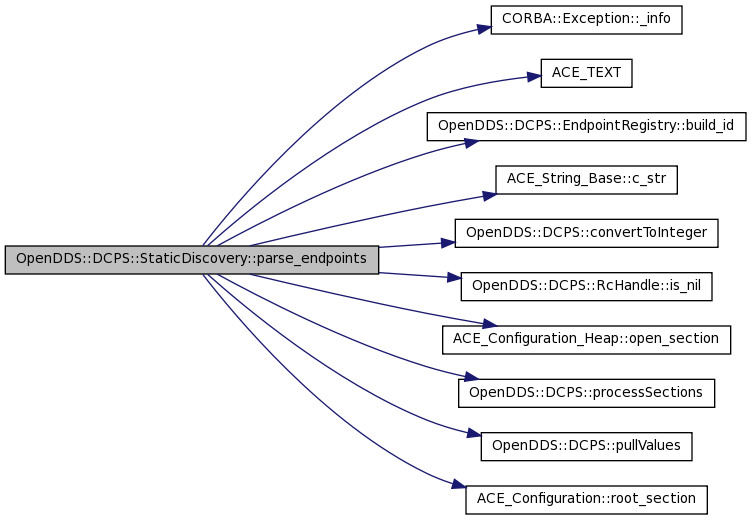

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::StaticDiscovery::parse_publisherqos

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 1262 of file StaticDiscovery.cpp.

References CORBA::Exception::_info(), ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), OpenDDS::DCPS::DCPS_debug_level, DDS::GROUP_PRESENTATION_QOS, DDS::INSTANCE_PRESENTATION_QOS, LM_ERROR, LM_NOTICE, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::EndpointRegistry::publisherqos_map, OpenDDS::DCPS::pullValues(), registry, ACE_Configuration::root_section(), TheServiceParticipant, and DDS::TOPIC_PRESENTATION_QOS.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, PUBLISHERQOS_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any publisherqos (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_publisherqos ")
                  ACE_TEXT("no [%s] sections.\n"),
                  PUBLISHERQOS_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [publisherqos] section.
  // Every key/value must be in a [publisherqos/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                      ACE_TEXT("[publisherqos] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                      ACE_TEXT("too many nesting layers in the [publisherqos] section.\n")),
                      -1);
  }

  // Loop through the [publisherqos/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING publisherqos_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_publisherqos ")
                  ACE_TEXT("processing [publisherqos/%C] section.\n"),
                  publisherqos_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);

    DDS::PublisherQos publisherqos(TheServiceParticipant->initial_PublisherQos());

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "presentation.access_scope") {
        if (value == "INSTANCE") {
          publisherqos.presentation.access_scope = DDS::INSTANCE_PRESENTATION_QOS;
        } else if (value == "TOPIC") {
          publisherqos.presentation.access_scope = DDS::TOPIC_PRESENTATION_QOS;
        } else if (value == "GROUP") {
          publisherqos.presentation.access_scope = DDS::GROUP_PRESENTATION_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                            ACE_TEXT("Illegal value for presentation.access_scope (%C) in [publisherqos/%C] section.\n"),
                            value.c_str(), publisherqos_name.c_str()),
                            -1);
        }
      } else if (name == "presentation.coherent_access") {
        if (parse_bool(publisherqos.presentation.coherent_access, value)) {
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                            ACE_TEXT("Illegal value for presentation.coherent_access (%C) in [publisherqos/%C] section.\n"),
                            value.c_str(), publisherqos_name.c_str()),
                            -1);
        }
      } else if (name == "presentation.ordered_access") {
        if (parse_bool(publisherqos.presentation.ordered_access, value)) {
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                            ACE_TEXT("Illegal value for presentation.ordered_access (%C)")
                            ACE_TEXT("in [publisherqos/%C] section.\n"),
                            value.c_str(), publisherqos_name.c_str()),
                            -1);
        }
      } else if (name == "partition.name") {
        try {
          parse_list(publisherqos.partition, value);
        }
        catch (const CORBA::Exception& ex) {
          ACE_ERROR_RETURN((LM_ERROR,
            ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
            ACE_TEXT("Exception caught while parsing partition.name (%C) ")
            ACE_TEXT("in [publisherqos/%C] section: %C.\n"),
            value.c_str(), publisherqos_name.c_str(), ex._info().c_str()),
            -1);
        }
      } else {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) StaticDiscovery::parse_publisherqos ")
                          ACE_TEXT("Unexpected entry (%C) in [publisherqos/%C] section.\n"),
                          name.c_str(), publisherqos_name.c_str()),
                          -1);
      }
    }

    registry.publisherqos_map[publisherqos_name] = publisherqos;
  }

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::StaticDiscovery::parse_subscriberqos

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 1378 of file StaticDiscovery.cpp.

References CORBA::Exception::_info(), ACE_TEXT(), ACE_String_Base< ACE_CHAR_T >::c_str(), OpenDDS::DCPS::DCPS_debug_level, DDS::GROUP_PRESENTATION_QOS, DDS::INSTANCE_PRESENTATION_QOS, LM_ERROR, LM_NOTICE, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), registry, ACE_Configuration::root_section(), OpenDDS::DCPS::EndpointRegistry::subscriberqos_map, TheServiceParticipant, and DDS::TOPIC_PRESENTATION_QOS.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, SUBSCRIBERQOS_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any subscriberqos (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_subscriberqos ")
                  ACE_TEXT("no [%s] sections.\n"),
                  SUBSCRIBERQOS_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [subscriberqos] section.
  // Every key/value must be in a [subscriberqos/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                      ACE_TEXT("[subscriberqos] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                      ACE_TEXT("too many nesting layers in the [subscriberqos] section.\n")),
                      -1);
  }

  // Loop through the [subscriberqos/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING subscriberqos_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_subscriberqos ")
                  ACE_TEXT("processing [subscriberqos/%C] section.\n"),
                  subscriberqos_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);

    DDS::SubscriberQos subscriberqos(TheServiceParticipant->initial_SubscriberQos());

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "presentation.access_scope") {
        if (value == "INSTANCE") {
          subscriberqos.presentation.access_scope = DDS::INSTANCE_PRESENTATION_QOS;
        } else if (value == "TOPIC") {
          subscriberqos.presentation.access_scope = DDS::TOPIC_PRESENTATION_QOS;
        } else if (value == "GROUP") {
          subscriberqos.presentation.access_scope = DDS::GROUP_PRESENTATION_QOS;
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                            ACE_TEXT("Illegal value for presentation.access_scope (%C) in [subscriberqos/%C] section.\n"),
                            value.c_str(), subscriberqos_name.c_str()),
                            -1);
        }
      } else if (name == "presentation.coherent_access") {
        if (parse_bool(subscriberqos.presentation.coherent_access, value)) {
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                            ACE_TEXT("Illegal value for presentation.coherent_access (%C) in [subscriberqos/%C] section.\n"),
                            value.c_str(), subscriberqos_name.c_str()),
                            -1);
        }
      } else if (name == "presentation.ordered_access") {
        if (parse_bool(subscriberqos.presentation.ordered_access, value)) {
        } else {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                            ACE_TEXT("Illegal value for presentation.ordered_access (%C) in [subscriberqos/%C] section.\n"),
                            value.c_str(), subscriberqos_name.c_str()),
                            -1);
        }
      } else if (name == "partition.name") {
        try {
          parse_list(subscriberqos.partition, value);
        }
        catch (const CORBA::Exception& ex) {
          ACE_ERROR_RETURN((LM_ERROR,
            ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
            ACE_TEXT("Exception caught while parsing partition.name (%C) ")
            ACE_TEXT("in [subscriberqos/%C] section: %C.\n"),
            value.c_str(), subscriberqos_name.c_str(), ex._info().c_str()),
            -1);
        }
      } else {
        ACE_ERROR_RETURN((LM_ERROR,
                          ACE_TEXT("(%P|%t) StaticDiscovery::parse_subscriberqos ")
                          ACE_TEXT("Unexpected entry (%C) in [subscriberqos/%C] section.\n"),
                          name.c_str(), subscriberqos_name.c_str()),
                          -1);
      }
    }

   registry.subscriberqos_map[subscriberqos_name] = subscriberqos;
  }

  return 0;
}

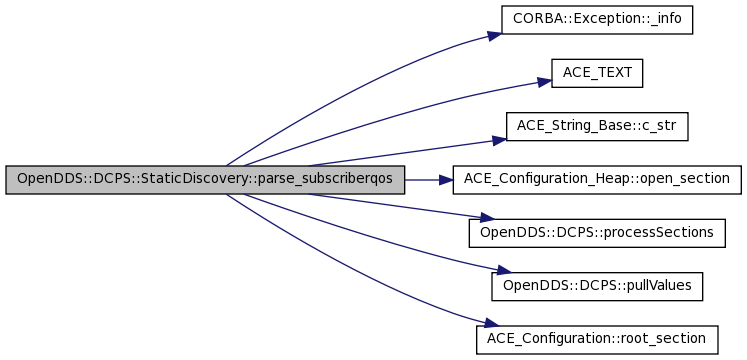

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::StaticDiscovery::parse_topics

(

ACE_Configuration_Heap &

cf

)

[private]

Definition at line 810 of file StaticDiscovery.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DCPS_debug_level, LM_ERROR, LM_NOTICE, OpenDDS::DCPS::EndpointRegistry::Topic::name, ACE_Configuration_Heap::open_section(), OPENDDS_STRING, OpenDDS::DCPS::processSections(), OpenDDS::DCPS::pullValues(), registry, ACE_Configuration::root_section(), OpenDDS::DCPS::EndpointRegistry::topic_map, and OpenDDS::DCPS::EndpointRegistry::Topic::type_name.

Referenced by load_configuration().

{
  const ACE_Configuration_Section_Key& root = cf.root_section();
  ACE_Configuration_Section_Key section;

  if (cf.open_section(root, TOPIC_SECTION_NAME, 0, section) != 0) {
    if (DCPS_debug_level > 0) {
      // This is not an error if the configuration file does not have
      // any topic (sub)section.
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_topics ")
                  ACE_TEXT("no [%s] sections.\n"),
                  TOPIC_SECTION_NAME));
    }
    return 0;
  }

  // Ensure there are no key/values in the [topic] section.
  // Every key/value must be in a [topic/*] sub-section.
  ValueMap vm;
  if (pullValues(cf, section, vm) > 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_topics ")
                      ACE_TEXT("[topic] sections must have a subsection name\n")),
                      -1);
  }
  // Process the subsections of this section
  KeyList keys;
  if (processSections(cf, section, keys) != 0) {
    ACE_ERROR_RETURN((LM_ERROR,
                      ACE_TEXT("(%P|%t) StaticDiscovery::parse_topics ")
                      ACE_TEXT("too many nesting layers in the [topic] section.\n")),
                      -1);
  }

  // Loop through the [topic/*] sections
  for (KeyList::const_iterator it = keys.begin(); it != keys.end(); ++it) {
    OPENDDS_STRING topic_name = it->first;

    if (DCPS_debug_level > 0) {
      ACE_DEBUG((LM_NOTICE,
                  ACE_TEXT("(%P|%t) NOTICE: StaticDiscovery::parse_topics ")
                  ACE_TEXT("processing [topic/%C] section.\n"),
                  topic_name.c_str()));
    }

    ValueMap values;
    pullValues(cf, it->second, values);

    EndpointRegistry::Topic topic;
    bool name_specified = false,
      type_name_specified = false;

    for (ValueMap::const_iterator it = values.begin(); it != values.end(); ++it) {
      OPENDDS_STRING name = it->first;
      OPENDDS_STRING value = it->second;

      if (name == "name") {
        topic.name = value;
        name_specified = true;
      } else if (name == "type_name") {
        if (value.size() >= TYPE_NAME_MAX) {
          ACE_ERROR_RETURN((LM_ERROR,
                            ACE_TEXT("(%P|%t) StaticDiscovery::parse_topics ")
                            ACE_TEXT("type_name (%C) must be less than 128 characters in [topic/%C] section.\n"),
                            value.c_str(), topic_name.c_str()),
                            -1);
        }
        topic.type_name = value;
        type_name_specified = true;
      } else {
        // Typos are ignored to avoid parsing FACE-specific keys.
      }
    }

    if (!name_specified) {
      topic.name = topic_name;
    }

    if (!type_name_specified) {
      ACE_ERROR_RETURN((LM_ERROR,
                        ACE_TEXT("(%P|%t) StaticDiscovery::parse_topics ")
                        ACE_TEXT("No type_name specified for [topic/%C] section.\n"),
                        topic_name.c_str()),
                       -1);
    }

    registry.topic_map[topic_name] = topic;
  }

  return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::StaticDiscovery::pre_reader

(

DataReaderImpl *

reader

)

[private, virtual]

Reimplemented from OpenDDS::DCPS::Discovery.

Definition at line 1853 of file StaticDiscovery.cpp.

References OpenDDS::DCPS::EndpointRegistry::build_id(), OpenDDS::DCPS::ENTITYKIND_USER_READER_WITH_KEY, OpenDDS::DCPS::DataReaderImpl::get_qos(), OpenDDS::DCPS::DataReaderImpl::get_subscriber(), instance(), OpenDDS::DCPS::EndpointRegistry::reader_map, registry, DDS::DataReaderQos::user_data, and DDS::DomainParticipantQos::user_data.

{
  const DDS::Subscriber_var sub = reader->get_subscriber();
  const DDS::DomainParticipant_var part = sub->get_participant();
  const DDS::DomainId_t dom = part->get_domain_id();

  DDS::DomainParticipantQos partQos;
  part->get_qos(partQos);
  if (partQos.user_data.value.length() < 6)
    return;
  const unsigned char* const partId = partQos.user_data.value.get_buffer();

  DDS::DataReaderQos qos;
  reader->get_qos(qos);
  if (qos.user_data.value.length() < 3)
    return;
  const unsigned char* const drId = qos.user_data.value.get_buffer();

  const EntityId_t entId =
    EndpointRegistry::build_id(drId, ENTITYKIND_USER_READER_WITH_KEY);
  const RepoId rid = EndpointRegistry::build_id(dom, partId, entId);

  const EndpointRegistry::ReaderMapType::const_iterator iter =
    registry.reader_map.find(rid);

  if (iter != registry.reader_map.end() && !iter->second.trans_cfg.empty()) {
    TransportRegistry::instance()->bind_config(iter->second.trans_cfg, reader);
  }
}

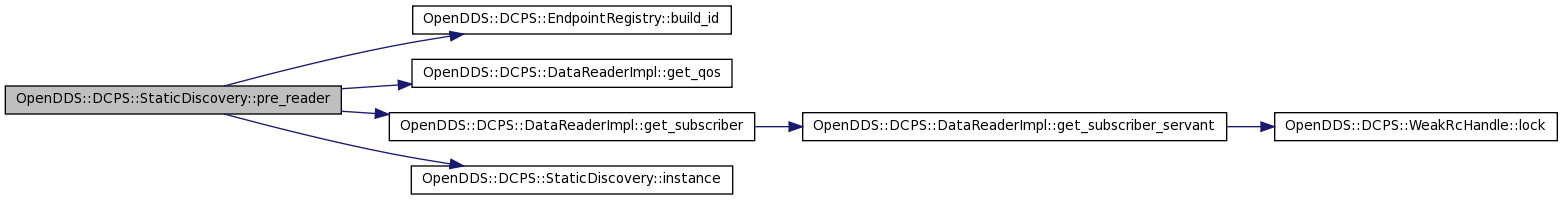

Here is the call graph for this function:

void OpenDDS::DCPS::StaticDiscovery::pre_writer

(

DataWriterImpl *

writer

)

[private, virtual]

Reimplemented from OpenDDS::DCPS::Discovery.

Definition at line 1823 of file StaticDiscovery.cpp.

References OpenDDS::DCPS::EndpointRegistry::build_id(), OpenDDS::DCPS::ENTITYKIND_USER_WRITER_WITH_KEY, OpenDDS::DCPS::DataWriterImpl::get_publisher(), OpenDDS::DCPS::DataWriterImpl::get_qos(), instance(), registry, DDS::DataWriterQos::user_data, DDS::DomainParticipantQos::user_data, and OpenDDS::DCPS::EndpointRegistry::writer_map.

{
  const DDS::Publisher_var pub = writer->get_publisher();
  const DDS::DomainParticipant_var part = pub->get_participant();
  const DDS::DomainId_t dom = part->get_domain_id();

  DDS::DomainParticipantQos partQos;
  part->get_qos(partQos);
  if (partQos.user_data.value.length() < 6)
    return;
  const unsigned char* const partId = partQos.user_data.value.get_buffer();

  DDS::DataWriterQos qos;
  writer->get_qos(qos);
  if (qos.user_data.value.length() < 3)
    return;
  const unsigned char* const dwId = qos.user_data.value.get_buffer();

  const EntityId_t entId =
    EndpointRegistry::build_id(dwId, ENTITYKIND_USER_WRITER_WITH_KEY);
  const RepoId rid = EndpointRegistry::build_id(dom, partId, entId);

  const EndpointRegistry::WriterMapType::const_iterator iter =
    registry.writer_map.find(rid);

  if (iter != registry.writer_map.end() && !iter->second.trans_cfg.empty()) {
    TransportRegistry::instance()->bind_config(iter->second.trans_cfg, writer);
  }
}

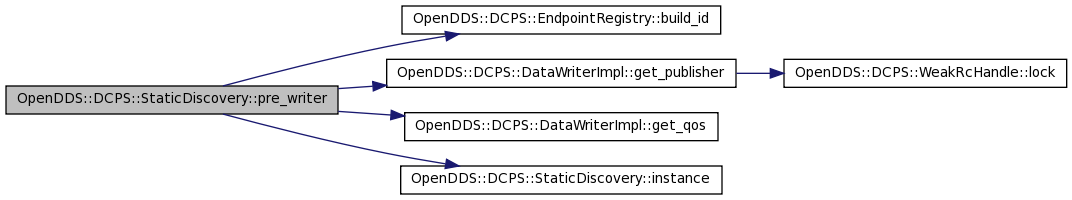

Here is the call graph for this function:

---

Member Data Documentation

StaticDiscovery_rch OpenDDS::DCPS::StaticDiscovery::instance_ [static, private]

Definition at line 276 of file StaticDiscovery.h.

EndpointRegistry OpenDDS::DCPS::StaticDiscovery::registry

Definition at line 261 of file StaticDiscovery.h.

Referenced by add_domain_participant(), load_configuration(), parse_datareaderqos(), parse_datawriterqos(), parse_endpoints(), parse_publisherqos(), parse_subscriberqos(), parse_topics(), pre_reader(), and pre_writer().

---

The documentation for this class was generated from the following files:

• StaticDiscovery.h
• StaticDiscovery.cpp
