OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver Struct Reference

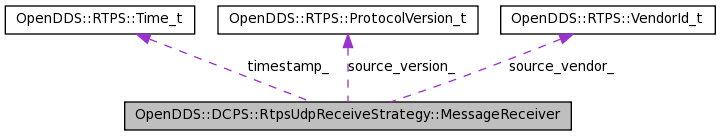

Collaboration diagram for OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver:

Public Member Functions
	MessageReceiver (const GuidPrefix_t &local)
void	reset (const ACE_INET_Addr &remote_address, const RTPS::Header &hdr)
void	submsg (const RTPS::Submessage &s)
void	submsg (const RTPS::InfoDestinationSubmessage &id)
void	submsg (const RTPS::InfoReplySubmessage &ir)
void	submsg (const RTPS::InfoReplyIp4Submessage &iri4)
void	submsg (const RTPS::InfoTimestampSubmessage &it)
void	submsg (const RTPS::InfoSourceSubmessage &is)
void	fill_header (DataSampleHeader &header) const
Public Attributes
GuidPrefix_t	local_
RTPS::ProtocolVersion_t	source_version_
RTPS::VendorId_t	source_vendor_
GuidPrefix_t	source_guid_prefix_
GuidPrefix_t	dest_guid_prefix_
DCPS::LocatorSeq	unicast_reply_locator_list_
DCPS::LocatorSeq	multicast_reply_locator_list_
bool	have_timestamp_
RTPS::Time_t	timestamp_

Detailed Description

Definition at line 105 of file RtpsUdpReceiveStrategy.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::MessageReceiver ( const GuidPrefix_t & local ) [explicit]

Definition at line 672 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::DCPS::assign(), dest_guid_prefix_, OpenDDS::RTPS::Time_t::fraction, local_, OpenDDS::RTPS::ProtocolVersion_t::major, OpenDDS::RTPS::ProtocolVersion_t::minor, OpenDDS::RTPS::Time_t::seconds, source_guid_prefix_, source_vendor_, source_version_, timestamp_, and OpenDDS::RTPS::VendorId_t::vendorId.

00673   : have_timestamp_(false)
00674 {
00675   RTPS::assign(local_, local);
00676   source_version_.major = source_version_.minor = 0;
00677   source_vendor_.vendorId[0] = source_vendor_.vendorId[1] = 0;
00678   for (size_t i = 0; i < sizeof(GuidPrefix_t); ++i) {
00679     source_guid_prefix_[i] = 0;
00680     dest_guid_prefix_[i] = 0;
00681   }
00682   timestamp_.seconds = 0;
00683   timestamp_.fraction = 0;
00684 }

Here is the call graph for this function:

Member Function Documentation

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::fill_header ( DataSampleHeader & header ) const

Definition at line 826 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::DCPS::assign(), OpenDDS::RTPS::Time_t::fraction, OpenDDS::DCPS::GUID_t::guidPrefix, have_timestamp_, OpenDDS::RTPS::NANOS_TO_RTPS_FRACS, OpenDDS::DCPS::DataSampleHeader::publication_id_, OpenDDS::RTPS::Time_t::seconds, source_guid_prefix_, OpenDDS::DCPS::DataSampleHeader::source_timestamp_nanosec_, OpenDDS::DCPS::DataSampleHeader::source_timestamp_sec_, and timestamp_.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::deliver_sample_i(), and OpenDDS::DCPS::RtpsUdpReceiveStrategy::reassemble().

00828 {
00829   using namespace RTPS;
00830   if (have_timestamp_) {
00831     header.source_timestamp_sec_ = timestamp_.seconds;
00832     header.source_timestamp_nanosec_ =
00833       static_cast<ACE_UINT32>(timestamp_.fraction / NANOS_TO_RTPS_FRACS + .5);
00834   }
00835   assign(header.publication_id_.guidPrefix, source_guid_prefix_);
00836 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::reset	(	const ACE_INET_Addr &	remote_address,
		const RTPS::Header &	hdr
	)

Definition at line 687 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::RTPS::address_to_bytes(), OpenDDS::RTPS::address_to_kind(), OpenDDS::DCPS::assign(), dest_guid_prefix_, OpenDDS::RTPS::Header::guidPrefix, have_timestamp_, local_, OpenDDS::RTPS::LOCATOR_ADDRESS_INVALID, OpenDDS::RTPS::LOCATOR_PORT_INVALID, multicast_reply_locator_list_, source_guid_prefix_, source_vendor_, source_version_, OpenDDS::RTPS::TIME_INVALID, timestamp_, unicast_reply_locator_list_, OpenDDS::RTPS::Header::vendorId, and OpenDDS::RTPS::Header::version.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::check_header().

00689 {
00690   using namespace RTPS;
00691   // see RTPS spec v2.1 section 8.3.4 table 8.16 and section 8.3.6.4
00692   source_version_ = hdr.version;
00693   source_vendor_ = hdr.vendorId;
00694
00695   assign(source_guid_prefix_, hdr.guidPrefix);
00696   assign(dest_guid_prefix_, local_);
00697
00698   unicast_reply_locator_list_.length(1);
00699   unicast_reply_locator_list_[0].kind = address_to_kind(addr);
00700   unicast_reply_locator_list_[0].port = LOCATOR_PORT_INVALID;
00701   RTPS::address_to_bytes(unicast_reply_locator_list_[0].address, addr);
00702
00703   multicast_reply_locator_list_.length(1);
00704   multicast_reply_locator_list_[0].kind = address_to_kind(addr);
00705   multicast_reply_locator_list_[0].port = LOCATOR_PORT_INVALID;
00706   assign(multicast_reply_locator_list_[0].address, LOCATOR_ADDRESS_INVALID);
00707
00708   have_timestamp_ = false;
00709   timestamp_ = TIME_INVALID;
00710 }

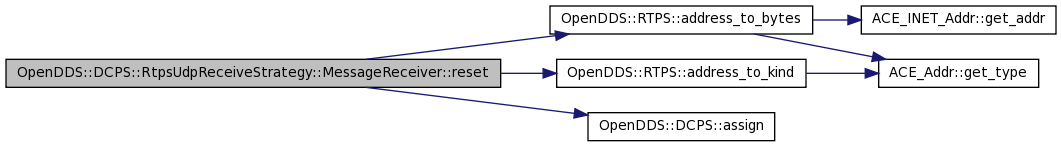

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::InfoSourceSubmessage & is )

Definition at line 811 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::DCPS::assign(), OpenDDS::RTPS::InfoSourceSubmessage::guidPrefix, have_timestamp_, OpenDDS::RTPS::LOCATOR_INVALID, multicast_reply_locator_list_, source_guid_prefix_, source_vendor_, source_version_, unicast_reply_locator_list_, OpenDDS::RTPS::InfoSourceSubmessage::vendorId, and OpenDDS::RTPS::InfoSourceSubmessage::version.

00813 {
00814   // see RTPS spec v2.1 section 8.3.7.9.4
00815   RTPS::assign(source_guid_prefix_, is.guidPrefix);
00816   source_version_ = is.version;
00817   source_vendor_ = is.vendorId;
00818   unicast_reply_locator_list_.length(1);
00819   unicast_reply_locator_list_[0] = RTPS::LOCATOR_INVALID;
00820   multicast_reply_locator_list_.length(1);
00821   multicast_reply_locator_list_[0] = RTPS::LOCATOR_INVALID;
00822   have_timestamp_ = false;
00823 }

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::InfoTimestampSubmessage & it )

Definition at line 798 of file RtpsUdpReceiveStrategy.cpp.

References have_timestamp_, OpenDDS::RTPS::InfoTimestampSubmessage::smHeader, OpenDDS::RTPS::InfoTimestampSubmessage::timestamp, and timestamp_.

00800 {
00801   // see RTPS spec v2.1 section 8.3.7.9.10
00802   if (!(it.smHeader.flags & 2 /* InvalidateFlag */)) {
00803     have_timestamp_ = true;
00804     timestamp_ = it.timestamp;
00805   } else {
00806     have_timestamp_ = false;
00807   }
00808 }

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::InfoReplyIp4Submessage & iri4 )

Definition at line 778 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::DCPS::assign(), OpenDDS::RTPS::LOCATOR_KIND_UDPv4, multicast_reply_locator_list_, OpenDDS::RTPS::InfoReplyIp4Submessage::multicastLocator, OpenDDS::RTPS::InfoReplyIp4Submessage::smHeader, unicast_reply_locator_list_, and OpenDDS::RTPS::InfoReplyIp4Submessage::unicastLocator.

00780 {
00781   // see RTPS spec v2.1 sections 8.3.7.8.4 and 9.4.5.14
00782   unicast_reply_locator_list_.length(1);
00783   unicast_reply_locator_list_[0].kind = RTPS::LOCATOR_KIND_UDPv4;
00784   unicast_reply_locator_list_[0].port = iri4.unicastLocator.port;
00785   RTPS::assign(unicast_reply_locator_list_[0].address, iri4.unicastLocator.address);
00786
00787   if (iri4.smHeader.flags & 2 /* MulticastFlag */) {
00788     multicast_reply_locator_list_.length(1);
00789     multicast_reply_locator_list_[0].kind = RTPS::LOCATOR_KIND_UDPv4;
00790     multicast_reply_locator_list_[0].port = iri4.multicastLocator.port;
00791     RTPS::assign(multicast_reply_locator_list_[0].address, iri4.multicastLocator.address);
00792   } else {
00793     multicast_reply_locator_list_.length(0);
00794   }
00795 }

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::InfoReplySubmessage & ir )

Definition at line 758 of file RtpsUdpReceiveStrategy.cpp.

References multicast_reply_locator_list_, OpenDDS::RTPS::InfoReplySubmessage::multicastLocatorList, OpenDDS::RTPS::InfoReplySubmessage::smHeader, unicast_reply_locator_list_, and OpenDDS::RTPS::InfoReplySubmessage::unicastLocatorList.

00759 {
00760   // see RTPS spec v2.1 section 8.3.7.8.4
00761   unicast_reply_locator_list_.length(ir.unicastLocatorList.length());
00762   for (CORBA::ULong i = 0; i < ir.unicastLocatorList.length(); ++i) {
00763     unicast_reply_locator_list_[i] = ir.unicastLocatorList[i];
00764   }
00765
00766   if (ir.smHeader.flags & 2 /* MulticastFlag */) {
00767     multicast_reply_locator_list_.length(ir.multicastLocatorList.length());
00768     for (CORBA::ULong i = 0; i < ir.multicastLocatorList.length(); ++i) {
00769       multicast_reply_locator_list_[i] = ir.multicastLocatorList[i];
00770     }
00771
00772   } else {
00773     multicast_reply_locator_list_.length(0);
00774   }
00775 }

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::InfoDestinationSubmessage & id )

Definition at line 744 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::DCPS::assign(), dest_guid_prefix_, and local_.

00746 {
00747   // see RTPS spec v2.1 section 8.3.7.7.4
00748   for (size_t i = 0; i < sizeof(GuidPrefix_t); ++i) {
00749     if (id.guidPrefix[i]) { // if some byte is > 0, it's not UNKNOWN
00750       RTPS::assign(dest_guid_prefix_, id.guidPrefix);
00751       return;
00752     }
00753   }
00754   RTPS::assign(dest_guid_prefix_, local_);
00755 }

Here is the call graph for this function:

void OpenDDS::DCPS::RtpsUdpReceiveStrategy::MessageReceiver::submsg ( const RTPS::Submessage & s )

Definition at line 713 of file RtpsUdpReceiveStrategy.cpp.

References OpenDDS::RTPS::INFO_DST, OpenDDS::RTPS::Submessage::info_dst_sm, OpenDDS::RTPS::INFO_REPLY, OpenDDS::RTPS::INFO_REPLY_IP4, OpenDDS::RTPS::Submessage::info_reply_ipv4_sm, OpenDDS::RTPS::Submessage::info_reply_sm, OpenDDS::RTPS::INFO_SRC, OpenDDS::RTPS::Submessage::info_src_sm, OpenDDS::RTPS::INFO_TS, and OpenDDS::RTPS::Submessage::info_ts_sm.

Referenced by OpenDDS::DCPS::RtpsUdpReceiveStrategy::check_header().

00714 {
00715   using namespace RTPS;
00716
00717   switch (s._d()) {
00718   case INFO_TS:
00719     submsg(s.info_ts_sm());
00720     break;
00721
00722   case INFO_SRC:
00723     submsg(s.info_src_sm());
00724     break;
00725
00726   case INFO_REPLY_IP4:
00727     submsg(s.info_reply_ipv4_sm());
00728     break;
00729
00730   case INFO_DST:
00731     submsg(s.info_dst_sm());
00732     break;
00733
00734   case INFO_REPLY:
00735     submsg(s.info_reply_sm());
00736     break;
00737
00738   default:
00739     break;
00740   }
00741 }
