OpenDDS::Federator::InfoRepoMulticastResponder Class Reference

Event Handler that services multicast requests for IOR of a bootstrappable service. More...

#include <InfoRepoMulticastResponder.h>

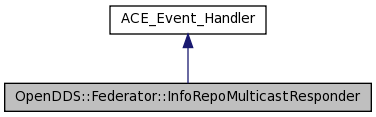

Inheritance diagram for OpenDDS::Federator::InfoRepoMulticastResponder:

[legend]

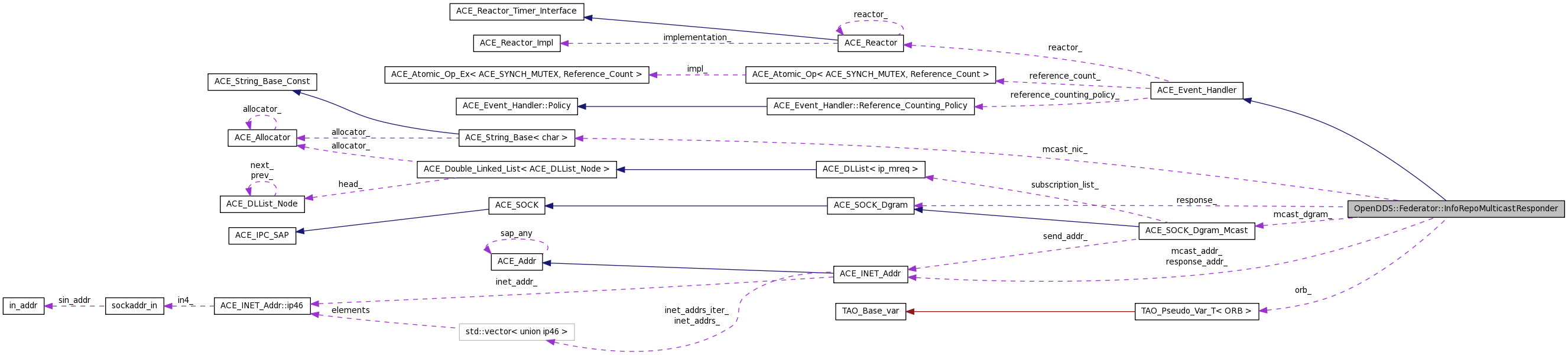

Collaboration diagram for OpenDDS::Federator::InfoRepoMulticastResponder:

[legend]

List of all members.

Public Member Functions
	InfoRepoMulticastResponder ()
virtual	~InfoRepoMulticastResponder ()
int	init (CORBA::ORB_ptr orb, u_short port, const char *mcast_addr)
	Initialization method.
int	init (CORBA::ORB_ptr orb, const char *mcast_addr)
virtual int	handle_input (ACE_HANDLE n)
	Callback when input is received on the handle.
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg)
	Callback when a timeout has occurred.
virtual ACE_HANDLE	get_handle () const
	Returns the internal handle used to receive multicast.
Private Member Functions
int	common_init (CORBA::ORB_ptr orb)
	Factor common functionality from the two init functions.
Private Attributes
bool	initialized_
	Are we initialized?
CORBA::ORB_var	orb_
	The ORB.
ACE_SOCK_Dgram_Mcast	mcast_dgram_
	multicast endpoint of communication
ACE_INET_Addr	mcast_addr_
	multicast address
ACE_INET_Addr	response_addr_
	address of response.
ACE_SOCK_Dgram	response_
	socket for response to the multicast
ACE_CString	mcast_nic_

Detailed Description

Event Handler that services multicast requests for IOR of a bootstrappable service.

This class uses the ACE_SOCK_Dgram_Mcast class and should be registered with a reactor and should be initialized with the ior of the service to be multicasted.

Definition at line 42 of file InfoRepoMulticastResponder.h.

Constructor & Destructor Documentation

OpenDDS::Federator::InfoRepoMulticastResponder::InfoRepoMulticastResponder ( )

Definition at line 25 of file InfoRepoMulticastResponder.cpp.

00026   : initialized_(false)
00027 {
00028 }

OpenDDS::Federator::InfoRepoMulticastResponder::~InfoRepoMulticastResponder ( ) [virtual]

Definition at line 30 of file InfoRepoMulticastResponder.cpp.

References ACE_TEXT(), initialized_, ACE_SOCK_Dgram_Mcast::leave(), LM_ERROR, and mcast_dgram_.

00031 {
00032   if (
00033     this->initialized_ &&
00034     (this->mcast_dgram_.leave(this->mcast_addr_) == -1)) {
00035     ACE_ERROR((LM_ERROR, "%p\n", ACE_TEXT("~InfoRepoMulticastResponder()")));
00036   }
00037 }

Here is the call graph for this function:

Member Function Documentation

int OpenDDS::Federator::InfoRepoMulticastResponder::common_init ( CORBA::ORB_ptr orb ) [private]

Factor common functionality from the two init functions.

Definition at line 107 of file InfoRepoMulticastResponder.cpp.

References CORBA::ORB::_duplicate(), ACE_TEXT(), ACE_TEXT_CHAR_TO_TCHAR, ACE_String_Base< ACE_CHAR_T >::c_str(), ACE_SOCK_Dgram_Mcast::DEFOPT_NULLIFACE, initialized_, ACE_SOCK_Dgram_Mcast::join(), ACE_String_Base< ACE_CHAR_T >::length(), LM_ERROR, mcast_dgram_, mcast_nic_, ACE_SOCK_Dgram::open(), ACE_SOCK_Dgram_Mcast::OPT_BINDADDR_NO, ACE_SOCK_Dgram_Mcast::opts(), orb_, response_, response_addr_, and ACE_INET_Addr::set().

Referenced by init().

00109 {
00110   orb_ = CORBA::ORB::_duplicate(orb);
00111
00112   if (this->response_addr_.set((u_short) 0) == -1)
00113     ACE_ERROR_RETURN((LM_ERROR,
00114                       "InfoRepoMulticastResponder::common_init() %p\n",
00115                       ACE_TEXT("set")),
00116                      -1);
00117
00118   else if (this->response_.open(this->response_addr_) == -1) {
00119     ACE_ERROR_RETURN((LM_ERROR,
00120                       "%p\n",
00121                       ACE_TEXT("set")),
00122                      -1);
00123   }
00124
00125   // Use ACE_SOCK_Dgram_Mcast factory to subscribe to multicast group.
00126 #ifdef ACE_HAS_MAC_OSX
00127   mcast_dgram_.opts(ACE_SOCK_Dgram_Mcast::OPT_BINDADDR_NO |
00128                     ACE_SOCK_Dgram_Mcast::DEFOPT_NULLIFACE);
00129 #endif
00130   if (this->mcast_nic_.length() != 0) {
00131     if (this->mcast_dgram_.join(this->mcast_addr_,
00132                                 1,
00133                                 ACE_TEXT_CHAR_TO_TCHAR(this->mcast_nic_.c_str())) == -1)
00134       ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::common_init() %p\n",
00135                         ACE_TEXT("subscribe")), -1);
00136
00137   } else {
00138     if (this->mcast_dgram_.join(this->mcast_addr_) == -1)
00139       ACE_ERROR_RETURN((LM_ERROR,
00140                         "InfoRepoMulticastResponder::common_init() %p\n",
00141                         ACE_TEXT("subscribe")),
00142                        -1);
00143   }
00144
00145   this->initialized_ = true;
00146   return 0;
00147 }

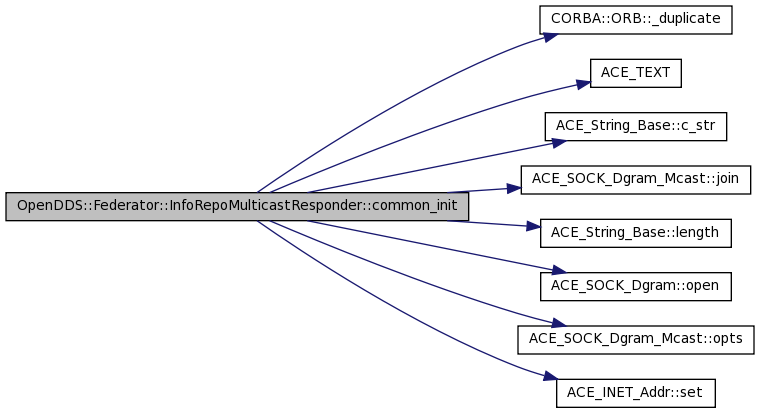

Here is the call graph for this function:

Here is the caller graph for this function:

ACE_HANDLE OpenDDS::Federator::InfoRepoMulticastResponder::get_handle ( void ) const [virtual]

Returns the internal handle used to receive multicast.

Reimplemented from ACE_Event_Handler.

Definition at line 40 of file InfoRepoMulticastResponder.cpp.

References ACE_IPC_SAP::get_handle(), and mcast_dgram_.

00041 {
00042   return this->mcast_dgram_.get_handle();
00043 }

Here is the call graph for this function:

int OpenDDS::Federator::InfoRepoMulticastResponder::handle_input ( ACE_HANDLE n ) [virtual]

Callback when input is received on the handle.

Reimplemented from ACE_Event_Handler.

Definition at line 157 of file InfoRepoMulticastResponder.cpp.

References IORTable::Locator::_narrow(), ACE_TEXT(), ACE_INET_Addr::addr_to_string(), ACE_SOCK_Stream::close(), ACE_SOCK_Connector::connect(), OpenDDS::DCPS::DCPS_debug_level, ACE_INET_Addr::get_host_name(), ACE::get_ip_interfaces(), ACE_INET_Addr::get_port_number(), header, TAO_Objref_Var_T< T >::in(), TAO_Pseudo_Var_T< T >::in(), iovec::iov_base, iovec::iov_len, ACE_INET_Addr::is_linklocal(), CORBA::is_nil(), LM_DEBUG, LM_ERROR, mcast_dgram_, orb_, ACE_SOCK_Dgram::recv(), ACE_SOCK_Stream::sendv_n(), ACE_INET_Addr::set(), and ACE_INET_Addr::set_port_number().

00158 {
00159   if (OpenDDS::DCPS::DCPS_debug_level > 0)
00160     ACE_DEBUG((LM_DEBUG, "Entered InfoRepoMulticastResponder::handle_input\n"));
00161
00162   // The length of the service name string that follows.
00163   CORBA::Short header;
00164   // Port to which to reply.
00165   ACE_UINT16 remote_port;
00166   // Name of the service for which the client is looking.
00167   char object_key[BUFSIZ];
00168
00169   ACE_INET_Addr remote_addr;
00170
00171   // Take a peek at the header to find out how long is the service
00172   // name string we should receive.
00173   ssize_t n = this->mcast_dgram_.recv(&header,
00174                                       sizeof(header),
00175                                       remote_addr,
00176                                       MSG_PEEK);
00177
00178   if (n <= 0)
00179     ACE_ERROR_RETURN((LM_ERROR,
00180                       "InfoRepoMulticastResponder::handle_input - peek %d\n",
00181                       n),
00182                      0);
00183
00184   else if (ACE_NTOHS(header) <= 0)
00185     ACE_ERROR_RETURN((LM_ERROR,
00186                       "InfoRepoMulticastResponder::handle_input() Header value < 1\n"),
00187                      0);
00188
00189   // Receive full client multicast request.
00190   const int iovcnt = 3;
00191   iovec iov[iovcnt];
00192
00193   iov[0].iov_base = (char *) &header;
00194   iov[0].iov_len  = sizeof(header);
00195   iov[1].iov_base = (char *) &remote_port;
00196   iov[1].iov_len  = sizeof(ACE_UINT16);
00197   iov[2].iov_base = (char *) object_key;
00198   iov[2].iov_len  = ACE_NTOHS(header);
00199
00200   // Read the iovec.
00201   n = this->mcast_dgram_.recv(iov,
00202                               iovcnt,
00203                               remote_addr);
00204
00205   if (n <= 0)
00206     ACE_ERROR_RETURN((LM_ERROR,
00207                       "InfoRepoMulticastResponder::handle_input recv = %d\n",
00208                       n),
00209                      0);
00210
00211   if (OpenDDS::DCPS::DCPS_debug_level > 0) {
00212     ACE_TCHAR addr[64];
00213     remote_addr.addr_to_string(addr, sizeof(addr));
00214     ACE_DEBUG((LM_DEBUG,
00215                "(%P|%t) Received multicast from %s.\n"
00216                "Service Name received : %C\n"
00217                "Port received : %u\n",
00218                addr,
00219                object_key,
00220                ACE_NTOHS(remote_port)));
00221   }
00222
00223   // Grab the IOR table.
00224   CORBA::Object_var table_object =
00225     orb_->resolve_initial_references("IORTable");
00226
00227   IORTable::Locator_var locator =
00228     IORTable::Locator::_narrow(table_object.in());
00229
00230   if (CORBA::is_nil(locator.in())) {
00231     ACE_ERROR((LM_ERROR, ACE_TEXT("Nil IORTable\n")));
00232
00233   }
00234
00235   std::string ior;
00236
00237   {
00238     CORBA::String_var ior_result;
00239
00240     try {
00241       ior_result = locator->locate(object_key);
00242
00243     } catch (const IORTable::NotFound&) {
00244       ACE_ERROR_RETURN((LM_ERROR,
00245                         "InfoRepoMulticastResponder::handle_input() Object key not found\n"),
00246                        0);
00247     }
00248
00249     ior = ior_result;
00250   }
00251
00252   // Reply to the multicast message.
00253   ACE_SOCK_Connector connector;
00254   ACE_INET_Addr peer_addr;
00255   ACE_SOCK_Stream stream;
00256
00257   peer_addr.set(remote_addr);
00258   peer_addr.set_port_number(ACE_NTOHS(remote_port));
00259
00260 #if defined (ACE_HAS_IPV6)
00261
00262   if (peer_addr.is_linklocal()) {
00263     // If this is one of our local linklocal interfaces this is not going
00264     // to work.
00265     // Creating a connection using such interface to the client listening
00266     // at the IPv6 ANY address is not going to work (I'm not quite sure why
00267     // but it probably has to do with the rather restrictive routing rules
00268     // for linklocal interfaces).
00269     // So we see if this is one of our local interfaces and if so create the
00270     // connection using the IPv6 loopback address instead.
00271     ACE_INET_Addr  peer_tmp(peer_addr);
00272     peer_tmp.set_port_number(static_cast<u_short>(0));
00273     ACE_INET_Addr* tmp = 0;
00274     size_t cnt = 0;
00275     int err = ACE::get_ip_interfaces(cnt, tmp);
00276
00277     if (err == 0) {
00278       for (size_t i = 0; i < cnt; ++i) {
00279         if (peer_tmp == tmp[i]) {
00280           peer_addr.set(ACE_NTOHS(remote_port),
00281                         ACE_IPV6_LOCALHOST);
00282           break;
00283         }
00284       }
00285
00286       delete[] tmp;
00287     }
00288   }
00289
00290 #endif /* ACE_HAS_IPV6 */
00291
00292   if (OpenDDS::DCPS::DCPS_debug_level > 0) {
00293     ACE_TCHAR addr[64];
00294     peer_addr.addr_to_string(addr, sizeof(addr));
00295     ACE_DEBUG((LM_DEBUG,
00296                "(%P|%t) Replying to peer %s.\n",
00297                addr));
00298   }
00299
00300   // Connect.
00301   if (connector.connect(stream, peer_addr) == -1)
00302     ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::connect failed\n"), 0);
00303
00304   // Send the IOR back to the client.  (Send iovec, which contains ior
00305   // length as the first element, and ior itself as the second.)
00306
00307   // Length of ior to be sent.
00308   CORBA::Short data_len = ACE_HTONS(static_cast<CORBA::Short>(ior.length()) + 1);
00309
00310   // Vector to be sent.
00311   const int cnt = 2;
00312   iovec iovp[cnt];
00313
00314   // The length of ior to be sent.
00315   iovp[0].iov_base = (char *) &data_len;
00316   iovp[0].iov_len  = sizeof(CORBA::Short);
00317
00318   // The ior.
00319   iovp[1].iov_base = const_cast<char*>(ior.c_str());
00320   iovp[1].iov_len  = static_cast<u_long>(ior.length() + 1);
00321
00322   ssize_t result = stream.sendv_n(iovp, cnt);
00323   // Close the stream.
00324   stream.close();
00325
00326   // Check for error.
00327   if (result == -1)
00328     ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::send failed\n"), 0);
00329
00330   if (OpenDDS::DCPS::DCPS_debug_level > 0)
00331     ACE_DEBUG((LM_DEBUG,
00332                "(%P|%t) InfoRepoMulticastResponder::handle_input() ior: <%C>\n"
00333                "sent to %C:%u.\n"
00334                "result from send = %d\n",
00335                ior.c_str(),
00336                peer_addr.get_host_name(),
00337                peer_addr.get_port_number(),
00338                result));
00339
00340   return 0;
00341 }

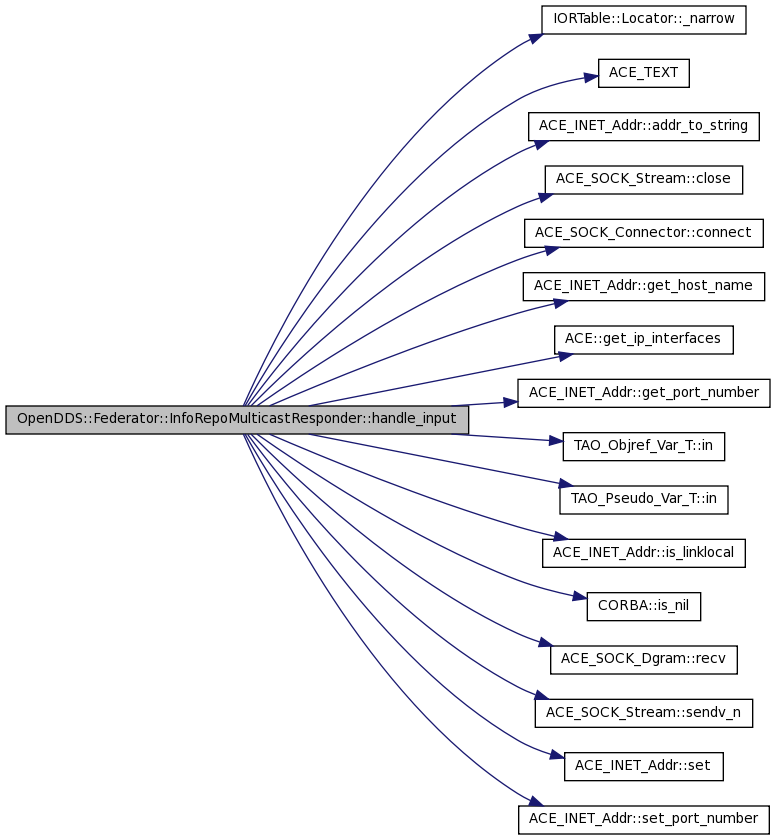

Here is the call graph for this function:

int OpenDDS::Federator::InfoRepoMulticastResponder::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg
	)			`[virtual]`

Callback when a timeout has occurred.

Reimplemented from ACE_Event_Handler.

Definition at line 150 of file InfoRepoMulticastResponder.cpp.

00152 {
00153   return 0;
00154 }

int OpenDDS::Federator::InfoRepoMulticastResponder::init	(	CORBA::ORB_ptr	orb,
		const char *	mcast_addr
	)

Initialization method. Takes in "address:port" string as a parameter.

Save for use later.

Definition at line 62 of file InfoRepoMulticastResponder.cpp.

References ACE_TEXT(), common_init(), initialized_, LM_ERROR, mcast_addr_, mcast_nic_, ACE_INET_Addr::set(), ACE_OS::strchr(), FACE::string_alloc(), ACE_OS::strlen(), and ACE_OS::strncpy().

00065 {
00066   if (this->initialized_) {
00067     ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::init() already initialized\n"), -1);
00068   }
00069
00070   // Look for a '@' incase a nic is specified.
00071   const char* tmpnic = ACE_OS::strchr(mcast_addr, '@');
00072
00073   CORBA::String_var actual_mcast_addr;
00074   CORBA::ULong length_addr;
00075
00076   if (tmpnic != 0) {
00077     // i.e. a nic name has been specified
00078     length_addr = static_cast<CORBA::ULong>(tmpnic - mcast_addr + 1);
00079     actual_mcast_addr = CORBA::string_alloc(length_addr);
00080
00081     ACE_OS::strncpy(actual_mcast_addr.inout(),
00082                     mcast_addr,
00083                     length_addr - 1);
00084
00085     actual_mcast_addr[length_addr - 1] = '\0';
00086
00087     /// Save for use later.
00088     this->mcast_nic_ = tmpnic + 1;
00089
00090   } else {
00091     actual_mcast_addr =
00092       CORBA::string_alloc(static_cast<CORBA::ULong>(ACE_OS::strlen(mcast_addr)));
00093
00094     actual_mcast_addr = mcast_addr;
00095   }
00096
00097   if (this->mcast_addr_.set(actual_mcast_addr.in()) == -1)
00098     ACE_ERROR_RETURN((LM_ERROR,
00099                       "%p\n",
00100                       ACE_TEXT("set")),
00101                      -1);
00102
00103   return common_init(orb);
00104 }

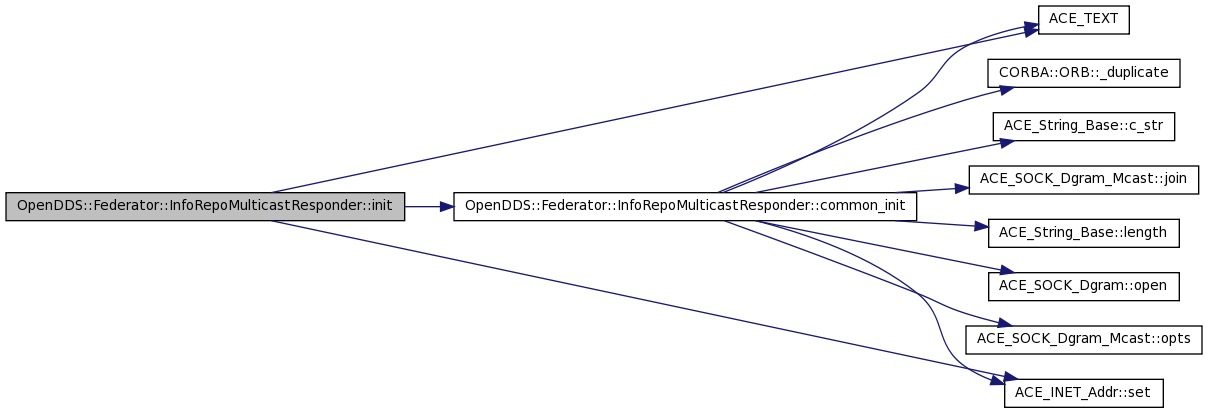

Here is the call graph for this function:

int OpenDDS::Federator::InfoRepoMulticastResponder::init	(	CORBA::ORB_ptr	orb,
		u_short	port,
		const char *	mcast_addr
	)

Initialization method.

Definition at line 46 of file InfoRepoMulticastResponder.cpp.

References ACE_TEXT(), common_init(), initialized_, LM_ERROR, mcast_addr_, and ACE_INET_Addr::set().

Referenced by OpenDDS::Federator::ManagerImpl::initialize().

00050 {
00051   if (this->initialized_) {
00052     ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::init() already initialized\n"), -1);
00053   }
00054
00055   if (this->mcast_addr_.set(port, mcast_addr) == -1)
00056     ACE_ERROR_RETURN((LM_ERROR, "InfoRepoMulticastResponder::init() %p\n", ACE_TEXT("set")), -1);
00057
00058   return common_init(orb);
00059 }
