OpenDDS::Federator::Config Class Reference

#include <FederatorConfig.h>

Collaboration diagram for OpenDDS::Federator::Config:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Config (int argc, ACE_TCHAR **argv)
 Default constructor.
virtual ~Config ()
int & argc ()
 Access the enhanced argv.
int argc () const
ACE_TCHAR **& argv ()
 Access the enhanced argc.
ACE_TCHAR ** argv () const
void addArg (ACE_TCHAR *arg)
 Add an argument.
TAO_DDS_DCPSFederationId & federationId ()
 Federation Id value.
const TAO_DDS_DCPSFederationId & federationId () const
void federationDomain (long domain)
 Federation Id value.
long federationDomain () const
void federationPort (short port)
 Federation Port value.
short federationPort () const
void federateIor (const tstring &ior)
 Initial federation IOR value.
tstring federateIor () const
void configFile (const tstring &file)
 Configuration filename.
tstring configFile () const

Static Public Attributes

static const tstring FEDERATOR_CONFIG_OPTION
 Command line option specifying the configuration file.
static const tstring FEDERATOR_ID_OPTION
 Command line option specifying the federation Id value.
static const tstring FEDERATE_WITH_OPTION
 Command line option specifying a repository to federate with.

Private Member Functions

void processFile ()
 Process a configuration file.

Private Attributes

int argc_
 Enhanced argc.
ACE_TCHAR ** argv_
 Enhanced argv.
tstring configFile_
 Configuration filename, if any.
tstring federateIor_
 Initial federation IOR, if any.
TAO_DDS_DCPSFederationId federationId_
 Configured Federation Id value.
long federationDomain_
 Configured Federation Domain value.
short federationPort_
 Configured Federation Port value.

Detailed Description

Definition at line 28 of file FederatorConfig.h.

Constructor & Destructor Documentation

OpenDDS::Federator::Config::Config ( int  argc,
ACE_TCHAR **  argv
)

Default constructor.

Definition at line 190 of file FederatorConfig.cpp.

References ACE_TEXT(), argv_, OpenDDS::DCPS::DCPS_debug_level, LM_DEBUG, and processFile().

00191   : argc_(0),
00192     federationId_(hash_endpoints(argc, argv)),
00193     federationDomain_(DEFAULT_FEDERATIONDOMAIN),
00194     federationPort_(-1)
00195 {
00196   if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00197     ACE_DEBUG((LM_DEBUG,
00198                ACE_TEXT("(%P|%t) INFO: Federator::Config::Config()\n")));
00199   }
00200
00201   // Setup the internal storage.
00202   this->argv_ = new ACE_TCHAR*[argc + 1](); // argv_[argc] == 0
00203
00204   // Process the federation arguments.  Copy the uninteresting arguments verbatim.
00205   ArgCopier argCopier(this);
00206   std::for_each(&argv[0], &argv[ argc], argCopier);
00207
00208   // Read and process any configuration file.
00209   this->processFile();
00210 }

Here is the call graph for this function:

OpenDDS::Federator::Config::~Config (  )  [virtual]

Definition at line 212 of file FederatorConfig.cpp.

References ACE_TEXT(), argv_, OpenDDS::DCPS::DCPS_debug_level, and LM_DEBUG.

00213 {
00214   if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00215     ACE_DEBUG((LM_DEBUG,
00216                ACE_TEXT("(%P|%t) INFO: Federator::Config::~FederatorConfig()\n")));
00217   }
00218
00219   // We prwn this
00220   delete [] this->argv_;
00221 }

Here is the call graph for this function:

Member Function Documentation

ACE_INLINE void OpenDDS::Federator::Config::addArg ( ACE_TCHAR *  arg  )

Add an argument.

Definition at line 40 of file FederatorConfig.inl.

References argc_, and argv_.

Referenced by OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

00041 {
00042   this->argv_[this->argc_++] = arg;
00043 }

Here is the caller graph for this function:

ACE_INLINE int OpenDDS::Federator::Config::argc ( void   )  const

Definition at line 19 of file FederatorConfig.inl.

References argc_.

00020 {
00021   return this->argc_;
00022 }

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int & OpenDDS::Federator::Config::argc ( void   )

Access the enhanced argv.

Definition at line 12 of file FederatorConfig.inl.

References argc_.

00013 {
00014   return this->argc_;
00015 }

ACE_INLINE ACE_TCHAR ** OpenDDS::Federator::Config::argv ( void   )  const

Definition at line 33 of file FederatorConfig.inl.

References argv_.

00034 {
00035   return this->argv_;
00036 }

ACE_INLINE ACE_TCHAR **& OpenDDS::Federator::Config::argv ( void   )

Access the enhanced argc.

Definition at line 26 of file FederatorConfig.inl.

References argv_.

Referenced by InfoRepo::init().

00027 {
00028   return this->argv_;
00029 }

Here is the caller graph for this function:

ACE_INLINE OpenDDS::Federator::tstring OpenDDS::Federator::Config::configFile (  )  const

Definition at line 82 of file FederatorConfig.inl.

References configFile_.

00083 {
00084   return this->configFile_;
00085 }

ACE_INLINE void OpenDDS::Federator::Config::configFile ( const tstring &  file  )

Configuration filename.

Definition at line 75 of file FederatorConfig.inl.

References configFile_.

Referenced by OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

00076 {
00077   this->configFile_ = file;
00078 }

Here is the caller graph for this function:

ACE_INLINE OpenDDS::Federator::tstring OpenDDS::Federator::Config::federateIor (  )  const

Definition at line 96 of file FederatorConfig.inl.

References federateIor_.

00097 {
00098   return this->federateIor_;
00099 }

ACE_INLINE void OpenDDS::Federator::Config::federateIor ( const tstring &  ior  )

Initial federation IOR value.

Definition at line 89 of file FederatorConfig.inl.

References federateIor_.

Referenced by InfoRepo::init(), and OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

00090 {
00091   this->federateIor_ = ior;
00092 }

Here is the caller graph for this function:

ACE_INLINE long OpenDDS::Federator::Config::federationDomain (  )  const

Definition at line 54 of file FederatorConfig.inl.

References federationDomain_.

00055 {
00056   return this->federationDomain_;
00057 }

ACE_INLINE void OpenDDS::Federator::Config::federationDomain ( long  domain  )

Federation Id value.

Definition at line 47 of file FederatorConfig.inl.

References federationDomain_.

Referenced by OpenDDS::Federator::ManagerImpl::destroy(), InfoRepo::init(), OpenDDS::Federator::ManagerImpl::initialize(), OpenDDS::Federator::ManagerImpl::join_federation(), OpenDDS::Federator::ManagerImpl::pushState(), and OpenDDS::Federator::ManagerImpl::repository().

00048 {
00049   this->federationDomain_ = domain;
00050 }

Here is the caller graph for this function:

ACE_INLINE const TAO_DDS_DCPSFederationId & OpenDDS::Federator::Config::federationId (  )  const

Definition at line 110 of file FederatorConfig.inl.

References federationId_.

00111 {
00112   return this->federationId_;
00113 }

ACE_INLINE TAO_DDS_DCPSFederationId & OpenDDS::Federator::Config::federationId (  )

Federation Id value.

Definition at line 103 of file FederatorConfig.inl.

References federationId_.

Referenced by OpenDDS::Federator::ManagerImpl::id(), InfoRepo::init(), and OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

00104 {
00105   return this->federationId_;
00106 }

Here is the caller graph for this function:

ACE_INLINE short OpenDDS::Federator::Config::federationPort (  )  const

Definition at line 68 of file FederatorConfig.inl.

References federationPort_.

00069 {
00070   return this->federationPort_;
00071 }

ACE_INLINE void OpenDDS::Federator::Config::federationPort ( short  port  )

Federation Port value.

Definition at line 61 of file FederatorConfig.inl.

References federationPort_.

00062 {
00063   this->federationPort_ = port;
00064 }

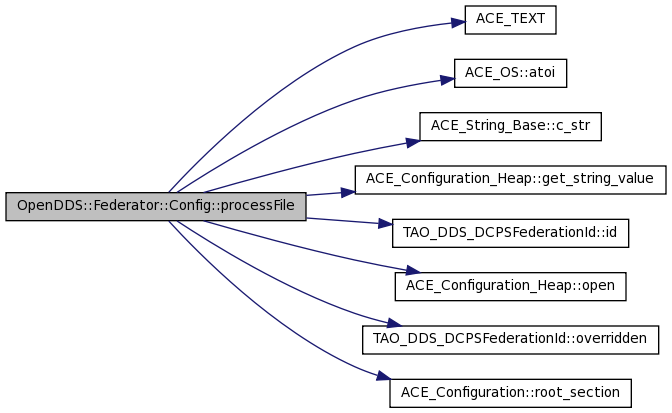

void OpenDDS::Federator::Config::processFile (  )  [private]

Process a configuration file.

Definition at line 224 of file FederatorConfig.cpp.

References ACE_TEXT(), ACE_OS::atoi(), ACE_String_Base< ACE_CHAR_T >::c_str(), configFile_, OpenDDS::DCPS::DCPS_debug_level, federationDomain_, federationId_, federationPort_, ACE_Configuration_Heap::get_string_value(), TAO_DDS_DCPSFederationId::id(), LM_DEBUG, LM_ERROR, ACE_Configuration_Heap::open(), TAO_DDS_DCPSFederationId::overridden(), and ACE_Configuration::root_section().

Referenced by Config().

00225 {
00226   if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00227     ACE_DEBUG((LM_DEBUG,
00228                ACE_TEXT("(%P|%t) INFO: Federator::Config::process()\n")));
00229   }
00230
00231   if (this->configFile_.empty()) {
00232     // No filename, no processing.
00233     return;
00234   }
00235
00236   // Grab a spot to stick the configuration.
00237   ACE_Configuration_Heap heap;
00238
00239   if (0 != heap.open()) {
00240     ACE_ERROR((LM_ERROR,
00241                ACE_TEXT("(%P|%t) ERROR: Federator::Config::process - ")
00242                ACE_TEXT("unable to open configuration heap.\n")));
00243     return;
00244   }
00245
00246   // Import the file into our shiny new spot.
00247   ACE_Ini_ImpExp import(heap);
00248
00249   if (0 != import.import_config(this->configFile_.c_str())) {
00250     ACE_ERROR((LM_ERROR,
00251                ACE_TEXT("(%P|%t) ERROR: Federator::Config::process - ")
00252                ACE_TEXT("unable to import configuration file.\n")));
00253     return;
00254   }
00255
00256   // Configuration file format:
00257   //
00258   //   FederationDomain = <number>                       (REQUIRED)
00259   //   FederationId     = <number>                       (REQUIRED)
00260   //   FederationPort   = <number>                       (REQUIRED)
00261   //
00262
00263   // Grab the common configuration settings.
00264   const ACE_Configuration_Section_Key &root = heap.root_section();
00265
00266   // Federation Domain value - REQUIRED
00267   ACE_TString federationDomainString;
00268
00269   if (0 != heap.get_string_value(root, FEDERATION_DOMAIN_KEY, federationDomainString)) {
00270     ACE_ERROR((LM_ERROR,
00271                ACE_TEXT("(%P|%t) ERROR: Federator::Config::process - ")
00272                ACE_TEXT("Unable to obtain value for FederationDomain in root section\n")));
00273     return;
00274   }
00275
00276   // Convert to numeric repository key value.
00277   this->federationDomain_ = ACE_OS::atoi(federationDomainString.c_str());
00278
00279   if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00280     ACE_DEBUG((LM_DEBUG,
00281                ACE_TEXT("(%P|%t)   FederationDomain == %d\n"),
00282                this->federationDomain_));
00283   }
00284
00285   // Federation Id value - REQUIRED
00286   ACE_TString federationIdString;
00287
00288   if (0 != heap.get_string_value(root, FEDERATION_ID_KEY, federationIdString)) {
00289     ACE_ERROR((LM_ERROR,
00290                ACE_TEXT("(%P|%t) ERROR: Federator::Config::process - ")
00291                ACE_TEXT("Unable to obtain value for FederationId in root section\n")));
00292     return;
00293   }
00294
00295   // Convert to numeric repository key value.
00296   RepoKey idValue = ACE_OS::atoi(federationIdString.c_str());
00297
00298   // Allow the command line to override the file value.
00299   if (this->federationId_.overridden()) {
00300     ACE_DEBUG((LM_DEBUG,
00301                ACE_TEXT("(%P|%t)   FederationId == %d from file ")
00302                ACE_TEXT("overridden by value %d from command line.\n"),
00303                idValue,
00304                this->federationId_.id()));
00305
00306   } else {
00307     this->federationId_.id(idValue);
00308
00309     if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00310       ACE_DEBUG((LM_DEBUG,
00311                  ACE_TEXT("(%P|%t)   FederationId == %d\n"),
00312                  this->federationId_.id()));
00313     }
00314   }
00315
00316   // Federation port value - REQUIRED
00317   ACE_TString federationPortString;
00318
00319   if (0 != heap.get_string_value(root, FEDERATION_PORT_KEY, federationPortString)) {
00320     ACE_ERROR((LM_ERROR,
00321                ACE_TEXT("(%P|%t) ERROR: Federator::Config::process - ")
00322                ACE_TEXT("Unable to obtain value for FederationPort in root section\n")));
00323     return;
00324   }
00325
00326   // Convert to numeric repository key value.
00327   this->federationPort_ = ACE_OS::atoi(federationPortString.c_str());
00328
00329   if (::OpenDDS::DCPS::DCPS_debug_level > 0) {
00330     ACE_DEBUG((LM_DEBUG,
00331                ACE_TEXT("(%P|%t)   FederationPort == %d\n"),
00332                this->federationPort_));
00333   }
00334 }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

int OpenDDS::Federator::Config::argc_ [private]

Enhanced argc.

Definition at line 80 of file FederatorConfig.h.

Referenced by addArg(), and argc().

ACE_TCHAR** OpenDDS::Federator::Config::argv_ [private]

Enhanced argv.

Definition at line 83 of file FederatorConfig.h.

Referenced by addArg(), argv(), Config(), and ~Config().

tstring OpenDDS::Federator::Config::configFile_ [private]

Configuration filename, if any.

Definition at line 86 of file FederatorConfig.h.

Referenced by configFile(), and processFile().

const tstring OpenDDS::Federator::Config::FEDERATE_WITH_OPTION [static]

Command line option specifying a repository to federate with.

Definition at line 37 of file FederatorConfig.h.

Referenced by OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

tstring OpenDDS::Federator::Config::federateIor_ [private]

Initial federation IOR, if any.

Definition at line 89 of file FederatorConfig.h.

Referenced by federateIor().

long OpenDDS::Federator::Config::federationDomain_ [private]

Configured Federation Domain value.

Definition at line 95 of file FederatorConfig.h.

Referenced by federationDomain(), and processFile().

TAO_DDS_DCPSFederationId OpenDDS::Federator::Config::federationId_ [private]

Configured Federation Id value.

Definition at line 92 of file FederatorConfig.h.

Referenced by federationId(), and processFile().

short OpenDDS::Federator::Config::federationPort_ [private]

Configured Federation Port value.

Definition at line 98 of file FederatorConfig.h.

Referenced by federationPort(), and processFile().

const tstring OpenDDS::Federator::Config::FEDERATOR_CONFIG_OPTION [static]

Command line option specifying the configuration file.

Definition at line 31 of file FederatorConfig.h.

Referenced by OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

const tstring OpenDDS::Federator::Config::FEDERATOR_ID_OPTION [static]

Command line option specifying the federation Id value.

Definition at line 34 of file FederatorConfig.h.

Referenced by OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL::ArgCopier::operator()().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
