#include <TcpSendStrategy.h>

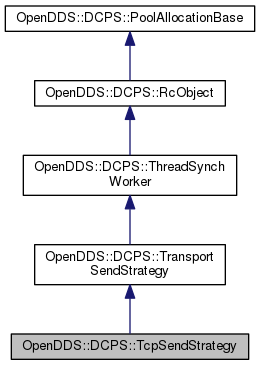

Inheritance diagram for OpenDDS::DCPS::TcpSendStrategy:

[legend]

Collaboration diagram for OpenDDS::DCPS::TcpSendStrategy:

[legend]

Public Member Functions
	TcpSendStrategy (std::size_t id, TcpDataLink &link, TcpSynchResource *synch_resource, const ReactorTask_rch &task, Priority priority)

virtual	~TcpSendStrategy ()

int	reset (bool reset_mode=false)

virtual void	schedule_output ()
	Enable or disable output processing by the reactor according to mode. More...

virtual void	terminate_send_if_suspended ()

Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
virtual	~TransportSendStrategy ()

void	send_buffer (TransportSendBuffer *send_buffer)
	Assigns an optional send buffer. More...

int	start ()

void	stop ()

void	send_start ()

void	send (TransportQueueElement *element, bool relink=true)

void	send_stop (GUID_t repoId)

RemoveResult	remove_sample (const DataSampleElement *sample)

void	remove_all_msgs (const GUID_t &pub_id)

virtual WorkOutcome	perform_work ()

void	suspend_send ()

void	resume_send ()

void	terminate_send (bool graceful_disconnecting=false)
	Remove all samples in the backpressure queue and packet queue. More...

virtual bool	start_i ()
	Let the subclass start. More...

void	link_released (bool flag)

bool	isDirectMode ()

void	deliver_ack_request (TransportQueueElement *element)

bool	fragmentation_helper (TransportQueueElement *original_element, TqeVector &elements_to_send)

void	clear (SendMode new_mode, SendMode old_mode=MODE_NOT_SET)

SendMode	mode () const
	Access the current sending mode. More...

Public Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
virtual	~ThreadSynchWorker ()

std::size_t	id () const
	DataLink reference value for diagnostics. More...

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Protected Member Functions
virtual ssize_t	send_bytes (const iovec iov[], int n, int &bp)

virtual ACE_HANDLE	get_handle ()

virtual ssize_t	send_bytes_i (const iovec iov[], int n)

virtual void	relink (bool do_suspend=true)

virtual void	stop_i ()
	Let the subclass stop. More...

virtual void	add_delayed_notification (TransportQueueElement *element)

Protected Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
	TransportSendStrategy (std::size_t id, const TransportImpl_rch &transport, ThreadSynchResource *synch_resource, Priority priority, const ThreadSynchStrategy_rch &thread_sync_strategy)

virtual ssize_t	non_blocking_send (const iovec iov[], int n, int &bp)

virtual void	prepare_header_i ()
	Specific implementation processing of prepared packet header. More...

virtual void	prepare_packet_i ()
	Specific implementation processing of prepared packet. More...

TransportQueueElement *	current_packet_first_element () const

virtual size_t	max_message_size () const

void	set_graceful_disconnecting (bool flag)
	Set graceful disconnecting flag. More...

bool	send_delayed_notifications (const TransportQueueElement::MatchCriteria *match=0)

virtual Security::SecurityConfig_rch	security_config () const

virtual RemoveResult	do_remove_sample (const GUID_t &pub_id, const TransportQueueElement::MatchCriteria &criteria, bool remove_all=false)
	Implement framework chain visitations to remove a sample. More...

ThreadSynch *	synch () const

void	set_header_source (ACE_INT64 source)

Protected Member Functions inherited from OpenDDS::DCPS::ThreadSynchWorker
	ThreadSynchWorker (std::size_t id=0)

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Private Attributes
TcpDataLink &	link_

ReactorTask_rch	reactor_task_

Additional Inherited Members
Public Types inherited from OpenDDS::DCPS::TransportSendStrategy
enum	SendMode { MODE_NOT_SET, MODE_DIRECT, MODE_QUEUE, MODE_SUSPEND, MODE_TERMINATED }

typedef BasicQueue< TransportQueueElement >	QueueType

Public Types inherited from OpenDDS::DCPS::ThreadSynchWorker
enum	WorkOutcome { WORK_OUTCOME_MORE_TO_DO, WORK_OUTCOME_NO_MORE_TO_DO, WORK_OUTCOME_CLOGGED_RESOURCE, WORK_OUTCOME_BROKEN_RESOURCE }

Static Public Member Functions inherited from OpenDDS::DCPS::TransportSendStrategy
static int	mb_to_iov (const ACE_Message_Block &msg, iovec *iov)

Static Public Attributes inherited from OpenDDS::DCPS::TransportSendStrategy
static const size_t	UDP_MAX_MESSAGE_SIZE = 65466

Detailed Description

Definition at line 25 of file TcpSendStrategy.h.

Constructor & Destructor Documentation

◆ TcpSendStrategy()

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::TcpSendStrategy::TcpSendStrategy	(	std::size_t	id,
		TcpDataLink &	link,
		TcpSynchResource *	synch_resource,
		const ReactorTask_rch &	task,
		Priority	priority
	)

Definition at line 21 of file TcpSendStrategy.cpp.

References DBG_ENTRY_LVL.

   : TransportSendStrategy(id, link.impl(),
                           synch_resource, priority,
                           make_rch<ReactorSynchStrategy>(this,task->get_reactor()))
   , link_(link)
   , reactor_task_(task)
 {
   DBG_ENTRY_LVL("TcpSendStrategy","TcpSendStrategy",6);

 }

◆ ~TcpSendStrategy()

OpenDDS::DCPS::TcpSendStrategy::~TcpSendStrategy ( )

virtual

Definition at line 37 of file TcpSendStrategy.cpp.

References DBG_ENTRY_LVL.

 {
   DBG_ENTRY_LVL("TcpSendStrategy","~TcpSendStrategy",6);
 }

Member Function Documentation

◆ add_delayed_notification()

void OpenDDS::DCPS::TcpSendStrategy::add_delayed_notification ( TransportQueueElement * element )

protectedvirtual

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 131 of file TcpSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendStrategy::add_delayed_notification(), and OpenDDS::DCPS::TransportQueueElement::is_request_ack().

 {
   if (!element->is_request_ack()) {
     // only add the notification when we are not sending REQUEST_ACK message
     TransportSendStrategy::add_delayed_notification(element);
   }
 }

◆ get_handle()

ACE_HANDLE OpenDDS::DCPS::TcpSendStrategy::get_handle ( void )

protectedvirtual

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 89 of file TcpSendStrategy.cpp.

References OpenDDS::DCPS::TcpDataLink::get_connection(), and link_.

Referenced by schedule_output().

 {
   TcpConnection_rch connection = link_.get_connection();

   if (!connection)
     return ACE_INVALID_HANDLE;

   return connection->peer().get_handle();
 }

◆ relink()

void OpenDDS::DCPS::TcpSendStrategy::relink ( bool do_suspend = true )

protectedvirtual

Delegate to the connection object to re-establish the connection.

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 114 of file TcpSendStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::get_connection(), and link_.

 {
   DBG_ENTRY_LVL("TcpSendStrategy","relink",6);
   TcpConnection_rch connection = link_.get_connection();

   if (connection) {
     connection->relink_from_send(do_suspend);
   }
 }

◆ reset()

int OpenDDS::DCPS::TcpSendStrategy::reset ( bool reset_mode = false )

This is called by the datalink object to associate with the "new" connection object. The "old" connection object is unregistered with the reactor and the "new" connection object is registered for sending. The implementation of this method is borrowed from the ReceiveStrategy.

Definition at line 66 of file TcpSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendStrategy::clear(), DBG_ENTRY_LVL, OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, and OpenDDS::DCPS::TransportSendStrategy::set_graceful_disconnecting().

Referenced by OpenDDS::DCPS::TcpDataLink::reuse_existing_connection().

 {
   DBG_ENTRY_LVL("TcpSendStrategy","reset",6);
   //For the case of a send_strategy being reused for a new connection (not reconnect)
   //need to reset the state
   if (reset_mode) {
     //Need to make sure that the send mode is set back to MODE_DIRECT in case
     //it was terminated prior to being reused/reset.
     this->clear(MODE_DIRECT);
     //reset graceful_disconnecting_ to initial state
     this->set_graceful_disconnecting(false);
   }
   return 0;
 }

◆ schedule_output()

void OpenDDS::DCPS::TcpSendStrategy::schedule_output ( )

virtual

Enable or disable output processing by the reactor according to mode.

Reimplemented from OpenDDS::DCPS::ThreadSynchWorker.

Definition at line 43 of file TcpSendStrategy.cpp.

References ACE_DEBUG, ACE_TEXT(), DBG_ENTRY_LVL, OpenDDS::DCPS::DCPS_debug_level, get_handle(), LM_DEBUG, OpenDDS::DCPS::TransportSendStrategy::mode(), OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, OpenDDS::DCPS::TransportSendStrategy::MODE_QUEUE, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, OpenDDS::DCPS::TransportSendStrategy::synch(), and OpenDDS::DCPS::ThreadSynch::work_available().

 {
   DBG_ENTRY_LVL("TcpSendStrategy","schedule_output",6);

   // Notify the reactor to adjust its processing policy according to mode_.
   synch()->work_available();

   if (DCPS_debug_level > 4) {
     const char* action = "";
     if( mode() == MODE_DIRECT) {
       action = "canceling";
     } else if( (mode() == MODE_QUEUE)
             || (mode() == MODE_SUSPEND)) {
       action = "starting";
     }
     ACE_DEBUG((LM_DEBUG,
                ACE_TEXT("(%P|%t) TcpSendStrategy::schedule_output() [%d] - ")
                ACE_TEXT("%C data queueing for handle %d.\n"),
                id(),action,get_handle()));
   }
 }

◆ send_bytes()

ssize_t OpenDDS::DCPS::TcpSendStrategy::send_bytes	(	const iovec	iov[],
		int	n,
		int &	bp
	)

protectedvirtual

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 82 of file TcpSendStrategy.cpp.

References DBG_ENTRY_LVL, and OpenDDS::DCPS::TransportSendStrategy::non_blocking_send().

 {
   DBG_ENTRY_LVL("TcpSendStrategy","send_bytes",6);
   return this->non_blocking_send(iov, n, bp);
 }

◆ send_bytes_i()

ssize_t OpenDDS::DCPS::TcpSendStrategy::send_bytes_i	(	const iovec	iov[],
		int	n
	)

protectedvirtual

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 100 of file TcpSendStrategy.cpp.

References ACE_DEBUG, OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::TcpDataLink::get_connection(), link_, and LM_DEBUG.

 {
   TcpConnection_rch connection = link_.get_connection();

   if (!connection)
     return -1;
   ssize_t result = connection->peer().sendv(iov, n);
   if (DCPS_debug_level > 4)
     ACE_DEBUG((LM_DEBUG, "(%P|%t) TcpSendStrategy::send_bytes_i sent %d bytes\n", result));

   return result;
 }

◆ stop_i()

void OpenDDS::DCPS::TcpSendStrategy::stop_i ( )

protectedvirtual

Let the subclass stop.

Implements OpenDDS::DCPS::TransportSendStrategy.

Definition at line 125 of file TcpSendStrategy.cpp.

References DBG_ENTRY_LVL.

 {
   DBG_ENTRY_LVL("TcpSendStrategy","stop_i",6);
 }

◆ terminate_send_if_suspended()

void OpenDDS::DCPS::TcpSendStrategy::terminate_send_if_suspended ( )

virtual

Reimplemented from OpenDDS::DCPS::TransportSendStrategy.

Definition at line 140 of file TcpSendStrategy.cpp.

References OpenDDS::DCPS::TransportSendStrategy::clear(), DBG_ENTRY_LVL, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, OpenDDS::DCPS::TransportSendStrategy::MODE_TERMINATED, and OPENDDS_END_VERSIONED_NAMESPACE_DECL.

 {
   DBG_ENTRY_LVL("TcpSendStrategy","terminate_send_if_suspended",6);
   this->clear(MODE_TERMINATED, MODE_SUSPEND);
 }

Member Data Documentation

◆ link_

TcpDataLink& OpenDDS::DCPS::TcpSendStrategy::link_

private

Definition at line 58 of file TcpSendStrategy.h.

Referenced by get_handle(), relink(), and send_bytes_i().

◆ reactor_task_

ReactorTask_rch OpenDDS::DCPS::TcpSendStrategy::reactor_task_

private

Definition at line 59 of file TcpSendStrategy.h.

The documentation for this class was generated from the following files:
