OpenDDS::DCPS::RequestedDeadlineWatchdog Class Reference

Watchdog responsible calling the DataReaderListener when the deadline period expires. More...

#include <RequestedDeadlineWatchdog.h>

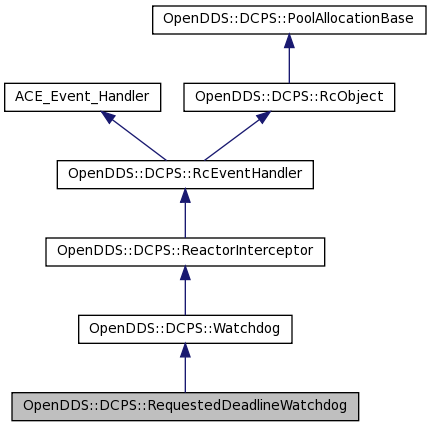

Inheritance diagram for OpenDDS::DCPS::RequestedDeadlineWatchdog:
Inheritance graph
[legend]

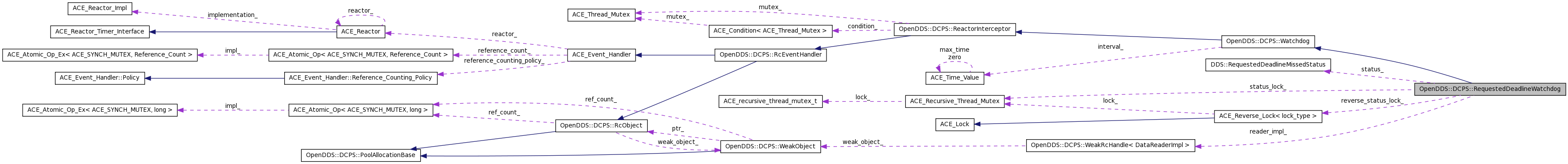

Collaboration diagram for OpenDDS::DCPS::RequestedDeadlineWatchdog:
Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_Recursive_Thread_Mutex lock_type
typedef ACE_Reverse_Lock
< lock_type > 		reverse_lock_type

Public Member Functions

 RequestedDeadlineWatchdog (lock_type &lock, DDS::DeadlineQosPolicy qos, DataReaderImpl &reader_impl, DDS::RequestedDeadlineMissedStatus &status, CORBA::Long &last_total_count)
virtual ~RequestedDeadlineWatchdog ()
void schedule_timer (OpenDDS::DCPS::SubscriptionInstance_rch instance)
 Schedule timer for the supplied instance.
void cancel_timer (OpenDDS::DCPS::SubscriptionInstance_rch instance)
 Cancel timer for the supplied instance.
virtual int handle_timeout (const ACE_Time_Value &, const void *act)
void execute (OpenDDS::DCPS::SubscriptionInstance_rch, bool timer_called)
 Operation to be executed when the associated timer expires.
virtual void reschedule_deadline ()
 Re-schedule timer for all instances of the DataReader.

Private Attributes

lock_type & status_lock_
 Lock for synchronization of status_ member.
reverse_lock_type reverse_status_lock_
 Reverse lock used for releasing the status_lock_ listener upcall.
WeakRcHandle< DataReaderImpl > reader_impl_
DDS::RequestedDeadlineMissedStatus & status_
CORBA::Long & last_total_count_
 Last total_count when status was last checked.

Detailed Description

Watchdog responsible calling the DataReaderListener when the deadline period expires.

This watchdog object calls the on_requested_deadline_missed() listener callback when the configured finite deadline period expires.

Definition at line 39 of file RequestedDeadlineWatchdog.h.

Member Typedef Documentation

typedef ACE_Recursive_Thread_Mutex OpenDDS::DCPS::RequestedDeadlineWatchdog::lock_type

Definition at line 42 of file RequestedDeadlineWatchdog.h.

typedef ACE_Reverse_Lock<lock_type> OpenDDS::DCPS::RequestedDeadlineWatchdog::reverse_lock_type

Definition at line 43 of file RequestedDeadlineWatchdog.h.

Constructor & Destructor Documentation

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::RequestedDeadlineWatchdog::RequestedDeadlineWatchdog ( lock_type &  lock,
DDS::DeadlineQosPolicy  qos,
DataReaderImpl &  reader_impl,
DDS::RequestedDeadlineMissedStatus &  status,
CORBA::Long &  last_total_count
)

Definition at line 19 of file RequestedDeadlineWatchdog.cpp.

00025   : Watchdog(duration_to_time_value(qos.period))
00026   , status_lock_(lock)
00027   , reverse_status_lock_(status_lock_)
00028   , reader_impl_(reader_impl)
00029   , status_(status)
00030   , last_total_count_(last_total_count)
00031 {
00032 }

OpenDDS::DCPS::RequestedDeadlineWatchdog::~RequestedDeadlineWatchdog (  )  [virtual]

Definition at line 34 of file RequestedDeadlineWatchdog.cpp.

00035 {
00036 }

Member Function Documentation

void OpenDDS::DCPS::RequestedDeadlineWatchdog::cancel_timer ( OpenDDS::DCPS::SubscriptionInstance_rch  instance  )

Cancel timer for the supplied instance.

Definition at line 56 of file RequestedDeadlineWatchdog.cpp.

References OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::RcHandle< T >::in(), and LM_INFO.

Referenced by execute().

00058 {
00059   if (instance->deadline_timer_id_ != -1) {
00060     Watchdog::cancel_timer(instance->deadline_timer_id_);
00061     instance->deadline_timer_id_ = -1;
00062     if (DCPS_debug_level > 5) {
00063       ACE_DEBUG((LM_INFO, "Timer for instance %X cancelled \n", instance.in()));
00064     }
00065   }
00066 }

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::RequestedDeadlineWatchdog::execute ( OpenDDS::DCPS::SubscriptionInstance_rch  instance,
bool  timer_called
)

Operation to be executed when the associated timer expires.

This Watchdog object updates the DDS::RequestedDeadlineMissed structure, and calls DataReaderListener::on_requested_deadline_missed().

Definition at line 85 of file RequestedDeadlineWatchdog.cpp.

References cancel_timer(), ACE_OS::gettimeofday(), OpenDDS::DCPS::RcHandle< T >::in(), OpenDDS::DCPS::Watchdog::interval_, CORBA::is_nil(), DDS::RequestedDeadlineMissedStatus::last_instance_handle, last_total_count_, OpenDDS::DCPS::WeakRcHandle< T >::lock(), reader_impl_, DDS::REQUESTED_DEADLINE_MISSED_STATUS, reverse_status_lock_, schedule_timer(), status, status_, status_lock_, DDS::RequestedDeadlineMissedStatus::total_count, DDS::RequestedDeadlineMissedStatus::total_count_change, and ACE_Time_Value::zero.

Referenced by handle_timeout().

00086 {
00087   if (instance->deadline_timer_id_ != -1) {
00088     bool missed = false;
00089
00090     if (instance->cur_sample_tv_  == ACE_Time_Value::zero) { // not received any sample.
00091       missed = true;
00092
00093     } else if (timer_called) { // handle_timeout is called
00094       ACE_Time_Value diff = ACE_OS::gettimeofday() - instance->cur_sample_tv_;
00095       missed = diff >= this->interval_;
00096
00097     } else { // upon receiving sample.
00098       ACE_Time_Value diff = instance->cur_sample_tv_ - instance->last_sample_tv_;
00099       missed = diff > this->interval_;
00100     }
00101
00102     if (missed) {
00103       DataReaderImpl_rch reader = this->reader_impl_.lock();
00104       if (!reader)
00105         return;
00106
00107       ACE_GUARD(ACE_Recursive_Thread_Mutex, monitor, this->status_lock_);
00108       // Only update the status upon timer is called and not
00109       // when receiving a sample after the interval.
00110       // Otherwise the counter is doubled.
00111       if (timer_called) {
00112         ++this->status_.total_count;
00113         this->status_.total_count_change =
00114           this->status_.total_count - this->last_total_count_;
00115         this->status_.last_instance_handle = instance->instance_handle_;
00116
00117         reader->set_status_changed_flag(
00118           DDS::REQUESTED_DEADLINE_MISSED_STATUS, true);
00119
00120         DDS::DataReaderListener_var listener =
00121           reader->listener_for(
00122             DDS::REQUESTED_DEADLINE_MISSED_STATUS);
00123
00124 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00125         if (instance->instance_state_.is_exclusive()) {
00126           DataReaderImpl::OwnershipManagerPtr owner_manager = reader->ownership_manager();
00127           if (owner_manager)
00128             owner_manager->remove_writers (instance->instance_handle_);
00129         }
00130 #endif
00131
00132         if (!CORBA::is_nil(listener.in())) {
00133           // Copy before releasing the lock.
00134           DDS::RequestedDeadlineMissedStatus const status = this->status_;
00135
00136           // Release the lock during the upcall.
00137           ACE_GUARD(reverse_lock_type, reverse_monitor, this->reverse_status_lock_);
00138           // @todo Will this operation ever throw?  If so we may want to
00139           //       catch all exceptions, and act accordingly.
00140           listener->on_requested_deadline_missed(reader.in(),
00141                                                 status);
00142         }
00143
00144         reader->notify_status_condition();
00145       }
00146     }
00147
00148     // This next part is without status_lock_ held to avoid reactor deadlock.
00149     if (!timer_called) {
00150       this->cancel_timer(instance);
00151       this->schedule_timer(instance);
00152     }
00153
00154   } else {
00155     // not an error - timer is scheduled asynchronously so we can get here
00156     // via DataReaderImpl::data_received() before schedule_timer() is done
00157   }
00158 }

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::RequestedDeadlineWatchdog::handle_timeout ( const ACE_Time_Value &  ,
const void *  act
) [virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 69 of file RequestedDeadlineWatchdog.cpp.

References execute(), OpenDDS::DCPS::WeakRcHandle< T >::lock(), ACE_Reactor::purge_pending_notifications(), ACE_Event_Handler::reactor(), and reader_impl_.

00070 {
00071   DDS::InstanceHandle_t handle = static_cast<DDS::InstanceHandle_t>(reinterpret_cast<intptr_t>(act));
00072   DataReaderImpl_rch reader = this->reader_impl_.lock();
00073   if (reader) {
00074     SubscriptionInstance_rch instance = reader->get_handle_instance(handle);
00075     if (instance)
00076       execute(instance, true);
00077   }
00078   else {
00079     this->reactor()->purge_pending_notifications(this);
00080   }
00081   return 0;
00082 }

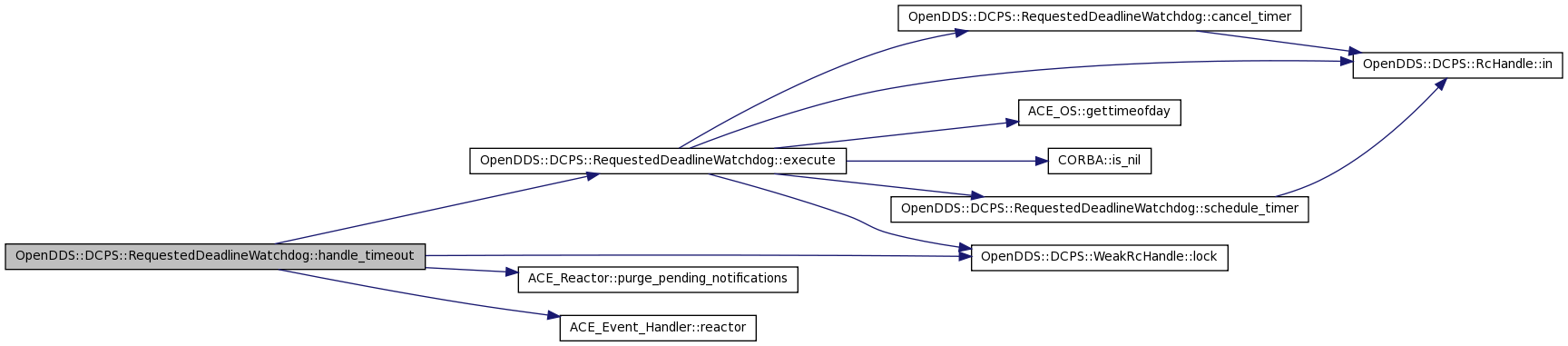

Here is the call graph for this function:

void OpenDDS::DCPS::RequestedDeadlineWatchdog::reschedule_deadline (  )  [virtual]

Re-schedule timer for all instances of the DataReader.

Implements OpenDDS::DCPS::Watchdog.

Definition at line 161 of file RequestedDeadlineWatchdog.cpp.

References OpenDDS::DCPS::WeakRcHandle< T >::lock(), and reader_impl_.

00162 {
00163   DataReaderImpl_rch reader = this->reader_impl_.lock();
00164   if (reader)
00165     reader->reschedule_deadline();
00166 }

Here is the call graph for this function:

void OpenDDS::DCPS::RequestedDeadlineWatchdog::schedule_timer ( OpenDDS::DCPS::SubscriptionInstance_rch  instance  )

Schedule timer for the supplied instance.

Definition at line 39 of file RequestedDeadlineWatchdog.cpp.

References OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::RcHandle< T >::in(), OpenDDS::DCPS::Watchdog::interval_, LM_ERROR, and LM_INFO.

Referenced by execute().

00041 {
00042   if (instance->deadline_timer_id_ == -1) {
00043     intptr_t handle = instance->instance_handle_;
00044     instance->deadline_timer_id_ = Watchdog::schedule_timer(reinterpret_cast<const void*>(handle), this->interval_);
00045   }
00046   if (instance->deadline_timer_id_ == -1) {
00047     ACE_ERROR((LM_ERROR,
00048                "ERROR Timer for instance %X should be scheduled, but is %d\n",
00049                instance.in(), instance->deadline_timer_id_));
00050   } else if (DCPS_debug_level > 5) {
00051     ACE_DEBUG((LM_INFO, "Timer for instance %X scheduled \n", instance.in()));
00052   }
00053 }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

CORBA::Long& OpenDDS::DCPS::RequestedDeadlineWatchdog::last_total_count_ [private]

Last total_count when status was last checked.

Definition at line 89 of file RequestedDeadlineWatchdog.h.

Referenced by execute().

WeakRcHandle<DataReaderImpl> OpenDDS::DCPS::RequestedDeadlineWatchdog::reader_impl_ [private]

Pointer to the DataReaderImpl object from which the DataReaderListener is obtained.

Definition at line 82 of file RequestedDeadlineWatchdog.h.

Referenced by execute(), handle_timeout(), and reschedule_deadline().

reverse_lock_type OpenDDS::DCPS::RequestedDeadlineWatchdog::reverse_status_lock_ [private]

Reverse lock used for releasing the status_lock_ listener upcall.

Definition at line 78 of file RequestedDeadlineWatchdog.h.

Referenced by execute().

DDS::RequestedDeadlineMissedStatus& OpenDDS::DCPS::RequestedDeadlineWatchdog::status_ [private]

Reference to the missed requested deadline status structure.

Definition at line 86 of file RequestedDeadlineWatchdog.h.

Referenced by execute().

lock_type& OpenDDS::DCPS::RequestedDeadlineWatchdog::status_lock_ [private]

Lock for synchronization of status_ member.

Definition at line 76 of file RequestedDeadlineWatchdog.h.

Referenced by execute().

The documentation for this class was generated from the following files:
