OpenDDS::DCPS::RepoIdGenerator Class Reference

Create RepoId values for use within DDS. More...

#include <RepoIdGenerator.h>

Public Member Functions
	RepoIdGenerator (long federation, long participant=0, EntityKind kind=KIND_PARTICIPANT)
	construct with at least a FederationId value.
virtual	~RepoIdGenerator ()
RepoId	next (bool builtin=false)
	Obtain the next RepoId value.
void	last (long key)
Static Public Attributes
static const unsigned int	KeyBits = 24
static const unsigned int	KeyMask = (1 << KeyBits) - 1
Private Attributes
EntityKind	kind_
	Type of Entity to generate GUID values for.
long	federation_
	Unique identifier for the repository.
long	participant_
	Unique identifier for the DomainParticipant.
long	lastKey_
	Unique value for the EntityKey.

Detailed Description

Create RepoId values for use within DDS.

Internal to the OpenDDS repository, the Repository Identifiers that uniquely identify all DDS Entities within the service managed by this (and other federated) repositories consist of GUID values.

These GUID (Global Unique IDentifiers) values are based on the RTPS specification (formal/08-04-09) GUID_t values. They use the same structure. The VendorId value is applied in the first 2 bytes of the prefix. The remainder of the Participant Id value is composed of the OpenDDS specific Federation Id value (the identifier of the repository where the Entity was created) and a DomainParticipant identifier within that repository. In addition to the standard EntityKind values, the EntityKind byte has an added value of ENTITYKIND_OPENDDS_TOPIC allowed to permit the use of GUID values for Topic entities as well. This is an OpenDDS specific extension.

The EntityKey field is used to distinguish Topics, Publications and Subscriptions within a single Participant. Each of these is within its own number (address) space. The EntityKind byte will ensure that identical EntityKey values of these different types will not conflict in the final GUID value.

Values are generated using the specified FederationId and DomainParticipant identifiers. The EntityKey for a type is incremented each time a value is generated.

The ability to reset the last used value is provided to allow the reloading of Entities from persistent storage without inducing conflicts with newly created Entities. This is a simplistic mechanism and requires that all information from the persistent storage be processed *prior* to any new Entities being created within the repository. After this processing is complete, the last used value should be reset to ensure that any new values will not conflict with the restored values.

NOTE: This mechanism does not work well for values that have wrapped around the 24 bit EntityKey space. It is possible to extend the current mapping to overflow into the two '0' bytes (2 and 3) with the Key value number (address) space to increase the possible unique identifiers if this becomes an issue. Doing that would alleviate the need to manage an arena of Key values.

Even though each Domain could have a separate GUID (address) space, since we do not currently include the domain value within the GUID mapping, all domains within a repository will use the same generator instance to ensure no conflicting GUID values. This will restrict the total number of DomainParticipants within *all* domains of a repository to be within the 32 bit (2**32) DomainParticipant address space. It is likely that other limits will be exceeded before this one is approached.

The current mapping of meanings to the GUID component values is:

Content: | VendorId| 0 | 0 | FederationId | DomainParticpant | EntityKey |Kind| GUID_t bytes: | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | GuidPrefix_t GUID_t.guidPrefix bytes: | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | EntityId_t GUID_t.entityId bytes: | 0 | 1 | 2 | 3 | EntityKey_t GUID_t.entityId.entityKey bytes: | 0 | 1 | 2 |

Where the VendorId value used for OpenDDS is defined in GuidUtils.h

Definition at line 92 of file RepoIdGenerator.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::RepoIdGenerator::RepoIdGenerator	(	long	federation,
		long	participant = `0`,
		EntityKind	kind = `KIND_PARTICIPANT`
	)

construct with at least a FederationId value.

Parameters:

	federation	identifier for the repository.
	participant	identifier for the participant.
	kind	type of Entities to generate Id values for.

Returns:: GUID_t generated unique identifier value.

If the kind is KIND_PARTICIPANT then the generator will generate Participant RepoId values. Otherwise it will generate the specified type of Entity values within the specified Participant.

Definition at line 22 of file RepoIdGenerator.cpp.

00023   : kind_(kind)
00024   , federation_(federation)
00025   , participant_(participant)
00026   , lastKey_(0)
00027 {
00028 }

OpenDDS::DCPS::RepoIdGenerator::~RepoIdGenerator ( ) [virtual]

Definition at line 30 of file RepoIdGenerator.cpp.

00031 {
00032 }

Member Function Documentation

void OpenDDS::DCPS::RepoIdGenerator::last ( long key )

Set the minimum of the last key (or participant) value used.

Parameters:

key

the smallest value that the last generated key can be

If the supplied key value is larger than the actual last generated key value, the new key value replaces the old one.

Definition at line 82 of file RepoIdGenerator.cpp.

References lastKey_.

Referenced by DCPS_IR_Domain::last_participant_key(), DCPS_IR_Participant::last_publication_key(), DCPS_IR_Participant::last_subscription_key(), DCPS_IR_Participant::last_topic_key(), and TAO_DDS_DCPSInfo_i::receive_image().

00083 {
00084   if (key > lastKey_) {
00085     lastKey_ = key;
00086   }
00087 }

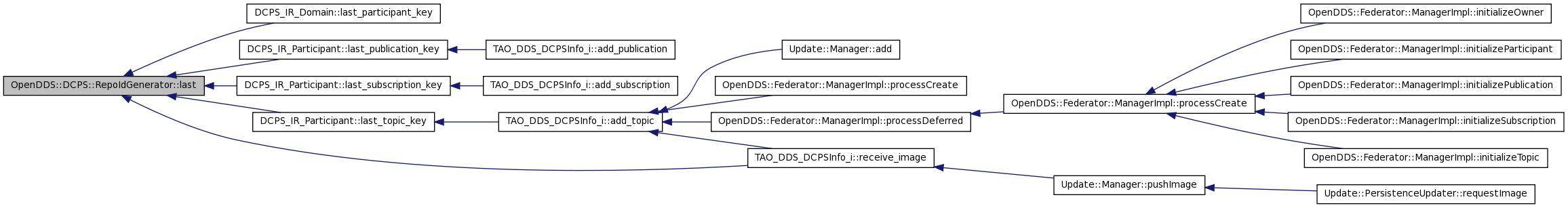

Here is the caller graph for this function:

RepoId OpenDDS::DCPS::RepoIdGenerator::next ( bool builtin = false )

Obtain the next RepoId value.

Definition at line 35 of file RepoIdGenerator.cpp.

References ACE_TEXT(), OpenDDS::DCPS::GuidBuilder::entityId(), OpenDDS::DCPS::ENTITYID_PARTICIPANT, OpenDDS::DCPS::GuidBuilder::entityKey(), OpenDDS::DCPS::GuidBuilder::entityKind(), federation_, OpenDDS::DCPS::RepoIdBuilder::federationId(), KeyMask, kind_, OpenDDS::DCPS::KIND_PARTICIPANT, lastKey_, LM_ERROR, participant_, and OpenDDS::DCPS::RepoIdBuilder::participantId().

Referenced by DCPS_IR_Domain::get_next_participant_id(), DCPS_IR_Participant::get_next_publication_id(), DCPS_IR_Participant::get_next_subscription_id(), and DCPS_IR_Participant::get_next_topic_id().

00037 00038 00039 00040 00041 00042 00043 00044 00045 00046 00047 00048 00049 00050 00051 00052 00053 00054     } 00055 00056 00057 00058 00059 00060 00061 00062 00063 00064 00065 00066 00067 00068 00069 00070 00071     } 00072 00073 00074 00075 00076   } 00077 00078 00079 }

class="fragment">00036 { // Generate a new key value. ++lastKey_; RepoIdBuilder builder; builder.federationId(federation_); // Generate a Participant GUID value. if (kind_ == KIND_PARTICIPANT) { // Rudimentary validity checking. if (lastKey_ == 0) { // We have rolled over and there can now exist objects with // the same key. ACE_ERROR((LM_ERROR, ACE_TEXT("(%P|%t) ERROR: RepoIdGenerator::next: ") ACE_TEXT("Exceeded Maximum number of participant keys!") ACE_TEXT("Next key will be a duplicate!\n"))); builder.participantId(lastKey_); builder.entityId(ENTITYID_PARTICIPANT); // Generate an Entity GUID value. } else { // Rudimentary validity checking. if ((lastKey_ & ~KeyMask) != 0) { // We have rolled over and there can now exist objects with // the same key. ACE_ERROR((LM_ERROR, ACE_TEXT("(%P|%t) ERROR: RepoIdGenerator::next: ") ACE_TEXT("Exceeded Maximum number of entity keys!") ACE_TEXT("Next key will be a duplicate!\n"))); builder.participantId(participant_); builder.entityKey(lastKey_); builder.entityKind(kind_, builtin); return RepoId(builder);

Here is the call graph for this function:
