QOS_PubSub_T< XML_QOS_TYPE, DDS_QOS_TYPE > Class Template Reference

#include <QOS_PubSub_T.h>

List of all members.

Public Member Functions

 QOS_PubSub_T (void)
 ~QOS_PubSub_T (void)
void read_qos (DDS_QOS_TYPE &, const XML_QOS_TYPE)

Detailed Description

template<typename XML_QOS_TYPE, typename DDS_QOS_TYPE>
class QOS_PubSub_T< XML_QOS_TYPE, DDS_QOS_TYPE >

Author:
Marcel Smit (msmit@remedy.nl)

This template contains the parsing of all QOS XML setting which the Publisher and the Subscriber have in common.

The DDS_QOS_TYPE template attribute can either contain an DDS::PublisherQos or an DDS::SubscriberQos. These are the IDL representatives.

The XML_QOS_TYPE can either contain an dds::publisherQos or an dds::subscriberQos. These are the XML representatives.

Definition at line 22 of file QOS_PubSub_T.h.

Constructor & Destructor Documentation

template<typename XML_QOS_TYPE , typename DDS_QOS_TYPE >
OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL QOS_PubSub_T< XML_QOS_TYPE, DDS_QOS_TYPE >::QOS_PubSub_T ( void   )  [inline]

Definition at line 9 of file QOS_PubSub_T.cpp.

00010 {
00011 }

template<typename XML_QOS_TYPE , typename DDS_QOS_TYPE >
QOS_PubSub_T< XML_QOS_TYPE, DDS_QOS_TYPE >::~QOS_PubSub_T ( void   )  [inline]

Definition at line 14 of file QOS_PubSub_T.cpp.

00015 {
00016 }

Member Function Documentation

template<typename XML_QOS_TYPE , typename DDS_QOS_TYPE >
void QOS_PubSub_T< XML_QOS_TYPE, DDS_QOS_TYPE >::read_qos ( DDS_QOS_TYPE &  dds_qos,
const XML_QOS_TYPE  xml_qos
) [inline]

Definition at line 20 of file QOS_PubSub_T.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DCPS_debug_level, DDS::GROUP_PRESENTATION_QOS, DDS::INSTANCE_PRESENTATION_QOS, LM_DEBUG, LM_TRACE, FACE::string_dup(), and DDS::TOPIC_PRESENTATION_QOS.

00021 {
00022 //  if (xml_qos->group_data ())
00023 //    {
00024       // TODO: Have a good look at this.
00025
00026 //       const std::string value = *xml_qos->group_data ()->value ();
00027 //
00028 //       ACE_DEBUG ((LM_TRACE,
00029 //         ACE_TEXT ("QOS_DataReader_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00030 //         ACE_TEXT ("Set group_data to <%C>\n"),
00031 //         value.c_str ()));
00032 //
00033 //       dds_qos.group_data.value =
00034 //         *xml_qos->group_data ()->value ();
00035 //     }
00036
00037     if (xml_qos->presentation_p ())
00038       {
00039         if (xml_qos->presentation ().access_scope_p ())
00040           {
00041             switch (xml_qos->presentation ().access_scope ().integral ())
00042               {
00043               case ::dds::presentationAccessScopeKind::INSTANCE_PRESENTATION_QOS_l:
00044                 dds_qos.presentation.access_scope = ::DDS::INSTANCE_PRESENTATION_QOS;
00045                 break;
00046               case ::dds::presentationAccessScopeKind::TOPIC_PRESENTATION_QOS_l:
00047                 dds_qos.presentation.access_scope = ::DDS::TOPIC_PRESENTATION_QOS;
00048                 break;
00049               case ::dds::presentationAccessScopeKind::GROUP_PRESENTATION_QOS_l:
00050                 dds_qos.presentation.access_scope = ::DDS::GROUP_PRESENTATION_QOS;
00051                 break;
00052               default:
00053                 ACE_ERROR ((LM_DEBUG,
00054                   ACE_TEXT ("QOS_PubSub_T::read_qos - ")
00055                   ACE_TEXT ("Unknown presentation access scope found <%d>; setting it to INSTANCE_PRESENTATION_QOS\n"),
00056                   xml_qos->presentation ().access_scope ().integral ()));
00057                 dds_qos.presentation.access_scope = ::DDS::INSTANCE_PRESENTATION_QOS;
00058                 break;
00059               }
00060             if (OpenDDS::DCPS::DCPS_debug_level > 9)
00061               {
00062                 ACE_DEBUG ((LM_TRACE,
00063                   ACE_TEXT ("QOS_PubSub_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00064                   ACE_TEXT ("Set presentation access scope to <%d>\n"),
00065                   dds_qos.presentation.access_scope));
00066               }
00067           }
00068         if (xml_qos->presentation ().coherent_access_p ())
00069           {
00070             dds_qos.presentation.coherent_access =
00071               xml_qos->presentation ().coherent_access ();
00072
00073             if (OpenDDS::DCPS::DCPS_debug_level > 9)
00074               {
00075                 ACE_DEBUG ((LM_TRACE,
00076                   ACE_TEXT ("QOS_PubSub_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00077                   ACE_TEXT ("Set presentation coherent_access to <%d>\n"),
00078                   dds_qos.presentation.coherent_access));
00079               }
00080           }
00081         if (xml_qos->presentation ().ordered_access_p ())
00082           {
00083             dds_qos.presentation.ordered_access =
00084               xml_qos->presentation ().ordered_access ();
00085
00086             if (OpenDDS::DCPS::DCPS_debug_level > 9)
00087               {
00088                 ACE_DEBUG ((LM_TRACE,
00089                   ACE_TEXT ("QOS_PubSub_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00090                   ACE_TEXT ("Set presentation ordered_access to <%d>\n"),
00091                   dds_qos.presentation.ordered_access));
00092               }
00093           }
00094       }
00095
00096   if (xml_qos->partition_p ())
00097     {
00098       if (xml_qos->partition ().name_p ())
00099         {
00100           dds_qos.partition.name.length(static_cast<CORBA::ULong>(xml_qos->partition().name().count_element()));
00101           CORBA::ULong pos = 0;
00102           for (::dds::stringSeq::element_const_iterator it = xml_qos->partition ().name ().begin_element ();
00103                it != xml_qos->partition ().name ().end_element ();
00104                ++it, ++pos)
00105             {
00106               dds_qos.partition.name[pos] = ::CORBA::string_dup (it->get()->c_str());
00107
00108               if (OpenDDS::DCPS::DCPS_debug_level > 9)
00109                 {
00110                   ACE_DEBUG ((LM_TRACE,
00111                     ACE_TEXT ("QOS_PubSub_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00112                     ACE_TEXT ("New name <%C> inserted in partition at position <%u>\n"),
00113                     dds_qos.partition.name[pos].in (), pos));
00114                 }
00115             }
00116         }
00117     }
00118
00119   if (xml_qos->entity_factory_p ())
00120     {
00121       if (xml_qos->entity_factory ().autoenable_created_entities_p ())
00122         {
00123           dds_qos.entity_factory.autoenable_created_entities =
00124             xml_qos->entity_factory ().autoenable_created_entities ();
00125
00126           if (OpenDDS::DCPS::DCPS_debug_level > 9)
00127             {
00128               ACE_DEBUG ((LM_TRACE,
00129                 ACE_TEXT ("QOS_PubSub_T<XML_QOS_TYPE, DDS_QOS_TYPE>::read_qos - ")
00130                 ACE_TEXT ("Set entity_factory autoenable_created_entities to <%d>\n"),
00131                 dds_qos.entity_factory.autoenable_created_entities));
00132             }
00133         }
00134     }
00135 }

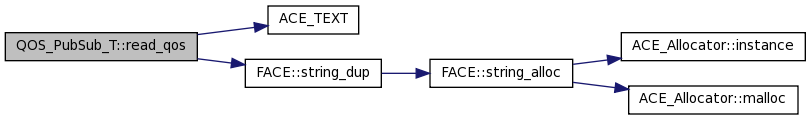

Here is the call graph for this function:

The documentation for this class was generated from the following files:
