Update::Manager Class Reference

#include <UpdateManager.h>

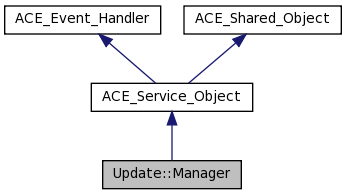

Inheritance diagram for Update::Manager:
Inheritance graph
[legend]

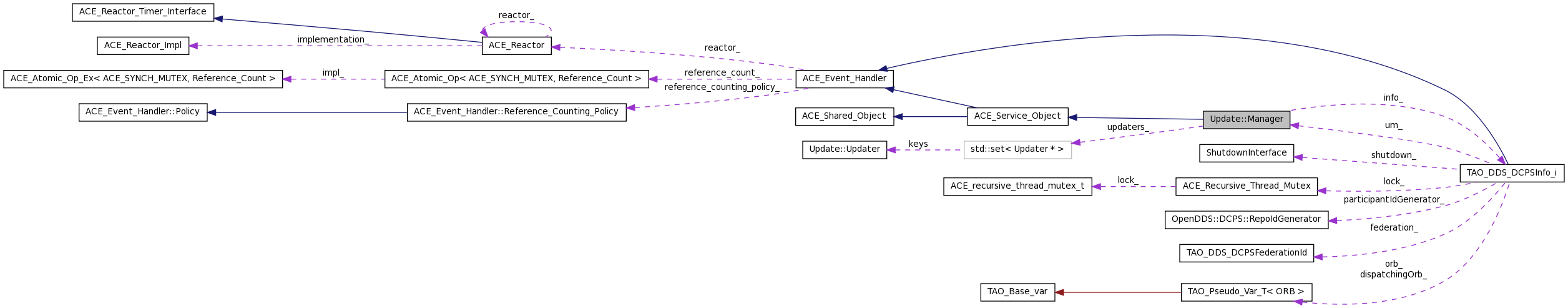

Collaboration diagram for Update::Manager:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 Manager ()
virtual ~Manager ()
virtual int init (int argc, ACE_TCHAR *argv[])
 Shared object initializer.
virtual int fini ()
 Shared object finalizer.
void add (TAO_DDS_DCPSInfo_i *info)
void add (Updater *updater)
void remove ()
void remove (const Updater *updater)
void requestImage ()
 Force a clean shutdown.
void pushImage (const DImage &image)
 Downstream request to push image.
template<class UType >
void create (const UType &info)
template<class QosType >
void update (const IdPath &id, const QosType &qos)
void destroy (const IdPath &id, ItemType type, ActorType actor=DataWriter)
void add (const DTopic &topic)
void add (const DParticipant &participant)
void add (const DActor &actor)
virtual void updateLastPartId (PartIdType partId)
 Update Last Participant Id for the repo.

Private Types

typedef std::set< Updater * > Updaters

Private Attributes

TAO_DDS_DCPSInfo_i * info_
Updaters updaters_

Detailed Description

Definition at line 32 of file UpdateManager.h.

Member Typedef Documentation

typedef std::set<Updater*> Update::Manager::Updaters [private]

Definition at line 83 of file UpdateManager.h.

Constructor & Destructor Documentation

Update::Manager::Manager (  )

Definition at line 23 of file UpdateManager.cpp.

00024   : info_(0)
00025 {
00026 }

Update::Manager::~Manager (  )  [virtual]

Definition at line 28 of file UpdateManager.cpp.

00029 {
00030 }

Member Function Documentation

void Update::Manager::add ( const DActor &  actor  )

Definition at line 344 of file UpdateManager.cpp.

References Update::ActorStrt< PSQ, RWQ, C, T, CSP >::actorId, TAO_DDS_DCPSInfo_i::add_publication(), TAO_DDS_DCPSInfo_i::add_subscription(), Update::ActorStrt< PSQ, RWQ, C, T, CSP >::callback, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::contentSubscriptionProfile, Update::DataReader, Update::DataWriter, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::domainId, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::drdwQos, Update::ContentSubscriptionInfo::exprParams, Update::ContentSubscriptionInfo::filterClassName, Update::ContentSubscriptionInfo::filterExpr, info_, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::participantId, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::pubsubQos, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::topicId, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::transportInterfaceInfo, and Update::ActorStrt< PSQ, RWQ, C, T, CSP >::type.

00345 {
00346   if (info_ == NULL) {
00347     return;
00348   }
00349
00350   // Demarshal QOS data
00351   TAO_InputCDR pubSubCdr(actor.pubsubQos.second.second
00352                          , actor.pubsubQos.second.first);
00353
00354   TAO_InputCDR drdwCdr(actor.drdwQos.second.second
00355                        , actor.drdwQos.second.first);
00356
00357   std::string callback(actor.callback.c_str());
00358
00359   TAO_InputCDR transportCdr(actor.transportInterfaceInfo.second
00360                             , actor.transportInterfaceInfo.first);
00361
00362   OpenDDS::DCPS::TransportLocatorSeq transport_info;
00363   transportCdr >> transport_info;
00364
00365   if (actor.type == DataReader) {
00366     DDS::SubscriberQos sub_qos;
00367     DDS::DataReaderQos reader_qos;
00368
00369     pubSubCdr >> sub_qos;
00370     drdwCdr >> reader_qos;
00371
00372     Update::ContentSubscriptionInfo csi;
00373     csi.filterClassName = actor.contentSubscriptionProfile.filterClassName.c_str();
00374     csi.filterExpr = actor.contentSubscriptionProfile.filterExpr.c_str();
00375     TAO_InputCDR cspCdr(actor.contentSubscriptionProfile.exprParams.second,
00376                         actor.contentSubscriptionProfile.exprParams.first);
00377     cspCdr >> csi.exprParams;
00378
00379     // Pass actor to InfoRepo.
00380     info_->add_subscription(actor.domainId, actor.participantId
00381                             , actor.topicId, actor.actorId
00382                             , callback.c_str(), reader_qos
00383                             , transport_info, sub_qos
00384                             , csi.filterClassName, csi.filterExpr, csi.exprParams);
00385
00386   } else if (actor.type == DataWriter) {
00387     DDS::PublisherQos pub_qos;
00388     DDS::DataWriterQos writer_qos;
00389
00390     pubSubCdr >> pub_qos;
00391     drdwCdr >> writer_qos;
00392
00393     // Pass actor info to infoRepo.
00394     info_->add_publication(actor.domainId, actor.participantId
00395                            , actor.topicId, actor.actorId
00396                            , callback.c_str(), writer_qos
00397                            , transport_info, pub_qos);
00398   }
00399 }

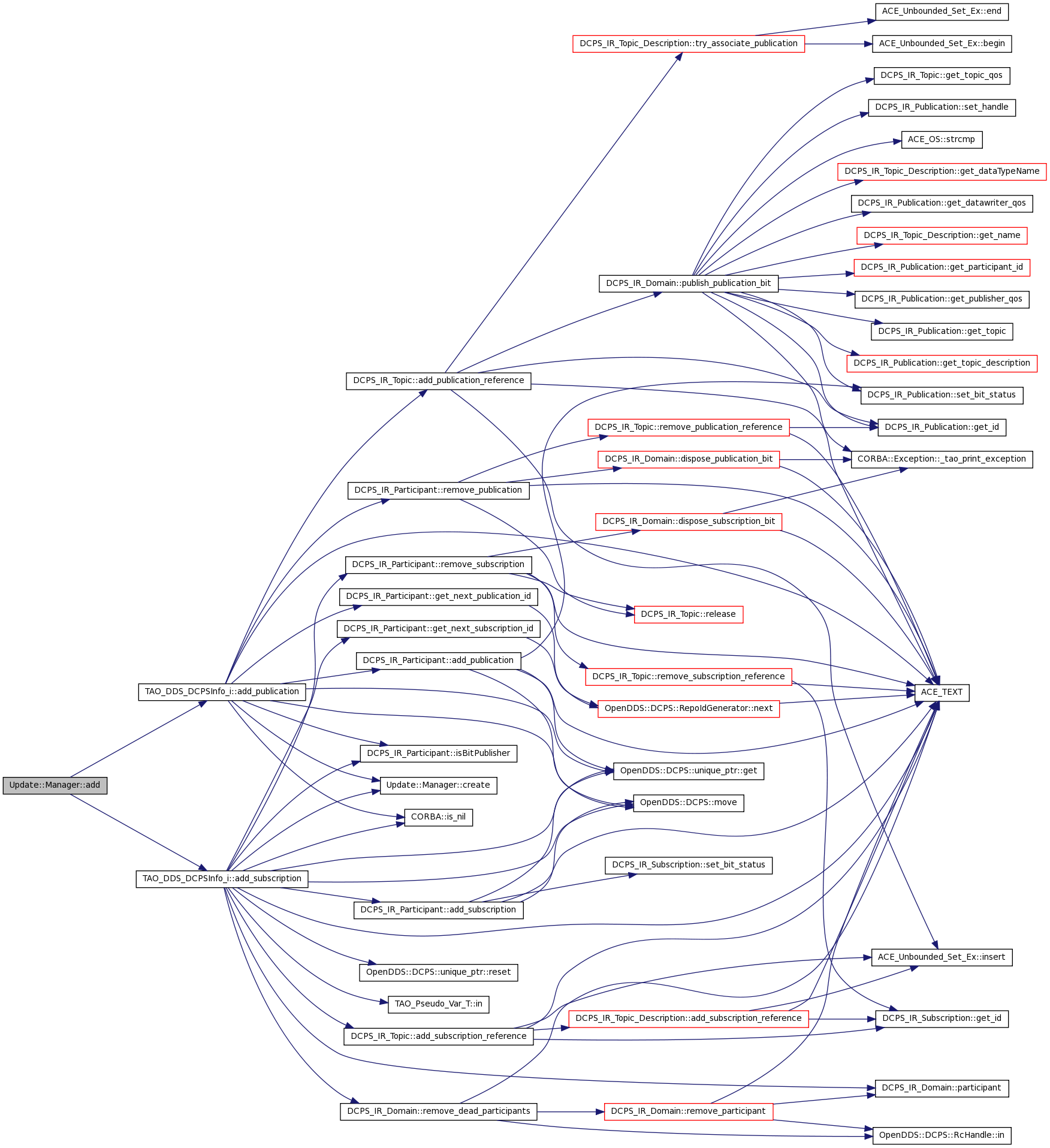

Here is the call graph for this function:

void Update::Manager::add ( const DParticipant &  participant  )

Definition at line 324 of file UpdateManager.cpp.

References TAO_DDS_DCPSInfo_i::add_domain_participant(), Update::ParticipantStrt< QosSeq >::domainId, info_, Update::ParticipantStrt< QosSeq >::participantId, and Update::ParticipantStrt< QosSeq >::participantQos.

00325 {
00326   if (info_ == NULL) {
00327     return;
00328   }
00329
00330   // Demarshal QOS data
00331   TAO_InputCDR in_cdr(participant.participantQos.second.second
00332                       , participant.participantQos.second.first);
00333
00334   DDS::DomainParticipantQos qos;
00335   in_cdr >> qos;
00336
00337   // Pass participant info to infoRepo.
00338   info_->add_domain_participant(participant.domainId
00339                                 , participant.participantId
00340                                 , qos);
00341 }

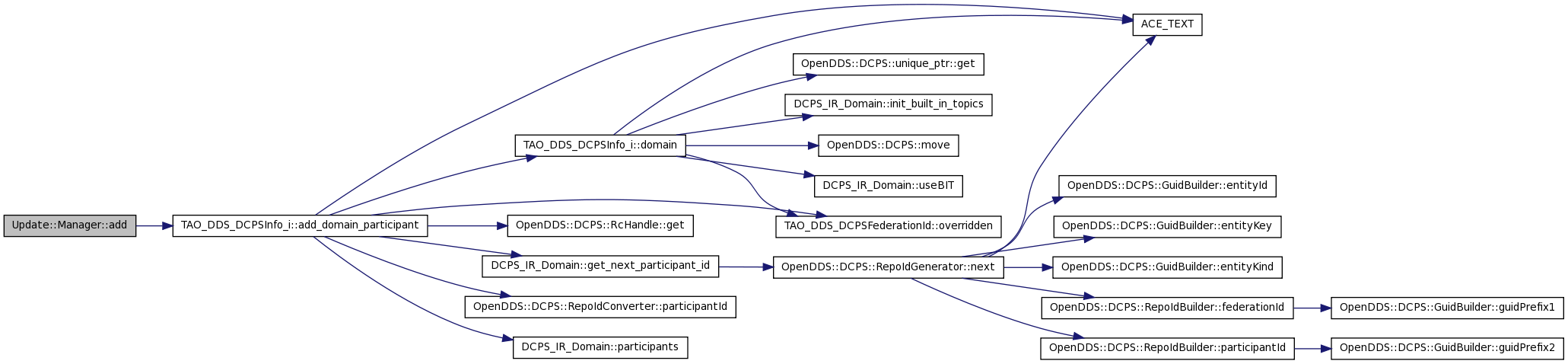

Here is the call graph for this function:

void Update::Manager::add ( const DTopic &  topic  )

Definition at line 304 of file UpdateManager.cpp.

References TAO_DDS_DCPSInfo_i::add_topic(), Update::TopicStrt< Q, S >::dataType, Update::TopicStrt< Q, S >::domainId, info_, Update::TopicStrt< Q, S >::name, Update::TopicStrt< Q, S >::participantId, Update::TopicStrt< Q, S >::topicId, and Update::TopicStrt< Q, S >::topicQos.

00305 {
00306   if (info_ == NULL) {
00307     return;
00308   }
00309
00310   // Demarshal QOS data
00311   TAO_InputCDR in_cdr(topic.topicQos.second.second
00312                       , topic.topicQos.second.first);
00313
00314   DDS::TopicQos qos;
00315   in_cdr >> qos;
00316
00317   // Pass topic info to infoRepo.
00318   info_->add_topic(topic.topicId, topic.domainId
00319                    , topic.participantId, topic.name.c_str()
00320                    , topic.dataType.c_str(), qos);
00321 }

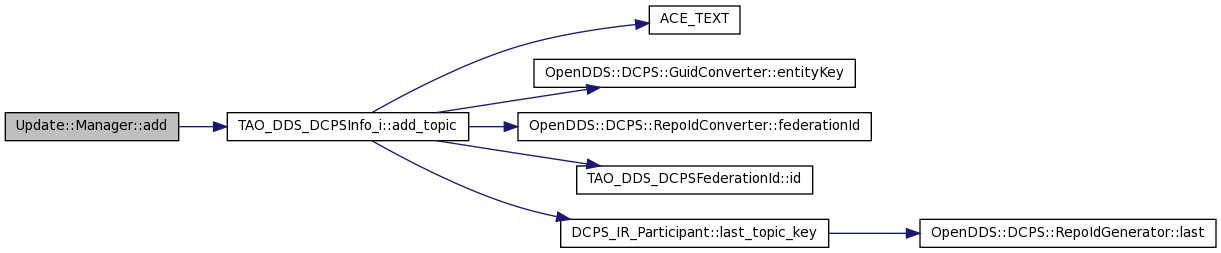

Here is the call graph for this function:

void Update::Manager::add ( Updater *  updater  )

Definition at line 39 of file UpdateManager.cpp.

References updaters_.

00040 {
00041   // push new element to the back.
00042   updaters_.insert(updater);
00043 }

void Update::Manager::add ( TAO_DDS_DCPSInfo_i *  info  )

Definition at line 33 of file UpdateManager.cpp.

References info_.

Referenced by TAO_DDS_DCPSInfo_i::add(), Update::PersistenceUpdater::init(), and TAO_DDS_DCPSInfo_i::init_persistence().

00034 {
00035   info_ = info;
00036 }

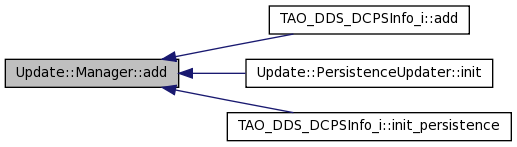

Here is the caller graph for this function:

template<class UType >
void Update::Manager::create ( const UType &  info  )  [inline]

Definition at line 12 of file UpdateManager_T.cpp.

References updaters_.

Referenced by TAO_DDS_DCPSInfo_i::add_publication(), TAO_DDS_DCPSInfo_i::add_subscription(), TAO_DDS_DCPSInfo_i::assert_topic(), and DCPS_IR_Participant::takeOwnership().

00013 {
00014   // Invoke add on each of the iterators.
00015   for (Updaters::iterator iter = updaters_.begin();
00016        iter != updaters_.end();
00017        iter++) {
00018     (*iter)->create(info);
00019   }
00020 }

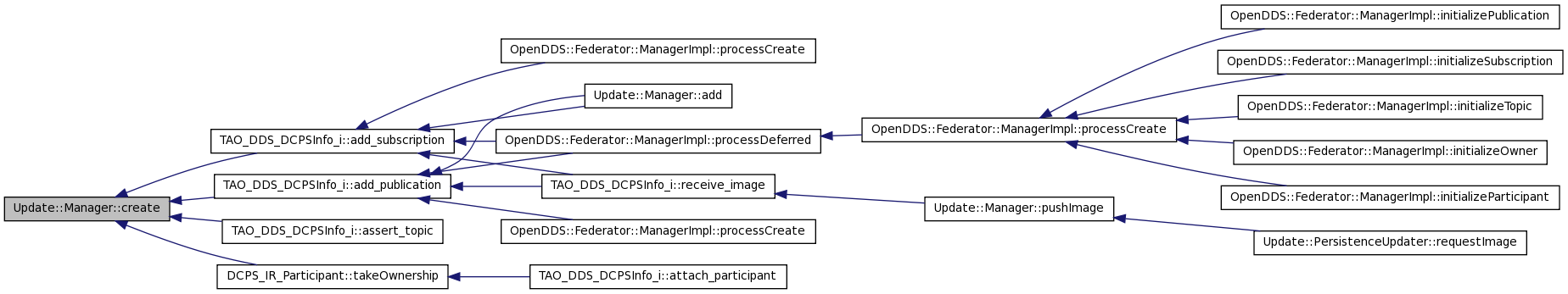

Here is the caller graph for this function:

void Update::Manager::destroy ( const IdPath &  id,
ItemType  type,
ActorType  actor = DataWriter
)

Definition at line 293 of file UpdateManager.cpp.

References updaters_.

Referenced by DCPS_IR_Participant::remove_all_dependents(), TAO_DDS_DCPSInfo_i::remove_domain_participant(), TAO_DDS_DCPSInfo_i::remove_publication(), TAO_DDS_DCPSInfo_i::remove_subscription(), and TAO_DDS_DCPSInfo_i::remove_topic().

00294 {
00295   // Invoke remove on each of the iterators.
00296   for (Updaters::iterator iter = updaters_.begin();
00297        iter != updaters_.end();
00298        iter++) {
00299     (*iter)->destroy(id, type, actor);
00300   }
00301 }

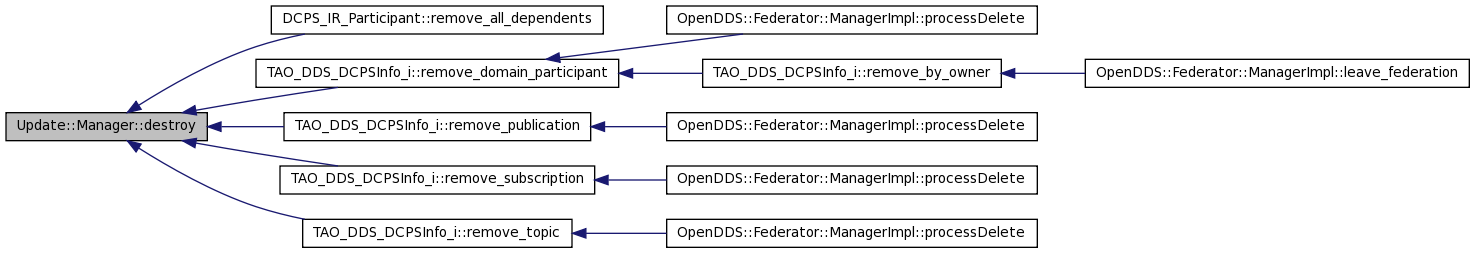

Here is the caller graph for this function:

int Update::Manager::fini ( void   )  [virtual]

Shared object finalizer.

Reimplemented from ACE_Shared_Object.

Definition at line 73 of file UpdateManager.cpp.

00074 {
00075   return 0;
00076 }

int Update::Manager::init ( int  argc,
ACE_TCHAR *  argv[]
) [virtual]

Shared object initializer.

Reimplemented from ACE_Shared_Object.

Definition at line 67 of file UpdateManager.cpp.

00068 {
00069   return 0;
00070 }

void Update::Manager::pushImage ( const DImage &  image  )

Downstream request to push image.

Definition at line 113 of file UpdateManager.cpp.

References Update::ActorStrt< PSQ, RWQ, C, T, CSP >::actorId, Update::ImageData< T, P, A, W >::actors, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::callback, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::contentSubscriptionProfile, Update::DataReader, Update::TopicStrt< Q, S >::dataType, Update::DataWriter, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::domainId, Update::TopicStrt< Q, S >::domainId, Update::ParticipantStrt< QosSeq >::domainId, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::drdwQos, Update::ContentSubscriptionInfo::exprParams, Update::ContentSubscriptionInfo::filterClassName, Update::ContentSubscriptionInfo::filterExpr, info_, Update::ImageData< T, P, A, W >::lastPartId, LM_ERROR, Update::TopicStrt< Q, S >::name, Update::ParticipantStrt< QosSeq >::owner, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::participantId, Update::TopicStrt< Q, S >::participantId, Update::ParticipantStrt< QosSeq >::participantId, Update::ParticipantStrt< QosSeq >::participantQos, Update::ImageData< T, P, A, W >::participants, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::pubsubQos, TAO_DDS_DCPSInfo_i::receive_image(), Update::SeqGuard< T >::seq(), Update::ActorStrt< PSQ, RWQ, C, T, CSP >::topicId, Update::TopicStrt< Q, S >::topicId, Update::TopicStrt< Q, S >::topicQos, Update::ImageData< T, P, A, W >::topics, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::transportInterfaceInfo, Update::ActorStrt< PSQ, RWQ, C, T, CSP >::type, and Update::ImageData< T, P, A, W >::wActors.

Referenced by Update::PersistenceUpdater::requestImage().

00114 {
00115   if (info_ == NULL) {
00116     return;
00117   }
00118
00119   // image to be propagated.
00120   UImage u_image;
00121
00122   /***************************
00123   // The downstream image needs to be converted to a
00124   // format compatible with the upstream layers (Dimage -> UImage)
00125   // The Uimage cotains a lot of refrences to the complex data
00126   // types. These are collecetd in several buckets (see below) and
00127   // passed by reference. Usage of a custom guard class 'SeqGuard'
00128   // automates memory cleanup.
00129   ***************************/
00130
00131   // Participant buckets
00132   SeqGuard<DDS::DomainParticipantQos> part_qos_guard;
00133   SeqGuard<DDS::DomainParticipantQos>::Seq& part_qos = part_qos_guard.seq();
00134
00135   SeqGuard<UParticipant> part_guard;
00136   SeqGuard<UParticipant>::Seq& parts = part_guard.seq();
00137
00138   for (DImage::ParticipantSeq::const_iterator iter = image.participants.begin();
00139        iter != image.participants.end(); iter++) {
00140     const DParticipant& part = *iter;
00141
00142     TAO_InputCDR in_cdr(part.participantQos.second.second
00143                         , part.participantQos.second.first);
00144
00145     DDS::DomainParticipantQos* qos;
00146     ACE_NEW_NORETURN(qos, DDS::DomainParticipantQos);
00147     in_cdr >> *qos;
00148     part_qos.push_back(qos);
00149
00150     UParticipant* u_part;
00151     ACE_NEW_NORETURN(u_part, UParticipant(part.domainId
00152                                           , part.owner
00153                                           , part.participantId
00154                                           , *qos));
00155     parts.push_back(u_part);
00156
00157     // push newly created UParticipant into UImage Participant bucket
00158     u_image.participants.push_back(u_part);
00159   }
00160
00161   // Topic buckets
00162   SeqGuard<DDS::TopicQos> topics_qos_guard;
00163   SeqGuard<DDS::TopicQos>::Seq& topics_qos = topics_qos_guard.seq();
00164
00165   SeqGuard<UTopic> topics_guard;
00166   SeqGuard<UTopic>::Seq& topics = topics_guard.seq();
00167
00168   for (DImage::TopicSeq::const_iterator iter = image.topics.begin();
00169        iter != image.topics.end(); iter++) {
00170     const DTopic& topic = *iter;
00171
00172     TAO_InputCDR in_cdr(topic.topicQos.second.second
00173                         , topic.topicQos.second.first);
00174
00175     DDS::TopicQos* qos;
00176     ACE_NEW_NORETURN(qos, DDS::TopicQos);
00177     in_cdr >> *qos;
00178     topics_qos.push_back(qos);
00179
00180     UTopic* u_topic;
00181     ACE_NEW_NORETURN(u_topic
00182                      , UTopic(topic.domainId, topic.topicId
00183                               , topic.participantId
00184                               , topic.name.c_str()
00185                               , topic.dataType.c_str(), *qos));
00186     topics.push_back(u_topic);
00187
00188     // Push newly created UTopic into UImage Topic bucket
00189     u_image.topics.push_back(u_topic);
00190   }
00191
00192   // Actor buckets
00193   SeqGuard<DDS::PublisherQos> pub_qos_guard;
00194   SeqGuard<DDS::PublisherQos>::Seq& pub_qos_seq = pub_qos_guard.seq();
00195   SeqGuard<DDS::DataWriterQos> dw_qos_guard;
00196   SeqGuard<DDS::DataWriterQos>::Seq& dw_qos_seq = dw_qos_guard.seq();
00197
00198   SeqGuard<DDS::SubscriberQos> sub_qos_guard;
00199   SeqGuard<DDS::SubscriberQos>::Seq& sub_qos_seq = sub_qos_guard.seq();
00200   SeqGuard<DDS::DataReaderQos> dr_qos_guard;
00201   SeqGuard<DDS::DataReaderQos>::Seq& dr_qos_seq = dr_qos_guard.seq();
00202
00203   SeqGuard<OpenDDS::DCPS::TransportLocatorSeq> trans_guard;
00204   SeqGuard<OpenDDS::DCPS::TransportLocatorSeq>::Seq& transports = trans_guard.seq();
00205
00206   SeqGuard<URActor> reader_guard;
00207   SeqGuard<URActor>::Seq& readers = reader_guard.seq();
00208   SeqGuard<UWActor> writer_guard;
00209   SeqGuard<UWActor>::Seq& writers = writer_guard.seq();
00210
00211   ContentSubscriptionInfo csi;
00212
00213   for (DImage::ReaderSeq::const_iterator iter = image.actors.begin();
00214        iter != image.actors.end(); iter++) {
00215     const DActor& actor = *iter;
00216
00217     TAO_InputCDR in_cdr(actor.transportInterfaceInfo.second
00218                         , actor.transportInterfaceInfo.first);
00219     OpenDDS::DCPS::TransportLocatorSeq* trans;
00220     ACE_NEW_NORETURN(trans, OpenDDS::DCPS::TransportLocatorSeq);
00221     transports.push_back(trans);
00222     in_cdr >> *trans;
00223
00224     DDS::PublisherQos* pub_qos = 0;
00225     DDS::DataWriterQos* writer_qos = 0;
00226     DDS::SubscriberQos* sub_qos = 0;
00227     DDS::DataReaderQos* reader_qos = 0;
00228
00229     if (actor.type == DataReader) {
00230       TAO_InputCDR sub_cdr(actor.pubsubQos.second.second
00231                            , actor.pubsubQos.second.first);
00232       ACE_NEW_NORETURN(sub_qos, DDS::SubscriberQos);
00233       sub_qos_seq.push_back(sub_qos);
00234       sub_cdr >> *sub_qos;
00235
00236       TAO_InputCDR read_cdr(actor.drdwQos.second.second
00237                             , actor.drdwQos.second.first);
00238       ACE_NEW_NORETURN(reader_qos, DDS::DataReaderQos);
00239       dr_qos_seq.push_back(reader_qos);
00240       read_cdr >> *reader_qos;
00241
00242       csi.filterClassName = actor.contentSubscriptionProfile.filterClassName.c_str();
00243       csi.filterExpr = actor.contentSubscriptionProfile.filterExpr.c_str();
00244       TAO_InputCDR csp_cdr(actor.contentSubscriptionProfile.exprParams.second,
00245                            actor.contentSubscriptionProfile.exprParams.first);
00246       csp_cdr >> csi.exprParams;
00247
00248       URActor* reader;
00249       ACE_NEW_NORETURN(reader
00250                        , URActor(actor.domainId, actor.actorId
00251                                  , actor.topicId, actor.participantId
00252                                  , actor.type, actor.callback.c_str()
00253                                  , *sub_qos, *reader_qos
00254                                  , *trans, csi));
00255       readers.push_back(reader);
00256       u_image.actors.push_back(reader);
00257
00258     } else if (actor.type == DataWriter) {
00259       TAO_InputCDR pub_cdr(actor.pubsubQos.second.second
00260                            , actor.pubsubQos.second.first);
00261       ACE_NEW_NORETURN(pub_qos, DDS::PublisherQos);
00262       pub_qos_seq.push_back(pub_qos);
00263       pub_cdr >> *pub_qos;
00264
00265       TAO_InputCDR write_cdr(actor.drdwQos.second.second
00266                              , actor.drdwQos.second.first);
00267       ACE_NEW_NORETURN(writer_qos, DDS::DataWriterQos);
00268       dw_qos_seq.push_back(writer_qos);
00269       write_cdr >> *writer_qos;
00270
00271       UWActor* writer;
00272       ACE_NEW_NORETURN(writer
00273                        , UWActor(actor.domainId, actor.actorId
00274                                  , actor.topicId, actor.participantId
00275                                  , actor.type, actor.callback.c_str()
00276                                  , *pub_qos, *writer_qos
00277                                  , *trans, csi));
00278       writers.push_back(writer);
00279       u_image.wActors.push_back(writer);
00280
00281     } else {
00282       ACE_ERROR((LM_ERROR, "Update::Manager::pushImage> unknown "
00283                  "actor type.\n"));
00284     }
00285   }
00286
00287   u_image.lastPartId = image.lastPartId;
00288
00289   info_->receive_image(u_image);
00290 }

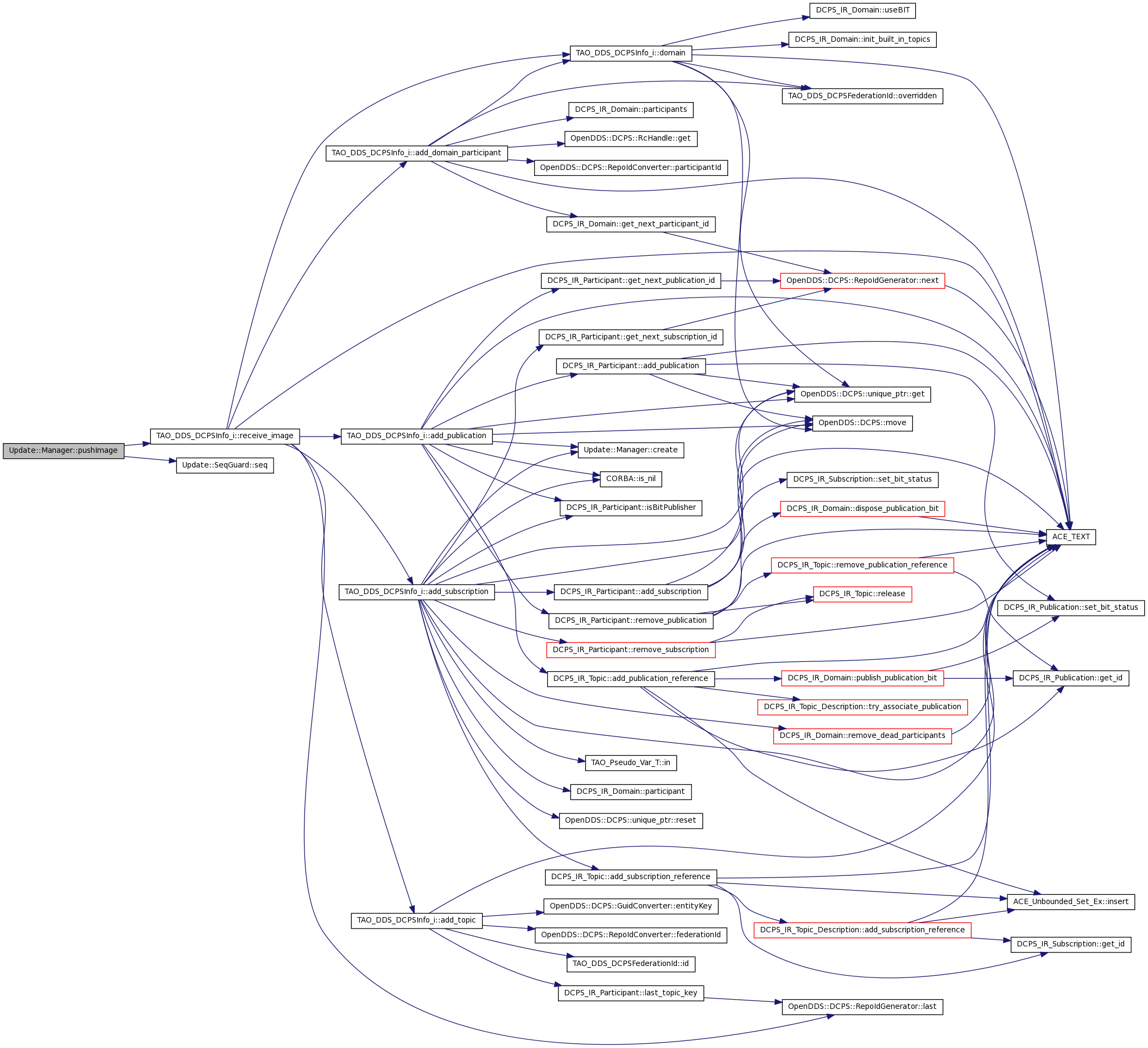

Here is the call graph for this function:

Here is the caller graph for this function:

void Update::Manager::remove ( const Updater *  updater  )

Definition at line 53 of file UpdateManager.cpp.

References updaters_.

00054 {
00055   // check if the Updaters is part of the list.
00056   Updaters::iterator iter = updaters_.find(const_cast<Updater*>(updater));
00057
00058   if (iter == updaters_.end()) {
00059     return;
00060   }
00061
00062   // remove the element
00063   updaters_.erase(iter);
00064 }

void Update::Manager::remove ( void   )

Definition at line 46 of file UpdateManager.cpp.

References info_.

00047 {
00048   // Clean the refrence to the InfoRepo.
00049   info_ = 0;
00050 }

void Update::Manager::requestImage (  )

Force a clean shutdown.

Upstream request for a fresh image Currently handled synchronously via 'pushImage' TBD: Replace with an asynchronous model.

Definition at line 79 of file UpdateManager.cpp.

References updaters_.

Referenced by TAO_DDS_DCPSInfo_i::init_persistence().

00080 {
00081   for (Updaters::iterator iter = updaters_.begin();
00082        iter != updaters_.end();
00083        iter++) {
00084     (*iter)->requestImage();
00085   }
00086 }

Here is the caller graph for this function:

template<class QosType >
void Update::Manager::update ( const IdPath &  id,
const QosType &  qos
) [inline]

Definition at line 24 of file UpdateManager_T.cpp.

References updaters_.

Referenced by TAO_DDS_DCPSInfo_i::update_domain_participant_qos(), TAO_DDS_DCPSInfo_i::update_publication_qos(), TAO_DDS_DCPSInfo_i::update_subscription_params(), TAO_DDS_DCPSInfo_i::update_subscription_qos(), and TAO_DDS_DCPSInfo_i::update_topic_qos().

00025 {
00026   // Invoke update on each of the iterators.
00027   for (Updaters::iterator iter = updaters_.begin();
00028        iter != updaters_.end();
00029        iter++) {
00030     (*iter)->update(id, qos);
00031   }
00032 }

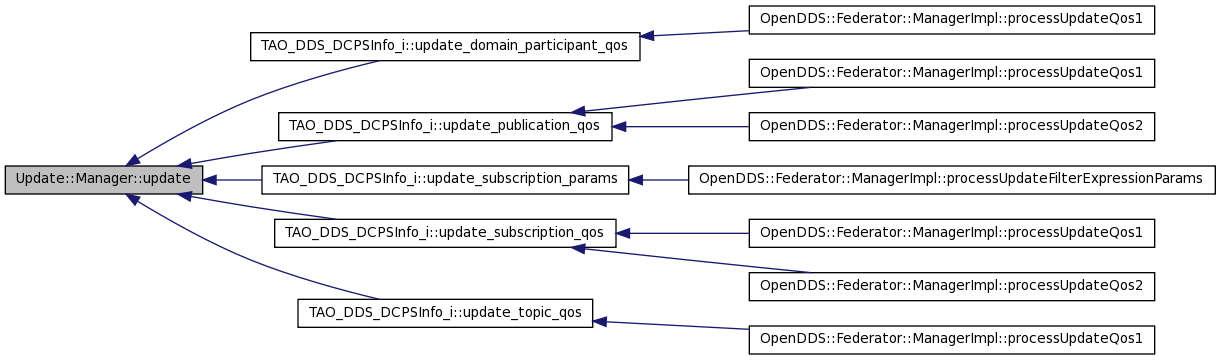

Here is the caller graph for this function:

void Update::Manager::updateLastPartId ( PartIdType  partId  )  [virtual]

Update Last Participant Id for the repo.

Definition at line 401 of file UpdateManager.cpp.

References updaters_.

00402 {
00403   for (Updaters::iterator iter = updaters_.begin();
00404        iter != updaters_.end();
00405        iter++) {
00406     (*iter)->updateLastPartId(partId);
00407   }
00408 }

Member Data Documentation

TAO_DDS_DCPSInfo_i* Update::Manager::info_ [private]

Definition at line 88 of file UpdateManager.h.

Referenced by add(), pushImage(), and remove().

Updaters Update::Manager::updaters_ [private]

Definition at line 89 of file UpdateManager.h.

Referenced by add(), create(), destroy(), remove(), requestImage(), update(), and updateLastPartId().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
