OpenDDS::DCPS::InstanceState Class Reference

manage the states of a received data instance. More...

#include <InstanceState.h>

Inheritance diagram for OpenDDS::DCPS::InstanceState:
Inheritance graph
[legend]

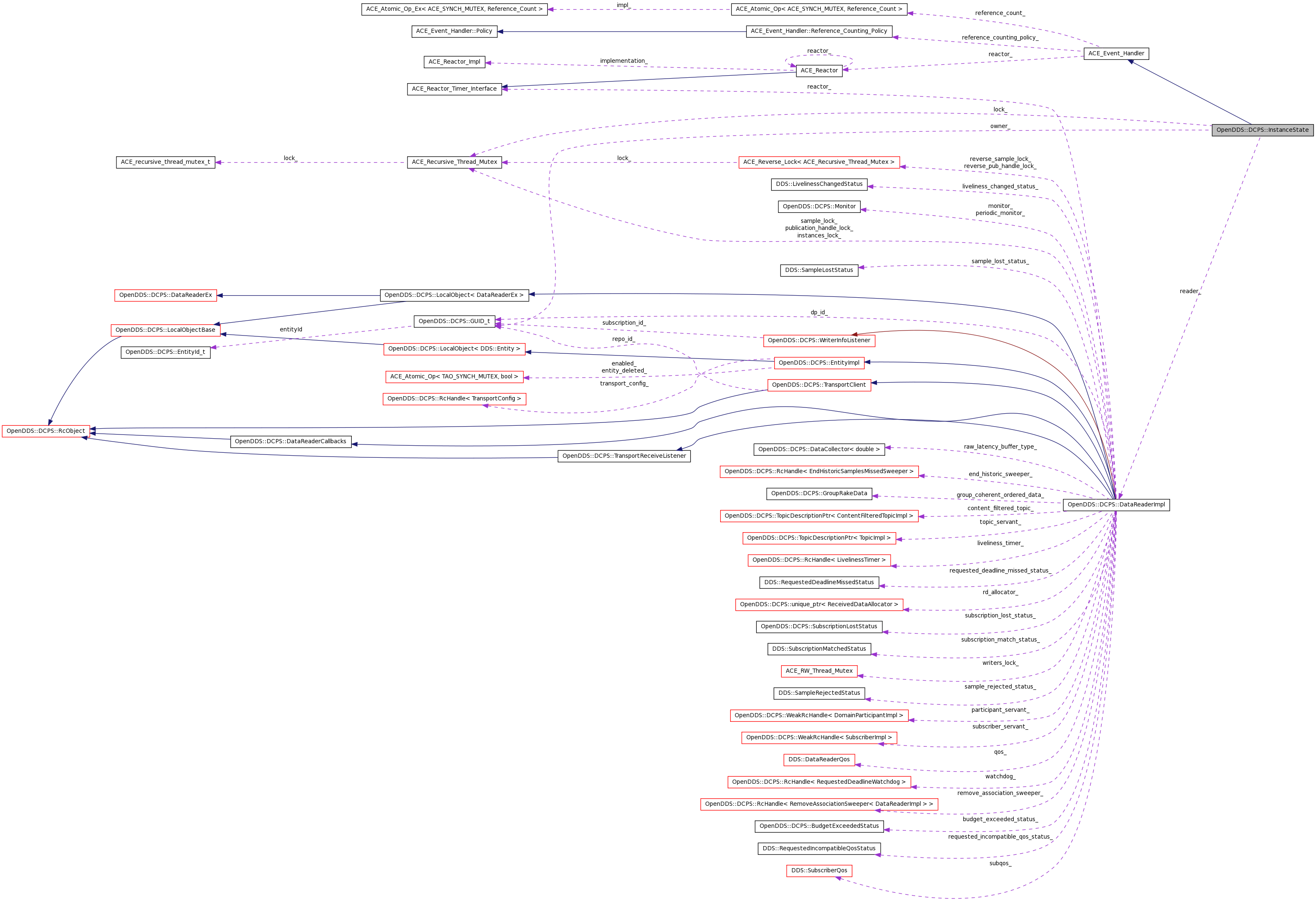

Collaboration diagram for OpenDDS::DCPS::InstanceState:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 InstanceState (DataReaderImpl *reader, ACE_Recursive_Thread_Mutex &lock, DDS::InstanceHandle_t handle)
virtual ~InstanceState ()
void sample_info (DDS::SampleInfo &si, const ReceivedDataElement *de)
 Populate the SampleInfo structure.
DDS::InstanceStateKind instance_state () const
 Access instance state.
DDS::ViewStateKind view_state () const
 Access view state.
size_t disposed_generation_count () const
 Access disposed generation count.
size_t no_writers_generation_count () const
 Access no writers generation count.
bool dispose_was_received (const PublicationId &writer_id)
bool unregister_was_received (const PublicationId &writer_id)
void data_was_received (const PublicationId &writer_id)
 Data sample received for this instance.
void lively (const PublicationId &writer_id)
 LIVELINESS message received for this DataWriter.
void accessed ()
 A read or take operation has been performed on this instance.
bool most_recent_generation (ReceivedDataElement *item) const
bool empty (bool value)
 DataReader has become empty. Returns true if the instance was released.
void schedule_pending ()
 Schedule a pending release of resources.
void schedule_release ()
 Schedule an immediate release of resources.
void cancel_release ()
 Cancel a scheduled or pending release of resources.
bool release_if_empty ()
void release ()
 Remove the instance immediately.
void writer_became_dead (const PublicationId &writer_id, int num_alive_writers, const ACE_Time_Value &when)
 tell this instance when a DataWriter transitions to NOT_ALIVE
DataReaderImpl * data_reader () const
virtual int handle_timeout (const ACE_Time_Value &current_time, const void *arg)
void set_owner (const PublicationId &owner)
PublicationId & get_owner ()
bool is_exclusive () const
bool registered ()
void registered (bool flag)
bool is_last (const PublicationId &pub)
bool no_writer () const
void reset_ownership (DDS::InstanceHandle_t instance)
DDS::InstanceHandle_t instance_handle () const
OPENDDS_STRING instance_state_string () const
 Return string of the name of the current instance state.

Static Public Member Functions

static OPENDDS_STRING instance_state_string (DDS::InstanceStateKind value)
 Return string of the name of the instance state kind or mask passed.

Private Attributes

ACE_Recursive_Thread_Mutex & lock_
DDS::InstanceStateKind instance_state_
DDS::ViewStateKind view_state_
size_t disposed_generation_count_
size_t no_writers_generation_count_
bool empty_
bool release_pending_
long release_timer_id_
DataReaderImpl * reader_
DDS::InstanceHandle_t handle_
RepoIdSet writers_
PublicationId owner_
bool exclusive_
bool registered_

Detailed Description

manage the states of a received data instance.

Provide a mechanism to manage the view state and instance state values for an instance contained within a DataReader. The instance_state and view_state are managed by this class. Accessors are provided to query the current value of each of these states.

Definition at line 42 of file InstanceState.h.

Constructor & Destructor Documentation

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::InstanceState::InstanceState ( DataReaderImpl *  reader,
ACE_Recursive_Thread_Mutex &  lock,
DDS::InstanceHandle_t  handle
)

Definition at line 25 of file InstanceState.cpp.

00028   : lock_(lock),
00029     instance_state_(0),
00030     view_state_(0),
00031     disposed_generation_count_(0),
00032     no_writers_generation_count_(0),
00033     empty_(true),
00034     release_pending_(false),
00035     release_timer_id_(-1),
00036     reader_(reader),
00037     handle_(handle),
00038     owner_(GUID_UNKNOWN),
00039 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00040     exclusive_(reader->qos_.ownership.kind == ::DDS::EXCLUSIVE_OWNERSHIP_QOS),
00041 #endif
00042     registered_ (false)
00043 {}

OpenDDS::DCPS::InstanceState::~InstanceState (  )  [virtual]

Definition at line 45 of file InstanceState.cpp.

References cancel_release(), OpenDDS::DCPS::DataReaderImpl::ownership_manager(), reader_, and registered_.

00046 {
00047   cancel_release();
00048 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00049   if (registered_) {
00050     DataReaderImpl::OwnershipManagerPtr om = reader_->ownership_manager();
00051     if (om) om->remove_instance(this);
00052   }
00053 #endif
00054 }

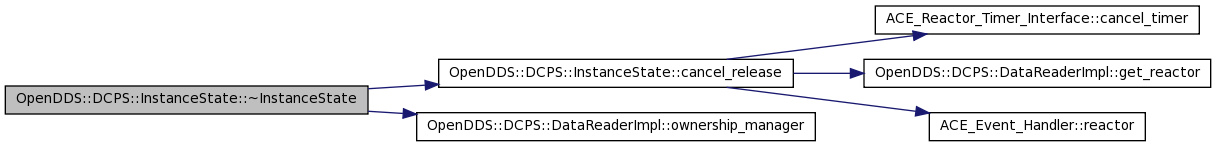

Here is the call graph for this function:

Member Function Documentation

ACE_INLINE void OpenDDS::DCPS::InstanceState::accessed (  )

A read or take operation has been performed on this instance.

Definition at line 22 of file InstanceState.inl.

References DDS::ANY_VIEW_STATE, lock_, DDS::NOT_NEW_VIEW_STATE, and view_state_.

Referenced by OpenDDS::DCPS::RakeResults< SampleSeq >::copy_into().

00023 {
00024   ACE_GUARD(ACE_Recursive_Thread_Mutex,
00025             guard, this->lock_);
00026   //
00027   // Manage the view state due to data access here.
00028   //
00029   if (this->view_state_ & DDS::ANY_VIEW_STATE) {
00030     this->view_state_ = DDS::NOT_NEW_VIEW_STATE ;
00031   }
00032 }

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::cancel_release (  )

Cancel a scheduled or pending release of resources.

Definition at line 255 of file InstanceState.cpp.

References ACE_Reactor_Timer_Interface::cancel_timer(), OpenDDS::DCPS::DataReaderImpl::get_reactor(), ACE_Event_Handler::reactor(), reader_, release_pending_, and release_timer_id_.

Referenced by data_was_received(), lively(), schedule_release(), and ~InstanceState().

00256 {
00257   this->release_pending_ = false;
00258
00259   if (this->release_timer_id_ != -1) {
00260     ACE_Reactor_Timer_Interface* reactor = this->reader_->get_reactor();
00261     reactor->cancel_timer(this->release_timer_id_);
00262
00263     this->release_timer_id_ = -1;
00264   }
00265 }

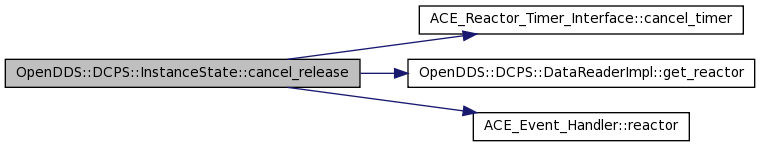

Here is the call graph for this function:

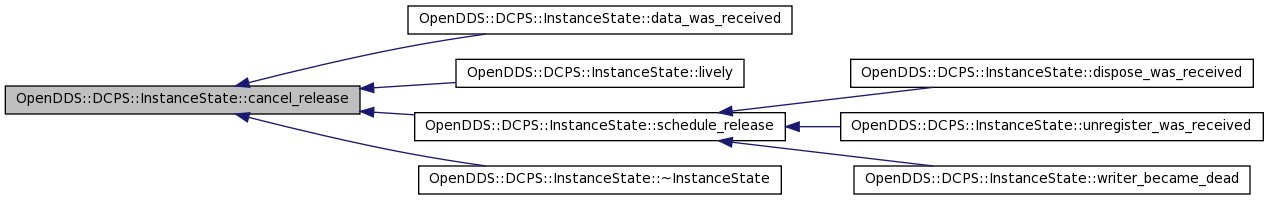

Here is the caller graph for this function:

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE OpenDDS::DCPS::DataReaderImpl * OpenDDS::DCPS::InstanceState::data_reader (  )  const

Definition at line 15 of file InstanceState.inl.

References reader_.

00016 {
00017   return reader_;
00018 }

ACE_INLINE void OpenDDS::DCPS::InstanceState::data_was_received ( const PublicationId &  writer_id  )

Data sample received for this instance.

Definition at line 70 of file InstanceState.inl.

References DDS::ALIVE_INSTANCE_STATE, cancel_release(), disposed_generation_count_, instance_state_, lock_, DDS::NEW_VIEW_STATE, no_writers_generation_count_, DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE, DDS::NOT_ALIVE_INSTANCE_STATE, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, DDS::NOT_NEW_VIEW_STATE, view_state_, and writers_.

00071 {
00072   ACE_GUARD(ACE_Recursive_Thread_Mutex,
00073             guard, this->lock_);
00074   cancel_release();
00075
00076   //
00077   // Update the view state here, since only sample data received affects
00078   // this state value.  Then manage the data sample only transitions
00079   // here.  Let the lively() method manage the other transitions.
00080   //
00081   writers_.insert(writer_id);
00082
00083   switch (this->view_state_) {
00084   case DDS::NEW_VIEW_STATE:
00085     break ; // No action.
00086
00087   case DDS::NOT_NEW_VIEW_STATE:
00088
00089     if (this->instance_state_ & DDS::NOT_ALIVE_INSTANCE_STATE) {
00090       this->view_state_ = DDS::NEW_VIEW_STATE ;
00091     }
00092
00093     break ;
00094
00095   default:
00096     this->view_state_ = DDS::NEW_VIEW_STATE ;
00097     break ;
00098   }
00099
00100   switch (this->instance_state_) {
00101   case DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE:
00102     ++this->disposed_generation_count_;
00103     break ;
00104
00105   case DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE:
00106     ++this->no_writers_generation_count_;
00107     break ;
00108
00109   default:
00110     break ;
00111   }
00112
00113   this->instance_state_ = DDS::ALIVE_INSTANCE_STATE ;
00114 }

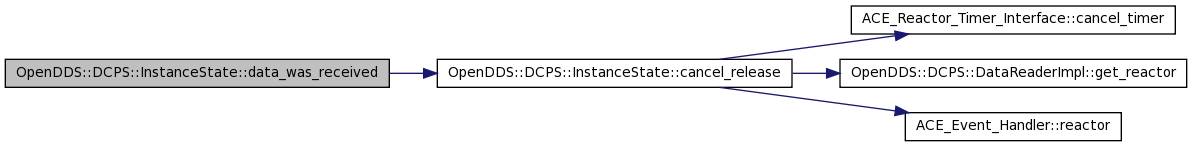

Here is the call graph for this function:

bool OpenDDS::DCPS::InstanceState::dispose_was_received ( const PublicationId &  writer_id  )

DISPOSE message received for this instance. Return flag indicates whether the instance state was changed. This flag is used by concrete DataReader to determine whether it should notify listener. If state is not changed, the dispose message is ignored.

Definition at line 109 of file InstanceState.cpp.

References DDS::ALIVE_INSTANCE_STATE, exclusive_, instance_state_, lock_, DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE, OpenDDS::DCPS::DataReaderImpl::ownership_manager(), reader_, schedule_release(), and writers_.

00110 {
00111   ACE_GUARD_RETURN(ACE_Recursive_Thread_Mutex,
00112                    guard, this->lock_, false);
00113
00114   writers_.erase(writer_id);
00115
00116   //
00117   // Manage the instance state on disposal here.
00118   //
00119   // If disposed by owner then the owner is not re-elected, it can
00120   // resume if the writer sends message again.
00121   if (this->instance_state_ & DDS::ALIVE_INSTANCE_STATE) {
00122 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00123     DataReaderImpl::OwnershipManagerPtr owner_manager = this->reader_->ownership_manager();
00124     if (! this->exclusive_
00125       || (owner_manager && owner_manager->is_owner (this->handle_, writer_id))) {
00126 #endif
00127       this->instance_state_ = DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE;
00128       schedule_release();
00129       return true;
00130 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00131     }
00132 #endif
00133   }
00134
00135   return false;
00136 }

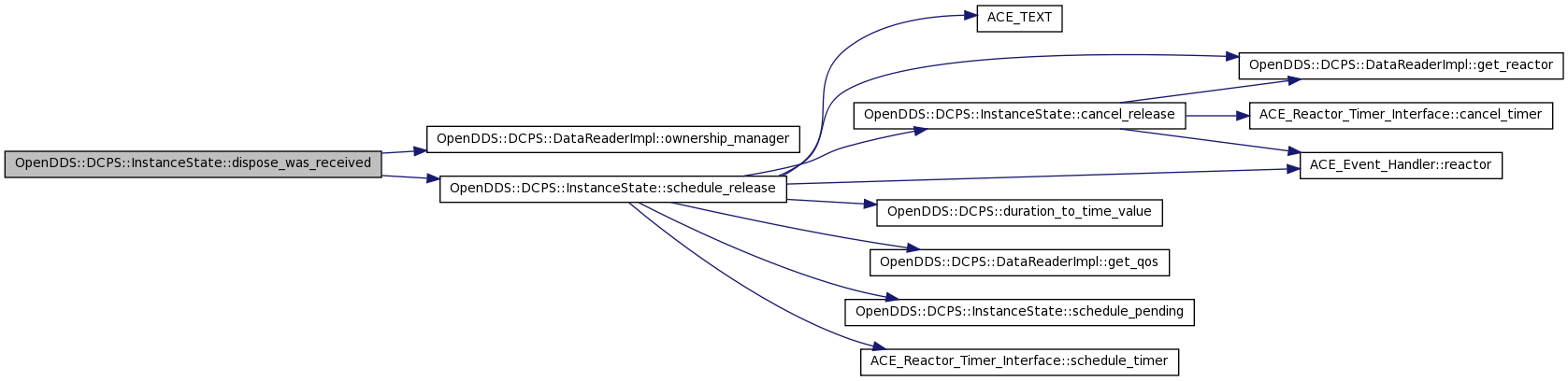

Here is the call graph for this function:

ACE_INLINE size_t OpenDDS::DCPS::InstanceState::disposed_generation_count (  )  const

Access disposed generation count.

Definition at line 57 of file InstanceState.inl.

References disposed_generation_count_.

00058 {
00059   return disposed_generation_count_ ;
00060 }

ACE_INLINE bool OpenDDS::DCPS::InstanceState::empty ( bool  value  )

DataReader has become empty. Returns true if the instance was released.

Definition at line 139 of file InstanceState.inl.

References empty_, release_if_empty(), and release_pending_.

Referenced by OpenDDS::DCPS::ReceivedDataElementList::add(), and OpenDDS::DCPS::ReceivedDataElementList::remove().

00140 {
00141   //
00142   // Manage the instance state due to the DataReader becoming empty
00143   // here.
00144   //
00145   if ((this->empty_ = value) && this->release_pending_) {
00146     return release_if_empty();
00147   } else {
00148     return false;
00149   }
00150 }

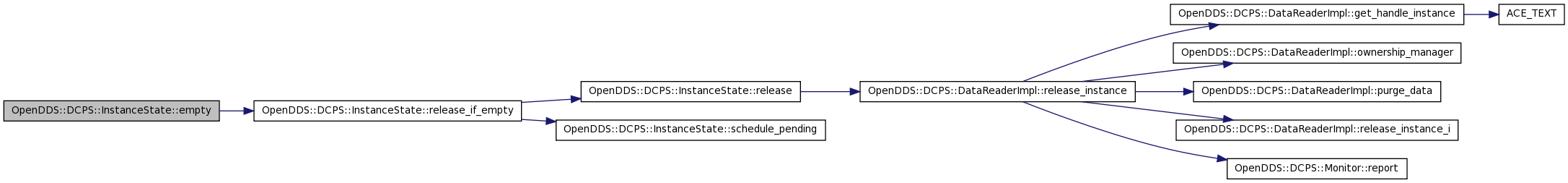

Here is the call graph for this function:

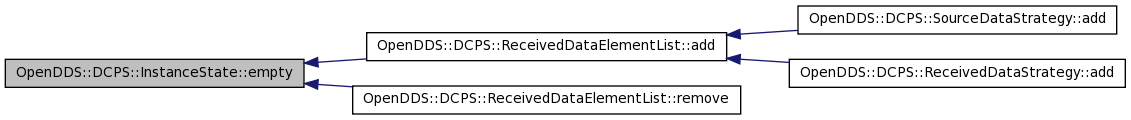

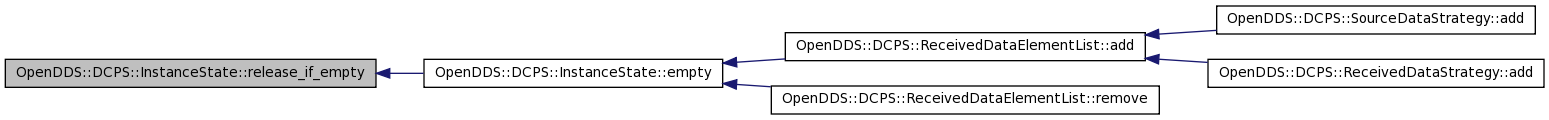

Here is the caller graph for this function:

OpenDDS::DCPS::PublicationId & OpenDDS::DCPS::InstanceState::get_owner (  )

Definition at line 293 of file InstanceState.cpp.

References owner_.

00294 {
00295   return this->owner_;
00296 }

int OpenDDS::DCPS::InstanceState::handle_timeout ( const ACE_Time_Value &  current_time,
const void *  arg
) [virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 93 of file InstanceState.cpp.

References ACE_TEXT(), OpenDDS::DCPS::DCPS_debug_level, handle_, LM_NOTICE, and release().

00095 {
00096   if (OpenDDS::DCPS::DCPS_debug_level > 0) {
00097     ACE_DEBUG((LM_NOTICE,
00098                ACE_TEXT("(%P|%t) NOTICE:")
00099                ACE_TEXT(" InstanceState::handle_timeout:")
00100                ACE_TEXT(" autopurging samples with instance handle 0x%x!\n"),
00101                this->handle_));
00102   }
00103   this->release();
00104
00105   return 0;
00106 }

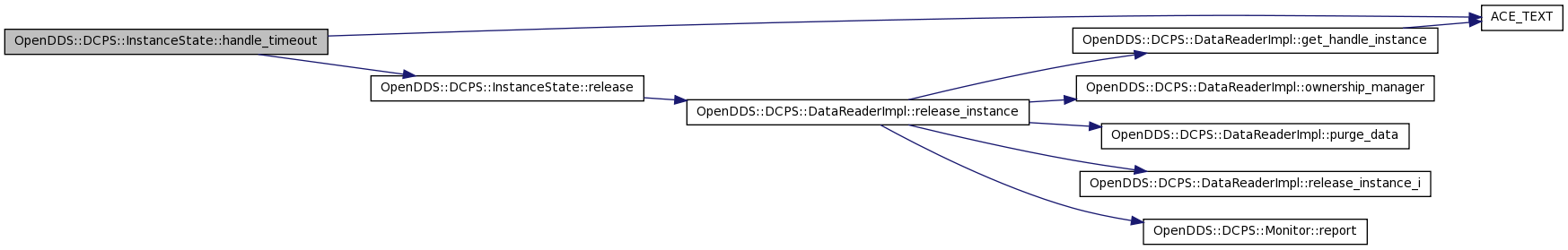

Here is the call graph for this function:

DDS::InstanceHandle_t OpenDDS::DCPS::InstanceState::instance_handle (  )  const [inline]

Definition at line 132 of file InstanceState.h.

Referenced by OpenDDS::DCPS::OwnershipManager::remove_instance().

00132 { return handle_; }

Here is the caller graph for this function:

ACE_INLINE DDS::InstanceStateKind OpenDDS::DCPS::InstanceState::instance_state (  )  const

Access instance state.

Definition at line 44 of file InstanceState.inl.

References instance_state_.

Referenced by OpenDDS::DCPS::DataReaderImpl::contains_sample(), OpenDDS::DCPS::DataReaderImpl_T< MessageType >::contains_sample_filtered(), and OpenDDS::DCPS::DataReaderImpl_T< MessageType >::read_instance_i().

00045 {
00046   return this->instance_state_ ;
00047 }

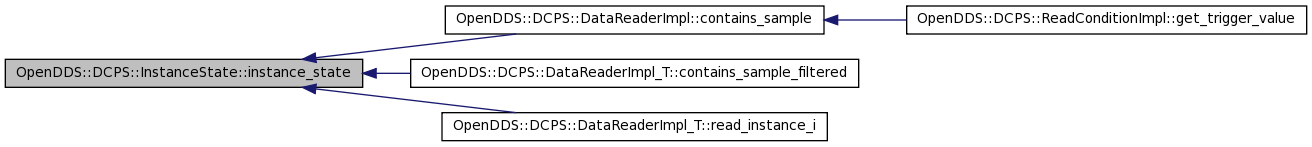

Here is the caller graph for this function:

OPENDDS_STRING OpenDDS::DCPS::InstanceState::instance_state_string ( DDS::InstanceStateKind  value  )  [static]

Return string of the name of the instance state kind or mask passed.

Definition at line 328 of file InstanceState.cpp.

References ACE_TEXT(), DDS::ALIVE_INSTANCE_STATE, DDS::ANY_INSTANCE_STATE, LM_ERROR, DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE, DDS::NOT_ALIVE_INSTANCE_STATE, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, OPENDDS_STRING, and OpenDDS::DCPS::to_dds_string().

00329 {
00330   switch (value) {
00331   case DDS::ALIVE_INSTANCE_STATE:
00332     return OPENDDS_STRING("ALIVE_INSTANCE_STATE");
00333   case DDS::NOT_ALIVE_INSTANCE_STATE:
00334     return OPENDDS_STRING("NOT_ALIVE_INSTANCE_STATE");
00335   case DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE:
00336     return OPENDDS_STRING("NOT_ALIVE_DISPOSED_INSTANCE_STATE");
00337   case DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE:
00338     return OPENDDS_STRING("NOT_ALIVE_NO_WRITERS_INSTANCE_STATE");
00339   case DDS::ANY_INSTANCE_STATE:
00340     return OPENDDS_STRING("ANY_INSTANCE_STATE");
00341   default:
00342     ACE_ERROR((LM_ERROR,
00343       ACE_TEXT(
00344         "(%P|%t) ERROR: OpenDDS::DCPS::InstanceState::instance_state_string(): "
00345         "%d is either completely invalid or at least not defined in this function.\n"
00346       ),
00347       value
00348     ));
00349
00350     return OPENDDS_STRING("(Unknown Instance State: ") + to_dds_string(value) + ")";
00351   }
00352 }

Here is the call graph for this function:

OPENDDS_STRING OpenDDS::DCPS::InstanceState::instance_state_string (  )  const [inline]

Return string of the name of the current instance state.

Definition at line 135 of file InstanceState.h.

Referenced by OpenDDS::DCPS::DataReaderImpl_T< MessageType >::read_instance_i().

00136   {
00137     return instance_state_string(instance_state_);
00138   }

Here is the caller graph for this function:

bool OpenDDS::DCPS::InstanceState::is_exclusive (  )  const

Definition at line 299 of file InstanceState.cpp.

References exclusive_.

00300 {
00301   return this->exclusive_;
00302 }

ACE_INLINE bool OpenDDS::DCPS::InstanceState::is_last ( const PublicationId &  pub  )

Definition at line 155 of file InstanceState.inl.

References lock_, and writers_.

00156 {
00157   ACE_GUARD_RETURN(ACE_Recursive_Thread_Mutex,
00158                    guard, this->lock_, false);
00159
00160   return (this->writers_.size () == 1) && *(this->writers_.begin ()) == pub;
00161 }

ACE_INLINE void OpenDDS::DCPS::InstanceState::lively ( const PublicationId &  writer_id  )

LIVELINESS message received for this DataWriter.

Definition at line 118 of file InstanceState.inl.

References DDS::ALIVE_INSTANCE_STATE, cancel_release(), instance_state_, lock_, no_writers_generation_count_, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, and writers_.

00119 {
00120   ACE_GUARD(ACE_Recursive_Thread_Mutex,
00121             guard, this->lock_);
00122
00123   //
00124   // Manage transisitions in the instance state that do not require a
00125   // data sample, but merely the notion of liveliness.
00126   //
00127   writers_.insert(writer_id);
00128
00129   if (this->instance_state_ == DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE) {
00130     cancel_release(); // cancel unregister
00131
00132     this->no_writers_generation_count_++ ;
00133     this->instance_state_ = DDS::ALIVE_INSTANCE_STATE ;
00134   }
00135 }

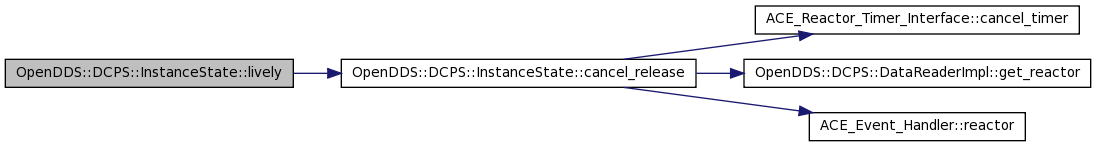

Here is the call graph for this function:

ACE_INLINE bool OpenDDS::DCPS::InstanceState::most_recent_generation ( ReceivedDataElement *  item  )  const

Definition at line 36 of file InstanceState.inl.

References disposed_generation_count_, OpenDDS::DCPS::ReceivedDataElement::disposed_generation_count_, no_writers_generation_count_, and OpenDDS::DCPS::ReceivedDataElement::no_writers_generation_count_.

Referenced by OpenDDS::DCPS::RakeResults< SampleSeq >::copy_into().

00037 {
00038   return item->disposed_generation_count_ == disposed_generation_count_
00039          && item->no_writers_generation_count_ == no_writers_generation_count_;
00040 }

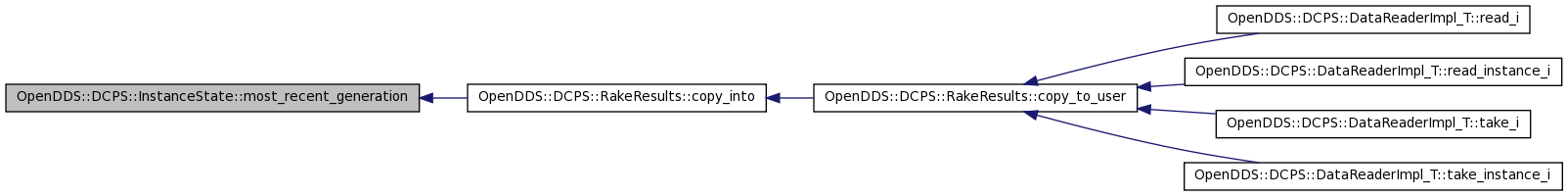

Here is the caller graph for this function:

ACE_INLINE bool OpenDDS::DCPS::InstanceState::no_writer (  )  const

Definition at line 165 of file InstanceState.inl.

References lock_, and writers_.

00166 {
00167   ACE_GUARD_RETURN(ACE_Recursive_Thread_Mutex,
00168                    guard, this->lock_, true);
00169
00170   return this->writers_.size () == 0;
00171 }

ACE_INLINE size_t OpenDDS::DCPS::InstanceState::no_writers_generation_count (  )  const

Access no writers generation count.

Definition at line 63 of file InstanceState.inl.

References no_writers_generation_count_.

00064 {
00065   return no_writers_generation_count_ ;
00066 }

void OpenDDS::DCPS::InstanceState::registered ( bool  flag  )

Definition at line 313 of file InstanceState.cpp.

References registered_.

00314 {
00315   this->registered_ = flag;
00316 }

bool OpenDDS::DCPS::InstanceState::registered (  )

Definition at line 305 of file InstanceState.cpp.

References registered_.

Referenced by OpenDDS::DCPS::OwnershipManager::select_owner().

00306 {
00307   bool ret = this->registered_;
00308   this->registered_ = true;
00309   return ret;
00310 }

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::release ( void   )

Remove the instance immediately.

Definition at line 281 of file InstanceState.cpp.

References handle_, reader_, and OpenDDS::DCPS::DataReaderImpl::release_instance().

Referenced by handle_timeout(), and release_if_empty().

00282 {
00283   this->reader_->release_instance(this->handle_);
00284 }

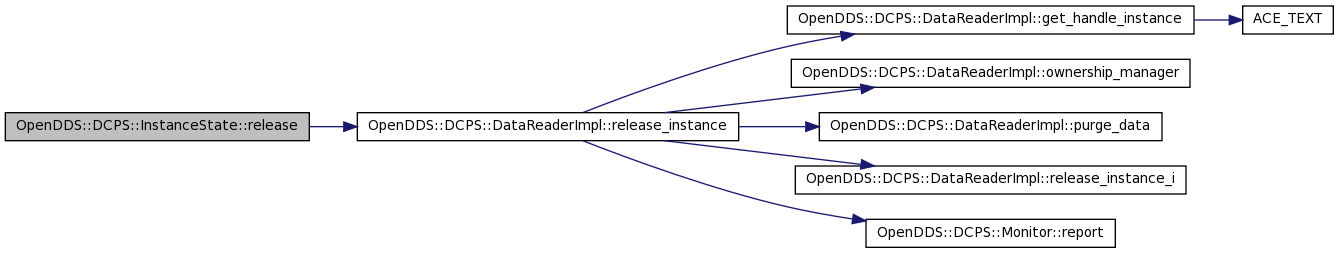

Here is the call graph for this function:

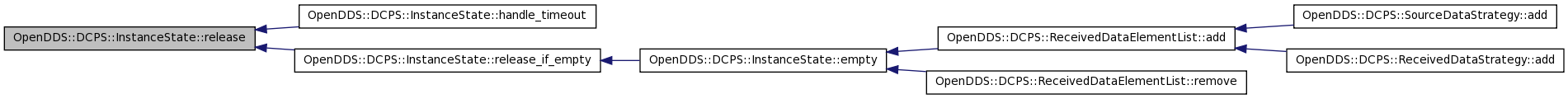

Here is the caller graph for this function:

bool OpenDDS::DCPS::InstanceState::release_if_empty (  )

Remove the instance if it's instance has no samples and no writers. Returns true if the instance was released.

Definition at line 268 of file InstanceState.cpp.

References empty_, release(), schedule_pending(), and writers_.

Referenced by empty().

00269 {
00270   bool released = false;
00271   if (this->empty_ && this->writers_.empty()) {
00272     release();
00273     released = true;
00274   } else {
00275     schedule_pending();
00276   }
00277   return released;
00278 }

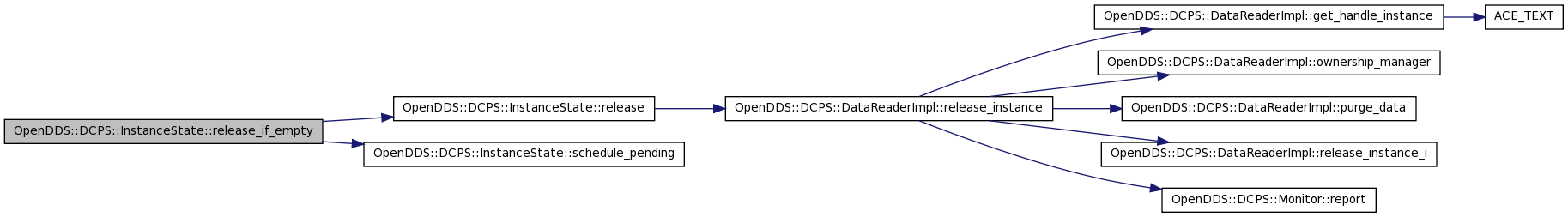

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::reset_ownership ( DDS::InstanceHandle_t  instance  )
void OpenDDS::DCPS::InstanceState::sample_info ( DDS::SampleInfo &  si,
const ReceivedDataElement *  de
)

Populate the SampleInfo structure.

Definition at line 56 of file InstanceState.cpp.

References DDS::SampleInfo::absolute_generation_rank, DDS::SampleInfo::disposed_generation_count, OpenDDS::DCPS::ReceivedDataElement::disposed_generation_count_, disposed_generation_count_, DDS::SampleInfo::generation_rank, OpenDDS::DCPS::SequenceNumber::getValue(), handle_, DDS::SampleInfo::instance_handle, DDS::SampleInfo::instance_state, instance_state_, OpenDDS::DCPS::WeakRcHandle< T >::lock(), DDS::SampleInfo::no_writers_generation_count, OpenDDS::DCPS::ReceivedDataElement::no_writers_generation_count_, no_writers_generation_count_, DDS::SampleInfo::opendds_reserved_publication_seq, OpenDDS::DCPS::DataReaderImpl::participant_servant_, OpenDDS::DCPS::ReceivedDataElement::pub_, DDS::SampleInfo::publication_handle, reader_, OpenDDS::DCPS::ReceivedDataElement::registered_data_, DDS::SampleInfo::sample_rank, DDS::SampleInfo::sample_state, OpenDDS::DCPS::ReceivedDataElement::sample_state_, OpenDDS::DCPS::ReceivedDataElement::sequence_, DDS::SampleInfo::source_timestamp, OpenDDS::DCPS::ReceivedDataElement::source_timestamp_, DDS::SampleInfo::valid_data, DDS::SampleInfo::view_state, and view_state_.

Referenced by OpenDDS::DCPS::RakeResults< SampleSeq >::copy_into().

00058 {
00059   si.sample_state = de->sample_state_;
00060   si.view_state = view_state_;
00061   si.instance_state = instance_state_;
00062   si.disposed_generation_count =
00063     static_cast<CORBA::Long>(disposed_generation_count_);
00064   si.no_writers_generation_count =
00065     static_cast<CORBA::Long>(no_writers_generation_count_);
00066   si.source_timestamp = de->source_timestamp_;
00067   si.instance_handle = handle_;
00068   RcHandle<DomainParticipantImpl> participant = this->reader_->participant_servant_.lock();
00069   si.publication_handle = participant ? participant->id_to_handle(de->pub_) : 0;
00070   si.valid_data = de->registered_data_ != 0;
00071   /*
00072    * These are actually calculated later...
00073    */
00074   si.sample_rank = 0;
00075
00076   // these aren't the real value, they're being saved
00077   // for a later calculation. the actual value is
00078   // calculated in DataReaderImpl::sample_info using
00079   // these values.
00080   si.generation_rank =
00081     static_cast<CORBA::Long>(de->disposed_generation_count_ +
00082                              de->no_writers_generation_count_);
00083   si.absolute_generation_rank =
00084     static_cast<CORBA::Long>(de->disposed_generation_count_ +
00085                              de->no_writers_generation_count_);
00086
00087   si.opendds_reserved_publication_seq = de->sequence_.getValue();
00088 }

Here is the call graph for this function:

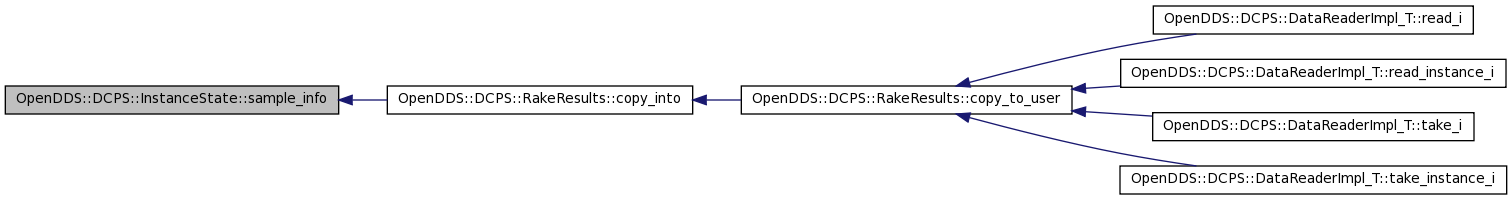

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::schedule_pending (  )

Schedule a pending release of resources.

Definition at line 200 of file InstanceState.cpp.

References release_pending_.

Referenced by release_if_empty(), and schedule_release().

00201 {
00202   this->release_pending_ = true;
00203 }

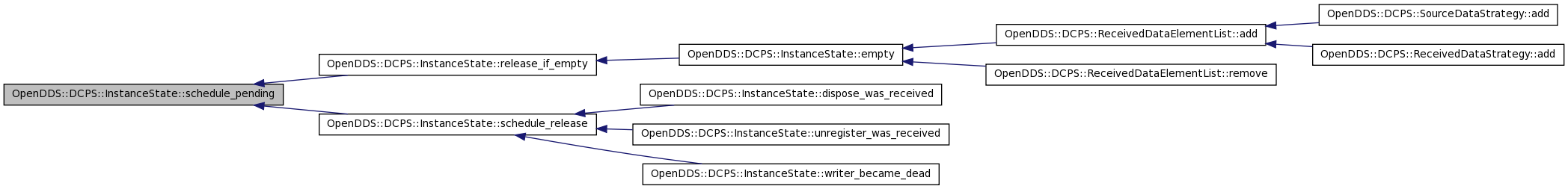

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::schedule_release (  )

Schedule an immediate release of resources.

Definition at line 206 of file InstanceState.cpp.

References ACE_TEXT(), cancel_release(), DDS::DURATION_INFINITE_NSEC, DDS::DURATION_INFINITE_SEC, OpenDDS::DCPS::duration_to_time_value(), OpenDDS::DCPS::DataReaderImpl::get_qos(), OpenDDS::DCPS::DataReaderImpl::get_reactor(), instance_state_, LM_ERROR, DDS::Duration_t::nanosec, DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, ACE_Event_Handler::reactor(), reader_, DDS::DataReaderQos::reader_data_lifecycle, release_timer_id_, schedule_pending(), ACE_Reactor_Timer_Interface::schedule_timer(), and DDS::Duration_t::sec.

Referenced by dispose_was_received(), unregister_was_received(), and writer_became_dead().

00207 {
00208   DDS::DataReaderQos qos;
00209   this->reader_->get_qos(qos);
00210
00211   DDS::Duration_t delay;
00212
00213   switch (this->instance_state_) {
00214   case DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE:
00215     delay = qos.reader_data_lifecycle.autopurge_nowriter_samples_delay;
00216     break;
00217
00218   case DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE:
00219     delay = qos.reader_data_lifecycle.autopurge_disposed_samples_delay;
00220     break;
00221
00222   default:
00223     ACE_ERROR((LM_ERROR,
00224                ACE_TEXT("(%P|%t) ERROR: InstanceState::schedule_release:")
00225                ACE_TEXT(" Unsupported instance state: %d!\n"),
00226                this->instance_state_));
00227     return;
00228   }
00229
00230   if (delay.sec != DDS::DURATION_INFINITE_SEC &&
00231       delay.nanosec != DDS::DURATION_INFINITE_NSEC) {
00232     cancel_release();
00233
00234     ACE_Reactor_Timer_Interface* reactor = this->reader_->get_reactor();
00235
00236     this->release_timer_id_ =
00237       reactor->schedule_timer(this, 0, duration_to_time_value(delay));
00238
00239     if (this->release_timer_id_ == -1) {
00240       ACE_ERROR((LM_ERROR,
00241                  ACE_TEXT("(%P|%t) ERROR: InstanceState::schedule_release:")
00242                  ACE_TEXT(" Unable to schedule timer!\n")));
00243     }
00244
00245   } else {
00246     // N.B. instance transitions are always followed by a non-valid
00247     // sample being queued to the ReceivedDataElementList; marking
00248     // the release as pending prevents this sample from being lost
00249     // if all samples have been already removed from the instance.
00250     schedule_pending();
00251   }
00252 }

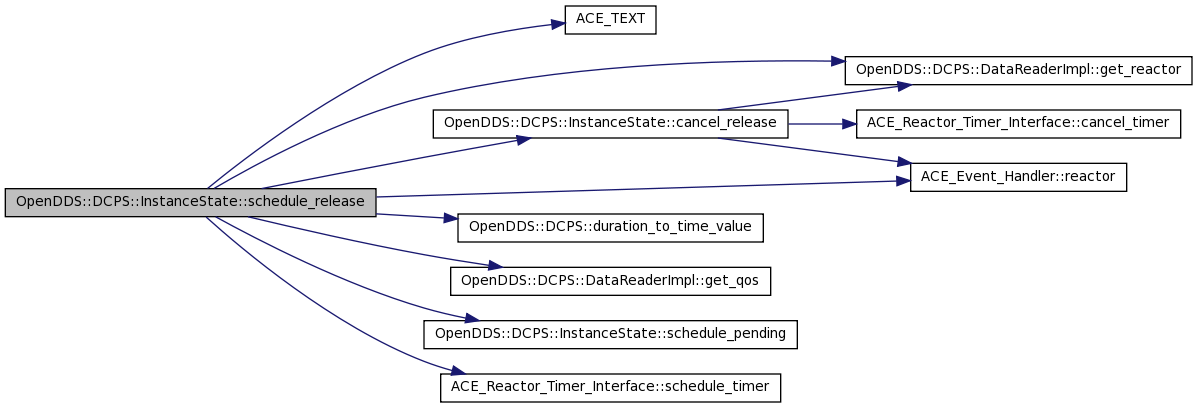

Here is the call graph for this function:

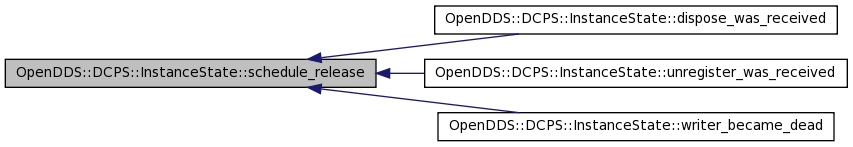

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::set_owner ( const PublicationId &  owner  )

Definition at line 287 of file InstanceState.cpp.

References owner_.

00288 {
00289   this->owner_ = owner;
00290 }

bool OpenDDS::DCPS::InstanceState::unregister_was_received ( const PublicationId &  writer_id  )

UNREGISTER message received for this instance. Return flag indicates whether the instance state was changed. This flag is used by concrete DataReader to determine whether it should notify listener. If state is not changed, the unregister message is ignored.

Definition at line 139 of file InstanceState.cpp.

References ACE_TEXT(), DDS::ALIVE_INSTANCE_STATE, OpenDDS::DCPS::DCPS_debug_level, exclusive_, handle_, instance_state_, LM_DEBUG, lock_, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, OPENDDS_STRING, OpenDDS::DCPS::DataReaderImpl::ownership_manager(), reader_, schedule_release(), and writers_.

00140 {
00141   if (OpenDDS::DCPS::DCPS_debug_level > 1) {
00142     GuidConverter conv(writer_id);
00143     ACE_DEBUG((LM_DEBUG,
00144       ACE_TEXT(
00145         "(%P|%t) InstanceState::unregister_was_received on %C\n"
00146       ),
00147       OPENDDS_STRING(conv).c_str()
00148     ));
00149   }
00150
00151   ACE_GUARD_RETURN(ACE_Recursive_Thread_Mutex,
00152                    guard, this->lock_, false);
00153   writers_.erase(writer_id);
00154 #ifndef OPENDDS_NO_OWNERSHIP_KIND_EXCLUSIVE
00155   if (this->exclusive_) {
00156     // If unregistered by owner then the ownership should be transferred to another
00157     // writer.
00158     DataReaderImpl::OwnershipManagerPtr owner_manager = this->reader_->ownership_manager();
00159     if (owner_manager)
00160       owner_manager->remove_writer (this->handle_, writer_id);
00161   }
00162 #endif
00163
00164   if (writers_.empty() && (this->instance_state_ & DDS::ALIVE_INSTANCE_STATE)) {
00165     this->instance_state_ = DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE;
00166     schedule_release();
00167     return true;
00168   }
00169
00170   return false;
00171 }

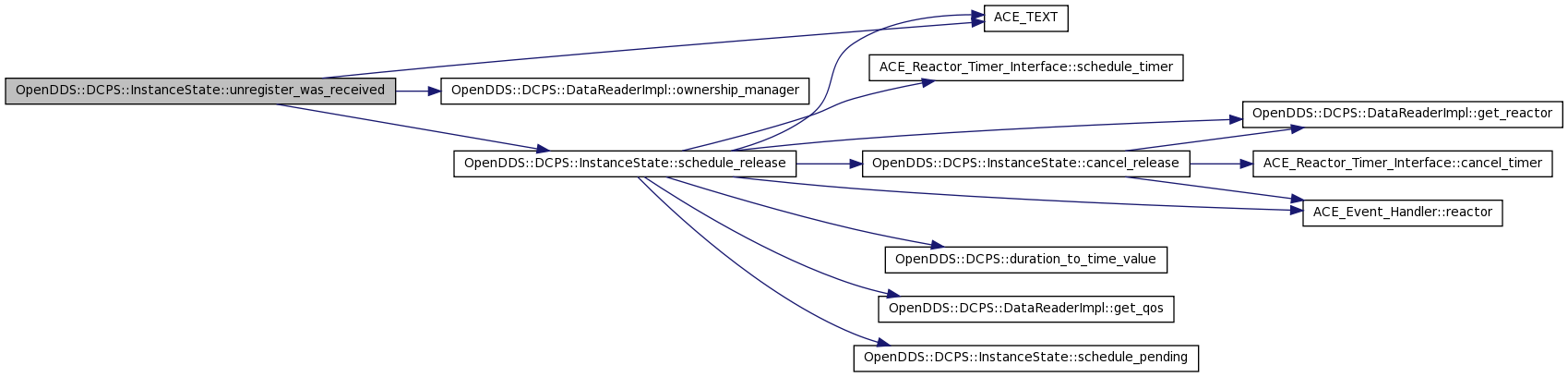

Here is the call graph for this function:

ACE_INLINE DDS::ViewStateKind OpenDDS::DCPS::InstanceState::view_state (  )  const

Access view state.

Definition at line 51 of file InstanceState.inl.

References view_state_.

Referenced by OpenDDS::DCPS::DataReaderImpl::contains_sample(), OpenDDS::DCPS::DataReaderImpl_T< MessageType >::contains_sample_filtered(), and OpenDDS::DCPS::DataReaderImpl_T< MessageType >::read_instance_i().

00052 {
00053   return this->view_state_ ;
00054 }

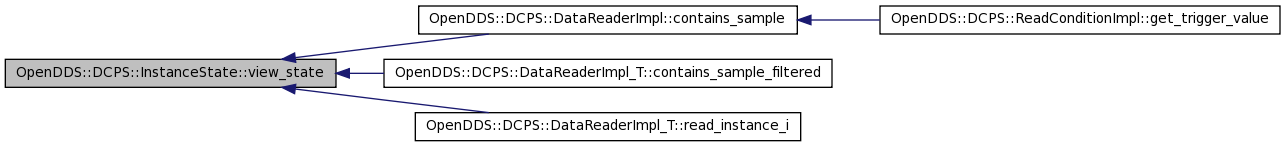

Here is the caller graph for this function:

void OpenDDS::DCPS::InstanceState::writer_became_dead ( const PublicationId &  writer_id,
int  num_alive_writers,
const ACE_Time_Value &  when
)

tell this instance when a DataWriter transitions to NOT_ALIVE

Definition at line 174 of file InstanceState.cpp.

References ACE_TEXT(), DDS::ALIVE_INSTANCE_STATE, OpenDDS::DCPS::DCPS_debug_level, instance_state_, LM_DEBUG, lock_, DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE, OPENDDS_STRING, schedule_release(), and writers_.

00178 {
00179   if (OpenDDS::DCPS::DCPS_debug_level > 1) {
00180     GuidConverter conv(writer_id);
00181     ACE_DEBUG((LM_DEBUG,
00182       ACE_TEXT(
00183         "(%P|%t) InstanceState::writer_became_dead on %C\n"
00184       ),
00185       OPENDDS_STRING(conv).c_str()
00186     ));
00187   }
00188
00189   ACE_GUARD(ACE_Recursive_Thread_Mutex,
00190             guard, this->lock_);
00191   writers_.erase(writer_id);
00192
00193   if (writers_.empty() && this->instance_state_ & DDS::ALIVE_INSTANCE_STATE) {
00194     this->instance_state_ = DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE;
00195     schedule_release();
00196   }
00197 }

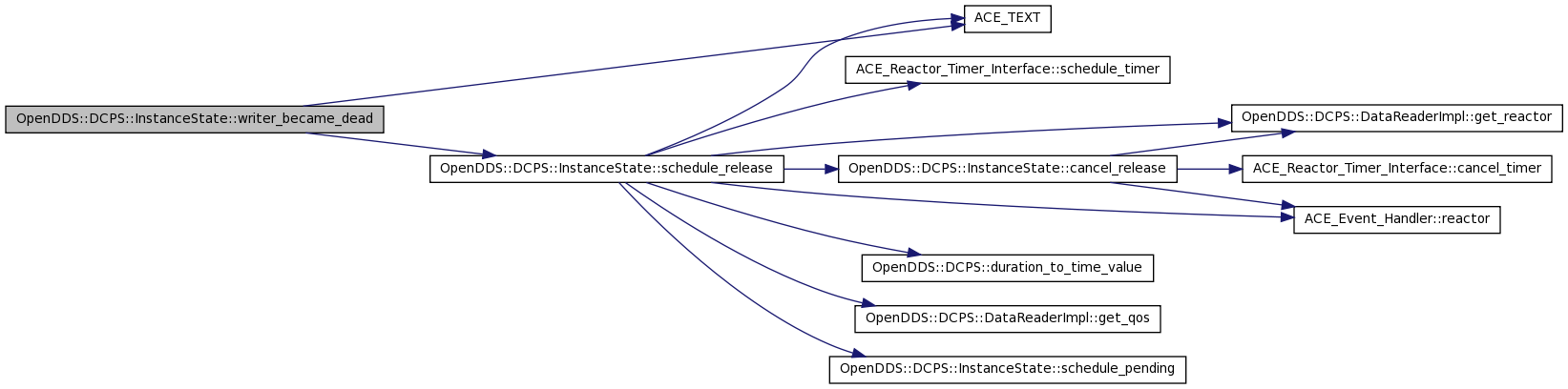

Here is the call graph for this function:

Member Data Documentation

size_t OpenDDS::DCPS::InstanceState::disposed_generation_count_ [private]

Number of times the instance state changes from NOT_ALIVE_DISPOSED to ALIVE.

Definition at line 178 of file InstanceState.h.

Referenced by data_was_received(), disposed_generation_count(), most_recent_generation(), and sample_info().

bool OpenDDS::DCPS::InstanceState::empty_ [private]

Keep track of whether the DataReader is empty or not.

Definition at line 187 of file InstanceState.h.

Referenced by empty(), and release_if_empty().

bool OpenDDS::DCPS::InstanceState::exclusive_ [private]

Definition at line 210 of file InstanceState.h.

Referenced by dispose_was_received(), is_exclusive(), and unregister_was_received().

DDS::InstanceHandle_t OpenDDS::DCPS::InstanceState::handle_ [private]

Definition at line 206 of file InstanceState.h.

Referenced by handle_timeout(), release(), sample_info(), and unregister_was_received().

DDS::InstanceStateKind OpenDDS::DCPS::InstanceState::instance_state_ [private]

Current instance state.

Can have values defined as:

DDS::ALIVE_INSTANCE_STATE DDS::NOT_ALIVE_DISPOSED_INSTANCE_STATE DDS::NOT_ALIVE_NO_WRITERS_INSTANCE_STATE

and can be checked with the masks:

DDS::ANY_INSTANCE_STATE DDS::NOT_ALIVE_INSTANCE_STATE

Definition at line 160 of file InstanceState.h.

Referenced by data_was_received(), dispose_was_received(), instance_state(), lively(), sample_info(), schedule_release(), unregister_was_received(), and writer_became_dead().

ACE_Recursive_Thread_Mutex& OpenDDS::DCPS::InstanceState::lock_ [private]

Definition at line 144 of file InstanceState.h.

Referenced by accessed(), data_was_received(), dispose_was_received(), is_last(), lively(), no_writer(), unregister_was_received(), and writer_became_dead().

size_t OpenDDS::DCPS::InstanceState::no_writers_generation_count_ [private]

Number of times the instance state changes from NOT_ALIVE_NO_WRITERS to ALIVE.

Definition at line 182 of file InstanceState.h.

Referenced by data_was_received(), lively(), most_recent_generation(), no_writers_generation_count(), and sample_info().

PublicationId OpenDDS::DCPS::InstanceState::owner_ [private]

Definition at line 209 of file InstanceState.h.

Referenced by get_owner(), and set_owner().

DataReaderImpl* OpenDDS::DCPS::InstanceState::reader_ [private]

Reference to our containing reader. This is used to call back and notify the reader that liveliness has been lost on this instance. It is also queried to determine if the DataReader is empty -- that it contains no more sample data.

Definition at line 205 of file InstanceState.h.

Referenced by cancel_release(), data_reader(), dispose_was_received(), release(), sample_info(), schedule_release(), unregister_was_received(), and ~InstanceState().

bool OpenDDS::DCPS::InstanceState::registered_ [private]

registered with participant so it can be called back as the owner is updated.

Definition at line 213 of file InstanceState.h.

Referenced by registered(), and ~InstanceState().

bool OpenDDS::DCPS::InstanceState::release_pending_ [private]

Keep track of whether the instance is waiting to be released.

Definition at line 192 of file InstanceState.h.

Referenced by cancel_release(), empty(), and schedule_pending().

long OpenDDS::DCPS::InstanceState::release_timer_id_ [private]

Keep track of a scheduled release timer.

Definition at line 197 of file InstanceState.h.

Referenced by cancel_release(), and schedule_release().

DDS::ViewStateKind OpenDDS::DCPS::InstanceState::view_state_ [private]

Current instance view state.

Can have values defined as:

DDS::NEW_VIEW_STATE DDS::NOT_NEW_VIEW_STATE

and can be checked with the mask:

DDS::ANY_VIEW_STATE

Definition at line 174 of file InstanceState.h.

Referenced by accessed(), data_was_received(), sample_info(), and view_state().

RepoIdSet OpenDDS::DCPS::InstanceState::writers_ [private]

Definition at line 208 of file InstanceState.h.

Referenced by data_was_received(), dispose_was_received(), is_last(), lively(), no_writer(), release_if_empty(), unregister_was_received(), and writer_became_dead().

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on 10 Aug 2018 for OpenDDS by  doxygen 1.6.1
