OpenDDS::RTPS::GuidGenerator Class Reference

#include <GuidGenerator.h>

Collaboration diagram for OpenDDS::RTPS::GuidGenerator:

Public Member Functions
	GuidGenerator ()
int	interfaceName (const char *interface)
void	populate (DCPS::GUID_t &container)
Private Types
enum	{ NODE_ID_SIZE = 6 }
typedef unsigned char	Node_ID [NODE_ID_SIZE]
Private Member Functions
ACE_UINT16	getCount ()
Private Attributes
Node_ID	node_id_
pid_t	pid_
ACE_Thread_Mutex	counter_lock_
ACE_UINT16	counter_
OPENDDS_STRING	interface_name_

Detailed Description

Generate GuidPrefix_t values for use with RTPS Also see GuidConverter.h in dds/DCPS 0 GUID_t.guidPrefix[ 0] == VendorId_t == 0x01 for OCI (used for OpenDDS) 1 GUID_t.guidPrefix[ 1] == VendorId_t == 0x03 for OCI (used for OpenDDS) 2 GUID_t.guidPrefix[ 2] == MAC Address 3 GUID_t.guidPrefix[ 3] == MAC Address 4 GUID_t.guidPrefix[ 4] == MAC Address 5 GUID_t.guidPrefix[ 5] == MAC Address 6 GUID_t.guidPrefix[ 6] == MAC Address 7 GUID_t.guidPrefix[ 7] == MAC Address 8 GUID_t.guidPrefix[ 8] == Process ID (MS byte) 9 GUID_t.guidPrefix[ 9] == Process ID (LS byte) 10 GUID_t.guidPrefix[10] == Counter (MS byte) 11 GUID_t.guidPrefix[11] == Counter (LS byte)

Definition at line 37 of file GuidGenerator.h.

Member Typedef Documentation

typedef unsigned char OpenDDS::RTPS::GuidGenerator::Node_ID[NODE_ID_SIZE] [private]

Borrowed from ACE::UUID_Node, definition of the MAC address holder type

Definition at line 55 of file GuidGenerator.h.

Member Enumeration Documentation

anonymous enum [private]

Enumerator:

NODE_ID_SIZE

Definition at line 51 of file GuidGenerator.h.

00051 {NODE_ID_SIZE = 6};

Constructor & Destructor Documentation

OpenDDS::RTPS::GuidGenerator::GuidGenerator ( )

Definition at line 49 of file GuidGenerator.cpp.

References ACE_OS::getmacaddress(), getpid(), ACE_OS::gettimeofday(), ACE_OS::memcpy(), ACE_OS::macaddr_node_t::node, node_id_, NODE_ID_SIZE, pid_, ACE_OS::rand(), ACE_OS::rand_r(), and ACE_Time_Value::usec().

00050   : pid_(ACE_OS::getpid()),
00051     counter_(0)
00052 {
00053
00054   if (pid_ == -1) {
00055     unsigned seed = static_cast<unsigned>(ACE_OS::gettimeofday().usec());
00056     pid_ = static_cast<pid_t>(ACE_OS::rand_r(&seed));
00057   }
00058
00059   ACE_OS::macaddr_node_t macaddress;
00060   const int result = ACE_OS::getmacaddress(&macaddress);
00061
00062   if (-1 != result) {
00063     ACE_OS::memcpy(node_id_, macaddress.node, NODE_ID_SIZE);
00064   } else {
00065     for (int i = 0; i < NODE_ID_SIZE; ++i) {
00066       node_id_[i] = static_cast<unsigned char>(ACE_OS::rand());
00067     }
00068   }
00069 }

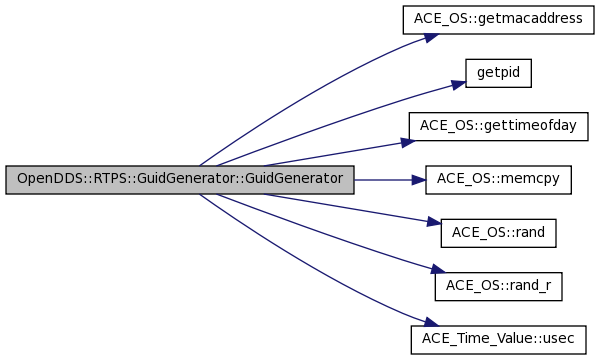

Here is the call graph for this function:

Member Function Documentation

ACE_UINT16 OpenDDS::RTPS::GuidGenerator::getCount ( ) [private]

Definition at line 72 of file GuidGenerator.cpp.

References counter_, and counter_lock_.

Referenced by populate().

00073 {
00074   ACE_Guard<ACE_SYNCH_MUTEX> guard(counter_lock_);
00075   return counter_++;
00076 }

Here is the caller graph for this function:

int OpenDDS::RTPS::GuidGenerator::interfaceName ( const char * interface )

override the MAC address to use a specific network interface instead of just the first (non-loopback) interface

Definition at line 79 of file GuidGenerator.cpp.

References ACE_TEXT(), ACE_OS::close(), ACE_Allocator::free(), h, ifconf::ifc_len, ifreq::ifr_name, OpenDDS::DCPS::SafetyProfilePool::instance(), interface_name_, ACE_OS::ioctl(), LM_ERROR, ACE_Allocator::malloc(), node_id_, size, and ACE_OS::socket().

Referenced by OpenDDS::RTPS::RtpsDiscovery::add_domain_participant(), and OpenDDS::RTPS::RtpsDiscovery::generate_participant_guid().

00080 {
00081   if (interface_name_ == iface) {
00082     return 0;
00083   }
00084   interface_name_ = iface;
00085   // See ace/OS_NS_netdb.cpp ACE_OS::getmacaddress()
00086 #if defined ACE_WIN32 && !defined ACE_HAS_WINCE
00087   ULONG size;
00088   if (::GetAdaptersAddresses(AF_UNSPEC, 0, 0, 0, &size)
00089       != ERROR_BUFFER_OVERFLOW) {
00090     return -1;
00091   }
00092   ACE_Allocator* const alloc = DCPS::SafetyProfilePool::instance();
00093   IP_ADAPTER_ADDRESSES* const addrs =
00094     static_cast<IP_ADAPTER_ADDRESSES*>(alloc->malloc(size));
00095   if (!addrs) {
00096     return -1;
00097   }
00098   if (::GetAdaptersAddresses(AF_UNSPEC, 0, 0, addrs, &size) != NO_ERROR) {
00099     alloc->free(addrs);
00100     return -1;
00101   }
00102
00103   bool found = false;
00104   for (IP_ADAPTER_ADDRESSES* iter = addrs; iter && !found; iter = iter->Next) {
00105     if (ACE_Wide_To_Ascii(iter->FriendlyName).char_rep() == interface_name_) {
00106       std::memcpy(node_id_, iter->PhysicalAddress,
00107                   std::min(static_cast<size_t>(iter->PhysicalAddressLength),
00108                            sizeof node_id_));
00109       found = true;
00110     }
00111   }
00112
00113   alloc->free(addrs);
00114   return found ? 0 : -1;
00115 #elif defined ACE_LINUX || defined __ANDROID_API__
00116   ifreq ifr;
00117   // Guarantee that iface will fit in ifr.ifr_name and still be null terminated
00118   // ifr.ifr_name is sized to IFNAMSIZ
00119   if (std::strlen(iface) >= sizeof(ifr.ifr_name)) {
00120     ACE_ERROR((LM_ERROR,
00121       ACE_TEXT("Interface name %C exceeds max allowable length, must be < %d."),
00122       iface, IFNAMSIZ));
00123     return -1;
00124   }
00125   std::strncpy(ifr.ifr_name, iface, sizeof(ifr.ifr_name));
00126   const ACE_HANDLE h = ACE_OS::socket(PF_INET, SOCK_DGRAM, 0);
00127   if (h == ACE_INVALID_HANDLE) {
00128     return -1;
00129   }
00130   if (ACE_OS::ioctl(h, SIOCGIFHWADDR, &ifr) < 0) {
00131     ACE_OS::close(h);
00132     return -1;
00133   }
00134   ACE_OS::close(h);
00135   std::memcpy(node_id_, ifr.ifr_addr.sa_data, sizeof node_id_);
00136   return 0;
00137 #elif defined ACE_HAS_SIOCGIFCONF || defined ACE_HAS_MAC_OSX
00138   const ACE_HANDLE h = ACE_OS::socket(AF_INET, SOCK_DGRAM, 0);
00139   if (h == ACE_INVALID_HANDLE) {
00140     return -1;
00141   }
00142
00143   const int BUFFERSIZE = 4000;
00144   char buffer[BUFFERSIZE];
00145   ifconf ifc;
00146   ifc.ifc_len = BUFFERSIZE;
00147   ifc.ifc_buf = buffer;
00148
00149   if (ACE_OS::ioctl(h, SIOCGIFCONF, &ifc) < 0) {
00150     ACE_OS::close(h);
00151     return -1;
00152   }
00153
00154   bool found = false;
00155   for (const char* ptr = buffer; !found && ptr < buffer + ifc.ifc_len;) {
00156     const ifreq* ifr = reinterpret_cast<const ifreq*>(ptr);
00157     if (ifr->ifr_addr.sa_family == AF_LINK && ifr->ifr_name == interface_name_) {
00158       const sockaddr_dl* sdl =
00159         reinterpret_cast<const sockaddr_dl*>(&ifr->ifr_addr);
00160       std::memcpy(node_id_, LLADDR(sdl), sizeof node_id_);
00161       found = true;
00162     }
00163
00164     ptr += sizeof ifr->ifr_name + std::max(sizeof ifr->ifr_addr,
00165       static_cast<size_t>(ifr->ifr_addr.sa_len));
00166   }
00167
00168   ACE_OS::close(h);
00169   return found ? 0 : -1;
00170 #elif defined ACE_VXWORKS
00171   int name[] = {CTL_NET, AF_ROUTE, 0, 0, NET_RT_IFLIST, 0};
00172   static const size_t name_elts = sizeof name / sizeof name[0];
00173
00174   size_t result_sz = 0u;
00175   if (sysctl(name, name_elts, 0, &result_sz, 0, 0u) != 0) {
00176     return -1;
00177   }
00178
00179   ACE_Allocator* const alloc = DCPS::SafetyProfilePool::instance();
00180   char* const result = static_cast<char*>(alloc->malloc(result_sz));
00181
00182   if (sysctl(name, name_elts, result, &result_sz, 0, 0u) != 0) {
00183     alloc->free(result);
00184     return -1;
00185   }
00186
00187   for (size_t pos = 0, n; pos + sizeof(if_msghdr) < result_sz; pos += n) {
00188     if_msghdr* const hdr = reinterpret_cast<if_msghdr*>(result + pos);
00189     n = hdr->ifm_msglen;
00190     sockaddr_dl* const addr =
00191       reinterpret_cast<sockaddr_dl*>(result + pos + sizeof(if_msghdr));
00192
00193     if (hdr->ifm_type == RTM_IFINFO && (hdr->ifm_addrs & RTA_IFP)
00194         && std::memcmp(addr->sdl_data, iface, addr->sdl_nlen) == 0
00195         && addr->sdl_alen >= sizeof node_id_) {
00196       std::memcpy(node_id_, LLADDR(addr), sizeof node_id_);
00197       alloc->free(result);
00198       return 0;
00199     }
00200
00201     while (pos + n < result_sz) {
00202       if_msghdr* const nxt = reinterpret_cast<if_msghdr*>(result + pos + n);
00203       if (nxt->ifm_type != RTM_NEWADDR) {
00204         break;
00205       }
00206       n += nxt->ifm_msglen;
00207     }
00208   }
00209
00210   alloc->free(result);
00211   return -1;
00212 #else
00213   return -1;
00214 #endif
00215 }

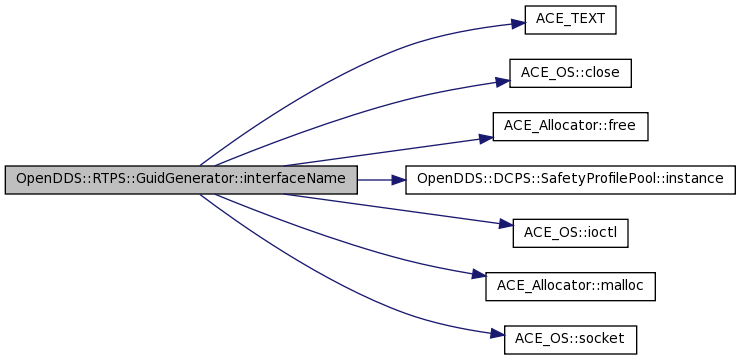

Here is the call graph for this function:

Here is the caller graph for this function:

void OpenDDS::RTPS::GuidGenerator::populate ( DCPS::GUID_t & container )

populate a GUID container with a unique ID. This will increment the counter, and use a lock (if compiled with MT ACE) while doing so.

Definition at line 218 of file GuidGenerator.cpp.

References getCount(), OpenDDS::DCPS::GUID_t::guidPrefix, ACE_OS::memcpy(), node_id_, NODE_ID_SIZE, pid_, and OpenDDS::DCPS::VENDORID_OCI.

Referenced by OpenDDS::RTPS::RtpsDiscovery::add_domain_participant(), and OpenDDS::RTPS::RtpsDiscovery::generate_participant_guid().

00219 {
00220   container.guidPrefix[0] = DCPS::VENDORID_OCI[0];
00221   container.guidPrefix[1] = DCPS::VENDORID_OCI[1];
00222
00223   const ACE_UINT16 count = getCount();
00224   ACE_OS::memcpy(&container.guidPrefix[2], node_id_, NODE_ID_SIZE);
00225   container.guidPrefix[8] = static_cast<CORBA::Octet>(pid_ >> 8);
00226   container.guidPrefix[9] = static_cast<CORBA::Octet>(pid_ & 0xFF);
00227   container.guidPrefix[10] = static_cast<CORBA::Octet>(count >> 8);
00228   container.guidPrefix[11] = static_cast<CORBA::Octet>(count & 0xFF);
00229 }
