OpenDDS::DCPS::DataLinkWatchdog Class Reference

#include <DataLinkWatchdog_T.h>

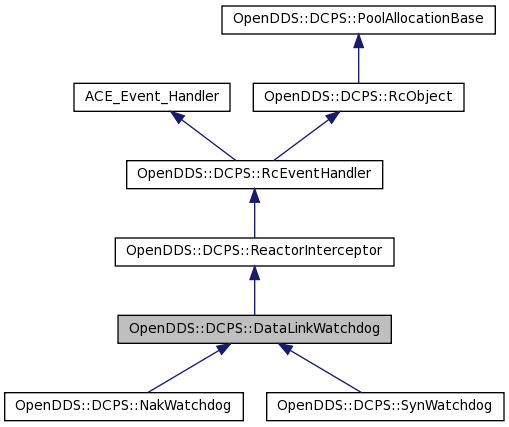

Inheritance diagram for OpenDDS::DCPS::DataLinkWatchdog:
Inheritance graph
[legend]

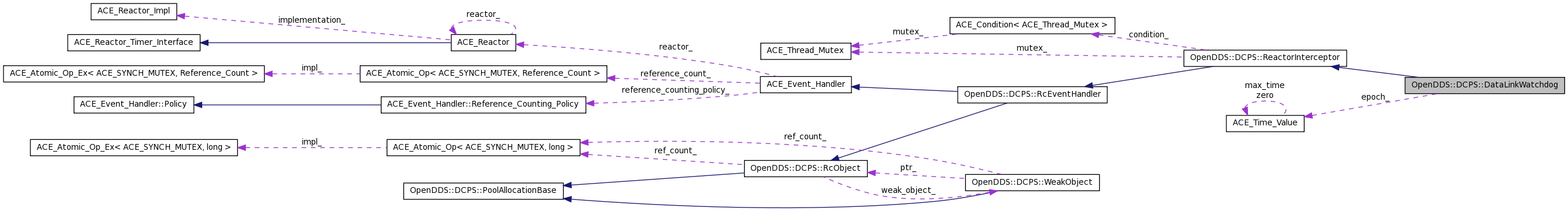

Collaboration diagram for OpenDDS::DCPS::DataLinkWatchdog:
Collaboration graph
[legend]

List of all members.

Classes

class  CancelCommand
class  CommandBase
class  ScheduleCommand

Public Member Functions

bool schedule (const void *arg=0)
bool schedule_now (const void *arg=0)
void cancel ()
int handle_timeout (const ACE_Time_Value &now, const void *arg)

Protected Member Functions

 DataLinkWatchdog (ACE_Reactor *reactor, ACE_thread_t owner)
virtual ~DataLinkWatchdog ()
virtual ACE_Time_Value next_interval ()=0
virtual void on_interval (const void *arg)=0
virtual ACE_Time_Value next_timeout ()
virtual void on_timeout (const void *)

Private Member Functions

bool schedule_i (const void *arg, bool nodelay)
void cancel_i ()

Private Attributes

long timer_id_
ACE_Time_Value epoch_
bool cancelled_

Detailed Description

Definition at line 26 of file DataLinkWatchdog_T.h.

Constructor & Destructor Documentation

OpenDDS::DCPS::DataLinkWatchdog::DataLinkWatchdog ( ACE_Reactor *  reactor,
ACE_thread_t  owner
) [inline, protected]

Definition at line 75 of file DataLinkWatchdog_T.h.

00077     : ReactorInterceptor(reactor, owner)
00078     , timer_id_(-1)
00079     , cancelled_(false)
00080   {}

virtual OpenDDS::DCPS::DataLinkWatchdog::~DataLinkWatchdog (  )  [inline, protected, virtual]

Definition at line 82 of file DataLinkWatchdog_T.h.

00082                               {
00083   }

Member Function Documentation

void OpenDDS::DCPS::DataLinkWatchdog::cancel ( void   )  [inline]

Definition at line 41 of file DataLinkWatchdog_T.h.

References c, and OpenDDS::DCPS::ReactorInterceptor::execute_or_enqueue().

00041                 {
00042     CancelCommand c(this);
00043     execute_or_enqueue(c);
00044   }

Here is the call graph for this function:

void OpenDDS::DCPS::DataLinkWatchdog::cancel_i (  )  [inline, private]

Definition at line 171 of file DataLinkWatchdog_T.h.

References ACE_Reactor::cancel_timer(), cancelled_, ACE_Event_Handler::reactor(), and timer_id_.

Referenced by OpenDDS::DCPS::DataLinkWatchdog::CancelCommand::execute(), and handle_timeout().

00171                   {
00172     if (this->timer_id_ == -1) return;
00173
00174     this->timer_id_ = -1;
00175     this->cancelled_ = true;
00176     reactor()->cancel_timer(this);
00177   }

Here is the call graph for this function:

Here is the caller graph for this function:

int OpenDDS::DCPS::DataLinkWatchdog::handle_timeout ( const ACE_Time_Value &  now,
const void *  arg
) [inline, virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 46 of file DataLinkWatchdog_T.h.

References ACE_TEXT(), cancel_i(), epoch_, LM_WARNING, next_timeout(), on_interval(), on_timeout(), schedule_i(), and ACE_Time_Value::zero.

00046                                                                  {
00047     ACE_Time_Value timeout = next_timeout();
00048
00049     if (timeout != ACE_Time_Value::zero) {
00050       timeout += this->epoch_;
00051       if (now > timeout) {
00052         on_timeout(arg);
00053         {
00054           cancel_i();
00055         }
00056         return 0;
00057       }
00058     }
00059
00060     on_interval(arg);
00061
00062     {
00063       if (!schedule_i(arg, false)) {
00064         ACE_ERROR((LM_WARNING,
00065                    ACE_TEXT("(%P|%t) WARNING: ")
00066                    ACE_TEXT("DataLinkWatchdog::handle_timeout: ")
00067                    ACE_TEXT("unable to reschedule watchdog timer!\n")));
00068       }
00069     }
00070
00071     return 0;
00072   }

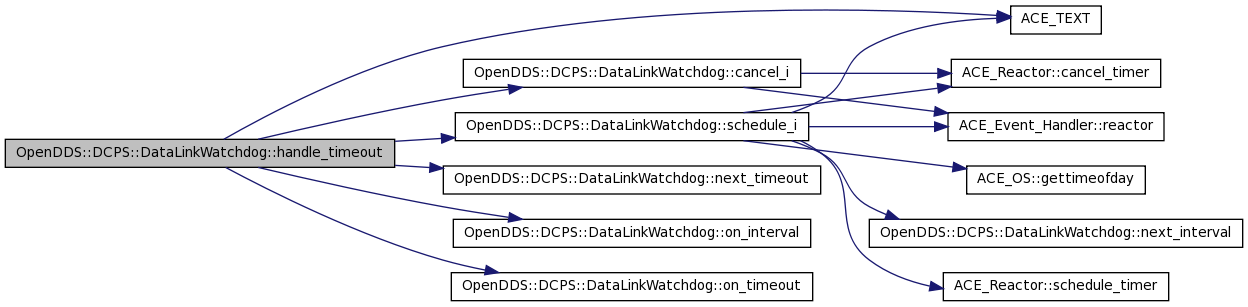

Here is the call graph for this function:

virtual ACE_Time_Value OpenDDS::DCPS::DataLinkWatchdog::next_interval (  )  [protected, pure virtual]

Implemented in OpenDDS::DCPS::SynWatchdog, and OpenDDS::DCPS::NakWatchdog.

Referenced by schedule_i().

Here is the caller graph for this function:

virtual ACE_Time_Value OpenDDS::DCPS::DataLinkWatchdog::next_timeout (  )  [inline, protected, virtual]

Reimplemented in OpenDDS::DCPS::SynWatchdog.

Definition at line 88 of file DataLinkWatchdog_T.h.

References ACE_Time_Value::zero.

Referenced by handle_timeout().

00088 { return ACE_Time_Value::zero; }

Here is the caller graph for this function:

virtual void OpenDDS::DCPS::DataLinkWatchdog::on_interval ( const void *  arg  )  [protected, pure virtual]

Implemented in OpenDDS::DCPS::SynWatchdog, and OpenDDS::DCPS::NakWatchdog.

Referenced by handle_timeout().

Here is the caller graph for this function:

virtual void OpenDDS::DCPS::DataLinkWatchdog::on_timeout ( const void *   )  [inline, protected, virtual]

Reimplemented in OpenDDS::DCPS::SynWatchdog.

Definition at line 89 of file DataLinkWatchdog_T.h.

Referenced by handle_timeout().

00089 {}

Here is the caller graph for this function:

bool OpenDDS::DCPS::DataLinkWatchdog::schedule ( const void *  arg = 0  )  [inline]

Definition at line 29 of file DataLinkWatchdog_T.h.

References c, and OpenDDS::DCPS::ReactorInterceptor::execute_or_enqueue().

00029                                      {
00030     ScheduleCommand c(this, arg, false);
00031     execute_or_enqueue(c);
00032     return true;
00033   }

Here is the call graph for this function:

bool OpenDDS::DCPS::DataLinkWatchdog::schedule_i ( const void *  arg,
bool  nodelay
) [inline, private]

Definition at line 134 of file DataLinkWatchdog_T.h.

References ACE_TEXT(), ACE_Reactor::cancel_timer(), cancelled_, epoch_, ACE_OS::gettimeofday(), LM_ERROR, next_interval(), ACE_Event_Handler::reactor(), ACE_Reactor::schedule_timer(), timer_id_, and ACE_Time_Value::zero.

Referenced by OpenDDS::DCPS::DataLinkWatchdog::ScheduleCommand::execute(), and handle_timeout().

00134                                                  {
00135     if (this->cancelled_) return true;
00136
00137     ACE_Time_Value delay;
00138     if (!nodelay) delay = next_interval();
00139
00140     if (this->epoch_ == ACE_Time_Value::zero) {
00141       this->epoch_ = ACE_OS::gettimeofday();
00142     }
00143
00144     long timer_id = -1;
00145     {
00146       timer_id = reactor()->schedule_timer(this,  // event_handler
00147                                            arg,
00148                                            delay);
00149
00150       if (timer_id == -1) {
00151         ACE_ERROR_RETURN ((LM_ERROR,
00152                   ACE_TEXT("(%P|%t) ERROR: ")
00153                   ACE_TEXT("DataLinkWatchdog::schedule_i: ")
00154                   ACE_TEXT("failed to register timer %p!\n"),
00155                   ACE_TEXT("schedule_timer")), false);
00156       }
00157     }
00158
00159     //after re-acquiring lock_ need to check cancelled_
00160     if (this->cancelled_) {
00161       reactor()->cancel_timer(timer_id);
00162       return true;
00163     }
00164     else {
00165       this->timer_id_ = timer_id;
00166     }
00167
00168     return this->timer_id_ != -1;
00169   }

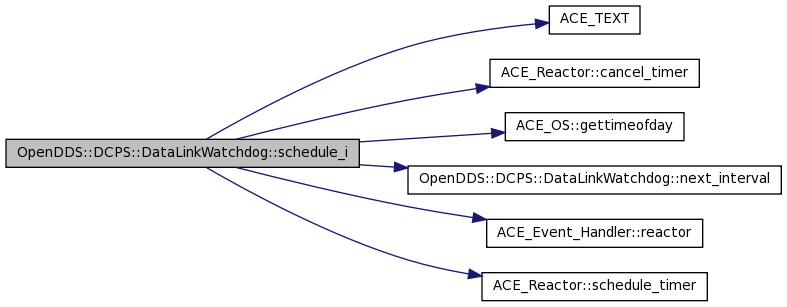

Here is the call graph for this function:

Here is the caller graph for this function:

bool OpenDDS::DCPS::DataLinkWatchdog::schedule_now ( const void *  arg = 0  )  [inline]

Definition at line 35 of file DataLinkWatchdog_T.h.

References c, and OpenDDS::DCPS::ReactorInterceptor::execute_or_enqueue().

00035                                          {
00036     ScheduleCommand c(this, arg, true);
00037     execute_or_enqueue(c);
00038     return true;
00039   }

Here is the call graph for this function:

Member Data Documentation

bool OpenDDS::DCPS::DataLinkWatchdog::cancelled_ [private]

Definition at line 132 of file DataLinkWatchdog_T.h.

Referenced by cancel_i(), and schedule_i().

ACE_Time_Value OpenDDS::DCPS::DataLinkWatchdog::epoch_ [private]

Definition at line 131 of file DataLinkWatchdog_T.h.

Referenced by handle_timeout(), and schedule_i().

long OpenDDS::DCPS::DataLinkWatchdog::timer_id_ [private]

Definition at line 129 of file DataLinkWatchdog_T.h.

Referenced by cancel_i(), and schedule_i().

The documentation for this class was generated from the following file:
