Full implementation of the MonitorFactoryImpl. More...

#include <MonitorFactoryImpl.h>

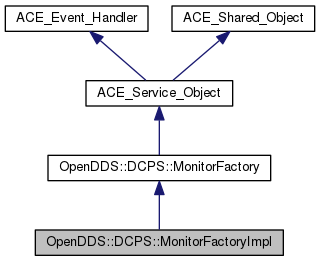

Inheritance diagram for OpenDDS::DCPS::MonitorFactoryImpl:

[legend]

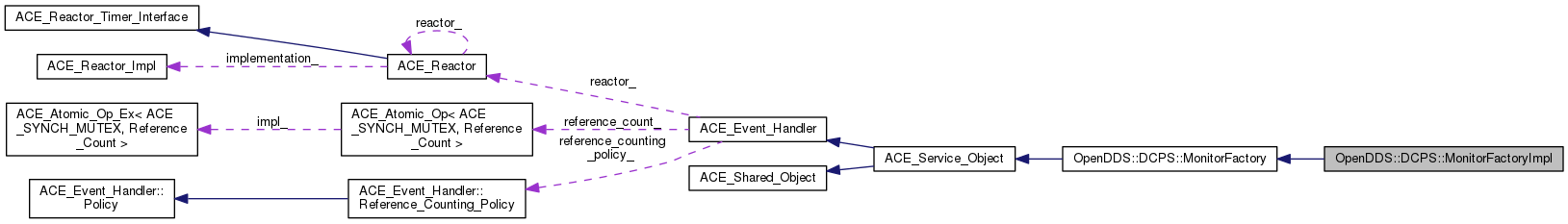

Collaboration diagram for OpenDDS::DCPS::MonitorFactoryImpl:

[legend]

Public Member Functions
	MonitorFactoryImpl ()

virtual	~MonitorFactoryImpl ()

virtual Monitor *	create_sp_monitor (Service_Participant *sp)
	Factory function to create a service participant monitor object. More...

virtual Monitor *	create_dp_monitor (DomainParticipantImpl *dp)
	Factory function to create a domain participant monitor object. More...

virtual Monitor *	create_topic_monitor (TopicImpl *topic)
	Factory function to create a topic monitor object. More...

virtual Monitor *	create_publisher_monitor (PublisherImpl *publisher)
	Factory function to create a publisher monitor object. More...

virtual Monitor *	create_subscriber_monitor (SubscriberImpl *subscriber)
	Factory function to create a subscriber monitor object. More...

virtual Monitor *	create_data_writer_monitor (DataWriterImpl *dw)
	Factory function to create a data writer monitor object. More...

virtual Monitor *	create_data_writer_periodic_monitor (DataWriterImpl *dw)
	Factory function to create a data writer periodic monitor object. More...

virtual Monitor *	create_data_reader_monitor (DataReaderImpl *dr)
	Factory function to create a data reader monitor object. More...

virtual Monitor *	create_data_reader_periodic_monitor (DataReaderImpl *dr)
	Factory function to create a data reader periodic monitor object. More...

virtual Monitor *	create_transport_monitor (TransportImpl *transport)
	Factory function to create a transport monitor object. More...

virtual void	initialize ()
	Initialize the monitor (required to report data) More...

ServiceParticipantReportDataWriter_ptr	get_sp_writer ()

Public Member Functions inherited from OpenDDS::DCPS::MonitorFactory
	MonitorFactory ()

virtual	~MonitorFactory ()

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Static Public Member Functions
static int	service_initialize ()

Static Public Member Functions inherited from OpenDDS::DCPS::MonitorFactory
static int	service_initialize ()

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Private Member Functions
DDS::DataWriter_ptr	create_data_writer (DDS::DomainParticipant_ptr participant, DDS::Publisher_ptr publisher, const char type_name, const char topic_name, const DDS::DataWriterQos &dw_qos)

Private Attributes
ServiceParticipantReportDataWriter_var	sp_writer_

DomainParticipantReportDataWriter_var	dp_writer_

TopicReportDataWriter_var	topic_writer_

PublisherReportDataWriter_var	pub_writer_

SubscriberReportDataWriter_var	sub_writer_

DataWriterReportDataWriter_var	dw_writer_

DataWriterPeriodicReportDataWriter_var	dw_per_writer_

DataReaderReportDataWriter_var	dr_writer_

DataReaderPeriodicReportDataWriter_var	dr_per_writer_

TransportReportDataWriter_var	transport_writer_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Full implementation of the MonitorFactoryImpl.

Full version of this library is implemented by the monitor lib.

Definition at line 32 of file MonitorFactoryImpl.h.

Constructor & Destructor Documentation

◆ MonitorFactoryImpl()

OpenDDS::DCPS::MonitorFactoryImpl::MonitorFactoryImpl ( )

Definition at line 33 of file MonitorFactoryImpl.cpp.

34 {

35 }

◆ ~MonitorFactoryImpl()

OpenDDS::DCPS::MonitorFactoryImpl::~MonitorFactoryImpl ( )

virtual

Definition at line 37 of file MonitorFactoryImpl.cpp.

38 {

39 }

Member Function Documentation

◆ create_data_reader_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_data_reader_monitor ( DataReaderImpl * dr )

virtual

Factory function to create a data reader monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 93 of file MonitorFactoryImpl.cpp.

References dr_writer_.

 {
   return new DRMonitorImpl(dr, this->dr_writer_);
 }

◆ create_data_reader_periodic_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_data_reader_periodic_monitor ( DataReaderImpl * dr )

virtual

Factory function to create a data reader periodic monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 99 of file MonitorFactoryImpl.cpp.

References dr_per_writer_.

 {
   return new DRPeriodicMonitorImpl(dr, this->dr_per_writer_);
 }

◆ create_data_writer()

DDS::DataWriter_ptr OpenDDS::DCPS::MonitorFactoryImpl::create_data_writer	(	DDS::DomainParticipant_ptr	participant,
		DDS::Publisher_ptr	publisher,
		const char *	type_name,
		const char *	topic_name,
		const DDS::DataWriterQos &	dw_qos
	)

private

Definition at line 111 of file MonitorFactoryImpl.cpp.

References ACE_DEBUG, OpenDDS::DCPS::DEFAULT_STATUS_MASK, CORBA::is_nil(), LM_DEBUG, and TOPIC_QOS_DEFAULT.

Referenced by initialize().

 {
   DDS::Topic_var topic =
     participant->create_topic(topic_name,
                               type_name,
                               TOPIC_QOS_DEFAULT,
                               DDS::TopicListener::_nil(),
                               OpenDDS::DCPS::DEFAULT_STATUS_MASK);
   if (CORBA::is_nil(topic)) {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::create_data_writer(): Failed to create topic, name = %C\n", topic_name));
   }
   DDS::DataWriter_var writer =
     publisher->create_datawriter(topic.in(),
                                  dw_qos,
                                  DDS::DataWriterListener::_nil(),
                                  OpenDDS::DCPS::DEFAULT_STATUS_MASK);
   if (CORBA::is_nil(writer)) {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::create_data_writer(): Failed to create data writer\n"));
   }

   return writer._retn();
 }

◆ create_data_writer_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_data_writer_monitor ( DataWriterImpl * dw )

virtual

Factory function to create a data writer monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 81 of file MonitorFactoryImpl.cpp.

References dw_writer_.

 {
   return new DWMonitorImpl(dw, this->dw_writer_);
 }

◆ create_data_writer_periodic_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_data_writer_periodic_monitor ( DataWriterImpl * dw )

virtual

Factory function to create a data writer periodic monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 87 of file MonitorFactoryImpl.cpp.

References dw_per_writer_.

 {
   return new DWPeriodicMonitorImpl(dw, this->dw_per_writer_);
 }

◆ create_dp_monitor()

Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_dp_monitor ( DomainParticipantImpl * dp )

virtual

Factory function to create a domain participant monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 48 of file MonitorFactoryImpl.cpp.

References dp_writer_, OpenDDS::DCPS::DomainParticipantImpl::get_domain_id(), and OpenDDS::DCPS::MONITOR_DOMAIN_ID.

 {
   if (dp->get_domain_id() == MONITOR_DOMAIN_ID) {
     return 0;
   }
   return new DPMonitorImpl(dp, this->dp_writer_);
 }

◆ create_publisher_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_publisher_monitor ( PublisherImpl * publisher )

virtual

Factory function to create a publisher monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 69 of file MonitorFactoryImpl.cpp.

References pub_writer_.

 {
   return new PublisherMonitorImpl(pub, this->pub_writer_);
 }

◆ create_sp_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_sp_monitor ( Service_Participant * sp )

virtual

Factory function to create a service participant monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 42 of file MonitorFactoryImpl.cpp.

 {
   return new SPMonitorImpl(this, sp);
 }

◆ create_subscriber_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_subscriber_monitor ( SubscriberImpl * subscriber )

virtual

Factory function to create a subscriber monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 75 of file MonitorFactoryImpl.cpp.

References sub_writer_.

 {
   return new SubscriberMonitorImpl(sub, this->sub_writer_);
 }

◆ create_topic_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_topic_monitor ( TopicImpl * topic )

virtual

Factory function to create a topic monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 63 of file MonitorFactoryImpl.cpp.

References topic_writer_.

 {
   return new TopicMonitorImpl(topic, this->topic_writer_);
 }

◆ create_transport_monitor()

OpenDDS::DCPS::Monitor * OpenDDS::DCPS::MonitorFactoryImpl::create_transport_monitor ( TransportImpl * transport )

virtual

Factory function to create a transport monitor object.

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 105 of file MonitorFactoryImpl.cpp.

References transport_writer_.

 {
   return new TransportMonitorImpl(transport, this->transport_writer_);
 }

◆ get_sp_writer()

ServiceParticipantReportDataWriter_ptr OpenDDS::DCPS::MonitorFactoryImpl::get_sp_writer ( )

Definition at line 57 of file MonitorFactoryImpl.cpp.

References sp_writer_.

Referenced by OpenDDS::DCPS::SPMonitorImpl::report().

 {
   return ServiceParticipantReportDataWriter::_duplicate(this->sp_writer_);
 }

◆ initialize()

void OpenDDS::DCPS::MonitorFactoryImpl::initialize ( void )

virtual

Initialize the monitor (required to report data)

Reimplemented from OpenDDS::DCPS::MonitorFactory.

Definition at line 139 of file MonitorFactoryImpl.cpp.

References ACE_DEBUG, ACE_TEXT(), OpenDDS::DCPS::TransportRegistry::bind_config(), OpenDDS::DCPS::TransportRegistry::create_config(), create_data_writer(), OpenDDS::DCPS::TransportRegistry::create_inst(), OpenDDS::DCPS::DATA_READER_MONITOR_TOPIC, OpenDDS::DCPS::DATA_READER_PERIODIC_MONITOR_TOPIC, OpenDDS::DCPS::DATA_WRITER_MONITOR_TOPIC, OpenDDS::DCPS::DATA_WRITER_PERIODIC_MONITOR_TOPIC, OpenDDS::DCPS::TransportRegistry::DEFAULT_INST_PREFIX, OpenDDS::DCPS::DEFAULT_STATUS_MASK, OpenDDS::DCPS::DOMAIN_PARTICIPANT_MONITOR_TOPIC, dp_writer_, dr_per_writer_, dr_writer_, DDS::DataWriterQos::durability, dw_per_writer_, dw_writer_, TAO::String_var< charT >::in(), OpenDDS::DCPS::RcHandle< T >::in(), OpenDDS::DCPS::TransportRegistry::instance(), OpenDDS::DCPS::TransportConfig::instances_, CORBA::is_nil(), OpenDDS::DCPS::RcHandle< T >::is_nil(), DDS::DurabilityQosPolicy::kind, LM_DEBUG, OpenDDS::DCPS::MONITOR_DOMAIN_ID, PARTICIPANT_QOS_DEFAULT, pub_writer_, OpenDDS::DCPS::PUBLISHER_MONITOR_TOPIC, PUBLISHER_QOS_DEFAULT, DDS::RETCODE_OK, OpenDDS::DCPS::SERVICE_PARTICIPANT_MONITOR_TOPIC, sp_writer_, sub_writer_, OpenDDS::DCPS::SUBSCRIBER_MONITOR_TOPIC, TheServiceParticipant, TheTransportRegistry, OpenDDS::DCPS::TOPIC_MONITOR_TOPIC, topic_writer_, DDS::TRANSIENT_LOCAL_DURABILITY_QOS, OpenDDS::DCPS::TRANSPORT_MONITOR_TOPIC, and transport_writer_.

 {
   DDS::DomainParticipantFactory_var dpf =
     TheServiceParticipant->get_domain_participant_factory();
   DDS::DomainParticipant_var participant =
     dpf->create_participant(MONITOR_DOMAIN_ID,
                             PARTICIPANT_QOS_DEFAULT,
                             DDS::DomainParticipantListener::_nil(),
                             OpenDDS::DCPS::DEFAULT_STATUS_MASK);
   if (CORBA::is_nil(participant.in())) {
     ACE_DEBUG((LM_DEBUG,
                ACE_TEXT("ERROR: %N:%l: MonitorFactoryImpl::initialize() -")
                ACE_TEXT(" create_participant failed!\n")));
   }

   DDS::Publisher_var publisher =
     participant->create_publisher(PUBLISHER_QOS_DEFAULT,
                                   DDS::PublisherListener::_nil(),
                                   OpenDDS::DCPS::DEFAULT_STATUS_MASK);

   static const std::string config_name = TransportRegistry::DEFAULT_INST_PREFIX
     + std::string("MonitorBITTransportConfig");
   OpenDDS::DCPS::TransportConfig_rch config =
     TheTransportRegistry->get_config (config_name);
   if (config.is_nil ())
   {
     config = TransportRegistry::instance()->create_config(config_name);

     std::string inst_name = TransportRegistry::DEFAULT_INST_PREFIX
       + std::string("FederationBITTCPTransportInst");
     TransportInst_rch inst =
       TransportRegistry::instance()->create_inst(inst_name, "tcp");
     config->instances_.push_back(inst);
   }

   TransportRegistry::instance()->bind_config(config, publisher.in());

   DDS::DataWriter_var writer;
   DDS::DataWriterQos dw_qos;
   publisher->get_default_datawriter_qos(dw_qos);
   dw_qos.durability.kind = DDS::TRANSIENT_LOCAL_DURABILITY_QOS;

   OpenDDS::DCPS::ServiceParticipantReportTypeSupport_var sp_ts =
     new OpenDDS::DCPS::ServiceParticipantReportTypeSupportImpl();
   ::DDS::ReturnCode_t ret = sp_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var sp_type_name = sp_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 sp_type_name.in(),
                                 SERVICE_PARTICIPANT_MONITOR_TOPIC,
                                 dw_qos);
     this->sp_writer_ =
       OpenDDS::DCPS::ServiceParticipantReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->sp_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow sp_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register sp_ts\n"));
   }

   OpenDDS::DCPS::DomainParticipantReportTypeSupport_var dp_ts =
     new OpenDDS::DCPS::DomainParticipantReportTypeSupportImpl();
   ret = dp_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var dp_type_name = dp_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 dp_type_name.in(),
                                 DOMAIN_PARTICIPANT_MONITOR_TOPIC,
                                 dw_qos);
     this->dp_writer_ =
       OpenDDS::DCPS::DomainParticipantReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->dp_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow dp_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register dp_ts\n"));
   }

   OpenDDS::DCPS::TopicReportTypeSupport_var topic_ts =
     new OpenDDS::DCPS::TopicReportTypeSupportImpl();
   ret = topic_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var topic_type_name = topic_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 topic_type_name.in(),
                                 TOPIC_MONITOR_TOPIC,
                                 dw_qos);
     this->topic_writer_ =
       OpenDDS::DCPS::TopicReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->topic_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow topic_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register topic_ts\n"));
   }

   OpenDDS::DCPS::PublisherReportTypeSupport_var pub_ts =
     new OpenDDS::DCPS::PublisherReportTypeSupportImpl();
   ret = pub_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var pub_type_name = pub_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 pub_type_name.in(),
                                 PUBLISHER_MONITOR_TOPIC,
                                 dw_qos);
     this->pub_writer_ =
       OpenDDS::DCPS::PublisherReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->pub_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow pub_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register pub_ts\n"));
   }

   OpenDDS::DCPS::SubscriberReportTypeSupport_var sub_ts =
     new OpenDDS::DCPS::SubscriberReportTypeSupportImpl();
   ret = sub_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var sub_type_name = sub_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 sub_type_name.in(),
                                 SUBSCRIBER_MONITOR_TOPIC,
                                 dw_qos);
     this->sub_writer_ =
       OpenDDS::DCPS::SubscriberReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->sub_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow sub_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register sub_ts\n"));
   }

   OpenDDS::DCPS::DataWriterReportTypeSupport_var dw_ts =
     new OpenDDS::DCPS::DataWriterReportTypeSupportImpl();
   ret = dw_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var dw_type_name = dw_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 dw_type_name.in(),
                                 DATA_WRITER_MONITOR_TOPIC,
                                 dw_qos);
     this->dw_writer_ =
       OpenDDS::DCPS::DataWriterReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->dw_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow dw_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register sp_ts\n"));
   }

   OpenDDS::DCPS::DataWriterPeriodicReportTypeSupport_var dw_per_ts =
     new OpenDDS::DCPS::DataWriterPeriodicReportTypeSupportImpl();
   ret = dw_per_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var dw_per_type_name = dw_per_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 dw_per_type_name.in(),
                                 DATA_WRITER_PERIODIC_MONITOR_TOPIC,
                                 dw_qos);
     this->dw_per_writer_ =
       OpenDDS::DCPS::DataWriterPeriodicReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->dw_per_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow dw_per_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register dw_per_ts\n"));
   }

   OpenDDS::DCPS::DataReaderReportTypeSupport_var dr_ts =
     new OpenDDS::DCPS::DataReaderReportTypeSupportImpl();
   ret = dr_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var dr_type_name = dr_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 dr_type_name.in(),
                                 DATA_READER_MONITOR_TOPIC,
                                 dw_qos);
     this->dr_writer_ =
       OpenDDS::DCPS::DataReaderReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->dr_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow dr_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register dr_ts\n"));
   }

   OpenDDS::DCPS::DataReaderPeriodicReportTypeSupport_var dr_per_ts =
     new OpenDDS::DCPS::DataReaderPeriodicReportTypeSupportImpl();
   ret = dr_per_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var dr_per_type_name = dr_per_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 dr_per_type_name.in(),
                                 DATA_READER_PERIODIC_MONITOR_TOPIC,
                                 dw_qos);
     this->dr_per_writer_ =
       OpenDDS::DCPS::DataReaderPeriodicReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->dr_per_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow dr_per_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register dr_per_ts\n"));
   }

   OpenDDS::DCPS::TransportReportTypeSupport_var transport_ts =
     new OpenDDS::DCPS::TransportReportTypeSupportImpl();
   ret = transport_ts->register_type(participant.in(), "");
   if (DDS::RETCODE_OK == ret) {
     CORBA::String_var transport_type_name = transport_ts->get_type_name();
     writer = create_data_writer(participant.in(),
                                 publisher.in(),
                                 transport_type_name.in(),
                                 TRANSPORT_MONITOR_TOPIC,
                                 dw_qos);
     this->transport_writer_ =
       OpenDDS::DCPS::TransportReportDataWriter::_narrow(writer.in());
     if (CORBA::is_nil(this->transport_writer_)) {
       ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to narrow transport_writer\n"));
     }
   } else {
     ACE_DEBUG((LM_DEBUG, "MonitorFactoryImpl::initialize(): Failed to register transport_ts\n"));
   }
 }

◆ service_initialize()

int OpenDDS::DCPS::MonitorFactoryImpl::service_initialize ( )

static

Definition at line 373 of file MonitorFactoryImpl.cpp.

References OpenDDS::DCPS::ACE_FACTORY_DEFINE(), ACE_STATIC_SVC_DEFINE(), ACE_SVC_NAME(), ACE_SVC_OBJ_T, ACE_TEXT(), ACE_Service_Type::DELETE_OBJ, ACE_Service_Type::DELETE_THIS, OPENDDS_END_VERSIONED_NAMESPACE_DECL, and ACE_Service_Config::process_directive().

 {
   return ACE_Service_Config::process_directive(ace_svc_desc_MonitorFactoryImpl);
 }

Member Data Documentation

◆ dp_writer_

DomainParticipantReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::dp_writer_

private

Definition at line 83 of file MonitorFactoryImpl.h.

Referenced by create_dp_monitor(), and initialize().

◆ dr_per_writer_

DataReaderPeriodicReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::dr_per_writer_

private

Definition at line 90 of file MonitorFactoryImpl.h.

Referenced by create_data_reader_periodic_monitor(), and initialize().

◆ dr_writer_

DataReaderReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::dr_writer_

private

Definition at line 89 of file MonitorFactoryImpl.h.

Referenced by create_data_reader_monitor(), and initialize().

◆ dw_per_writer_

DataWriterPeriodicReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::dw_per_writer_

private

Definition at line 88 of file MonitorFactoryImpl.h.

Referenced by create_data_writer_periodic_monitor(), and initialize().

◆ dw_writer_

DataWriterReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::dw_writer_

private

Definition at line 87 of file MonitorFactoryImpl.h.

Referenced by create_data_writer_monitor(), and initialize().

◆ pub_writer_

PublisherReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::pub_writer_

private

Definition at line 85 of file MonitorFactoryImpl.h.

Referenced by create_publisher_monitor(), and initialize().

◆ sp_writer_

ServiceParticipantReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::sp_writer_

private

Definition at line 82 of file MonitorFactoryImpl.h.

Referenced by get_sp_writer(), and initialize().

◆ sub_writer_

SubscriberReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::sub_writer_

private

Definition at line 86 of file MonitorFactoryImpl.h.

Referenced by create_subscriber_monitor(), and initialize().

◆ topic_writer_

TopicReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::topic_writer_

private

Definition at line 84 of file MonitorFactoryImpl.h.

Referenced by create_topic_monitor(), and initialize().

◆ transport_writer_

TransportReportDataWriter_var OpenDDS::DCPS::MonitorFactoryImpl::transport_writer_

private

Definition at line 91 of file MonitorFactoryImpl.h.

Referenced by create_transport_monitor(), and initialize().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MonitorFactoryImpl()

◆ ~MonitorFactoryImpl()

Member Function Documentation

◆ create_data_reader_monitor()

◆ create_data_reader_periodic_monitor()

◆ create_data_writer()

◆ create_data_writer_monitor()

◆ create_data_writer_periodic_monitor()

◆ create_dp_monitor()

◆ create_publisher_monitor()

◆ create_sp_monitor()

◆ create_subscriber_monitor()

◆ create_topic_monitor()

◆ create_transport_monitor()

◆ get_sp_writer()

◆ initialize()

◆ service_initialize()

Member Data Documentation

◆ dp_writer_

◆ dr_per_writer_

◆ dr_writer_

◆ dw_per_writer_

◆ dw_writer_

◆ pub_writer_

◆ sp_writer_

◆ sub_writer_

◆ topic_writer_

◆ transport_writer_
