#include <UdpReceiveStrategy.h>

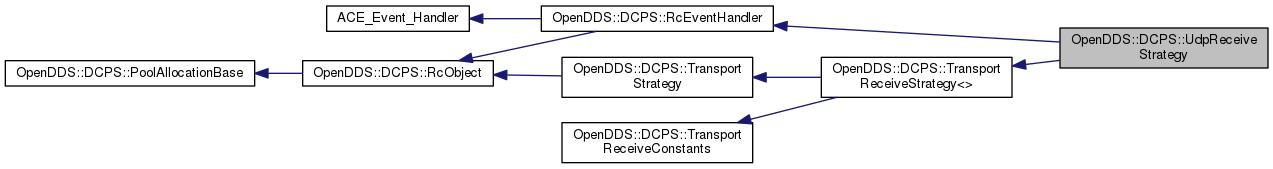

Inheritance diagram for OpenDDS::DCPS::UdpReceiveStrategy:

[legend]

Collaboration diagram for OpenDDS::DCPS::UdpReceiveStrategy:

[legend]

Public Member Functions
	UdpReceiveStrategy (UdpDataLink *link)

virtual ACE_HANDLE	get_handle () const

virtual int	handle_input (ACE_HANDLE fd)

Public Member Functions inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
virtual	~TransportReceiveStrategy ()

int	start ()

void	stop ()

int	handle_dds_input (ACE_HANDLE fd)

virtual void	relink (bool do_suspend=true)

const TransportHeader &	received_header () const

TransportHeader &	received_header ()

const DataSampleHeader &	received_sample_header () const

DataSampleHeader &	received_sample_header ()

ACE_Message_Block *	to_msgblock (const ReceivedDataSample &sample)

Public Member Functions inherited from OpenDDS::DCPS::TransportStrategy
virtual	~TransportStrategy ()

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Public Member Functions inherited from OpenDDS::DCPS::RcEventHandler
	RcEventHandler ()

ACE_Event_Handler::Reference_Count	add_reference ()

ACE_Event_Handler::Reference_Count	remove_reference ()

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

Reference_Counting_Policy &	reference_counting_policy (void)

Protected Member Functions
virtual ssize_t	receive_bytes (iovec iov[], int n, ACE_INET_Addr &remote_address, ACE_HANDLE fd, bool &stop)
	Only our subclass knows how to do this. More...

virtual void	deliver_sample (ReceivedDataSample &sample, const ACE_INET_Addr &remote_address)
	Called when there is a ReceivedDataSample to be delivered. More...

virtual int	start_i ()
	Let the subclass start. More...

virtual void	stop_i ()
	Let the subclass stop. More...

virtual bool	check_header (const TransportHeader &header)
	Check the transport header for suitability. More...

virtual bool	check_header (const DataSampleHeader &header)
	Check the data sample header for suitability. More...

Protected Member Functions inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
	TransportReceiveStrategy (const TransportInst_rch &config, size_t receive_buffers_count=RECEIVE_BUFFERS)

virtual void	begin_transport_header_processing ()
	Begin Current Transport Header Processing. More...

virtual void	end_transport_header_processing ()
	End Current Transport Header Processing. More...

virtual void	finish_message ()

int	skip_bad_pdus ()
	Ignore bad PDUs by skipping over them. More...

void	reset ()

size_t	pdu_remaining () const

size_t	successor_index (size_t index) const
	Manage an index into the receive buffer array. More...

void	update_buffer_index (bool &done)

	OPENDDS_VECTOR (ACE_Message_Block *) receive_buffers_
	Set of receive buffers in use. More...

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Private Types
typedef std::pair< TransportReassembly_rch, SequenceNumber >	ReassemblyInfo

Private Member Functions
virtual bool	reassemble (ReceivedDataSample &data)

typedef	OPENDDS_MAP (ACE_INET_Addr, ReassemblyInfo) ReassemblyMap

Private Attributes
UdpDataLink *	link_

SequenceNumber	expected_

ACE_INET_Addr	remote_address_

ReassemblyMap	reassembly_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Static Public Attributes inherited from OpenDDS::DCPS::TransportReceiveConstants
static const size_t	RECEIVE_BUFFERS = DEFAULT_TRANSPORT_RECEIVE_BUFFERS

static const size_t	BUFFER_LOW_WATER = 4096

static const size_t	MESSAGE_BLOCKS = 1000

static const size_t	DATA_BLOCKS = 100

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Attributes inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
bool	gracefully_disconnected_
	Flag indicates if the GRACEFUL_DISCONNECT message is received. More...

size_t	receive_sample_remaining_
	Bytes remaining in the current DataSample. More...

TransportHeader	receive_transport_header_
	Current receive TransportHeader. More...

TransportMessageBlockAllocator	mb_allocator_

TransportDataBlockAllocator	db_allocator_

TransportDataAllocator	data_allocator_

ACE_Lock_Adapter< ACE_SYNCH_MUTEX >	receive_lock_
	Locking strategy for the allocators. More...

size_t	buffer_index_
	Current receive buffer index in use. More...

DataSampleHeader	data_sample_header_
	Current data sample header. More...

ACE_Message_Block *	payload_

bool	good_pdu_

size_t	pdu_remaining_
	Amount of the current PDU that has not been processed yet. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Definition at line 25 of file UdpReceiveStrategy.h.

Member Typedef Documentation

◆ ReassemblyInfo

typedef std::pair<TransportReassembly_rch, SequenceNumber> OpenDDS::DCPS::UdpReceiveStrategy::ReassemblyInfo

private

Definition at line 63 of file UdpReceiveStrategy.h.

Constructor & Destructor Documentation

◆ UdpReceiveStrategy()

OpenDDS::DCPS::UdpReceiveStrategy::UdpReceiveStrategy ( UdpDataLink * link )

explicit

Definition at line 21 of file UdpReceiveStrategy.cpp.

   : TransportReceiveStrategy<>(link->impl()->config())
   , link_(link)
   , expected_(SequenceNumber::SEQUENCENUMBER_UNKNOWN())
 {
 }

Member Function Documentation

◆ check_header() [1/2]

bool OpenDDS::DCPS::UdpReceiveStrategy::check_header ( const TransportHeader & header )

protectedvirtual

Check the transport header for suitability.

Reimplemented from OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 116 of file UdpReceiveStrategy.cpp.

References ACE_TEXT(), expected_, OpenDDS::DCPS::SequenceNumber::getValue(), LM_WARNING, OpenDDS::DCPS::SequenceNumber::previous(), reassembly_, remote_address_, OpenDDS::DCPS::TransportHeader::sequence_, OpenDDS::DCPS::SequenceNumber::SEQUENCENUMBER_UNKNOWN(), and VDBG_LVL.

 {
   ReassemblyInfo& info = reassembly_[remote_address_];
   if (!info.first) {
     info.first = make_rch<TransportReassembly>();
   }

   if (header.sequence_ != info.second &&
       expected_ != SequenceNumber::SEQUENCENUMBER_UNKNOWN()) {
     VDBG_LVL((LM_WARNING,
                ACE_TEXT("(%P|%t) WARNING: UdpReceiveStrategy::check_header ")
                ACE_TEXT("expected %q received %q\n"),
                info.second.getValue(), header.sequence_.getValue()), 2);
     FragmentRange range(info.second.getValue(), header.sequence_.previous().getValue());
     info.first->data_unavailable(range);
   }

   info.second = header.sequence_;
   ++info.second;
   return true;
 }

◆ check_header() [2/2]

virtual bool OpenDDS::DCPS::UdpReceiveStrategy::check_header ( const DataSampleHeader & header )

inlineprotectedvirtual

Check the data sample header for suitability.

Reimplemented from OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 50 of file UdpReceiveStrategy.h.

References OpenDDS::DCPS::TransportReceiveStrategy< TH, DSH >::check_header().

   {
     return TransportReceiveStrategy<>::check_header(header);
   }

◆ deliver_sample()

void OpenDDS::DCPS::UdpReceiveStrategy::deliver_sample	(	ReceivedDataSample &	sample,
		const ACE_INET_Addr &	remote_address
	)

protectedvirtual

Called when there is a ReceivedDataSample to be delivered.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 56 of file UdpReceiveStrategy.cpp.

References OpenDDS::DCPS::UdpDataLink::control_received(), OpenDDS::DCPS::DataLink::data_received(), OpenDDS::DCPS::ReceivedDataSample::header_, link_, OpenDDS::DCPS::DataSampleHeader::message_id_, and OpenDDS::DCPS::TRANSPORT_CONTROL.

 {
   switch (sample.header_.message_id_) {

   case TRANSPORT_CONTROL:
     this->link_->control_received(sample, remote_address);
     break;

   default:
     this->link_->data_received(sample);
     break;
   }
 }

◆ get_handle()

ACE_HANDLE OpenDDS::DCPS::UdpReceiveStrategy::get_handle ( void ) const

virtual

Reimplemented from ACE_Event_Handler.

Definition at line 29 of file UdpReceiveStrategy.cpp.

References ACE_IPC_SAP::get_handle(), link_, socket(), and OpenDDS::DCPS::UdpDataLink::socket().

 {
   ACE_SOCK_Dgram& socket = this->link_->socket();
   return socket.get_handle();
 }

◆ handle_input()

int OpenDDS::DCPS::UdpReceiveStrategy::handle_input ( ACE_HANDLE fd )

virtual

Reimplemented from ACE_Event_Handler.

Definition at line 36 of file UdpReceiveStrategy.cpp.

References OpenDDS::DCPS::TransportReceiveStrategy<>::handle_dds_input(), and TheServiceParticipant.

 {
   ThreadStatusManager::Event ev(TheServiceParticipant->get_thread_status_manager());

   return this->handle_dds_input(fd);
 }

◆ OPENDDS_MAP()

typedef OpenDDS::DCPS::UdpReceiveStrategy::OPENDDS_MAP	(	ACE_INET_Addr	,
		ReassemblyInfo
	)

private

◆ reassemble()

bool OpenDDS::DCPS::UdpReceiveStrategy::reassemble ( ReceivedDataSample & data )

privatevirtual

Reimplemented from OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 139 of file UdpReceiveStrategy.cpp.

References header, OPENDDS_END_VERSIONED_NAMESPACE_DECL, reassembly_, OpenDDS::DCPS::TransportReceiveStrategy<>::received_header(), and remote_address_.

 {
   ReassemblyInfo& info = reassembly_[remote_address_];
   if (!info.first) {
     info.first = make_rch<TransportReassembly>();
   }
   const TransportHeader& header = received_header();
   return info.first->reassemble(header.sequence_, header.first_fragment_, data);
 }

◆ receive_bytes()

ssize_t OpenDDS::DCPS::UdpReceiveStrategy::receive_bytes	(	iovec	iov[],
		int	n,
		ACE_INET_Addr &	remote_address,
		ACE_HANDLE	fd,
		bool &	stop
	)

protectedvirtual

Only our subclass knows how to do this.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 44 of file UdpReceiveStrategy.cpp.

References link_, ACE_SOCK_Dgram::recv(), remote_address_, and OpenDDS::DCPS::UdpDataLink::socket().

 {
   const ssize_t ret = this->link_->socket().recv(iov, n, remote_address);
   remote_address_ = remote_address;
   return ret;
 }

◆ start_i()

int OpenDDS::DCPS::UdpReceiveStrategy::start_i ( )

protectedvirtual

Let the subclass start.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 72 of file UdpReceiveStrategy.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_TEXT(), ACE_SOCK::get_local_addr(), OpenDDS::DCPS::UdpDataLink::get_reactor(), link_, LM_DEBUG, LM_ERROR, ACE_Event_Handler::reactor(), ACE_Event_Handler::READ_MASK, ACE_Reactor::register_handler(), OpenDDS::DCPS::UdpDataLink::socket(), and OpenDDS::DCPS::Transport_debug_level.

 {
   ACE_Reactor* reactor = this->link_->get_reactor();
   if (reactor == 0) {
     ACE_ERROR_RETURN((LM_ERROR,
                       ACE_TEXT("(%P|%t) ERROR: ")
                       ACE_TEXT("UdpReceiveStrategy::start_i: ")
                       ACE_TEXT("NULL reactor reference!\n")),
                      -1);
   }

   if (reactor->register_handler(this, ACE_Event_Handler::READ_MASK) != 0) {
     ACE_ERROR_RETURN((LM_ERROR,
                       ACE_TEXT("(%P|%t) ERROR: ")
                       ACE_TEXT("UdpReceiveStrategy::start_i: ")
                       ACE_TEXT("failed to register handler for DataLink!\n")),
                      -1);
   }

   if (Transport_debug_level > 5) {
     ACE_INET_Addr addr;
     link_->socket().get_local_addr(addr);
     ACE_DEBUG((LM_DEBUG, "(%P|%t) UdpReceiveStrategy::start_i: listening on %C\n",
                LogAddr(addr).c_str()));
   }
   return 0;
 }

◆ stop_i()

void OpenDDS::DCPS::UdpReceiveStrategy::stop_i ( )

protectedvirtual

Let the subclass stop.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 101 of file UdpReceiveStrategy.cpp.

References ACE_ERROR, ACE_TEXT(), OpenDDS::DCPS::UdpDataLink::get_reactor(), link_, LM_ERROR, ACE_Event_Handler::reactor(), ACE_Event_Handler::READ_MASK, and ACE_Reactor::remove_handler().

 {
   ACE_Reactor* reactor = this->link_->get_reactor();
   if (reactor == 0) {
     ACE_ERROR((LM_ERROR,
                ACE_TEXT("(%P|%t) ERROR: ")
                ACE_TEXT("UdpReceiveStrategy::stop_i: ")
                ACE_TEXT("NULL reactor reference!\n")));
     return;
   }

   reactor->remove_handler(this, ACE_Event_Handler::READ_MASK);
 }

Member Data Documentation

◆ expected_

SequenceNumber OpenDDS::DCPS::UdpReceiveStrategy::expected_

private

Definition at line 60 of file UdpReceiveStrategy.h.

Referenced by check_header().

◆ link_

UdpDataLink* OpenDDS::DCPS::UdpReceiveStrategy::link_

private

Definition at line 59 of file UdpReceiveStrategy.h.

Referenced by deliver_sample(), get_handle(), receive_bytes(), start_i(), and stop_i().

◆ reassembly_

ReassemblyMap OpenDDS::DCPS::UdpReceiveStrategy::reassembly_

private

Definition at line 65 of file UdpReceiveStrategy.h.

Referenced by check_header(), and reassemble().

◆ remote_address_

ACE_INET_Addr OpenDDS::DCPS::UdpReceiveStrategy::remote_address_

private

Definition at line 61 of file UdpReceiveStrategy.h.

Referenced by check_header(), reassemble(), and receive_bytes().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ReassemblyInfo

Constructor & Destructor Documentation

◆ UdpReceiveStrategy()

Member Function Documentation

◆ check_header() [1/2]

◆ check_header() [2/2]

◆ deliver_sample()

◆ get_handle()

◆ handle_input()

◆ OPENDDS_MAP()

◆ reassemble()

◆ receive_bytes()

◆ start_i()

◆ stop_i()

Member Data Documentation

◆ expected_

◆ link_

◆ reassembly_

◆ remote_address_
