#include <TcpReceiveStrategy.h>

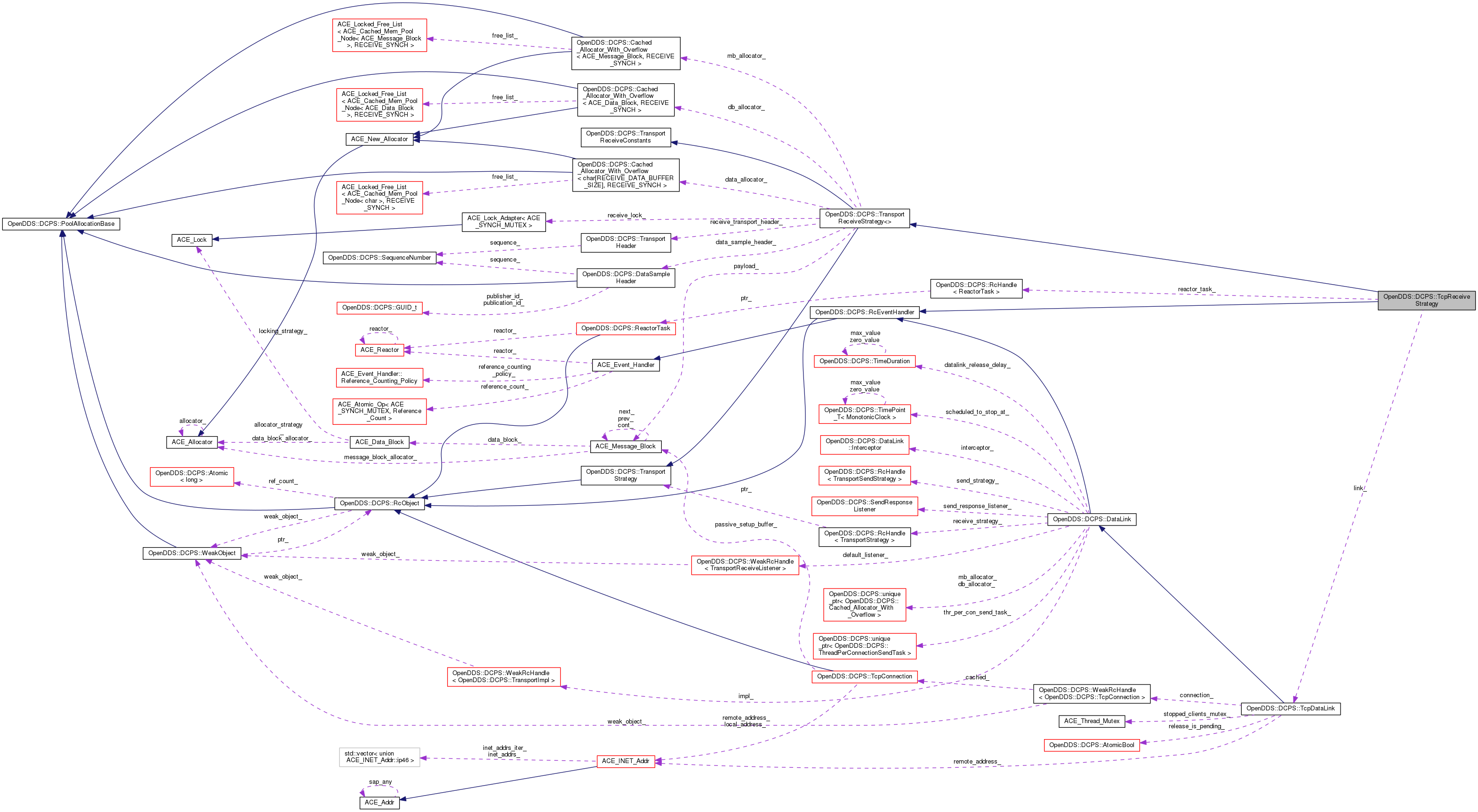

Inheritance diagram for OpenDDS::DCPS::TcpReceiveStrategy:

[legend]

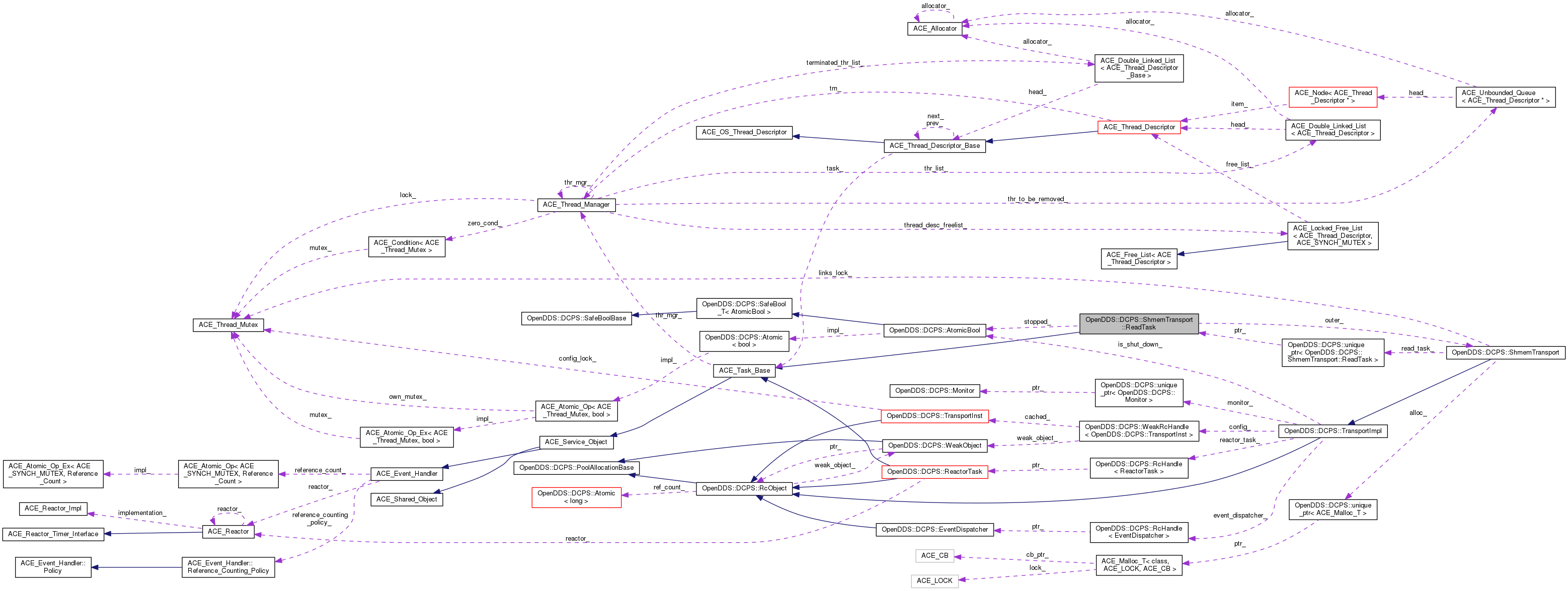

Collaboration diagram for OpenDDS::DCPS::TcpReceiveStrategy:

[legend]

Public Member Functions
	TcpReceiveStrategy (TcpDataLink &link, const ReactorTask_rch &task)

virtual	~TcpReceiveStrategy ()

int	reset (TcpConnection old_connection, TcpConnection new_connection)

ACE_Reactor *	get_reactor ()

bool	gracefully_disconnected ()

Public Member Functions inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
virtual	~TransportReceiveStrategy ()

int	start ()

void	stop ()

int	handle_dds_input (ACE_HANDLE fd)

const TransportHeader &	received_header () const

TransportHeader &	received_header ()

const DataSampleHeader &	received_sample_header () const

DataSampleHeader &	received_sample_header ()

ACE_Message_Block *	to_msgblock (const ReceivedDataSample &sample)

Public Member Functions inherited from OpenDDS::DCPS::TransportStrategy
virtual	~TransportStrategy ()

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Public Member Functions inherited from OpenDDS::DCPS::RcEventHandler
	RcEventHandler ()

ACE_Event_Handler::Reference_Count	add_reference ()

ACE_Event_Handler::Reference_Count	remove_reference ()

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

Reference_Counting_Policy &	reference_counting_policy (void)

Protected Member Functions
virtual ssize_t	receive_bytes (iovec iov[], int n, ACE_INET_Addr &remote_address, ACE_HANDLE fd, bool &stop)
	Only our subclass knows how to do this. More...

virtual void	deliver_sample (ReceivedDataSample &sample, const ACE_INET_Addr &remote_address)
	Called when there is a ReceivedDataSample to be delivered. More...

virtual int	start_i ()
	Let the subclass start. More...

virtual void	stop_i ()
	Let the subclass stop. More...

virtual void	relink (bool do_suspend=true)

Protected Member Functions inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
	TransportReceiveStrategy (const TransportInst_rch &config, size_t receive_buffers_count=RECEIVE_BUFFERS)

virtual bool	check_header (const TransportHeader &header)
	Check the transport header for suitability. More...

virtual bool	check_header (const DataSampleHeader &header)
	Check the data sample header for suitability. More...

virtual void	begin_transport_header_processing ()
	Begin Current Transport Header Processing. More...

virtual void	end_transport_header_processing ()
	End Current Transport Header Processing. More...

virtual void	finish_message ()

int	skip_bad_pdus ()
	Ignore bad PDUs by skipping over them. More...

void	reset ()

size_t	pdu_remaining () const

size_t	successor_index (size_t index) const
	Manage an index into the receive buffer array. More...

void	update_buffer_index (bool &done)

virtual bool	reassemble (ReceivedDataSample &data)

	OPENDDS_VECTOR (ACE_Message_Block *) receive_buffers_
	Set of receive buffers in use. More...

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Private Attributes
TcpDataLink &	link_

ReactorTask_rch	reactor_task_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Static Public Attributes inherited from OpenDDS::DCPS::TransportReceiveConstants
static const size_t	RECEIVE_BUFFERS = DEFAULT_TRANSPORT_RECEIVE_BUFFERS

static const size_t	BUFFER_LOW_WATER = 4096

static const size_t	MESSAGE_BLOCKS = 1000

static const size_t	DATA_BLOCKS = 100

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Attributes inherited from OpenDDS::DCPS::TransportReceiveStrategy<>
bool	gracefully_disconnected_
	Flag indicates if the GRACEFUL_DISCONNECT message is received. More...

size_t	receive_sample_remaining_
	Bytes remaining in the current DataSample. More...

TransportHeader	receive_transport_header_
	Current receive TransportHeader. More...

TransportMessageBlockAllocator	mb_allocator_

TransportDataBlockAllocator	db_allocator_

TransportDataAllocator	data_allocator_

ACE_Lock_Adapter< ACE_SYNCH_MUTEX >	receive_lock_
	Locking strategy for the allocators. More...

size_t	buffer_index_
	Current receive buffer index in use. More...

DataSampleHeader	data_sample_header_
	Current data sample header. More...

ACE_Message_Block *	payload_

bool	good_pdu_

size_t	pdu_remaining_
	Amount of the current PDU that has not been processed yet. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

Definition at line 24 of file TcpReceiveStrategy.h.

Constructor & Destructor Documentation

◆ TcpReceiveStrategy()

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL OpenDDS::DCPS::TcpReceiveStrategy::TcpReceiveStrategy	(	TcpDataLink &	link,
		const ReactorTask_rch &	task
	)

Definition at line 23 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL.

   : TransportReceiveStrategy<>(link.impl()->config())
   , link_(link)
   , reactor_task_(task)
 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","TcpReceiveStrategy",6);
 }

◆ ~TcpReceiveStrategy()

OpenDDS::DCPS::TcpReceiveStrategy::~TcpReceiveStrategy ( )

virtual

Definition at line 32 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL.

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","~TcpReceiveStrategy",6);
 }

Member Function Documentation

◆ deliver_sample()

void OpenDDS::DCPS::TcpReceiveStrategy::deliver_sample	(	ReceivedDataSample &	sample,
		const ACE_INET_Addr &	remote_address
	)

protectedvirtual

Called when there is a ReceivedDataSample to be delivered.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 58 of file TcpReceiveStrategy.cpp.

References OpenDDS::DCPS::TcpDataLink::ack_received(), OpenDDS::DCPS::DataLink::data_received(), DBG_ENTRY_LVL, OpenDDS::DCPS::GRACEFUL_DISCONNECT, OpenDDS::DCPS::TransportReceiveStrategy<>::gracefully_disconnected_, OpenDDS::DCPS::ReceivedDataSample::header_, link_, LM_DEBUG, OpenDDS::DCPS::DataSampleHeader::message_id_, OpenDDS::DCPS::REQUEST_ACK, OpenDDS::DCPS::TcpDataLink::request_ack_received(), OpenDDS::DCPS::SAMPLE_ACK, and VDBG.

Referenced by receive_bytes().

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","deliver_sample",6);

   if (sample.header_.message_id_ == GRACEFUL_DISCONNECT) {
     VDBG((LM_DEBUG, "(%P|%t) DBG:  received GRACEFUL_DISCONNECT\n"));
     this->gracefully_disconnected_ = true;
   }
   else if (sample.header_.message_id_ == REQUEST_ACK) {
     VDBG((LM_DEBUG, "(%P|%t) DBG:  received REQUEST_ACK\n"));
     link_.request_ack_received(sample);
   }
   else if (sample.header_.message_id_ == SAMPLE_ACK) {
     VDBG((LM_DEBUG, "(%P|%t) DBG:  received SAMPLE_ACK\n"));
     link_.ack_received(sample);
   }
   else {
     link_.data_received(sample);
   }
 }

◆ get_reactor()

OPENDDS_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Reactor * OpenDDS::DCPS::TcpReceiveStrategy::get_reactor ( void )

Definition at line 14 of file TcpReceiveStrategy.inl.

References ACE_INLINE, DBG_ENTRY_LVL, OpenDDS::DCPS::ReactorTask::get_reactor(), and reactor_task_.

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","get_reactor",6);
   return this->reactor_task_->get_reactor();
 }

◆ gracefully_disconnected()

ACE_INLINE bool OpenDDS::DCPS::TcpReceiveStrategy::gracefully_disconnected ( )

Definition at line 21 of file TcpReceiveStrategy.inl.

References OpenDDS::DCPS::TransportReceiveStrategy<>::gracefully_disconnected_, and OPENDDS_END_VERSIONED_NAMESPACE_DECL.

 {
   return this->gracefully_disconnected_;
 }

◆ receive_bytes()

ssize_t OpenDDS::DCPS::TcpReceiveStrategy::receive_bytes	(	iovec	iov[],
		int	n,
		ACE_INET_Addr &	remote_address,
		ACE_HANDLE	fd,
		bool &	stop
	)

protectedvirtual

Only our subclass knows how to do this.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 38 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, deliver_sample(), OpenDDS::DCPS::TcpDataLink::get_connection(), and link_.

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy", "receive_bytes", 6);

   // We don't do anything to the remote_address for the Tcp case.
   TcpConnection_rch connection = link_.get_connection();
   if (!connection) {
     return 0;
   }

   return connection->peer().recvv(iov, n);
 }

◆ relink()

void OpenDDS::DCPS::TcpReceiveStrategy::relink ( bool do_suspend = true )

protectedvirtual

The subclass needs to provide the implementation for re-establishing the datalink. This is called when recv returns an error.

Reimplemented from OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 151 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::get_connection(), link_, and OPENDDS_END_VERSIONED_NAMESPACE_DECL.

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","relink",6);
   TcpConnection_rch connection = link_.get_connection();
   if (connection)
     connection->relink_from_recv(do_suspend);
 }

◆ reset()

int OpenDDS::DCPS::TcpReceiveStrategy::reset	(	TcpConnection *	old_connection,
		TcpConnection *	new_connection
	)

Definition at line 114 of file TcpReceiveStrategy.cpp.

References ACE_ERROR_RETURN, DBG_ENTRY_LVL, ACE_Event_Handler::DONT_CALL, OpenDDS::DCPS::TcpDataLink::drop_pending_request_acks(), OpenDDS::DCPS::ReactorTask::get_reactor(), link_, LM_ERROR, reactor_task_, ACE_Event_Handler::READ_MASK, ACE_Reactor::register_handler(), and ACE_Reactor::remove_handler().

Referenced by OpenDDS::DCPS::TcpDataLink::reuse_existing_connection().

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","reset",6);
   // Unregister the old handle
   if (old_connection) {
     this->reactor_task_->get_reactor()->remove_handler
     (old_connection,
      ACE_Event_Handler::READ_MASK |
      ACE_Event_Handler::DONT_CALL);
    }

    link_.drop_pending_request_acks();

   // Give the reactor its own "copy" of the reference to the connection object.

   if (this->reactor_task_->get_reactor()->register_handler
       (new_connection,
        ACE_Event_Handler::READ_MASK) == -1) {
     // Take back the "copy" we made.
     ACE_ERROR_RETURN((LM_ERROR,
                       "(%P|%t) ERROR: TcpReceiveStrategy::reset TcpConnection can't register with "
                       "reactor\n"),
                      -1);
   }

   return 0;
 }

◆ start_i()

int OpenDDS::DCPS::TcpReceiveStrategy::start_i ( )

protectedvirtual

Let the subclass start.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 80 of file TcpReceiveStrategy.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_TEXT(), DBG_ENTRY_LVL, OpenDDS::DCPS::DCPS_debug_level, OpenDDS::DCPS::TcpDataLink::get_connection(), OpenDDS::DCPS::ReactorTask::get_reactor(), OpenDDS::DCPS::RcHandle< T >::in(), link_, LM_DEBUG, LM_ERROR, reactor_task_, ACE_Event_Handler::READ_MASK, and ACE_Reactor::register_handler().

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","start_i",6);

   TcpConnection_rch connection = link_.get_connection();

   if (DCPS_debug_level > 9) {
     std::stringstream buffer;
     buffer << link_;
     ACE_DEBUG((LM_DEBUG,
                ACE_TEXT("(%P|%t) TcpReceiveStrategy::start_i() - ")
                ACE_TEXT("link:\n%C connected to %C ")
                ACE_TEXT("registering with reactor to receive.\n"),
                buffer.str().c_str(),
                LogAddr(connection->get_remote_address()).c_str()));
   }

   if (this->reactor_task_->get_reactor()->register_handler
       (connection.in(),
        ACE_Event_Handler::READ_MASK) == -1) {
     // Take back the "copy" we made.
     ACE_ERROR_RETURN((LM_ERROR,
                       "(%P|%t) ERROR: TcpReceiveStrategy::start_i TcpConnection can't register with "
                       "reactor %@ %p\n", connection.in(), ACE_TEXT("register_handler")),
                      -1);
   }

   return 0;
 }

◆ stop_i()

void OpenDDS::DCPS::TcpReceiveStrategy::stop_i ( )

protectedvirtual

Let the subclass stop.

Implements OpenDDS::DCPS::TransportReceiveStrategy<>.

Definition at line 143 of file TcpReceiveStrategy.cpp.

References DBG_ENTRY_LVL, OpenDDS::DCPS::TcpDataLink::drop_pending_request_acks(), and link_.

 {
   DBG_ENTRY_LVL("TcpReceiveStrategy","stop_i",6);

   link_.drop_pending_request_acks();
 }

Member Data Documentation

◆ link_

TcpDataLink& OpenDDS::DCPS::TcpReceiveStrategy::link_

private

Definition at line 61 of file TcpReceiveStrategy.h.

Referenced by deliver_sample(), receive_bytes(), relink(), reset(), start_i(), and stop_i().

◆ reactor_task_

ReactorTask_rch OpenDDS::DCPS::TcpReceiveStrategy::reactor_task_

private

Definition at line 62 of file TcpReceiveStrategy.h.

Referenced by get_reactor(), reset(), and start_i().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TcpReceiveStrategy()

◆ ~TcpReceiveStrategy()

Member Function Documentation

◆ deliver_sample()

◆ get_reactor()

◆ gracefully_disconnected()

◆ receive_bytes()

◆ relink()

◆ reset()

◆ start_i()

◆ stop_i()

Member Data Documentation

◆ link_

◆ reactor_task_
