#include <ShmemInst.h>

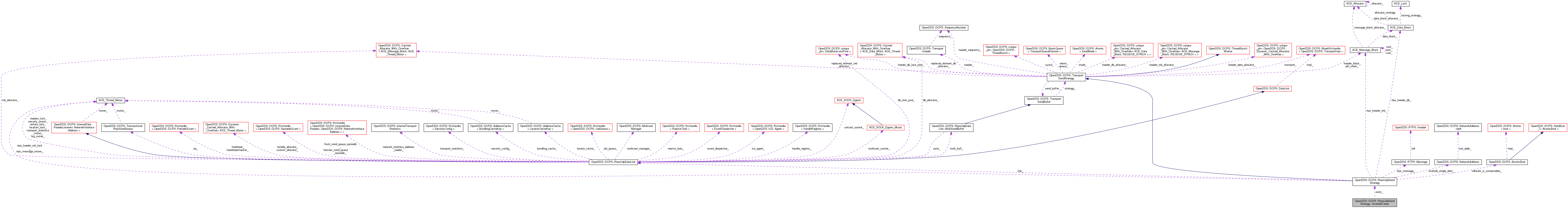

Inheritance diagram for OpenDDS::DCPS::ShmemInst:

Collaboration diagram for OpenDDS::DCPS::ShmemInst:

[legend]

Public Member Functions
virtual int	load (ACE_Configuration_Heap &cf, ACE_Configuration_Section_Key &sect)

virtual OPENDDS_STRING	dump_to_str () const

bool	is_reliable () const
	Does the transport as configured support RELIABLE_RELIABILITY_QOS? More...

virtual size_t	populate_locator (OpenDDS::DCPS::TransportLocator &trans_info, ConnectionInfoFlags flags) const
	Populate a transport locator sequence. Return the number of "locators.". More...

const std::string &	hostname () const

const std::string &	poolname () const

TimeDuration	association_resend_period () const

Public Member Functions inherited from OpenDDS::DCPS::TransportInst
const OPENDDS_STRING &	name () const

void	dump () const
	Diagnostic aid. More...

virtual bool	requires_cdr_encapsulation () const
	Does the transport require a CDR-encapsulated data payload? More...

DCPS::WeakRcHandle< ICE::Endpoint >	get_ice_endpoint ()

void	rtps_relay_only_now (bool flag)

void	use_rtps_relay_now (bool flag)

void	use_ice_now (bool flag)

virtual void	update_locators (const GUID_t &, const TransportLocatorSeq &)

virtual void	get_last_recv_locator (const GUID_t &, TransportLocator &)

virtual void	rtps_relay_address_change ()

ReactorTask_rch	reactor_task ()

EventDispatcher_rch	event_dispatcher ()

void	count_messages (bool flag)

bool	count_messages () const

virtual void	append_transport_statistics (TransportStatisticsSequence &)

void	drop_messages (bool flag)

void	drop_messages_m (double m)

void	drop_messages_b (double b)

bool	should_drop (ssize_t length) const

bool	should_drop (const iovec iov[], int n, ssize_t &length) const

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Public Attributes
size_t	pool_size_

size_t	datalink_control_size_

Public Attributes inherited from OpenDDS::DCPS::TransportInst
const OPENDDS_STRING	transport_type_

size_t	queue_messages_per_pool_

size_t	queue_initial_pools_

ACE_UINT32	max_packet_size_
	Max size (in bytes) of a packet (packet header + sample(s)) More...

size_t	max_samples_per_packet_
	Max number of samples that should ever be in a single packet. More...

ACE_UINT32	optimum_packet_size_
	Optimum size (in bytes) of a packet (packet header + sample(s)). More...

bool	thread_per_connection_

long	datalink_release_delay_

size_t	datalink_control_chunks_

TimeDuration	fragment_reassembly_timeout_

size_t	receive_preallocated_message_blocks_

size_t	receive_preallocated_data_blocks_

Static Public Attributes
static const TimeDuration	default_association_resend_period

Static Public Attributes inherited from OpenDDS::DCPS::TransportInst
static const long	DEFAULT_DATALINK_RELEASE_DELAY = 10000

static const size_t	DEFAULT_DATALINK_CONTROL_CHUNKS = 32u

Private Member Functions
	ShmemInst (const std::string &name)

TransportImpl_rch	new_impl ()

Private Attributes
std::string	hostname_

std::string	poolname_

TimeDuration	association_resend_period_

Friends
class	ShmemType

template<typename T , typename U >
RcHandle< T >	OpenDDS::DCPS::make_rch (U const &)

Additional Inherited Members
Static Public Member Functions inherited from OpenDDS::DCPS::TransportInst
static OPENDDS_STRING	formatNameForDump (const char *name)

Protected Member Functions inherited from OpenDDS::DCPS::TransportInst
	TransportInst (const char *type, const OPENDDS_STRING &name)

virtual	~TransportInst ()

void	set_port_in_addr_string (OPENDDS_STRING &addr_str, u_short port_number)

TransportImpl_rch	get_or_create_impl ()

TransportImpl_rch	get_impl ()

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Attributes inherited from OpenDDS::DCPS::TransportInst
ACE_SYNCH_MUTEX	lock_

bool	shutting_down_

Detailed Description

Definition at line 20 of file ShmemInst.h.

Constructor & Destructor Documentation

◆ ShmemInst()

OpenDDS::DCPS::ShmemInst::ShmemInst ( const std::string & name )

explicitprivate

Definition at line 24 of file ShmemInst.cpp.

References ACE_OS::getpid(), OpenDDS::DCPS::TransportInst::name(), and poolname_.

   : TransportInst("shmem", name)
   , pool_size_(16 * 1024 * 1024)
   , datalink_control_size_(4 * 1024)
   , hostname_(get_fully_qualified_hostname())
   , association_resend_period_(default_association_resend_period)
 {
   std::ostringstream pool;
   pool << "OpenDDS-" << ACE_OS::getpid() << '-' << this->name();
   poolname_ = pool.str();
 }

Member Function Documentation

◆ association_resend_period()

TimeDuration OpenDDS::DCPS::ShmemInst::association_resend_period ( ) const

inline

Definition at line 45 of file ShmemInst.h.

   {
     return association_resend_period_;
   }

◆ dump_to_str()

OPENDDS_STRING OpenDDS::DCPS::ShmemInst::dump_to_str ( ) const

virtual

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 65 of file ShmemInst.cpp.

References association_resend_period_, datalink_control_size_, OpenDDS::DCPS::TransportInst::dump_to_str(), OpenDDS::DCPS::TransportInst::formatNameForDump(), hostname_, OPENDDS_STRING, pool_size_, poolname_, and OpenDDS::DCPS::TimeDuration::str().

 {
   std::ostringstream os;
   os << TransportInst::dump_to_str();
   os << formatNameForDump("pool_size") << pool_size_ << "\n"
      << formatNameForDump("datalink_control_size") << datalink_control_size_ << "\n"
      << formatNameForDump("pool_name") << this->poolname_ << "\n"
      << formatNameForDump("host_name") << this->hostname_ << "\n"
      << formatNameForDump("association_resend_period") << association_resend_period_.str() << "\n";
   return OPENDDS_STRING(os.str());
 }

◆ hostname()

const std::string& OpenDDS::DCPS::ShmemInst::hostname ( ) const

inline

Definition at line 42 of file ShmemInst.h.

42 { return hostname_; }

OpenDDS::DCPS::ShmemInst::hostname_

std::string hostname_

Definition: ShmemInst.h:57

◆ is_reliable()

bool OpenDDS::DCPS::ShmemInst::is_reliable ( ) const

inlinevirtual

Does the transport as configured support RELIABLE_RELIABILITY_QOS?

Implements OpenDDS::DCPS::TransportInst.

Definition at line 38 of file ShmemInst.h.

38 { return true; }

◆ load()

int OpenDDS::DCPS::ShmemInst::load	(	ACE_Configuration_Heap &	cf,
		ACE_Configuration_Section_Key &	sect
	)

virtual

Overwrite the default configurations with the configuration from the given section in the ACE_Configuration_Heap object.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 43 of file ShmemInst.cpp.

References ACE_TEXT(), association_resend_period_, datalink_control_size_, GET_CONFIG_STRING_VALUE, GET_CONFIG_TIME_VALUE, GET_CONFIG_VALUE, hostname_, OpenDDS::DCPS::TransportInst::load(), OPENDDS_STRING, and pool_size_.

 {
   TransportInst::load(cf, sect);

   std::string host_name;
   GET_CONFIG_STRING_VALUE(cf, sect, ACE_TEXT("host_name"), host_name);

   if (!host_name.empty()) {
     hostname_ = host_name;
   }

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("pool_size"), pool_size_, size_t)
   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("datalink_control_size"),
                    datalink_control_size_, size_t)
   GET_CONFIG_TIME_VALUE(cf, sect,
     ACE_TEXT("association_resend_period"), association_resend_period_);

   return 0;
 }

◆ new_impl()

TransportImpl_rch OpenDDS::DCPS::ShmemInst::new_impl ( )

privatevirtual

Implements OpenDDS::DCPS::TransportInst.

Definition at line 37 of file ShmemInst.cpp.

References OpenDDS::DCPS::rchandle_from().

 {
   return make_rch<ShmemTransport>(rchandle_from(this));
 }

◆ poolname()

const std::string& OpenDDS::DCPS::ShmemInst::poolname ( ) const

inline

Definition at line 43 of file ShmemInst.h.

43 { return poolname_; }

OpenDDS::DCPS::ShmemInst::poolname_

std::string poolname_

Definition: ShmemInst.h:58

◆ populate_locator()

size_t OpenDDS::DCPS::ShmemInst::populate_locator	(	OpenDDS::DCPS::TransportLocator &	trans_info,
		ConnectionInfoFlags	flags
	)		const

virtual

Populate a transport locator sequence. Return the number of "locators.".

Implements OpenDDS::DCPS::TransportInst.

Definition at line 78 of file ShmemInst.cpp.

References OpenDDS::DCPS::TransportLocator::data, hostname_, OPENDDS_END_VERSIONED_NAMESPACE_DECL, poolname_, and OpenDDS::DCPS::TransportLocator::transport_type.

 {
   info.transport_type = "shmem";

   const size_t len = hostname_.size() + 1 /* null */ + poolname_.size();
   info.data.length(static_cast<CORBA::ULong>(len));

   CORBA::Octet* buff = info.data.get_buffer();
   std::memcpy(buff, hostname_.c_str(), hostname_.size());
   buff += hostname_.size();

   *(buff++) = 0;
   std::memcpy(buff, poolname_.c_str(), poolname_.size());

   return 1;
 }

Friends And Related Function Documentation

◆ OpenDDS::DCPS::make_rch

template<typename T , typename U >

RcHandle<T> OpenDDS::DCPS::make_rch ( U const & )

friend

◆ ShmemType

friend class ShmemType

friend

Definition at line 51 of file ShmemInst.h.

Member Data Documentation

◆ association_resend_period_

TimeDuration OpenDDS::DCPS::ShmemInst::association_resend_period_

private

Definition at line 59 of file ShmemInst.h.

Referenced by dump_to_str(), and load().

◆ datalink_control_size_

size_t OpenDDS::DCPS::ShmemInst::datalink_control_size_

Size (in bytes) of the control area allocated for each data link. This allocation comes out of the shared-memory pool defined by pool_size_. Defaults to 4 kilobytes.

Definition at line 36 of file ShmemInst.h.

Referenced by dump_to_str(), and load().

◆ default_association_resend_period

const TimeDuration OpenDDS::DCPS::ShmemInst::default_association_resend_period

static

Definition at line 22 of file ShmemInst.h.

◆ hostname_

std::string OpenDDS::DCPS::ShmemInst::hostname_

private

Definition at line 57 of file ShmemInst.h.

Referenced by dump_to_str(), load(), and populate_locator().

◆ pool_size_

size_t OpenDDS::DCPS::ShmemInst::pool_size_

Size (in bytes) of the single shared-memory pool allocated by this transport instance. Defaults to 16 megabytes.

Definition at line 31 of file ShmemInst.h.

Referenced by dump_to_str(), and load().

◆ poolname_

std::string OpenDDS::DCPS::ShmemInst::poolname_

private

Definition at line 58 of file ShmemInst.h.

Referenced by dump_to_str(), populate_locator(), and ShmemInst().

The documentation for this class was generated from the following files:
