#include <MulticastInst.h>

Inheritance diagram for OpenDDS::DCPS::MulticastInst:

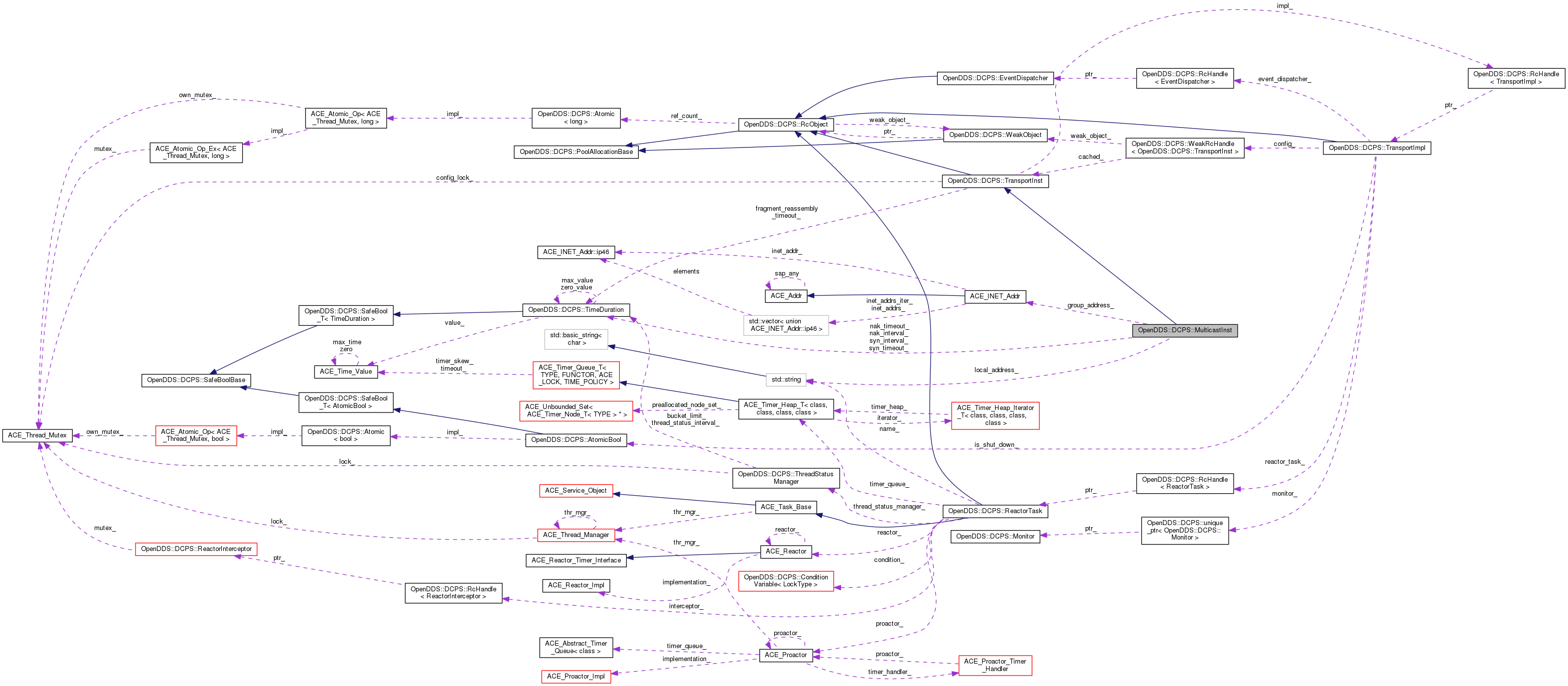

Collaboration diagram for OpenDDS::DCPS::MulticastInst:

[legend]

Public Member Functions
virtual int	load (ACE_Configuration_Heap &cf, ACE_Configuration_Section_Key &sect)

virtual OPENDDS_STRING	dump_to_str () const
	Diagnostic aid. More...

bool	is_reliable () const
	Does the transport as configured support RELIABLE_RELIABILITY_QOS? More...

bool	async_send () const

virtual size_t	populate_locator (OpenDDS::DCPS::TransportLocator &trans_info, ConnectionInfoFlags flags) const
	Populate a transport locator sequence. Return the number of "locators.". More...

Public Member Functions inherited from OpenDDS::DCPS::TransportInst
const OPENDDS_STRING &	name () const

void	dump () const
	Diagnostic aid. More...

virtual bool	requires_cdr_encapsulation () const
	Does the transport require a CDR-encapsulated data payload? More...

DCPS::WeakRcHandle< ICE::Endpoint >	get_ice_endpoint ()

void	rtps_relay_only_now (bool flag)

void	use_rtps_relay_now (bool flag)

void	use_ice_now (bool flag)

virtual void	update_locators (const GUID_t &, const TransportLocatorSeq &)

virtual void	get_last_recv_locator (const GUID_t &, TransportLocator &)

virtual void	rtps_relay_address_change ()

ReactorTask_rch	reactor_task ()

EventDispatcher_rch	event_dispatcher ()

void	count_messages (bool flag)

bool	count_messages () const

virtual void	append_transport_statistics (TransportStatisticsSequence &)

void	drop_messages (bool flag)

void	drop_messages_m (double m)

void	drop_messages_b (double b)

bool	should_drop (ssize_t length) const

bool	should_drop (const iovec iov[], int n, ssize_t &length) const

Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()

virtual void	_add_ref ()

virtual void	_remove_ref ()

long	ref_count () const

WeakObject *	_get_weak_object () const

Public Attributes
bool	default_to_ipv6_

u_short	port_offset_

ACE_INET_Addr	group_address_

std::string	local_address_

bool	reliable_

double	syn_backoff_

TimeDuration	syn_interval_

TimeDuration	syn_timeout_

size_t	nak_depth_

TimeDuration	nak_interval_

size_t	nak_delay_intervals_

size_t	nak_max_

TimeDuration	nak_timeout_

unsigned char	ttl_

size_t	rcv_buffer_size_

bool	async_send_

Public Attributes inherited from OpenDDS::DCPS::TransportInst
const OPENDDS_STRING	transport_type_

size_t	queue_messages_per_pool_

size_t	queue_initial_pools_

ACE_UINT32	max_packet_size_
	Max size (in bytes) of a packet (packet header + sample(s)) More...

size_t	max_samples_per_packet_
	Max number of samples that should ever be in a single packet. More...

ACE_UINT32	optimum_packet_size_
	Optimum size (in bytes) of a packet (packet header + sample(s)). More...

bool	thread_per_connection_

long	datalink_release_delay_

size_t	datalink_control_chunks_

TimeDuration	fragment_reassembly_timeout_

size_t	receive_preallocated_message_blocks_

size_t	receive_preallocated_data_blocks_

Static Public Attributes
static const size_t	DEFAULT_NAK_DEPTH = 32u

static const long	DEFAULT_NAK_INTERVAL = 500

static const long	DEFAULT_NAK_DELAY_INTERVALS = 4

static const long	DEFAULT_NAK_MAX = 3

static const long	DEFAULT_NAK_TIMEOUT = 30000

Static Public Attributes inherited from OpenDDS::DCPS::TransportInst
static const long	DEFAULT_DATALINK_RELEASE_DELAY = 10000

static const size_t	DEFAULT_DATALINK_CONTROL_CHUNKS = 32u

Private Member Functions
	MulticastInst (const std::string &name)

void	default_group_address (ACE_INET_Addr &group_address)

TransportImpl_rch	new_impl ()

Friends
class	MulticastType

template<typename T , typename U >
RcHandle< T >	OpenDDS::DCPS::make_rch (U const &)

Additional Inherited Members
Static Public Member Functions inherited from OpenDDS::DCPS::TransportInst
static OPENDDS_STRING	formatNameForDump (const char *name)

Protected Member Functions inherited from OpenDDS::DCPS::TransportInst
	TransportInst (const char *type, const OPENDDS_STRING &name)

virtual	~TransportInst ()

void	set_port_in_addr_string (OPENDDS_STRING &addr_str, u_short port_number)

TransportImpl_rch	get_or_create_impl ()

TransportImpl_rch	get_impl ()

Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Attributes inherited from OpenDDS::DCPS::TransportInst
ACE_SYNCH_MUTEX	lock_

bool	shutting_down_

Detailed Description

Definition at line 26 of file MulticastInst.h.

Constructor & Destructor Documentation

◆ MulticastInst()

OpenDDS::DCPS::MulticastInst::MulticastInst ( const std::string & name )

explicitprivate

Definition at line 46 of file MulticastInst.cpp.

References ACE_DEFAULT_MAX_SOCKET_BUFSIZ, default_group_address(), DEFAULT_NAK_INTERVAL, DEFAULT_NAK_TIMEOUT, OpenDDS::DCPS::TimeDuration::from_msec(), group_address_, if(), nak_interval_, nak_timeout_, syn_interval_, and syn_timeout_.

   : TransportInst("multicast", name),
     default_to_ipv6_(DEFAULT_TO_IPV6),
     port_offset_(DEFAULT_PORT_OFFSET),
     reliable_(DEFAULT_RELIABLE),
     syn_backoff_(DEFAULT_SYN_BACKOFF),
     nak_depth_(DEFAULT_NAK_DEPTH),
     nak_delay_intervals_(DEFAULT_NAK_DELAY_INTERVALS),
     nak_max_(DEFAULT_NAK_MAX),
     ttl_(DEFAULT_TTL),
 #if defined (ACE_DEFAULT_MAX_SOCKET_BUFSIZ)
     rcv_buffer_size_(ACE_DEFAULT_MAX_SOCKET_BUFSIZ),
 #else
     // Use system default values.
     rcv_buffer_size_(0),
 #endif
     async_send_(DEFAULT_ASYNC_SEND)
 {
   default_group_address(this->group_address_);

   syn_interval_ = TimeDuration::from_msec(DEFAULT_SYN_INTERVAL);
   syn_timeout_ = TimeDuration::from_msec(DEFAULT_SYN_TIMEOUT);

   nak_interval_ = TimeDuration::from_msec(DEFAULT_NAK_INTERVAL);
   nak_timeout_ = TimeDuration::from_msec(DEFAULT_NAK_TIMEOUT);
 }

Member Function Documentation

◆ async_send()

bool OpenDDS::DCPS::MulticastInst::async_send ( ) const

inline

Definition at line 123 of file MulticastInst.h.

123 { return this->async_send_; }

OpenDDS::DCPS::MulticastInst::async_send_

bool async_send_

Definition: MulticastInst.h:113

◆ default_group_address()

void OpenDDS::DCPS::MulticastInst::default_group_address ( ACE_INET_Addr & group_address )

private

Definition at line 133 of file MulticastInst.cpp.

References default_to_ipv6_, port_offset_, and ACE_INET_Addr::set().

Referenced by load(), and MulticastInst().

 {
   if (this->default_to_ipv6_) {
     group_address.set(this->port_offset_, DEFAULT_IPV6_GROUP_ADDRESS);
   } else {
     group_address.set(this->port_offset_, DEFAULT_IPV4_GROUP_ADDRESS);
   }
 }

◆ dump_to_str()

OPENDDS_STRING OpenDDS::DCPS::MulticastInst::dump_to_str ( ) const

virtual

Diagnostic aid.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 149 of file MulticastInst.cpp.

References async_send_, default_to_ipv6_, OpenDDS::DCPS::TransportInst::dump_to_str(), OpenDDS::DCPS::TransportInst::formatNameForDump(), group_address_, local_address_, nak_delay_intervals_, nak_depth_, nak_interval_, nak_max_, nak_timeout_, OPENDDS_STRING, port_offset_, rcv_buffer_size_, reliable_, OpenDDS::DCPS::LogAddr::str(), OpenDDS::DCPS::TimeDuration::str(), syn_backoff_, syn_interval_, syn_timeout_, and ttl_.

 {
   std::ostringstream os;
   os << TransportInst::dump_to_str();

   os << formatNameForDump("group_address")       << LogAddr(group_address_).str() << std::endl;
   os << formatNameForDump("local_address")       << this->local_address_ << std::endl;
   os << formatNameForDump("default_to_ipv6")     << (this->default_to_ipv6_ ? "true" : "false") << std::endl;
   os << formatNameForDump("port_offset")         << this->port_offset_ << std::endl;
   os << formatNameForDump("reliable")            << (this->reliable_ ? "true" : "false") << std::endl;
   os << formatNameForDump("syn_backoff")         << this->syn_backoff_ << std::endl;
   os << formatNameForDump("syn_interval")        << this->syn_interval_.str() << std::endl;
   os << formatNameForDump("syn_timeout")         << this->syn_timeout_.str() << std::endl;
   os << formatNameForDump("nak_depth")           << this->nak_depth_ << std::endl;
   os << formatNameForDump("nak_interval")        << this->nak_interval_.str() << std::endl;
   os << formatNameForDump("nak_delay_intervals") << this->nak_delay_intervals_ << std::endl;
   os << formatNameForDump("nak_max")             << this->nak_max_ << std::endl;
   os << formatNameForDump("nak_timeout")         << this->nak_timeout_.str() << std::endl;
   os << formatNameForDump("ttl")                 << int(this->ttl_) << std::endl;
   os << formatNameForDump("rcv_buffer_size");

   if (this->rcv_buffer_size_ == 0) {
     os << "System Default Value" << std::endl;
   } else {
     os << this->rcv_buffer_size_ << std::endl;
   }

   os << formatNameForDump("async_send");

 #if defined (ACE_WIN32) && defined (ACE_HAS_WIN32_OVERLAPPED_IO)
   os << (this->async_send_ ? "true" : "false") << std::endl;
 #else
   os << "Not Supported on this Platform" << std::endl;
 #endif
   return OPENDDS_STRING(os.str());
 }

◆ is_reliable()

bool OpenDDS::DCPS::MulticastInst::is_reliable ( ) const

inlinevirtual

Does the transport as configured support RELIABLE_RELIABILITY_QOS?

Implements OpenDDS::DCPS::TransportInst.

Definition at line 121 of file MulticastInst.h.

Referenced by populate_locator().

121 { return this->reliable_; }

OpenDDS::DCPS::MulticastInst::reliable_

bool reliable_

Definition: MulticastInst.h:58

◆ load()

int OpenDDS::DCPS::MulticastInst::load	(	ACE_Configuration_Heap &	cf,
		ACE_Configuration_Section_Key &	sect
	)

virtual

Overwrite the default configurations with the configuration from the given section in the ACE_Configuration_Heap object.

Reimplemented from OpenDDS::DCPS::TransportInst.

Definition at line 74 of file MulticastInst.cpp.

References ACE_TEXT(), async_send_, ACE_String_Base< char >::c_str(), default_group_address(), default_to_ipv6_, GET_CONFIG_STRING_VALUE, GET_CONFIG_TIME_VALUE, GET_CONFIG_TSTRING_VALUE, GET_CONFIG_VALUE, group_address_, ACE_String_Base< char >::is_empty(), OpenDDS::DCPS::TransportInst::load(), local_address_, nak_delay_intervals_, nak_depth_, nak_interval_, nak_max_, nak_timeout_, port_offset_, rcv_buffer_size_, reliable_, ACE_INET_Addr::set(), syn_backoff_, syn_interval_, syn_timeout_, and ttl_.

 {
   TransportInst::load(cf, sect); // delegate to parent

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("default_to_ipv6"),
                    this->default_to_ipv6_, bool)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("port_offset"),
                    this->port_offset_, u_short)

   // Explicitly initialize this string to stop gcc 11 from issuing a warning.
   ACE_TString group_address_s(ACE_TEXT(""));
   GET_CONFIG_TSTRING_VALUE(cf, sect, ACE_TEXT("group_address"),
                            group_address_s)
   if (group_address_s.is_empty()) {
     // TODO: Passing 0 instead of transport id.  Does this cause complications?
     default_group_address(this->group_address_);
   } else {
     this->group_address_.set(group_address_s.c_str());
   }

   GET_CONFIG_STRING_VALUE(cf, sect, ACE_TEXT("local_address"),
                           this->local_address_);

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("reliable"), this->reliable_, bool)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("syn_backoff"),
                    this->syn_backoff_, double)

   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("syn_interval"), this->syn_interval_)

   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("syn_timeout"), this->syn_timeout_)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_depth"),
                    this->nak_depth_, size_t)

   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("nak_interval"), this->nak_interval_)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_delay_intervals"),
                         this->nak_delay_intervals_, size_t)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("nak_max"), this->nak_max_, size_t)

   GET_CONFIG_TIME_VALUE(cf, sect, ACE_TEXT("nak_timeout"), this->nak_timeout_)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("ttl"), this->ttl_, unsigned char)

   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("rcv_buffer_size"),
                    this->rcv_buffer_size_, size_t)

 #if defined (ACE_WIN32) && defined (ACE_HAS_WIN32_OVERLAPPED_IO)
   GET_CONFIG_VALUE(cf, sect, ACE_TEXT("async_send"), this->async_send_, bool)
 #endif

   return 0;
 }

◆ new_impl()

TransportImpl_rch OpenDDS::DCPS::MulticastInst::new_impl ( )

privatevirtual

Implements OpenDDS::DCPS::TransportInst.

Definition at line 143 of file MulticastInst.cpp.

References OPENDDS_STRING, and OpenDDS::DCPS::rchandle_from().

 {
   return make_rch<MulticastTransport>(rchandle_from(this));
 }

◆ populate_locator()

size_t OpenDDS::DCPS::MulticastInst::populate_locator	(	OpenDDS::DCPS::TransportLocator &	trans_info,
		ConnectionInfoFlags	flags
	)		const

virtual

Populate a transport locator sequence. Return the number of "locators.".

Implements OpenDDS::DCPS::TransportInst.

Definition at line 187 of file MulticastInst.cpp.

References ACE_OutputCDR::buffer(), OpenDDS::DCPS::TransportLocator::data, group_address_, is_reliable(), OPENDDS_END_VERSIONED_NAMESPACE_DECL, ACE_OutputCDR::total_length(), and OpenDDS::DCPS::TransportLocator::transport_type.

 {
   if (group_address_ != ACE_INET_Addr()) {
     NetworkResource network_resource(group_address_);

     ACE_OutputCDR cdr;
     cdr << network_resource;
     cdr << ACE_OutputCDR::from_boolean (ACE_CDR::Boolean (is_reliable()));

     const CORBA::ULong len = static_cast<CORBA::ULong>(cdr.total_length());
     char* buffer = const_cast<char*>(cdr.buffer()); // safe

     info.transport_type = "multicast";
     info.data = TransportBLOB(len, len, reinterpret_cast<CORBA::Octet*>(buffer));
     return 1;
   } else {
     return 0;
   }
 }

Friends And Related Function Documentation

◆ MulticastType

friend class MulticastType

friend

Definition at line 128 of file MulticastInst.h.

◆ OpenDDS::DCPS::make_rch

template<typename T , typename U >

RcHandle<T> OpenDDS::DCPS::make_rch ( U const & )

friend

Member Data Documentation

◆ async_send_

bool OpenDDS::DCPS::MulticastInst::async_send_

Sending using asynchronous I/O on Windows platforms that support it. The default value is: false. This parameter has no effect on non-Windows platforms and Windows platforms that don't support asynchronous I/O.

Definition at line 113 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ DEFAULT_NAK_DELAY_INTERVALS

const long OpenDDS::DCPS::MulticastInst::DEFAULT_NAK_DELAY_INTERVALS = 4

static

Definition at line 32 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::ReliableSession::send_naks().

◆ DEFAULT_NAK_DEPTH

const size_t OpenDDS::DCPS::MulticastInst::DEFAULT_NAK_DEPTH = 32u

static

Definition at line 30 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::MulticastDataLink::MulticastDataLink().

◆ DEFAULT_NAK_INTERVAL

const long OpenDDS::DCPS::MulticastInst::DEFAULT_NAK_INTERVAL = 500

static

Definition at line 31 of file MulticastInst.h.

Referenced by MulticastInst(), and OpenDDS::DCPS::ReliableSession::nak_delay().

◆ DEFAULT_NAK_MAX

const long OpenDDS::DCPS::MulticastInst::DEFAULT_NAK_MAX = 3

static

Definition at line 33 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::ReliableSession::send_naks().

◆ DEFAULT_NAK_TIMEOUT

const long OpenDDS::DCPS::MulticastInst::DEFAULT_NAK_TIMEOUT = 30000

static

Definition at line 34 of file MulticastInst.h.

Referenced by OpenDDS::DCPS::ReliableSession::expire_naks(), and MulticastInst().

◆ default_to_ipv6_

bool OpenDDS::DCPS::MulticastInst::default_to_ipv6_

Enables IPv6 default group address selection. The default value is: false.

Definition at line 38 of file MulticastInst.h.

Referenced by default_group_address(), dump_to_str(), and load().

◆ group_address_

ACE_INET_Addr OpenDDS::DCPS::MulticastInst::group_address_

The multicast group to join to send/receive data. The default value is: 224.0.0.128:<port> [IANA 2009-11-17], or [FF01::80]:<port> [IANA 2009-08-28]

Definition at line 48 of file MulticastInst.h.

Referenced by dump_to_str(), load(), MulticastInst(), and populate_locator().

◆ local_address_

std::string OpenDDS::DCPS::MulticastInst::local_address_

If non-empty, the address to pass to ACE which indicates the local network interface which should be used for joining the multicast group.

Definition at line 53 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ nak_delay_intervals_

size_t OpenDDS::DCPS::MulticastInst::nak_delay_intervals_

The number of interval's between nak's for a sample (after initial nak). The default value is: 4.

Definition at line 88 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ nak_depth_

size_t OpenDDS::DCPS::MulticastInst::nak_depth_

The number of datagrams to retain in order to service repair requests (reliable only). The default value is: 32.

Definition at line 78 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ nak_interval_

TimeDuration OpenDDS::DCPS::MulticastInst::nak_interval_

The minimum number of milliseconds to wait between repair requests (reliable only). The default value is: 500.

Definition at line 83 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and MulticastInst().

◆ nak_max_

size_t OpenDDS::DCPS::MulticastInst::nak_max_

The maximum number of a missing sample will be nak'ed. The default value is: 3.

Definition at line 92 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ nak_timeout_

TimeDuration OpenDDS::DCPS::MulticastInst::nak_timeout_

The maximum number of milliseconds to wait before giving up on a repair response (reliable only). The default value is: 30000 (30 seconds).

Definition at line 97 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and MulticastInst().

◆ port_offset_

u_short OpenDDS::DCPS::MulticastInst::port_offset_

The default port number (when group_address is not set) The default value is: 49152 [IANA 2009-11-16].

Definition at line 42 of file MulticastInst.h.

Referenced by default_group_address(), dump_to_str(), and load().

◆ rcv_buffer_size_

size_t OpenDDS::DCPS::MulticastInst::rcv_buffer_size_

The size of the socket receive buffer. The default value is: ACE_DEFAULT_MAX_SOCKET_BUFSIZ if it's defined, otherwise, 0. If the value is 0, the system default value is used.

Definition at line 107 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ reliable_

bool OpenDDS::DCPS::MulticastInst::reliable_

Enables reliable communication. This option will eventually be deprecated. The default value is: true.

Definition at line 58 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ syn_backoff_

double OpenDDS::DCPS::MulticastInst::syn_backoff_

The exponential base used during handshake retries; smaller values yield shorter delays between attempts. The default value is: 2.0.

Definition at line 63 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

◆ syn_interval_

TimeDuration OpenDDS::DCPS::MulticastInst::syn_interval_

The minimum number of milliseconds to wait between handshake attempts during association. The default value is: 250.

Definition at line 68 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and MulticastInst().

◆ syn_timeout_

TimeDuration OpenDDS::DCPS::MulticastInst::syn_timeout_

The maximum number of milliseconds to wait before giving up on a handshake response during association. The default value is: 30000 (30 seconds).

Definition at line 73 of file MulticastInst.h.

Referenced by dump_to_str(), load(), and MulticastInst().

◆ ttl_

unsigned char OpenDDS::DCPS::MulticastInst::ttl_

time-to-live. The default value is: 1 (in same subnet)

Definition at line 101 of file MulticastInst.h.

Referenced by dump_to_str(), and load().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MulticastInst()

Member Function Documentation

◆ async_send()

◆ default_group_address()

◆ dump_to_str()

◆ is_reliable()

◆ load()

◆ new_impl()

◆ populate_locator()

Friends And Related Function Documentation

◆ MulticastType

◆ OpenDDS::DCPS::make_rch

Member Data Documentation

◆ async_send_

◆ DEFAULT_NAK_DELAY_INTERVALS

◆ DEFAULT_NAK_DEPTH

◆ DEFAULT_NAK_INTERVAL

◆ DEFAULT_NAK_MAX

◆ DEFAULT_NAK_TIMEOUT

◆ default_to_ipv6_

◆ group_address_

◆ local_address_

◆ nak_delay_intervals_

◆ nak_depth_

◆ nak_interval_

◆ nak_max_

◆ nak_timeout_

◆ port_offset_

◆ rcv_buffer_size_

◆ reliable_

◆ syn_backoff_

◆ syn_interval_

◆ syn_timeout_

◆ ttl_
