OpenDDS::DCPS::ScheduleOutputHandler Class Reference

event handler used to enable and disable output processing. More...

#include <ScheduleOutputHandler.h>

Inheritance diagram for OpenDDS::DCPS::ScheduleOutputHandler:

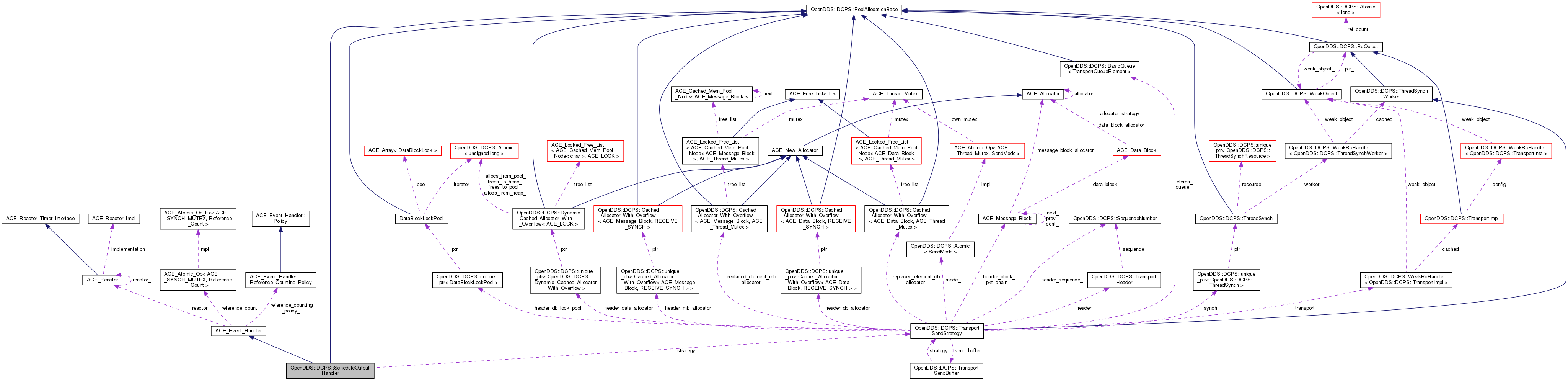

Collaboration diagram for OpenDDS::DCPS::ScheduleOutputHandler:

Public Member Functions
	ScheduleOutputHandler (TransportSendStrategy *strategy, ACE_Reactor *reactor)
	Construct with the reactor and strategy. More...
void	schedule_output ()
	Update output processing in the reactor. More...
ACE_Event_Handler methods
virtual int	handle_exception (ACE_HANDLE)
	modify the reactor mask for the handle. More...
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor (void) const
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
virtual Reference_Count	add_reference (void)
virtual Reference_Count	remove_reference (void)
Reference_Counting_Policy &	reference_counting_policy (void)

Private Types
enum	HandlerState { Disabled, Enabled }
	Cache the state that we have set the reactor into. More...

Private Attributes
TransportSendStrategy *	strategy_
	Strategy sending data to be scheduled (or not). More...
HandlerState	state_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER
Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Detailed Description

event handler used to enable and disable output processing.

This class implements a simple notification handler that is used to schedule or cancel output processing for queued data according to the current mode state of the TransportSendStrategy. If the send strategy is queueing data, then the reactor is enabled to process on output events. Otherwise the output processing callbacks are cancelled.

Definition at line 32 of file ScheduleOutputHandler.h.

Member Enumeration Documentation

HandlerState

enum OpenDDS::DCPS::ScheduleOutputHandler::HandlerState

private

Cache the state that we have set the reactor into.

Enumerator
Disabled
Enabled

Definition at line 53 of file ScheduleOutputHandler.h.

{ Disabled, Enabled };

Constructor & Destructor Documentation

ScheduleOutputHandler()

ACE_INLINE OpenDDS::DCPS::ScheduleOutputHandler::ScheduleOutputHandler	(	TransportSendStrategy *	strategy,
		ACE_Reactor *	reactor
	)

Construct with the reactor and strategy.

Definition at line 12 of file ScheduleOutputHandler.inl.

References DBG_ENTRY_LVL, ACE_Event_Handler::Reference_Counting_Policy::ENABLED, ACE_Event_Handler::reference_counting_policy(), and ACE_Event_Handler::Reference_Counting_Policy::value().

  : ACE_Event_Handler( reactor),
    strategy_( strategy),
    state_( Disabled)
{
  DBG_ENTRY_LVL("ScheduleOutputHandler","ScheduleOutputHandler",6);

  reference_counting_policy().value(
    ACE_Event_Handler::Reference_Counting_Policy::ENABLED);
}

Member Function Documentation

handle_exception()

int OpenDDS::DCPS::ScheduleOutputHandler::handle_exception ( ACE_HANDLE  )

virtual

modify the reactor mask for the handle.

Reimplemented from ACE_Event_Handler.

Definition at line 38 of file ScheduleOutputHandler.cpp.

References ACE_DEBUG, ACE_TEXT(), ACE_Reactor::cancel_wakeup(), DBG_ENTRY_LVL, OpenDDS::DCPS::DCPS_debug_level, Disabled, Enabled, OpenDDS::DCPS::TransportSendStrategy::get_handle(), OpenDDS::DCPS::ThreadSynchWorker::id(), LM_DEBUG, OpenDDS::DCPS::TransportSendStrategy::mode(), OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, OpenDDS::DCPS::TransportSendStrategy::MODE_QUEUE, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, ACE_Event_Handler::reactor(), ACE_Event_Handler::reference_count_, ACE_Reactor::schedule_wakeup(), state_, strategy_, TheServiceParticipant, and ACE_Event_Handler::WRITE_MASK.

{
  DBG_ENTRY_LVL("ScheduleOutputHandler","handle_exception",6);

  ThreadStatusManager::Event ev(TheServiceParticipant->get_thread_status_manager());

  if( reference_count_ == 1) {
    // The containing TransportSendStrategy has unregistered, so we are
    // going away and can't determine the mode, don't process.
    return -1;
  }

  // Check the *current* mode value as it might have been changed since
  // we were scheduled to run.
  //
  // We already hold the Reactor::token_ (since we are being called from
  // the reactor), and it will see the recursion and allow the call back
  // into the reactor.  We hold no other locks, and so avoid deadlock.
  TransportSendStrategy::SendMode mode = strategy_->mode();
  bool changed = false;

  ACE_HANDLE handle = strategy_->get_handle();
  // We need to recheck the mode here since it might have already changed.
  if( mode == TransportSendStrategy::MODE_DIRECT) {
    // Don't cancel a canceled handle.
    if( state_ == Enabled) {
      reactor()->cancel_wakeup(handle, ACE_Event_Handler::WRITE_MASK);
      state_ = Disabled;
      changed = true;
    }

  } else if( (mode == TransportSendStrategy::MODE_QUEUE)
          || (mode == TransportSendStrategy::MODE_SUSPEND)) {

    // Don't schedule a scheduled handle.
    if( state_ == Disabled) {
      reactor()->schedule_wakeup(handle, ACE_Event_Handler::WRITE_MASK);
      state_ = Enabled;
      changed = true;
    }
  }

  if (DCPS_debug_level > 4) {
    ACE_DEBUG((LM_DEBUG,
               ACE_TEXT("(%P|%t) ScheduleOutputHandler::handle_exception() - [%d] ")
               ACE_TEXT("%C data queueing for handle %d.\n"),
               strategy_->id(),
               (changed? ((state_ == Enabled)? "starting": "canceling"): "declining to change"),
               handle));
  }

  // Terminate the upcall and remove from the reactor, if there (and
  // decrement_reference()).
  return -1;
}

schedule_output()

void OpenDDS::DCPS::ScheduleOutputHandler::schedule_output

(

)

Update output processing in the reactor.

Filter the notifications here to reduce load.

Definition at line 19 of file ScheduleOutputHandler.cpp.

References DBG_ENTRY_LVL, Disabled, Enabled, OpenDDS::DCPS::TransportSendStrategy::mode(), OpenDDS::DCPS::TransportSendStrategy::MODE_DIRECT, OpenDDS::DCPS::TransportSendStrategy::MODE_QUEUE, OpenDDS::DCPS::TransportSendStrategy::MODE_SUSPEND, ACE_Reactor::notify(), ACE_Event_Handler::reactor(), ACE_Event_Handler::reference_count_, state_, and strategy_.

Referenced by OpenDDS::DCPS::ReactorSynch::work_available().

{
  DBG_ENTRY_LVL("ScheduleOutputHandler","schedule_output",6);

  // Only emit once into the notification queue since we check which
  // operation to perform when we process.
  if( reference_count_ == 1) {
    /// Filter the notifications here to reduce load.
    TransportSendStrategy::SendMode mode = strategy_->mode();

    if( ( (state_ ==  Enabled) && (mode == TransportSendStrategy::MODE_DIRECT))
     || ( (state_ == Disabled) && ( (mode == TransportSendStrategy::MODE_QUEUE)
                                 || (mode == TransportSendStrategy::MODE_SUSPEND)))) {
      reactor()->notify(this);
    }
  }
}

Member Data Documentation

state_

HandlerState OpenDDS::DCPS::ScheduleOutputHandler::state_

private

Definition at line 54 of file ScheduleOutputHandler.h.

Referenced by handle_exception(), and schedule_output().

strategy_

TransportSendStrategy* OpenDDS::DCPS::ScheduleOutputHandler::strategy_

private

Strategy sending data to be scheduled (or not).

Definition at line 50 of file ScheduleOutputHandler.h.

Referenced by handle_exception(), and schedule_output().

---

The documentation for this class was generated from the following files:

• ScheduleOutputHandler.h
• ScheduleOutputHandler.cpp
• ScheduleOutputHandler.inl
