OpenDDS::DCPS::ReactorInterceptor Class Reference

#include <ReactorInterceptor.h>

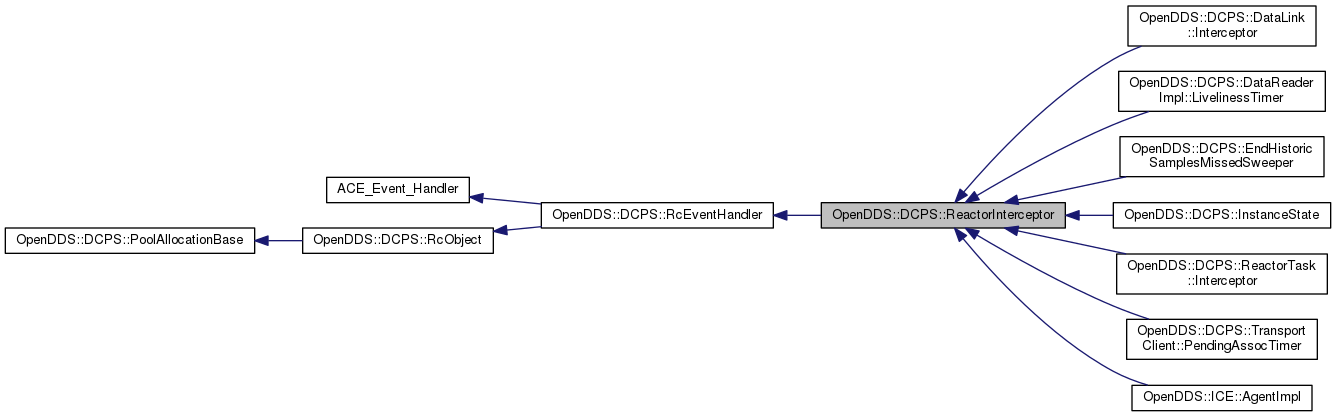

Inheritance diagram for OpenDDS::DCPS::ReactorInterceptor:

Collaboration diagram for OpenDDS::DCPS::ReactorInterceptor:

Classes
class	Command

Public Types
typedef RcHandle< Command >	CommandPtr
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Member Functions
CommandPtr	execute_or_enqueue (CommandPtr command)
virtual bool	reactor_is_shut_down () const =0
virtual void	reactor (ACE_Reactor *reactor)
virtual ACE_Reactor *	reactor () const
Public Member Functions inherited from OpenDDS::DCPS::RcEventHandler
	RcEventHandler ()
ACE_Event_Handler::Reference_Count	add_reference ()
ACE_Event_Handler::Reference_Count	remove_reference ()
Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual void	set_handle (ACE_HANDLE)
virtual int	priority (void) const
virtual void	priority (int priority)
virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)
virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)
virtual int	handle_exit (ACE_Process *)
virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)
virtual int	handle_signal (int signum, siginfo_t *=0, ucontext_t *=0)
virtual int	resume_handler (void)
virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)
virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const
Reference_Counting_Policy &	reference_counting_policy (void)
Public Member Functions inherited from OpenDDS::DCPS::RcObject
virtual	~RcObject ()
virtual void	_add_ref ()
virtual void	_remove_ref ()
long	ref_count () const
WeakObject *	_get_weak_object () const

Protected Types
enum	ReactorState { RS_NONE, RS_NOTIFIED, RS_PROCESSING }
Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions
	ReactorInterceptor (ACE_Reactor *reactor, ACE_thread_t owner)
virtual	~ReactorInterceptor ()
int	handle_exception (ACE_HANDLE)
void	process_command_queue_i (ACE_Guard< ACE_Thread_Mutex > &guard)
typedef	OPENDDS_VECTOR (CommandPtr) Queue
Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)
Protected Member Functions inherited from OpenDDS::DCPS::RcObject
	RcObject ()

Protected Attributes
ACE_thread_t	owner_
ACE_Thread_Mutex	mutex_
Queue	command_queue_
ReactorState	state_
Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Additional Inherited Members
Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)
static int	register_stdin_handler (ACE_Event_Handler *eh, ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)
static int	remove_stdin_handler (ACE_Reactor *reactor, ACE_Thread_Manager *thr_mgr)
Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY
	HI_PRIORITY
	NULL_MASK
	READ_MASK
	WRITE_MASK
	EXCEPT_MASK
	ACCEPT_MASK
	CONNECT_MASK
	TIMER_MASK
	QOS_MASK
	GROUP_QOS_MASK
	SIGNAL_MASK
	ALL_EVENTS_MASK
	RWE_MASK
	DONT_CALL
	ACE_EVENT_HANDLER_NOT_RESUMED
	ACE_REACTOR_RESUMES_HANDLER
	ACE_APPLICATION_RESUMES_HANDLER

Detailed Description

Definition at line 28 of file ReactorInterceptor.h.

Member Typedef Documentation

CommandPtr

typedef RcHandle<Command> OpenDDS::DCPS::ReactorInterceptor::CommandPtr

Definition at line 49 of file ReactorInterceptor.h.

Member Enumeration Documentation

ReactorState

enum OpenDDS::DCPS::ReactorInterceptor::ReactorState

protected

Enumerator
RS_NONE
RS_NOTIFIED
RS_PROCESSING

Definition at line 60 of file ReactorInterceptor.h.

                    {
    RS_NONE,
    RS_NOTIFIED,
    RS_PROCESSING
  };

Constructor & Destructor Documentation

ReactorInterceptor()

OpenDDS::DCPS::ReactorInterceptor::ReactorInterceptor ( ACE_Reactor *  reactor, ACE_thread_t  owner  )

protected

Definition at line 26 of file ReactorInterceptor.cpp.

References ACE_Event_Handler::reactor().

  : owner_(owner)
  , state_(RS_NONE)
{
  RcEventHandler::reactor(reactor);
}

~ReactorInterceptor()

OpenDDS::DCPS::ReactorInterceptor::~ReactorInterceptor ( )

protectedvirtual

Definition at line 34 of file ReactorInterceptor.cpp.

{
}

Member Function Documentation

execute_or_enqueue()

ReactorInterceptor::CommandPtr OpenDDS::DCPS::ReactorInterceptor::execute_or_enqueue

(

CommandPtr

command

)

Definition at line 38 of file ReactorInterceptor.cpp.

References command_queue_, mutex_, ACE_Reactor::notify(), OPENDDS_ASSERT, owner_, process_command_queue_i(), ACE_Event_Handler::reactor(), reactor_is_shut_down(), ACE_Guard< ACE_LOCK >::release(), RS_NONE, RS_NOTIFIED, RS_PROCESSING, ACE_Thread::self(), state_, and ACE_OS::thr_equal().

Referenced by OpenDDS::DCPS::DataLink::add_on_start_callback(), OpenDDS::DCPS::SporadicTask::cancel(), OpenDDS::DCPS::InstanceState::cancel_release(), OpenDDS::DCPS::EndHistoricSamplesMissedSweeper::cancel_timer(), OpenDDS::DCPS::PeriodicTask::disable(), OpenDDS::DCPS::MultiTask::disable(), OpenDDS::DCPS::PeriodicTask::enable(), OpenDDS::DCPS::MultiTask::enable(), OpenDDS::DCPS::RtpsUdpTransport::make_datalink(), OpenDDS::RTPS::Spdp::SpdpTransport::open(), OpenDDS::DCPS::SporadicTask::schedule(), OpenDDS::DCPS::InstanceState::schedule_release(), OpenDDS::DCPS::EndHistoricSamplesMissedSweeper::schedule_timer(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::start_i(), OpenDDS::DCPS::RtpsUdpTransport::start_ice(), OpenDDS::DCPS::RtpsUdpReceiveStrategy::stop_i(), and OpenDDS::DCPS::RtpsUdpTransport::stop_ice().

{
  OPENDDS_ASSERT(command);

  ACE_Guard<ACE_Thread_Mutex> guard(mutex_);

  // Only allow immediate execution if running on the reactor thread, otherwise we risk deadlock
  // when calling into the reactor object.
  const bool is_owner = ACE_OS::thr_equal(owner_, ACE_Thread::self());

  // If state is set to processing, the conents of command_queue_ have been swapped out
  // so immediate execution may run jobs out of the expected order.
  const bool is_not_processing = state_ != RS_PROCESSING;

  // If the command_queue_ is not empty, allowing execution will potentially run unexpected code
  // which is problematic since we may be holding locks used by the unexpected code.
  const bool is_empty = command_queue_.empty();

  // If all three of these conditions are met, it should be safe to execute
  const bool is_safe_to_execute = is_owner && is_not_processing && is_empty;

  // Even if it's not normally safe to execute, allow immediate execution if the reactor is shut down
  const bool immediate = is_safe_to_execute || reactor_is_shut_down();

  // Always set reactor and push to the queue
  ACE_Reactor* local_reactor = ACE_Event_Handler::reactor();
  command->set_reactor(local_reactor);
  command_queue_.push_back(command);

  // But depending on whether we're running it immediately or not, we either process or notify
  if (immediate) {
    process_command_queue_i(guard);
  } else if (state_ == RS_NONE) {
    state_ = RS_NOTIFIED;
    guard.release();
    local_reactor->notify(this);
  }
  return command;
}

handle_exception()

int OpenDDS::DCPS::ReactorInterceptor::handle_exception ( ACE_HANDLE  )

protectedvirtual

Reimplemented from ACE_Event_Handler.

Definition at line 78 of file ReactorInterceptor.cpp.

References mutex_, process_command_queue_i(), and TheServiceParticipant.

{
  ThreadStatusManager::Event ev(TheServiceParticipant->get_thread_status_manager());

  ACE_Guard<ACE_Thread_Mutex> guard(mutex_);
  process_command_queue_i(guard);
  return 0;
}

OPENDDS_VECTOR()

typedef OpenDDS::DCPS::ReactorInterceptor::OPENDDS_VECTOR ( CommandPtr  )

protected

process_command_queue_i()

void OpenDDS::DCPS::ReactorInterceptor::process_command_queue_i ( ACE_Guard< ACE_Thread_Mutex > &  guard )

protected

Definition at line 87 of file ReactorInterceptor.cpp.

References command_queue_, mutex_, ACE_Reactor::notify(), ACE_Event_Handler::reactor(), reactor(), ACE_Guard< ACE_LOCK >::release(), RS_NONE, RS_NOTIFIED, RS_PROCESSING, and state_.

Referenced by execute_or_enqueue(), and handle_exception().

{
  Queue cq;
  ACE_Reverse_Lock<ACE_Thread_Mutex> rev_lock(mutex_);

  state_ = RS_PROCESSING;
  if (!command_queue_.empty()) {
    cq.swap(command_queue_);
    ACE_Guard<ACE_Reverse_Lock<ACE_Thread_Mutex> > rev_guard(rev_lock);
    for (Queue::const_iterator pos = cq.begin(), limit = cq.end(); pos != limit; ++pos) {
      (*pos)->execute();
    }
  }
  if (!command_queue_.empty()) {
    state_ = RS_NOTIFIED;
    ACE_Reactor* const reactor = ACE_Event_Handler::reactor();
    guard.release();
    reactor->notify(this);
  } else {
    state_ = RS_NONE;
  }
}

reactor() [1/2]

void OpenDDS::DCPS::ReactorInterceptor::reactor ( ACE_Reactor *  reactor )

virtual

Reimplemented from ACE_Event_Handler.

Definition at line 110 of file ReactorInterceptor.cpp.

References mutex_, and ACE_Event_Handler::reactor().

Referenced by OpenDDS::DCPS::WriterInfo::cancel_historic_samples_timer(), OpenDDS::DCPS::MultiTask::MultiTask(), OpenDDS::DCPS::PeriodicTask::PeriodicTask(), OpenDDS::DCPS::WriterInfo::schedule_historic_samples_timer(), and OpenDDS::DCPS::SporadicTask::SporadicTask().

{
  ACE_Guard<ACE_Thread_Mutex> guard(mutex_);
  ACE_Event_Handler::reactor(reactor);
}

reactor() [2/2]

ACE_Reactor * OpenDDS::DCPS::ReactorInterceptor::reactor ( void  ) const

virtual

Reimplemented from ACE_Event_Handler.

Definition at line 116 of file ReactorInterceptor.cpp.

References mutex_, and ACE_Event_Handler::reactor().

Referenced by OpenDDS::DCPS::RegisterHandler::execute(), OpenDDS::DCPS::RemoveHandler::execute(), process_command_queue_i(), OpenDDS::DCPS::ReactorInterceptor::Command::set_reactor(), and OpenDDS::ICE::AgentImpl::shutdown().

{
  ACE_Guard<ACE_Thread_Mutex> guard(mutex_);
  return ACE_Event_Handler::reactor();
}

reactor_is_shut_down()

virtual bool OpenDDS::DCPS::ReactorInterceptor::reactor_is_shut_down ( ) const

pure virtual

Implemented in OpenDDS::DCPS::DataReaderImpl::LivelinessTimer, OpenDDS::DCPS::DataLink::Interceptor, OpenDDS::DCPS::TransportClient::PendingAssocTimer, OpenDDS::DCPS::InstanceState, OpenDDS::DCPS::EndHistoricSamplesMissedSweeper, OpenDDS::ICE::AgentImpl, and OpenDDS::DCPS::ReactorTask::Interceptor.

Referenced by execute_or_enqueue().

Member Data Documentation

command_queue_

Queue OpenDDS::DCPS::ReactorInterceptor::command_queue_

protected

Definition at line 76 of file ReactorInterceptor.h.

Referenced by execute_or_enqueue(), and process_command_queue_i().

mutex_

ACE_Thread_Mutex OpenDDS::DCPS::ReactorInterceptor::mutex_

mutableprotected

Definition at line 74 of file ReactorInterceptor.h.

Referenced by execute_or_enqueue(), handle_exception(), OpenDDS::DCPS::EndHistoricSamplesMissedSweeper::handle_timeout(), process_command_queue_i(), and reactor().

owner_

ACE_thread_t OpenDDS::DCPS::ReactorInterceptor::owner_

protected

Definition at line 73 of file ReactorInterceptor.h.

Referenced by execute_or_enqueue().

state_

ReactorState OpenDDS::DCPS::ReactorInterceptor::state_

protected

Definition at line 77 of file ReactorInterceptor.h.

Referenced by execute_or_enqueue(), and process_command_queue_i().

---

The documentation for this class was generated from the following files:

• ReactorInterceptor.h
• ReactorInterceptor.cpp
